D-Link Cloud Camera 7100 DCS-7010L User manual

DCS-7010L
Cloud Camera 7100
Outdoor HD Network Camera
Product Highlights Outdoor HD Network Camera
The D-Link Cloud Camera 7100 (DCS-7010L) is an Outdoor HD Network Camera. With an
outdoor-ready design, HD 720p surveillance recording, and Cloud Services-enabled remote
management, the Cloud Camera 7100 provides a perimeter of weatherproof protection so
you can keep an eye on what matters most.
Outdoor-Ready Coverage
D-Link’s Cloud Camera 7100 is outdoor-ready with a weatherproof casing equipped to
handle dust and low-pressure water contact. It also features a versatile -12°F to 122°F
operating temperature range so you can keep an eye on the bigger picture – whatever the
weather, whatever the season.
HD 720p for Superior Image Quality
The Cloud Camera 7100 delivers the condence of HD 720p video clarity, ensuring rich detail
and crisp image quality for your surveillance recording. And with integrated night-vision
and the Cloud Camera 7100 remains vigilant 24 hours a day, whether you’re there or not.
Outdoor-Ready: IP66
Weatherproof casing
Remote Viewing: View on
iPhone®, iPad® or Android®
with mydlink™ app
Day/Night: See up to
30-feet in the dark
Record Video:
microSD/SDHC card slot
Trigger recording
and email alerts
HD Image Quality and Detail
A high-resolution megapixel sensor provides HD
720p resolution images and video to ensure that
you capture the details you need
Outdoor Day/Night
A built-in ICR lter and IR illuminator let you monitor
an area 24 hours a day, and the weatherproof casing
protects against damage and the elements
mydlink-enabled Cloud Access
Easy remote viewing and management of your
camera on your mobile device or through the
mydlink website

DCS-7010L Cloud Camera 7100
Package Contents
• CloudCamera7100(DCS-7010L)
• EthernetCable
• PowerAdapter
• MountingKit
• QuickInstallGuide
Minimum System Requirements
Computer with:
• 1.3GHzProcessor
• 128MBMemory
• Windows®75,WindowsVista®5andWindows®XPSP3®5,
 orMacOSX(10.5andabove,IntelProcessor)
• InternetExplorer®7,Mozilla®Firefox®v3.5,Google® 
 Chromev2,orSafari®v4orabove
For Internet Access:
• CableorDSLModem
• SubscriptionwithanInternetServiceProvider(ISP)
Features
• RemotelyMonitorYourHomeorOfficeovertheInternet
• IEEE802.3afPoE
• HDresolution1280x720(Max.1280x800)
• 2-WayAudioSupport
• SupportsH.264/MJPEG/MPEG-4VideoCodec
• Built-In10MIRLEDforViewingDarkEnvironments
• MicroSD/SDHCCardSlotforLocalRecording
• MotionDetectiontoTriggerRecordingandSend
E-mail Alerts1
• PrivacyMaskSupport
• DigitalPan/Tilt/Zoom
• SupportforiPhone®,iPad®&Android®Apps2
• mydlink.comPortalforEasyViewingand 
 Management
• Administrator/UserPasswordProtection
• UPnP®SupportforNetworkSetup&Conguration
• IP66Weatherproof
• OperatingTemperature:-25°C-50°C(-12°F-122°F)
• 24/7BasicInstallationSupport3
• 1-YearLimitedWarranty4
Industry-Leading Remote Viewing with mydlink
With the free mydlink Lite app, you can monitor your home or business on your iPhone,
iPad or Android device and experience the peace of mind that comes from having
round-the-clock surveillance at your ngertips. Check in on your home while you’re at
work, or monitor on your business when you’re out of the oce – with mydlink, you
can keep an eye on what matters, whenever and wherever you want.
A Scalable Surveillance Solution
The Cloud Camera 7100 works as a standalone surveillance system, or it can grow and
scale over time with your changing home or business needs. Create a multi-camera
system with the included D-ViewCam software for a comprehensive surveillance solution
that grows with you.
Make Easy Setup Even Easier – With Zero Conguration
Connecting your D-Link camera with any router is easy – make it even easier with your
D-LinkCloudRouter.ZeroCongurationautomaticallyconguresandintelligentlysyncs
your D-Link camera to your mydlink account – it’s as easy as connect and view!

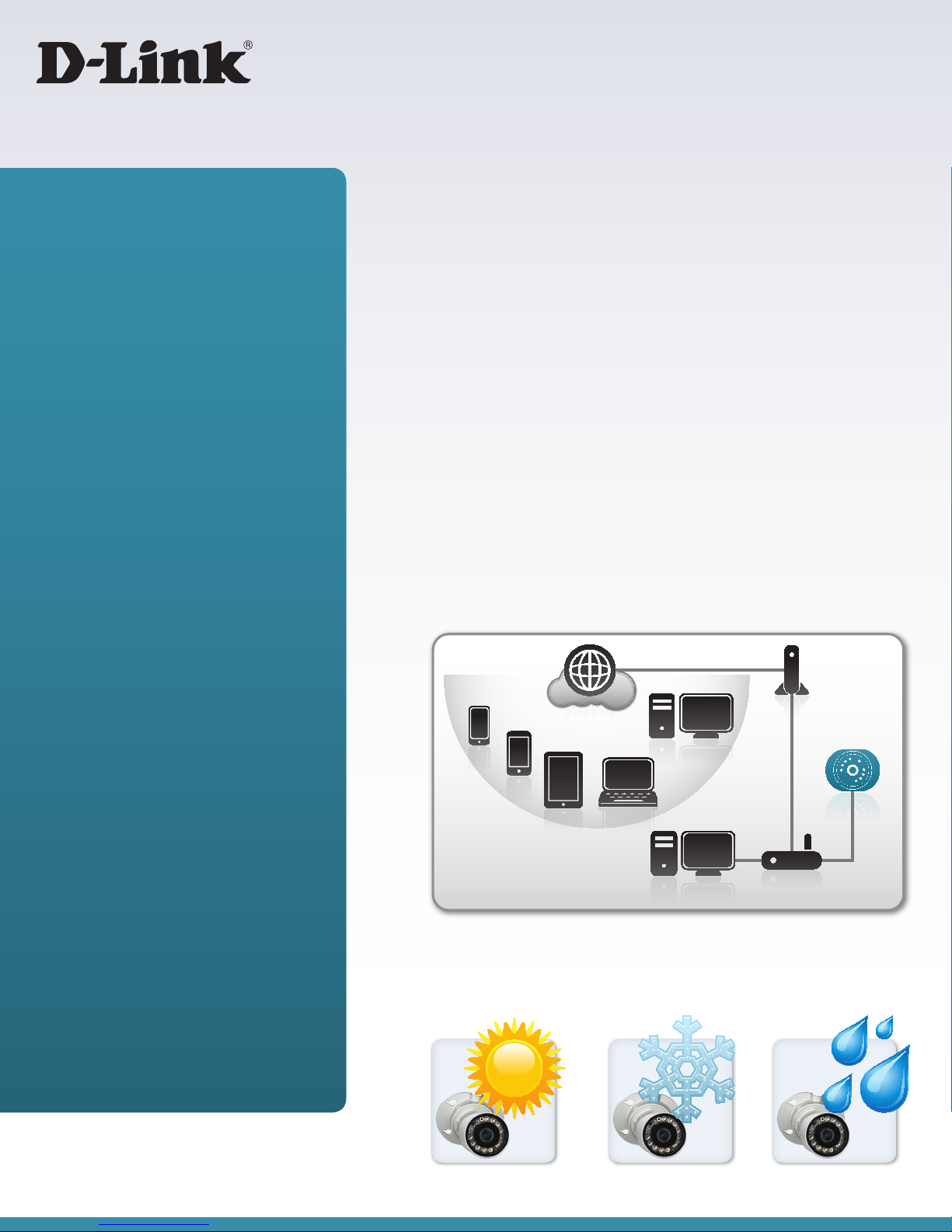

It’s never been easier to view live streaming video of
your home or oce:
Android™
Device
iPhone®Remote Viewing
iPad®
Desktop PC
ModemInternet
Desktop PC Router
DCS-7010L
Cloud Camera 7100
Laptop
Versatile operating temperature range. Dust, water and heat
and cold-resistant. Reliable coverage for any time, any season.

DCS-7010L Cloud Camera 7100
Technical Specications
Camera
HardwareProfile •1/4”MegapixelprogressiveCMOSsensor
•10meterIRilluminationdistance
•Minimumillumination:0luxwithIRLEDon
•Built-inInfrared-CutRemovable(ICR)Filtermodule
•Audioinandoutjacks
•10xdigitalzoom
•Focallength:4.3mm
•Aperture:F2.0
Field of View •(H)47°,(V)37°,(D)60°
Camera Housing •IP-66compliantweatherproofhousing •CableManagementBracket
Image Features •Configurableimagesize,quality,framerate,andbitrate
•Timestampandtextoverlays
•Configurablemotiondetectionwindows
Video Compression •H.264/MPEG-4/MJPEGsimultaneous
format compression
•H.264/MPEG-4multicaststreaming
•JPEGforstillimages
Video Resolution •16:9-1280x800,1280x720,800x450,640x360,
 480x270,320x176,176x144upto30fpsrecording7
•4:3-1024x768,800x600,640x480,480x360,
 320x240,176x144upto30fpsrecording7
Audio Support •G.726 •G.711
External Device Interface •10/100BASE-TXFastEthernetport
•Supports802.3afPoE
•MicroSD/SDHCcardslot
•DI/DOports
•AudioIn/Out3.5mmJacks
Network
NetworkProtocols •IPv6
•IPv4
•TCP/IP
•UDP
•ICMP
•DHCPclient
•NTPclient(D-Link)
•DNSclient
•DDNSclient(D-Link)
•SMTPclient
•FTPclient
•HTTP/HTTPS
•Sambaclient
•PPPoE
•UPnPportforwarding
•RTP/RTSP/RTCP
•IPfiltering
•QoS
•CoS
•Multicast
•IGMP
•ONVIFcompliant
Security •Administratorandusergroupprotection
•Passwordauthentication
•HTTPandRTSPdigestencryption
SystemManagement
System Requirements for Web Interface •Browser:InternetExplorer,MozillaFirefox,orGoogleChrome
EventManagement •Motiondetection
•Eventnotificationanduploadingofsnapshots/video
clipsviae-mailorFTP
•SupportsmultipleSMTPandFTPservers
•Multipleeventnotifications
•Multiplerecordingmethodsforeas
RemoteManagement •Configurationaccessibleviawebbrowser
•Takesnapshots/videoclipsandsavetolocalharddriveorNASviawebbrowser
MobileSupport •Windows7®/Vista®/XP®system,PocketPC,ormobilephone
•mydlink™mobileappforiOSandAndroidmobiledevices
D-ViewCam™SystemRequirements •OperatingSystem:MicrosoftWindows7/Vista/XP
•WebBrowser:InternetExplorer7orhigher
•Protocol:StandardTCP/IP
D-ViewCam™SoftwareFunctions •Remotemanagement/controlofupto32cameras
•Viewingofupto32camerasononescreen
• Supportsallmanagementfunctionsinwebinterface
• Scheduledmotiontriggeredormanualrecordingoptions

Building Networks for People
DCS-7010L Cloud Camera 7100
©2012 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, mydlink, and the D-Link RoHS logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other
countries. Other trademarks or registered trademarks are the property of their respective owners. iPhone and iPad are registered trademarks of Apple Inc. Android is a trademark of Google Inc.
Updated 10/18/12
U.S.A. | 17595 Mt. Herrmann Street | Fountain Valley, CA 92708 | 800.326.1688 | dlink.com Canada | 2525 Meadowvale Blvd | Mississauga, ON L5N 5S2 | 800.361.5265 | dlink.ca
1Useofaudioorvideoequipmentforrecordingtheimageofapersonwithouttheirknowledgeandconsentisprohibitedincertainstatesorjurisdictions.Theend-userassumesallliabilityforcompliancewithapplicablestate,localandfederal
laws.. 2The inclusion of a specic product or manufacturer does not imply its endorsement of D-Link or the D-Link product. 324/7BasicInstallationSupportisavailableonlyintheUSAfortherst30daysfromdateoforiginalpurchase.41-Year
LimitedWarrantyavailableonlyintheUSAandCanada.5ComputermustadheretoMicrosoft’srecommendedSystemRequirements.6ZeroCongurationrequiresmydlink-enabledCloudRouter.
Allreferencestospeedandrangeareforcomparisonpurposesonly.Productspecications,sizeandshapearesubjecttochangewithoutnotice,andactualproductappearancemaydierfromthatdepictedherein.

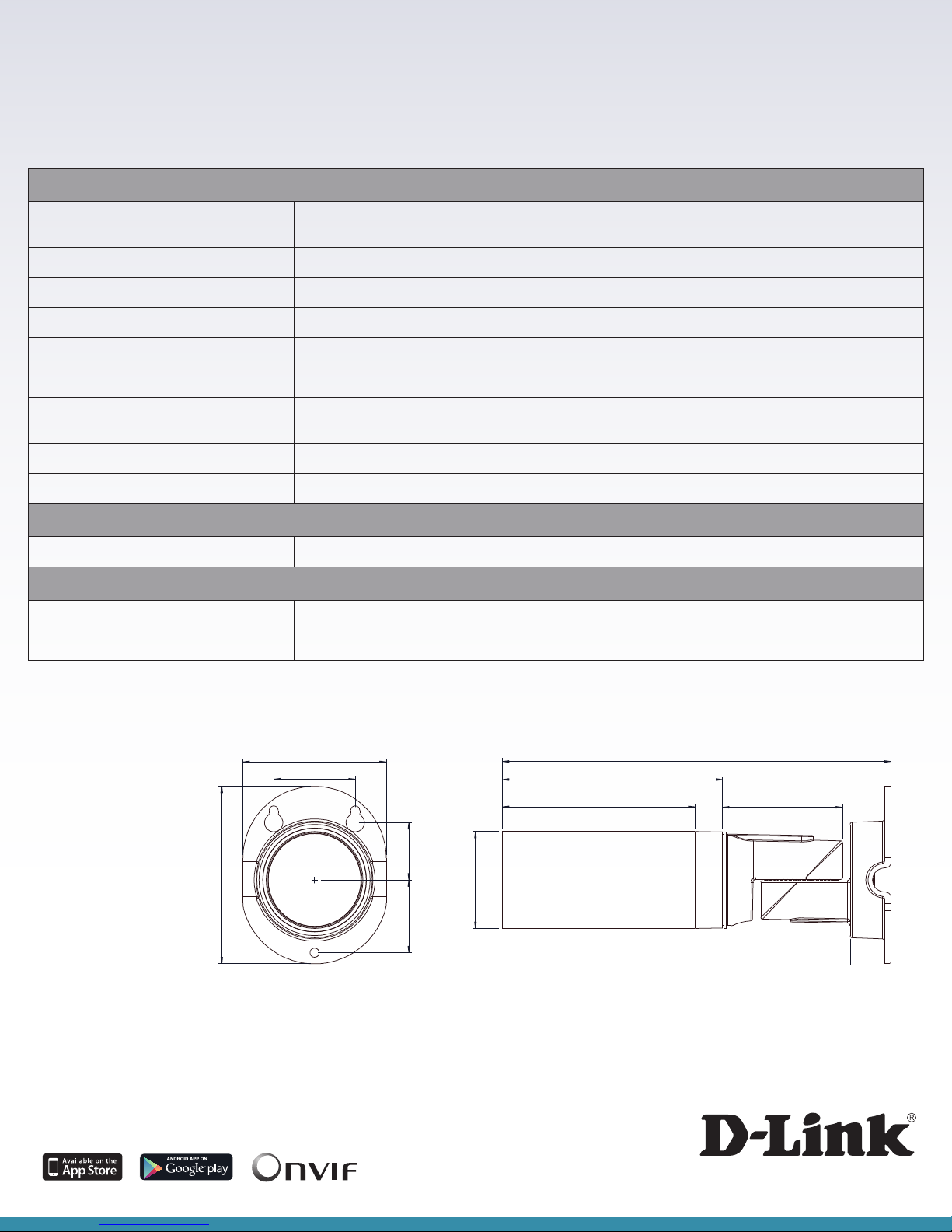

GeneralSpecications
Power •5VDC,1.2Athroughexternalpoweradapter
•ExternalPowerAdapterInput:100to240VAC,50/60Hz
•802.3af(PoE)
Max.PowerConsumption •5.4watts
Operating Temperature •-12to122°F(-25°to50°C)
Storage Temperature •-4°to158°F(-20°to70°C)
Operating Humidity •20%to80%non-condensing
Storage Humidity •5%to95%non-condensing
Certifications •CE
•CELVD
•FCC
•C-Tick
Dimensions •2.56”x3.17”x6.96”(65mmx80.5mmx176.5mm)
Weight •510g±5%
Warranty
Warranty •1-YearLimited4
Order Information
Part Number Description
DCS-7010L Cloud Camera 7100
2.5” (65mm)
1.02”
(26mm)
1.3”
(33mm)
1.37” (44mm)
6.9” (176.5mm)
3.94” (100mm)
2.14” (54.4mm)3.44” (87.5mm)
1.5” (37mm)
3.17” (80.5mm)
