D-Link DCS-2530L User manual

User Manual
Version 1.03 | November 22, 2017
DCS-2530L
Full HD 180-Degree Wi-Fi Network Camera

2D-Link DCS-2530L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change.
Manual Revisions
Revision Date Description
1.00 04/22/2016 DCS-2530L Revision A1 with rmware version 1.00
1.01 09/23/2016 Update technical specications
1.02 11/08/2016 Updated for rmware 1.00.21
1.03 11/22/2017 Updated for rmware v1.03 with privacy mode
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2017 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Preface

3D-Link DCS-2530L User Manual
Table of Contents
Product Overview.............................................................. 4
Package Contents......................................................................... 4
System Requirements................................................................. 4
Introduction ................................................................................... 5
Features............................................................................................ 5
Hardware Overview..................................................................... 6
Front View................................................................................ 6
Rear View ................................................................................. 7
Installation ......................................................................... 8
Wireless Installation Considerations...................................... 9
Mobile App Setup ......................................................................10
Zero Conguration Setup........................................................11
Mounting the Camera...............................................................14
mydlink...........................................................................................16
Using the DCS-2530L with Google Home .........................17
Conguration...................................................................20
Accessing the Web Conguration Utility...........................20
Live Video ......................................................................................21
Setup...............................................................................................23
Setup Wizard ........................................................................23
Network Setup.....................................................................28
Wireless Setup......................................................................31
Dynamic DNS .......................................................................32
Image Setup .........................................................................33
Audio and Video..................................................................35
Motion Detection ...............................................................36
Sound Detection.................................................................37
Time and Date......................................................................38
Event Setup...........................................................................39
SD Card...................................................................................47
Advanced ......................................................................................48
ICR and IR...............................................................................48
HTTPS......................................................................................49
Access List..............................................................................50
Maintenance ................................................................................51
Admin .....................................................................................51
System ....................................................................................52
Firmware Upgrade..............................................................53
Status ..............................................................................................54
Device Info ............................................................................54
Log ...........................................................................................55
Help .................................................................................................56
Technical Specications..................................................57
Contacting Technical Support ........................................59
Warranty...........................................................................60
Registration .....................................................................65

4D-Link DCS-2530L User Manual
Section 1: Product Overview
Product Overview
Package Contents
System Requirements
• 802.11n/g Wi-Fi router
• A broadband Internet connection
• iPhone, iPad, Android, or smartphone or tablet (please refer to the mobile app’s store page to check whether your device is
compatible)
• DCS-2530L Full HD 180-Degree Wi-Fi Network Camera
• Power Adapter
• Mounting Kit
• Quick Installation Guide
• Quick Install Card
Note: Using a power supply with a dierent voltage than the one included with your product
will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.

5D-Link DCS-2530L User Manual
Section 1: Product Overview
Introduction
The DCS-2530L Full HD 180-Degree Wi-Fi Network Camera boasts an ultra-wide 180° horizontal lens that easily captures your entire room, wall-to-
wall, in high-quality 1080p. Its rotatable head makes ceiling installations easy, and the built-in night vision and handy mobile app empower you
with knowing exactly what is happening, day or night.
180°Wide Angle Lens
The DCS-2530L provides whole-room coverage with a 180°wide angle lens, eliminating the need for multiple cameras to cover a single room.
Built-in dewarping technology automatically corrects the image for you.
1080p Full HD Video
The 1080p Full HD sensor provides crisp detail and clarity for high-quality snapshots and video.
Comprehensive Day/Night Surveillance
The infrared LEDs enable night time viewing of up to 16 feet (5 meters), while the motion sensor and built-in microphone detects nearby motion
and sound anytime day or night. The microSD card slot allows the camera to record snapshots and video directly to onboard storage for a complete
surveillance solution.
Wireless N Connectivity
The DCS-2530L uses high-speed Wireless N to connect to your wireless router, and is compatible with 802.11n/g.
Web Conguration
In addition to the mydlink mobile app, you can use a standard web browser to congure and manage the DCS-2530L through the mydlink website,
and access your DCS-2530L anytime, anywhere in the world from virtually any device.
Features

6D-Link DCS-2530L User Manual
Section 1: Product Overview
Hardware Overview
Front View
Camera Lens
Microphone
IR LEDs (behind cover)
Light Sensor
Camera Stand
Signal Locator LED
Solid Green: Best wireless signal
Solid Orange: Good wireless signal
Blinking Orange: Poor wireless signal

7D-Link DCS-2530L User Manual
Section 1: Product Overview
Rear View
microSD Slot
MicroUSB Connector
(for power)
Reset Button
WPS Button
Power/Status LED
Solid Green: Successfully connected
Blinking Green: WPS process in progress
Solid Red: Camera is booting, or rmware
upgrade is in progress

8D-Link DCS-2530L User Manual
Section 2: Installation
Installation
There are two ways to set up your camera:
mydlink Lite Mobile App: You can use the mydlink Lite mobile app to guide you through setup and initial conguration of your
camera. Refer to "Mobile App Setup" on page 10.
Zero Conguration Setup: If you have a mydlink-enabled router (D-Link Wi-Fi router), this is the easiest way to set up your camera.
Refer to "Zero Conguration Setup" on page 11.
Note: To ensure your product has the latest security updates and operates at optimal performance, it is recommended you update your product to
the latest rmware after installation and to periodically check for new rmware releases. Updates can be found by searching your model name at
http://support.dlink.com or through the mydlink mobile apps for mydlink registered devices.

9D-Link DCS-2530L User Manual
Section 2: Installation
Wireless Installation Considerations
The DCS-2530L connects to your network using a wireless connection from anywhere within the operating range of your wireless network. However,
the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.Typical ranges
vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.

10D-Link DCS-2530L User Manual
Section 2: Installation
Mobile App Setup
You can congure your camera through the mydlink Lite mobile app. On your mobile device, download mydlink Lite by searching for mydlink Lite
in the iTunes App Store, Google Play, or the Windows Store.
Launch the mydlink Lite app and create a new account or sign in to your existing account. Follow the onscreen instructions to set up your camera.
When you are asked to scan a QR code, use the code on the Quick Install Card in your package, or on the label attached to your device.
Congratulations, your DCS-2530L is now ready to use! Be sure to accept any rmware update to keep your product secure and up to date with the
latest features.

11D-Link DCS-2530L User Manual
Section 2: Installation
Zero Conguration Setup
If you have a mydlink-enabled Wi-FI Router, you can take advantage of Zero Conguration Setup. Zero Conguration automatically congures
your camera’s settings for you, and adds the camera to your mydlink account automatically. This type of setup allows you to set up your camera by
simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Wi-Fi router and Zero Configuration will automatically configure your DCS-2530L and
add the camera to your mydlink account. After the short time it takes to do this you can remotely access your camera from the website
(http://www.mydlink.com) or the mydlink app to manage and monitor your DCS-2530L.
Plug in the External Power Adapter
Connect the power adapter to the microUSB port on the back of the camera. Plug the power
adapter in to a wall outlet.
Press the WPS button on your camera
Press and hold the WPS button for three seconds. The blue WPS status LED will start blinking.
Press the WPS button on your Wi-Fi Router
Press the WPS button on your router within 60 seconds. The WPS button is usually on the
side or back of your Wi-Fi router. The DCS-2530L will automatically create a secure wireless
connection to your router and reboot. When it has successfully connected, the Power LED will
be lit green and the Direct LED will be turned o.

12D-Link DCS-2530L User Manual
Section 2: Installation
DCS-2530L

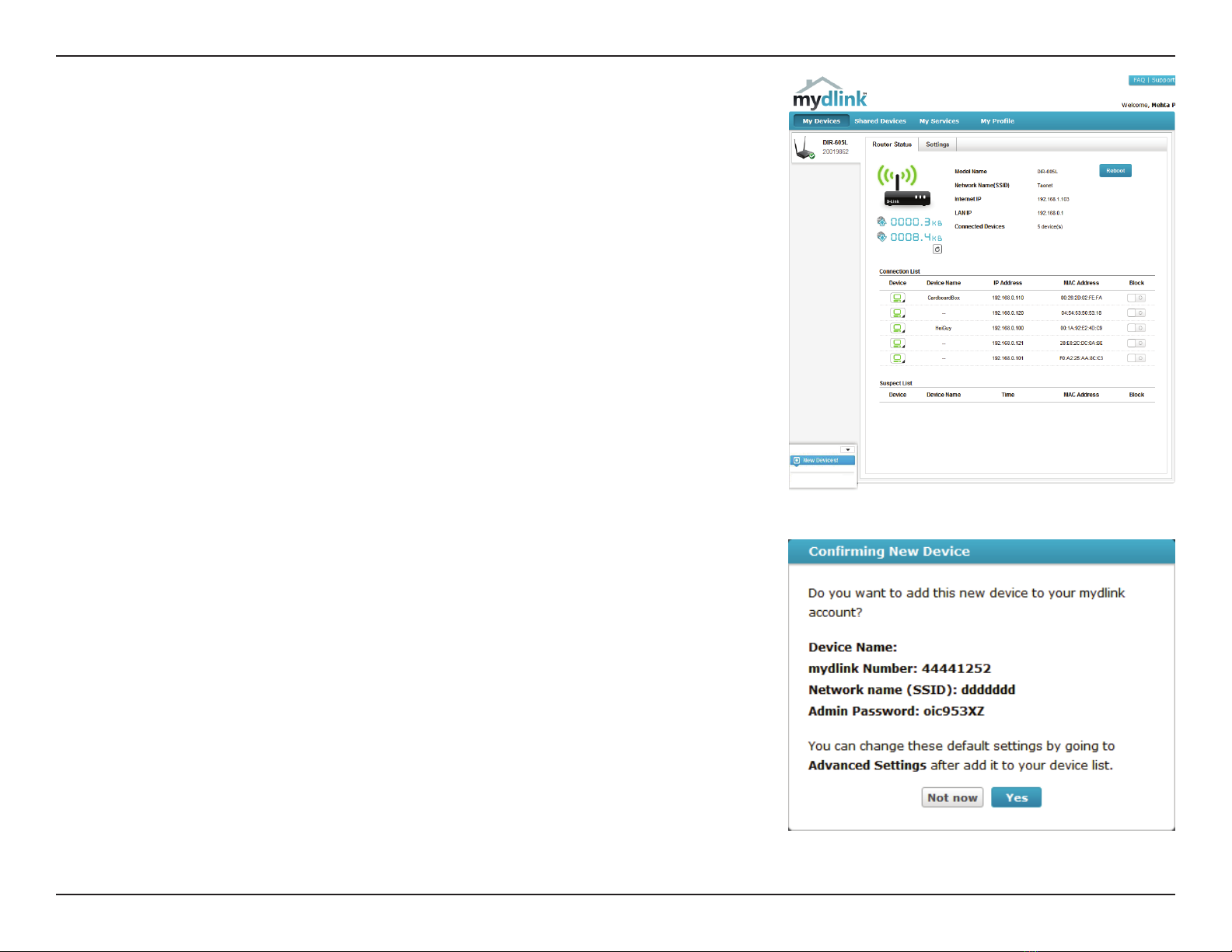

Check Your mydlink Account
From any computer with an Internet connection, open a web browser and login to your mydlink
account. The mydlink page will check for new devices and display a New device Found! pop-
up notication in the bottom left corner. Click the notication to continue.
A summary and conrmation notication will appear with the automatically congured details.
Make a note of the details and click Yes to add the camera to your account.
DCS-2530L

13D-Link DCS-2530L User Manual
Section 2: Installation

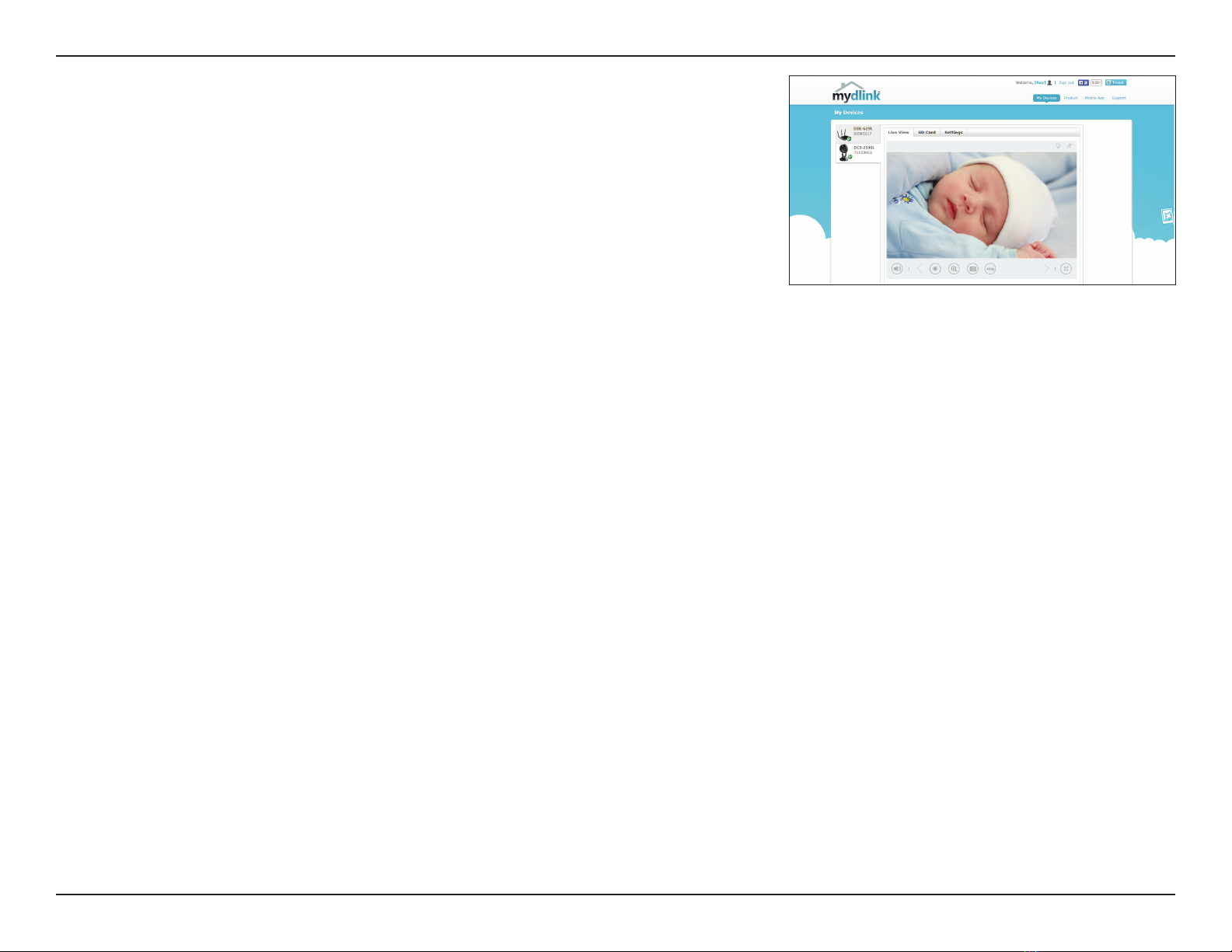

Zero Conguration will navigate to the mydlink Live View tab for your camera where you will see
a screen similar to the following.
Your camera is now set up, and you can skip to "mydlink" on page 16 to learn more about the
mydlink features of this camera, or to "Conguration" on page 20 for advanced conguration
of your camera.
Note: If you see a white haze when viewing in night vision mode, the night vision light on the
camera may be reecting o a nearby surface. Try repositioning and aiming the camera.

14D-Link DCS-2530L User Manual
Section 2: Installation

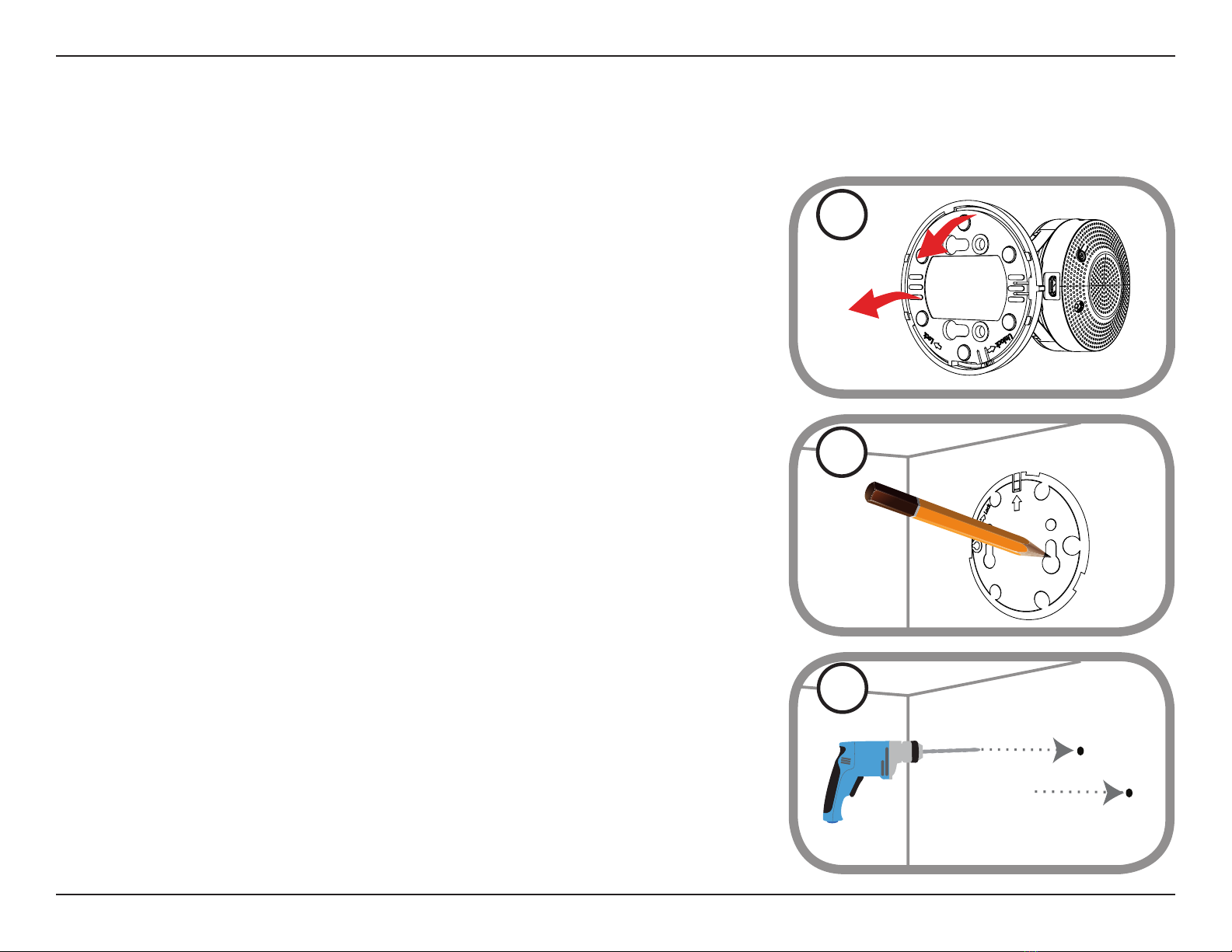

Mounting the Camera
To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.
Step 1
Rotate the baseplate counter-clockwise and remove it. 1
Step 2
Place the baseplate where you want to position the camera and use a pencil to mark the holes.
You can use the lower holes for a removable installation, or the top holes for a xed one. Make
sure that the arrow on the baseplate is pointing up.
2
Step 3
Depending on the material of the wall or ceiling, use proper tools to drill holes 25 mm deep
with a 6 mm drill bit where you marked. If the wall is made out of concrete, drill the holes rst,
then insert the plastic anchors to support the screws.
3

15D-Link DCS-2530L User Manual
Section 2: Installation

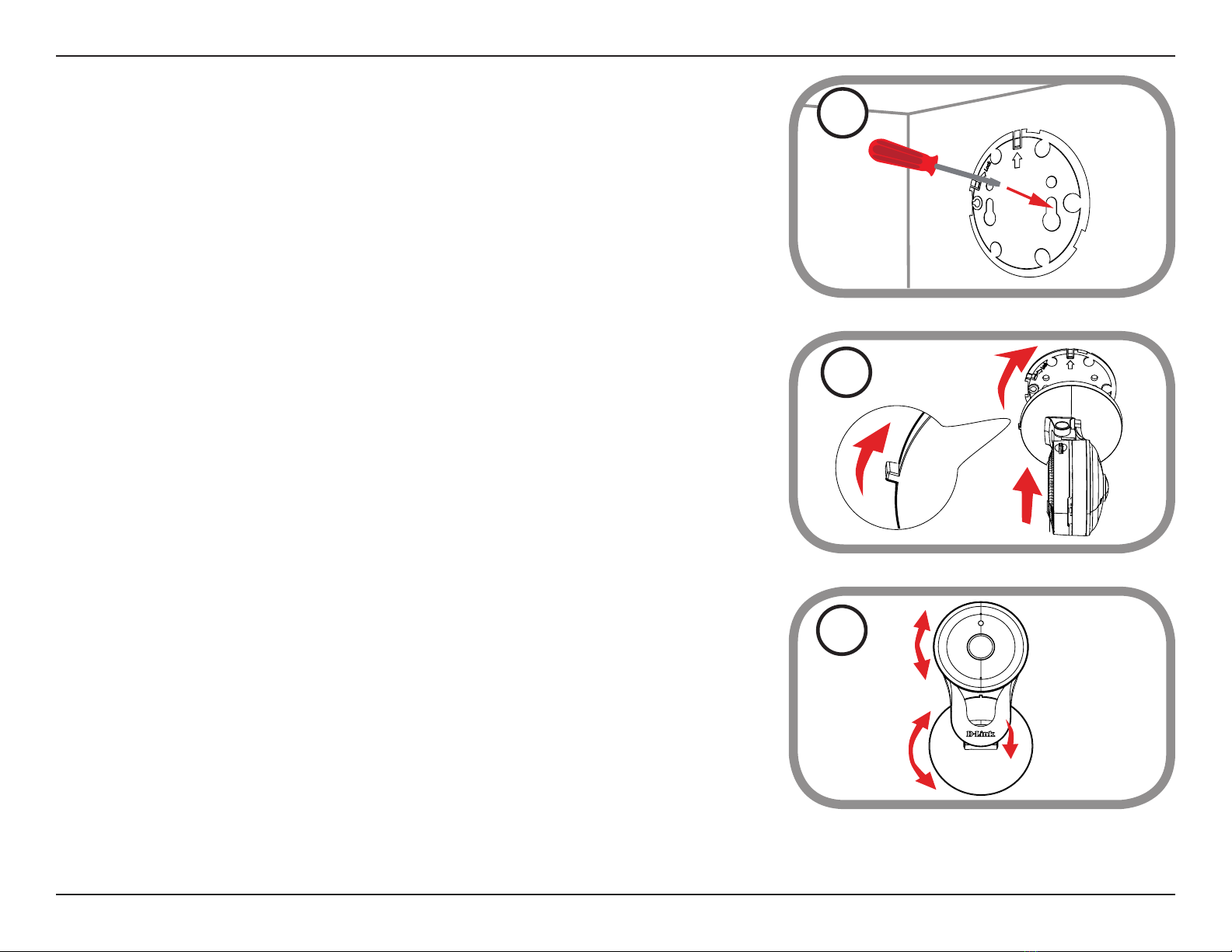

Step 4
Place the baseplate over the holes that are in the wall. Make sure to align the baseplate holes
with the holes in the wall. Use the supplied screws to attach the baseplate to the surface of
the wall.
4
Step 6
Adjust the angle and rotation of the camera as desired. You can also rotate the camera on the
baseplate about 45° to the right or left. 6
Step 5
Place the camera over the baseplate with the alignment nub pointing left, then attach the
camera by rotating it until the alignment nub points up. 5

16D-Link DCS-2530L User Manual
Section 2: Installation
mydlink

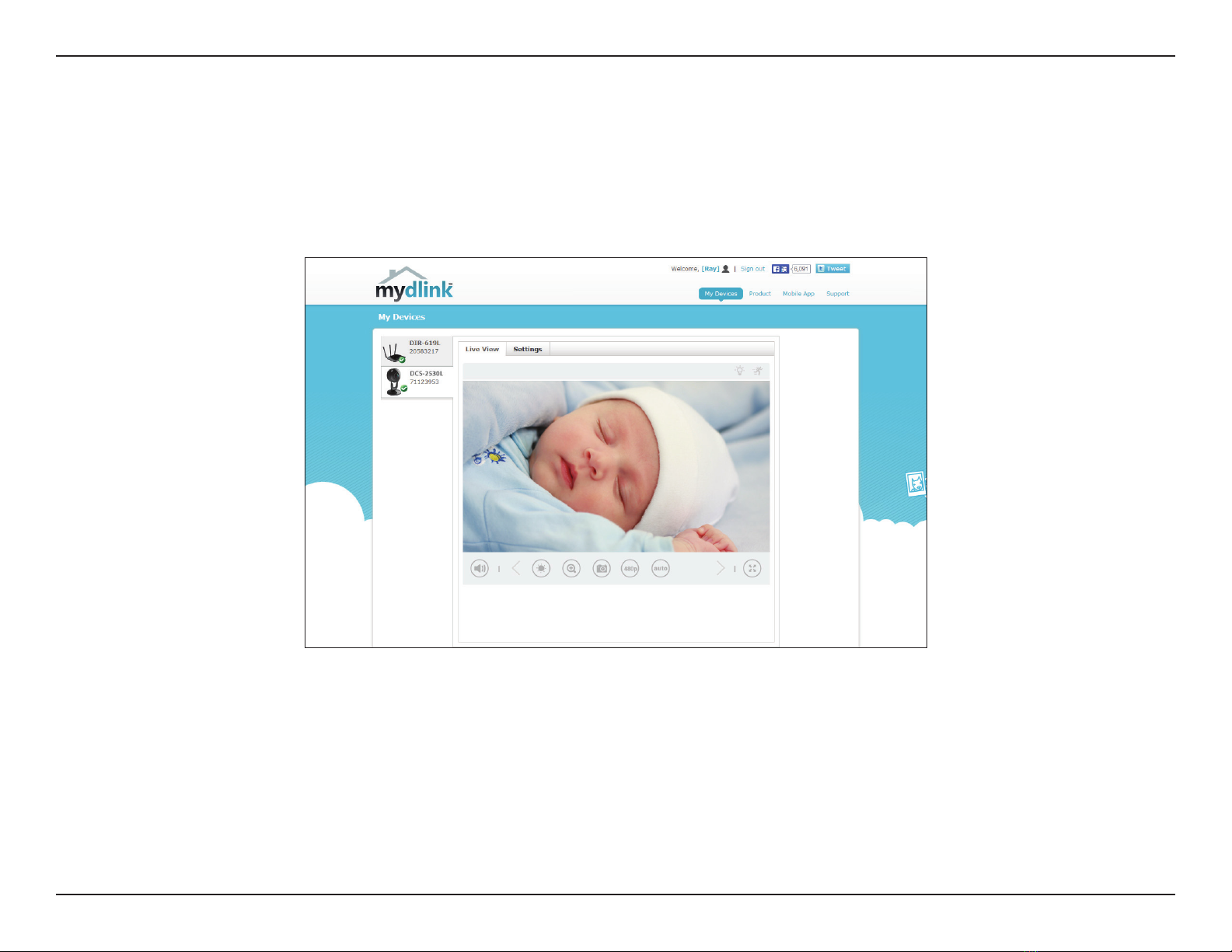

After registering your camera with a mydlink account, you will be able to remotely access your camera from the www.mydlink.com website. After
signing in to your mydlink account, you will see a screen similar to the following:

17D-Link DCS-2530L User Manual
Section 2: Installation
Using the DCS-2530L with Google Home
You can use your voice to control your DCS-2530L with your Google Home Smart Speaker and Google Assistant.
Before proceeding, make sure you have:
1. Installed your DCS-2530L and registered for a mydlink account using mydlink Lite. For more details, please see Mobile App Setup on page 10.
2. Make sure your mobile device, DCS-2530L, and Google Home Smart Speaker are all connected to the same wireless network.

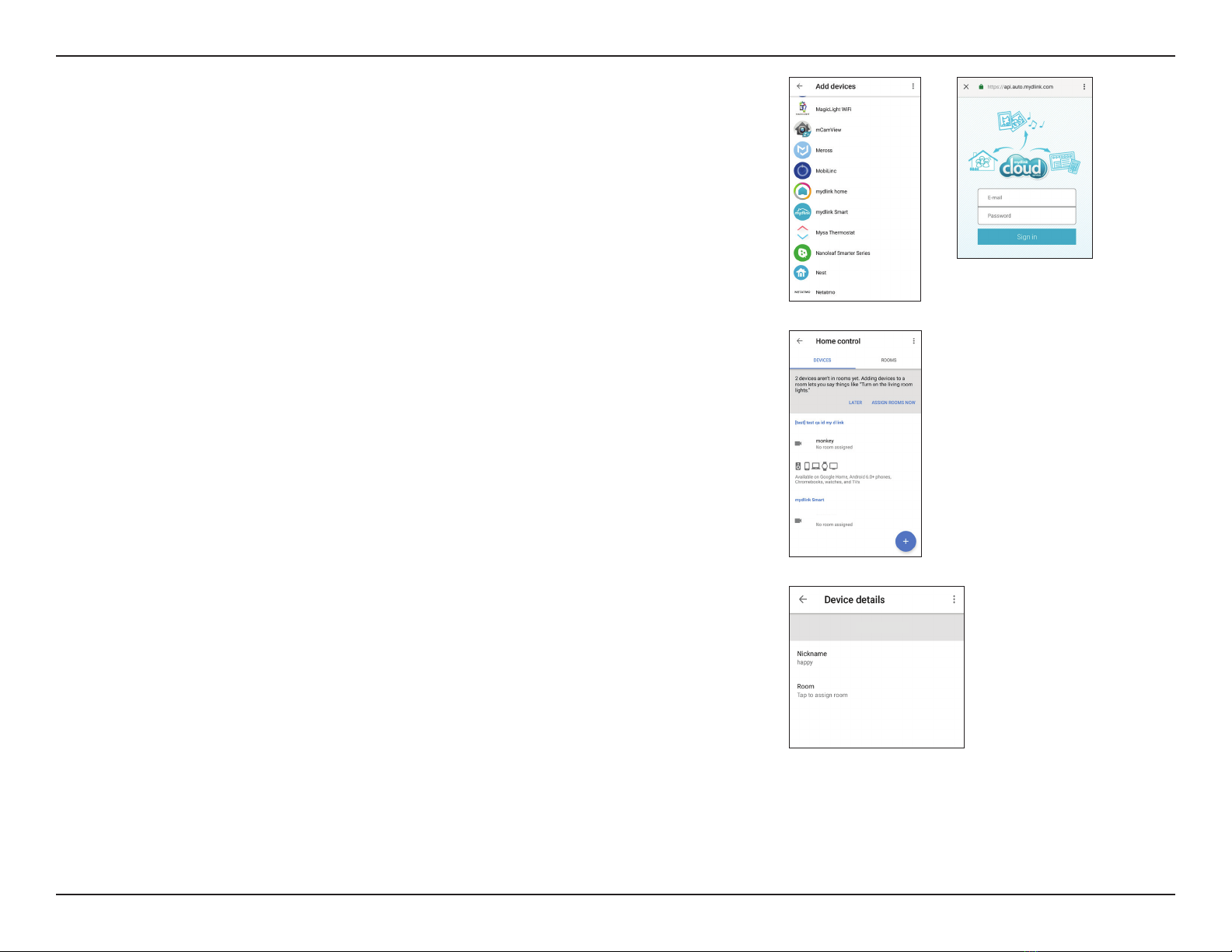

1. From your mobile, download the Google Home app from Google Play
or the App Store.
2. Start the app and follow the instructions to discover and add your
DCS-2530L, or tap to bring up the menu and tap Home control.
3. Tap to add a device.
To activate your device for use with Google home:

18D-Link DCS-2530L User Manual
Section 2: Installation
5. After logging in, your DCS-2530L will show up in the Devices tab
under Home control.
6. You can also give your DCS-2530L a friendly name for use with voice
commands under device details.
4. On the Add devices page, tap mydlink Smart to bring up the mydlink
sign in page. Enter your account E-mail and Password and tap Sign in.
DCS-2530L
DCS-2530L

19D-Link DCS-2530L User Manual
Section 2: Installation
Note: When live streaming is On, the Privacy Mode setting will be O.
Conversely when live streaming is O, the Privacy Mode setting will be On.
Using voice commands to control your DCS-2530L:
To enable live video streaming, you can give the voice command “Hey
Google, turn [nickname of camera] On”.

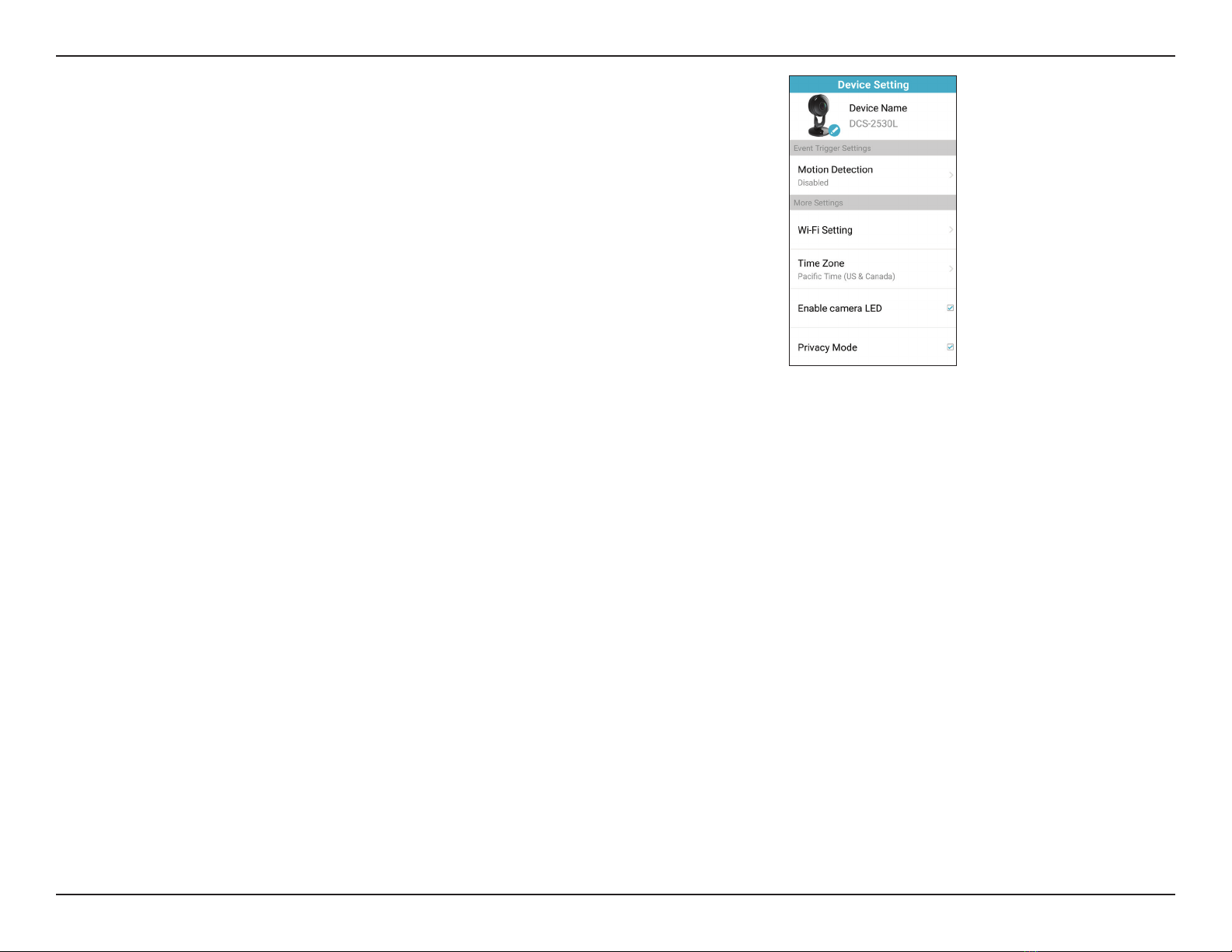

To disable live streaming, open the mydlink Lite app and check Privacy Mode.

20D-Link DCS-2530L User Manual
Section 3: Conguration
Conguration
Accessing the Web Conguration Utility

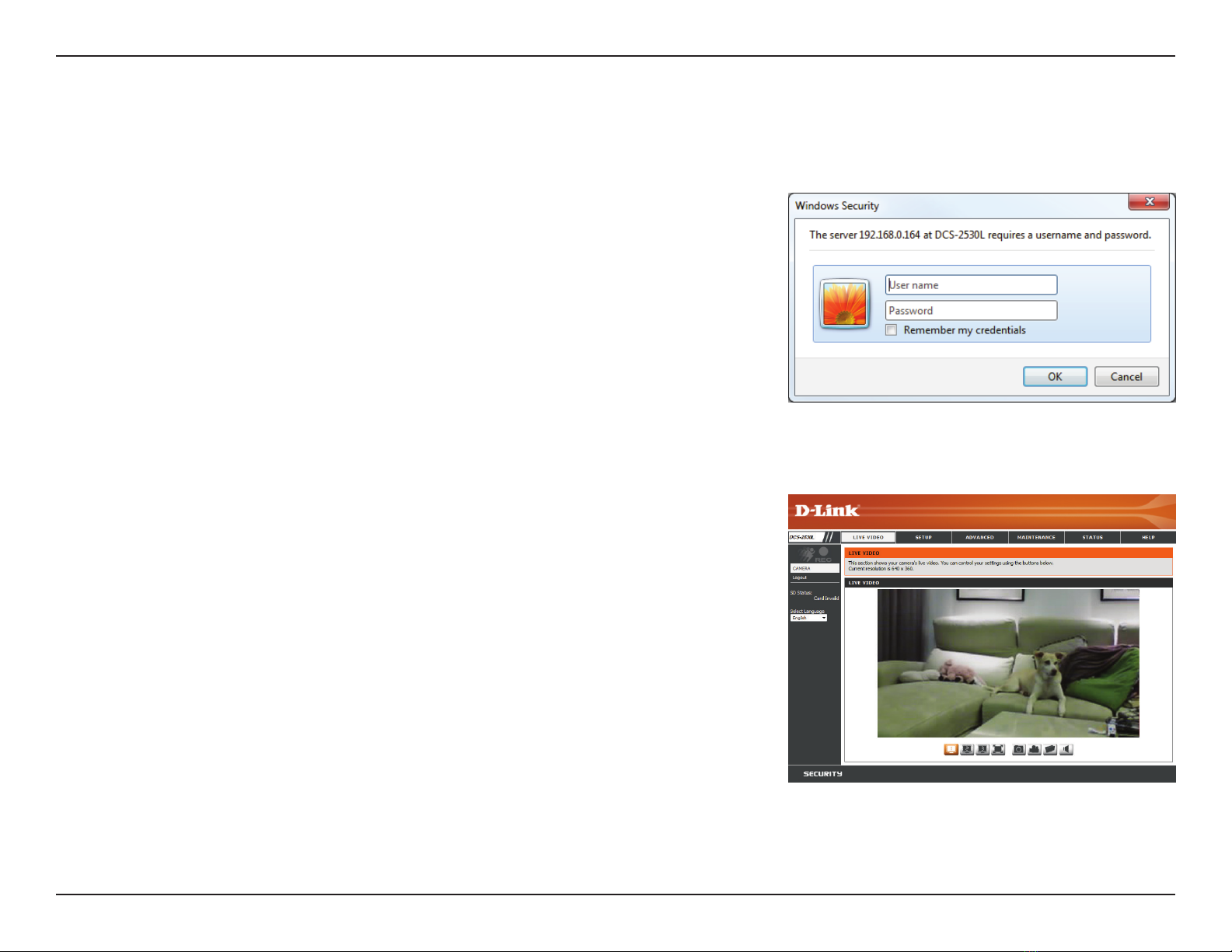

After completing the Camera InstallationWizard, you are ready to use your camera.The camera’s
built-in Web conguration utility is designed to allow you to easily access and congure your
DCS-2530L. At the end of the wizard, click GoTo Camera, or enter the IP address of your camera
into a web browser, such as Internet Explorer®. To log in, use the user name admin and the
password you created in the Installation Wizard. If you did not create a password, the default
password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on
a closed network, the default IP is 192.168.0.20.
Please make sure that you have the latest version of Java application installed on your computer
to ensure proper operation when viewing the video in Java mode. The Java application can
be downloaded at http://www.java.com.
When you connect to the home page of your camera, you may be prompted to download
ActiveX. If you want to use ActiveX to view your video images instead of Java, then you must
download ActiveX.
