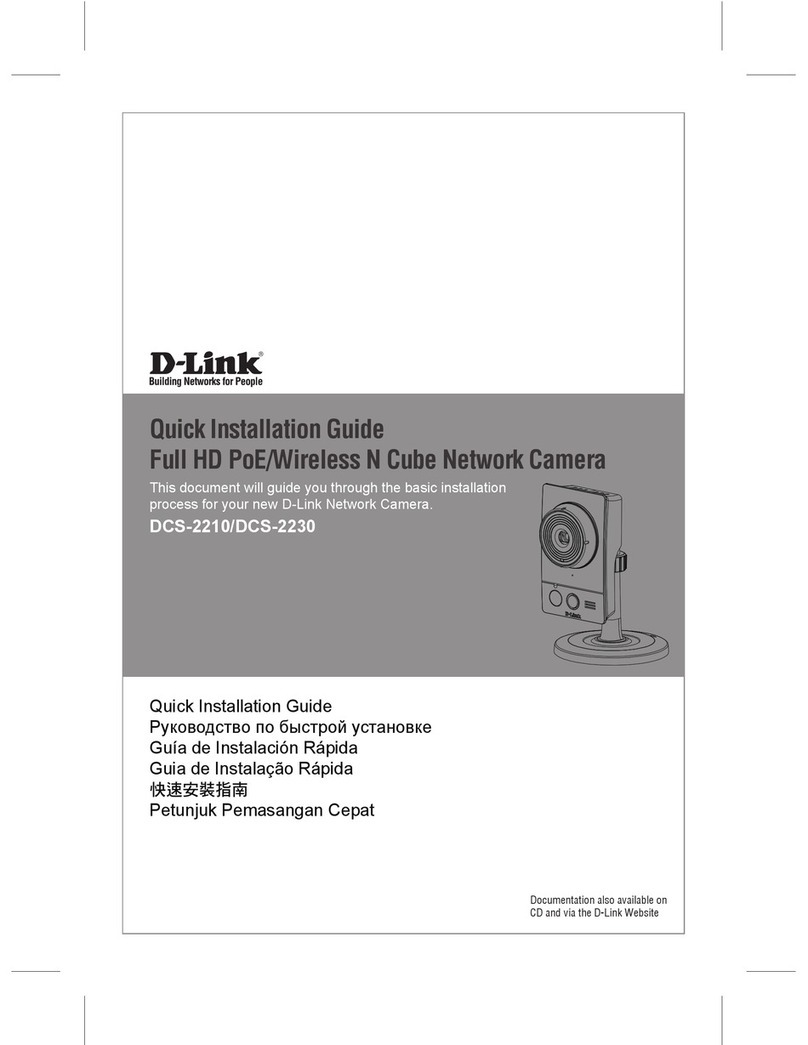

D-Link DCS-2210 User manual

Documentation also available
on CD and via the D-Link
Website
This document will guide you through the basic installation
process for your new D-Link Network Camera.
DCS-2210/DCS-2230
Quick Install Guide
Full HD PoE/Wireless N Cube Network Camera

D-Link DCS-2210/DCS-2230 Quick Install Guide
2
DCS-2210/DCS-2230 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-2210/DCS-2230
Network Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD include in this package or from the
D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
1. Package Contents
DCS-2210 or DCS-2230 Full HD PoE Network Camera
Camera Stand
Manual and Software on CD-ROM
CAT5 Ethernet Cable
Power Adapter
Quick Install Guide
If any of the above items are missing, please contact your reseller.

D-Link DCS-2210/DCS-2230 Quick Install Guide 3

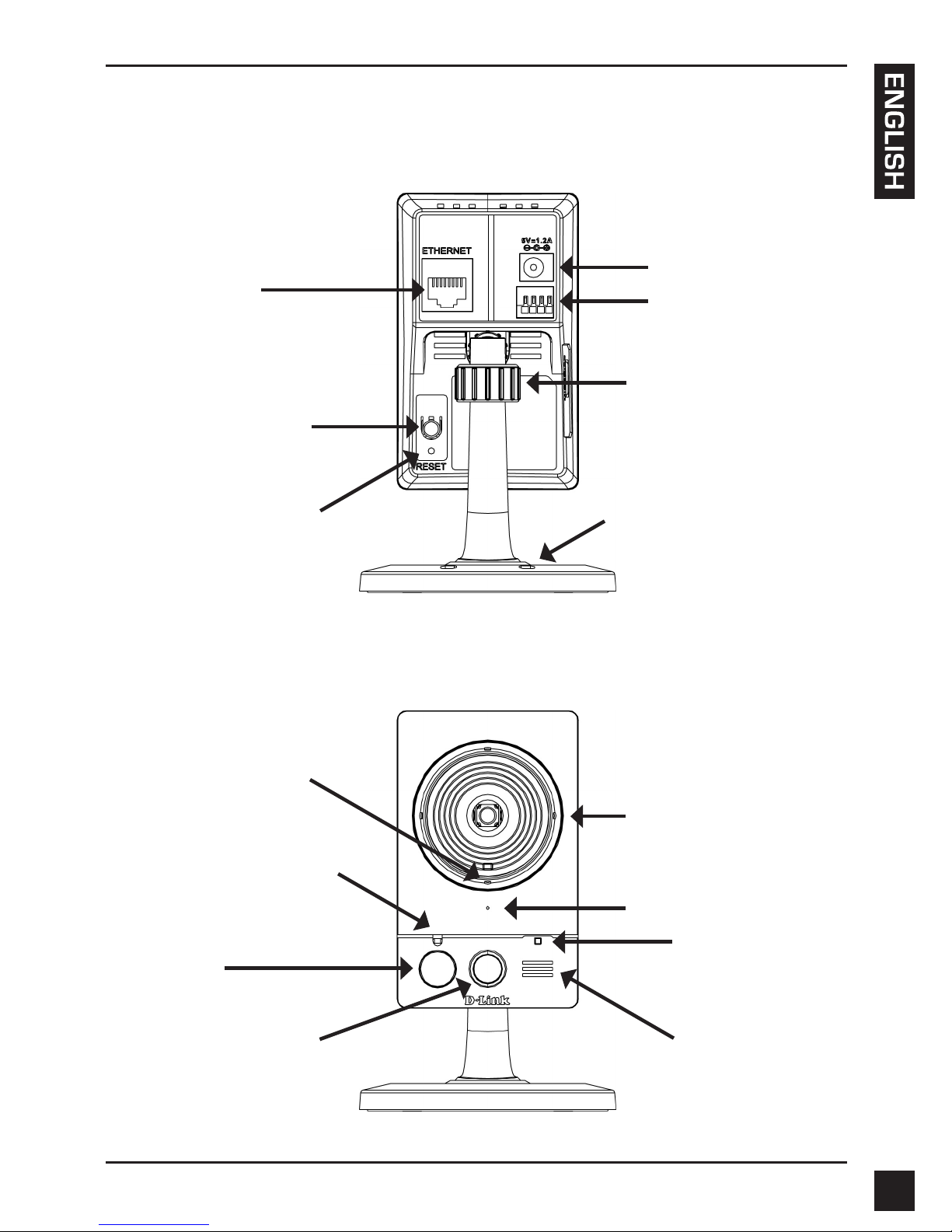

2. Hardware Overview
Rear Panel
Front Panel
Status LED
Indicates the camera's
current status
PIR
Passive Infrared
sensor for motion
detect
ICR Sensor
The IR-Cut Removable sensor
monitors lighting conditions and
switches between color and infrared
accordingly
Infrared LED
Used to illuminate the camera's eld
of view at night
Microphone
Records audio from the
surrounding area
WPS LED
(DCS-2230 only)
WPS status indicator
LED
Speaker
Audio output
Camera Lens
Records video of the surrounding
area
Adjustment Ring
Tighten or loosen the
adjustment ring to adjust
the camera's position
Base Holes
Can be used with cable ties to
attach camera to a surface
Reset
Press and hold this button
for 10 seconds to reset the
camera
Ethernet
The RJ45 connector for
Ethernet (DCS-2210 supports
PoE which can also be used to
power the camera)
WPS button (DCS-2230 only)
Press this button, then press
the WPS button on your router
to set up a wireless connection
automatically
Power Connector
Connects to the included
DC 5V power adapter
I/O Connector
I/O connectors for
external devices

D-Link DCS-2210/DCS-2230 Quick Install Guide
4

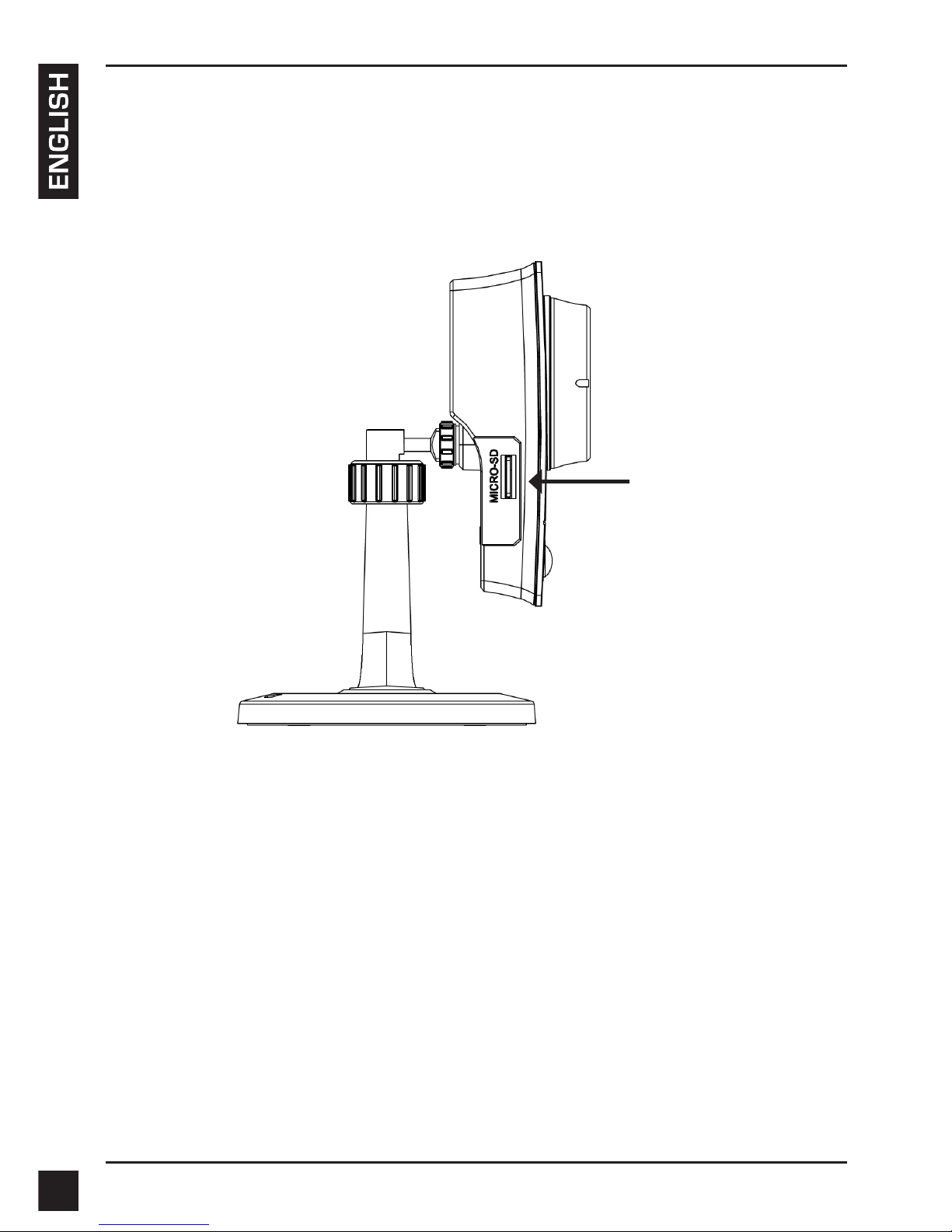

Left Panel
Micro SD Card slot
Local storage for storing
recorded image and video

D-Link DCS-2210/DCS-2230 Quick Install Guide 5
3. Hardware Installation

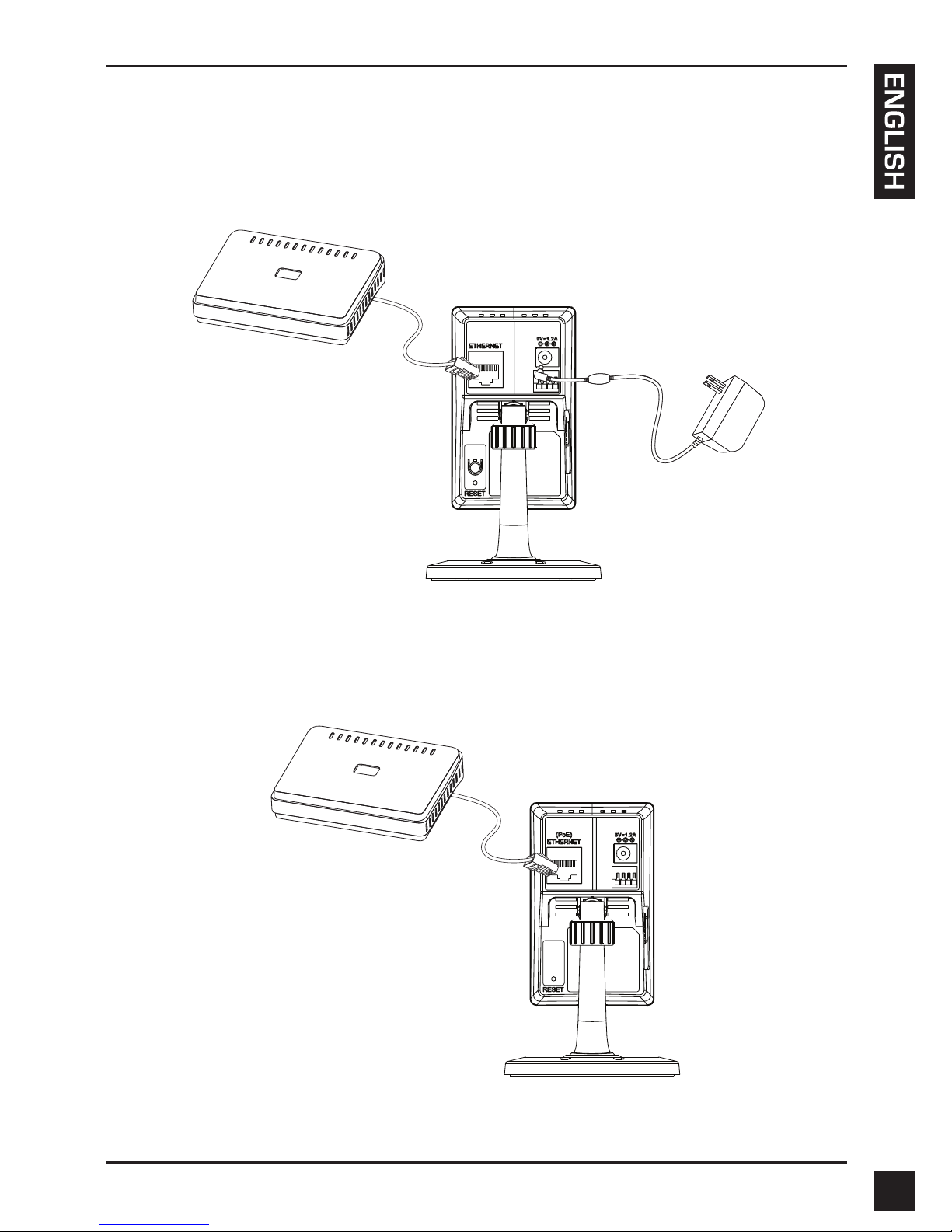

Basic Connection
Connect the camera to your switch or router via Ethernet cable.
Connect the supplied power cable from the camera to a power outlet.
Connection Using a PoE Switch (DCS-2210 only)
If using a PoE switch or router, connect the network camera via Ethernet cable.
PoE will transmit both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has obtained
an IP address and is accessible, the LED will turn green.

D-Link DCS-2210/DCS-2230 Quick Install Guide
6

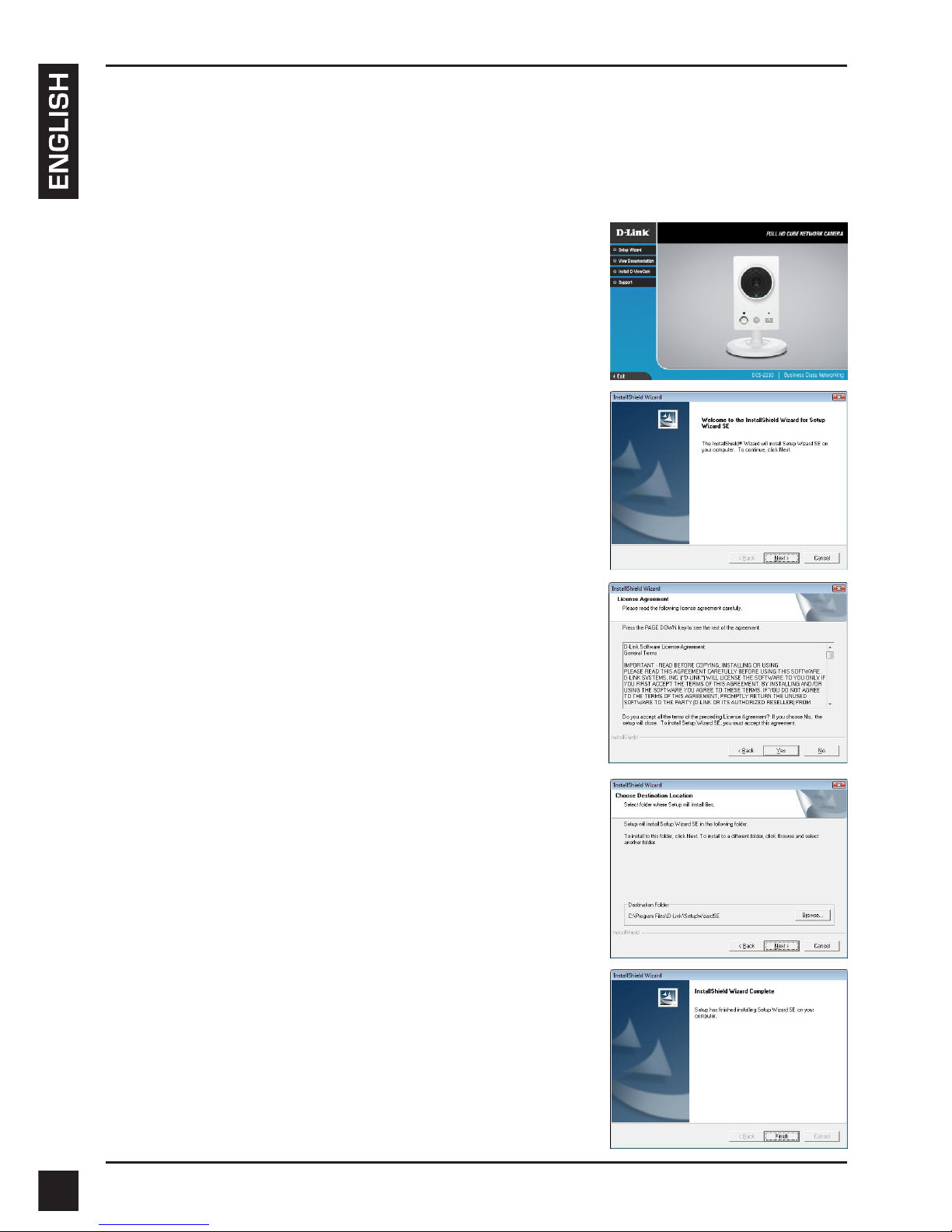

4. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-2210/DCS-2230 CD into your computer's CD-ROM drive to begin the installation.
If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of
your CD-ROM drive.
After clicking Setup Wizard, the following window will
open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.

D-Link DCS-2210/DCS-2230 Quick Install Guide 7

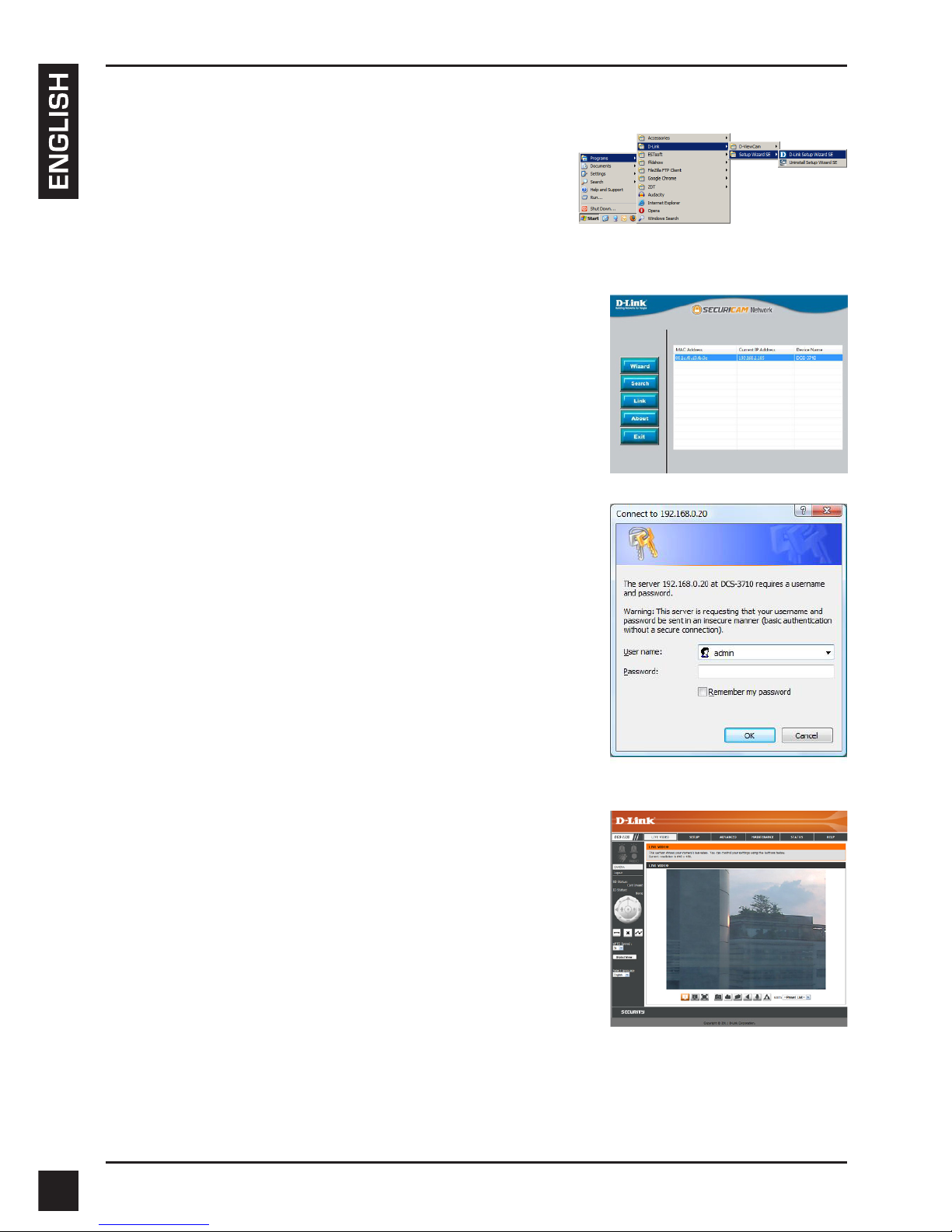

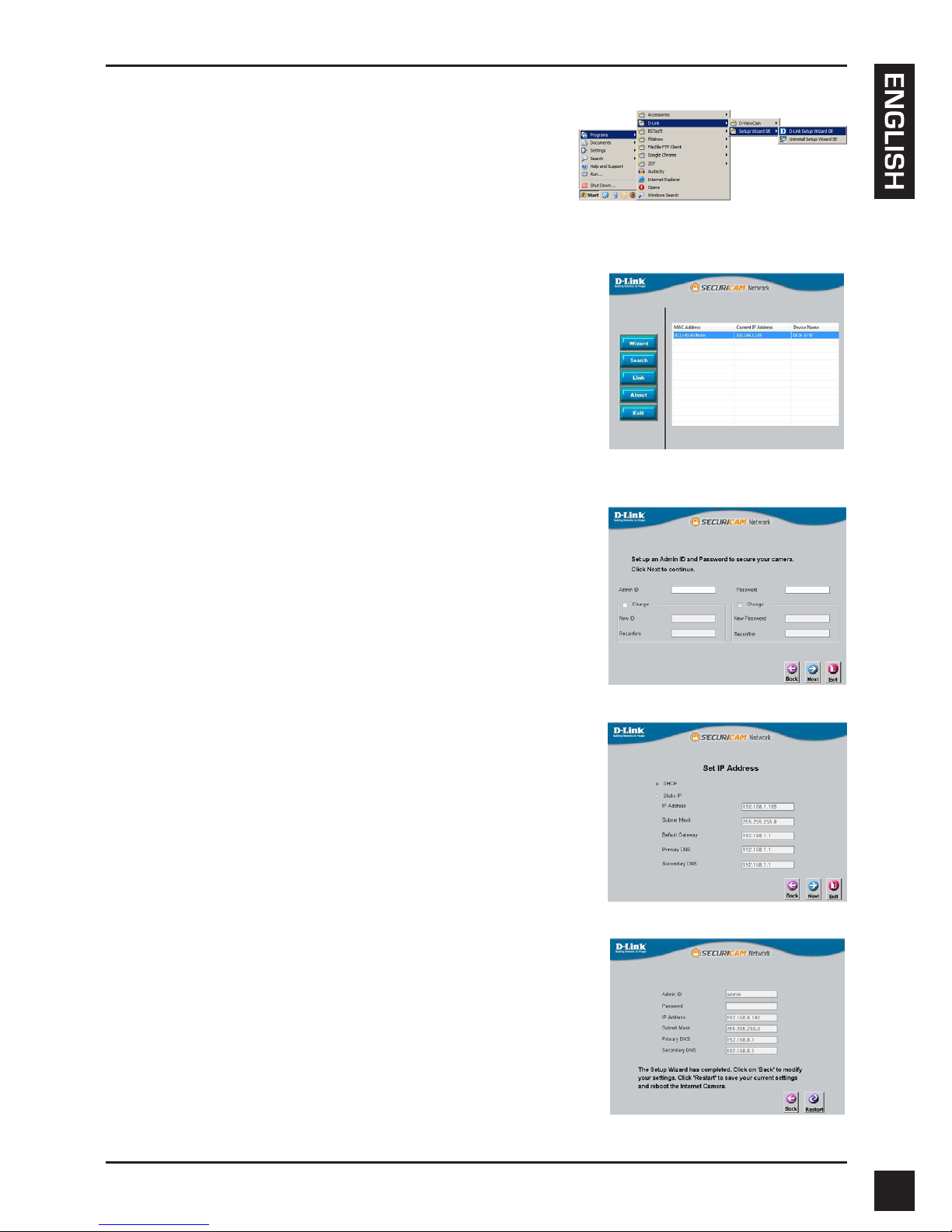

Click on the D-Link Setup Wizard SE icon that was created
in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC address
and IP address of your camera(s). If you have a DHCP server
on your network, a valid IP Address will be displayed. If your
network does not use a DHCP server, the network camera's
default static IP 192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-2210/DCS-2230 Quick Install Guide
8
Click on the D-Link Setup Wizard SE icon that was created
in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
This section shows your camera’s live video. You can select
your video prole and view or operate the camera. For
additional information about web conguration, please
refer to the user manual included on the CD-ROM or the
D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled "Link" to
access the web conguration.
The Setup Wizard will automatically open your web browser
to the IP address of the camera.

D-Link DCS-2210/DCS-2230 Quick Install Guide 9
