D-Link DCS-2210L User manual

DCS-2210L
Quick Install Guide
Full HD PoE Day/Night Network Camera
Cloud Camera

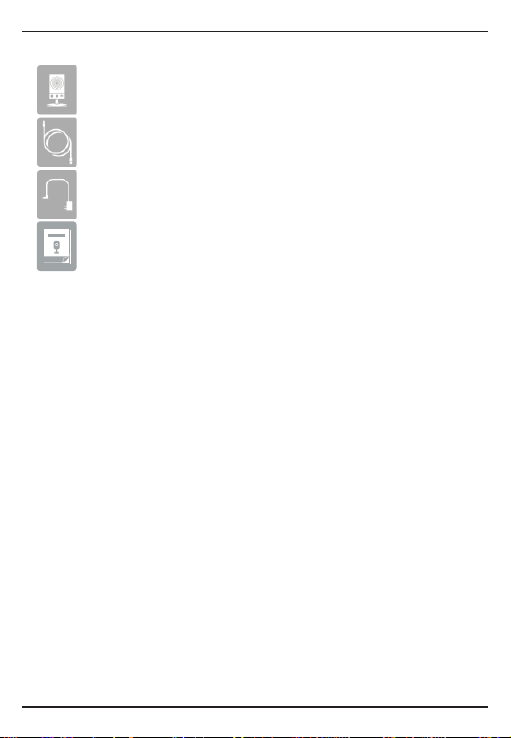

If any of the above items are missing, please contact your reseller.
Minimum Requirements
DCS-2210L Full HD PoE Day/Night Network Camera
Power Adapter
Package Contents
Computer with:
• 1.3GHz processor or above and at least 128MB of RAM
• Windows® 8, 7, Vista®, or Mac OS® X (10.6 or higher)
• Internet Explorer® 8, Firefox® 12, Safari® 5, or Chrome™ 20 or higher
• Installed and enabled Java and ActiveX® controls
Web Browser:
CAT5 Ethernet Cable
For mydlink and mydlink app requirements refer to:
• http://www.mydlink.com
Network Device and Service:
• A switch with a 10/100 PoE port* or a standard switch with the
included power adapter
• A router with an Internet connection for remote access (we
recommend a D-Link Cloud Router)
• An e-mail account (required to create a mydlink® account)
*Note: If you have a switch that supplies PoE , you can simply connect the
camera to the switch with the included Ethernet cable to power the camera.
Quick Install Guide
2
ENGLISH

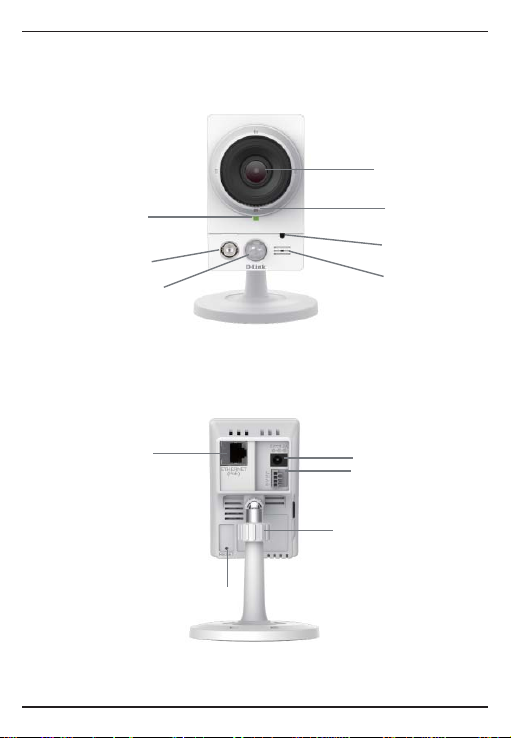

Product Overview
Camera Lens
Microphone
Light Sensor
Status LED
PIR Sensor
Power Connector
Ethernet Port
Reset Button
Front
Back
Infrared LED
Speaker
DI/DO Connector
Adjustment Ring
3

The Zero Conguration Setup will only work with a registered
Cloud Router and an active mydlink account. Your Cloud Router
will automatically assign your network settings to your camera,
and add it to your mydlink account.
If you do not have a D-Link Cloud Router, skip to the Easy Setup
section on the next page.
Zero Conguration Setup

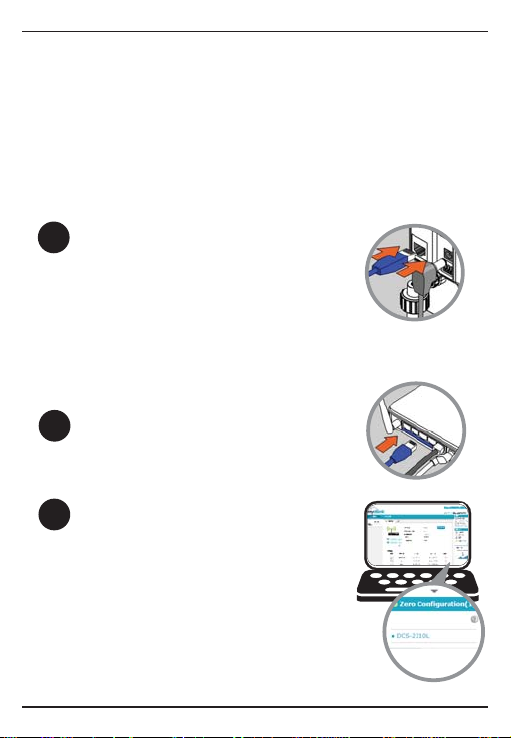

Connect the included Ethernet cable to the
Ethernet port located on the back of the
DCS-2210L and connect it to your Cloud
Router.
Attach the power supply to the power
connector located on the back of the DCS-
2210L and connect it to a wall outlet or
power strip. Power is conrmed when the
Power LED is lit.
Note: If you want to power your camera using
Power over Ethernet (PoE), you can simply
connect the Ethernet cable and move the
camera to its intended location.
From a computer connected to the Internet,
open a Web browser, go to http://www.
mydlink.com and log into your mydlink
account. Once mydlink detects your camera,
a Zero Conguration notice will appear (at
the bottom of the screen). Click on the
notication and a conrmation request will
appear. Click Yes to add the camera to your
account.
Your setup is complete!
1
2
3
4
ENGLISH

Easy Setup (All Other Routers)

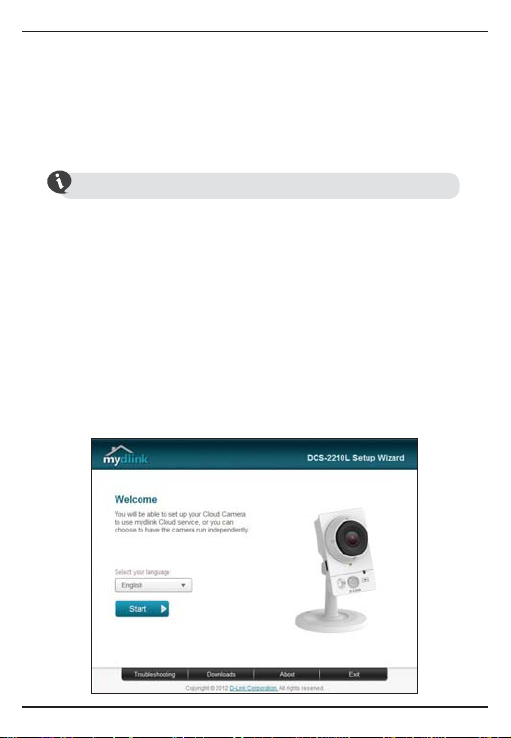

Download the Setup Wizard from http://www.mydlink.com/support.
If you do not have a D-Link Cloud Router, you can use any
Windows or Mac computer to go through the Setup Wizard, which
will guide you through the installation process, from connecting
your hardware to conguring your camera.
Windows Users - Download the Windows Setup Wizard les to your
computer.
Mac Users - Download the Mac OS Setup Wizard. Open the
SetupWizard le and launch the application.
Within about 20-30 seconds, the Setup Wizard will open, which will guide
you step-by-step through the installation process from connecting
your hardware to conguring your camera and registering it with your
mydlink account.
5

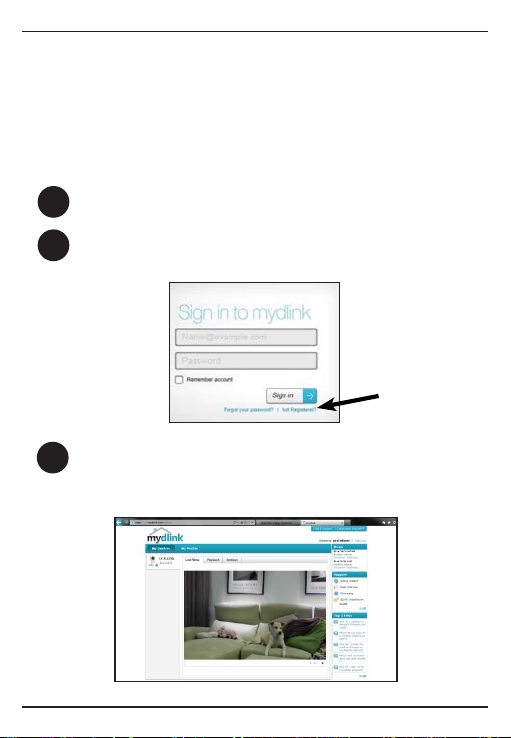

Launch mydlink
Open a Web browser and go to http://www.mydlink.com.
Sign in to your mydlink account. (If you don’t have an account,
click on Not Registered? and follow the instructions.)
mydlink is aWeb-based service that allows you to view and control
your mydlink-enabled devices through any computer connected
to the Internet. If you register your DCS-2210L with mydlink,
you will be able to remotely access your camera from the www.
mydlink.com website.
1
2
3From the home screen, you can view all devices that have
been linked to your mydlink account. Select your camera
from the device list, and your camera’s Live Video will appear.
6
ENGLISH

• Make sure that your browser supports both Java and ActiveX®, and
that the latest versions of both have been installed and enabled.
• Windows does not have Java installed by default. You can download it
from http://www.java.com.
• In Mac OS X 10.7.x, Java applets are disabled by default. Click the
Finder > Applications > Utilities > Java Preferences and check the
Enable applet plug-in and Web Start applications option.
• The ActiveX controls in IE will install automatically if needed. We
suggest that you make sure that you have enabled the related
options in Tools > Internet Options > Security > Custom Level.

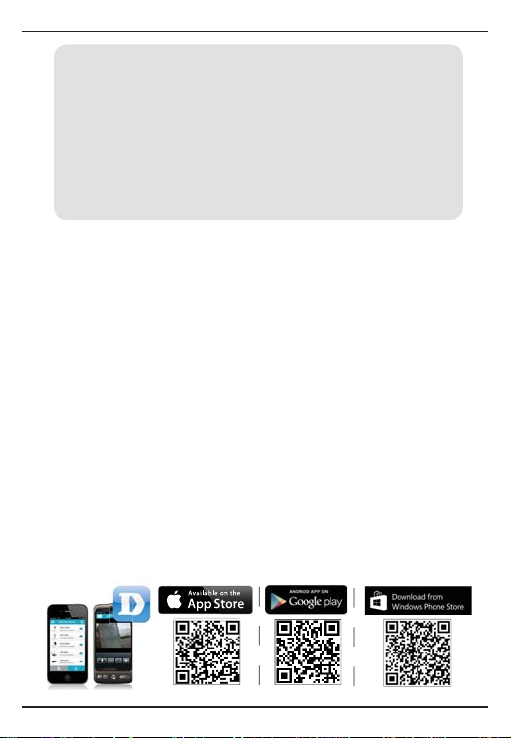

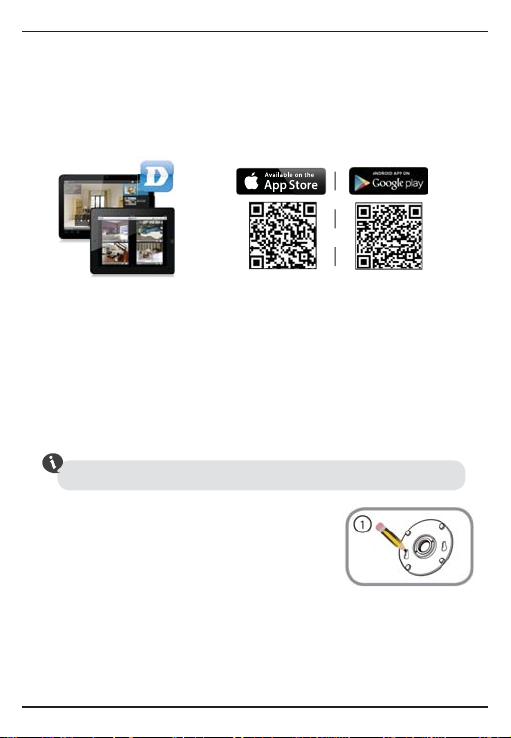

mydlink Lite App (Free)
The mydlink Lite app lets you conveniently manage all your
mydlink-enabled devices right from your mobile device.
Search for “mydlink lite” on the App Store, Google Play, or the
Windows Phone Store. Download and install the app on your
smartphone or tablet when connected to the Internet. You can
also nd the app by scanning the QR code below with a QR code
scan app.
mydlink Apps
Note: If you experience issues registering this camera with your mydlink
account, or if you purchased an open box or resold unit, perform a hard
reset by pressing and holding the reset button on the device for 10 seconds
while the device is powered on. If you are returning the device to the
place of purchase, please perform the hard reset procedure to clear
the device of any personal data.
7

Note: Tablet users can buy the mydlink+ app in order to view multiple
cameras at the same time without a PC.
mydlink+ App (Paid - Tablet Only)
Search for the word “mydlink+” on the App Store or Google Play.
Download and install the app on your tablet when connected to
the Internet. You can also nd the app by scanning the QR code
below with a QR code scan app.
Mount the Camera
Please refer to the steps below to assist you with mounting the
camera.
We suggest that you congure the camera before mounting.
1. Place the mounting base where you
want to position the camera, and use
a pencil to mark the points where you
will drill the holes.
Note: With PoE, it is not necessary to place the camera close to a
power outlet.
8
ENGLISH

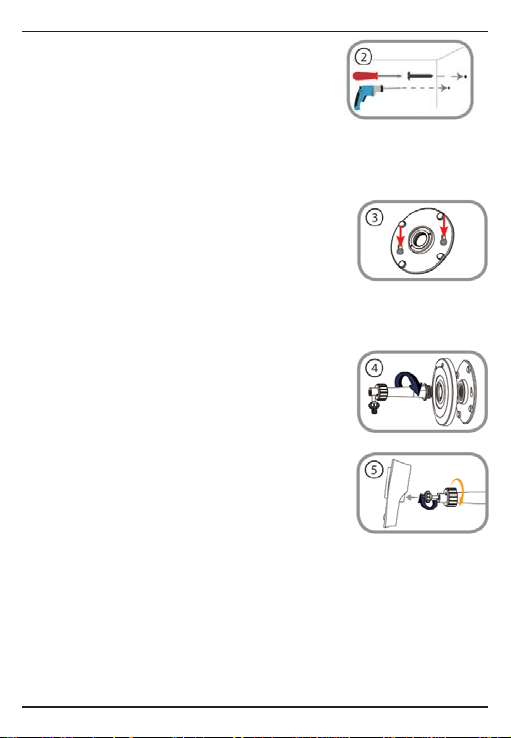

2. Use proper tools to drill two holes where
you marked. Insert the screws into the
holes. If the wall is made out of concrete,
drill the holes first, insert the plastic
anchors and then insert the screws.
3. Place the mounting base over the screws
that are inserted into the wall or ceiling.
Make sure to fit the screw-heads over
the big holes in the base, and slide
it downward to lock firmly in place.
Lightly pull the base forward to make
sure that it is locked.
4. Place the base cover on the base and
screw the camera stem clockwise into
the mounting base.
5. Adjust the angle of the camera as
desired, then tighten the collar on the
camera stem to lock it in place.
Note: When you tighten the screws, leave 3mm for tting the mounting
base over the screw-heads.
9

FAQs
1. What is a mydlink No.? What is it used for?
Each camera has a unique eight-digit mydlink No. which will be shown on
the label on the back of your camera. This eight-digit number identies
your device, and is required to add your device to your mydlink account.
2. What can I do if my DCS-2210L is not working correctly?
• To make sure your hardware is installed correctly, check to see if:
- the power LED is lit solid green
- your Internet connection is working
- your router’s LAN & WAN connections are okay
- your router supports UPnP®
- your camera is on the same network as your PC
- both your PC and camera have a working Internet connection
• If your camera is still not working, check your router and make sure it
has the latest rmware.
3. What can I do if I forget my password?

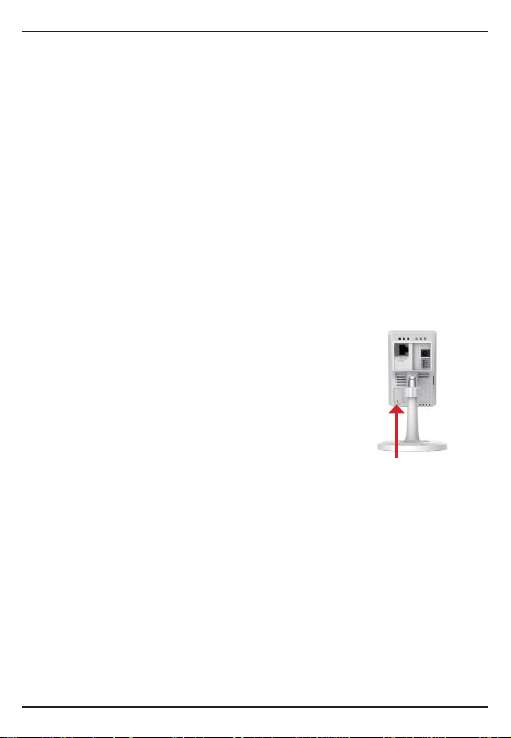

If you forget your password, you must reset the
camera. Unfortunately, this process will change
your settings back to factory default. To reset the
camera, locate the reset button on the back of
the camera. With the camera powered on, use an
unfolded paper clip to hold the button down for
10 seconds.
4. Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on the camera may be
reecting o a nearby surface. Try repositioning the camera in order to
avoid glare from IR LEDs.
Reset
Button
10
ENGLISH

Notes
11

Technical Support
This guide is only for the rst time conguration. Refer to the user
manual to learn more, or visit http://support.dlink.com (USA) or
http://support.dlink.ca (Canada) for more information. Also feel free
to contact us through our website.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 1.00(US)_90x130
November 3, 2014
RMN0101462
