D-Link DCS-2103 User manual

User Manual
HD Cube Network Camera
Version 2.00 | 12/09/2014
DCS-2103

2D-Link DCS-2103 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
2.0 December 09, 2014 DCS-2103 Revision B1 with rmware version 2.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2014 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Preface

3D-Link DCS-2103 User Manual
Table of Contents
Product Overview......................................................................... 4
Package Contents................................................................. 4
Introduction............................................................................ 5
System Requirements ......................................................... 5
Features.................................................................................... 6
Hardware Overview ............................................................. 7
Front ...................................................................................... 7
Rear........................................................................................ 8
Sides ...................................................................................... 9
Installation ....................................................................................10
Setup Wizard SE Installation ...........................................10
Setup Wizard SE...................................................................12
Manual Hardware Installation........................................14
Mount the Camera .............................................................15
Conguration...............................................................................16
Using the Conguration Interface................................16
Live Video ..............................................................................17
Setup.......................................................................................19
Setup Wizard ....................................................................19
Network Setup.................................................................24
Dynamic DNS ...................................................................28
Image Setup .....................................................................29
Audio and Video..............................................................31
Preset...................................................................................33
Motion Detection ...........................................................35
Sound Detection.............................................................37
Time and Date..................................................................38
Event Setup.......................................................................39
SD Card...............................................................................48
Advanced...............................................................................49
Digital Input/Output......................................................49
ICR and IR...........................................................................50
HTTPS..................................................................................51
Access List..........................................................................52
Maintenance.........................................................................53
Device Management .....................................................53
System ................................................................................54
Firmware Upgrade..........................................................55
Status ......................................................................................56
Device Info ........................................................................56
Logs .....................................................................................57
Help......................................................................................58
DI/DO Specications .................................................................59
Technical Specications...........................................................60

4D-Link DCS-2103 User Manual
Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
Quick Installation Guide
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
DCS-2103 HD Cube Network Camera

5D-Link DCS-2103 User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-2103 HD Cube Network Camera.The DCS-2103 is a versatile and unique solution
for your small oce or home. Unlike a standard webcam, the DCS-2103 is a complete system with a built-in CPU and web
server that transmits high quality video images for security and surveillance. The DCS-2103 can be accessed remotely, and
controlled from any PC/Notebook over your local network or through the Internet via a web browser. The simple installation
and intuitive web-based interface oer easy integration with your Ethernet/Fast Ethernet network.This camera features Power
over Ethernet connectivity, making it an ideal solution for a complete and cost-eective surveillance solution with easy clutter-
free installation.
• Computer with Microsoft Windows® 7/8/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3 GHz or above; at least 128 MB RAM
• Internet Explorer 7, Firefox 12, Safari 6, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network
• A microSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
System Requirements

6D-Link DCS-2103 User Manual
Section 1: Product Overview
Simple to Use
The DCS-2103 is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-2103 supports both ActiveX mode
for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-2103 can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or
Internet. This means you can access your DCS-2103 anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring.The Network Camera allows remote access using aWeb browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
IR LED for Day and night functionality
The built-in infrared LED enables night time viewing of up to 16 feet (5 meters).
PoE (Power over Ethernet) for Flexible Installation
The DCS-2103 can draw all the power it needs from a powered Ethernet port meaning installation is simple and clutter free.
Features

7D-Link DCS-2103 User Manual
Section 1: Product Overview

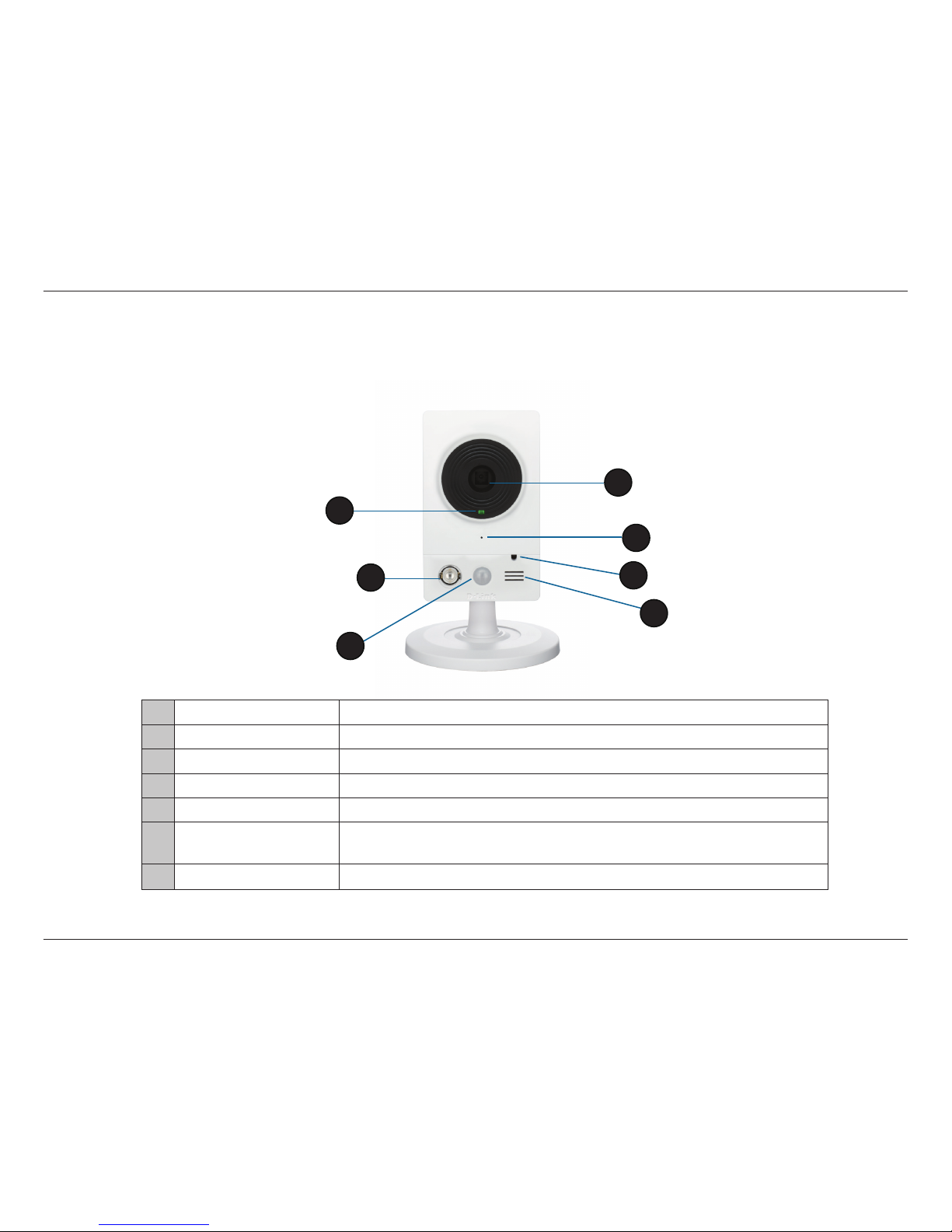

Hardware Overview
Front
1 Status LED Indicates the camera's current status
2 Infrared LED Used to illuminate the camera's eld of view at night
3 PIR Sensor Passive infrared sensor for motion detection
4 Camera Lens Records video of the surrounding area
5 Microphone Records audio from the surrounding area
6Light Sensor The light sensor monitors lighting conditions and switches between day and
night vision modes accordingly
7Speaker Can play audio sent to camera for two-way communication
1
2
3
4
5
7
6

8D-Link DCS-2103 User Manual
Section 1: Product Overview

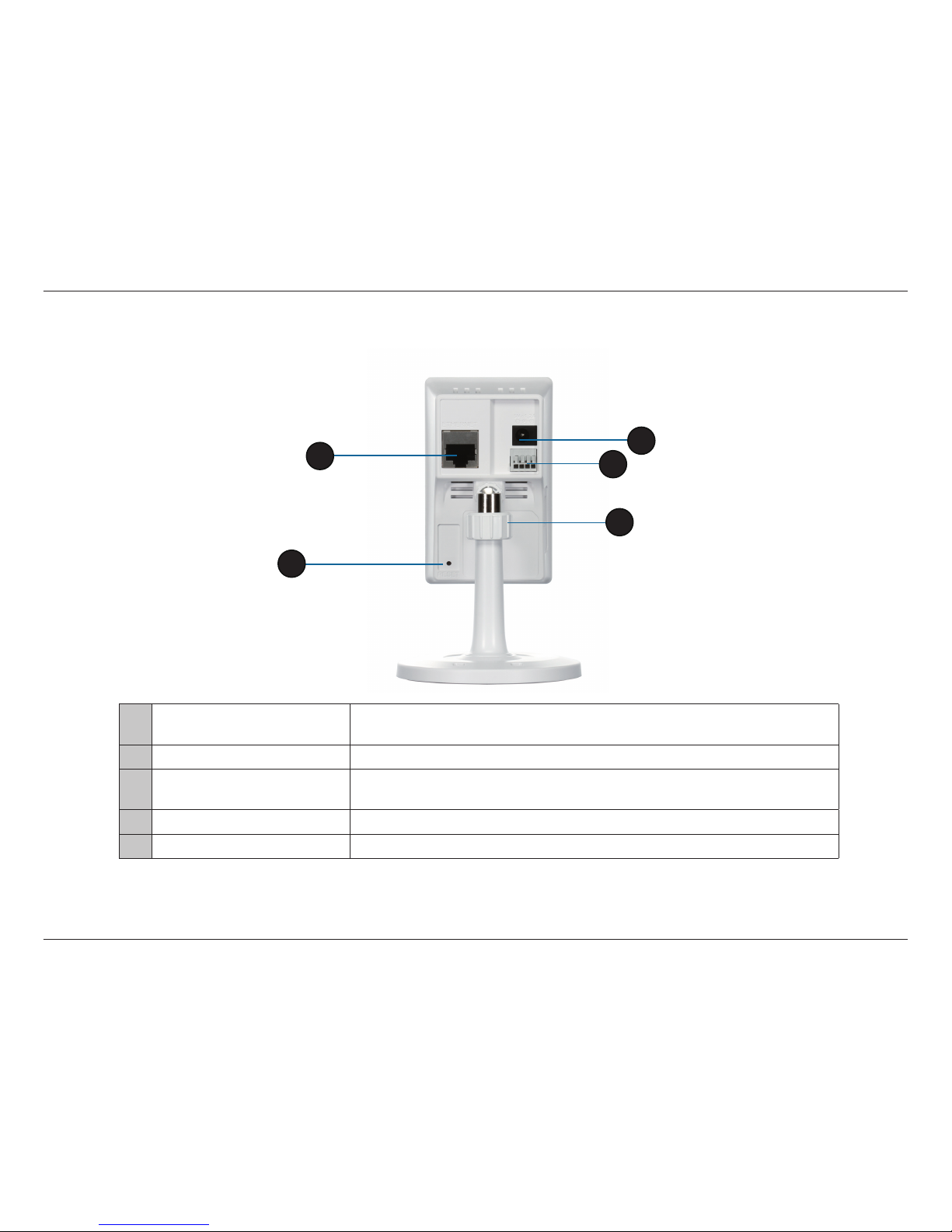

Rear
1 PoE Ethernet Port Connects to your Ethernet network, can receive power from a PoE switch or PoE
injector
2 Reset Button Press and hold this button for 10 seconds to reset the camera
3 Power Connector Connects to the included DC 5 V power adapter (not needed if using a PoE
connection)
4 DI/DO Connector I/O connectors for external devices
5 Adjustment Ring Tighten or loosen the adjustment ring to adjust the camera's position
1
2
3
4
5

9D-Link DCS-2103 User Manual
Section 1: Product Overview

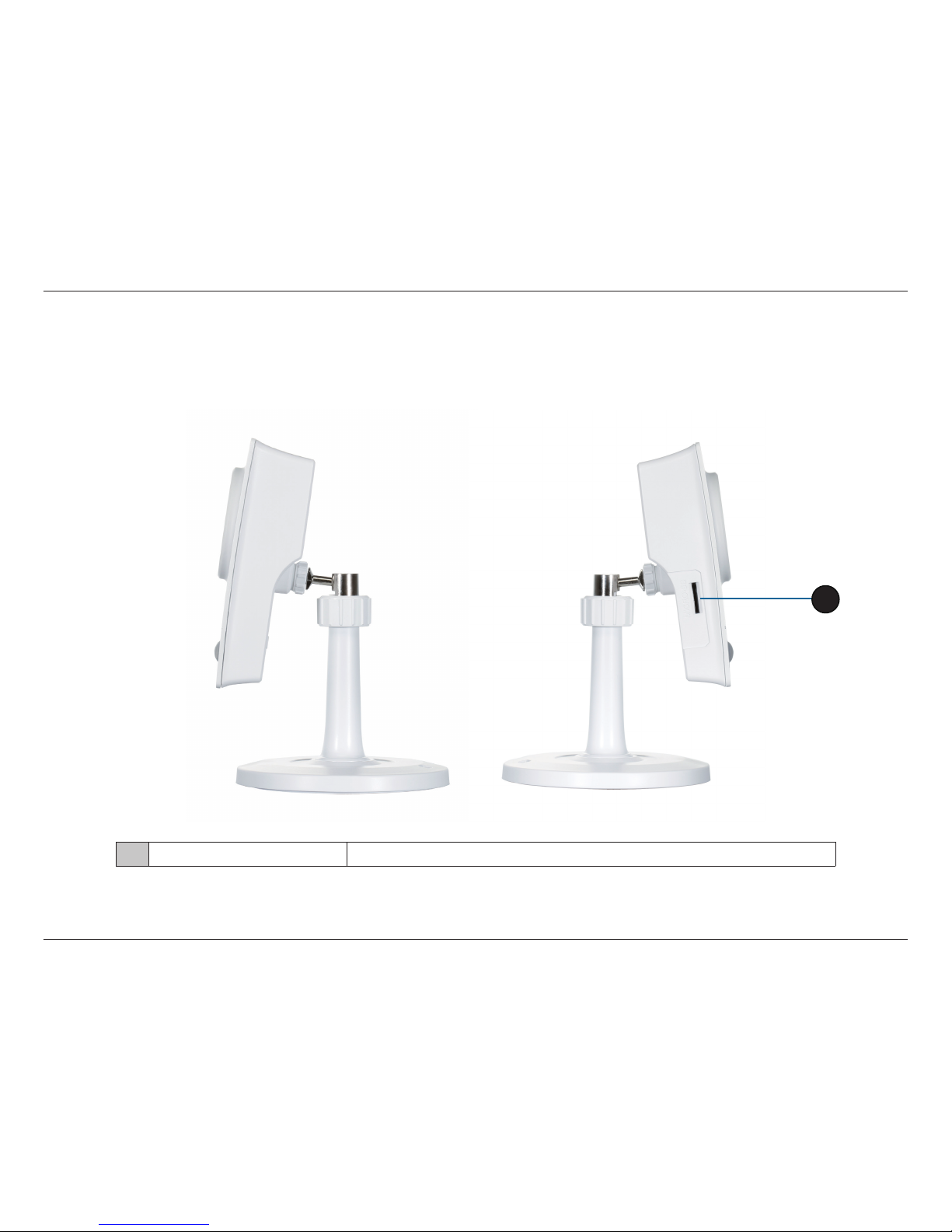

Sides
1 microSD Card Slot Insert a microSD card for storing recorded images and video locally
1

10D-Link DCS-2103 User Manual
Section 2: Installation
Installation

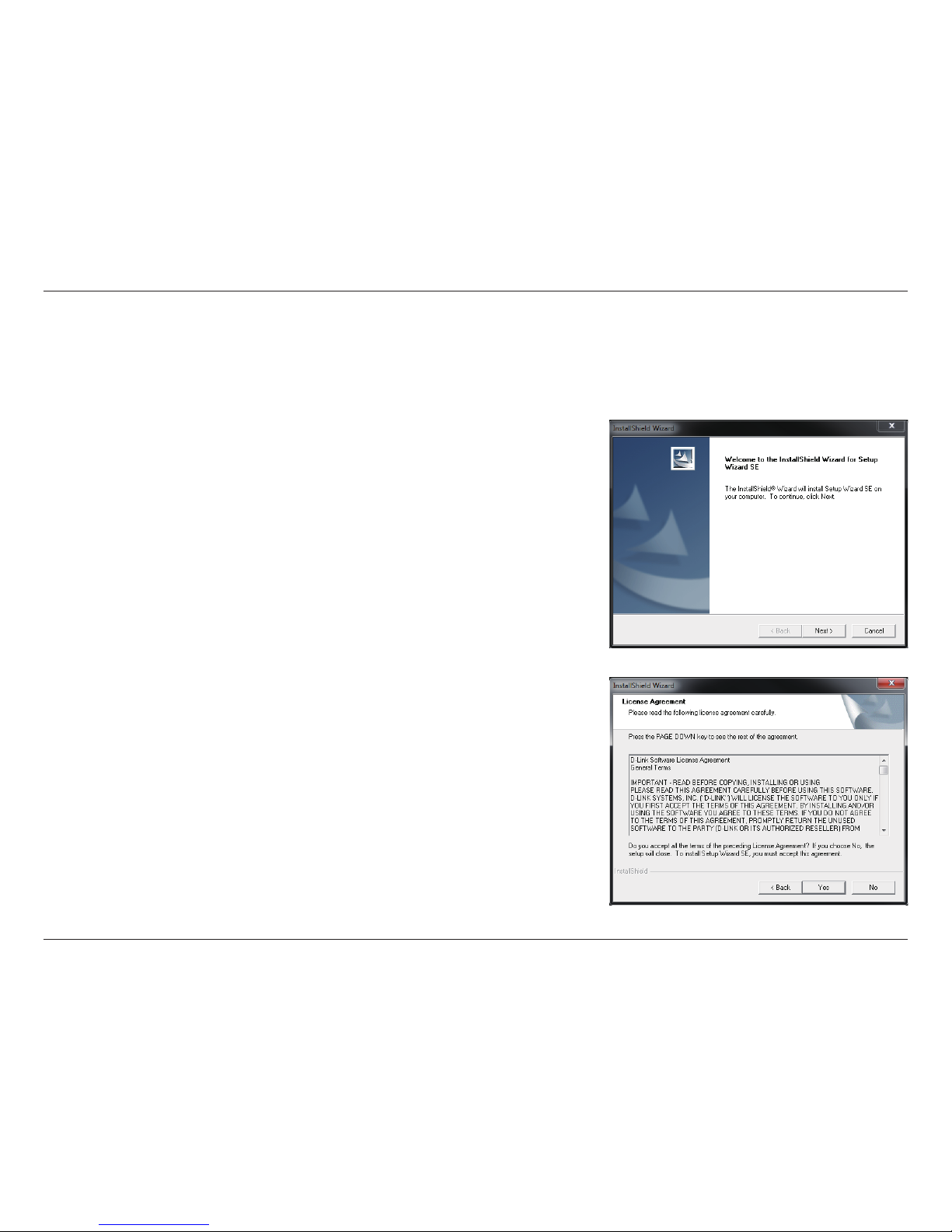

Setup Wizard SE Installation
Insert the CD into the CD drive of your computer. The installation process for the
setup wizard should start automatically. Make sure that your internet connection
is active. Click Next to continue.
Note: Do not plug in DCS-2103 yet
Click Yes to accept the license agreement and continue the installation.

11D-Link DCS-2103 User Manual
Section 2: Installation

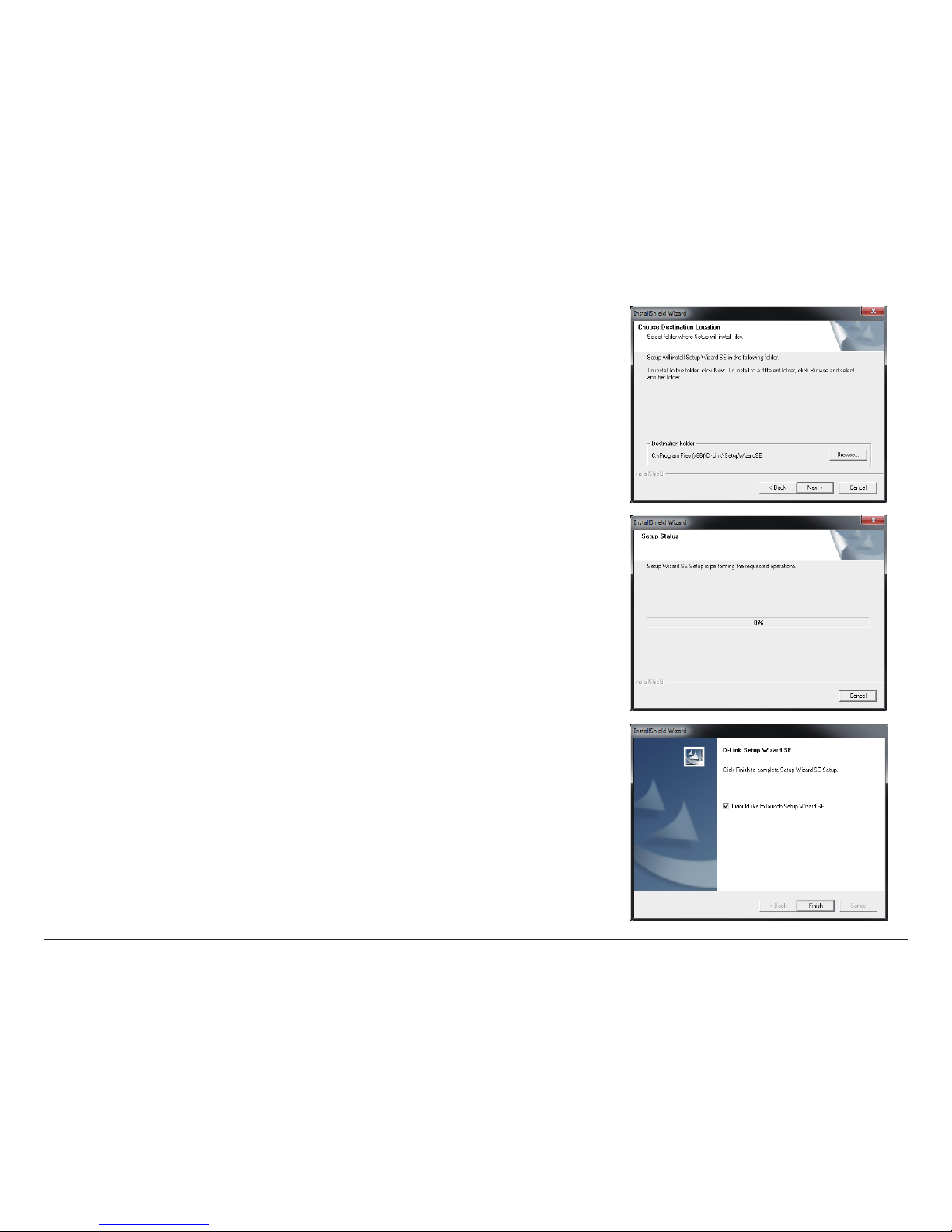

If you want to install Setup Wizard SE into a dierent location than the default,
click Browse and select the desired installation folder.
Click Next to continue.
If you want to start Setup Wizard SE after the installation, check the launch box.
If you haven't plugged in the DCS-2103, please refer to "Manual Hardware
Installation" on page 14 before continuing.
Click Finish to continue.
The installation process will proceed and the installation progress will be displayed.

12D-Link DCS-2103 User Manual
Section 2: Installation

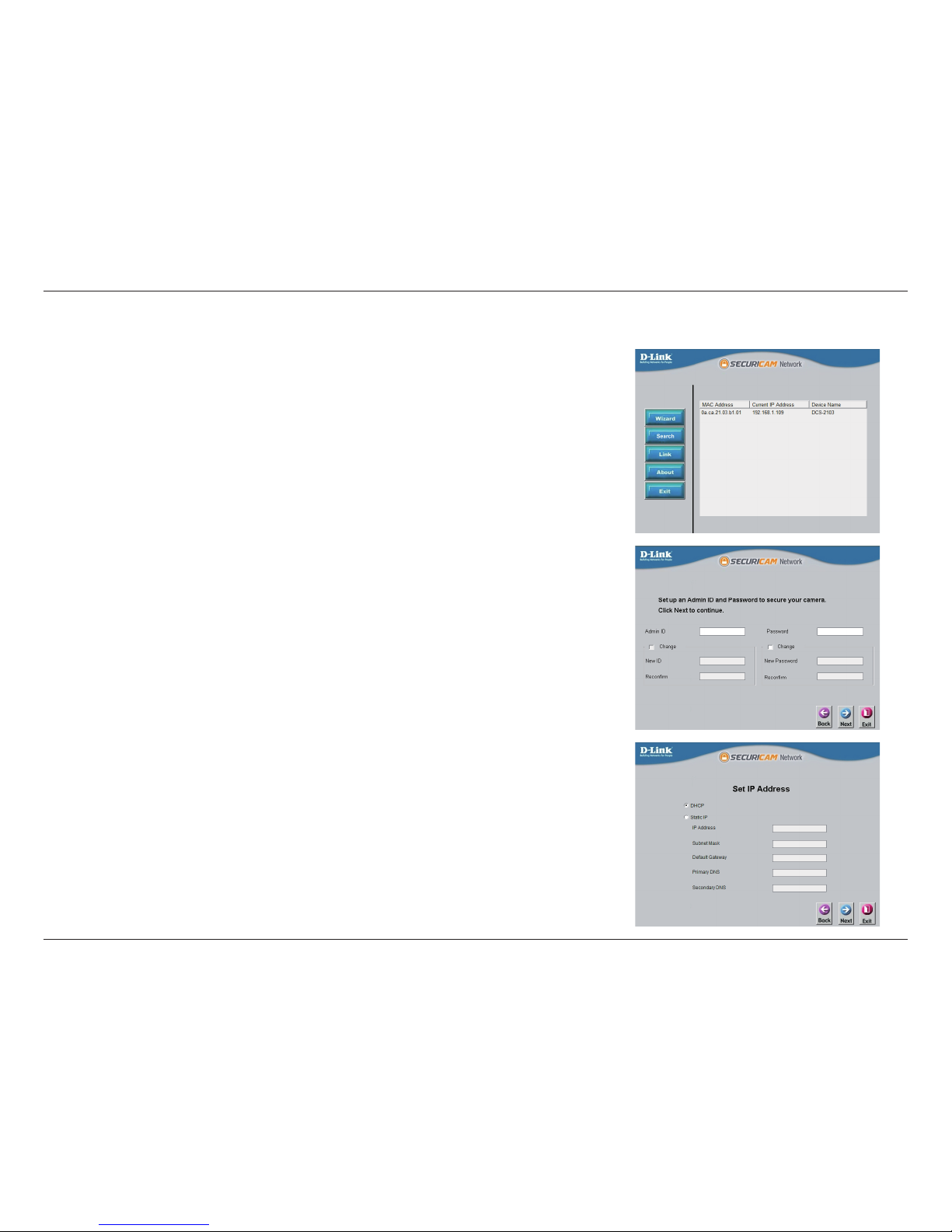

If the DCS-2103 is correctly connected to your local network, the Setup Wizard
will automatically nd it. To begin the initial conguration process, click on the
DCS-2103 in the found devices list, and then click on Wizard.
Set the IP address for the DCS-2103 by choosing either DHCP or Static IP. If Static
IP is selected, enter the necessary details for the DCS-2103. Click Next to continue.
Enter the Admin ID and Password. The default Admin ID is "admin" and
Password is not set. To set the Password or change the Admin ID, check the
Change box and enter the new Admin ID and Password. Click Next to continue.
Setup Wizard SE

13D-Link DCS-2103 User Manual
Section 2: Installation

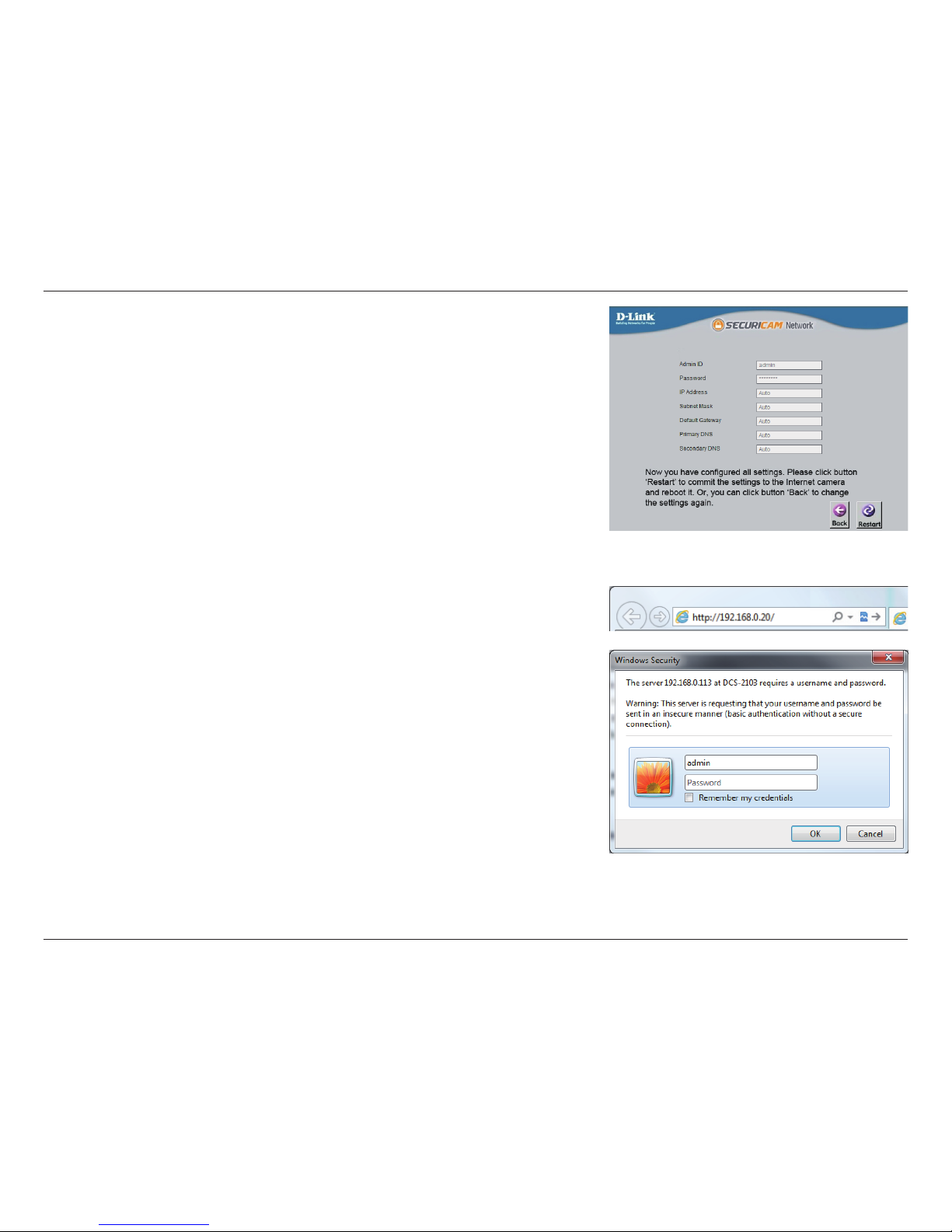

The Setup Wizard will display a summary of the congured settings. If changes
need to be made, click Back. Otherwise click Restart to save the settings and
restart the DCS-2103.
From a web browser open a new windor and type in the IP address of the
DCS-2103. Enter the username and password that was congured during the
setup wizard process to log in and continue conguring the DCS-2103.

14D-Link DCS-2103 User Manual
Section 2: Installation

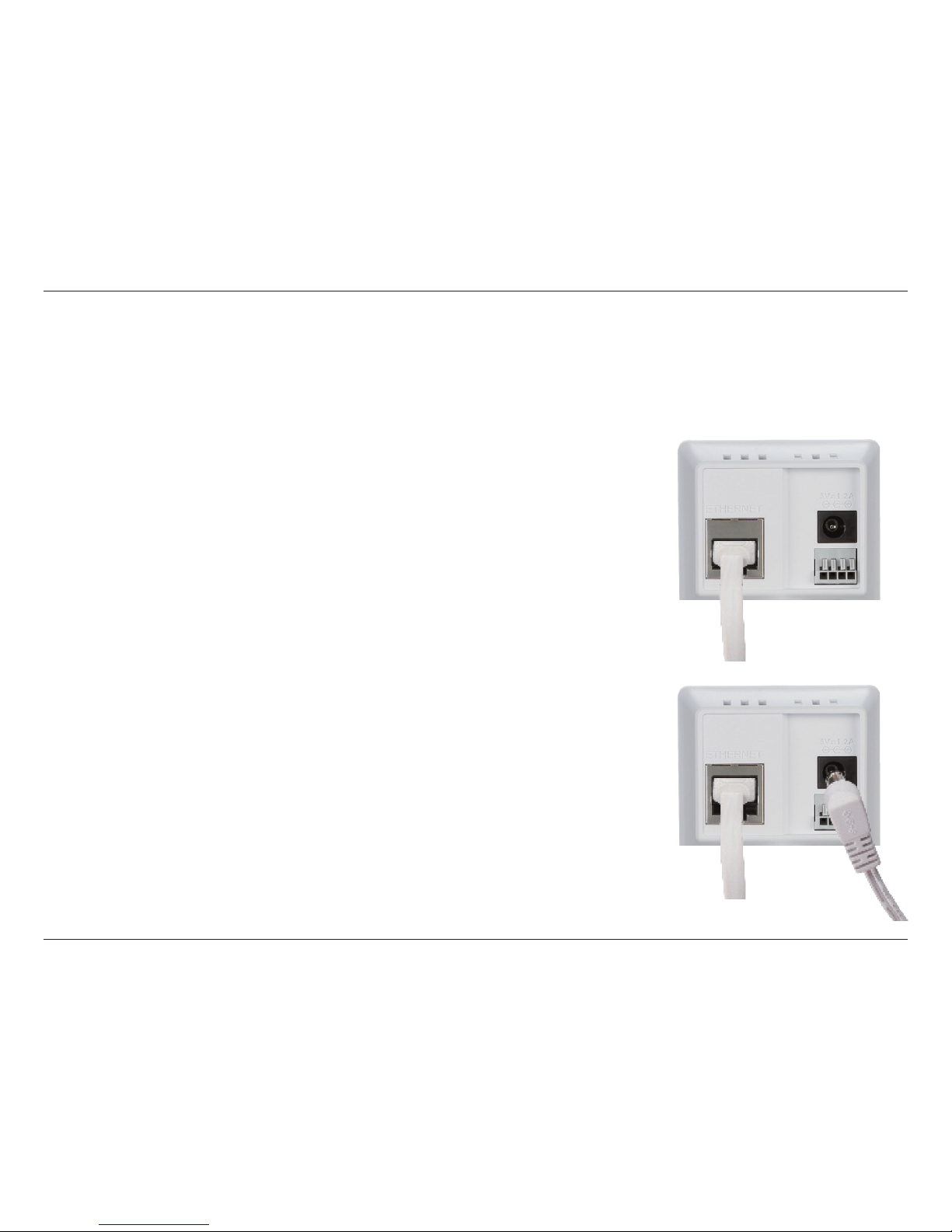

Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on
the panel at the rear of the DCS-2103 and attach it to the network.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-2103 and connect it to your wall outlet or power strip.
Note: If you choose to take advantage of the Power over Ethernet feature you
may unplug the power cable.
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.

15D-Link DCS-2103 User Manual
Section 2: Installation

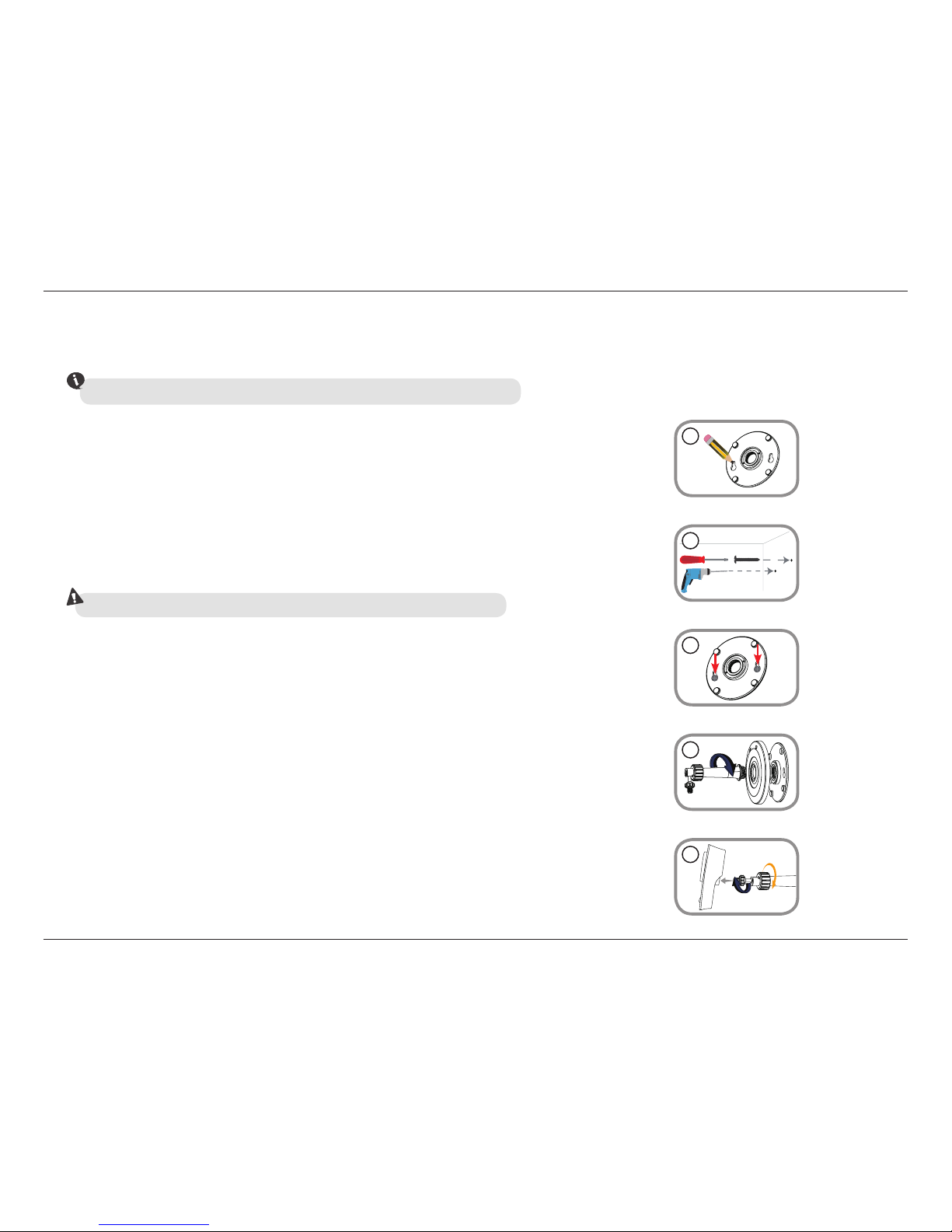

1.Place the mounting base where you want to position the camera and use a pencil
to mark the holes.
4.Place the base cover on the base and screw the camera stem clockwise into the
mounting base.
2.Depending on the material of the wall or ceiling, use proper tools to drill two
holes or screws where you marked. If the wall is made out of concrete, drill the
holes rst, insert the plastic anchors and then the screws.
3.Place the mounting base over the screw that is mounted on the wall. Make sure
to t the screw-heads over the big holes and slide it downward to lock rmly.
Lightly pull the base forward to make sure that it is locked.
Please refer to the steps below to assist you with mounting the camera.
The space between the camera and the screwheads should be 3 mm.
We suggest that you congure the camera before mounting.
1
2
3
4
5.Adjust the angle of the camera as desired, then tighten the collar on the camera
stem to lock it in place.
5
Mount the Camera

16D-Link DCS-2103 User Manual
Section 3: Conguration
Conguration

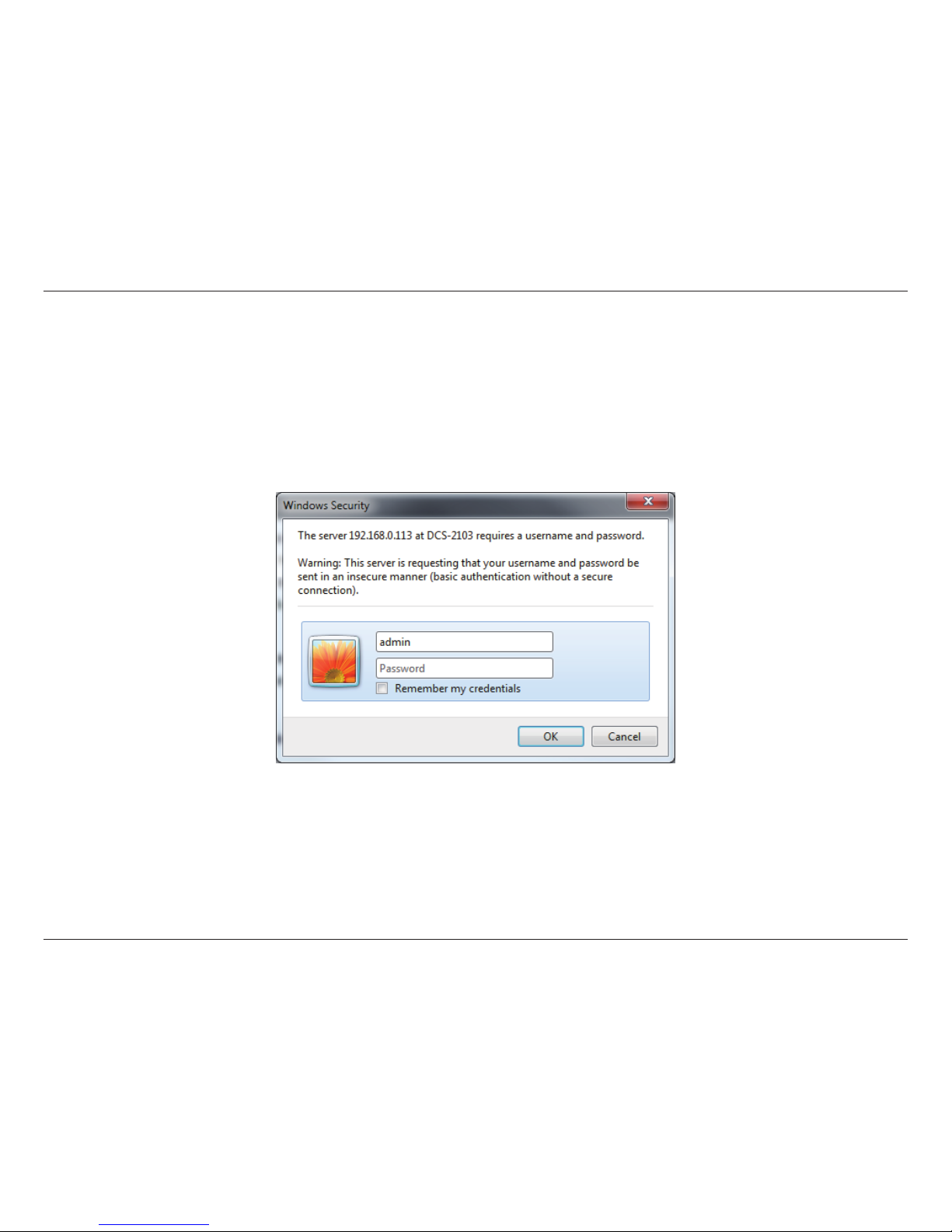

Using the Conguration Interface
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is designed to
allow you to easily access and congure your DCS-2103. At the end of the wizard, enter the IP address of your camera into a web browser, such as
Mozilla Firefox. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create a password, the
default password is blank. After entering your password, click OK.

17D-Link DCS-2103 User Manual
Section 3: Conguration

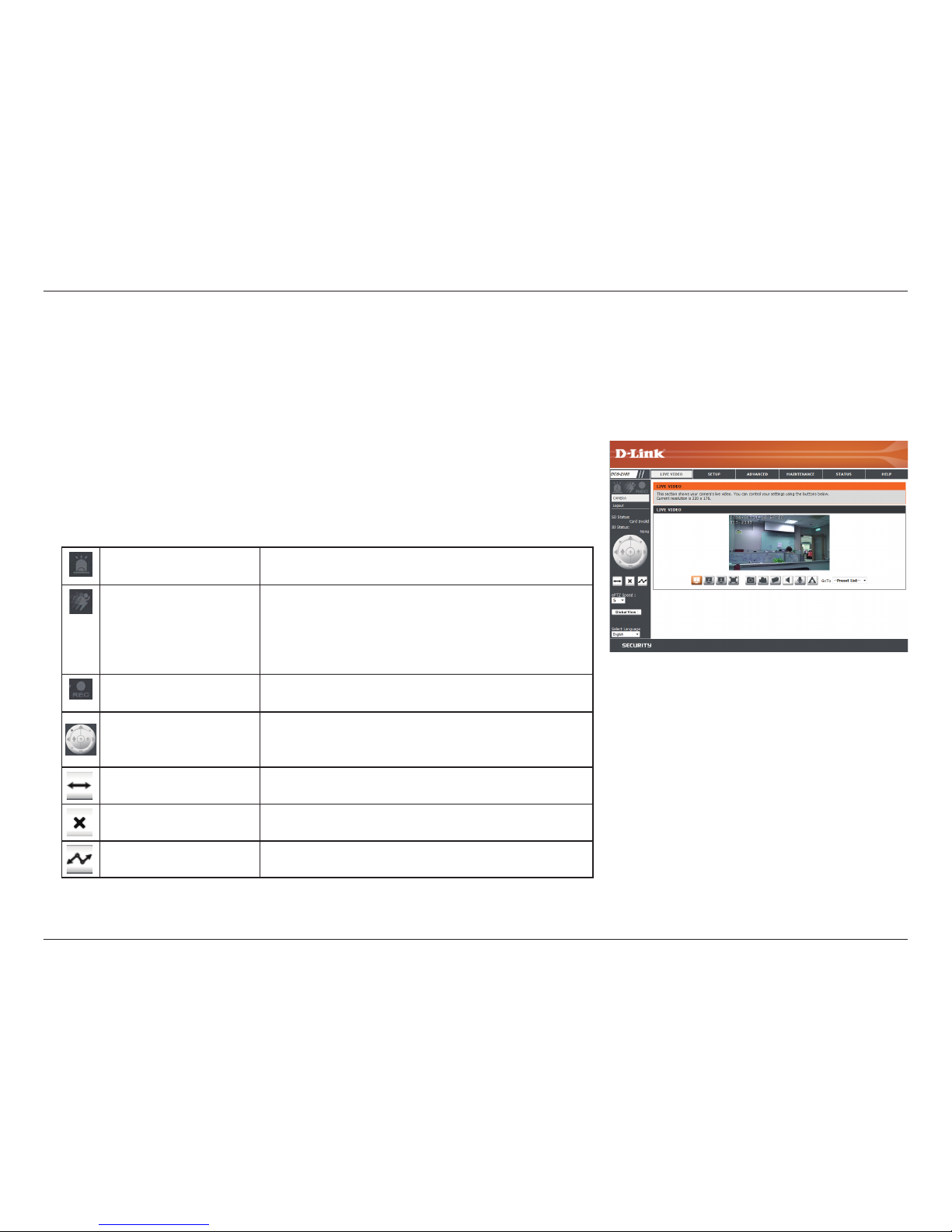

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input Indicator This indicator will change color when a digital input
signal is detected.
Motion Trigger
Indicator
This indicator will change color when a trigger event
occurs.
Note: The video motion feature for your camera must
be enabled.
Recording Indicator When a recording is in progress, this indicator will
change color.
Control Pad
This control pad can be used to electronically pan, tilt,
and zoom (ePTZ) within the camera's predened view
area, if one has been dened.
Auto Pan Starts the automatic panning function.
Stop Stops automatic panning.
Preset Path Starts the camera's motion along the predened path.
You may select a value between 0 and 64. 0 is the slowest
and 64 is the fastest.
ePTZ Speed:
This option displays the status of the microSD card. If no
microSD card has been inserted, this screen will display
the message "Card Invalid."
This option displays the status of your I/O device if a
device has been connected.
SD Status:
IO Status:

18D-Link DCS-2103 User Manual
Section 3: Conguration

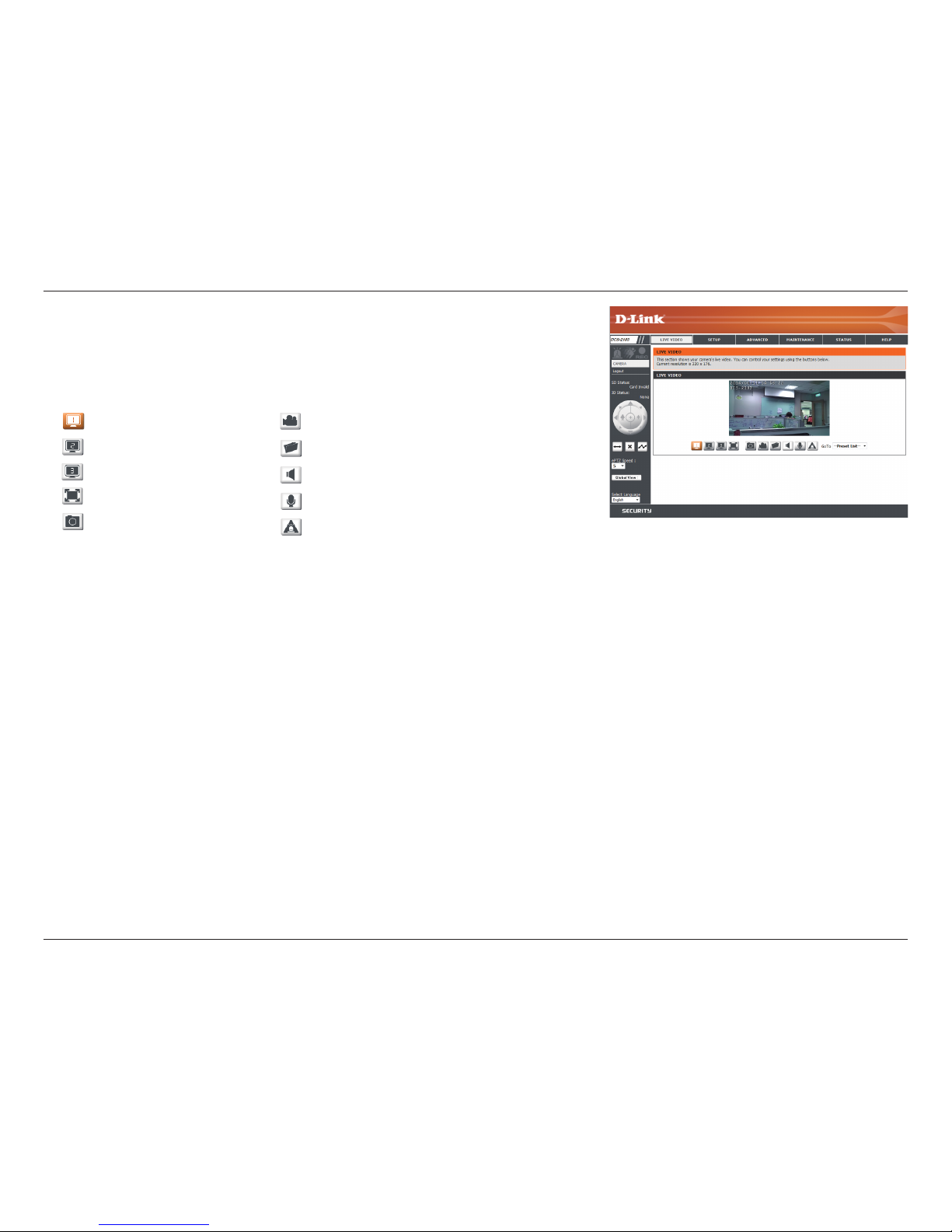

If any presets have been dened, you can select them
here to move the camera to the selected preset.
Go To (Preset List):
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Record a Video Clip
Set a Storage Folder
Listen/Stop Audio In (from microphone)
Start/Stop Audio Out (to speaker)
Start/Stop Digital Output
This window indicates the total eld of view (FOV) of
the camera. The red box indicates the visible region of
interest (ROI).
You may select the interface language using this menu.
Global View:
Language:

19D-Link DCS-2103 User Manual
Section 3: Conguration
Setup
Setup Wizard
To congure your Network Camera, click Internet Connection Setup Wizard. Alternatively,
you may click Manual Internet Connection Setup to manually congure your Network
Camera and skip to "Network Setup" on page 24.
To quickly congure your Network Camera’s motion detection settings, click Motion
Detection Setup Wizard. If you want to enter your settings without running the wizard, click
Manual Motion Detection Setup and skip to"Motion Detection" on page 35.

20D-Link DCS-2103 User Manual
Section 3: Conguration

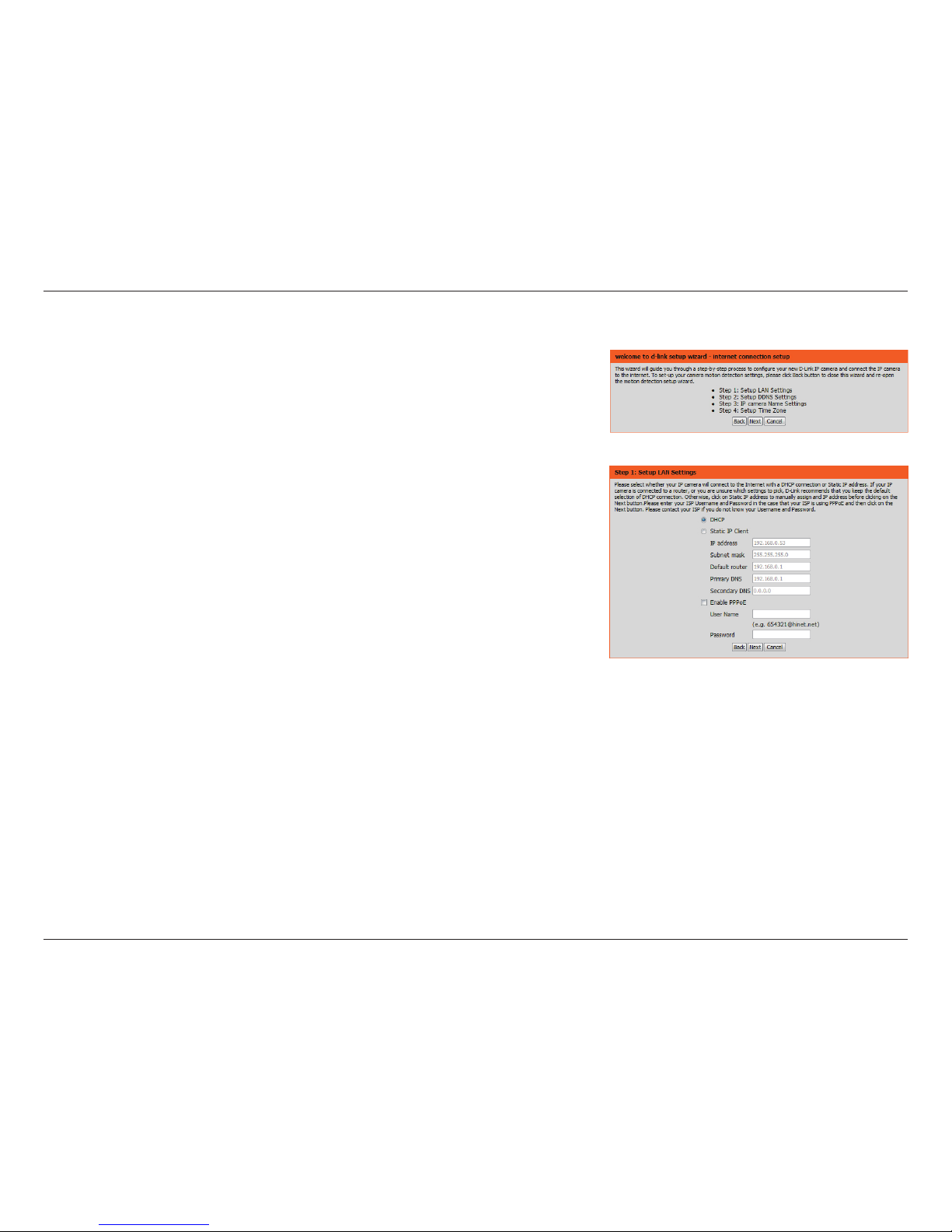

Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new D-Link
Camera and connect the camera to the Internet. Click Next to continue.
Select how the camera will connect to the Internet.
If your router is connected to a router, or you are unsure how your camera will connect
to the Internet, select DHCP Connection.
Select Static IP if your Internet Service Provider has provided you with connection settings, or
if you wish to set a static address within your home network. Enter the correct conguration
information and click Next to continue.
If you are using PPPoE, select Enable PPPoE and enter your user name and password.
Click Next to continue.
