D-Link DCS-2670L User manual

DCS-2670L
Quick Install Guide
Full HD 180-Degree Outdoor Wi-Fi Cam

If any of the above items are missing, please contact your reseller.
DCS-2670L Full HD
180-Degree Outdoor
Wi-Fi Cam
Power Adapter
Ethernet Cable

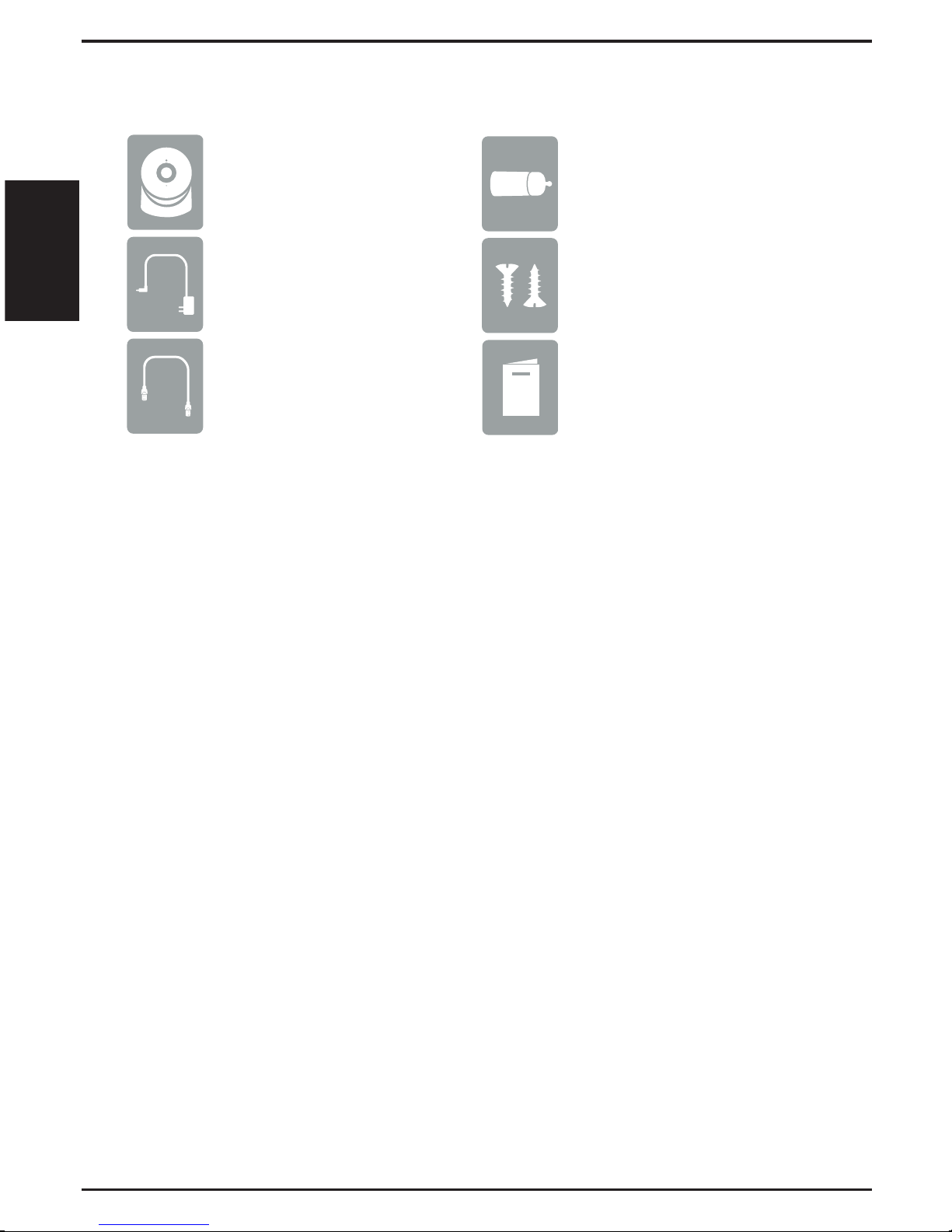

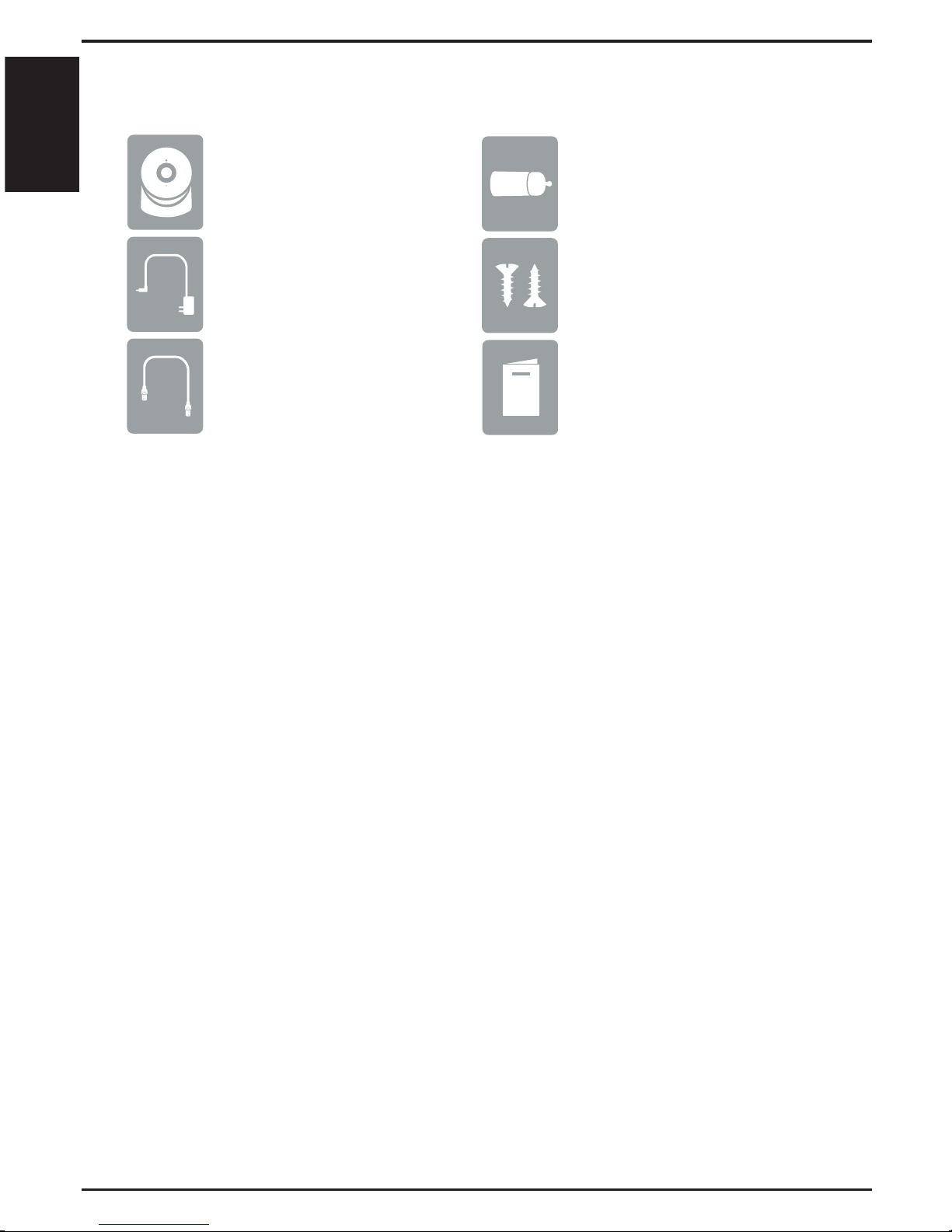

Package Contents
Mounting Hardware
Waterproof Cable Connector
Minimum Requirements
Mobile Device (to use mydlink Lite app)
• iPhone, iPad, or Android smartphone or tablet
(Refer to the mobile app’s store page to see if your device is compatible)
Network Device and Service
• A wireless router (802.11n/ac) with Internet service
• An e-mail account (required to create a mydlink® account)
Quick Install Guide
For warranty and regulatory information, please visit:
http://support.dlink.com/warranty.aspx (U.S.)
or http://support.dlink.ca/DCS-2670L (Canada)
2
ENGLISH

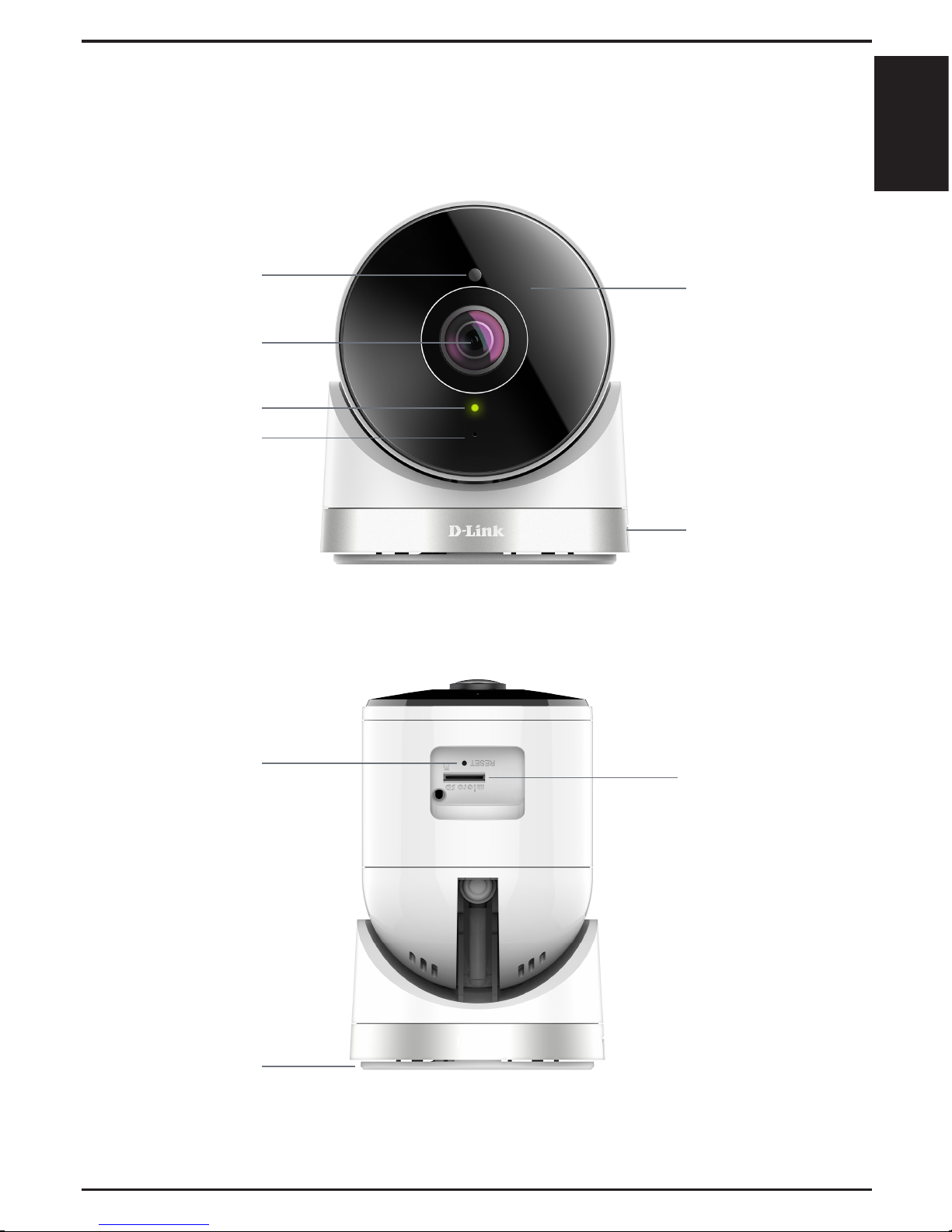

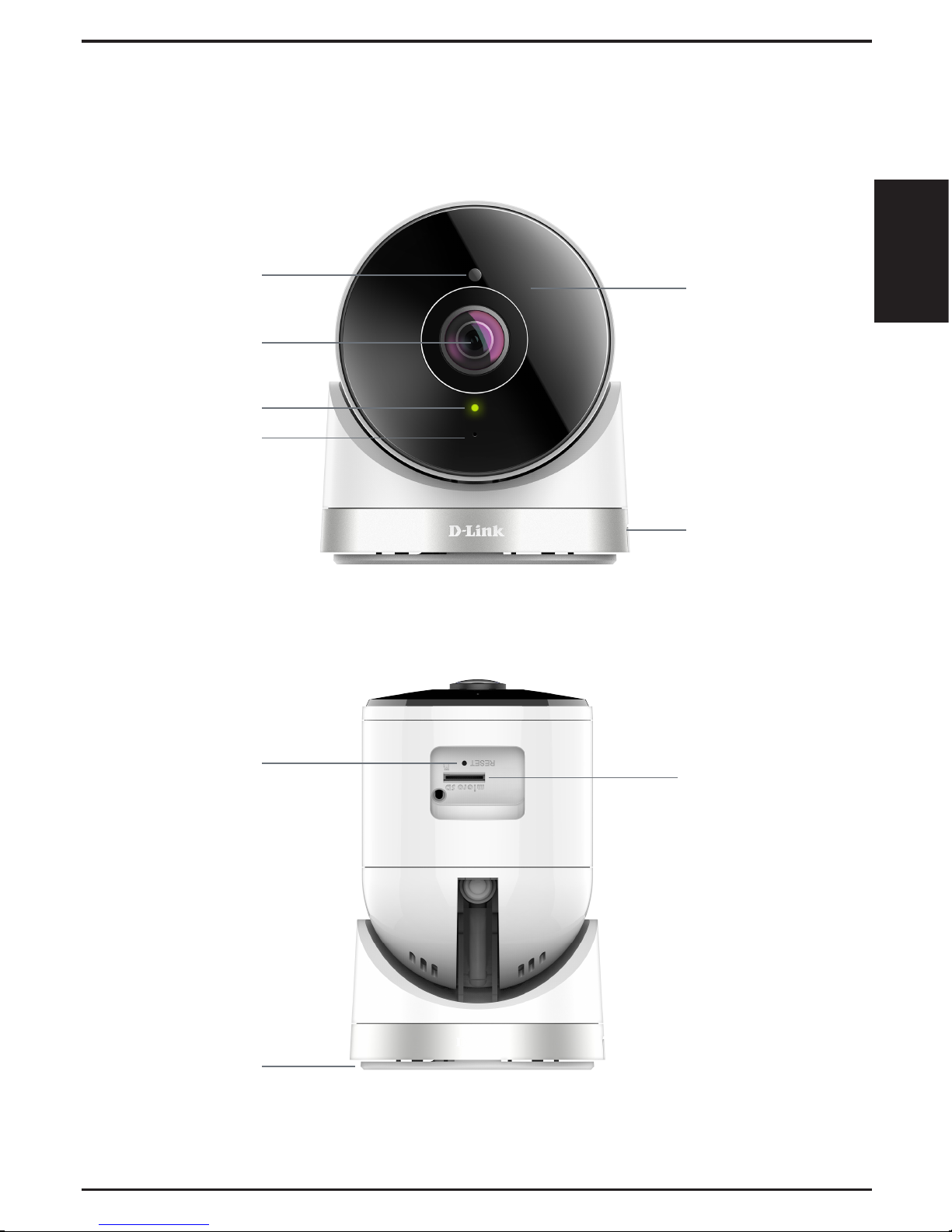

Product Overview
Front
Bottom
* Supports microSD/SDXC up to 128GB
Light Sensor Infrared LEDs
Camera Base
Camera Lens
Power LED
Microphone
Baseplate
Reset Button microSD Card Slot*
3
ENGLISH

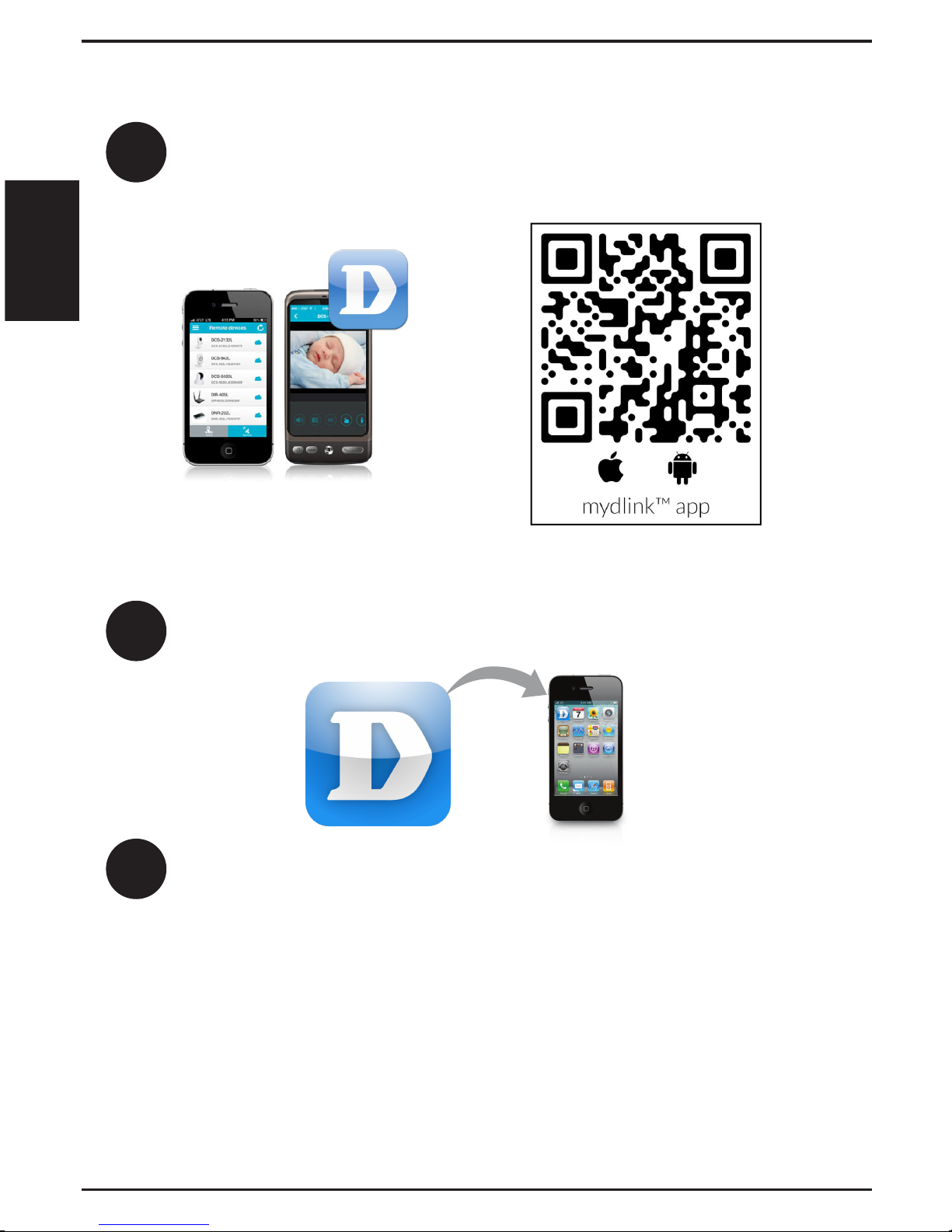

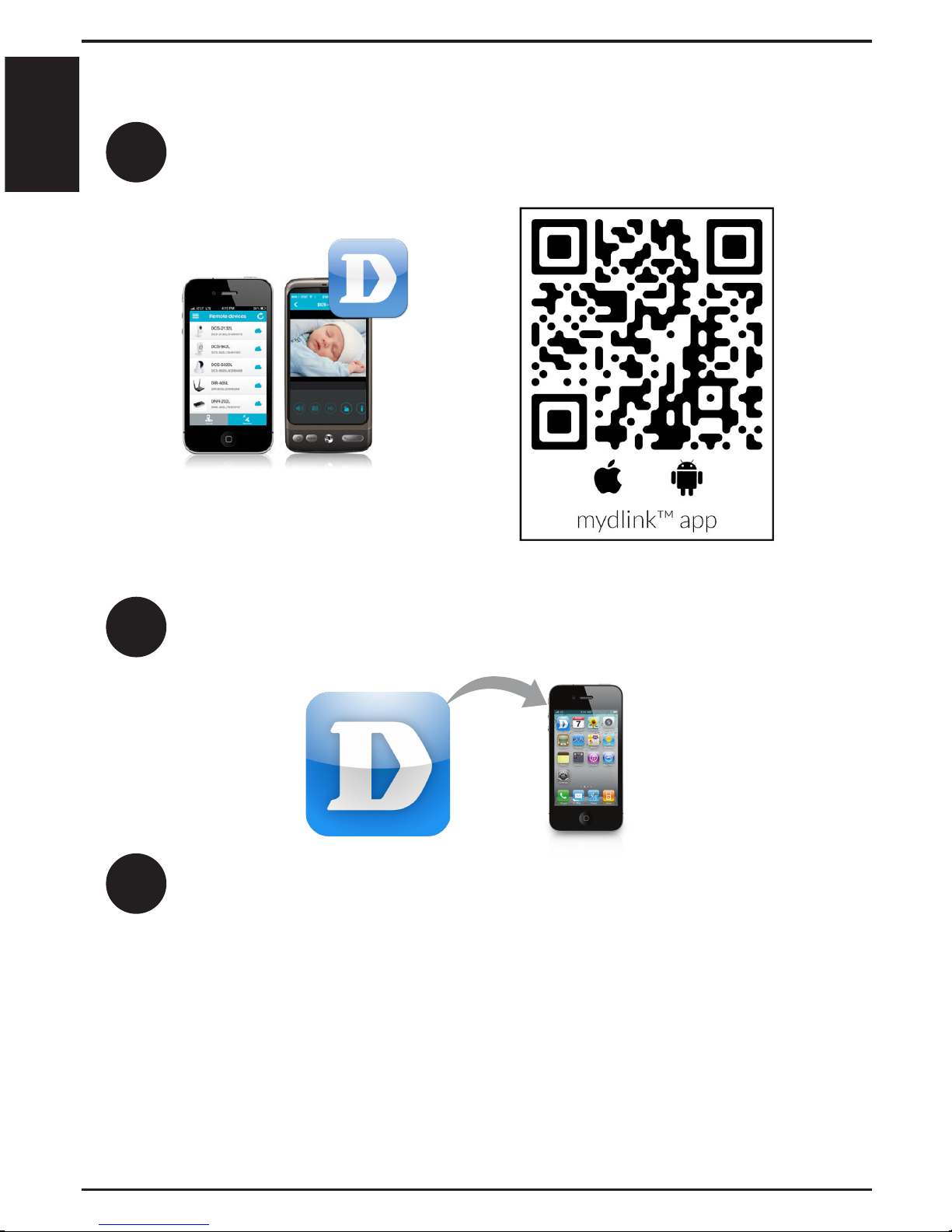

Setting Up Your Camera
System Requirements: Refer to the mydlink Lite app page on the Apple App Store or Google Play.
Launch the mydlink Lite app, then create a new account or log in to your
existing account.
Download the free mydlink Lite app on your smartphone or tablet by
scanning the QR code below, or by searching for mydlink Lite in the app
store for your device.
1
2
3The app will guide you through the rest of the set up process.
4
ENGLISH

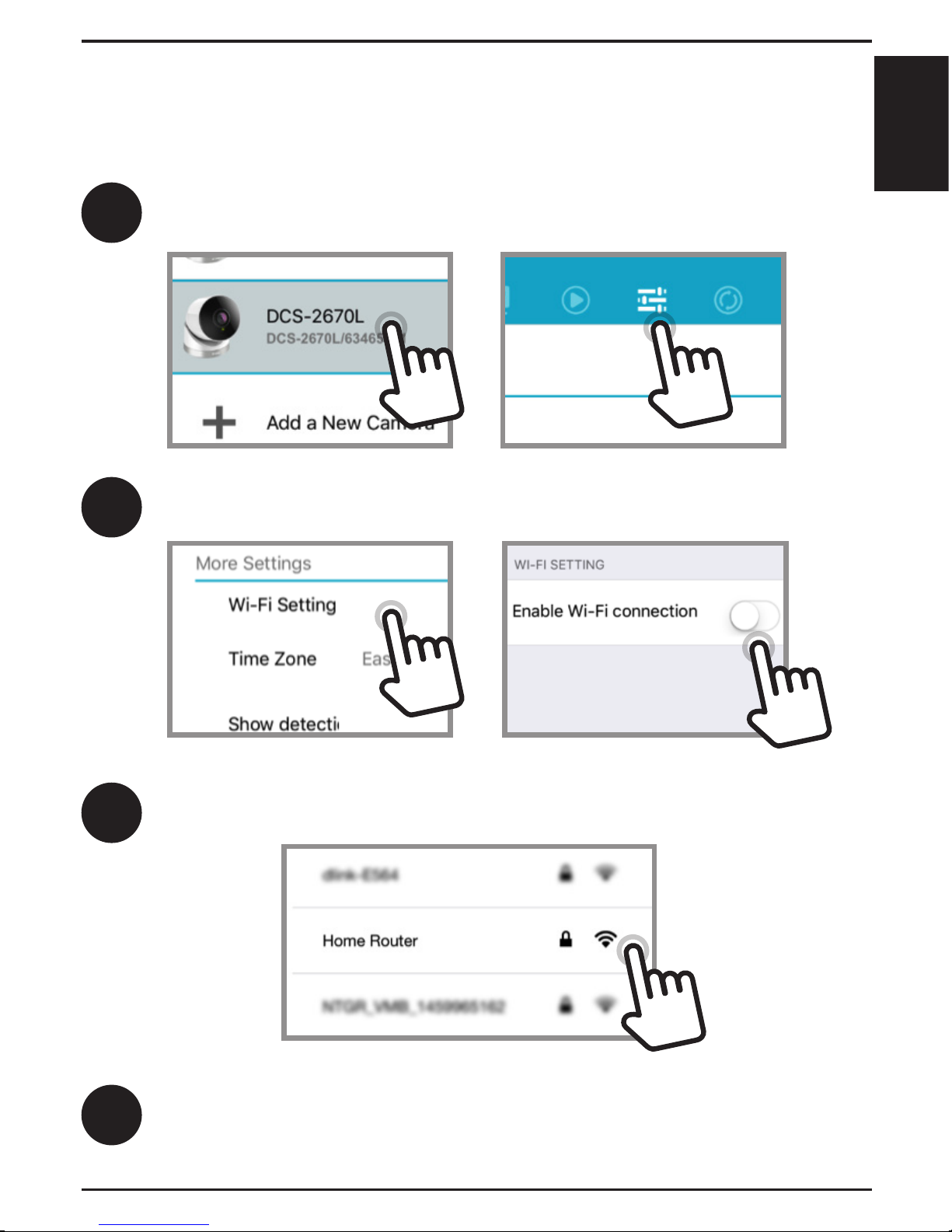

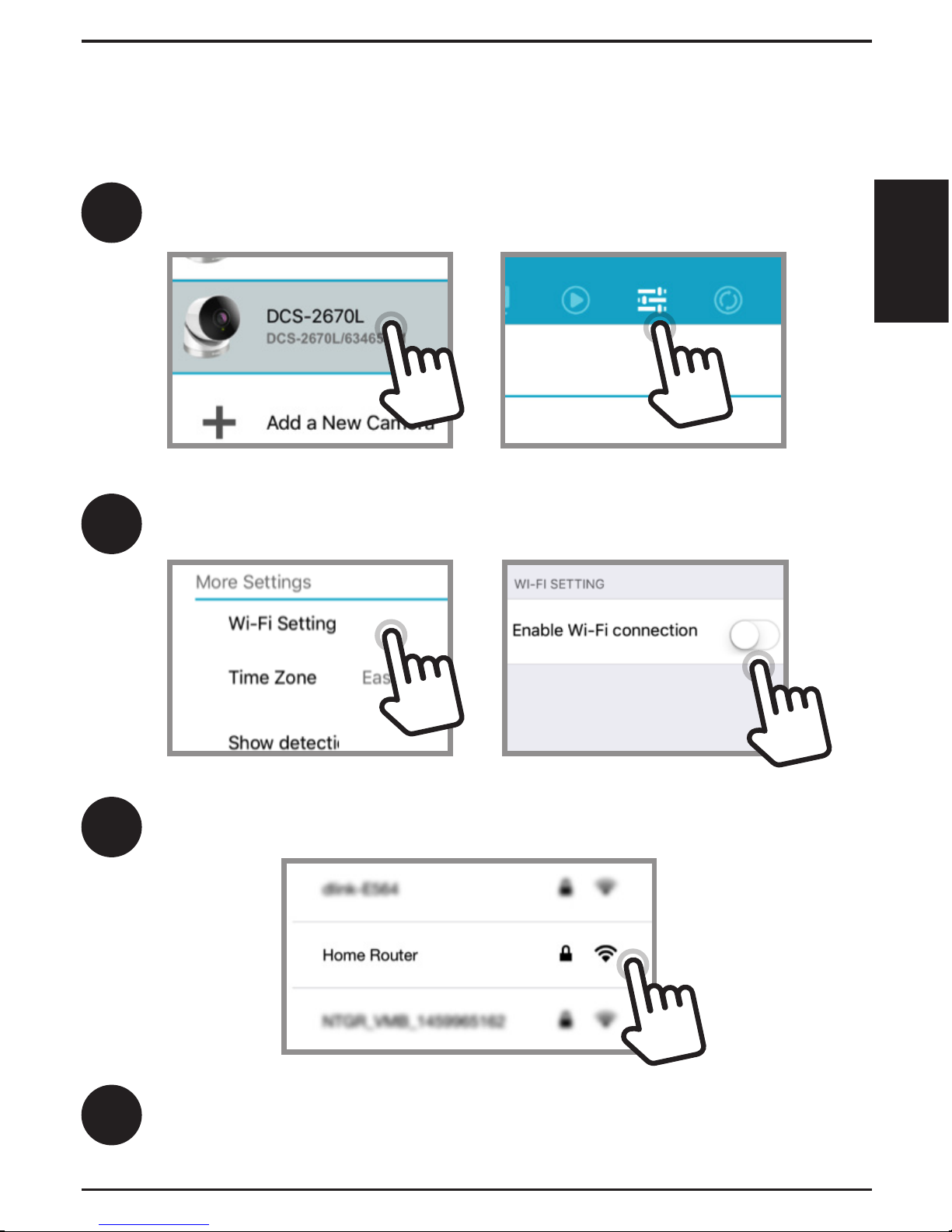

Wireless Setup
Once your camera is set up, select your camera and tap the Settings button.
Select“Wi-Fi Setting”and“Enable Wi-Fi connection”.
To connect your camera to your network wirelessly,
follow the instructions below.
1
2
The app will guide you through the rest of the set up process.
Select your wireless network and enter your password, then tap Apply.
You can now disconnect the Ethernet cable and move the camera to your
preferred location.
3
4
5
ENGLISH

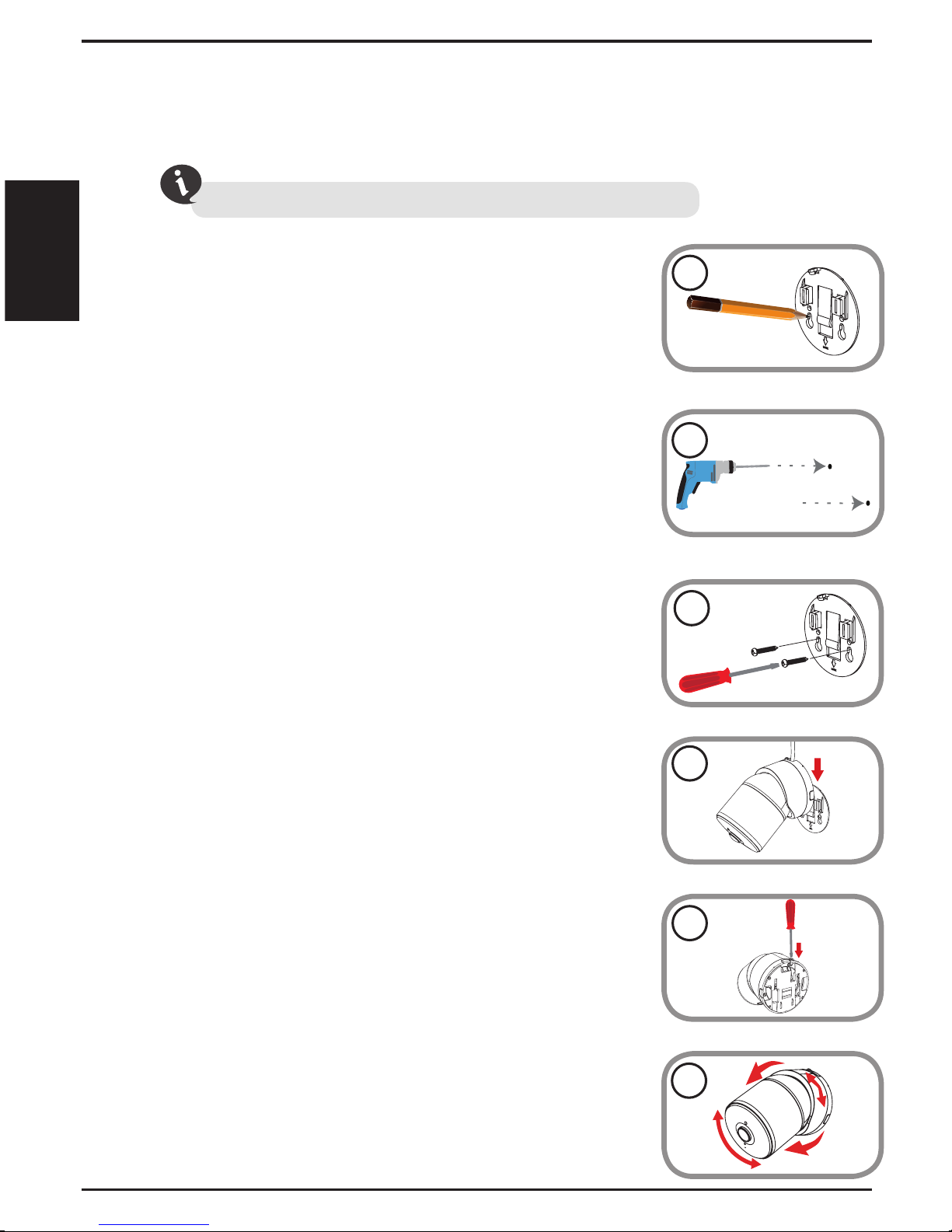

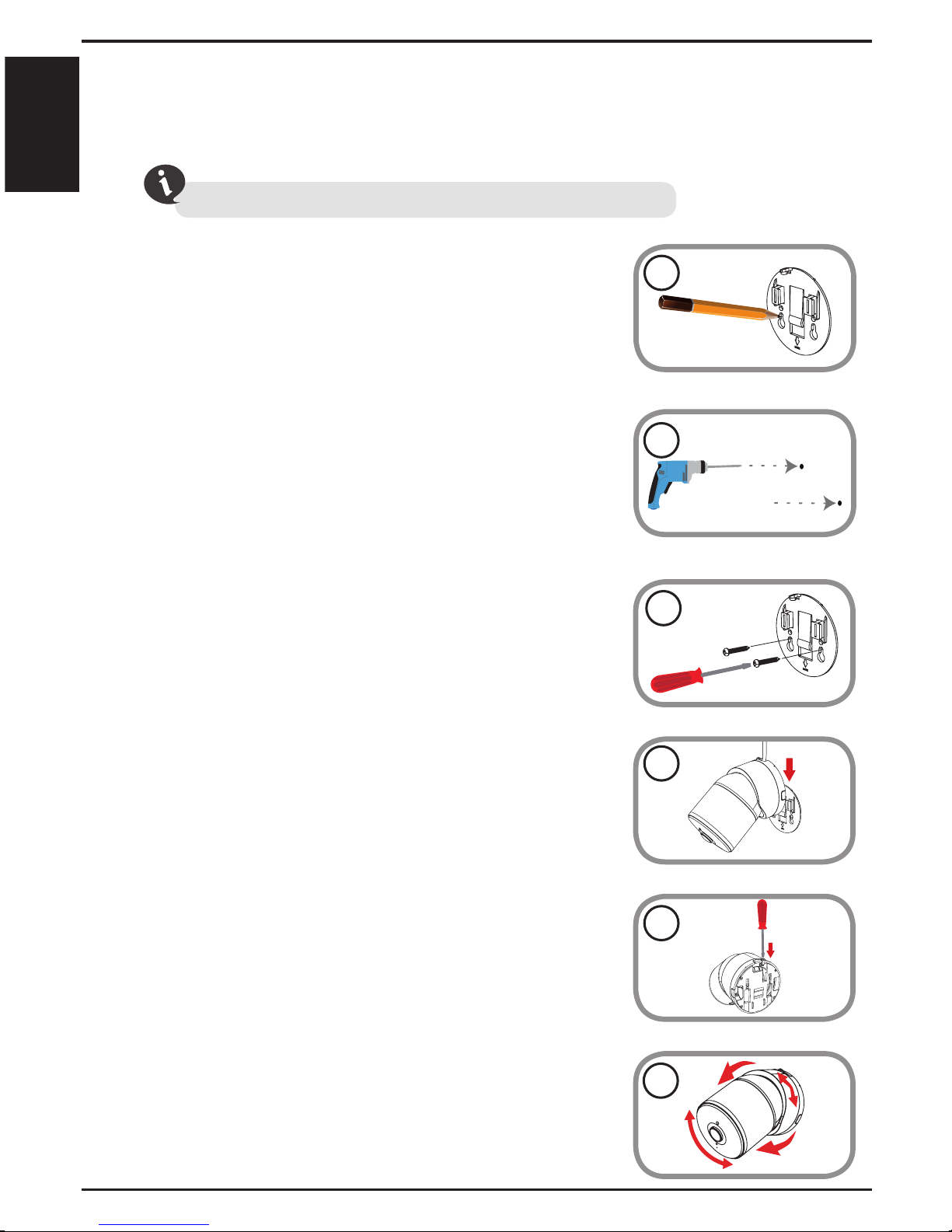

Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
2. Depending on the material of the wall or ceiling,
use proper tools to drill holes 25 mm deep with a 6
mm drill bit where you marked. If the wall is made
out of concrete, drill the holes rst, then insert the
plastic anchors to support the screws.
3. Place the baseplate over the holes that are in the
wall. Make sure to align the baseplate holes with the
holes in the wall. Use the supplied screws to attach
the baseplate to the surface of the wall.
4. Place the camera over the baseplate and align the
nub with the hole on the camera. Attach the camera
by sliding it in the direction of the arrow.
1. Place the baseplate where you want to position the
camera and use a pencil to mark the holes. You can
use the large holes for a removable installation, or
the small holes for a xed one. Make sure the lock
arrow on the plate is pointing down.
5. Once the camera is secured to the baseplate, use a
screwdriver to fasten the screw next to the hole at
the back of the camera body.
6. Adjust the angles via the camera body and rotate
the silver base until you achieve your desired
viewing angle.
1
2
3
4
5
6
6
ENGLISH

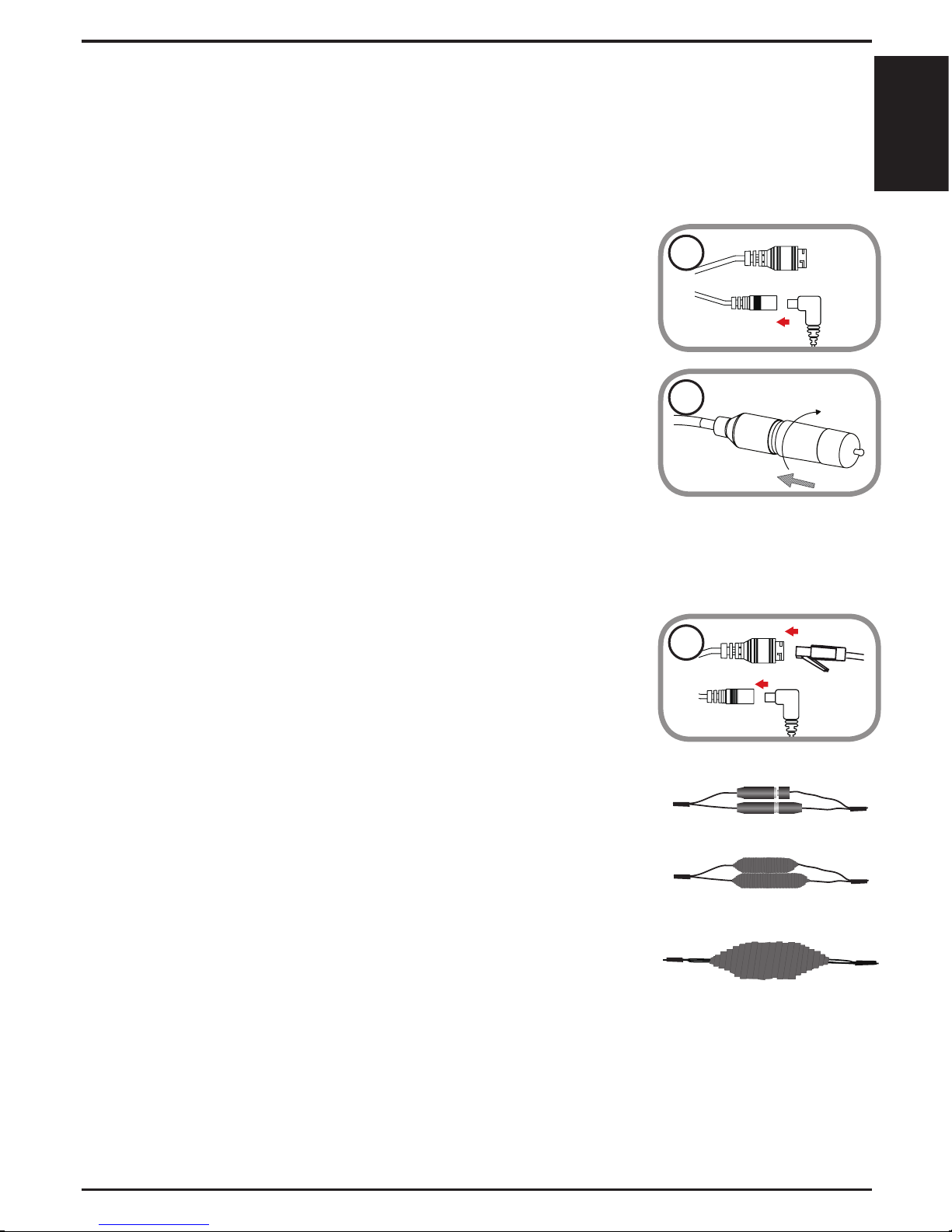

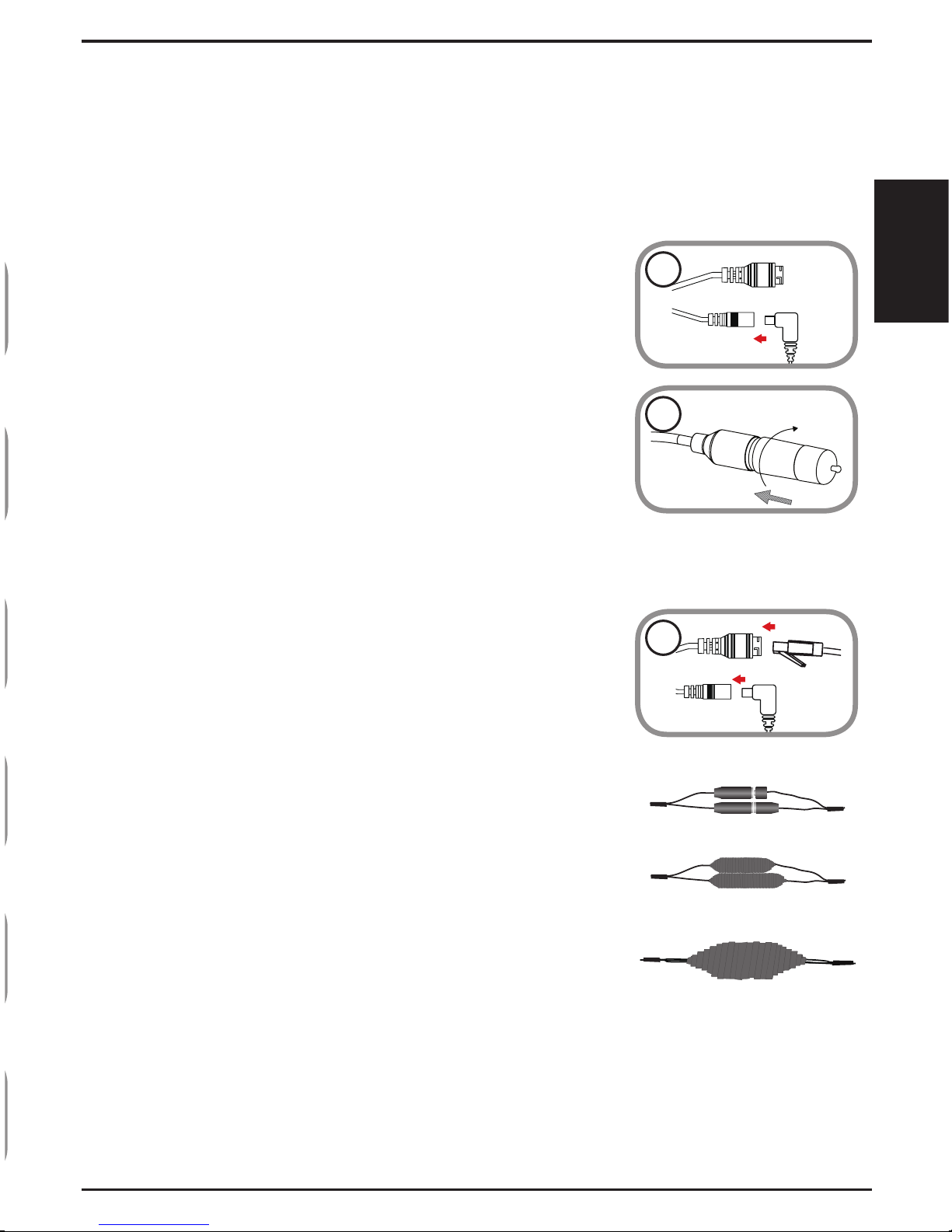

Waterproong the Camera
After conguring your camera, follow the instructions below to prevent
water from entering the camera's Ethernet and Power Cable connections.
If you are using an Ethernet connection, follow the instructions below to
prevent water from entering the camera's Ethernet cable connector.
Waterproong Your Connectors When Using Wi-Fi
Waterproong Your Ethernet Connector
Using Waterproof Tape
1. Plug the power adapter into the dongle.
Wind waterproof tape, such as butyl rubber or vinyl
tape, around the individual cables and connectors
in a half-overlapping manner then wrap all the
connectors together. Be sure to cover all of the
connectors and any unsheathed cables.
Note: Butyl rubber tape should be wrapped by stretching the
tape to about twice its length, and wrapping it around the cable.
Failure to stretch the tape suciently will result in insucient
waterproong performance.
Caution: Due to its IP65 rating we recommend that you install your device under a roof or a shelter to
protect the Power and Ethernet connections from water seepage.The cables and connections need to
be located away from all potential water hazards.
1. Connect the power and Ethernet cables.
2. To waterproof the Ethernet socket, align the cap
according to the thread and twist it clockwise to
seal it.
1
1
2
7
ENGLISH

1. What can I do if my DCS-2670L is not working correctly?
• Reset the camera (see next step) and run the setup steps starting
on page 4 again.
• To make sure your hardware is installed correctly, make sure that:
- the power LED is green
- your Internet connection is working
- your router’s LAN & WAN connections are working
- your router supports UPnP®
- your camera is on the same network as your mobile device
- both your mobile device and camera have a working Internet connection
• If your camera is still not working, check your router and make sure it
has the latest rmware.
FAQs

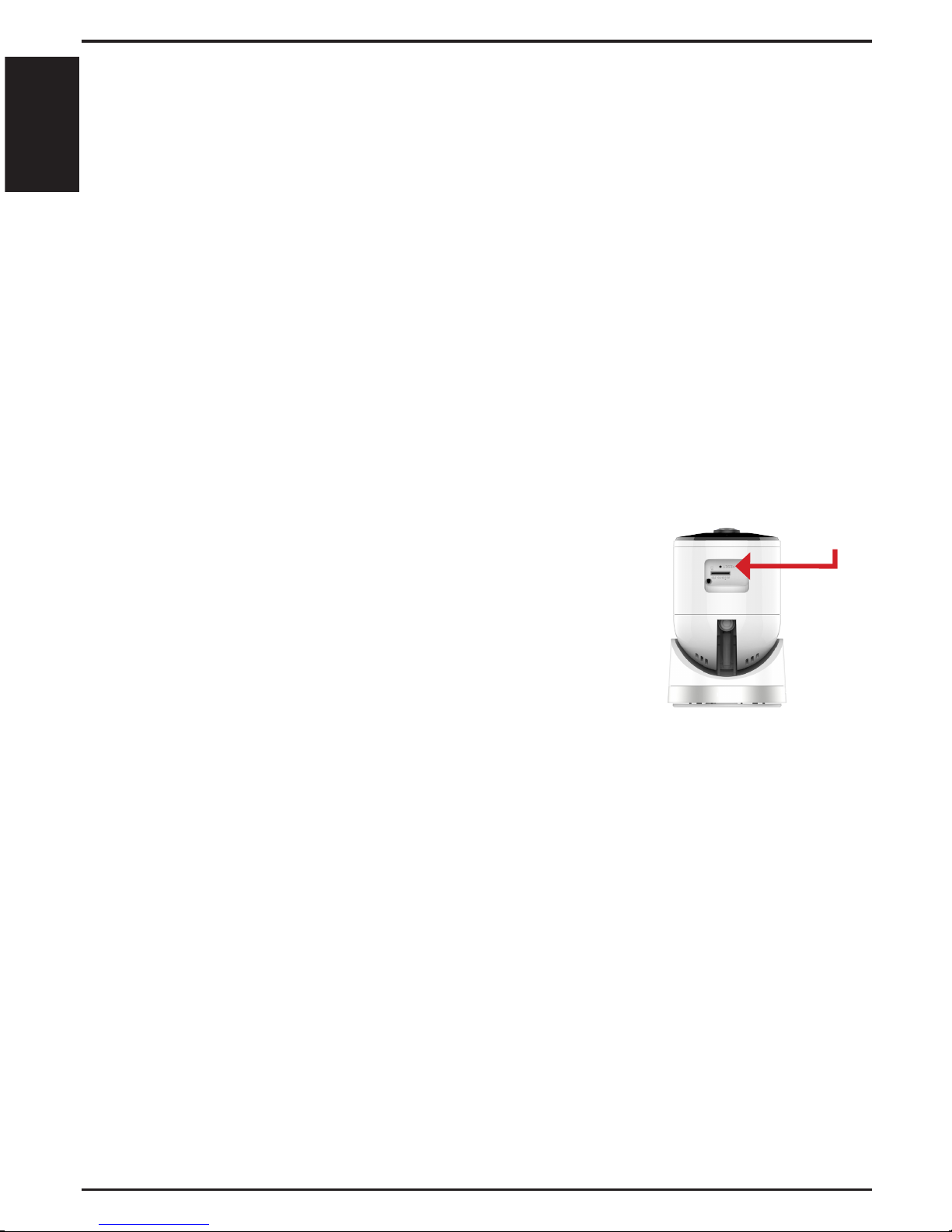

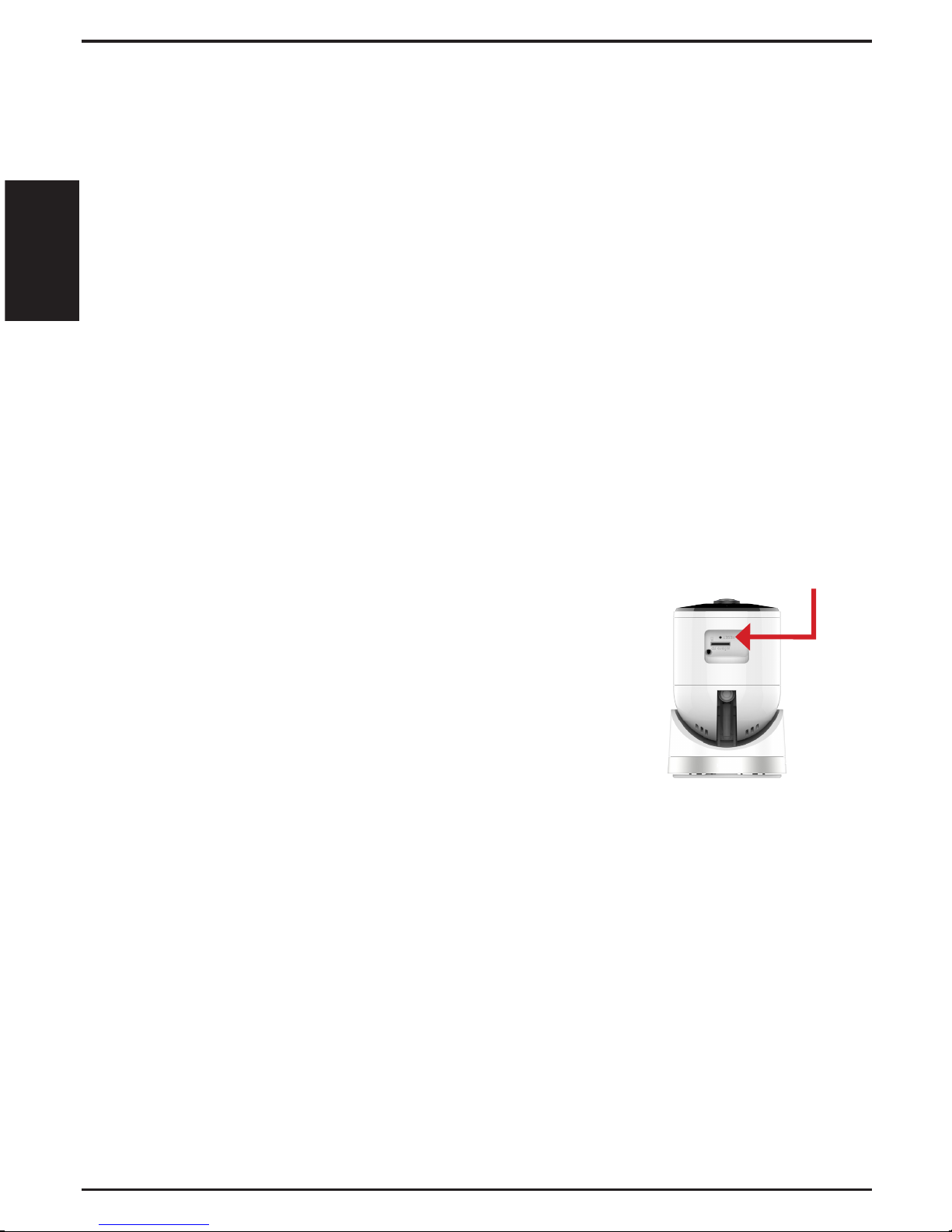

2. What can I do if I forget my password?
If you forget your password, you must reset the
camera. Unfortunately, this process will change
your settings back to factory default.To reset the
camera, locate the reset button underneath the
camera. With the camera powered on, use an
unfolded paper clip to hold the button down for
10 seconds. Run the setup procedure located on
page 4 once the camera restarts.
3. Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on the camera may be
reecting o a nearby surface. Try repositioning the camera in order to
avoid glare from IR LEDs.
Reset
Button
8
