D-Link DCS-2630L User manual

User Manual
Full HD Ultra-Wide View
DCS-2630L
Wi-Fi Camera
Version 1.00 | October 14, 2015

2D-Link DCS-2630L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to
http://www.mydlink.com for the most current information.
Manual Revisions
Revision Date Description
1.00 October 14, 2015 Initial release for hardware revision A1
Trademarks
© 2015 D-Link Systems, Inc. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its
subsidiaries. All other third-party marks mentioned herein may be trademarks of their respective owners. This publication may not be reproduced, in
whole or in part, without prior express written permission from D-Link Systems, Inc.
Preface

3D-Link DCS-2630L User Manual
Table of Contents
Preface.......................................................................... 2
Manual Revisions.................................................................. 2
Trademarks.............................................................................. 2
Product Overview........................................................ 4
Package Contents................................................................. 4
Minimum Requirements .................................................... 5
Introduction............................................................................ 5
Features.................................................................................... 6
Hardware Overview ............................................................. 7
Front ...................................................................................... 7
Rear........................................................................................ 8
Wireless Installation Considerations.............................. 9
Installation.................................................................10
mydlink Lite App.................................................................10
Zero Conguration Setup................................................11
Mount the Camera .............................................................12
mydlink ......................................................................14
Conguration ............................................................15
Using the Conguration Interface................................15
Live Video ..............................................................................16
Setup.......................................................................................17
Setup Wizard ....................................................................17
Network..............................................................................25
Router Connection.........................................................28
Dynamic DNS ...................................................................29
Image Setup .....................................................................30
Audio and Video..............................................................31
Time and Date..................................................................33
Video Clip...........................................................................34
Snapshot............................................................................35
IP Filter ................................................................................36
HTTPS Setup .....................................................................37
SD Recording....................................................................38
Motion Detection ...........................................................39
Sound Detection.............................................................40
SD Management .............................................................41
Maintenance.........................................................................42
Admin..................................................................................42
System ................................................................................44
Firmware Upgrade..........................................................45
Status ......................................................................................46
Device Info ........................................................................46
Log .......................................................................................47
Help .........................................................................................48
Troubleshooting........................................................49
Technical Specications............................................50
Contacting Technical Support..................................52
Warranty ....................................................................53
Registration ...............................................................58

4D-Link DCS-2630L User Manual
Section 1: Product Overview
Product Overview

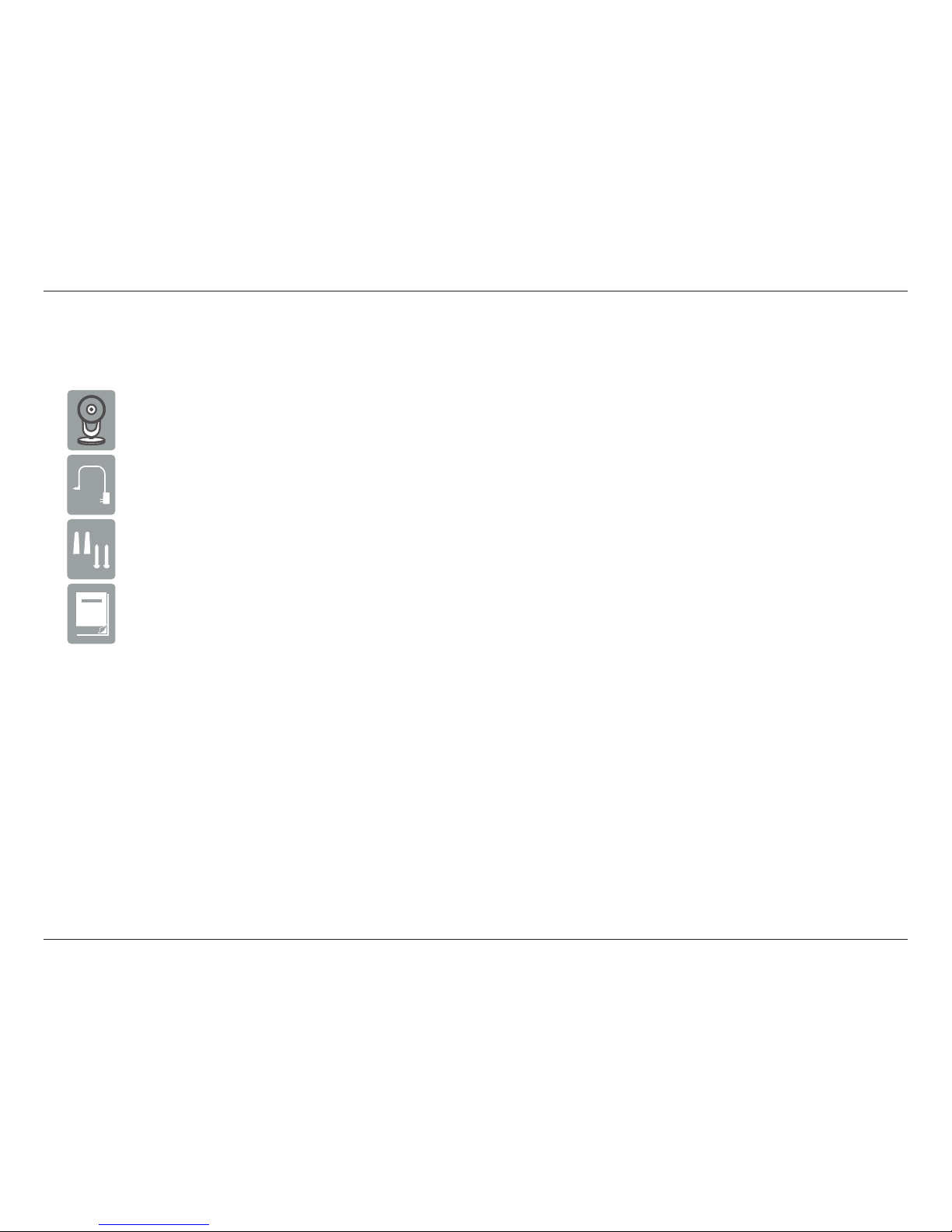

Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause
damage and void the warranty for this product.
DCS-2630L Full HD Ultra-Wide View Wi-Fi Camera
Power Adapter
Mounting Kit
Quick Install Guide
Mobile Device (to use mydlink Lite app)
• iPhone, iPad, Android smartphone or tablet, or Windows Phone 8/8.1
(Refer to the mobile app’s store page to see if your device is compatible)
Network Device and Service
• A wireless router (802.11ac/n/g) with Internet service
• An e-mail account (required to create a mydlink® account)
Minimum Requirements

5D-Link DCS-2630L User Manual
Section 1: Product Overview
Introduction
The Full HD Ultra-Wide ViewWi-Fi Camera (DCS-2630L) with 180-degree Wide Eye lens keeps a vigilant eye on your home and provides crisp HD 1080p
video to watch your kids or pets with wall-to-wall coverage. Night vision allows you to see in total darkness and with 2-way audio and PIR sensor, you
can be notied when sound or motion is detected. With the microSD card slot you can record video directly from the camera so you never miss a
moment. Stream live HD 1080p video to your smartphone or tablet with the free mydlink Lite app for remote monitoring.
Monitor Your Home with Fewer Cameras
The Full HD Ultra-Wide View Wi-Fi Camera delivers the condence of HD 1080p video clarity, ensuring rich detail and crisp image quality for your
surveillance streaming and recording. The DCS-2630L’s 180oWide Eye lens uses unique hardware with de-warping technology to maximize the
video quality with less distortion, letting you see more of your home at a glance. And with built-in Wireless AC, it takes advantage of the latest Wi-
Fi technology to give you a high bandwidth connection to your router for streaming 1080p HD video from your camera. The Wi-Fi camera is also
backwards compatible and will work seamlessly with your existing wireless devices. Record footage to a microSD/SDXC card for hassle-free recording
and playback or easily add a mydlink Camera Recorder (DNR-202L) to locally record up to 4 D-Link Wi-Fi Cameras for a scalable alternative for recording
and storing video.
Convenient Access Anytime, Anywhere with mydlink®
Access your camera through the free mydlink mobile app or website to view and manage your camera through your tablet, mobile phone, laptop or
desktop, no matter where you are.

6D-Link DCS-2630L User Manual
Section 1: Product Overview
Premium Resolution and Visibility
• Full HD 1080p resolution image quality
• 3 Megapixel progressive CMOS sensor
• See up to 16 feet in complete darkness with built-in IR LEDs
• Supports H.264/M-JPEG video codecs
• 180o(H) Field of View for wider camera coverage
• 8x digital zoom for close-up viewing
Security
• PIR sensor for enhanced motion detection
• Sound and motion detection with e-mail/push alert notications
• microSD/SDXC card slot for local recording continuously, based on event triggers or according to a schedule1
• Built-in microphone and speaker for 2-way communication2
Ease of Use
• Uses Wireless AC technology so you can install the camera virtually anywhere with ease
• Backwards compatible with 802.11n/g
• WPS support for easy wireless connection
Convenient Control with mydlink® Support
• mydlink app support for iPhone, iPad, Android devices and Windows phones
• View and manage remotely using just your mobile device
Features
1 A microSDXC Class 6 card or above is recommended (not included). Supports card capacities up to 128GB.
2 Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with
applicable state, local and federal laws.

7D-Link DCS-2630L User Manual
Section 1: Product Overview

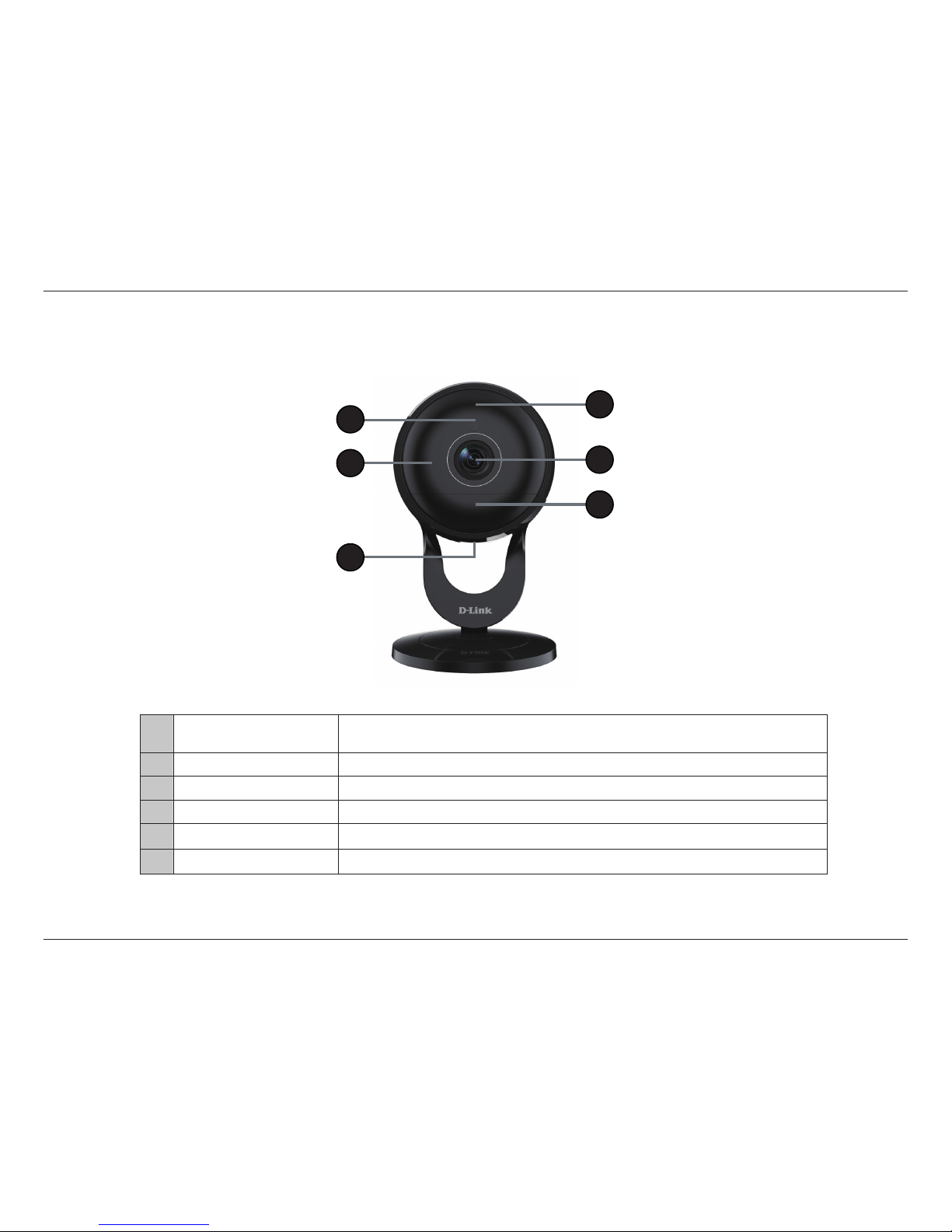

Front
Hardware Overview
1Light Sensor The IR-Cut Removable sensor monitors lighting conditions and switches between
color and infrared accordingly.
2 IR (Infrared) LEDs Used to illuminate the camera's eld of view at night.
3 Power Connector Connects to the included 5 V DC power adapter.
4 Microphone Records audio from the surrounding area.
5 Camera Lens Records video of the surrounding area.
6 PIR Sensor Passive Infrared sensor for motion detection.
1
3
2
4
5
6

8D-Link DCS-2630L User Manual
Section 1: Product Overview

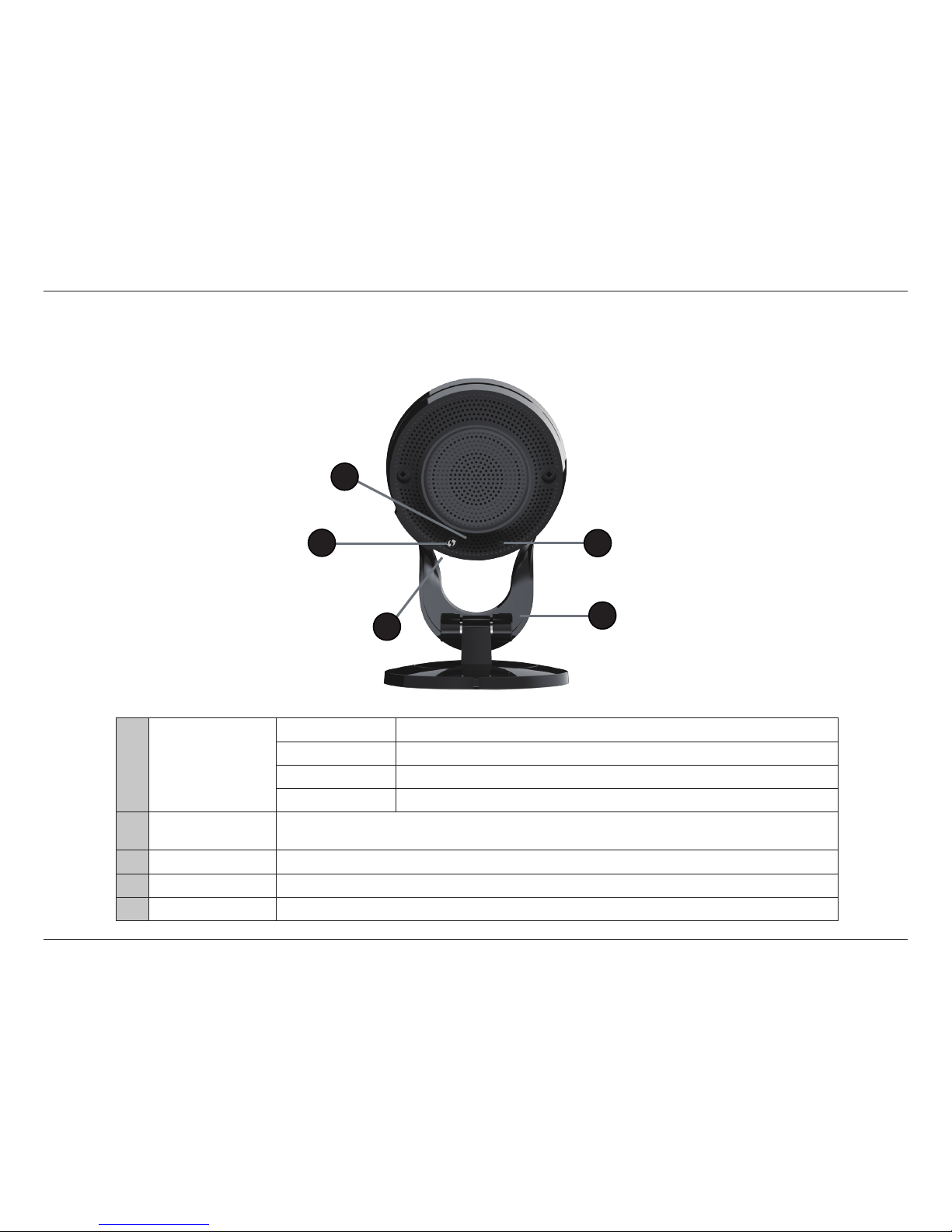

Rear
1 Status LED
Blinking Amber The camera is ready but not connected to a wireless network.
Solid Green The camera has successfully connected to a wireless network.
Blinking Green The WPS process is in progress.
Blinking Red The camera is resetting back to the default settings.
2 WPS Button Press this button, then press the WPS button on your router to set up a wireless connection
automatically.
3 microSD Slot Insert a microSD card (not included) to store video les directly to the camera.
4 Reset Button Press and hold this button for 10 seconds to reset the camera back to the factory default settings.
5 Camera Stand Use as a camera stand or a mounting bracket.
2
3
4
5
1

9D-Link DCS-2630L User Manual
Section 1: Product Overview
Wireless Installation Considerations
This D-Link device can connect to your wireless network from anywhere within the operating range of your wireless network.
However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through,
may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in
your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your router and other network devices (such as your camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears
to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so
that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal.Try to position
your access points, wireless routers, and other networking devices where the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets,
brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless
connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone is not in use.

10D-Link DCS-2630L User Manual
Section 2: Installation
Installation

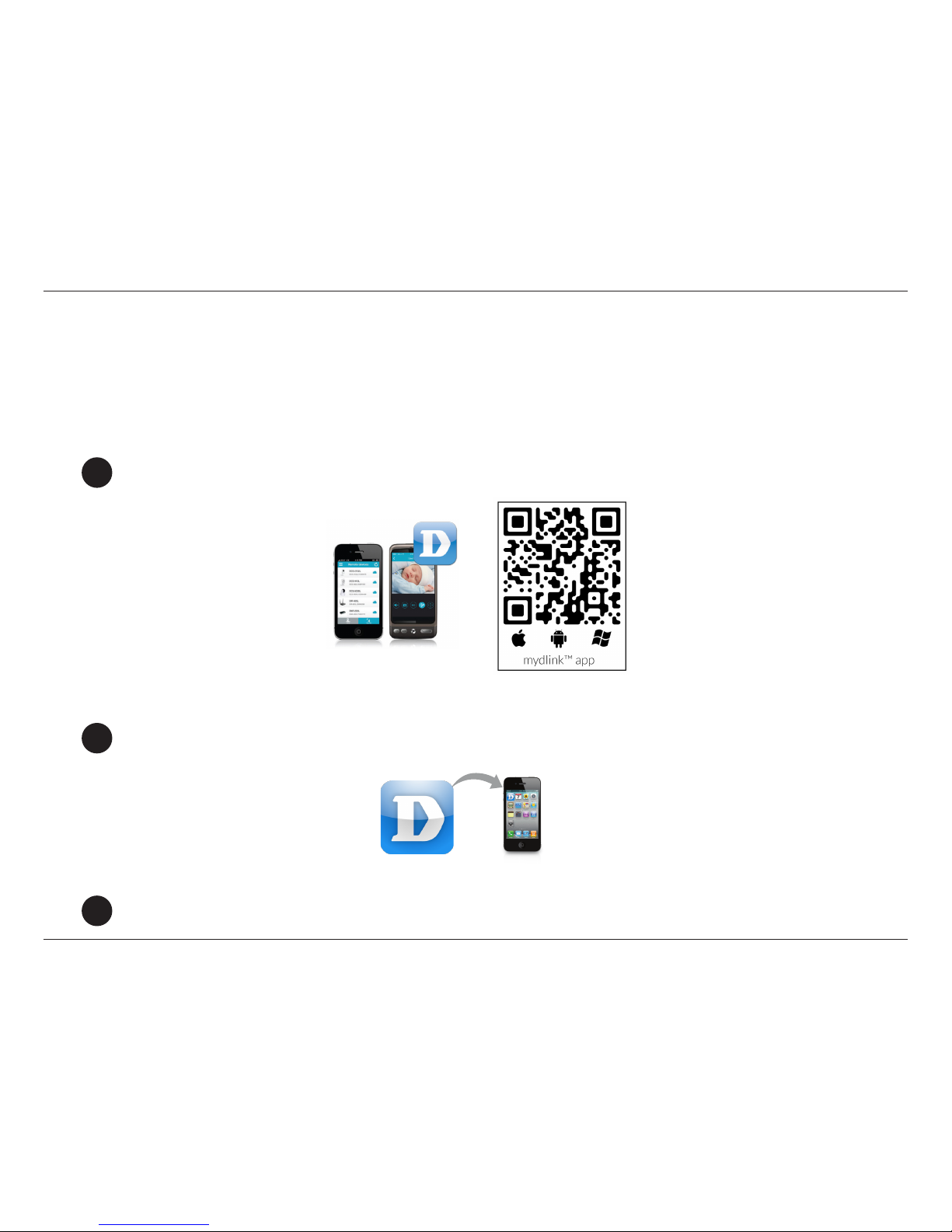

Launch the mydlink Lite app, then create a new account or log in to your existing account.
Download the free mydlink Lite app on your smartphone or tablet by scanning the QR code below, or by searching for mydlink Lite in
the app store for your device.
1
2
3The app will guide you through the rest of the conguration process.
System Requirements: Refer to the mydlink Lite app page on Apple App
Store, Google Play or Windows Phone Store.
You can congure your camera through the mydlink Lite mobile app. Search for the free mydlink Lite app on the App Store or Google Play and
download it to your smartphone or tablet. You can also use a QR code reading app to scan the corresponding code for your device below.
mydlink Lite App

11D-Link DCS-2630L User Manual
Section 2: Installation
Step 1:
Attach the power supply to the power input on the DCS-2630L and connect it to a wall outlet or power strip. Power is conrmed
when the Status LED is lit.
Step 2:
Press and hold the WPS button on the camera for ve seconds.The Status LED will start to blink green.Then, press theWPS button
on your router within two minutes.
Your router will automatically assign your network settings to your camera.
Step 3:
From any computer, open a web browser, go to http://www.mydlink.com and log into your account. Once mydlink detects your
camera, a New Device Found! notice will appear in the bottom right corner. Click on the camera from the New Devices list and
then click Yes to add your camera.
Your setup is complete!
Note: The Zero Conguration Setup will only work with a registered D-Link Cloud Router and an active mydlink account.
Zero Conguration Setup

12D-Link DCS-2630L User Manual
Section 2: Installation

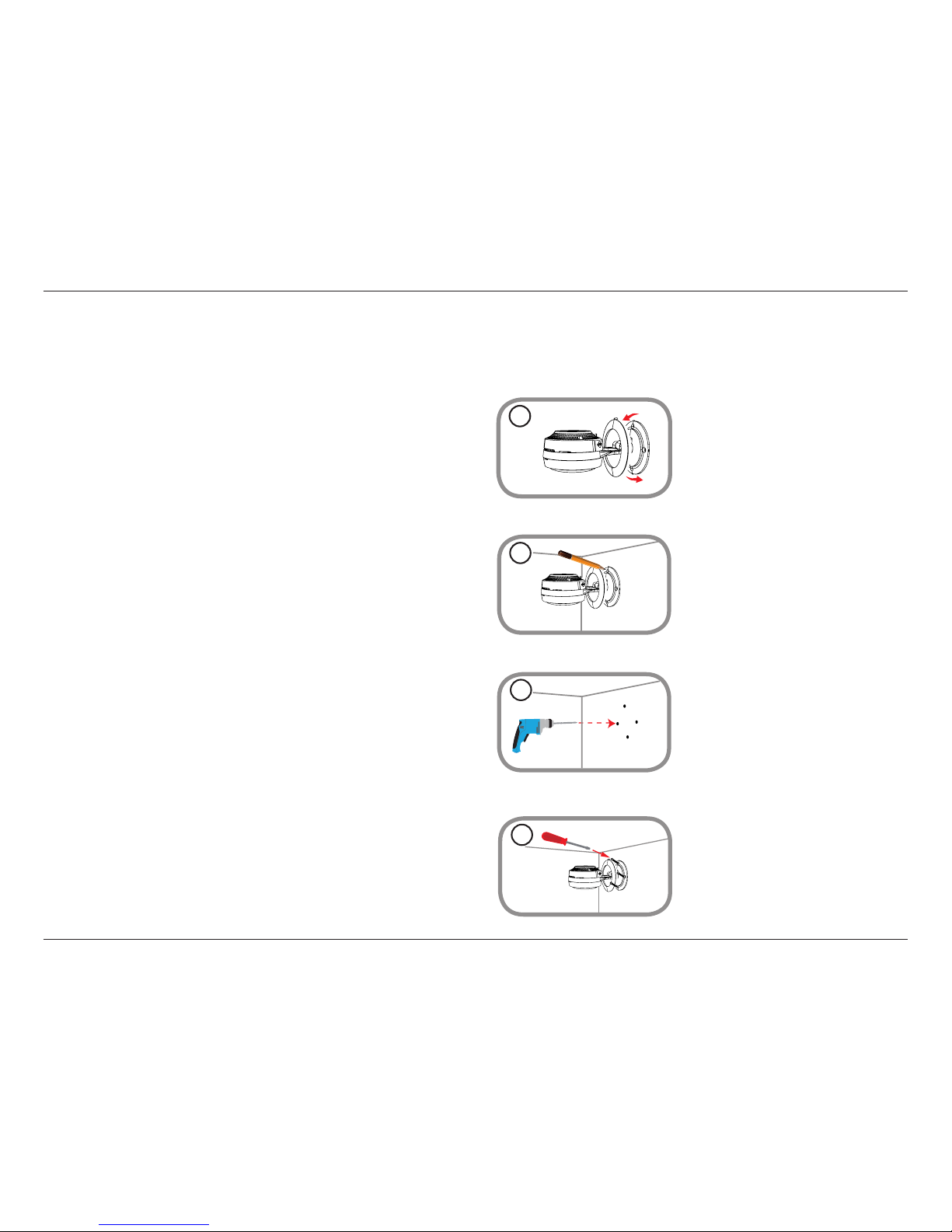

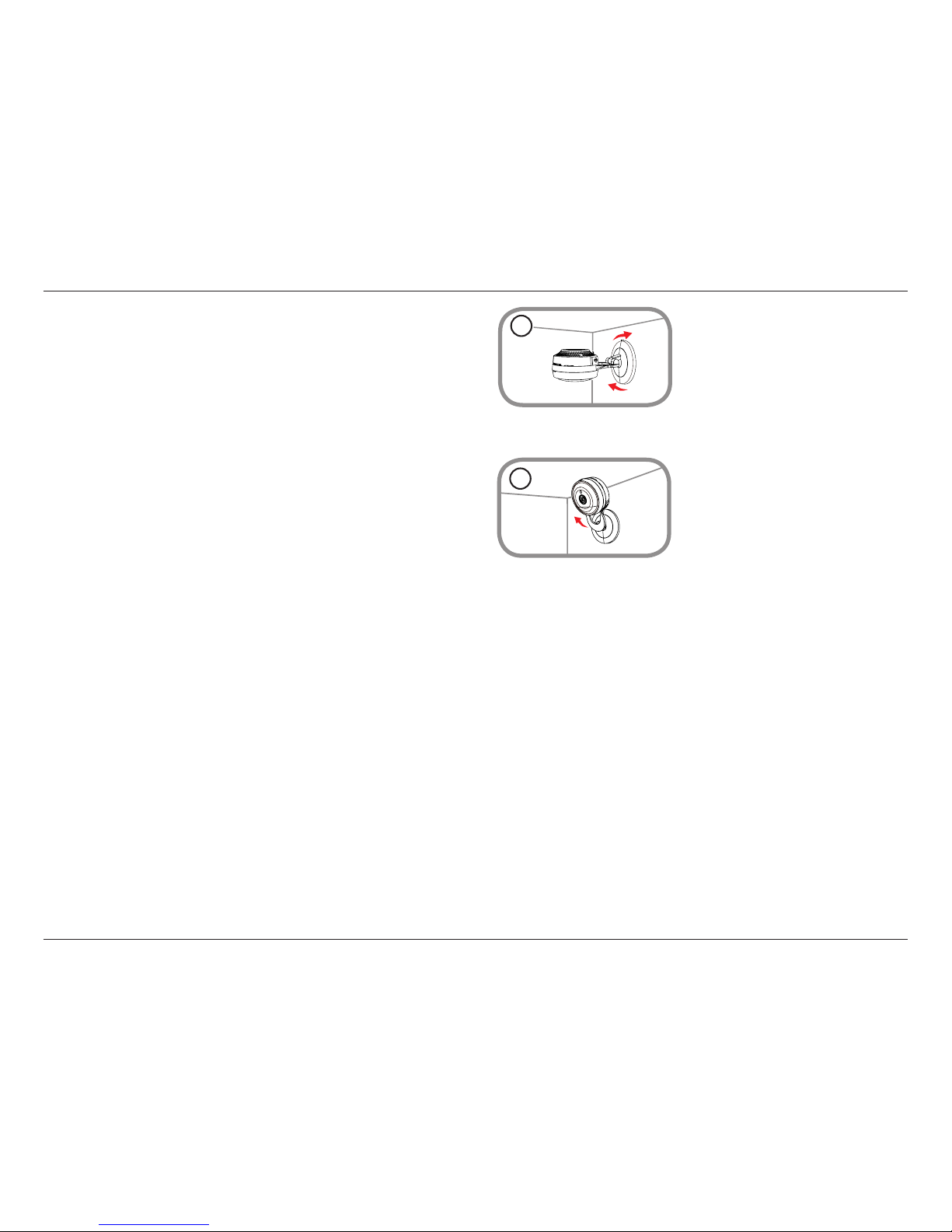

Mount the Camera
2. Place the camera base where you want to position the camera and
use a pencil to mark the holes.
3. Depending on the material of the wall or ceiling, use proper tools to
drill four holes 25mm deep with a 6mm drill bit where you marked.
If the wall is made out of concrete, drill the holes rst, then insert the
plastic anchors to support the screws.
Refer to the steps below to assist you with mounting the camera. We suggest that you congure the camera before mounting.
1. Rotate the camera base cover counterclockwise, then lift it to expose
the mounting holes. 1
2
3
4. Place the camera base over the holes that are in the wall. Make sure
to align the camera base holes with the holes in the wall. Use the
supplied screws to attach the camera to the surface of the wall.
4
Note: Do not overtighten the screws as this may crack the mount.

13D-Link DCS-2630L User Manual
Section 2: Installation
5. Attach the base cover and turn it clockwise to lock it in place.
6. Adjust the angle of the camera as desired and then attached the
power supply to the camera and plug into a power outlet.
5
6

14D-Link DCS-2630L User Manual
Section 3: mydlink
mydlink

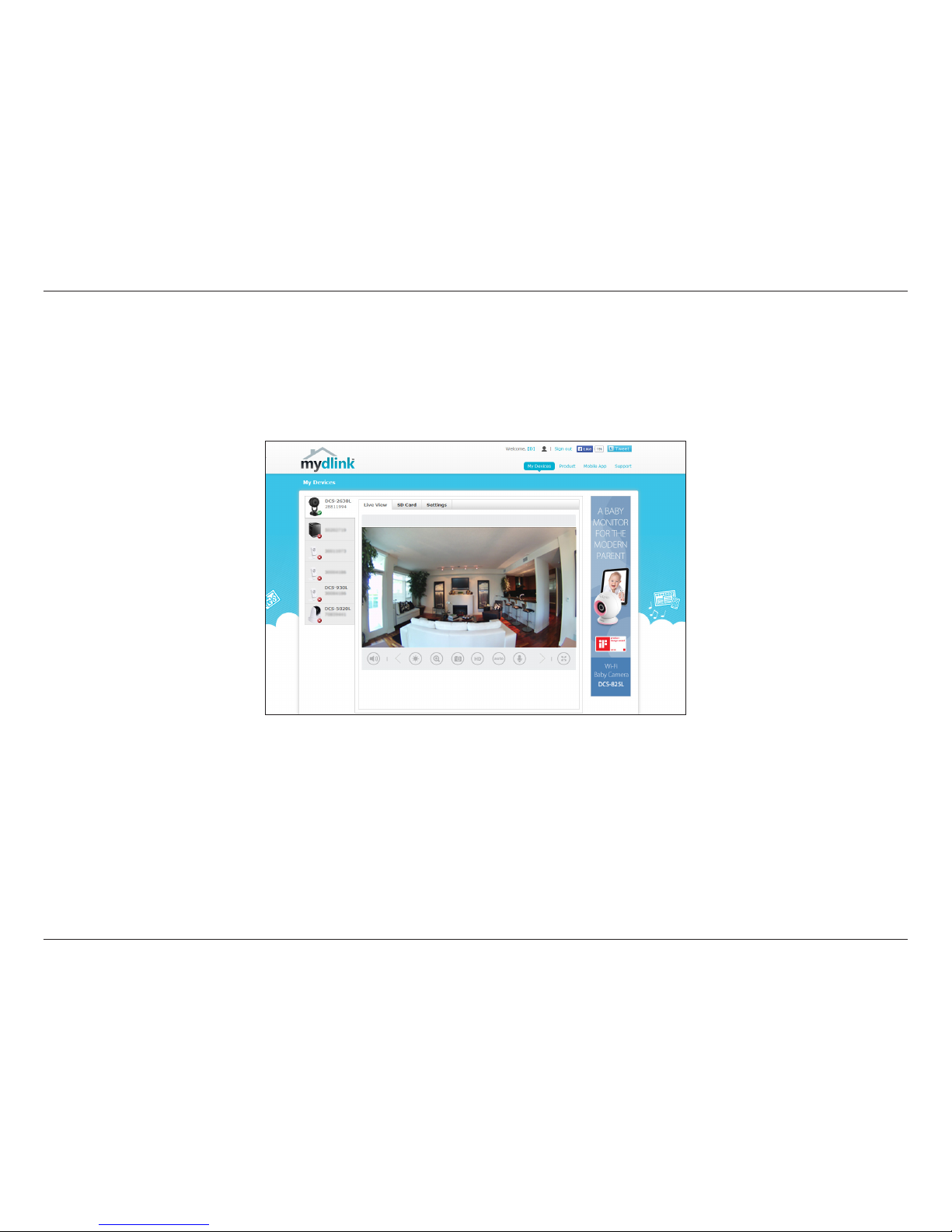

After registering your DCS-2630L camera with a mydlink account in the Camera Installation Wizard, you will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:

15D-Link DCS-2630L User Manual
Section 4: Conguration
Conguration
Using the Conguration Interface

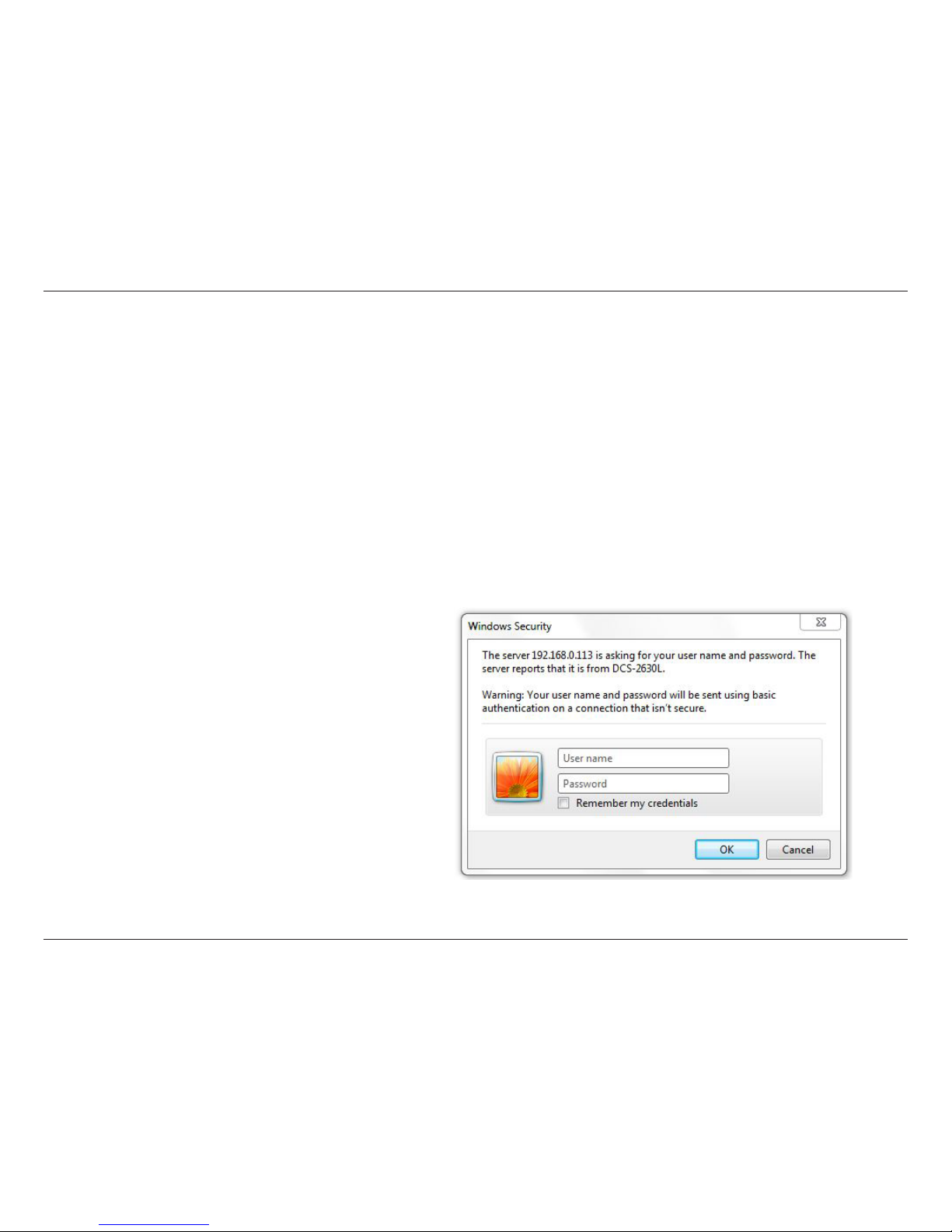

When you see the login window, enter the User name admin and
the password you created while using the Setup Wizard. If you
did not create a password, the default password is blank. Click
OK to proceed.
After installing and setting up your camera with the mydlink Lite app, you are ready to use your camera. The camera’s built-in Web conguration
utility is designed to allow you to easily access and congure your DCS-2630L.
To log in, open a web browser on your PC to go to http://www.mydlink.com and log in to your account. Select your camera, click on the Settings
tab, then click on the Advanced Settings button. Use the User name admin and the password you created while setting up the camera. If you did
not create a password, the default password is blank. After entering your password, click OK.
You can also enter the camera's IP address in your web browser. You can get the camera's IP address by logging into your router and looking at the
DHCP table or client list.

16D-Link DCS-2630L User Manual
Section 4: Conguration

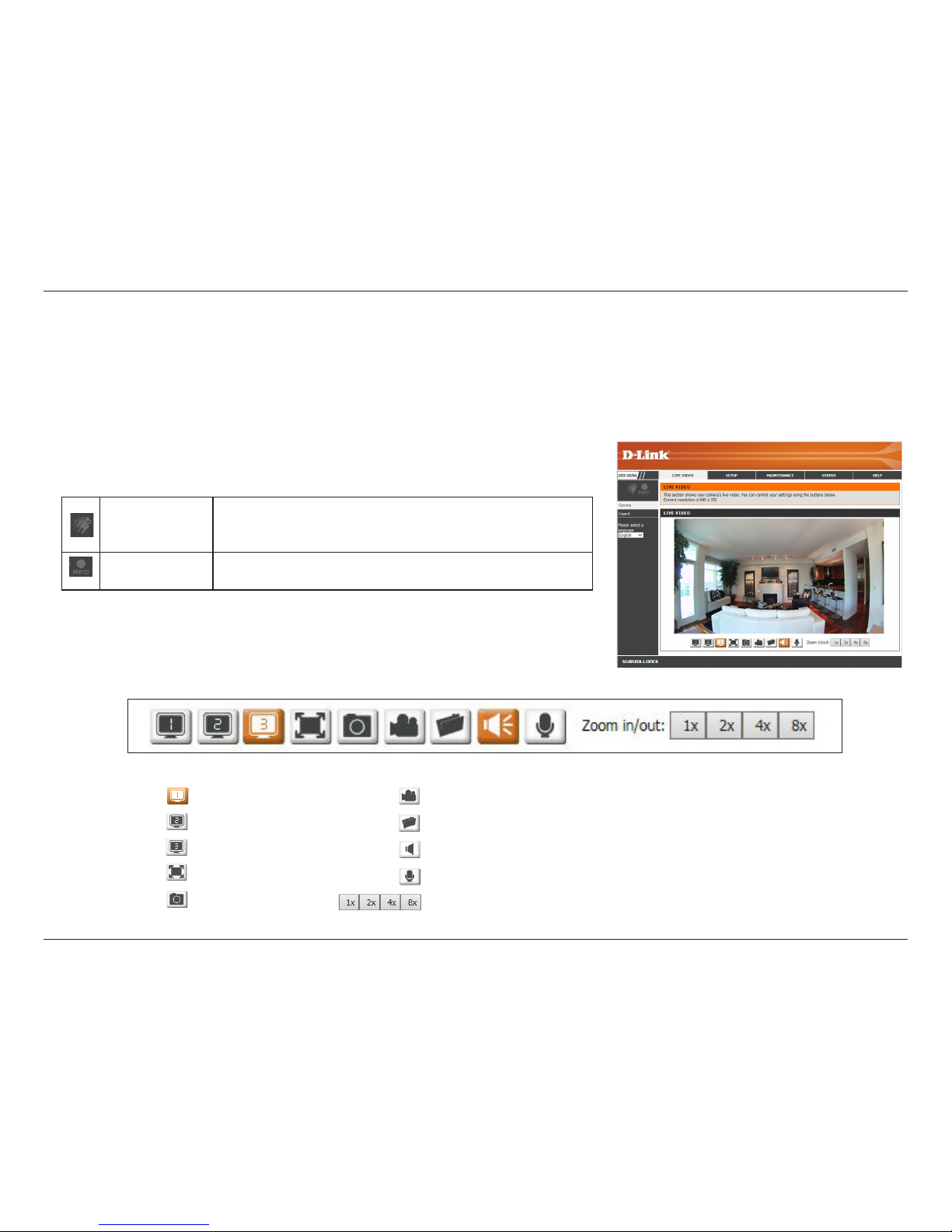

Live Video
View your camera’s live video from this screen. You may select any of the available icons listed below to operate the camera. You may also select
your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Select a language from the drop-down menu.
Language:
Motion Trigger
Indicator
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator will change
color.
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Take a Snapshot
Record a Video Clip
Set a Storage Folder
Listen/Stop Audio In (from microphone)
Start/Stop Audio Out (to speaker)
Digital Zoom Level (1x/2x/4x/8x)

17D-Link DCS-2630L User Manual
Section 4: Conguration

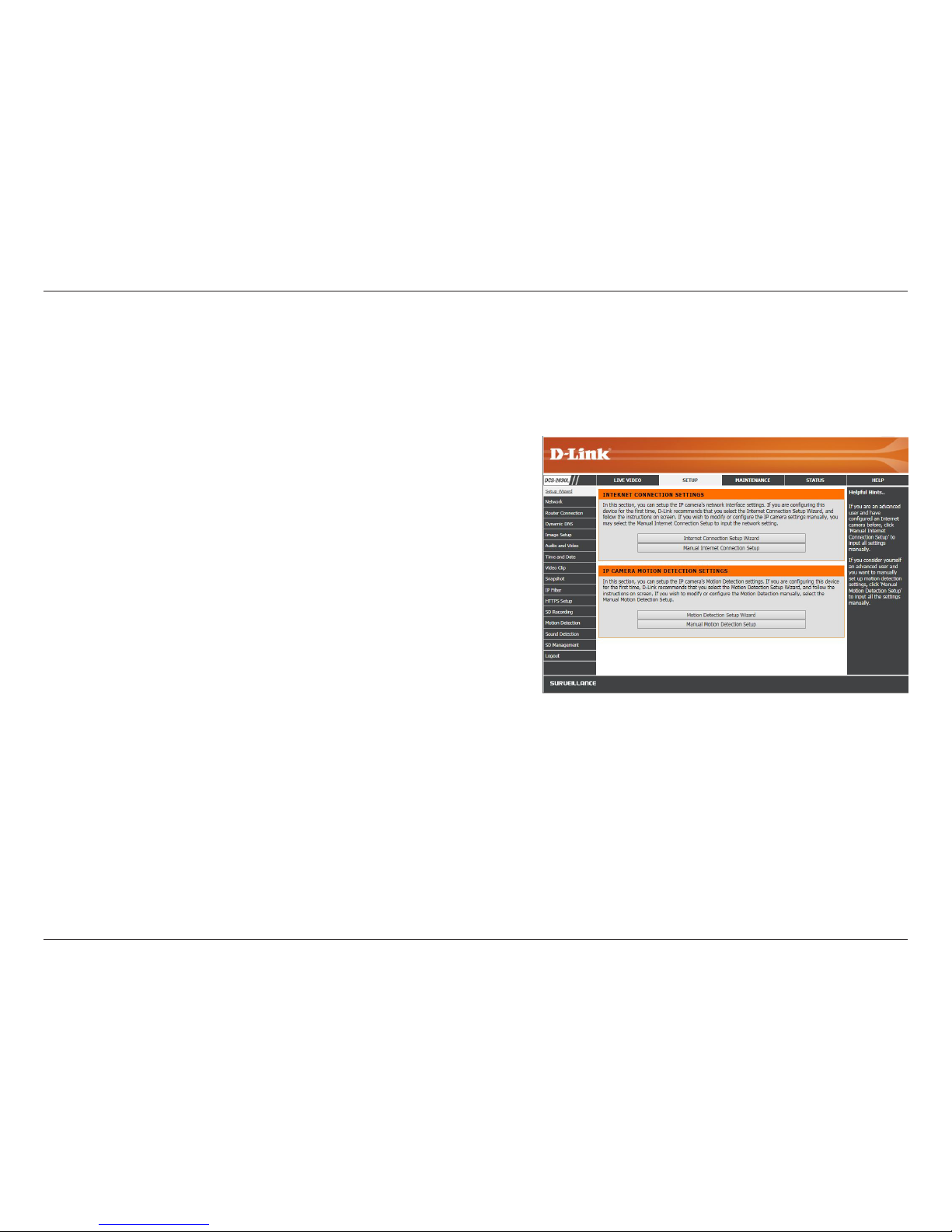

Setup
Setup Wizard
Internet
Connection Setup
Wizard:
Manual Internet
Connection Setup:
Motion
Detection Setup
Wizard:
Manual
Motion
Detection Setup:
Click to use the Internet Connection Setup Wizard to
congure your network camera and connect it to the
Internet. Refer to instructions for "Internet Connection
Setup Wizard" on page 18.
Click to manually set up your camera's connection to your
network or to modify the settings. Refer to "Network" on
page 25.
Click to congure your camera's motion detection
settings using the Motion Detection Setup Wizard. Refer to
instructions for "Motion Detection Setup Wizard" on page
21.
Click to manually set up your camera’s motion detection
settings, or to modify the settings. Refer to "Motion
Detection" on page 39.
Access the setup wizards for connecting your camera to the network and setting up your motion detection preferences. If you have experience
with camera conguration, you may choose to manually congure your camera.

18D-Link DCS-2630L User Manual
Section 4: Conguration

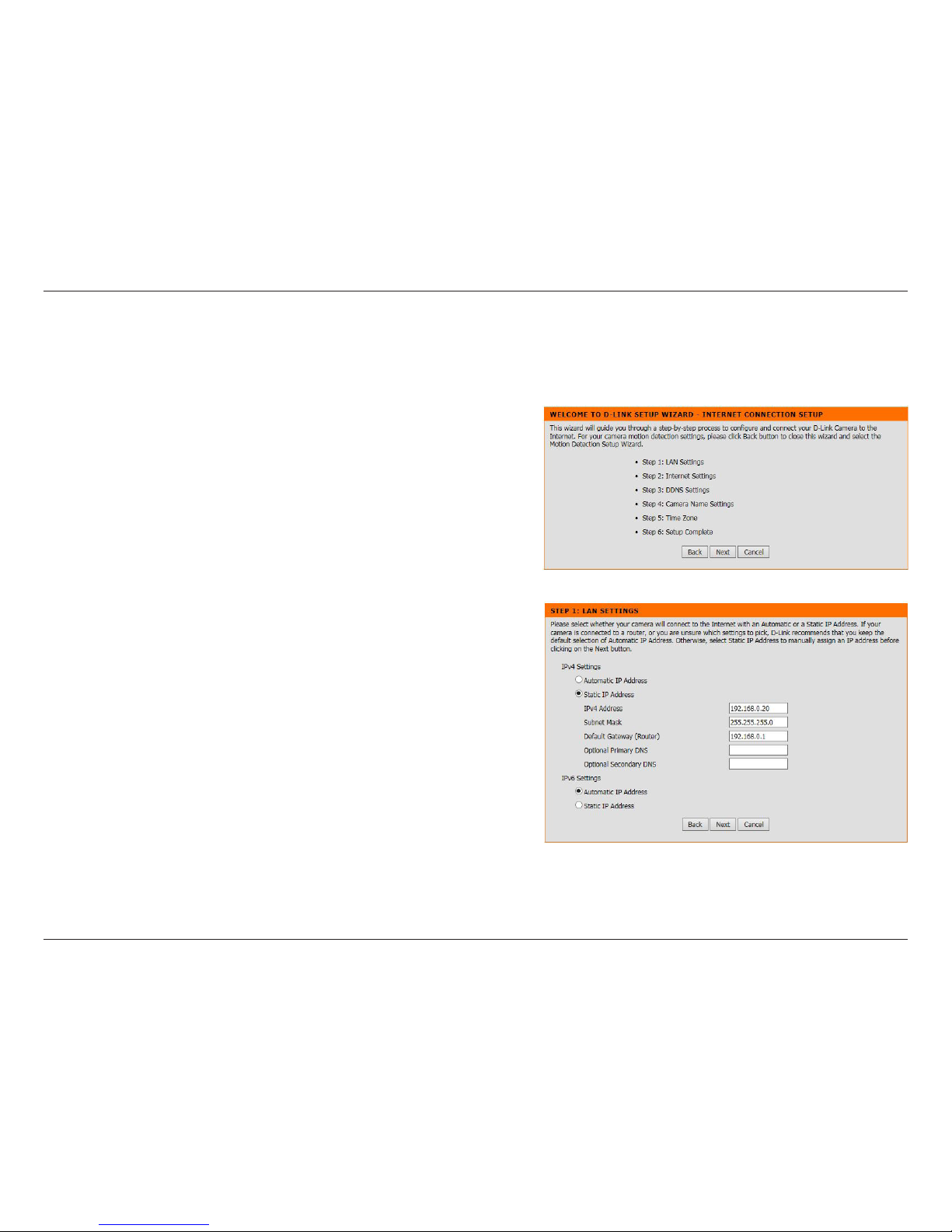

Internet Connection Setup Wizard
Step 2
Select Automatic IP Address if you want your DHCP server (usually enabled on
your router) to assign the camera its IP settings.
If you want to manually assign the IP settings, select Static IP Address and enter
the following details from your Internet Service Provider (ISP):
Enter an IP Address for your camera.
Enter the Subnet Mask of your network.
Enter the Default Gateway address. This is usually the IP
address (LAN) of your router.
Enter the primary DNS server’s IP address. This is usually also
the IP address (LAN) of your router.
Enter the secondary DNS server’s IP address. This is optional.
IPv4 Address:
Subnet Mask:
Default
Gateway:
Primary DNS:
Secondary
DNS:
Step 1
The Internet Connection Setup Wizard will guide you through a step-by-step process
to congure your DCS-2630L and connect it the Internet.
Click Next to continue.
Note: Use this wizard if you are connecting the camera directly to a public IP address. If you are connecting the camera to a router, select Automatic IP
Address (DHCP) or select Static IP Address to manually assign the camera its IP settings.

19D-Link DCS-2630L User Manual
Section 4: Conguration

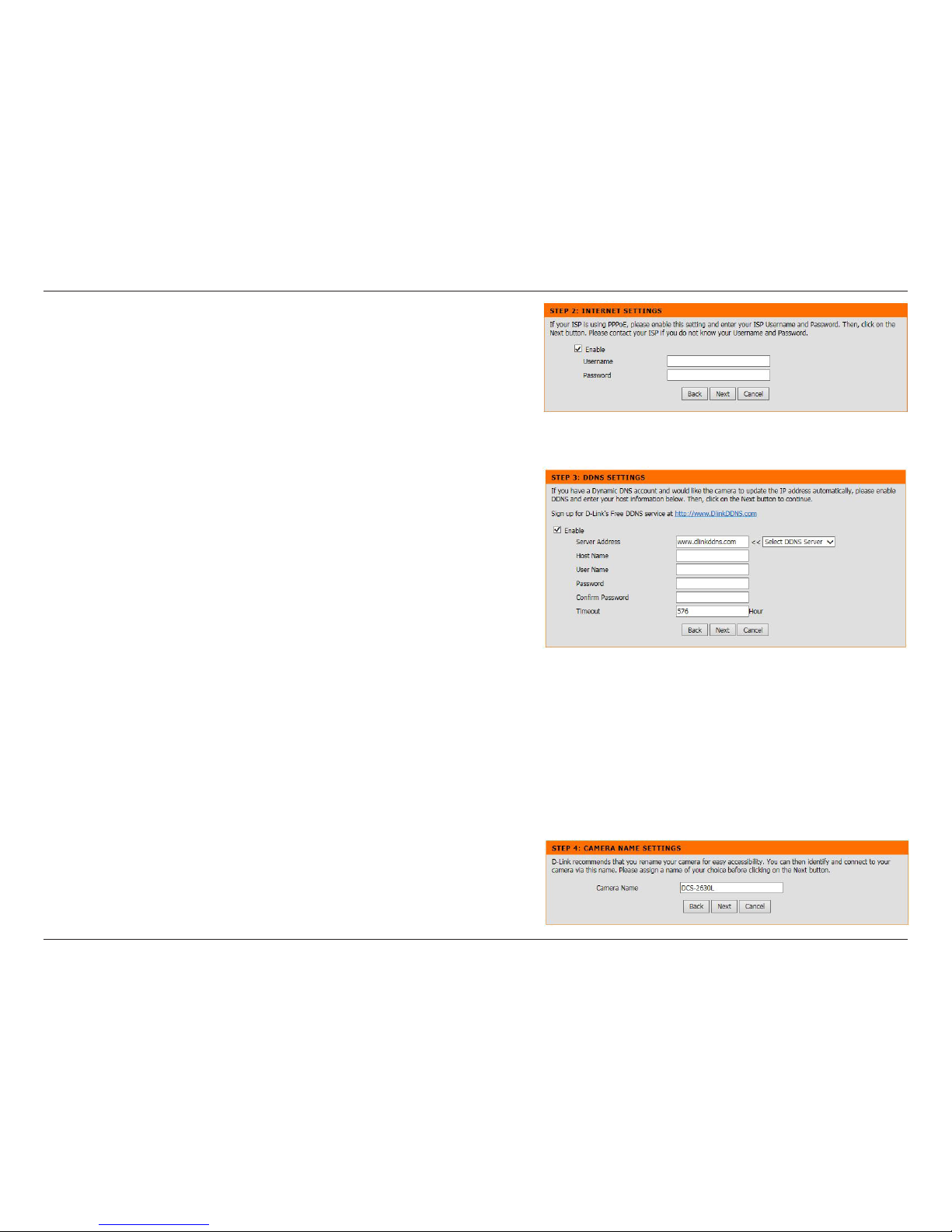

Step 3
If you have a Dynamic DNS account, you may have an IP address that frequently
changes. Check the box to Enable DDNS, allowing your camera to update your
IP address automatically. Enter host information as described below:
Step 4
Enter a unique name for your camera and click Next to continue.
Select your DDNS server from the drop down menu and
click <<.
Enter the Host Name of the DDNS server.
Enter your User Name or the e-mail address used to connect
to the DDN server.
Enter the Password used to connect to the DDNS server.
You can specify how often the camera noties the DDNS
server of its current global IP address by entering a whole
number representing hours.
Click Next to continue.
Server
Address:
Host Name:
User Name:
Password:
Timeout:
If you are required to connect using PPPoE (Point to Point Protocol over Ethernet),
check the box to Enable and enter the Username and Password for your PPPoE
connection. Only select this option if your camera is directly connected to your
broadband modem. If it is on a network with a router or gateway, do not select
this option.
Click Next to continue.

20D-Link DCS-2630L User Manual
Section 4: Conguration
Step 5
Select the Time Zone that corresponds to your camera's location in order to
ensure that scheduled events occur at the correct time. If the selected Time
Zone observes daylight saving time, check the box to Enable Daylight Saving.
Click Next to continue.
Step 6
A summary of your camera settings is displayed for conrmation. If the settings
are incorrect, click Back to make changes. Otherwise click Apply.
Note: Make a note of the camera's IP address so you can access it on your network
or by using a web browser.
