D-Link DCS-5010L User manual

User Manual
Pan & Tilt Day/Night Network Camera
DCS-5010L
Version 1.1 | October 15, 2014
Cloud Camera

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Revision
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link. All other third-party marks mentioned herein
are trademarks or registered trademarks of their respective owners.
© 2014 by D-Link. All Rights Reserved.
Revision Date Description
1.0 June 13, 2013 • Initial release Revision A1
1.1 October 15, 2014 • Minor changes
Manual Overview

3D-Link DCS-5010L User Manual
Safety Instructions
Follow the safety guidelines listed below to ensure your own personal safety and to help protect your product
from potential damage.
If any of the following conditions occur, unplug the product from the electrical outlet and either replace the part
that is damaged, or contact the place of purchase:
• The power cable, extension cable, or plug is damaged.
• An object has fallen into the product.
• The product has been exposed to water.
• The product has been dropped or damaged.
• The product does not operate correctly when you follow the operating instructions.
Follow the safety guidelines below:
• Do not spill food or liquids on product, and never operate the product in a wet environment. If the product
gets wet, see the appropriate section in your troubleshooting guide.
• Operate the product only from the type of external power source indicated on the electrical ratings label. If you
are not sure of the type of power source required, consult your local power company.
• Use only the power adapter that came with the product. Using another adapter, not recommended by the
manufacturer, may damage the product and invalidate the warranty.
• To help prevent an electric shock, plug the product into properly grounded electrical outlets.
• Observe power strip ratings. Make sure that the total ampere rating of all products plugged into the power
strip does not exceed 80 percent of the ampere ratings limit for the power strip.
• To help protect your product from sudden, transient increases and decreases in electrical power, use a surge
suppressor, line conditioner, or uninterruptible power supply (UPS).

4D-Link DCS-5010L User Manual
• Position product cables and power cables carefully. Route cables so that they cannot be stepped on or
tripped over. Be sure that nothing rests on any cables. Do not modify power cables or plugs. Consult a
licensed electrician or your power company for site modications. Always follow your local/national wiring
rules.
• This product is designed for indoor use only, and must always be positioned where it is not exposed to direct
sunlight or strong halogen light. Exposure to direct sunlight or halogen light may cause permanent damage
to the image sensor in the product.
Warnings
• STRANGULATION HAZARD! – Keep cords out of the reach of children. Keep and secure all cords a minimum
of three feet away from a crib or other child sleeping area.
• This product contains small parts that may cause choking. Keep out of reach of children.
• This product is not a toy. Do not allow children to play with it.
• The product is designed for Indoor Use Only!
• The product should not be used in a location where it could become wet!
• Ensure the product is xed securely otherwise it may fall and cause injury!
• This product is NOT intended to replace proper supervision of children. You must check your child’s activity
regularly, as this product will not alert parents to activity of children.
• Do not use extension cords. Only use the power adapter provided with this product.
• Do not use this product near a heat source.
THIS DEVICE REQUIRES THIRD-PARTY SERVICES AND PRODUCTS TO ACHIEVE FULL FUNCTIONALITY,
INCLUDING BUT NOT LIMITED TO, BROADBAND INTERNET SUBSCRIPTION SERVICES AND PRODUCTS;
MOBILE INTERNET SUBSCRIPTION SERVICES, COVERAGE AND PRODUCTS; CAMERA MANAGEMENT
SOFTWARE, AND; A NETWORK CONNECTION. D-LINK HAS NO CONTROL OVER SUCH SERVICES AND
PRODUCTS AND EXPRESSLY DISCLAIMS ANY AND ALL LIABILITY FOR THE FAILURE OF THE DEVICE OR ANY
FEATURE THEREOF RESULTING FROM THE FAILURE OF ANY THIRD-PARTY SERVICE OR PRODUCT.

5D-Link DCS-5010L User Manual
Table of Contents
Table of Contents
Manual Overview............................................................... 2
Manual Revision............................................................................ 2
Trademarks ..................................................................................... 2
Safety Instructions ....................................................................... 3
Warnings.................................................................................. 4
Product Overview.............................................................. 7
Package Contents......................................................................... 7
Minimum Requirements............................................................ 8
Introduction ................................................................................... 9
Features..........................................................................................10
Hardware Overview...................................................................11
Front View..............................................................................11
Rear View ...............................................................................12
Wireless Installation Considerations....................................13
Installation .......................................................................14
Zero Conguration Setup........................................................15
WPS - Push Button Setup.........................................................18
Camera Setup Wizard................................................................19
Manual Hardware Installation................................................20
Mounting Instructions..............................................................21
What is mydlink?.........................................................................22
mydlink Apps ...............................................................................22
Live Video ......................................................................................23
Camera Status..............................................................................24
Conguration...................................................................25
Using the Web Conguration Utility....................................25
Live Video ......................................................................................26
Setup...............................................................................................27
Wizard.....................................................................................27
Internet Connection Setup Wizard........................28
Network Setup..............................................................30
Wireless Setup......................................................................32
Dynamic DNS (DDNS) .......................................................33
Image Setup .........................................................................34
Video .......................................................................................35
Audio.......................................................................................36
Motion Detection ...............................................................37
Mail ..........................................................................................38
FTP............................................................................................40
Time and Date......................................................................42
Day/Night Mode .................................................................43
Camera Control ...................................................................44
Maintenance ................................................................................45
Admin .....................................................................................45
System ....................................................................................46
Firmware Upgrade..............................................................47
Status ..............................................................................................48
Device Info ............................................................................48
Active User ............................................................................49
Troubleshooting ..............................................................50
Technical Specications ..................................................53

6D-Link DCS-5010L User Manual
Table of Contents
Contacting Technical Support ........................................55
Warranty...........................................................................56
Registration .....................................................................63

7D-Link DCS-5010L User Manual
Section 1 - Product Overview
Package Contents
Product Overview
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty for this product.
DCS-5010L Pan & Tilt Day/Night Network Camera
Mounting Kit
Power Adapter
Ethernet Cable
Quick Install Guide

8D-Link DCS-5010L User Manual
Section 1 - Product Overview
Minimum Requirements
Network Requirements • Wired 10/100 Fast Ethernet or a wireless 802.11g/n wireless network
(Wireless N network recommended for optimum performance)
Web-based Conguration Utility
Requirements
Computer with the following:
• 1.3 GHz processor or above and at least 128MB RAM
• Windows® 8, 7, Vista®, or Mac OS®X (10.6 or higher)
Web Browser:
• Internet Explorer® 7 or higher
• Firefox®
• Chrome™
• Safari® 4 or higher
Windows® Users: Make sure you have the latest version of Java installed and enabled.
Visit www.java.com to download the latest version.
Network Device and Service
• A router (D-Link Cloud Router is recommended)
• An Internet connection
• An e-mail account (required to create a mydlink® account)
mydlink Requirements • For mydlink and mydlink app requirements refer to:
http://www.mydlink.com

9D-Link DCS-5010L User Manual
Section 1 - Product Overview
Introduction
The DCS-5010L Pan & Tilt Day/Night Network Camera is a versatile surveillance solution for your home or small oce. Unlike a
standard webcam, the DCS-5010L is a complete system with a built-in CPU and Web server that transmits high-quality video
images. The pan/tilt function allows the camera to patrol a wide area, while the built-in IR LEDs provide around-the-clock
surveillance regardless of the lighting conditions.
The DCS-5010L can be accessed remotely, and controlled from any PC/Notebook over your local network or through the Internet
using a Web browser. The simple installation and intuitive Web-based interface oer easy integration with your Ethernet/
Fast Ethernet or 802.11g/n wireless network. And with Wireless N technology you have the freedom to place the DCS-5010L
anywhere within range of your existing wireless network.
Your DCS-5010L is mydlink-enabled, which means that you can view and manage your camera from anywhere over the Internet
through the mydlink website, or through the mydlink mobile app for iOS and Android. You can view your camera’s live video,
take snapshots, and manage the camera’s conguration, all from anywhere you have Internet access.

10D-Link DCS-5010L User Manual
Section 1 - Product Overview
Easy to Use and mydlink-Enabled for Easy Access and Management
The DCS-5010L is a stand-alone surveillance camera that requires no special hardware or software, and can operate independently, even without a
PC. This camera is also mydlink-enabled, which means you can view and manage your camera through the mydlink website, or through the mydlink
mobile app for iOS and Android mobile devices.
Pan/Tilt for Wide Viewing Area
Patrol a large area with one camera thanks to the DCS-5010L’s pan and tilt functions. You can use the Web interface to manually adjust the camera
lens position, or set up to 24 pre-dened preset positions, enabling you to quickly move to frequently used points of interest.
IR LEDs for Day and Night Functionality
The built-in infrared LEDs enable nighttime viewing of up to 26 feet (8 meters), giving you clear images regardless of lighting conditions.
H.264 Codec for Smooth, Space-Ecient Video
This camera supports use of the H.264 video codec, which gives you high-quality video with reduced bandwidth requirements. This means that
you can enjoy smoother, more reliable video streaming over the Internet, and less disk space is required to save recordings.
Motion Triggered Notications and Recordings
The DCS-5010L can send e-mail notications with snapshots or video clips whenever motion is detected. You can designate areas to monitor for
motion, allowing you to keep watch over specic areas of interest. The DCS-5010L can also upload images to an FTP server whenever motion in
these areas is detected.
802.11g/n Wireless or Ethernet/Fast Ethernet Support
The DCS-5010L oers wireless 802.11g/n and Ethernet/Fast Ethernet connectivity, making it easy to integrate into your existing network environment.
The DCS-5010L works with either a 10 Mbps Ethernet-based network or 100 Mbps Fast Ethernet-based network for traditional wired environments,
and works with 802.11g/n wireless routers or access points for added exibility. The Site Survey feature also allows you to view and connect to any
available wireless networks within range of the camera.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality to the DCS-5010L, and allows you to create a full surveillance system for up
to 32 cameras. With D-ViewCam, you can view multiple cameras at the same time, record video, and set up scheduled and triggered recordings.
Features

11D-Link DCS-5010L User Manual
Section 1 - Product Overview
Hardware Overview

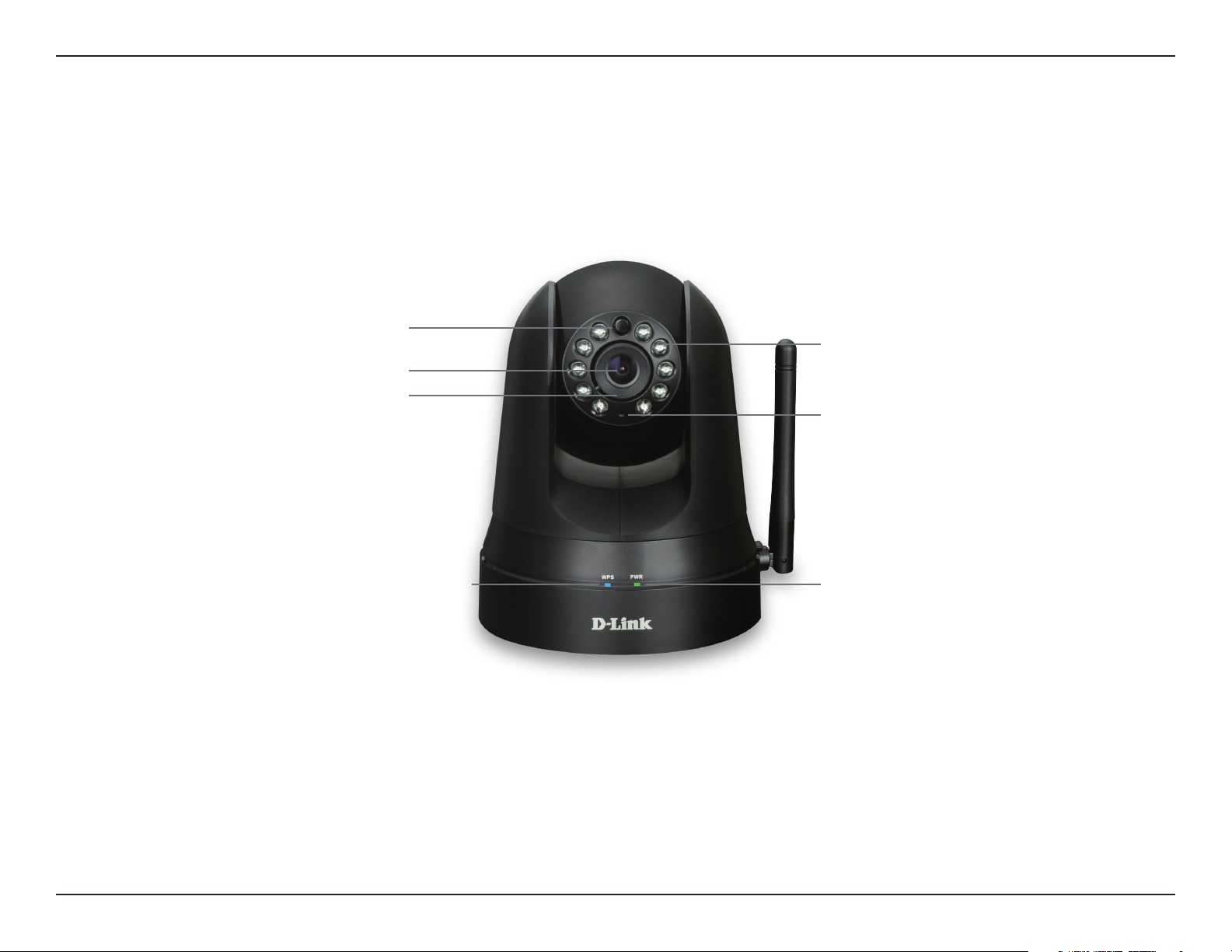

Front View
Camera Lens
Microphone
IR LEDs*
Light Sensor
Power and Link LEDWPS LED
Manual Focus Bezel
*Note: If you see a white haze when viewing in night vision mode, the IR lights on the camera may be reecting o a
nearby surface. Try repositioning the camera in order to avoid glare from the IR LEDs.

12D-Link DCS-5010L User Manual
Section 1 - Product Overview

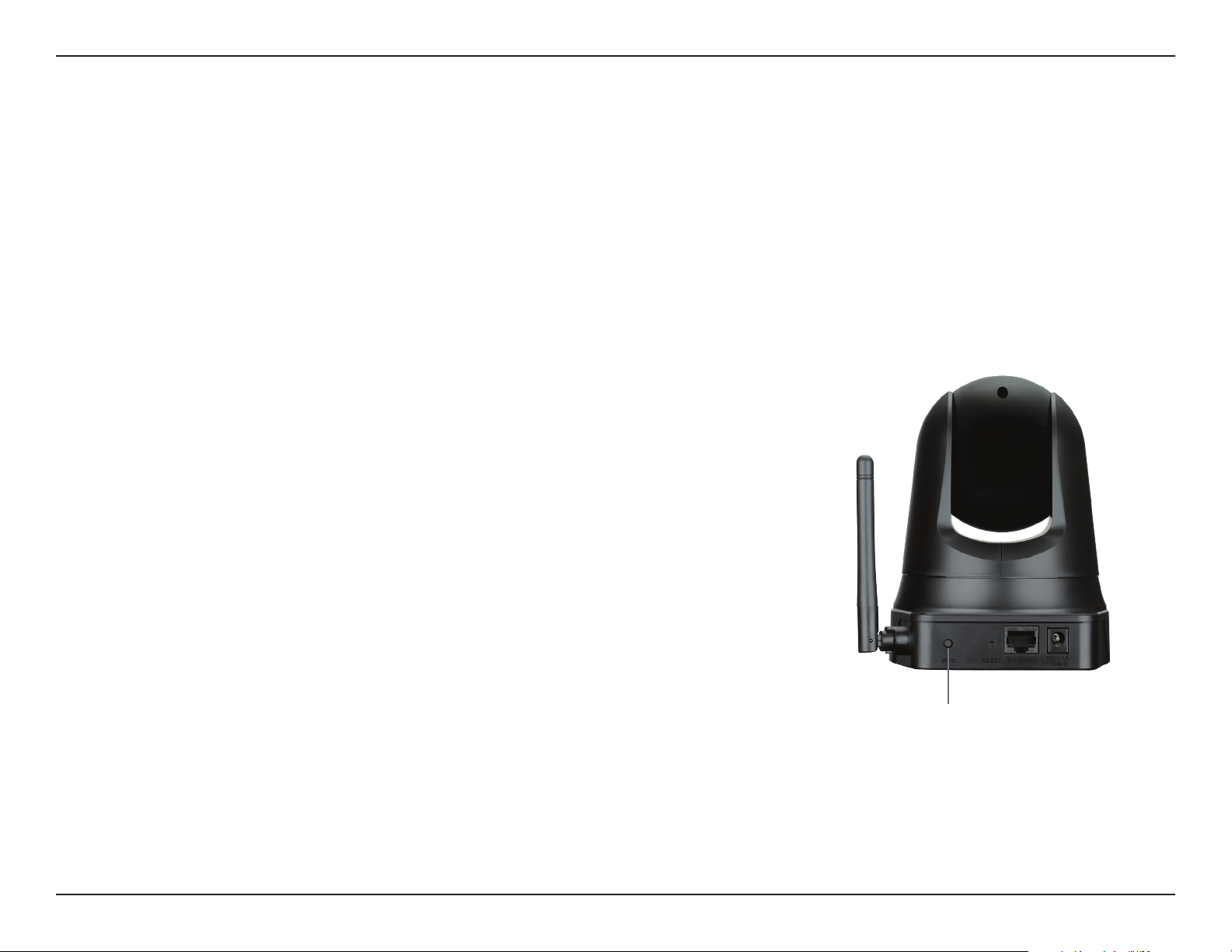

Rear View
Power Connector
Ethernet Port
Reset Button
WPS Button

13D-Link DCS-5010L User Manual
Section 2 - Installation
Wireless Installation Considerations
Your D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the
operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic
guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your
network camera) - each wall or ceiling can reduce your adapter’s range by 3-98 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (half a meter), at a 45-degree
angle appears to be almost 3 feet thick (1 meter). At a 2-degree angle, it looks over 46 feet thick (about 14 meters).
Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try
to position your access points, wireless routers, and other networking devices where the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your camera at least 3-6 feet (1-2 meters) away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as
far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.

14D-Link DCS-5010L User Manual
Section 2 - Installation
There are three ways to set up your camera:
Zero Conguration Setup: If you have a mydlink-enabled router (D-Link cloud router), this is the easiest way to set up
your camera. Refer to “Zero Conguration Setup” on page 15.
Camera Setup Wizard: If you do not have a mydlink-enabled router, use the Camera Setup Wizard to guide you through
setup and initial conguration of your camera. Refer to “Camera Setup Wizard” on page 19.
Manual Hardware Installation: This section shows you how to manually set up your camera. However, in order to use
the mydlink features of your camera, you will still need to run the Camera Setup Wizard. Refer to “Manual Hardware
Installation” on page 20.
Installation
Note: If you experience issues registering this device with your mydlink account, or If you purchased an open box or resold unit,
perform a hard reset by pressing and holding the reset button on the device for 10 seconds while the device is powered on. If
you are returning the device to the place of purchase, please perform the hard reset procedure to clear the device of
any personal data.

15D-Link DCS-5010L User Manual
Section 2 - Installation
Zero Conguration Setup
The Zero Conguration Setup will only work with a registered Cloud Router and an active mydlink account. Your Cloud Router
will automatically assign your network settings (both wired and wireless) to your camera, and add the camera to your mydlink
account. If you do not have a D-Link Cloud Router, you can use the Setup Wizard. Refer to “Camera Setup Wizard” on page 19.

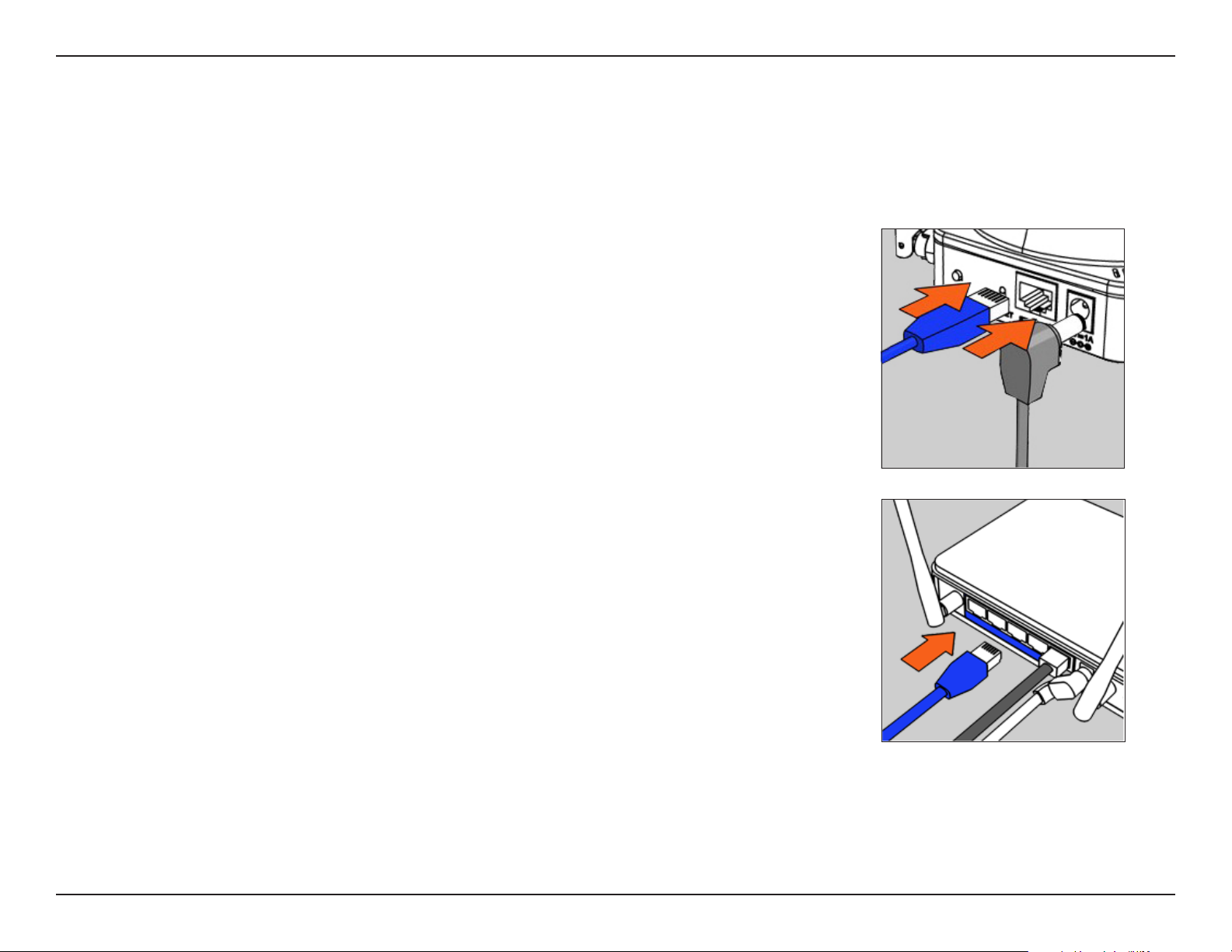

Connect the Power Cable and Ethernet Cable
Step 1
Attach the power supply to the power receptor located on the back of the DCS-5010L
and connect it to a wall outlet or surge protector. Power is conrmed when the Power
LED is lit.
Step 2
Connect the included Ethernet cable to the Ethernet port located on the back of the
DCS-5010L. Plug the other end into an available (LAN) port on your D-Link Cloud
Router.
Note: If you later decide to use your camera wirelessly, you will be able to remove the
cable after the Zero Conguration Setup is complete and place the camera within your
wireless network.
If you prefer to initiate a wireless connection with your router, you can use WPS (Wi-Fi
Protected Setup). Refer to ”WPS - Push Button Setup” on page 18.

16D-Link DCS-5010L User Manual
Section 2 - Installation
Add Your Camera to Your mydlink Account
Step 3

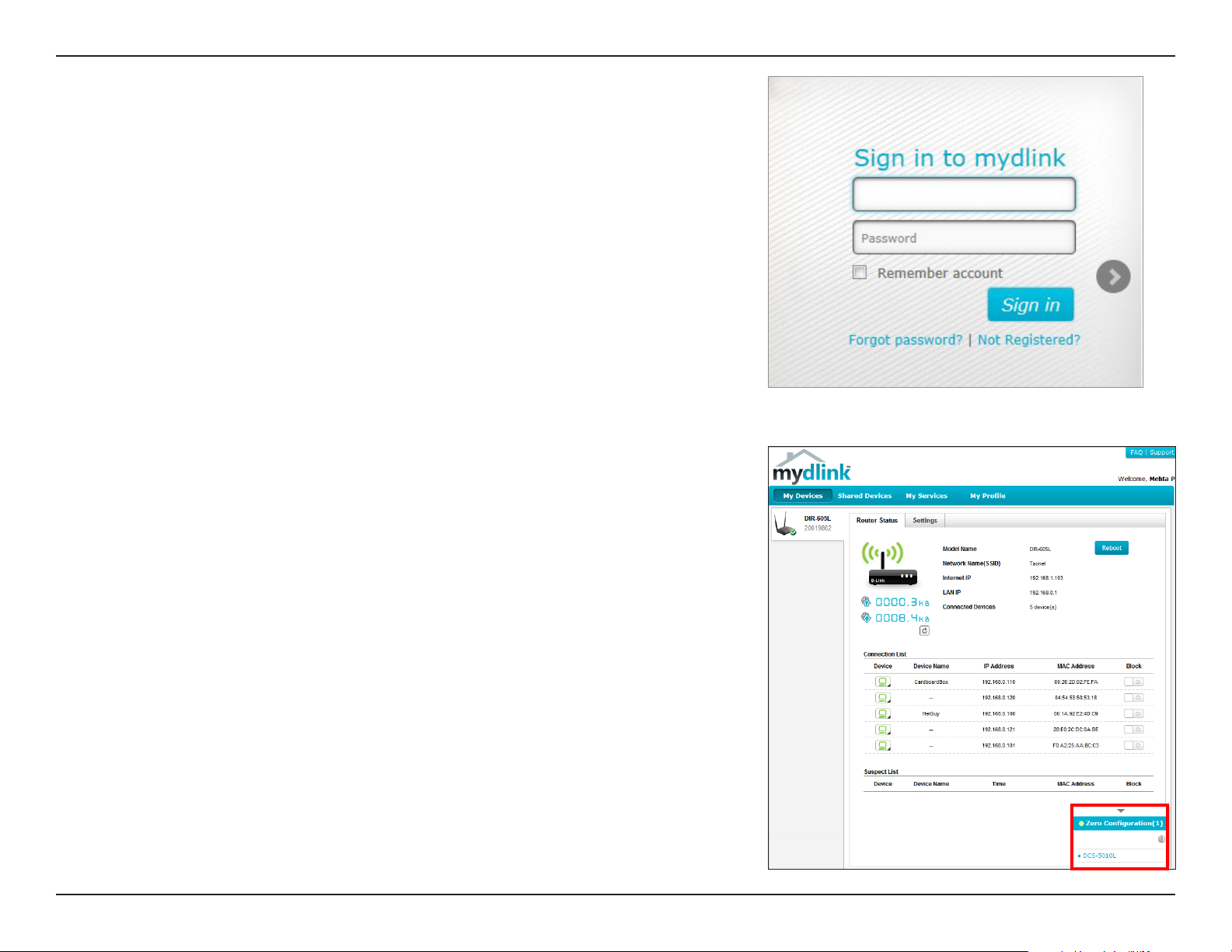

From a computer connected to the Internet, open aWeb browser (e.g., Internet
Explorer, Chrome, Firefox, or Safari) and log in to your mydlink account.
Step 4
The mydlink page will automatically check for new devices. Once mydlink
detects your camera, a notice will appear that says, Zero Conguration (at
the bottom of the screen). Click the notication to continue.

17D-Link DCS-5010L User Manual
Section 2 - Installation
Next you will see the mydlink Live View* for your camera. The screen will look
similar to the screenshot on the right.
Note: If you used an Ethernet connection and now want to connect your camera
to your router wirelessly, you can simply disconnect the Ethernet cable and
move the camera to the preferred location. Your router's wireless settings were
automatically transferred to the camera during Zero Conguration Setup, so no
further conguration is required.
If you are interested in learning about advanced conguration of your camera,
skip to “Conguration” on page 25.
*Note: If the live image is blurry or out of focus, you can manually adjust the focus
by rotating the manual focus bezel that surrounds the camera lens. If you notice
a white haze when viewing in night vision mode, the night vision light on the
camera may be reecting o a nearby surface. Try repositioning the camera.

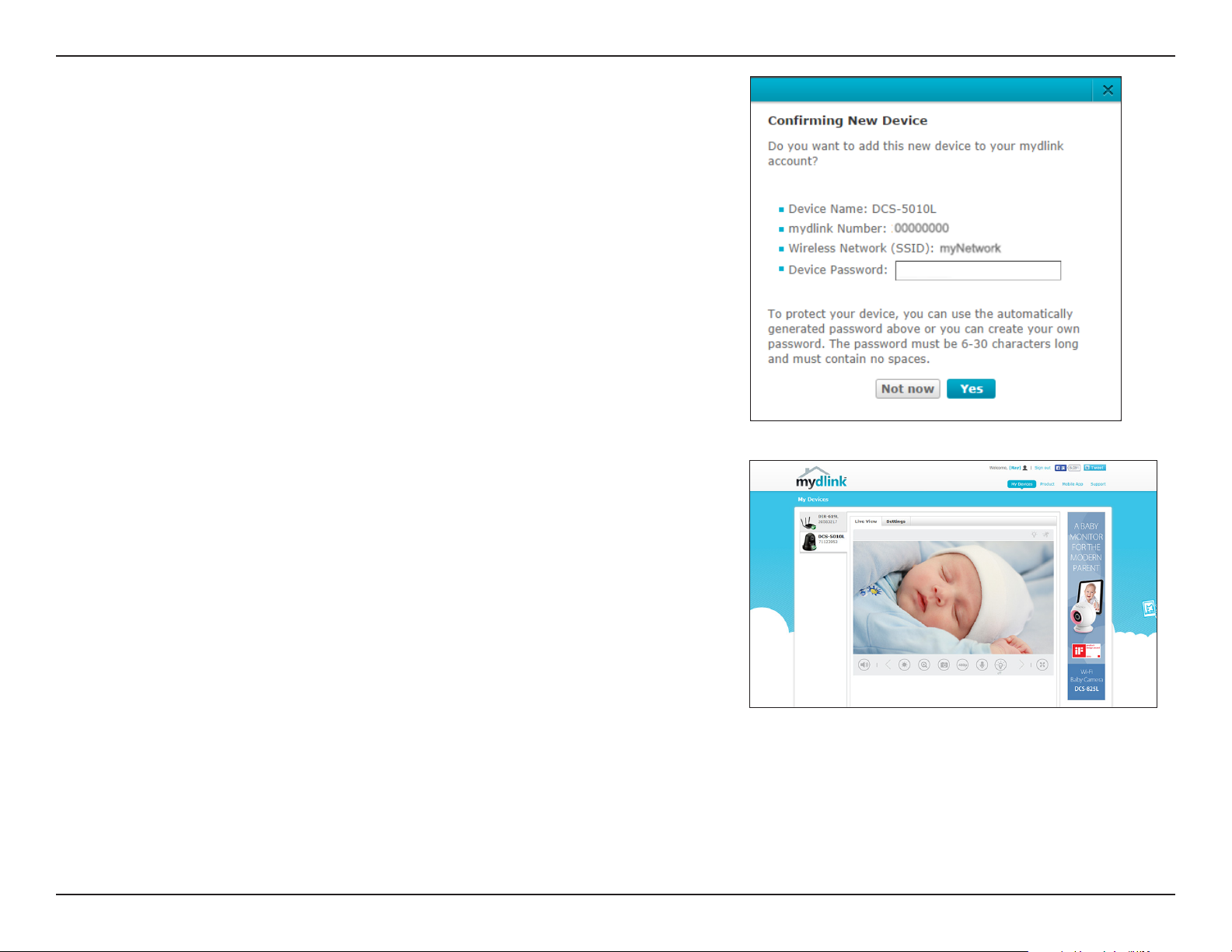

Step 5
A conrmation request will appear with a summary of the conguration
details. Make a note of the details and click Yes to add the camera to your
account. Your setup is complete!
Note: If you experience issues registering this device with your mydlink account,
perform a hard reset by pressing and holding the reset button on the device for
10 seconds while the device is powered on.

18D-Link DCS-5010L User Manual
Section 2 - Installation
To create a WPS connection:
Step 1
Make sure the camera is plugged in, then press and hold the WPS button on the
back of the camera for ten seconds. The blue WPS status LED will start blinking.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is
usually on the front or side of your router. If you are not sure where the WPS
button is on your router, please refer to your router’s User Manual. On some
routers, you may need to log in to the Web interface and click on an on-screen
button to activate the WPS feature.
Step 3
Allow up top one minute to congure. The DCS-5010L will automatically create
a secure wireless connection to your router. While connecting, the blue LED
will ash and your camera will reboot.
WPS - Push Button Setup
WPS Button
If you have a D-Link Cloud Router and an active mydlink account, the easiest way to create a secure wireless connection is
by using the WPS button on the back of the DCS-5010L. After you complete Step 3 below, you can register your camera with
mydlink. Refer to “Add Your Camera to Your mydlink Account” on page 16.
If you do not have a D-Link Cloud Router, use an Ethernet connect as shown under “Manual Hardware Installation” on page
20. WPS setup only establishes a wireless connection, so in order to use the mydlink features of your camera, you will still
need to run the Camera Setup Wizard (proceed to the next page).

19D-Link DCS-5010L User Manual
Section 2 - Installation

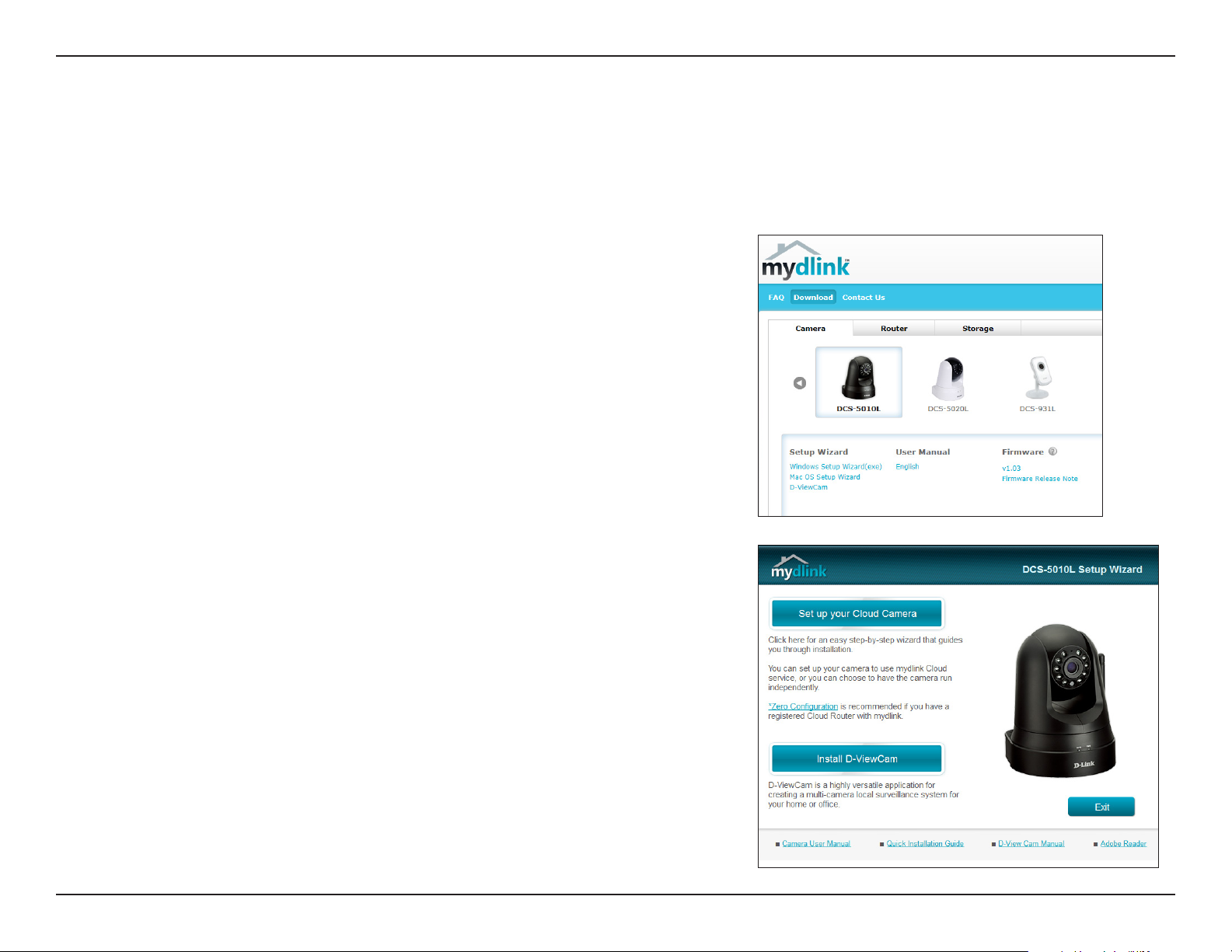

Camera Setup Wizard
If you do not have a mydlink-enabled Cloud Router, you can use either a Windows or Mac computer to go through the
Camera Setup Wizard, which will guide you through the installation process. First you must download the Setup Wizard from
http://www.mydlink.com/support.
Windows Users - Extract (“unzip”) the Windows SetupWizard les to a folder on
your computer and then double-click the autorun.exe le.
Mac Users - Download the Mac OS Setup Wizard. Open the Setup Wizard le
and launch the application.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-
by-step through the installation process from connecting your hardware to
conguring your camera and registering it with your mydlink account.
Click Start to begin.
Note: If you experience issues registering this device with your mydlink account,
perform a hard reset by pressing and holding the reset button on the device for
10 seconds while the device is powered on.

20D-Link DCS-5010L User Manual
Section 2 - Installation
Manual Hardware Installation
If you prefer to set up your camera without using the Camera Setup Wizard, follow these steps.
Note: In order to use the mydlink features of this product, you should use either the Camera Setup Wizard or Zero Conguration
Setup. To learn more about mydlink refer to ”What is mydlink?” on page 22.
Optional: WPS (Wi-Fi Protected Setup)
If your router supports Wi-Fi Protected Setup, you can use WPS to connect your camera
to your network wirelessly. For more information, refer to “WPS - Push Button Setup”
on page 18. If your router does not support WPS, you will still be able to set up your
camera’s wireless settings using the camera’s Web interface. Refer to “Wireless Setup”
on page 32.

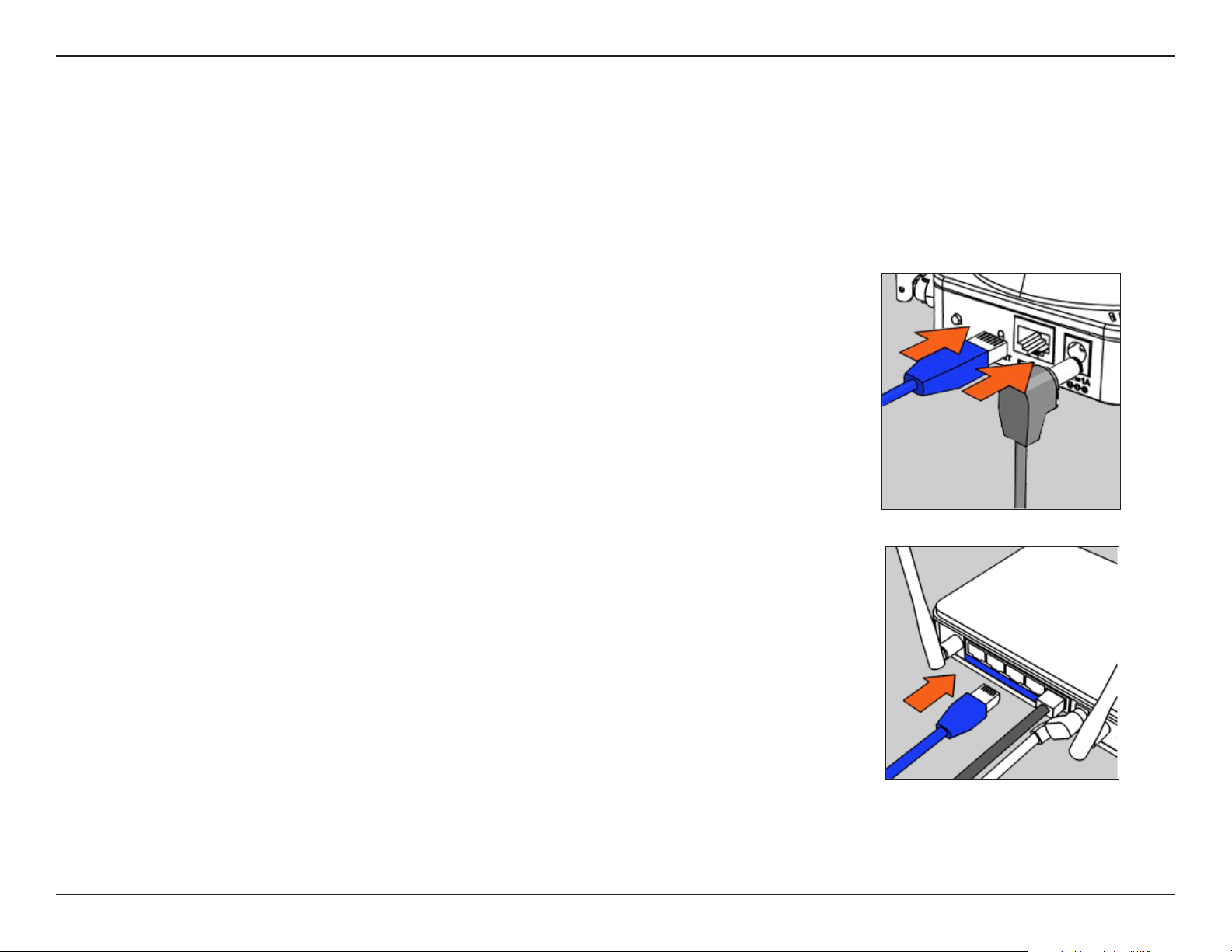

Connect the Power Cable and Ethernet Cable
Step 1
Attach the power supply to the power receptor located on the back of the DCS-5010L
and connect it to a wall outlet or surge protector. Power is conrmed when the Power
LED is lit.
Step 2
Connect the included Ethernet cable to the Ethernet port located on the back of the
DCS-5010L. Plug the other end into an available (LAN) port on your router.
Congure Your Camera
Refer to“Conguration” on page 25 for information on how to congure your camera.
