D-Link DCS-5615 Quick Install Guide
3
ENGLISH
DCS-5615
Quick Install Guide
This install guide provides basic instructions for installing the DCS-5615 Network
Camera. For additional information about how to use the camera, please see the
User Manual, which is available on the CD included in this package or from the D-Link
Support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
5. Adjusting the Viewing Angle
6. Attaching the Enclosure
1. Package Contents
° DCS-5615 Network Camera
° User Manual and Software on CD-ROM
° Quick Install Guide
° Mounting Kit
° Ethernet Extension
° Power Adapter
° Alignment Sticker
If any of the above items are missing, please contact your reseller.

D-Link DCS-5615 Quick Install Guide
4
ENGLISH

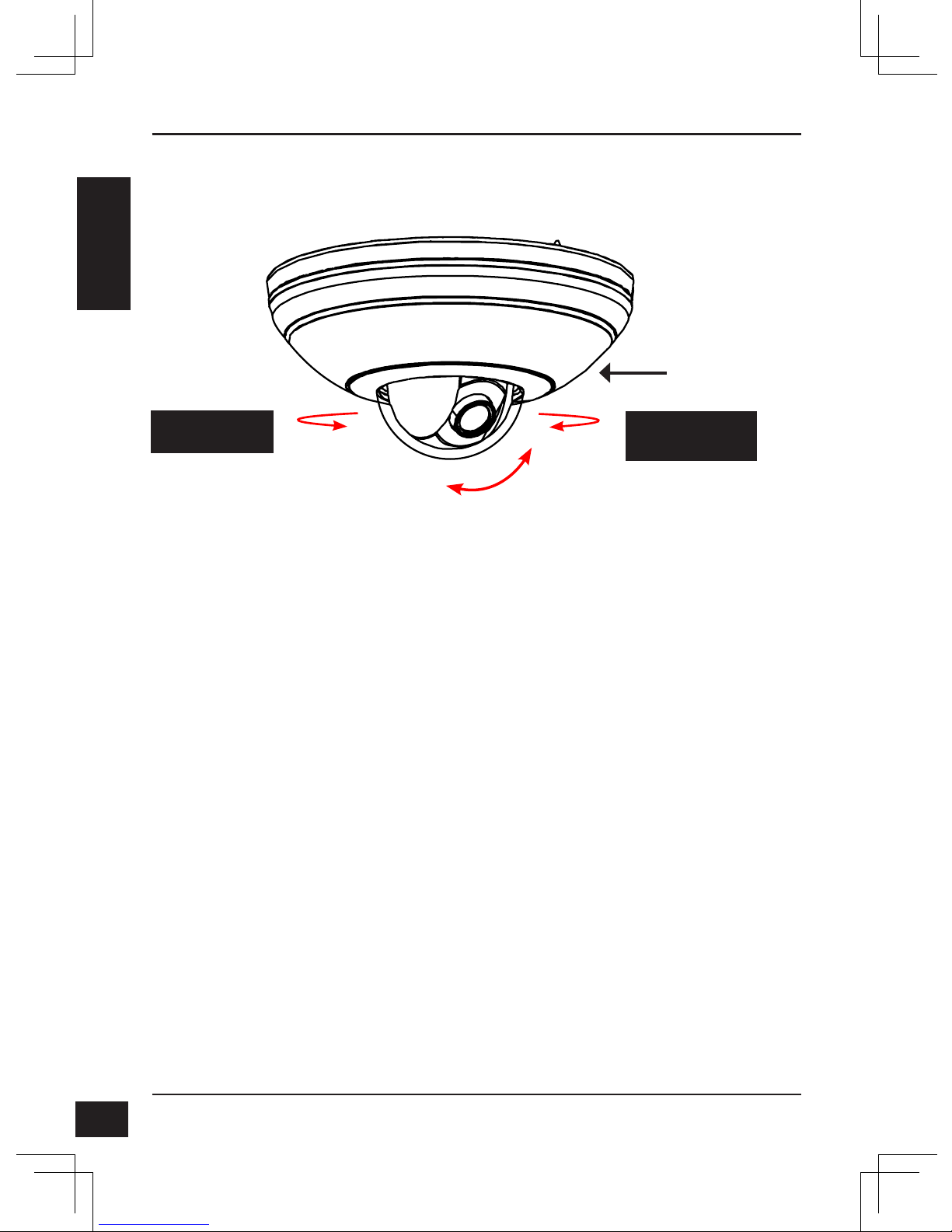

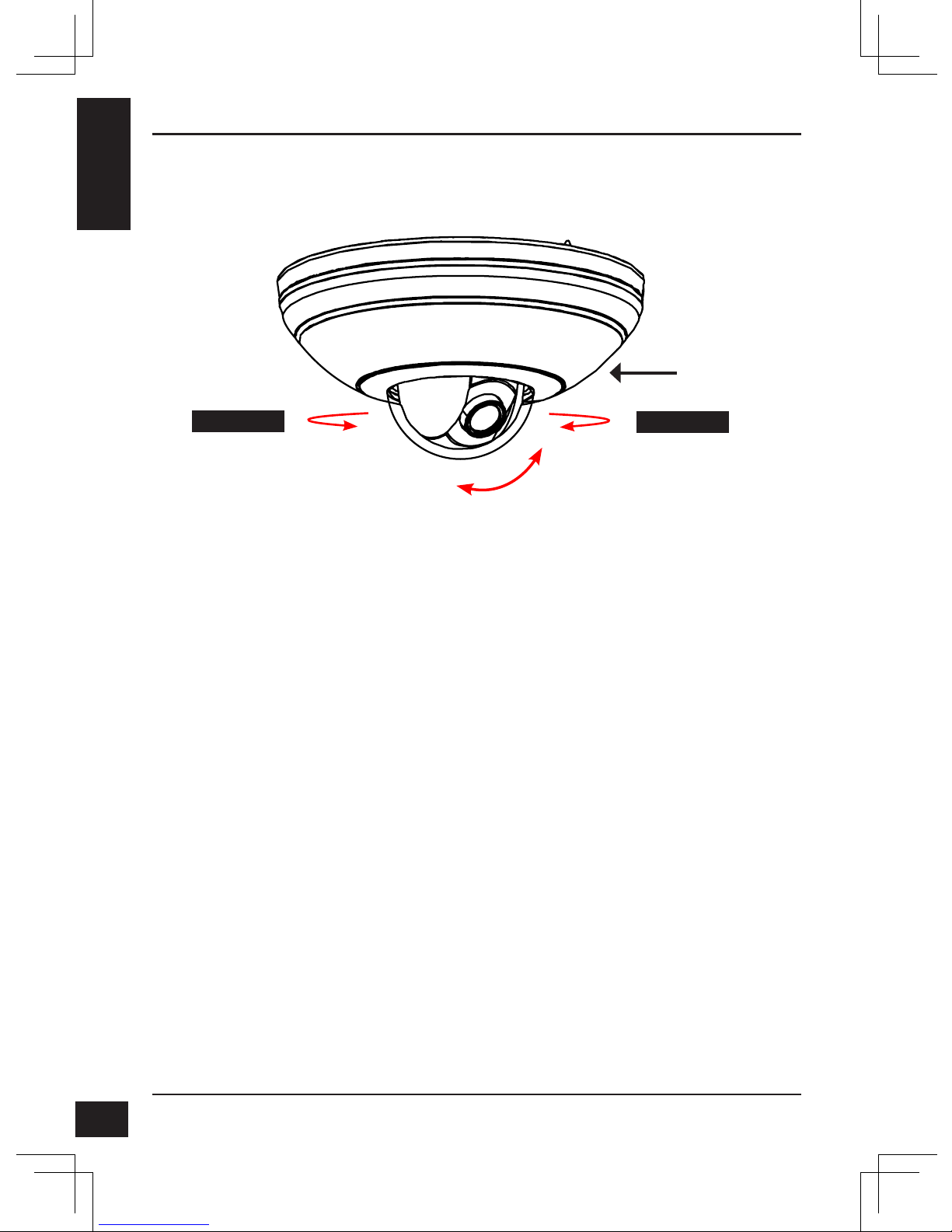

2. Hardware Overview
Plastic housing
Tilt 80°
Pan -180° Pan +180°

D-Link DCS-5615 Quick Install Guide
5
ENGLISH

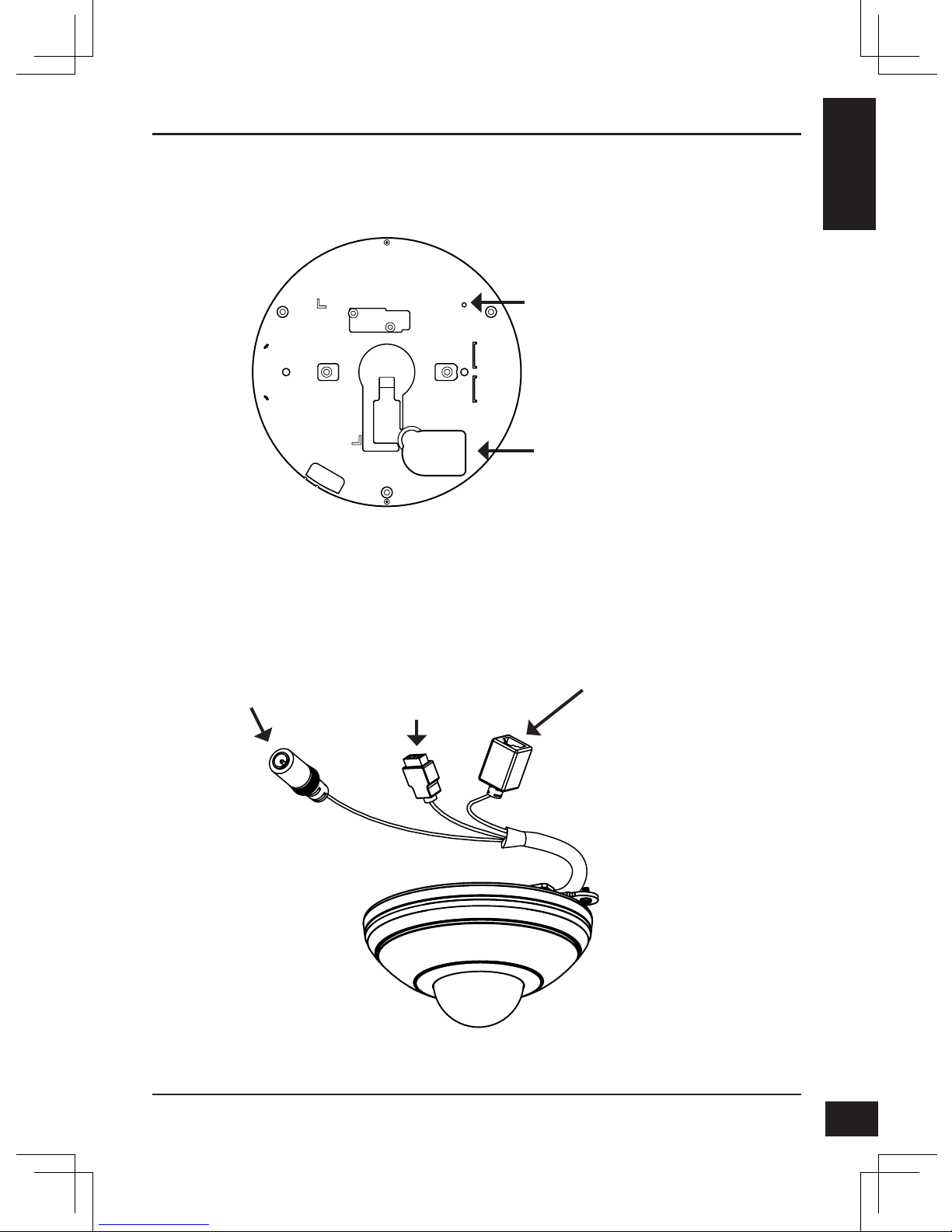

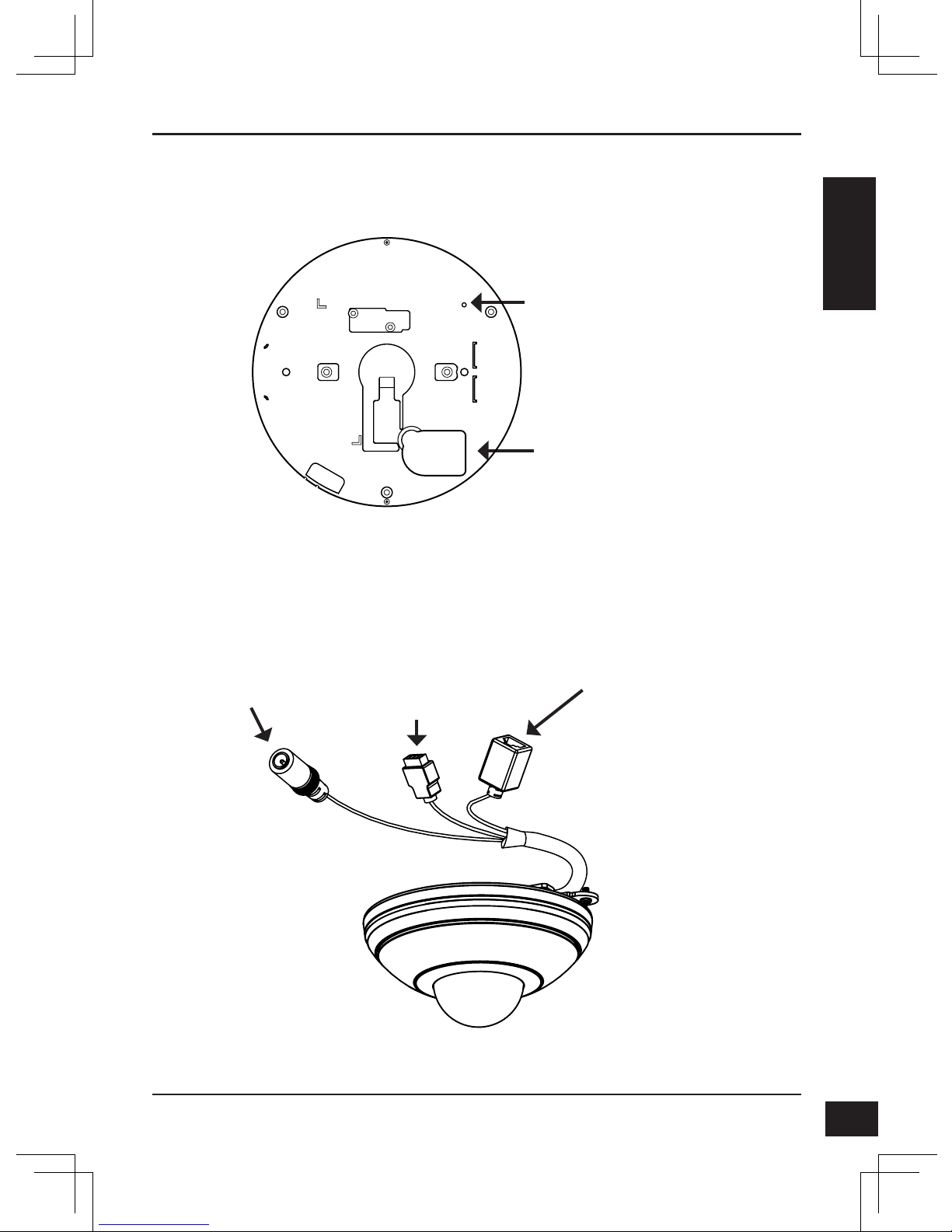

2. Hardware Overview
DC Power
Connects to the 12 V DC
power adapter to power
the camera
Ethernet Jack
RJ-45 connector is for Ethernet,
and can also be used to power
the camera using Power over
Ethernet
DI connector
DI connectors provide a
physical interface to receive
digital signals from a variety of
external devices
microSD Card Slot
Local microSD card for storing
recorded images and video
RESET
microSD
Reset

D-Link DCS-5615 Quick Install Guide
6
ENGLISH

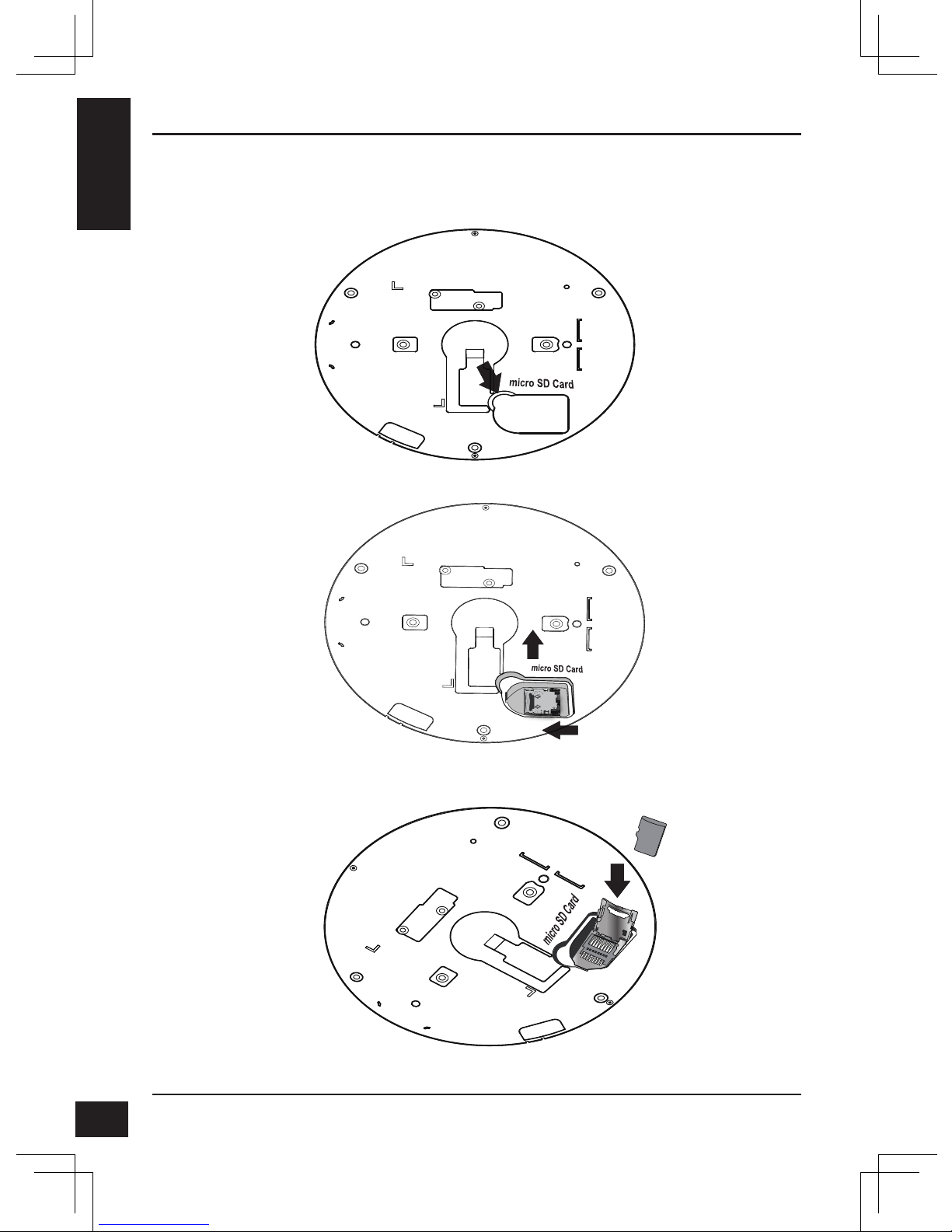

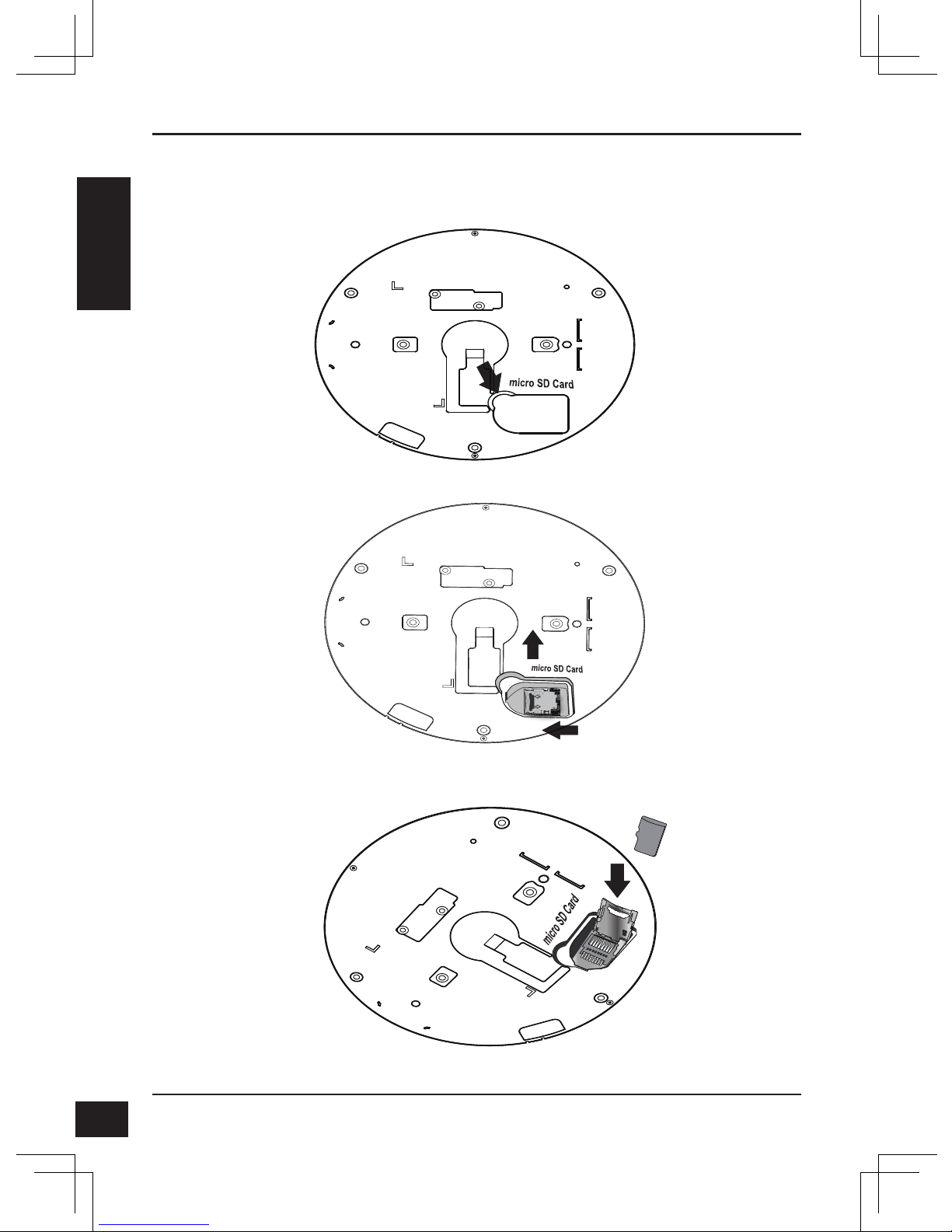

Open the microSD card plastic cover at the bottom.
Slip the card socket forward and up.
Insert a microSD card, close the the cover, and push it back to secure the installation. Install the
plastic cover by pressing it back to its original position.
3. Hardware Installation
M
icro
SD

D-Link DCS-5615 Quick Install Guide
7
ENGLISH
3. Hardware Installation

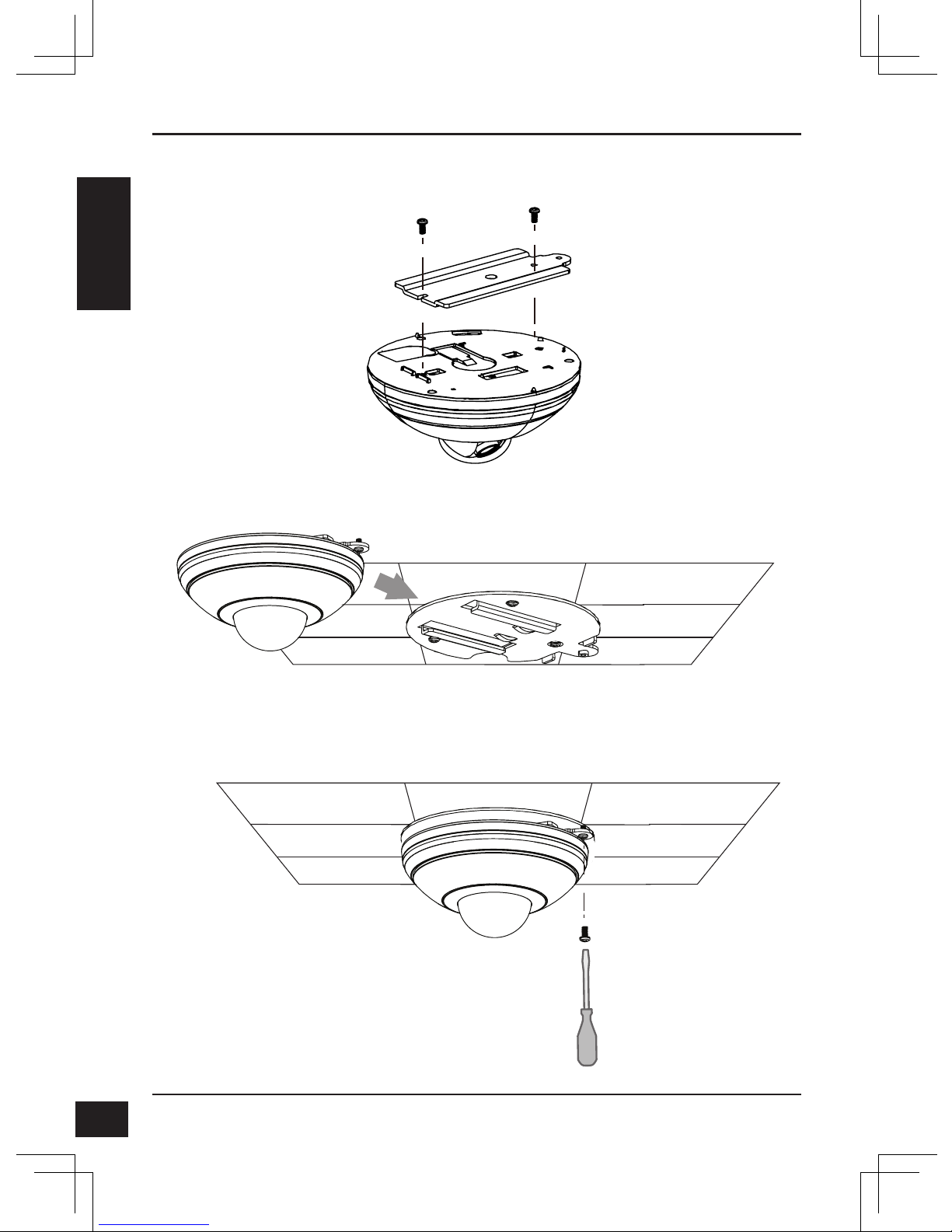

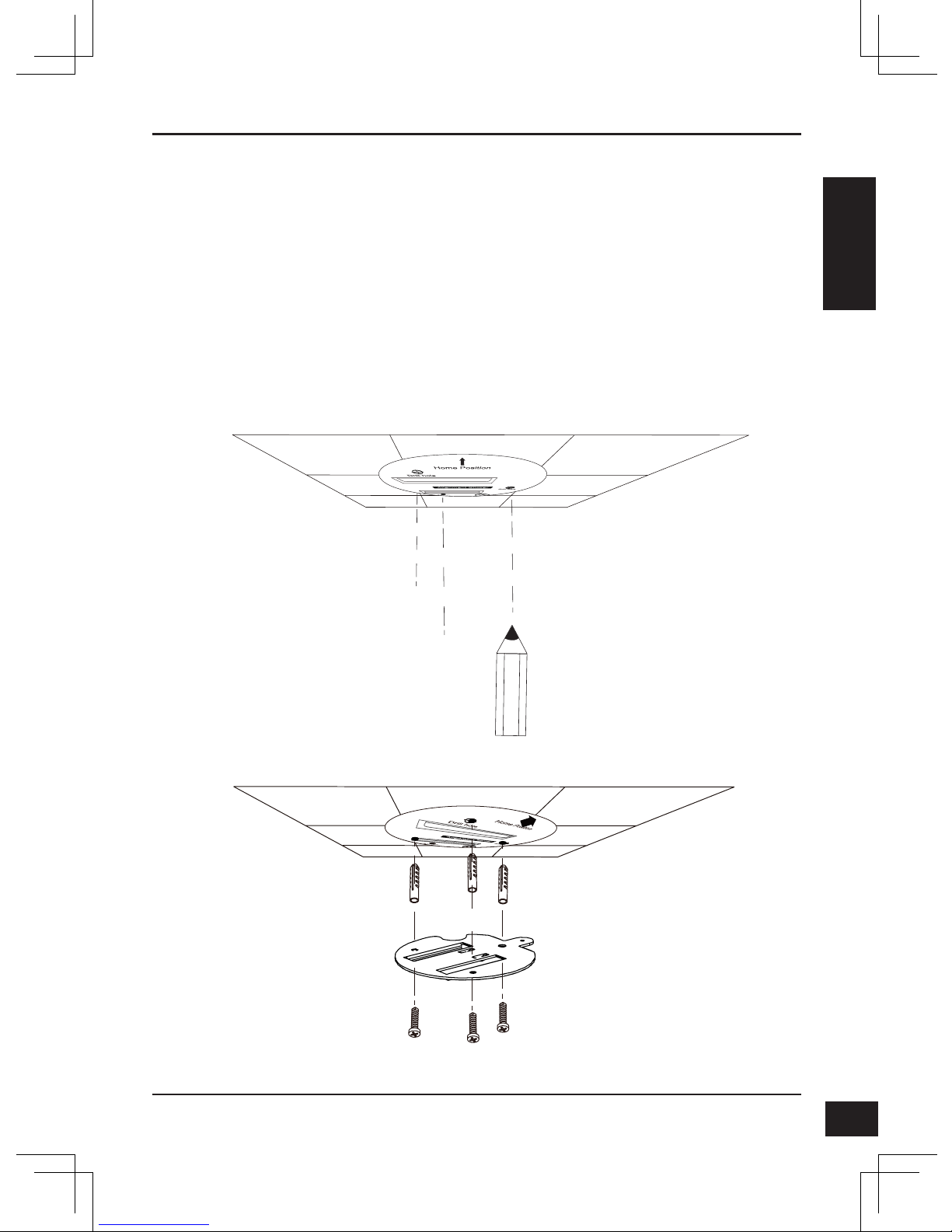

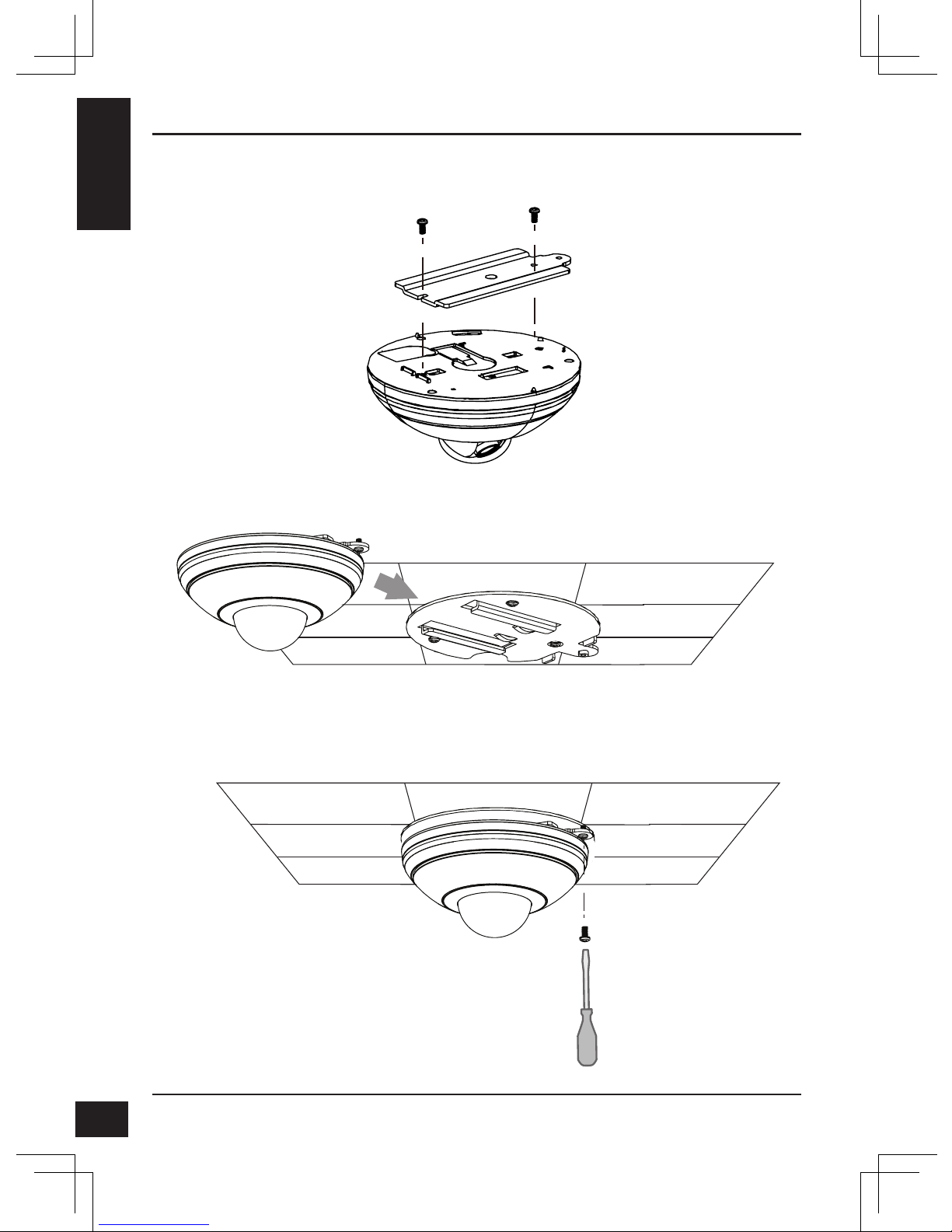

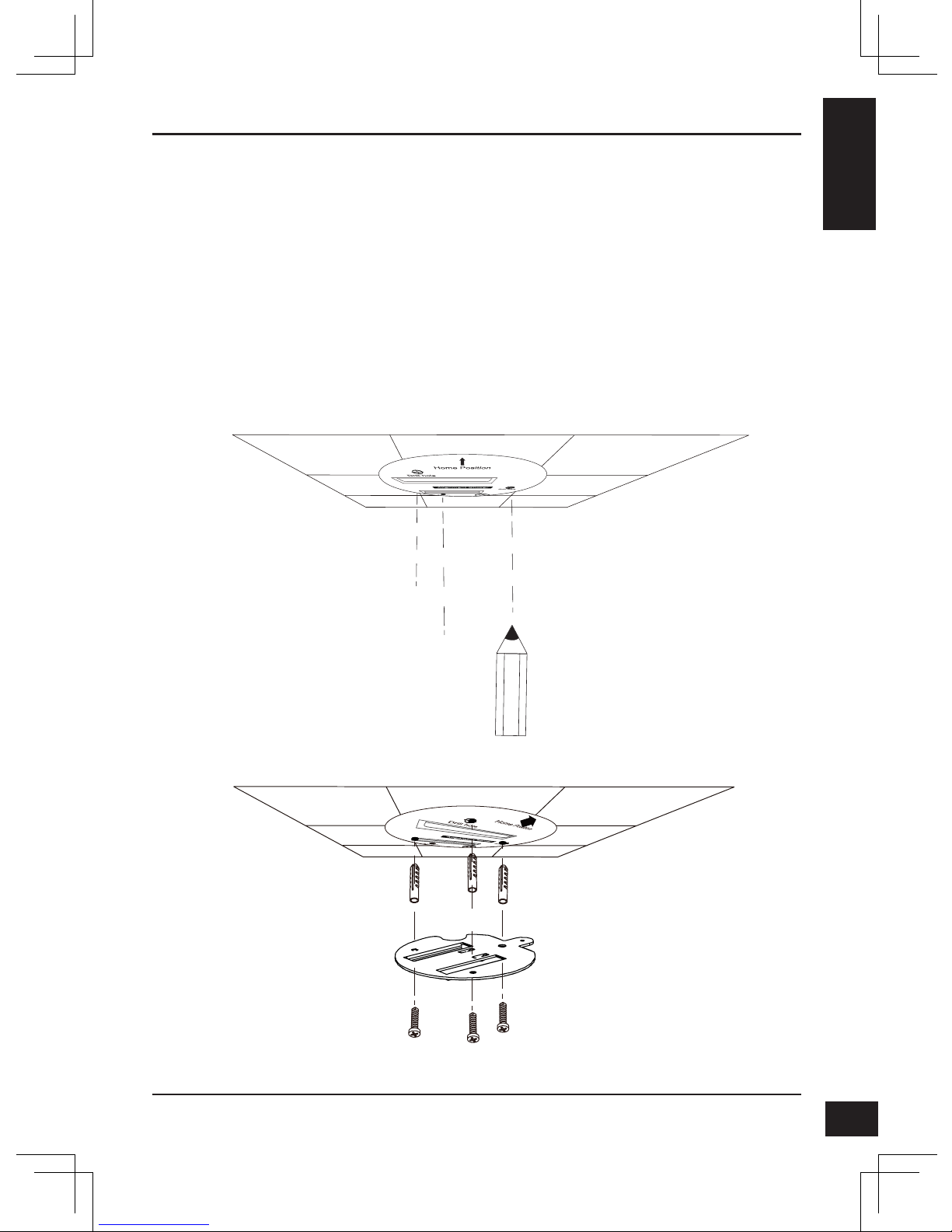

1. Locate an area on the ceiling or wall which is capable of supporting the weight of
the camera.
2. Attach the alignment sticker to the intended location on the ceiling or wall.
3. Drill three pilot holes where the holes of the alignment sticker are located.
4. Insert the supplied plastic anchors into the drilled holes, and install “Plate A” with
three screws.
5. Attach “Plate B" to the bottom of the camera and secure it with two screws.
6. Slide the Camera into “Plate A“
7. Secure the camera to the “Plate A” with screw.
Plate A

D-Link DCS-5615 Quick Install Guide
8
ENGLISH
Plate B

D-Link DCS-5615 Quick Install Guide
9
ENGLISH

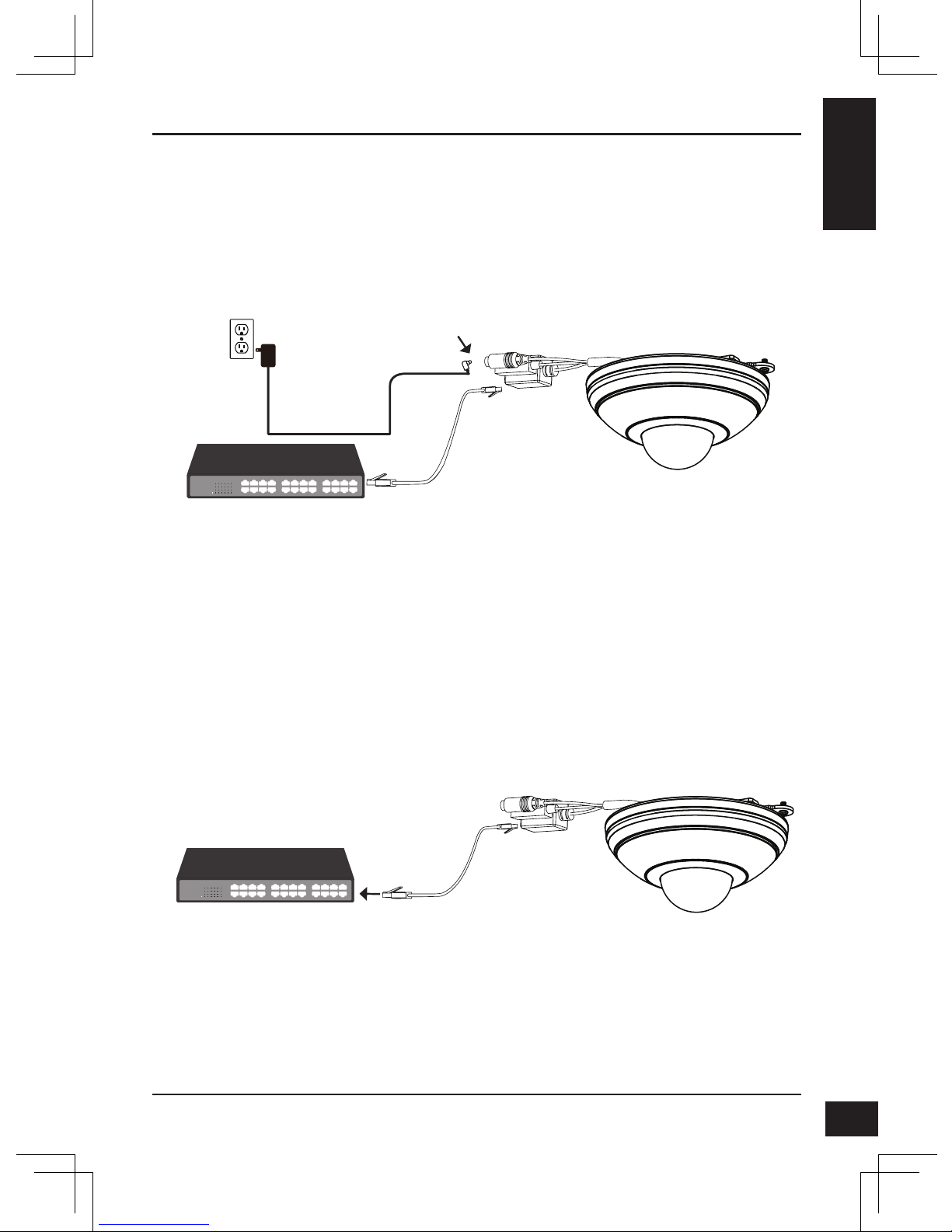

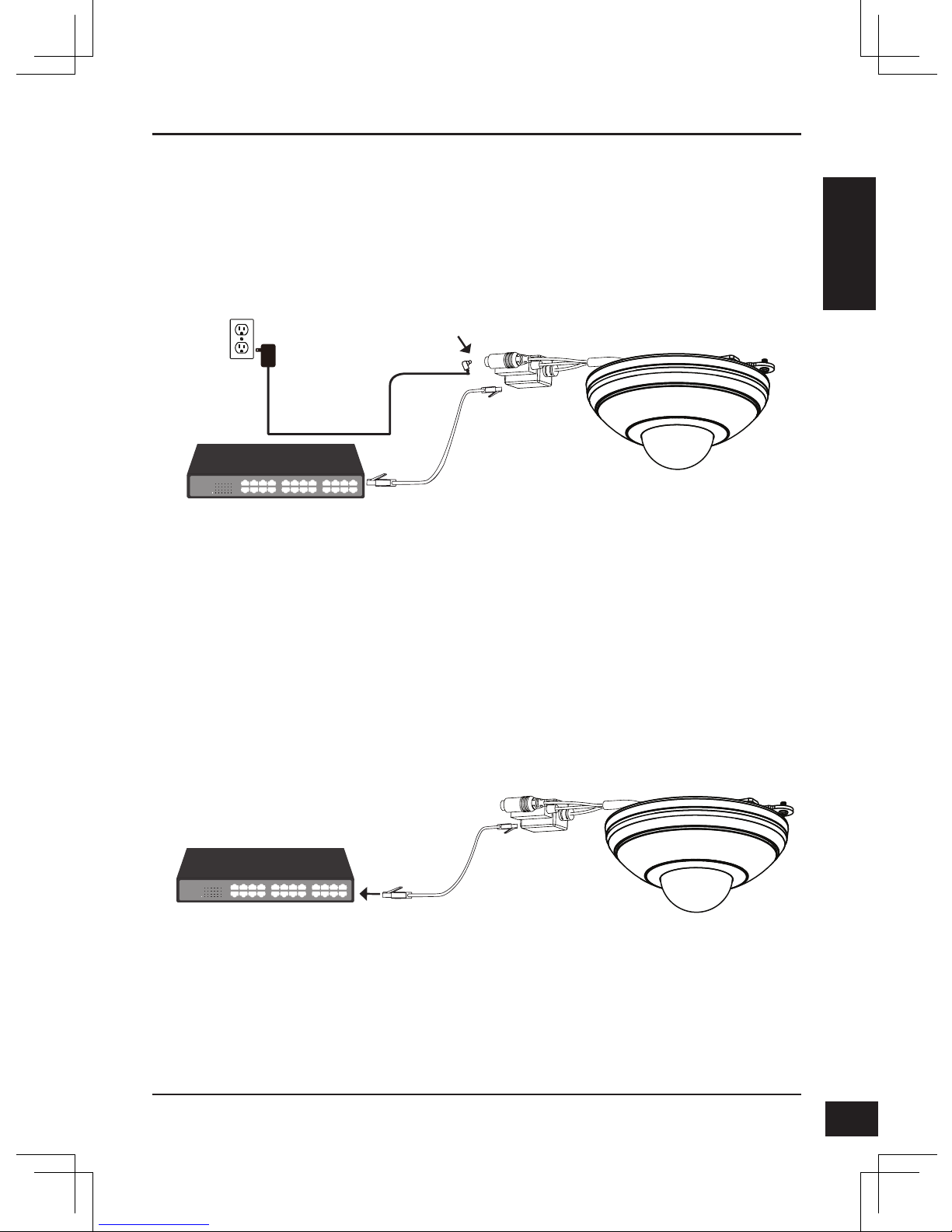

General Connection (without PoE)
Connect the network camera to a switch or router via an Ethernet cable.
Connect the supplied power adapter from the camera to a power outlet.
Connection with a PoE Switch
If using a PoE switch, connect the network camera to the switch via an Ethernet cable,
which will enable the transmission of both power and data over a single cable.

D-Link DCS-5615 Quick Install Guide
10
ENGLISH

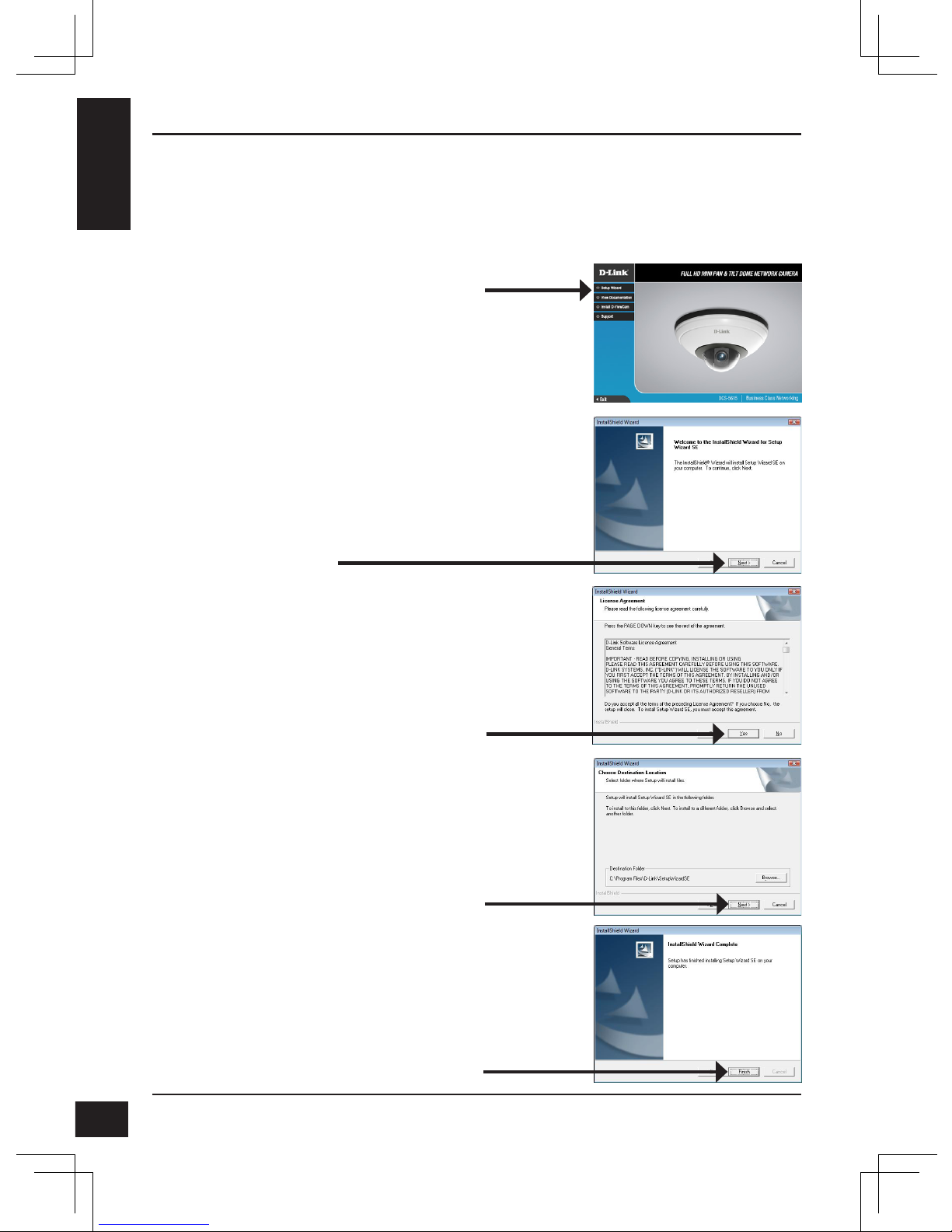

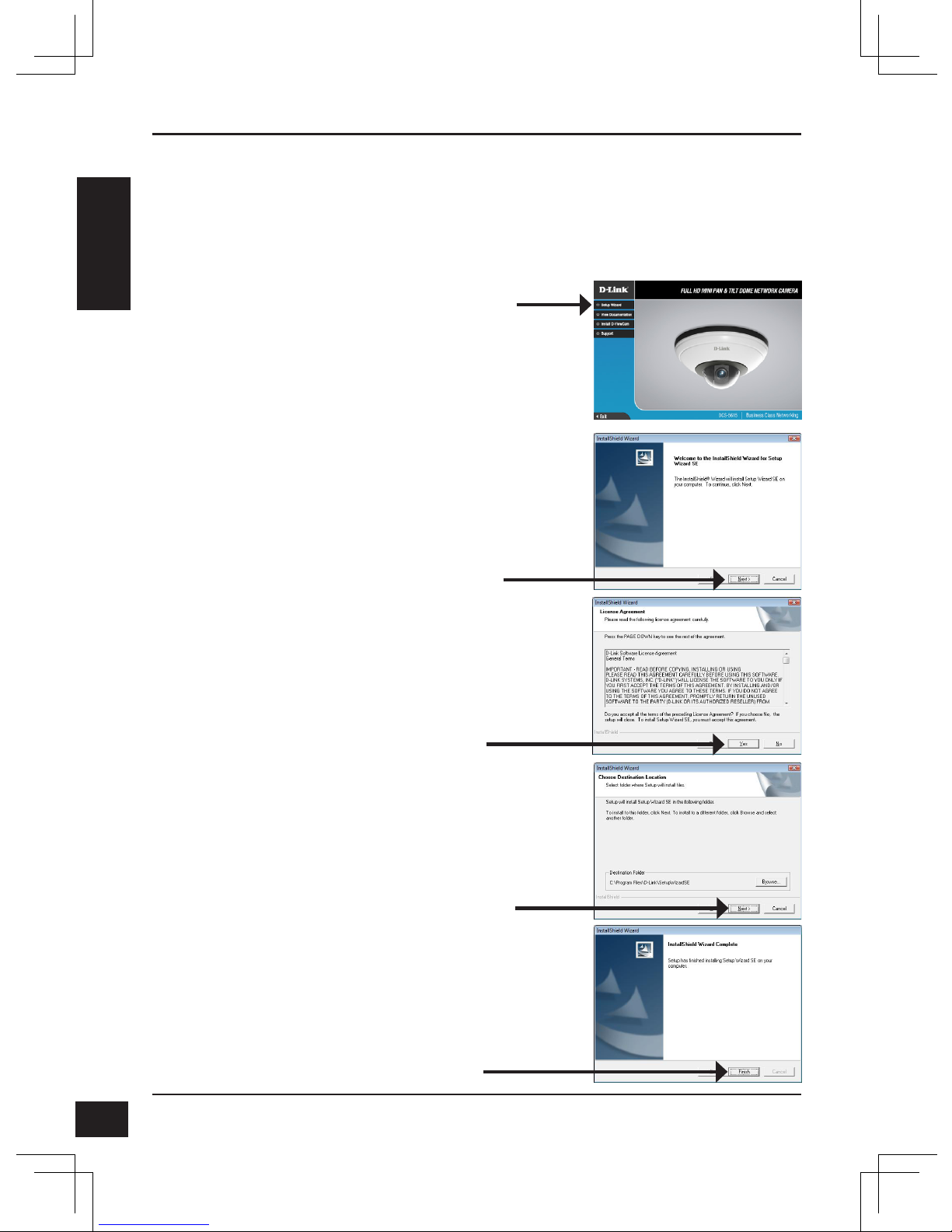

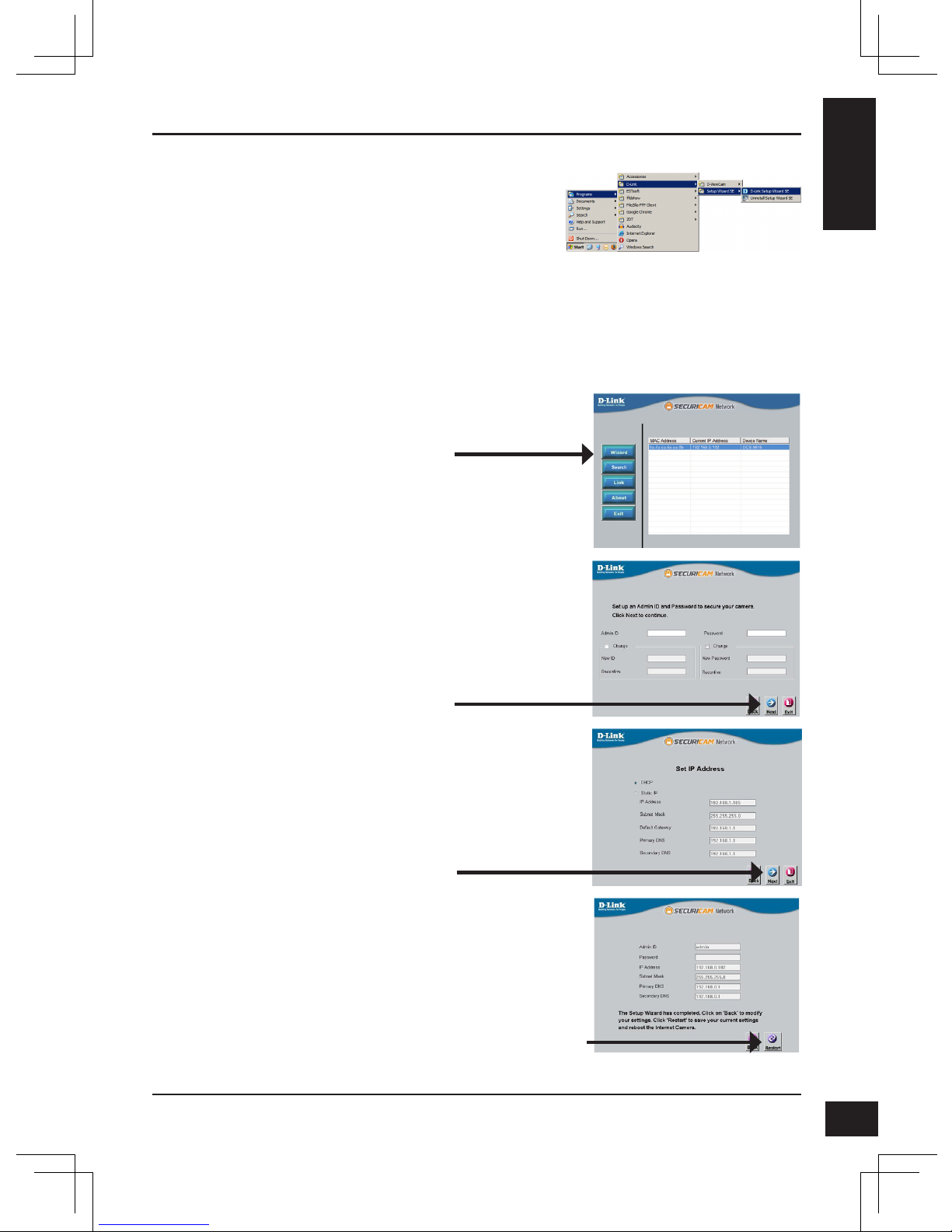

4. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-5615 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
The InstallShield Wizard window will open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.
