D-Link DCS-8330LH User manual

DCS-8330LH
User Manual
Smart Full HD Wi-Fi Camera
Hardware: A1
Manual Version: 1.00
08/28/2019
with built-in smart home hub

iD-Link DCS-8330LH User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes. Information in this document may become obsolete as our services
and websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Overview
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2019 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from
D-Link Corporation, Inc.
Manual Revisions
Revision Date Description
1.00 August 28, 2019 Initial release

iiD-Link DCS-8330LH User Manual
Table of Contents
Table of Contents
Product Overview..............................................................1
Package Contents.........................................................................1
Introduction ...................................................................................2
System Requirements.................................................................2
Hardware Overview.....................................................................3
Front ..........................................................................................3
Back............................................................................................4
LED Behavior ..........................................................................5
Installation.........................................................................6
Safety ................................................................................................6
Before you Begin...........................................................................6
Wireless Installation Considerations...................................... 7
Mounting the Camera.................................................................8
mydlink App Camera Setup....................................................10
Using the mydlink App....................................................12
Controlling Your Device ...........................................................12
Camera Options ..........................................................................13
Device.............................................................................................14
Troubleshooting..............................................................16
Technical Specications..................................................18
Regulatory Information ..................................................20

1D-Link DCS-8330LH User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage rating than the one included with your product will cause damage and void
the warranty for this product.
DCS-8330LH || Smart Full HD Wi-Fi Camera
with built-in smart home hub
2 x Screws
2 x Wall Anchors
microUSB Power Adapter Quick Installation Guide

2D-Link DCS-8330LH User Manual
Section 1 - Product Overview
Introduction
The mydlink Smart DIY DCS-8330LH Smart Full HD Wi-Fi Camera boasts a wide-angle lens that easily captures your entire
room in high-quality 1080p. The AI-Based Intelligent Video Analysis (IVA) software allows you to specify exactly what types
of motion you want to be notied about. It also doubles as your smart home hub, so you can add compatible mydlink smart
home sensors for a full-featured smart home experience. There is no need to lift a nger to view your camera feed as you
can simply ask Alexa or your Google Assistant. The app also features rich notications that shows a screenshot of detected
motion and allows you to set two designated contacts to call with a quick tap of the button when tapping the notication
as well as a go to the live view. Have a clear view of what is happening in the dark with the camera’s built-in night vision. The
rotatable head and stand allows for better viewing angles even when placed on top of surfaces. All-in-all, this camera will
give you peace of mind and ease of use.
System Requirements
Network Requirements
• 802.11n/g wireless network
• An Internet connection
• A router connected to your broadband modem
mydlink™ App Requirements
• iPhone, iPad, Android smartphone or tablet (please refer to the mobile
app's store page to check whether your device is compatible)
• Email account (for mydlink™ service registration)

3D-Link DCS-8330LH User Manual
Section 1 - Product Overview
Hardware Overview
Front
1 Status LED See LED for LED behavior information.
2 Microphone Picks up sound near your camera.
3 IR LEDs IR LEDs encircle the camera lens.
4 microSD Card Slot Where a microSD card can be inserted.
5 Camera Lens Records video of the surrounding area.
6 Light Sensor The IR-Cut removable sensor monitors lighting conditions and switches between
color and infrared accordingly.
7 Reset Button Hold the recessed button down to reset the camera to factory default settings.
1
23
4
5
6
7

4D-Link DCS-8330LH User Manual
Section 1 - Product Overview
Back
1 Speaker Provides audio playback for the two-way audio feature.
2 microUSB Power Port Attach your microUSB power adapter to this port to supply power to the device.
1
2

5D-Link DCS-8330LH User Manual
Section 2 - Installation
LED Behavior
Status LED
Status LED
Connected to Wi-Fi and mydlink
Booting up / Resetting
Pairing with a mydlink Smart DIY device
Ready for set up / Disconnected
Firmware being upgraded

6D-Link DCS-8330LH User Manual
Section 2 - Installation
Please read all of the safety and operating instructions before using device:
• Do not open the device or attempt to repair it.
• Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it
from the power outlet and use a damp towel to gently wipe it down.
Before you Begin
Plan the location of your camera:
• Verify that your camera is electrically rated to operate with the power available in your location.
• Connect the camera's power adapter into electrical outlets that are not controlled by a wall switch. This will help you to
avoid accidentally turning o power to the device.
• Be sure to plug the device into a properly grounded electrical outlet in order to help prevent against electrical shock.
• Make sure that the device is rmly mounted and won't fall o.
Installation
Safety

7D-Link DCS-8330LH User Manual
Section 2 - Installation
Wireless Installation Considerations
The DCS-8330LH Smart Full HD Wi-Fi Camera lets you view video footage from virtually anywhere within the operating
range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that
the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these
basic guidelines:
1. Keep the number of walls and ceilings between the camera and wireless access point to a minimum - each wall or ceiling
can reduce your camera’s range from 1 to 30 meters (3 to 90 feet). Position your devices so that the number of walls or
ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-degree angle
appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it looks over 14 meters (42 feet) thick! Position devices so
that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try
to position access points, wireless routers, and cameras so that the signal passes through drywall or open doorways.
Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and
concrete will degrade your wireless signal.
4. Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF noise.

8D-Link DCS-8330LH User Manual
Section 2 - Installation
Locate the two mounting holes on the bottom, noting that they are
33 mm apart.
Mounting the Camera
1/
Use a pencil to make two marks 33 mm apart. Use a 6 mm drill bit
to drill two 3 mm deep holes over the pencil marks. Hammer in the
plastic wall anchors to support the screws.
2/
Twist the screws into the anchors, leaving the tops of the screws
exposed from the surface. Do not over tighten the screws.
3/
33 mm
2.6~3.0mm
33 mm
33 mm
2.6~3.0mm
33 mm
33 mm
2.6~3.0mm
33 mm

9D-Link DCS-8330LH User Manual
Section 2 - Installation
Align the mounting holes on the bottom of the camera with the
screws. Slide the camera down to lock it into place.
4/
Twist the camera to your desired position. Go to the settings in the
app and enable Invert Image if the image is up-side-down.
Note: The ideal mounting height is between 1.5-3 meters (5-10 feet) from the
oor.
5/
33 mm
2.6~3.0mm
33 mm
33 mm
2.6~3.0mm
33 mm

10D-Link DCS-8330LH User Manual
Section 2 - Installation

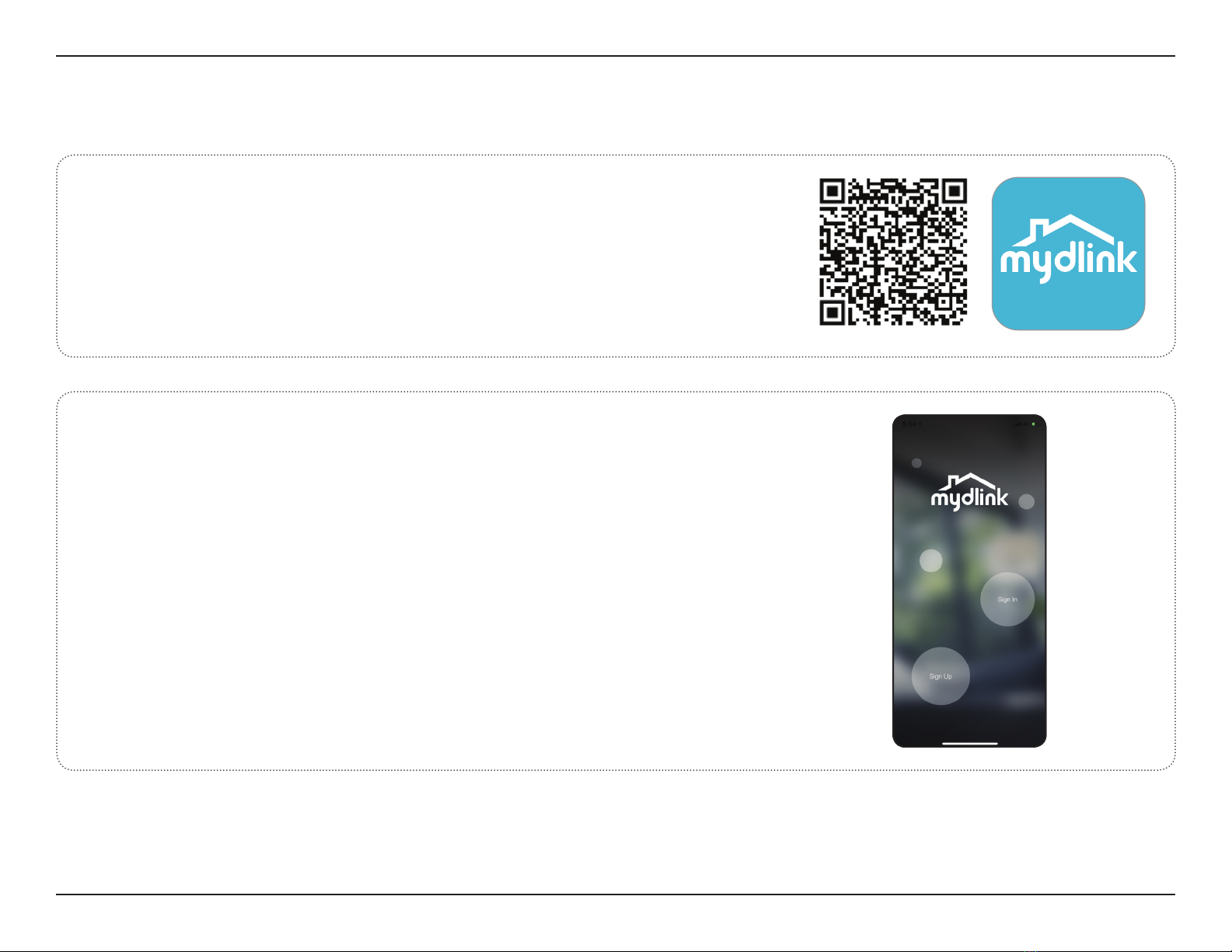

mydlink App Camera Setup
Launch the mydlink app and create a new account or sign in to your
existing account.
Note: If you are asked about allowing the app to access your location or to send
notications, select Allow. Make sure location services and Bluetooth are turned
on in your phone’s settings.
2/
Download the mydlink app from the App Store (iOS) or Google Play
(Android) by scanning the QR code.
Note: Ensure that your device is connected wirelessly to the network that the
DCS-8330LH will be in.
1/

11D-Link DCS-8330LH User Manual
Section 2 - Installation
After logging in, tap the Menu button in the top-left corner.
3/
Select Add a Device.
Follow the onscreen instructions to complete the device setup.
4/

12D-Link DCS-8330LH User Manual
Section 3 - mydlink
Using the mydlink App
Controlling Your Device
After setting up your DCS-8330LH Smart Full HD Wi-Fi Camera with a
mydlink account in the mydlink app, you will be able to remotely access your
camera through the app. After signing into your mydlink account, you will
see a screen similar to the one on the right.
If you have previously checked the Add to shortcut option while installing
the camera, you will see a quick link to your camera directly on the home
screen. Tap the shortcut link to your camera on the home screen and by
default you will see a live video feed of your camera on the top half of the
app.
To access the settings for your DCS-8330LH
Smart Full HD Wi-Fi Camera, tap > Devices > Camera >
navigate to your camera on the carousel > .
Note: Screenshots are representative only. The mydlink app is constantly being updated
and so may appear dierent.

13D-Link DCS-8330LH User Manual
Section 3 - mydlink
Camera Options
On the bottom half of the app you will see control options for your camera.
Snapshot Tap this button to take a snapshot of the video
stream.
Options Toggle Tap this icon to review various live video options
such as microphone and video quality.
Recording Tap this button to enable video stream recording.
Tap to toggle the Options menu.
Audio Tap to disable audio. Tap to enable audio.
1080p Video Resolution Tap 1080p to use 1080p resolution video. Tap 720p to use 720p resolution video.
Hold to Talk Hold down the to send your voice to the camera's built-in speaker.

14D-Link DCS-8330LH User Manual
Section 3 - mydlink
Device
To access the device page, either:
• From the home page, tap > Devices > Camera > navigate to your camera on the carousel >
or
• In the camera control page, tap the button.
The device page contains several options for you to congure your camera.
OR

15D-Link DCS-8330LH User Manual
Section 3 - mydlink
1 Device Photo Tap to add a customized photo of this device.
2 Device Name Tap to change the device’s name.
3 Device Location Tap to change or add a new location for this device.
4 Wi-Fi
Tap to change the wireless network this device will use to connect
to the Internet.
Note: The network must be the same as all your other mydlink
devices that you wish to use the same account for.
5 Designated Contact Tap to add, remove, or edit designated contacts that appear in the
rich notication.
6Camera
Microphone Tap to enable or disable the device's microphone.
7Moving Object
Detection
Tap to congure your settings for Multi-Zone Motion Detection,
Boundary-Crossing Detection and Priority Zone.
8Night Vision Tap to change night vision detection to On, O or Auto.
9 Anti-Flicker Reduces icker in the video. Tap 50Hz or 60Hz depending on the
frequency of your lights.
10 Enable Camera LED Disabling this will turn o the LED until you turn it back on.
11 Privacy Mode Tap to enable Privacy Mode. Privacy mode will disable the camera
feed.
12 Invert Image Enable this to invert the camera view.
13 Storage
Tap to change video clips storage location from the microSD card to
the cloud. You can also subscribe to mydlink Cloud from here and
view your current subscription plan.
14 Firmware Update
Shows time of auto rmware upgrade. Tap to enter the rmware
upgrade settings. You can choose the most suitable time for
automatic updates.
15 Current Firmware
Version This displays the installed version of the rmware on your device.
16 Device ID Identies the device for support issues.
17 Remove Device Tap this button to disconnect this device from your mydlink account.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
16

16D-Link DCS-8330LH User Manual
Section 4 - Troubleshooting
Troubleshooting
How can I access my DCS-8330LH Smart Full HD Wi-Fi Camera remotely through the Internet?
In order to use your DCS-8330LH remotely through the Internet using the mydlink app, you must register your camera with
a mydlink account. You can do this using the free mydlink app. Please go to Using the mydlink App on page 12 for more
information.
What do I do if my device is not working properly?
Reset the device and reinstall it. To reset your device, press and hold the Reset button until the LED turns solid red.
During installation, ensure that:
• your router is connected to the Internet and has Wi-Fi enabled
• your mobile device is connected to your router's Wi-Fi and has Bluetooth enabled
• your mydlink device is in range of your Wi-Fi network
Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on your camera may be reecting o a nearby surface. Try repositioning
your camera to avoid glare from IR LEDs.

17D-Link DCS-8330LH User Manual
Section 4 - Troubleshooting
How can I use voice commands to control my device?
The device will work with both Amazon Alexa and the Google Assistant. For setup instructions on these services, visit the
following websites:
Alexa: https://www.dlink.com/en/alexa
The Google Assistant: https://www.dlink.com/en/google-assistant
Why is my microSD card not working/not supported?
The microSD card must be formatted into the correct le system (FAT32) before it can be used with this product. This can be
done in the mydlink app by selecting the Format function in the storage menu under the Device settings.
