D-Link DCS-6314 User manual

This document will guide you through the
basic installation process for your new D-Link
Network Camera.
DCS-6314
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
Full HD Outdoor Fixed Dome Network Camera
Quick Installation Guide
Installationsanleitung
Guide d’installation
Guía de instalación
Guida di Installazione

D-Link DCS-6314 Quick Install Guide 1
ENGLISH
DCS-6314 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-6314 Network
Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD included in this package or
from the D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Micro SD Card Installation
4. Hardware Installation
5. Conguration with Wizard
6. Adjusting the lens 3-axis angel
1. Package Contents
DCS-6314 Network Camera
Manual and Software on CD-ROM
Quick Install Guide
Power Adapter
Security Wrench
CAT-5 Ethernet Cable
Screws and wall socket
Weather Shield
4Pin Terminal Block
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.

D-Link DCS-6314 Quick Install Guide
2
ENGLISH

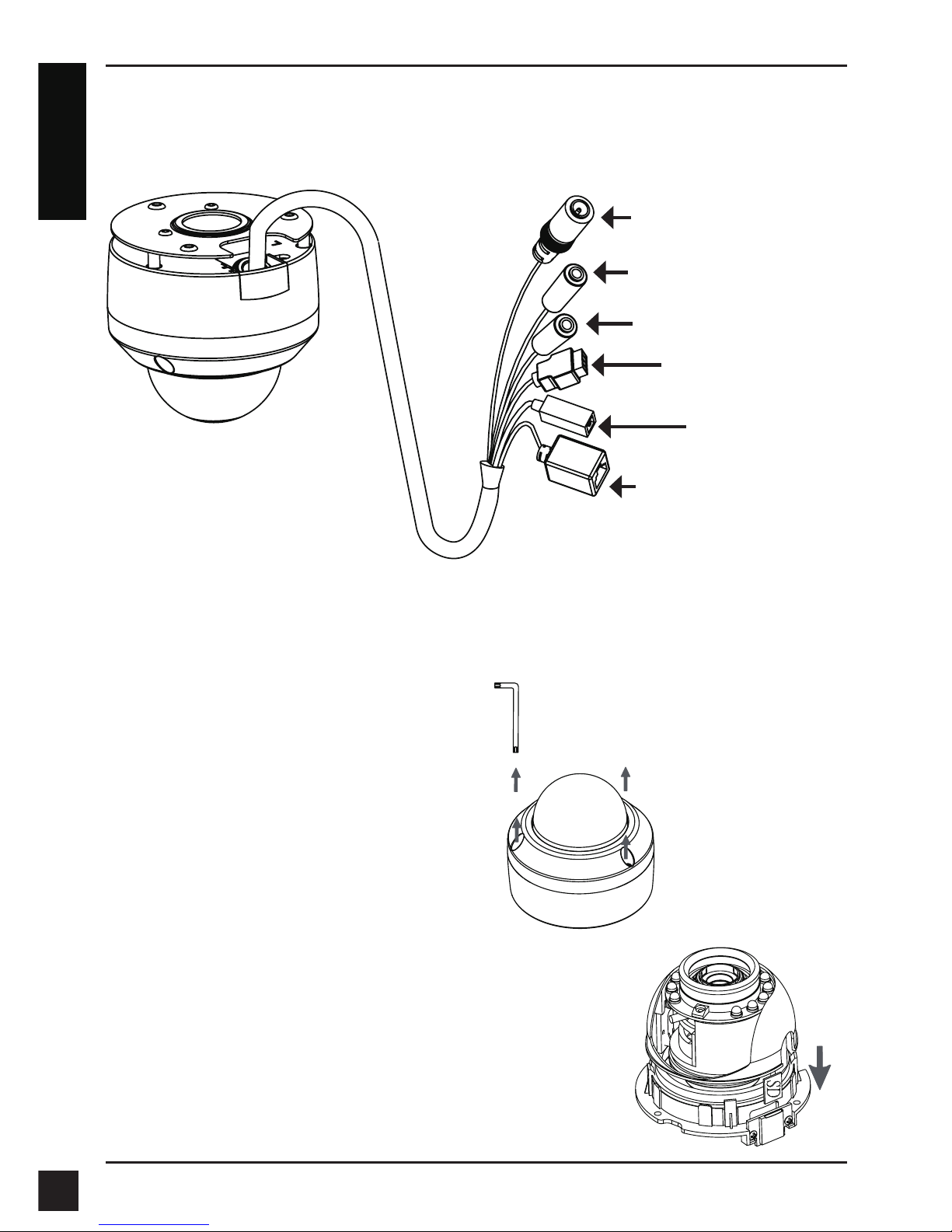

2. Hardware Overview
Install the Micro SD Card
Push the Micro SD card into the camera with the gold
contacts oriented towards the base of the camera. To eject
the Micro SD card, push the Micro SD card into the slot.
3. Micro SD Card Installation

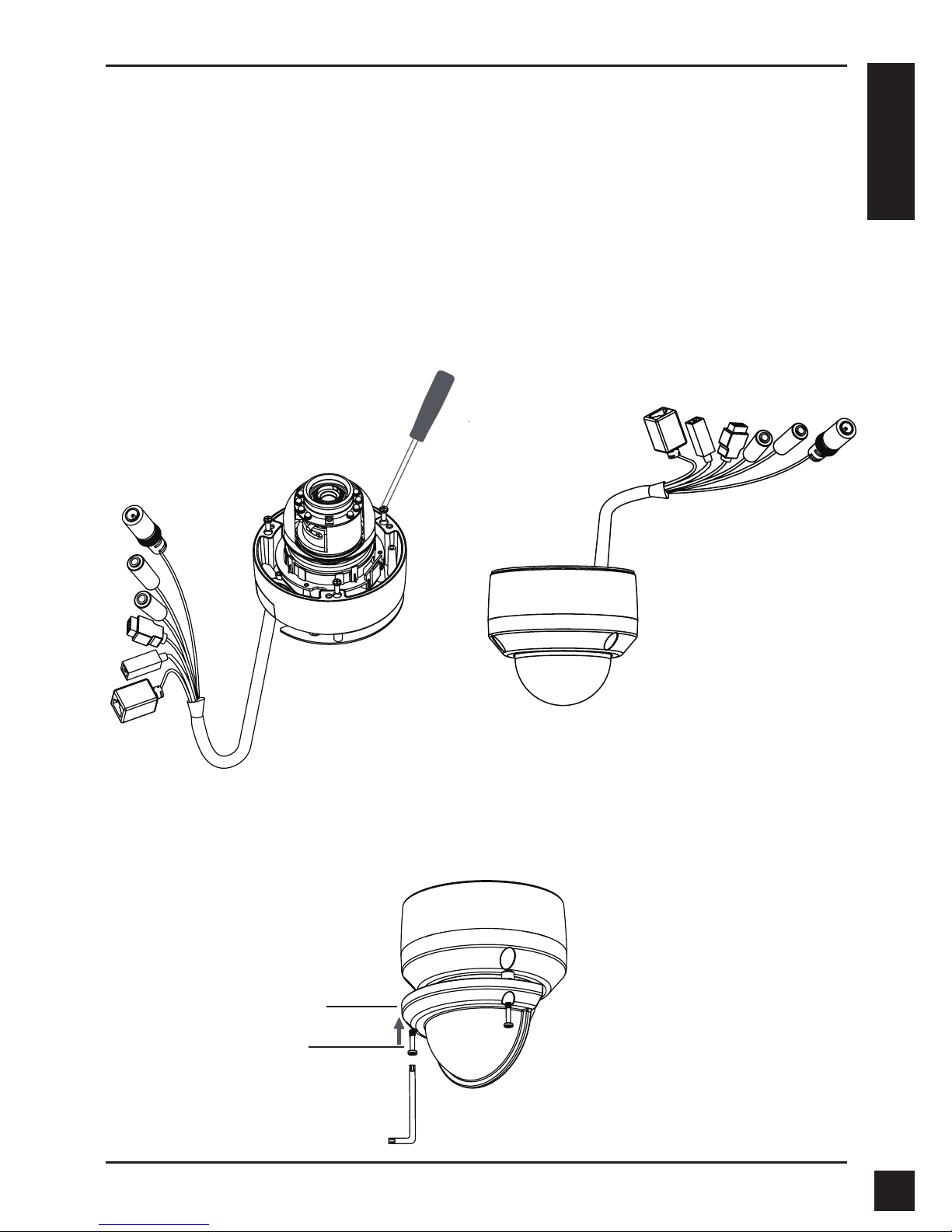

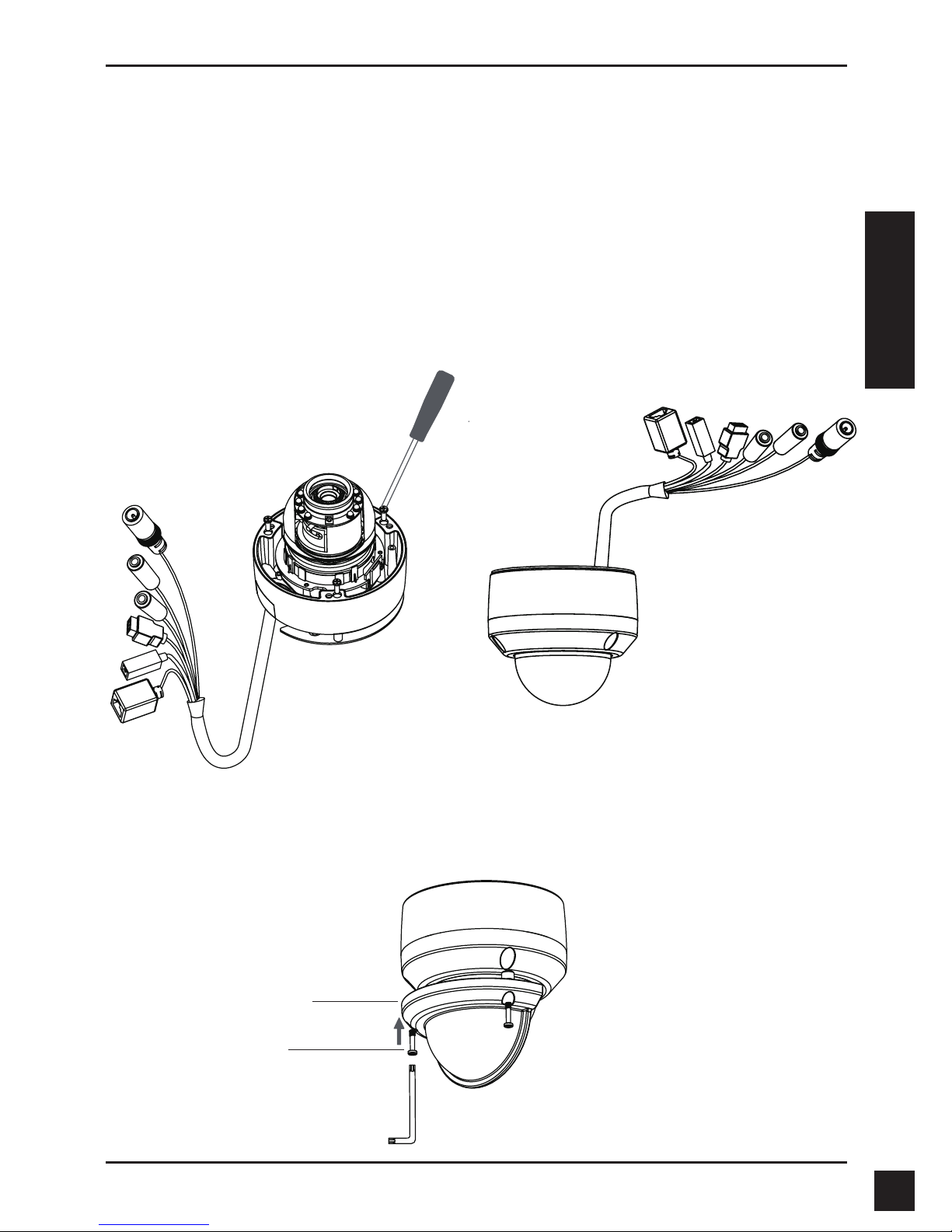

Disassemble the Camera
Open the camera enclosure by loosen the
3 screws. Lift the dome off the base of the
camera.

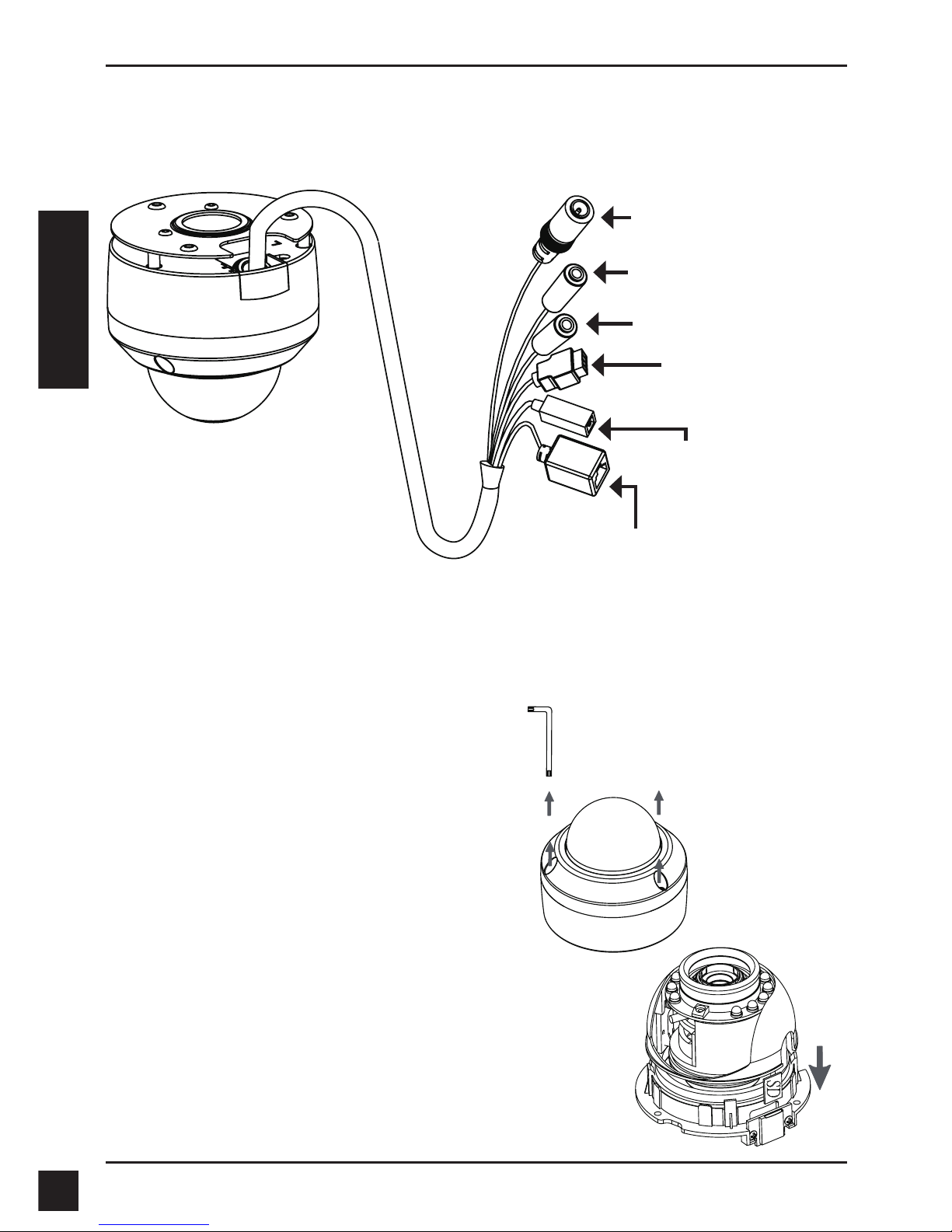

Power Connector
Connects to 12 V DC power
Ethernet Jack
RJ-45 connector for Ethernet
whichcan also be used to power
the camera using Power over
Ethernet (PoE)
Reset Button
Resets camera to factory
default settings
Audio In
Connects to a microphone
DI/DO Wiring, 12V DC output
I/O connectors for external
devices
Audio Out
Connects to speakers

D-Link DCS-6314 Quick Install Guide 3
ENGLISH
4. Standard Mounting Instructions
Mounting Installation
Please see the User Manual for detailed instructions regarding installation and mounting
of the camera using a mounting bracket.

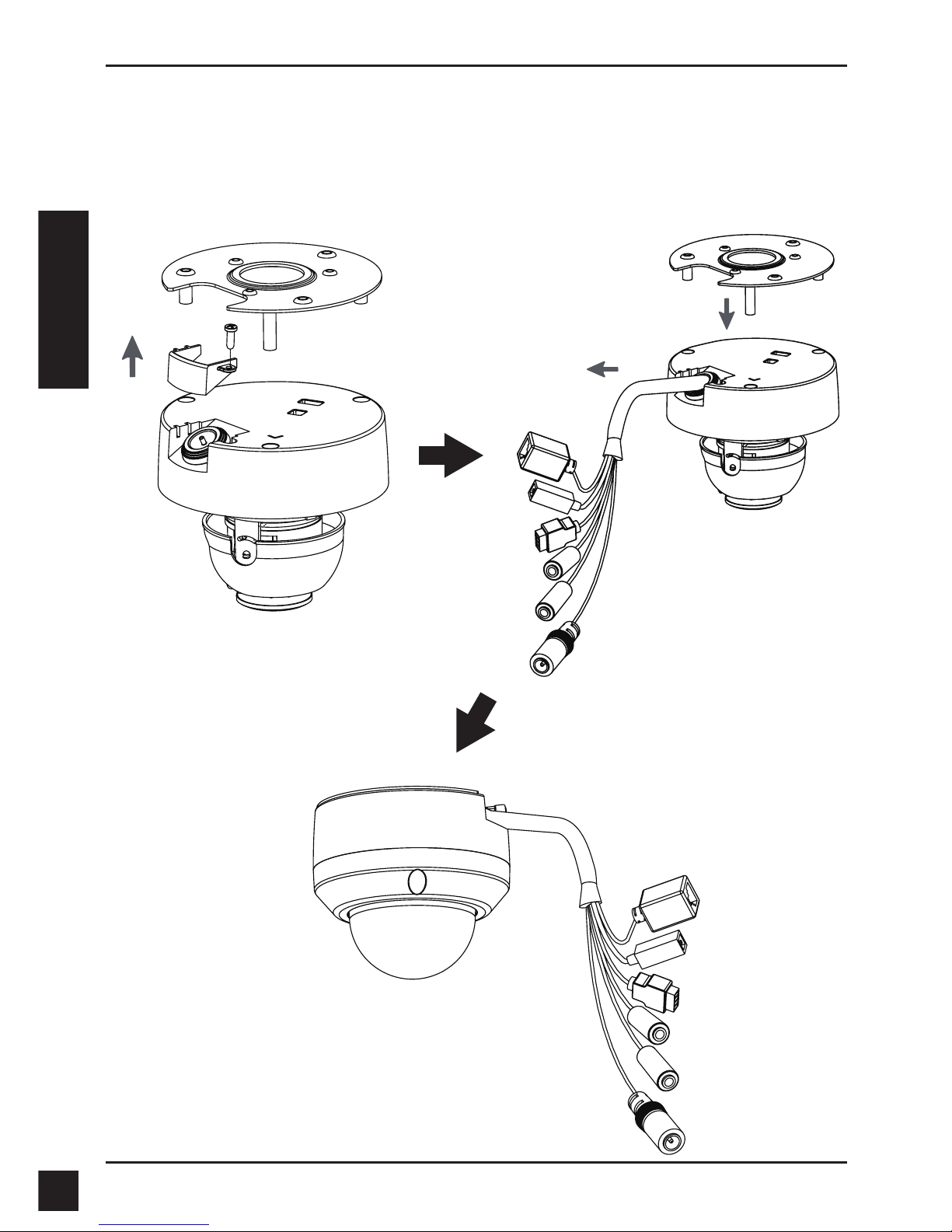

Style 1 - Concealed Cable Installation
Height: 25.6 mm (1.0 inches)
Diameter: 122 mm (4.8 inches)
Weight: 135 g (0.3 lbs)
Figure 2.2Figure 2.1
Weather Shield
Weather shield
screw

D-Link DCS-6314 Quick Install Guide
4
ENGLISH

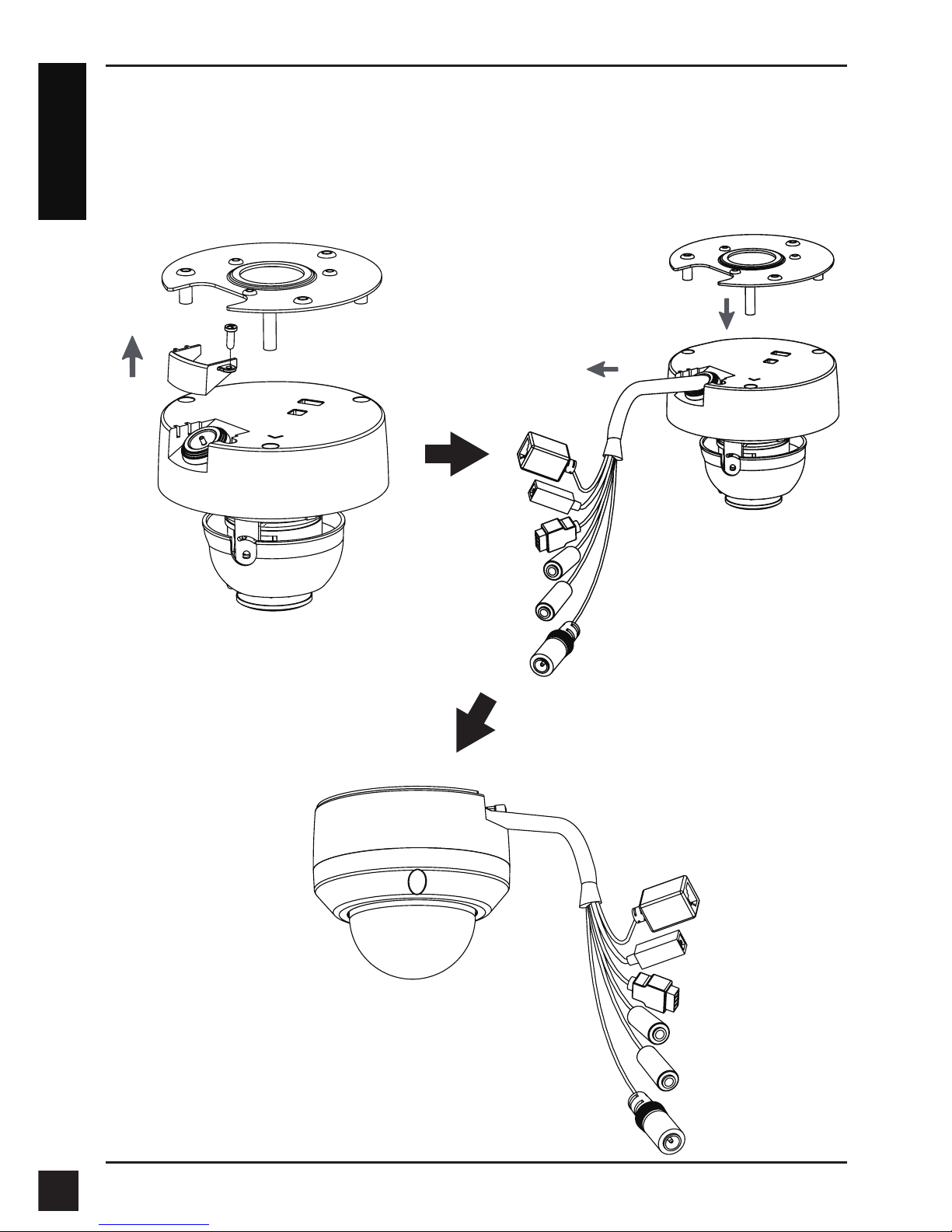

Style 2 - Exposed Cable Installation
Height: 25.6 mm (1.0 inches)
Diameter: 122 mm (4.8 inches)
Weight: 135 g (0.3 lbs)
Figure 2.3 Figure 2.4
Figure 2.5

D-Link DCS-6314 Quick Install Guide 5
ENGLISH

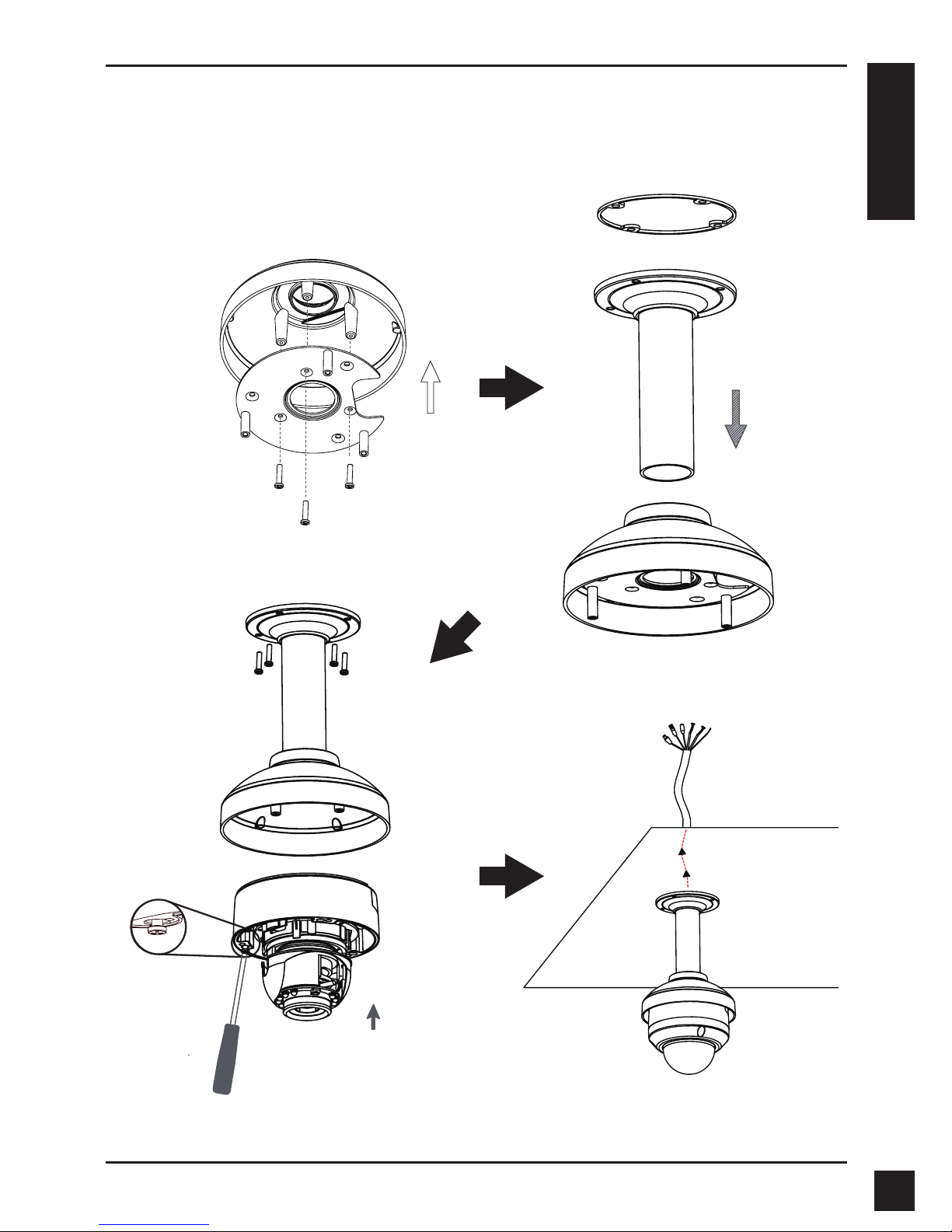

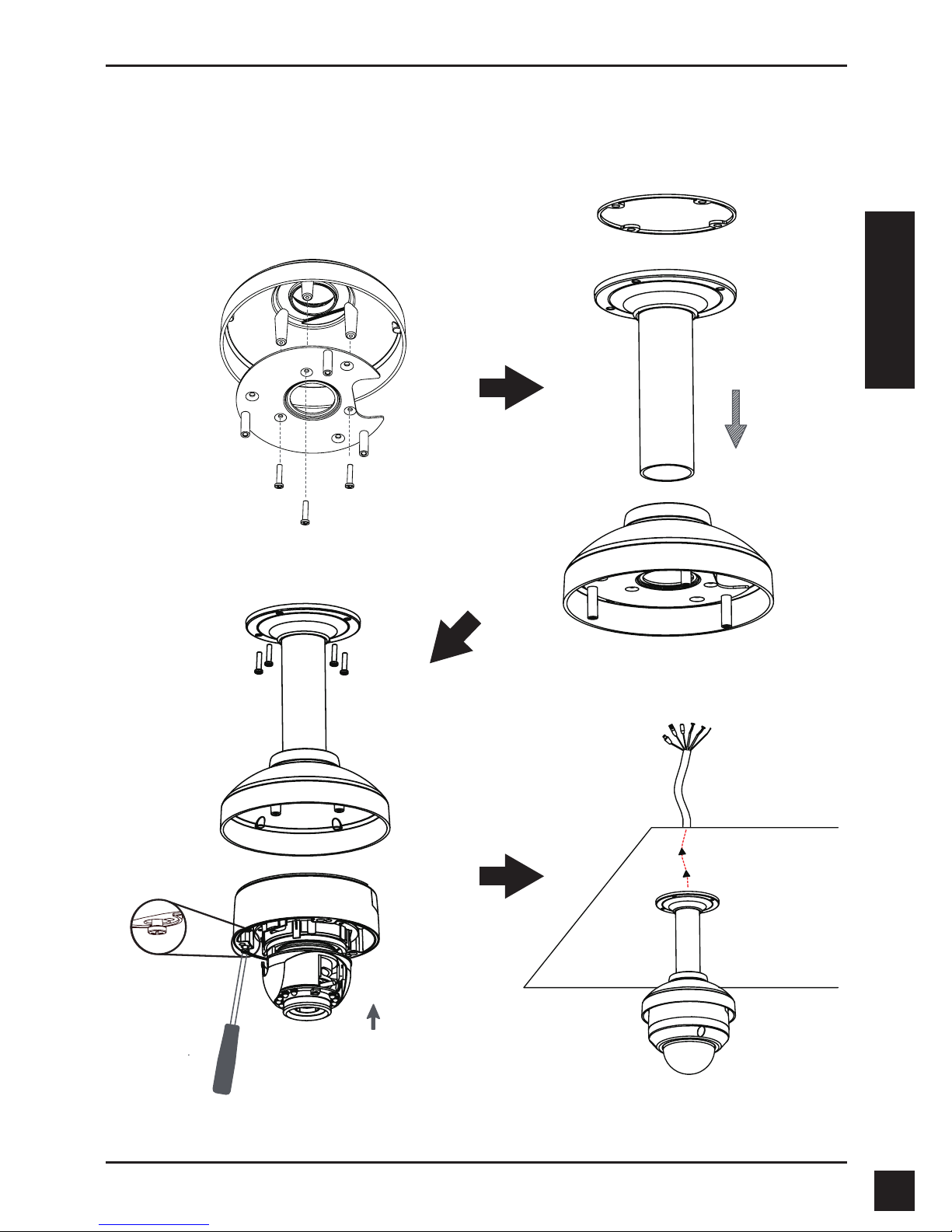

Pendant Mount (DCS-34-2)
Height: 201 mm (7.9 inches)
Diameter: 150 mm (5.9 inches)
Weight: 665 g (1.45 lbs)
Figure 3.4
Pendant
Bracket
Bracket
Cap
Rubber
Seal
Figure 3.2
Figure 3.3
Figure 3.1
Bracket
Cap
Mounting
Plate

D-Link DCS-6314 Quick Install Guide
6
ENGLISH

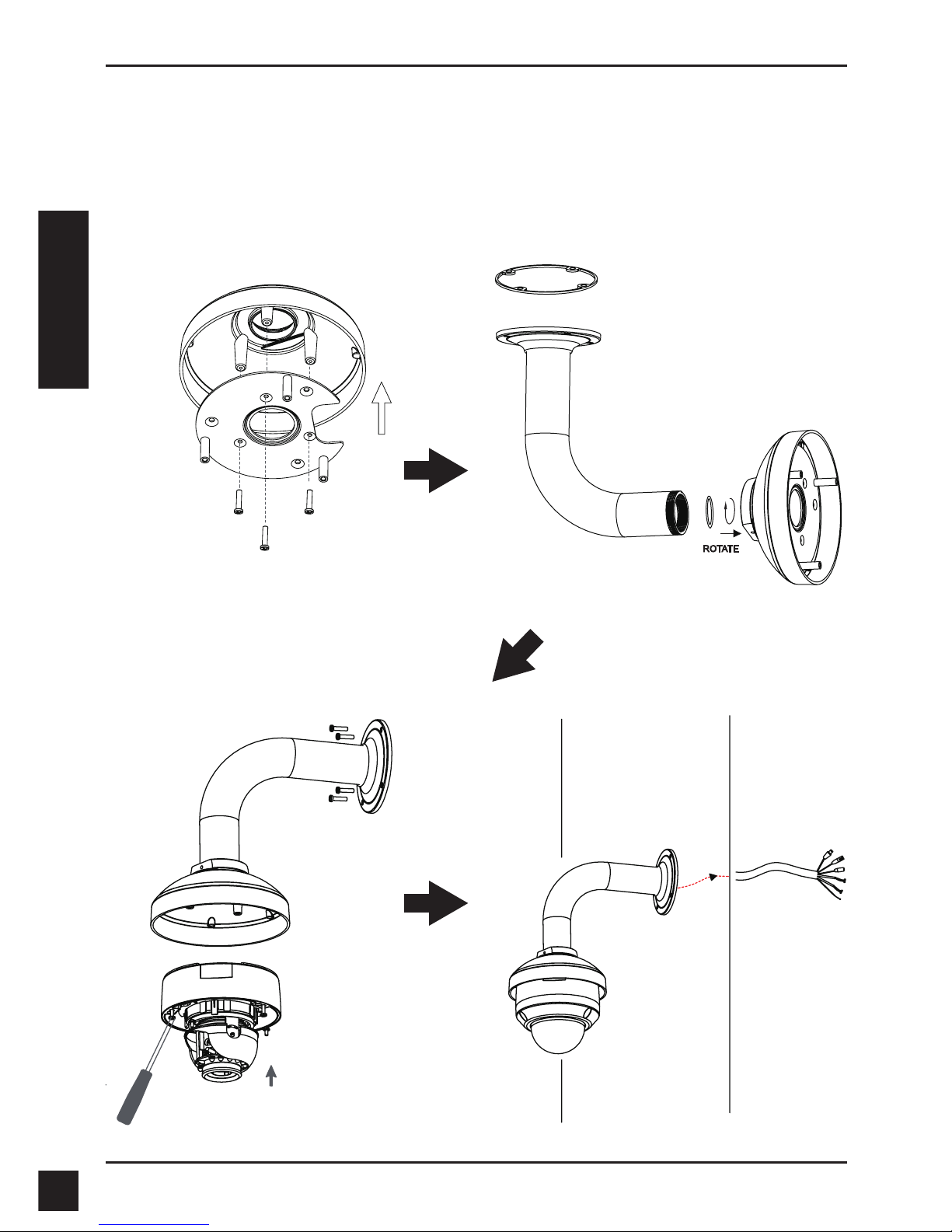

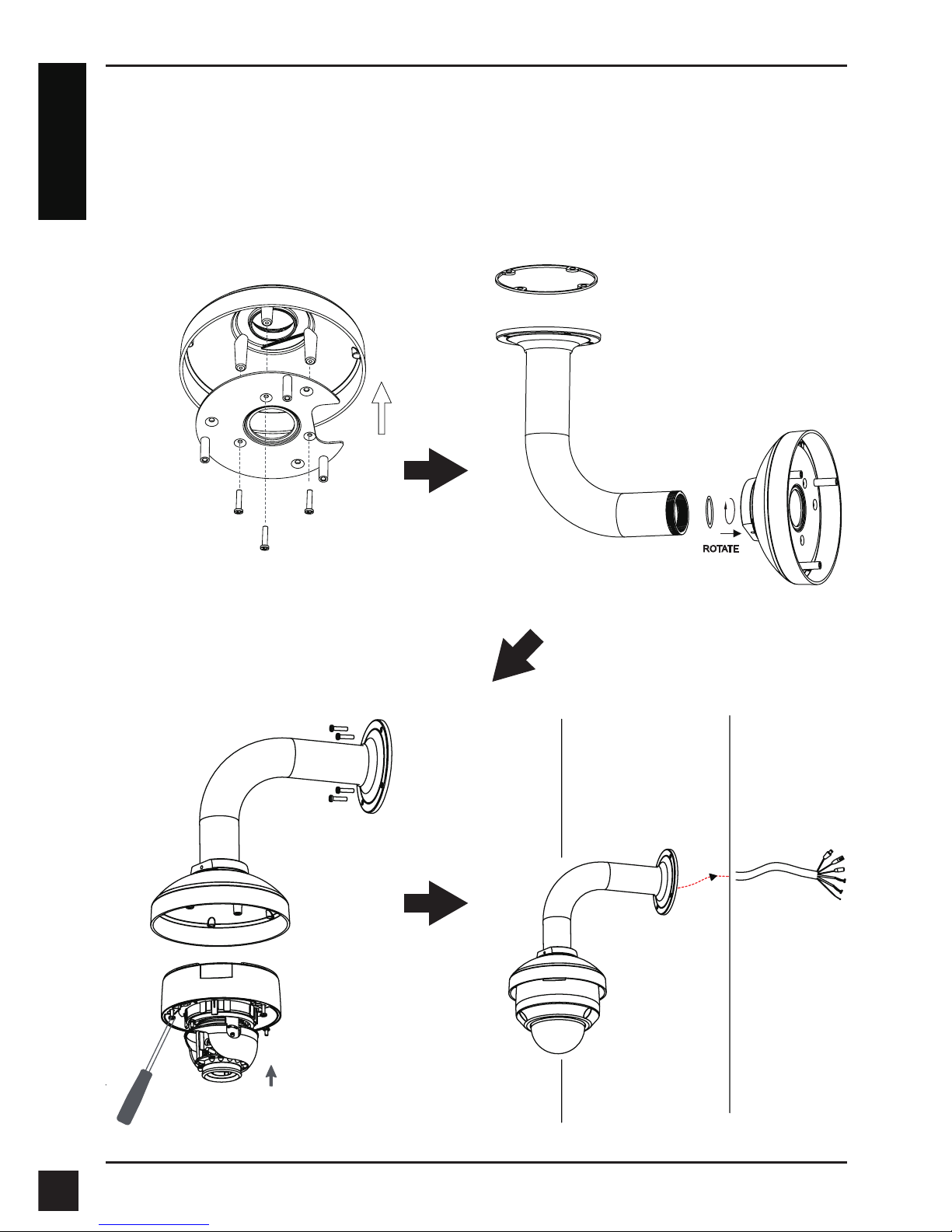

Bent Mount (DCS-34-3)
Height: 253 mm (9.96 inches)
Diameter: 150 mm (5.9 inches)
Weight: 770 g (1.7 lbs)
Bracket Cap
Bent
Bracket
Figure 4.2
Figure 4.4Figure 4.3
Figure 4.1
Bracket
Cap
Mounting
Plate
Dome
Camera
Bent
Bracket

D-Link DCS-6314 Quick Install Guide 7
ENGLISH

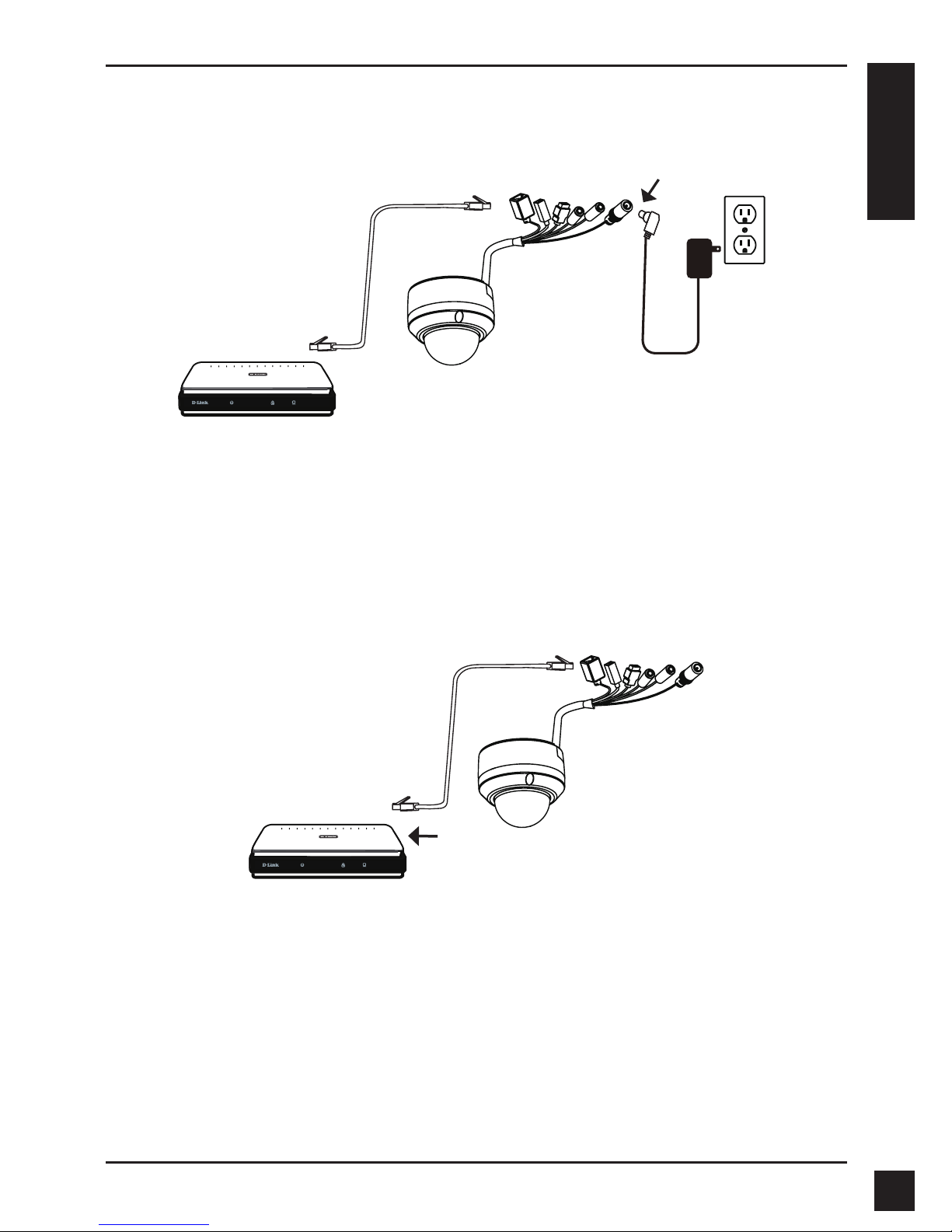

Connection with a PoE Hub
If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,
which will provide transmission of both power and data over a single cable.
General Connection Using 12 V DC Power Adapter
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6314 Quick Install Guide
8
ENGLISH

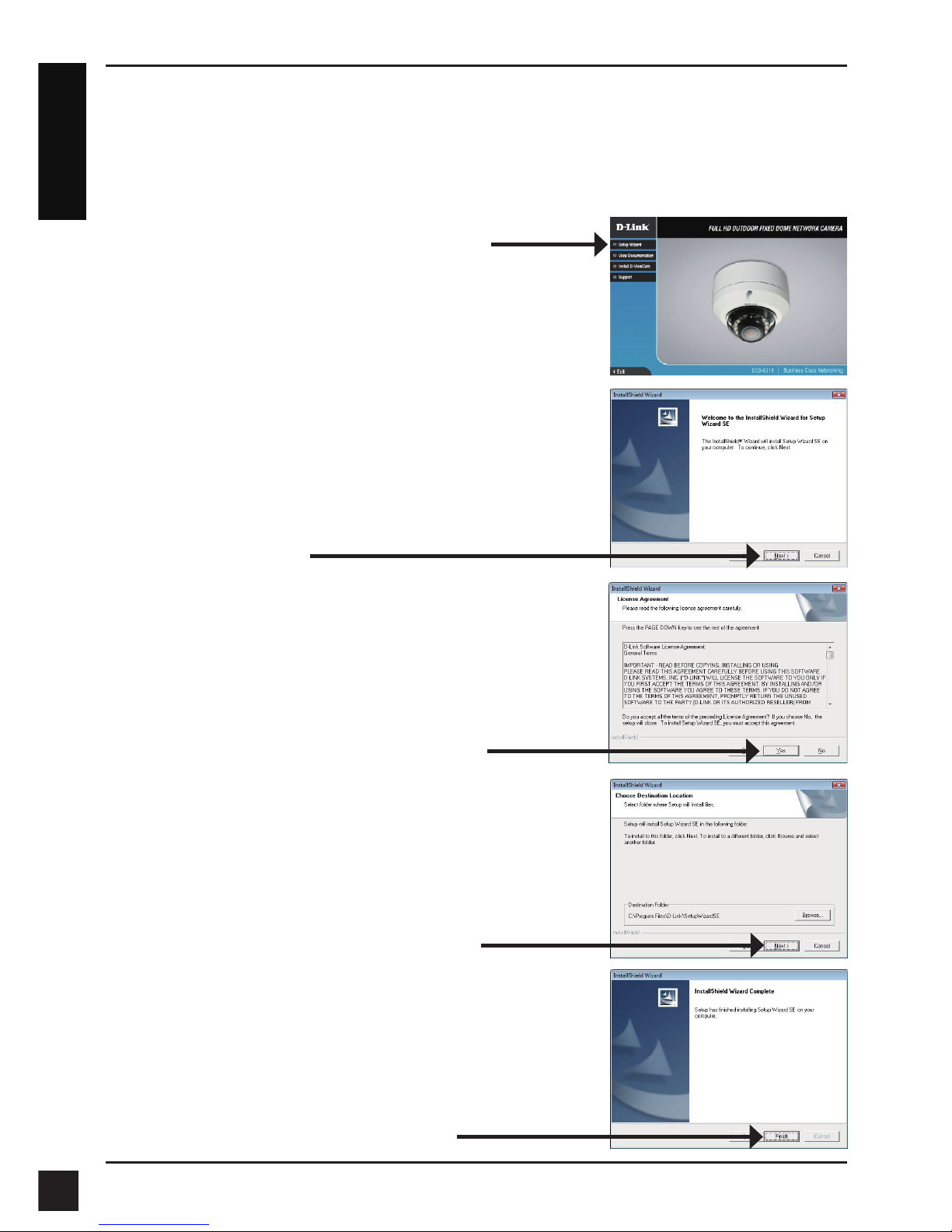

5. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-6314 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-6314 Quick Install Guide 9
ENGLISH

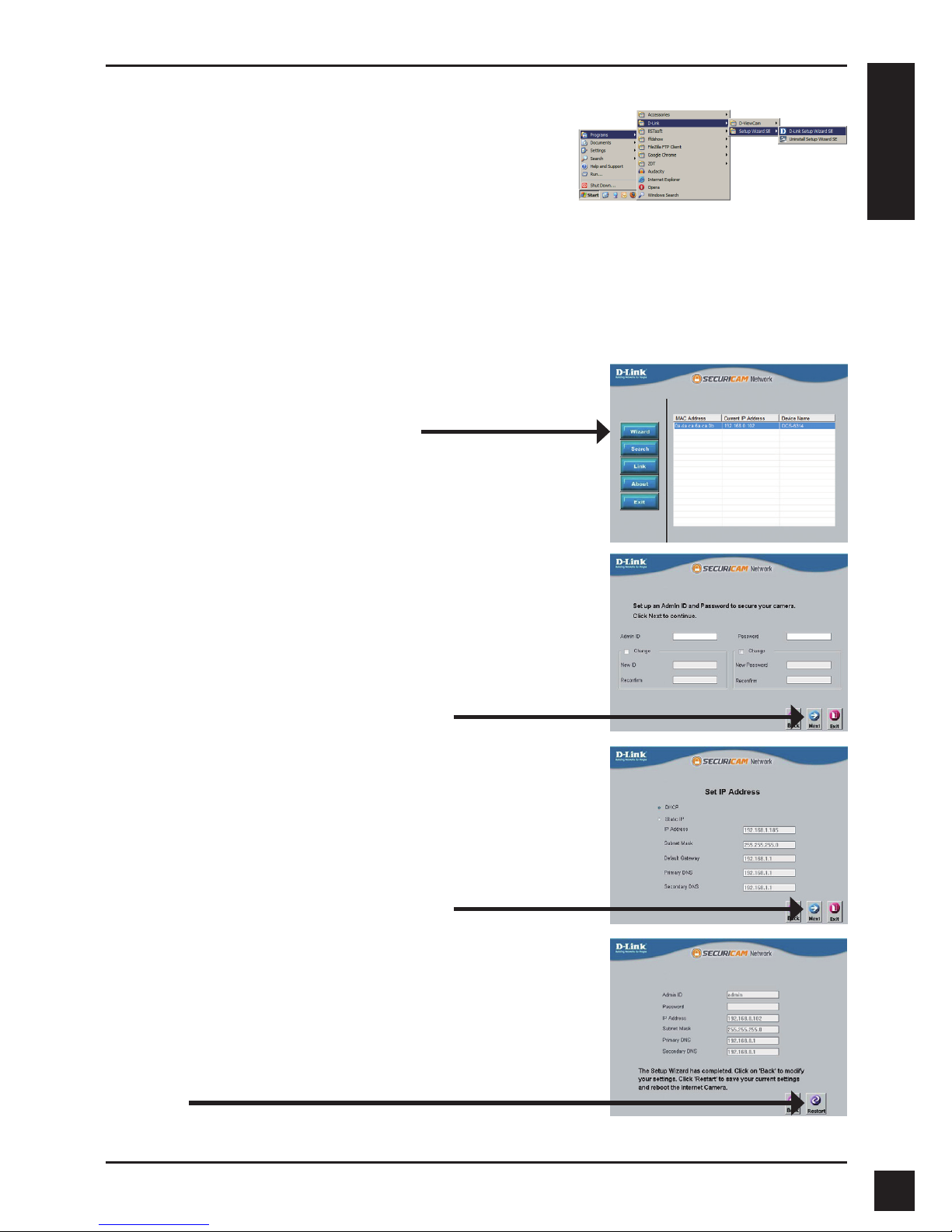

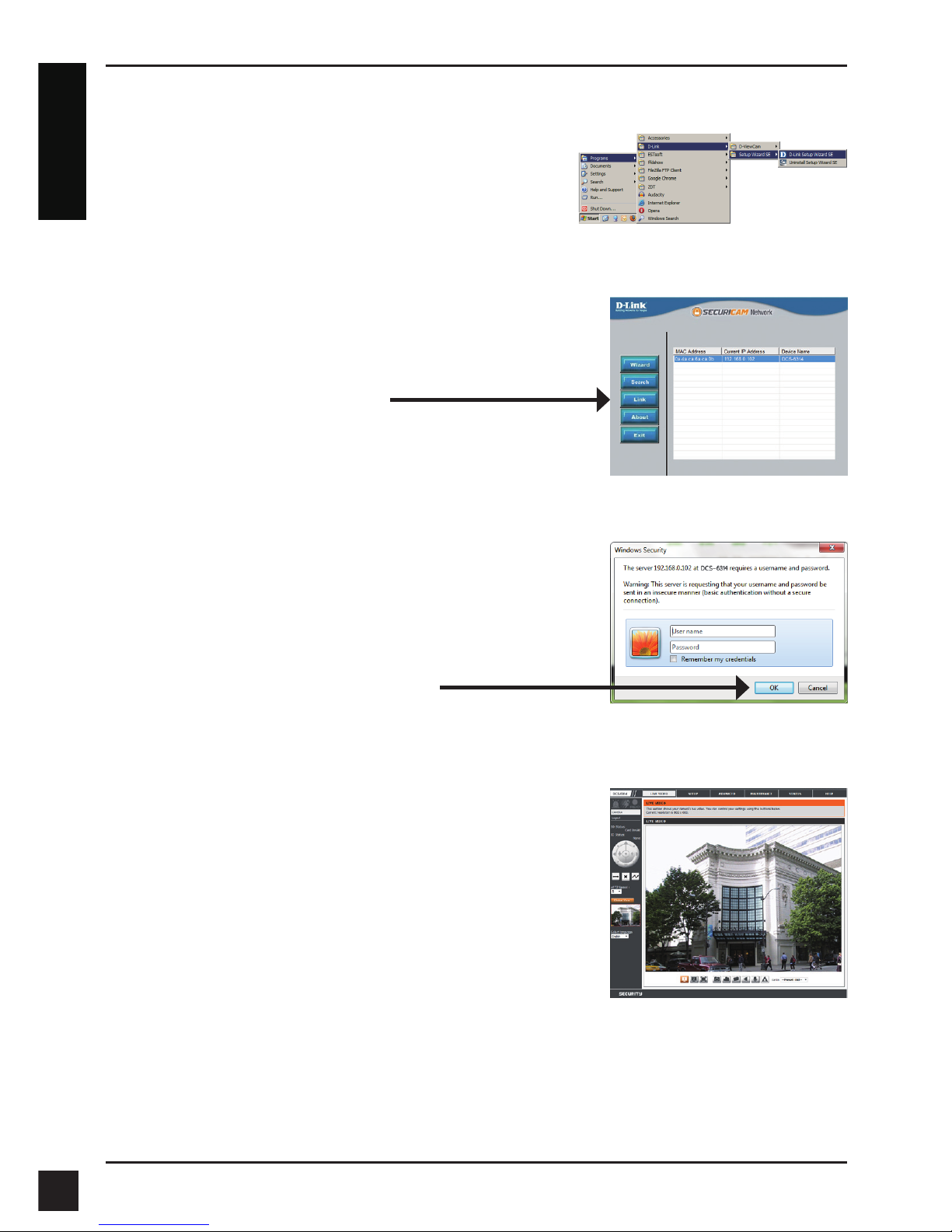

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click
Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-6314 Quick Install Guide
10
ENGLISH
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
conguration, please refer to the user manual included
on the CD-ROM or the D-Link website.
Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
Enter admin as the default username and leave the
password blank. Click OK to continue.

D-Link DCS-6314 Quick Install Guide 11
ENGLISH

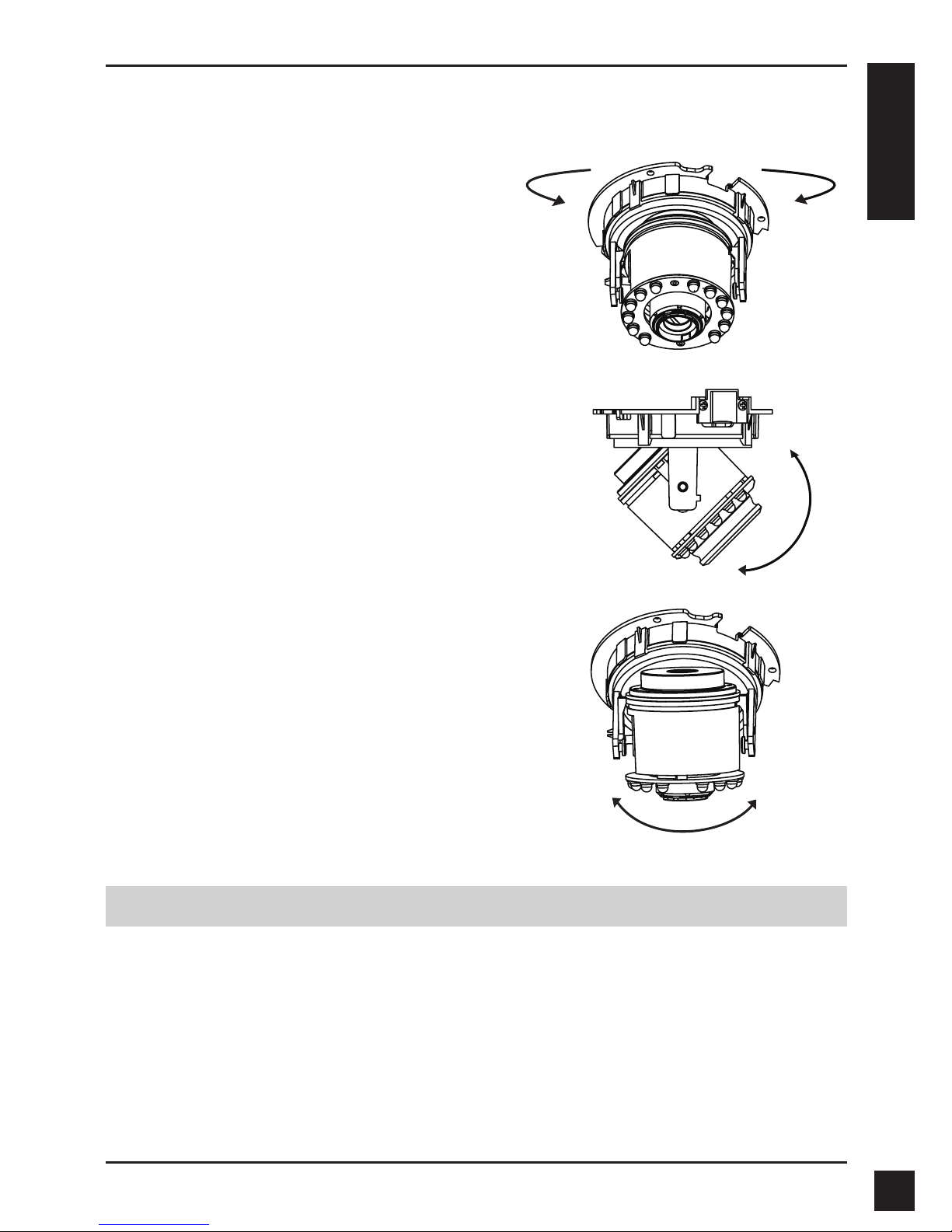

Adjus the Viewing Angle of the 3-axis
Mechanism
Turn the lens module left and right until the
desired position is achieved.
Loosen the tilt screws on both sides of the
camera, and turn the lens module up and down
until the desired position is achieved; tighten
the tilt screws once completed.
Turn the lens to adjust the IP camera’s image
until the desired orientation is achieved.
6. Adjusting the lens 3-axis angel
TECHNICAL SUPPORT
United Kingdom (Mon-Fri) , Website: http://www.dlink.com
Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)
Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)
(BT 10ppm, other carriers may vary.)
Ireland (Mon-Fri), Website: http://www.dlink.com
All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)
Phone rates: €0.05ppm peak, €0.045ppm off peak times

12
Notes
D-Link DCS-6314 Quick Install Guide
12

13
D-Link DCS-6314 Quick Install Guide
DEUTSCH
DCS-6314 Installationsanleitung
Diese Installationsanleitung bietet Ihnen grundlegende Anleitungen zur Installation
der DCS-6314 Netzwerkkamera in Ihrem Netzwerk. Zusätzliche Informationen zur
Verwendung der Kamera nden Sie im Benutzerhandbuch, das Ihnen auf der CD, die
diesem Paket beiliegt, oder über die D-Link Support-Website zur Verfügung steht.
Installationsschritte
1. Prüfen Sie den Packungsinhalt, ob er mit den auf der Liste unten aufgeführten
Artikeln übereinstimmt.
2. Hardware-Überblick
3. Installation der Micro SD-Karte
4. Hardware-Installation
5. Konguration mithilfe des Assistenten
6. 3-Achsenwinkel des Objektivs einstellen
1. Packungsinhalt
DCS-6314 Netzwerkkamera
CD-ROM mit Software und Handbuch
Installationsanleitung
Netzteil (Stromadapter)
Sicherheitsschraubendreher
CAT-5 Ethernet-Kabel
Schrauben und Wandsteckdose
Witterungsschutz
4-Pin Klemmleiste
Sollte einer der oben aufgeführten Artikel fehlen, wenden Sie sich bitte an Ihren
Fachhändler.
Sicherheitshinweis:
Installation und Wartungsarbeiten sollten nur von zertizierten Technikern
vorgenommen werden, zu jeder Zeit allen örtlich geltenden Richtlinien und
Anforderungen entsprechen sowie verhindern, dass Ihr Garantieanspruch erlischt.

14 D-Link DCS-6314 Quick Install Guide
DEUTSCH
2. Hardware-Überblick
Installation der Micro SD-Karte
Stecken Sie die Micro SD-Karte in die
Kamera. Achten Sie darauf, dass die
goldfarbenen Kontakte auf den Kamerafuß
zeigen. Um die Micro SD-Karte zu entnehmen,
drücken Sie sie leicht in den Steckplatz und
nehmen Sie sie dann heraus.
3. Installation der MicroSD-Karte
Vorbereitung derDemontage der Kamera
Öffnen Sie das Kameragehäuse, indem Sie die
3 Schrauben lösen. Nehmen Sie den Dom vom
Sockel der Kamera.
Stromanschluss
Für den Anschluss an 12 V
Gleichstrom
Ethernet-Anschlussbuchse
RJ-45-Anschluss für Ethernet, der
auch für die Stromzufuhr (PoE)
der Kamera verwendet werden
kann
Rücksetzen
Um die Kameraeinstellungen
zurückzusetzen, halten
Sie die Rücksetztaste 10
Sekunden lang gedrückt.
Audio-Eingang
Für den Anschluss eines Mikrofons
DE/DA-Verkabelung, 12V
Gleichstromausgang
E/A-Anschlüsse für externe Geräte
Audio-Ausgang
Anschluss für Lautsprecher

15
D-Link DCS-6314 Quick Install Guide
DEUTSCH
4. Standardmontageanleitungen
Montage und Installation
Genaue Anleitungen zur Installation und Montage der Kamera mithilfe eines
Befestigungsbügels nden Sie im Benutzerhandbuch.
Methode 1 – Verdeckte Kabelinstallation
Höhe: 25.6 mm
Durchmesser: 122 mm
Gewicht: 135g
Abbildung 2.2Abbildung 2.1
Wetterschutz
Wetterschutz
Schraube

16 D-Link DCS-6314 Quick Install Guide
DEUTSCH
Methode 2 – Exponierte Kabelinstallation
Höhe: 25.6 mm
Durchmesser: 122 mm
Gewicht: 135 g
Abbildung 2.3 Abbildung 2.4
Abbildung 2.5

17
D-Link DCS-6314 Quick Install Guide
DEUTSCH
Montage für hängende Kamera (DCS-34-2)
Höhe: 201 mm
Durchmesser: 150 mm
Gewicht: 665 g
Abbildung 3.4
Deckenhalterung
Bügelkappe
Gummidichtungsring
Abbildung 3.2
Abbildung 3.3
Abbildung 3.1
Bügelkappe
Montageplatte

18 D-Link DCS-6314 Quick Install Guide
DEUTSCH
Montage für gebogene Kamerabügelhalterung (DCS-34-3)
Höhe: 253 mm
Durchmesser: 150 mm
Gewicht: 770 g
Bügelkappe
Gebogene
Bügelhalterung
Abbildung 4.2
Abbildung 4.3
Bügelkappe
Montageplatte
Dome-Kamera
Gebogene
Bügelhalterung
