D-Link mydlink DCH-B122 User manual

Quick Installation Guide
快速入門指南
Smart Motion Sensor
DCH-B122

DCH- B122
2
ENGLISH
Quick Installation Guide

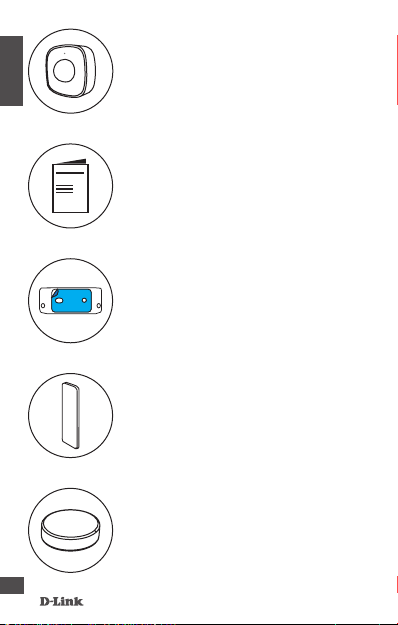

Smart Motion Sensor
Spare Double-sided Tape Piece
CR2450 Battery
Mounting Bracket with
Double-sided Tape

3
DCH- B122
ENGLISH

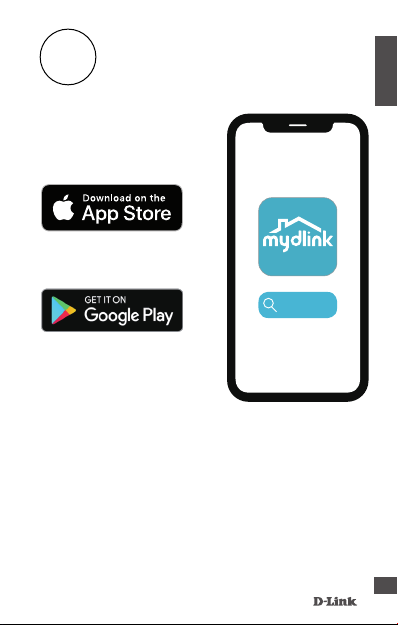

Search for mydlink and download the app.
Note: This product is incompatible with other mydlink
apps such as‘mydlink Home,’ ‘mydlink Lite,’etc.
Download the App
1
mydlink

DCH- B122
4
ENGLISH

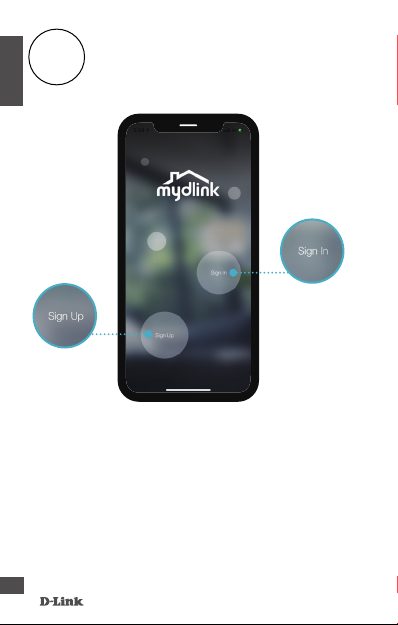

Sign In or Sign Up for a mydlink account.
mydlink Lite users may sign in with the same
account.
Log In
2

5
DCH- B122
ENGLISH

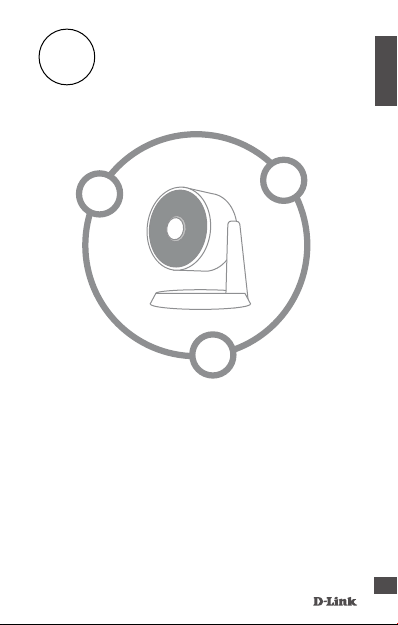

Follow the instructions provided for your
hub and ensure it is set up and functioning
properly.
For more information on mydlink Smart DIY visit:
dlink.com/SmartDIY
Set Up Your Hub
3

DCH- B122
6
ENGLISH

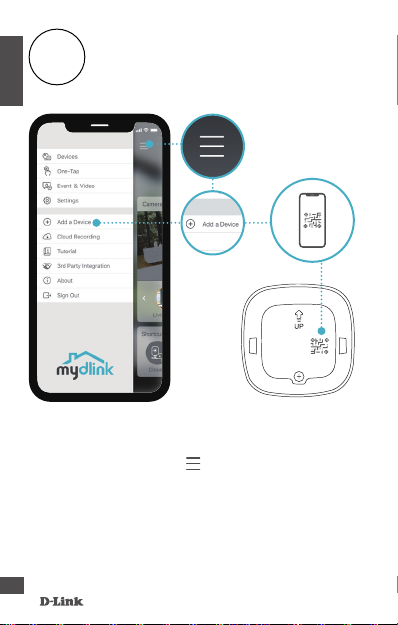

Tap the menu button then tap Add a
Device.Scan the Setup Code on the back of
the device, then follow the app instructions.
Add the Device
4

7
DCH- B122
ENGLISH
1/

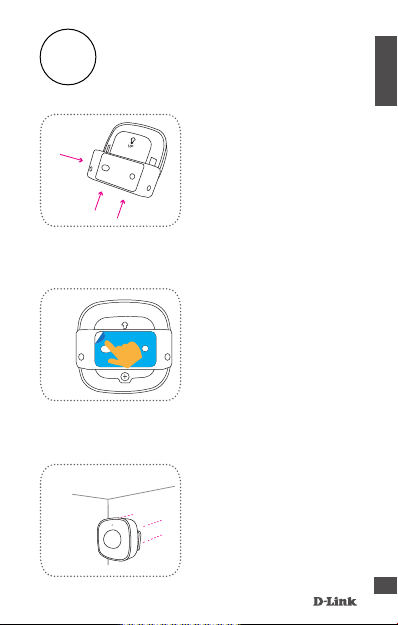

Mounting
2/
3/
5
Align the back of the sensor
with the tabs on the sides of
the mounting bracket. Slide
the mounting bracket up to
lock it into place.
Peel the sticker off the back
of the double-sided tape on
the back of the mounting
bracket.
Press the sensor firmly on
the surface you wish to
mount it on, ensuring it
stays attached. Position the
sensor so that the grey dot
marker is at the top.

DCH- B122
8
ENGLISH

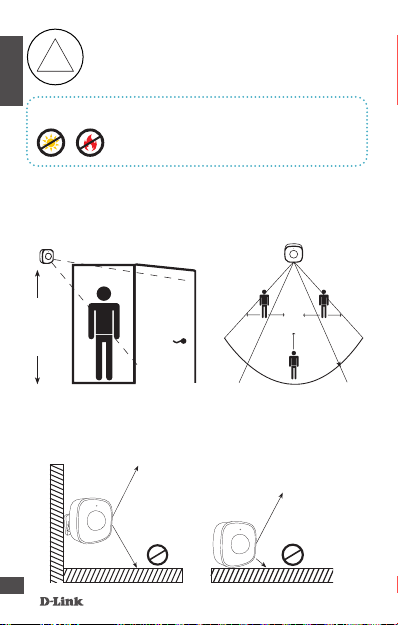

Improper Placement:
Do not place the sensor directly on top of a surface or in a spot where
there is something directly below it, obstructing its view.
Caution:
Make sure that the sensor is not directly facing the
sun or a source of heat.
Proper Placement:
Place the sensor at least 8 feet or higher from the ground. The maximum
distance of the motion detection is 16 feet.
8 ft
16 ft
max
!Precautions

9
DCH- B122
ENGLISH

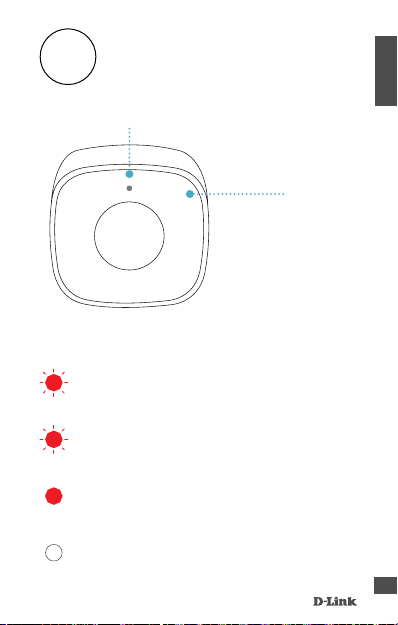

LED Behavior
0.2s
Waiting to pair
Successfully reset
Pairing complete
Power saving mode
Device Information
i
1s
Status LED
Alignment Dot

DCH- B122
10
ENGLISH

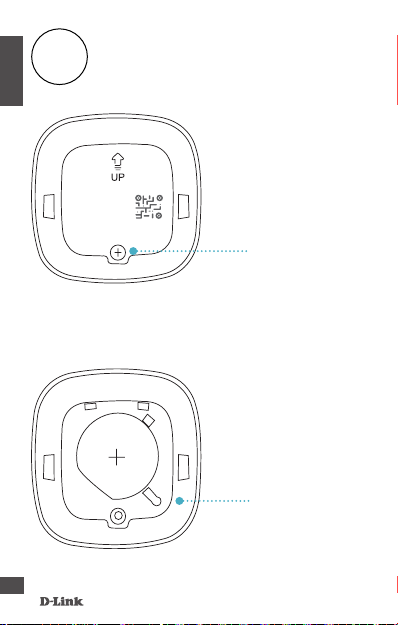

Reset Button
Battery Cover
Screw
iDevice Information
Battery Cover Removed

11
DCH- B122
ENGLISH
?FAQ
What do I do if my device is not working properly?
Reset the device and reinstall it. To reset your device, press
and hold the Reset button until the LED blinks red.
During installation, ensure that:
• you have an Internet connection on your router
• your router’s Wi-Fi is on
• your mobile device is connected to your home network
• your mydlink Smart DIY hub* is connected to the Internet
Why does my sensor not trigger anything?
Avoid placing your sensor where it directly faces a source of
heat or light as this can obscure the sensor's ability to pick up
motion. Glass, plastic, or similar materials standing between
the target and the sensor may not allow it to be triggered.
The maximum detection distance is approximately 5 meters.
How do I replace the battery?
Remove the mounting bracket. Use a screwdriver to unscrew
the battery cover. Pull the small notch to release the battery.
* Requires a mydlink Smart DIY hub device.

DCH- B122
12
ENGLISH
Support
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [e-mail]
India:
Tel: [phone] or 1860-233-3999
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [e-mail]
South Africa and Sub Sahara Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm
South Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected].com
D-Link Middle East
Dubai, U.A.E.
Tel: [phone]
Fax: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: suppor[email protected].
com
Egypt:
Technical Support Call Center: +20 2258
66777
General Inquiries: [email protected]
Tech Support : suppor[email protected].
com
Kingdom of Saudi Arabia:
Technical Support:
[phone]
General Inquiries: [email protected]
Tech Support: suppor[email protected]
Pakistan:
Technical Support: [phone],
34305069
General Inquiries: [email protected]
Tech Support: suppor[email protected]
Morocco:
Phone office: [phone]
Email: [email protected]
Bahrain:
Technical Support: [phone]
Tech Support: suppor[email protected].
com
Kuwait:
Tech Support: [email protected]

13
DCH- B122
中
文

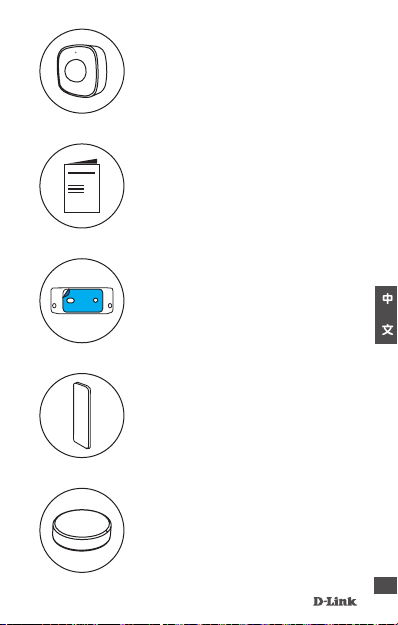

快速安裝手冊
移動偵測感應器
備用雙面膠
CR2450 電池
使用雙面膠安裝壁掛

DCH- B122
14
中
文

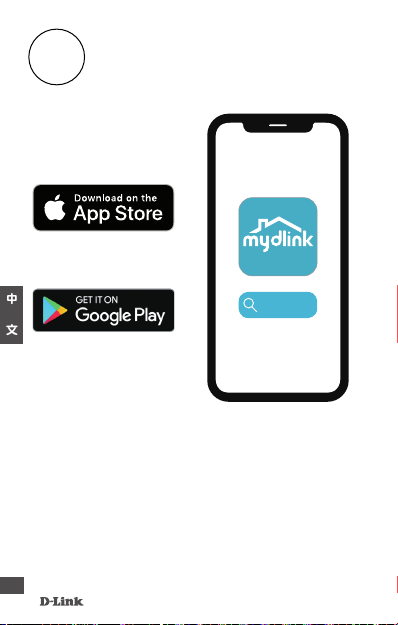

搜尋 mydlink 並且下載
注意: 本產品僅適用於 mydlink，不適用
於‘mydlink Home’，‘mydlink Lite’等
下載 App
1
mydlink

15
DCH- B122
中
文

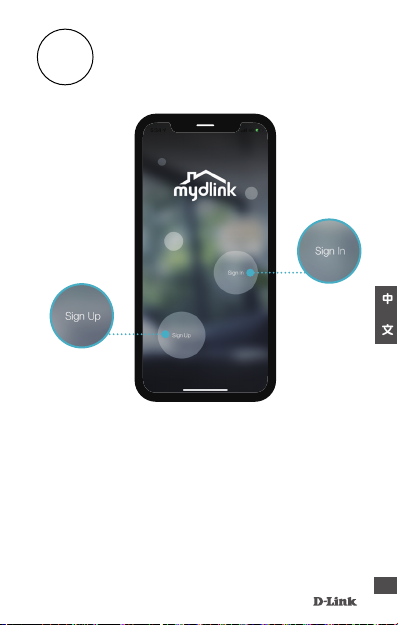

登入或是註冊 mydlink 帳號，mydlink 用
戶可使用現有帳號密碼登入
登入
2

DCH- B122
16
中
文
依據閘道器提供的說明進行操作，確保
設備可正常使用。
更多資訊請上官網查詢：
dlink.com/SmartDIY
設定您的閘道器
3

17
DCH- B122
中
文

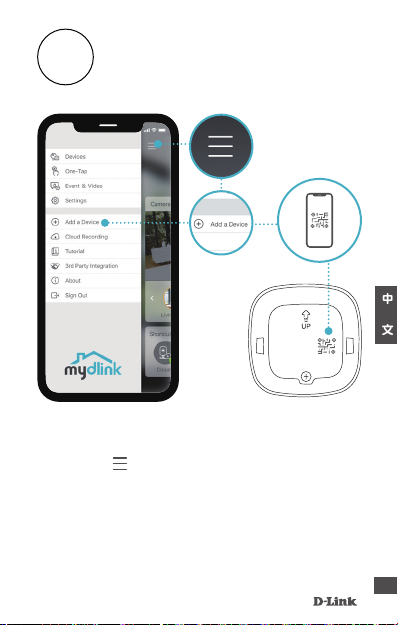

點選主頁 ，點選新增裝置，掃描在設備上
的 Setup Code 再依據 App 引導開始安裝
新增裝置
4

DCH- B122
18
中
文
5

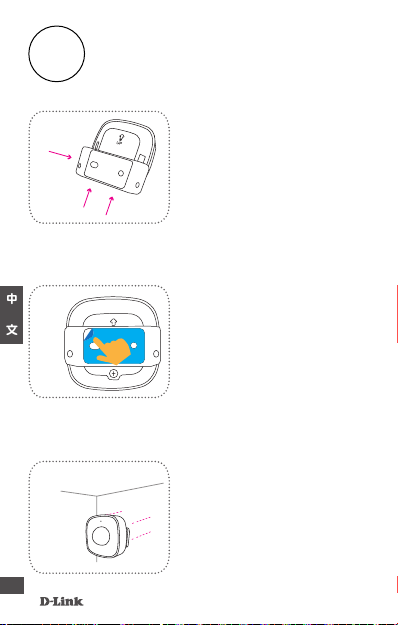

1/
將頂部螺絲釘與壁掛底
座上的最大孔對齊，再
向下滑動底座以利將其
鎖定到位。
壁掛
將雙面膠背面貼紙撕下。
2/
將感應器牢固地安裝在
欲使用的位置上，並確
保連接狀態。
3/

19
DCH- B122
中
文

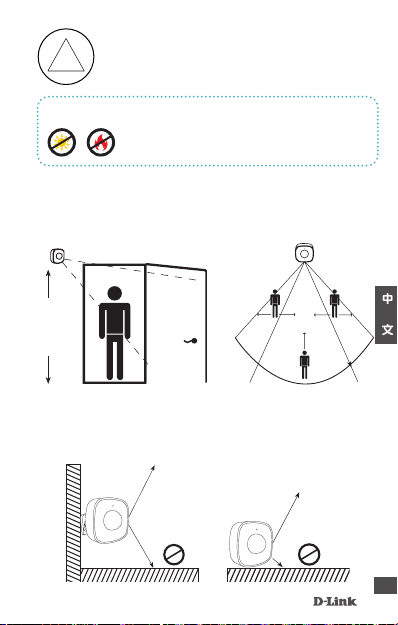

不當的安裝位置：
請勿將感應器直接放置在某個物體的頂面，或正下方有物體可能會
妨礙偵測的位置。
注意：
請確認您的感應器不會經由太陽直射或是靠近
熱源。
適當裝設：
請將感應器擺放在距離地面至少2.4公尺(8英呎)。移動偵測最大偵
測距離為487公分(16英呎)。
8 ft
!注意事項
最大
16 ft

DCH- B122
20
中
文
i

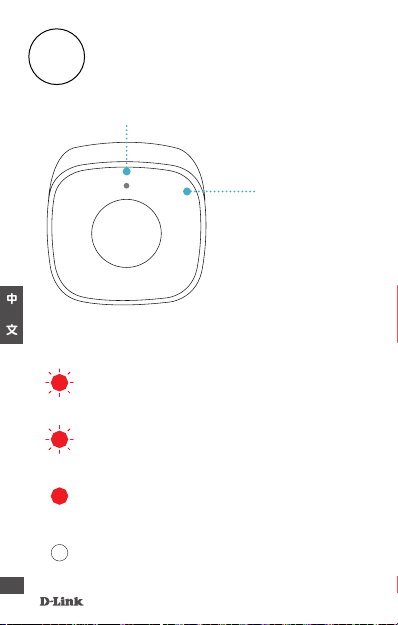

LED 顯示狀態
0.2s
等待配對中
成功重置
配對完成
省電模式
設備概觀
1s
對齊點(此點置上)
LED指示燈
