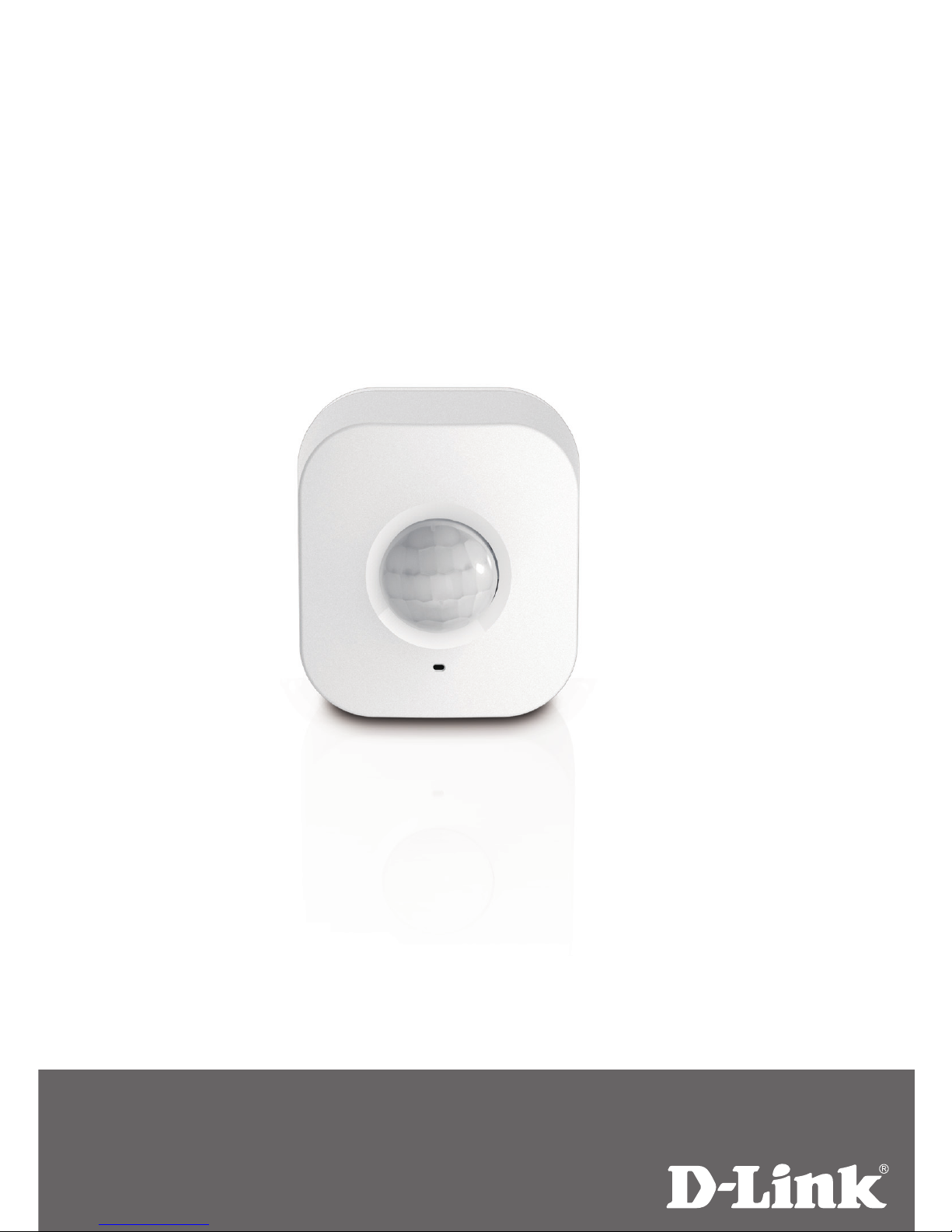

D-Link MyDlink DCH-S150 User manual

DCH-S150
Quick Install Guide
mydlink™
Wi-Fi Motion Sensor

Package Contents
© 2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or
registered trademarks of D-Link Corporation or its subsidiaries. All other third-party marks
mentioned herein may be trademarks of their respective owners. This publication may
not be reproduced, in whole or in part, without prior express written permission from
D-Link Systems, Inc.
Minimum Requirements
General Requirements:
• Wireless router (802.11ac/802.11n) with Internet Service
• An available power outlet
Mobile Requirements:
• Mobile device or tablet with iOS 6.0 or above, Android 4.0 or above
mydlink Requirements:
• For mydlink and mydlink app requirements refer to:
http://www.mydlink.com
If any of the above items are missing, please contact your reseller.
DCH-S150 mydlink Wi-Fi Motion Sensor
Quick Install Guide
Quick Install Card
2

Before you Begin
Plan the location of your Motion Sensor:
1. Connect your Motion Sensor into an electrical outlet that is not controlled
by a wall switch. This will help you to avoid accidentally turning o power
to the device.
2. Verify that your Motion Sensor is facing an open area, free of obstructions.
3. Verify that your Motion Sensor is electrically rated to operate with the power
available in your location.
Safety
1. Do not open the device or attempt to repair or service it.
2. Use the device in a dry location, and avoid placing it in a humid environment.
3. Do not submerge the device in liquid or attempt to clean it with liquids or
solvents. To clean the device, disconnect it from the power outlet and use a
damp towel.
4. This device should only be used indoors.
3

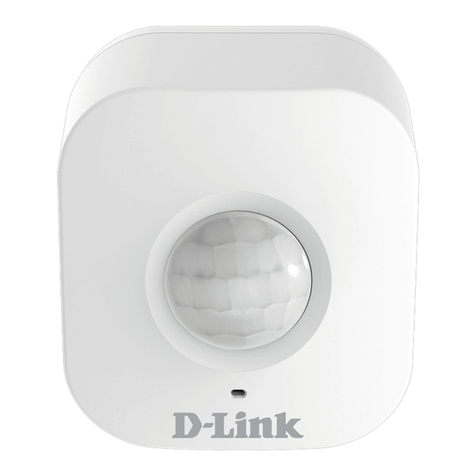

Hardware Overview
Power/Status LED
Reset Button
Front View
WPS Button
WPS Blinking Green
Press for one second to start the WPS
connection process. The Power/Status
LED will start to blink green.
Reset Solid Red
Press and hold until the Status LED turns
red in order to reset the device back to
the factory default settings (for about
10 seconds).
Power/Status LED
Solid Green The DCH-S150 is successfully connected
to your network.
Blinking Green The WPS process is in progress.
Blinking Orange The Motion Sensor is not properly
connected with your wireless network.
Solid Red
The Motion Sensor is powering on,
attempting to upgrade rmware, or the
device is defective.
O If the DCH-S150 will not power on, try
plugging the device into another outlet.
Motion Sensor PIR (Passive Infrared) sensor for detecting motion.
Motion Sensor
4

Installation
Download the free mydlink Home app from the App Store (iOS) or Google
Play (Android).
1
3
First install the mydlink Home app on your mobile device. Then simply tap
on the icon to launch the app.
2
Log into your mydlink account. If you don’t have one, sign up for a free
mydlink account by clicking the Sign Up! link.
4Once the conguration process is complete, use the mydlink Home app
to monitor your home’s electronic devices from anywhere.
Tap Add a new device. Then follow the on-screen instructions. The wizard
will guide you through the conguration process for your Smart Plug device.
5

FAQs
1. How do I reset the DCH-S150?
When you reset your DCH-S150, it will change your
settings back to the factory default settings. To reset
the device, locate the Reset button on the side of the
device. With the device plugged in, press and hold the
Reset button until the status LED turns red (for about
10 seconds).
Reset
2.Why isn’t the Power/Status LED turning on when I plug in my DCH-S150?
If the Power LED is not turning on:
a. Make sure the outlet you are using is working properly.Try plugging
in another device to see if it works.
b. Make sure that if the outlet is controlled by a light switch, it is in
the ON position.
c. Try a dierent outlet to see if the Motion Sensor works there.
3. Why can’t I connect to my wireless router?
If you are having trouble connecting to your wireless router, try plugging
the DCH-S150 into a location that is closer to your router. After the Power/
Status LED turns solid green, you can unplug the Motion Sensor and move
it to the desired location.
4. What app does the DCH-S150 work with?
The DCH-S150 works with the mydlink Home app.
5. Where can I nd the mydlink Home app?
You may download the free mydlink Home app from the App store (iOS) or
Google Play Store (Android). Search for the mydlink Home app by typing in
“mydlink” or “mydlink home”.
6. How does the Motion Sensor work while I am away from home?
Remote access of the DCH-S150 is enabled once you have registered and
linked your Motion Sensor through mydlink. You will be able to control
your Motion Sensor from anywhere using your iOS or Android device.*
*Your DCH-S150 must be connected to your home Wi-Fi network for remote access.
6

GPL Code Statement
This D-Link product includes software code developed by third parties, including
software code subject to the GNU General Public License (“GPL”) or GNU Lesser
General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL,
and information on obtaining access to the GPL code and LGPL code used in this
product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY
WARRANTY and is subject to the copyrights of one or more authors. For details,
see the GPL code and the LGPL code for this product and the terms of the GPL and
LGPL.
Written Oer for GPL and LGPL Source Code
Where such specic license terms entitle you to the source code of such software,
D-Link will provide upon written request via email and/or traditional paper mail the
applicable GPL and LGPLsource code les via CD-ROM for a nominal cost to cover
shipping and media charges as allowed under the GPL and LGPL.
Please direct all inquiries to:
Email:
GPLC[email protected]
Snail Mail:
Attn: GPLSOURCE REQUEST
D-Link Systems, Inc.
17595 Mt. Herrmann Street
Fountain Valley, CA 92708
GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright (C) 2007 Free Software Foundation, Inc. <http://fsf.org/>
View the full GPL Code Statement at http://www.gnu.org/licenses/gpl.html
7

Technical Support
This guide is only for the rst time conguration. Refer to the user manual to learn
more, or you can visit http://support.dlink.com. Also feel free to contact us through
our website.
http://support.dlink.com
USA
Version 1.1
June 20, 2014
