D-Link DCH-G601W User manual

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 1
DCH-G601W/DCH-G601WA1
User’s Manual
Version 1.0
March 23th, 2018

DCH-G601W D-Link Corporation
Page 2
Table of Contents
1. PRODUCT DESCRIPTION..................................................................................3
2. APPEARANCE .....................................................................................................3
3. APPLICATIONS...................................................................................................4
4. INSTALLATIONS ................................................................................................5
5. SYSTEM REQUIREMENT…...………………………………………………..13

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 3
1. PRODUCT DESCRIPTION
The DCH-G601W/DCH-G601WA1 Wi-Fi Bluetooth Hub is a high-performance
and secure Connected Home Bluetooth gateway used the latest Bluetooth
technology combined withAfero security chip, the Bluetooth Hub allows your
devices to communicate with one another. The Hub built in with most secured
Afero encryption chipset. You can pair with Afero’s Bluetooth equipped smart
home devices to the hub to manage, operate, and enjoy the convenience of smart
home. The hub has backup battery which keep you smart home devices online
all the time.
2. APPEARANCE
DCH-G601W Hub

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 4
Front
LED: Status indicator
Rear
Micro USB: Power jack, Vdc 5V/2A, Cable length: 1.5 meters
Micro SD card: microSD slot, support SD/SDHC/SDXC, up to 128G
Reset button: [1]Reset[2] Reset to factory default (>=press 10 seconds)
WPS button: TBD
Tripod: for external stand. (TBD)
3. APPLICATIONS

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 5
4. INSTALLATIONS

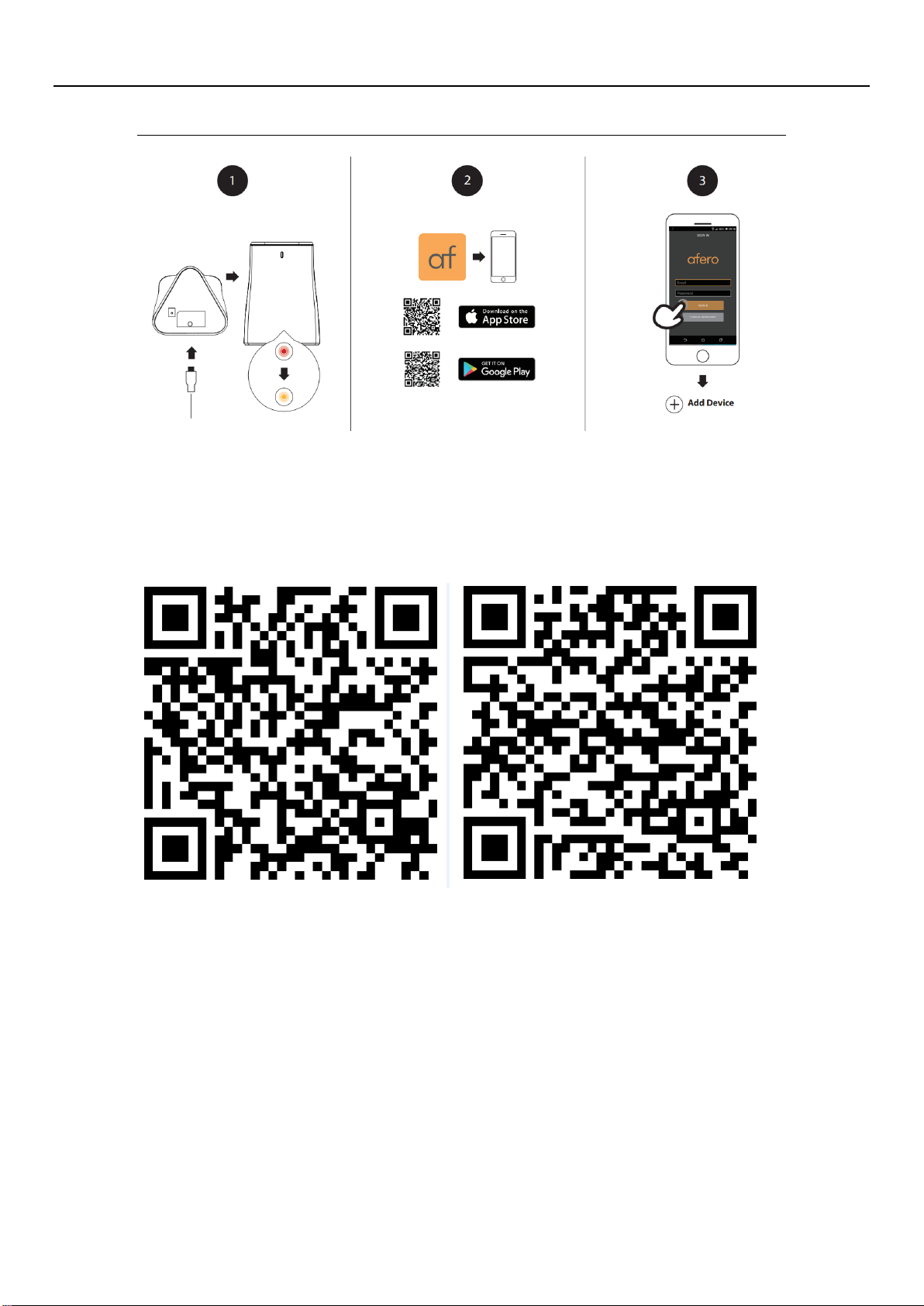

Step 1 Plug the included Power Adapter into the back of the hub.
Red LED: user ca binding, go to step 2.
Step 2. Download afero App to your smart phone and register an account to login.
or scan the QR code for your iOS or Android phone.
iOS Android
Step 3 New users: Tap New users, sign up here to install your Hub.
Existing users: Sign in to your afero account and tap Add a Device on the next
screen.
Step 4 Adding the Hub to your account
Note: The QR code on the bottom of the device is unique to the device itself.
Please be sure to scan each device individually during set up.

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 6

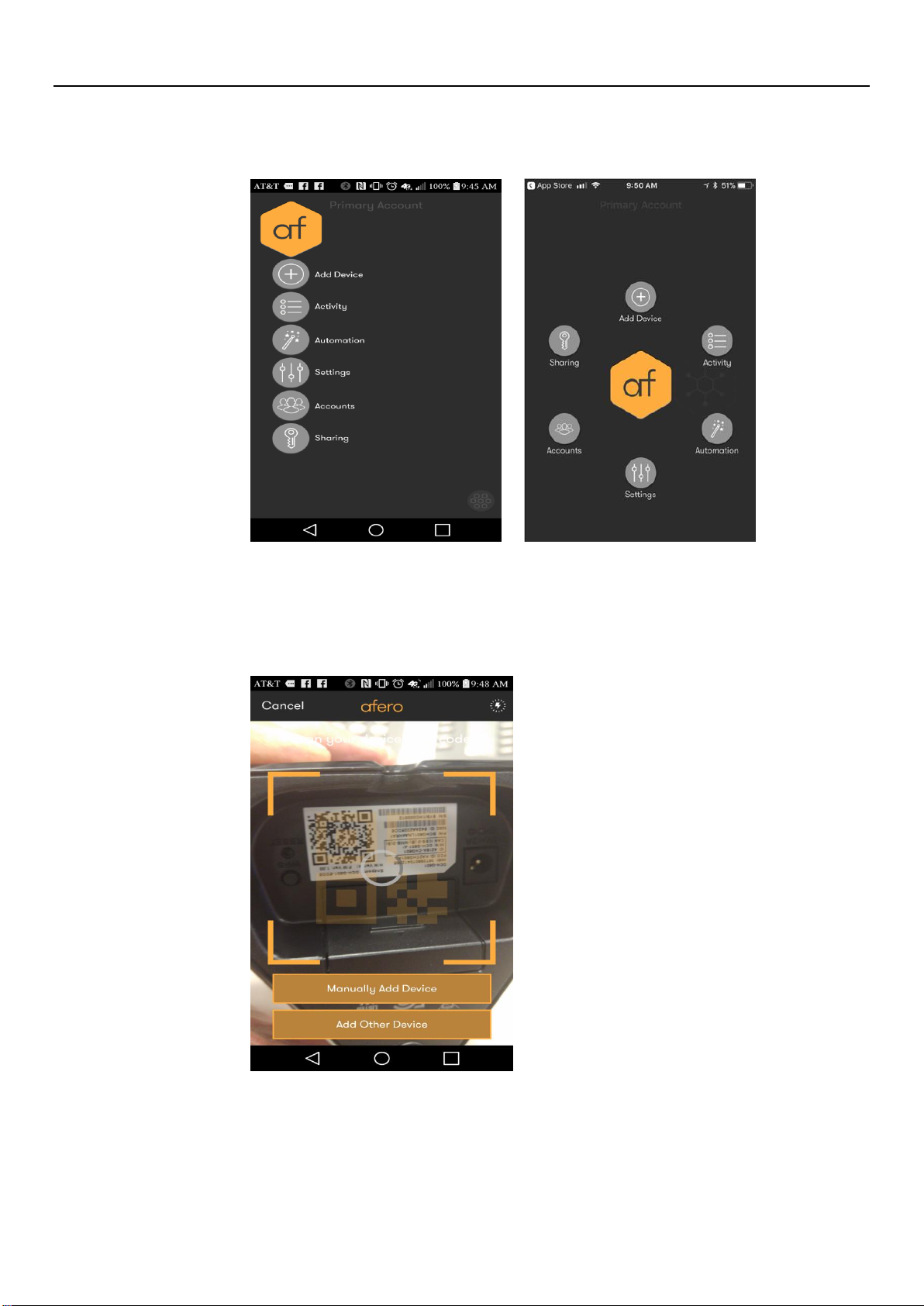

I. Click on the (af) icon and then click onAdd Device.
(Android) (iOS)
II. Apply power to the Hub and Scan QR code located on the bottom of
the device.

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 7

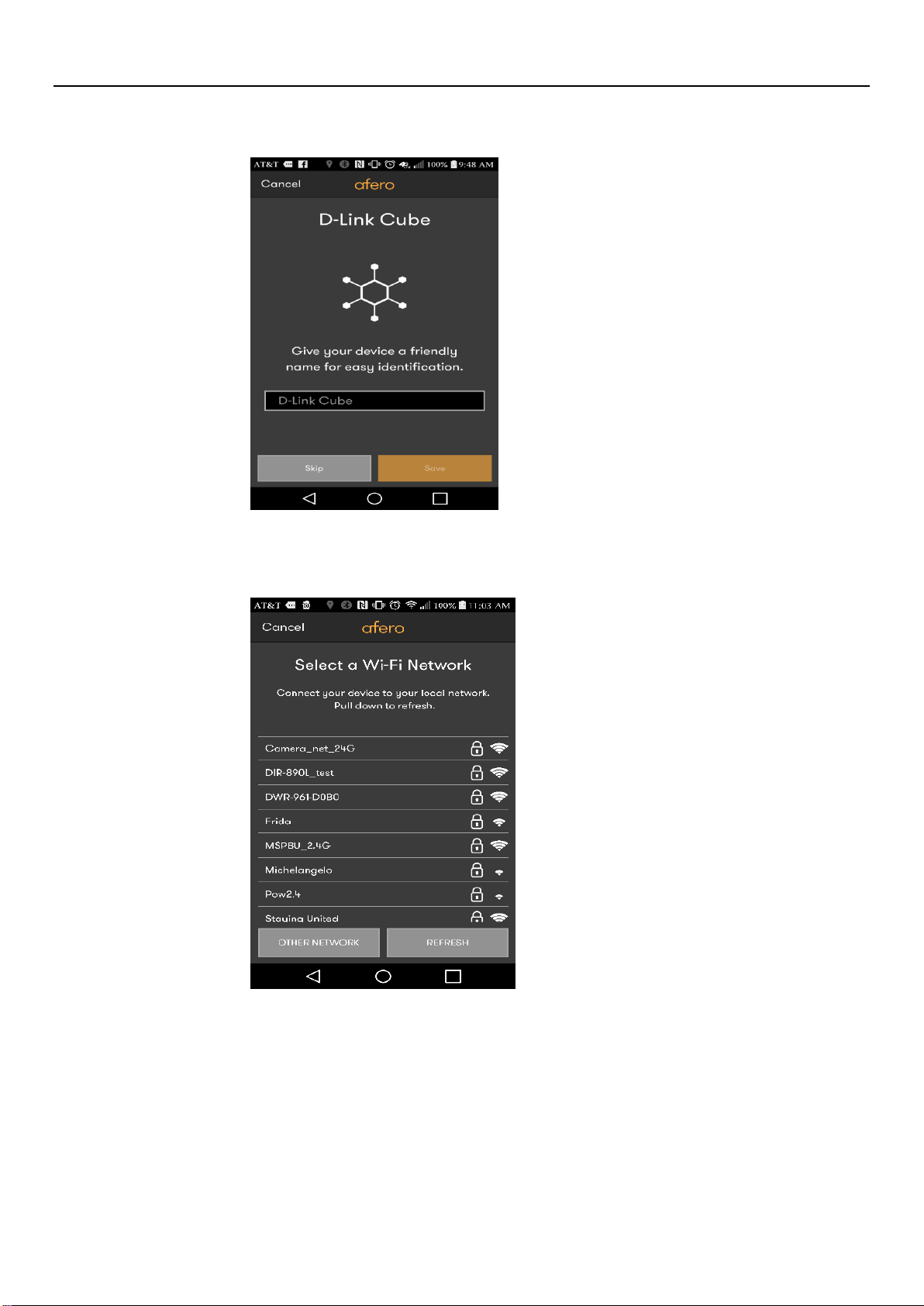

III. Give the device a name and click Save.
IV. Select WiFi network from list.

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 8

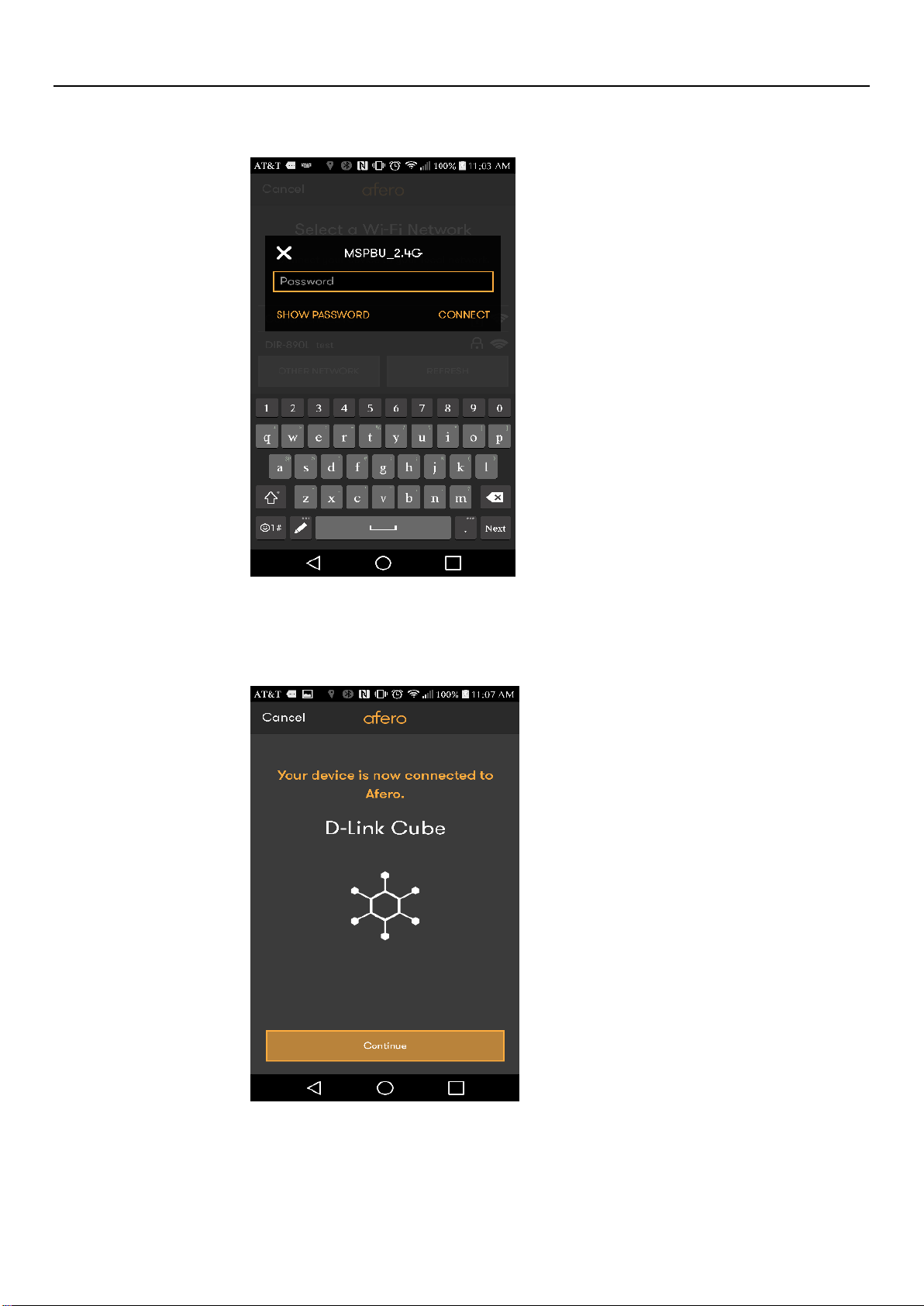

V. Type in password of WiFi network and click connect.
VI. Your device is now connected.

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 9

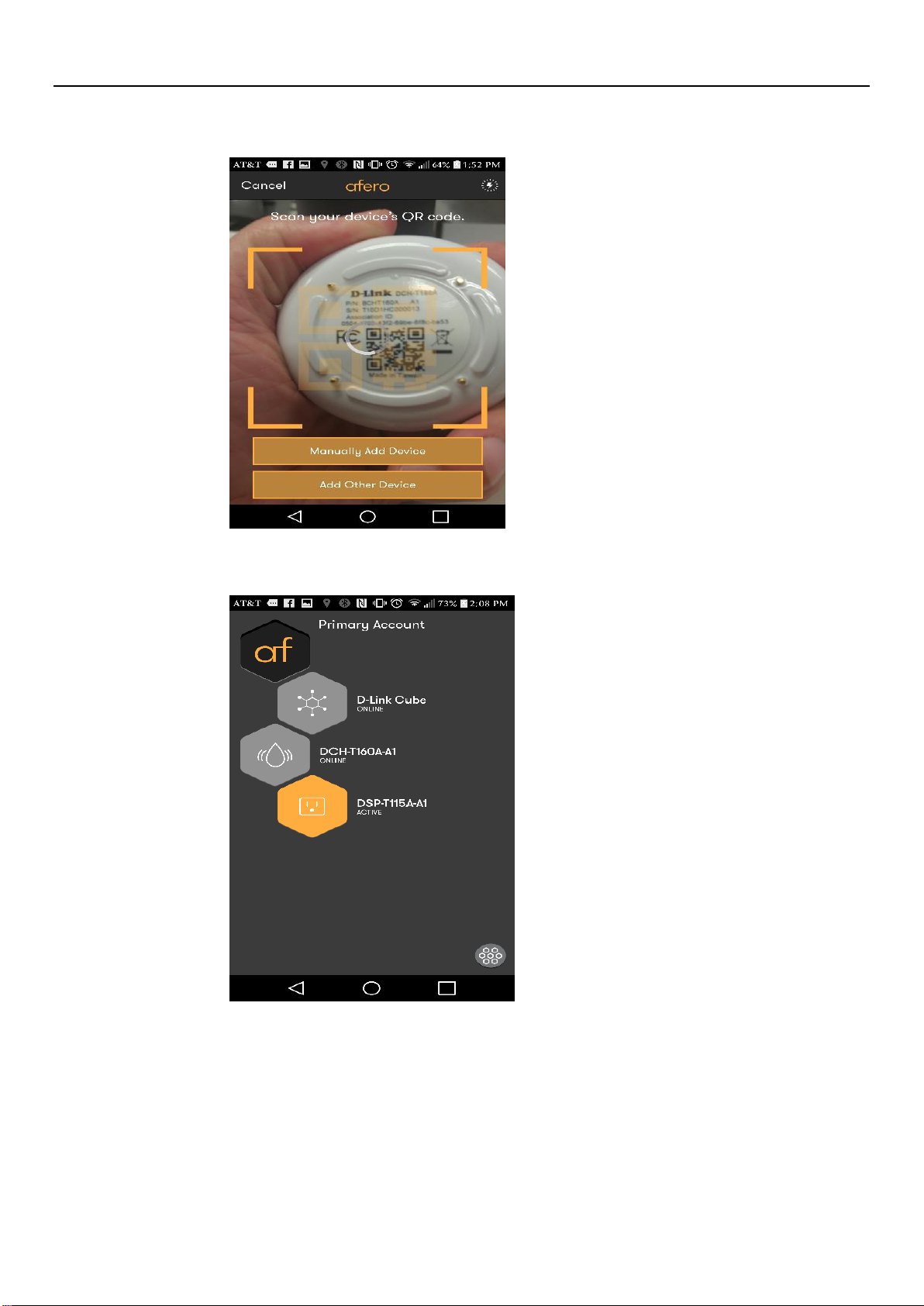

VII. Click continue to see Hub is Online.
Step 5 add sensor into your account
1. Adding Smart plug to account.

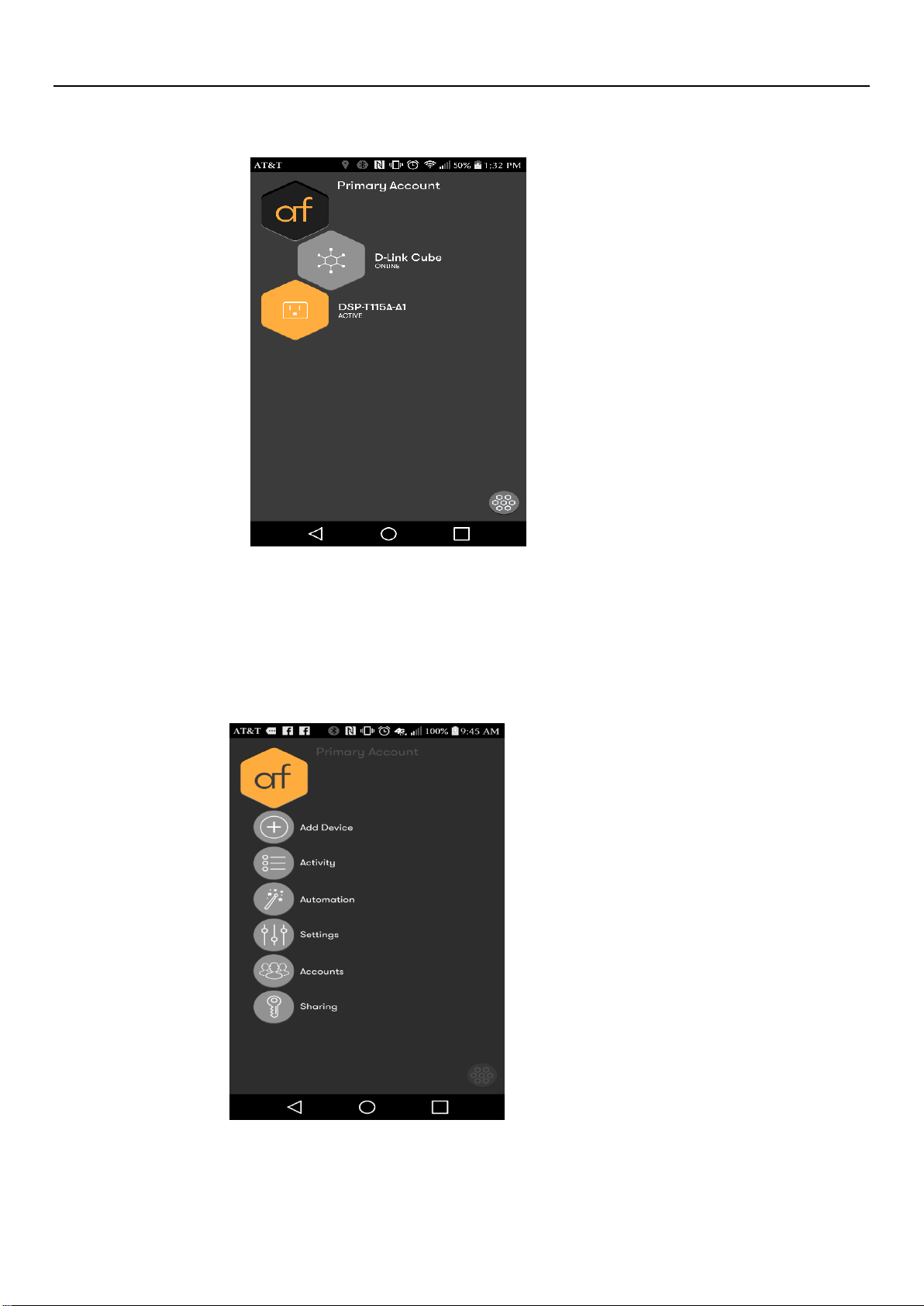

I. Click on Add Device.

DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 10

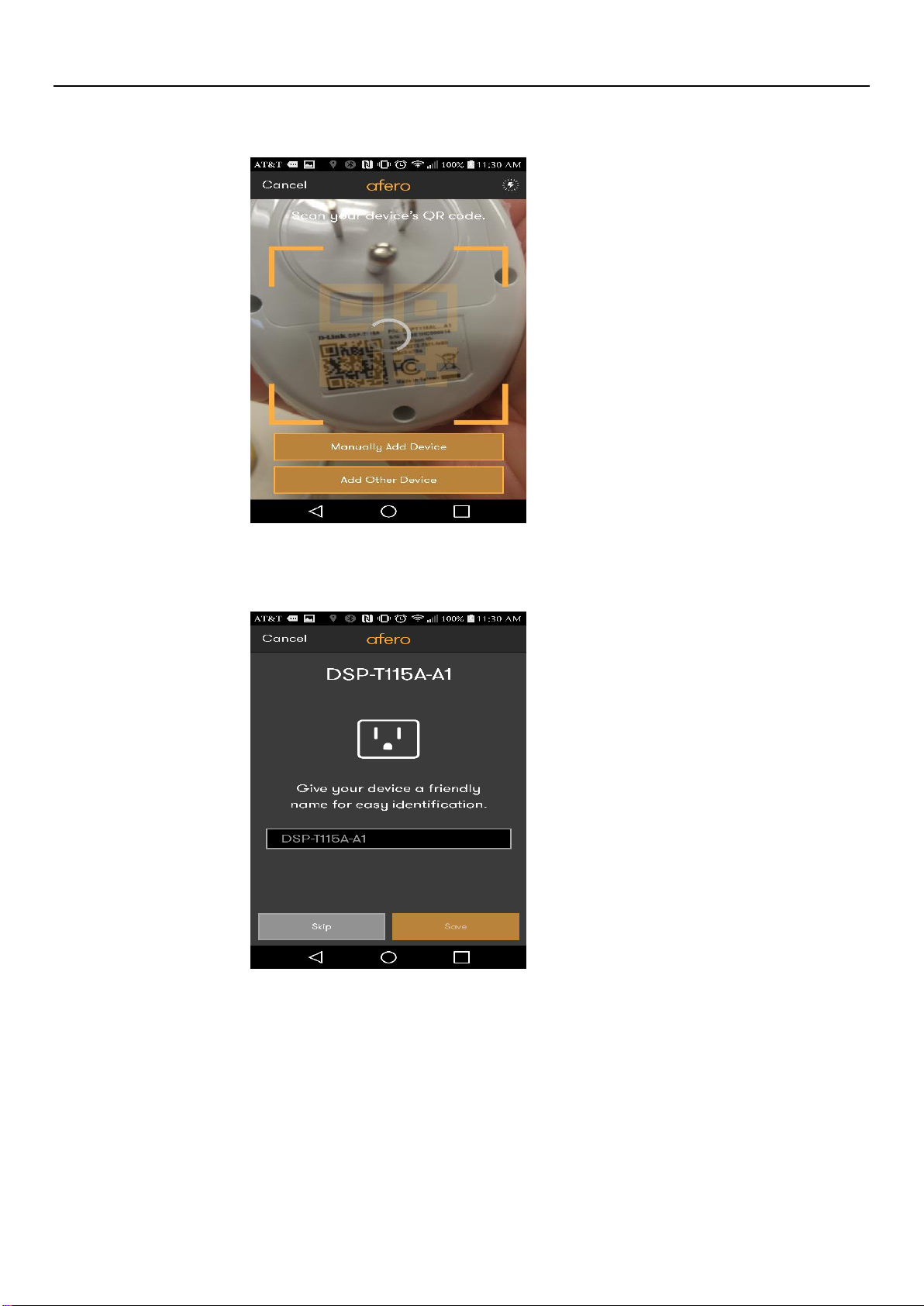

II. Scan QR code on bottom of Smart Plug and plug into outlet.
III. Give your device a name.
