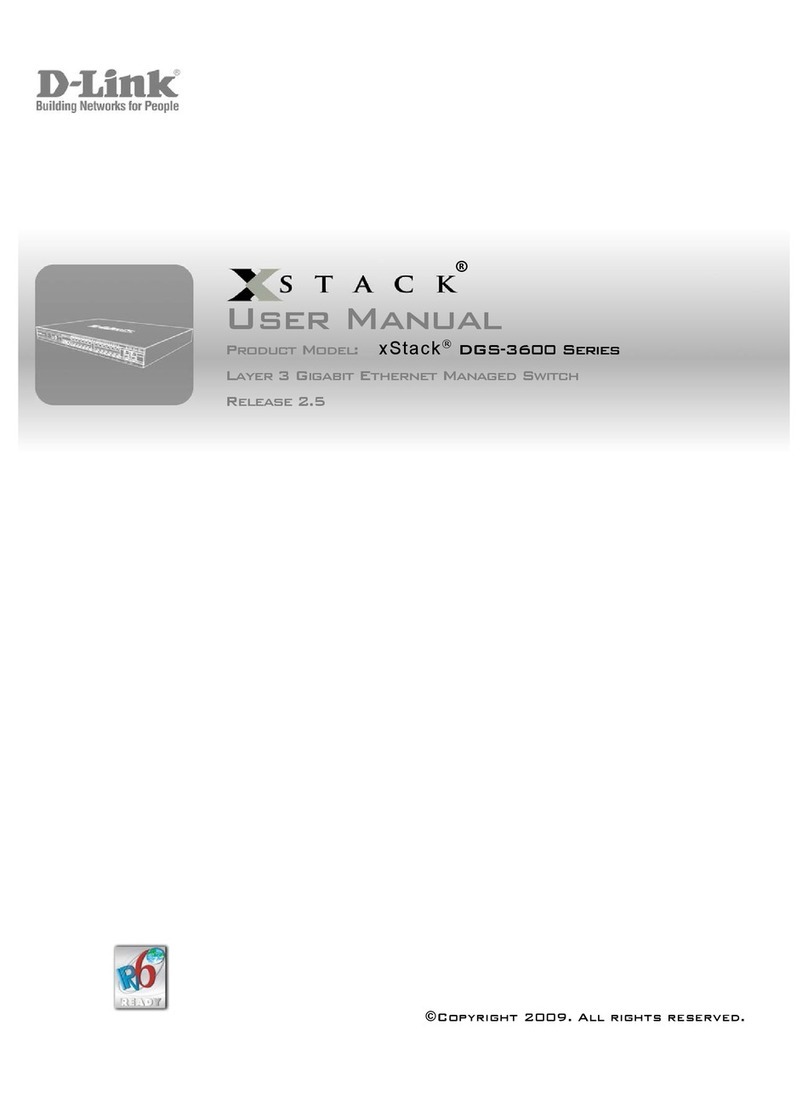

D-Link xStack DGS-3612G series User manual

®
CLI Manual
Product Model: xStack® DGS-3600 Series
Layer 3 Gigabit Ethernet Managed Switch
Release 2.5
©Copyright 2009. All rights reserved.

Table of Contents
INTRODUCTION ..........................................................................................................................................................1
USING THE CONSOLE CLI.........................................................................................................................................3
COMMAND SYNTAX...................................................................................................................................................7
BASIC SWITCH COMMANDS.....................................................................................................................................9
SWITCH PORT COMMANDS....................................................................................................................................24
PORT SECURITY COMMANDS................................................................................................................................30
STACKING COMMANDS ..........................................................................................................................................33
NETWORK MANAGEMENT (SNMP) COMMANDS .................................................................................................37
SWITCH UTILITY COMMANDS (INCLUDING FILE SYSTEM COMMANDS) .........................................................60
NETWORK MONITORING COMMANDS..................................................................................................................77
MULTIPLE SPANNING TREE PROTOCOL (MSTP) COMMANDS .........................................................................93
FORWARDING DATABASE COMMANDS.............................................................................................................105
BROADCAST STORM CONTROL COMMANDS...................................................................................................112
QOS COMMANDS ...................................................................................................................................................116
PORT MIRRORING COMMANDS...........................................................................................................................126
VLAN COMMANDS .................................................................................................................................................130
PROTOCOL VLAN GROUP COMMANDS..............................................................................................................141
LINK AGGREGATION COMMANDS.......................................................................................................................146
IP-MAC-PORT BINDING (IMPB).............................................................................................................................151
IP COMMANDS (INCLUDING IP MULTINETTING)................................................................................................165
IPV6 NEIGHBOR DETECTION COMMANDS.........................................................................................................171
IGMP COMMANDS (INCLUDING IGMP V3)...........................................................................................................178
IGMP SNOOPING COMMANDS..............................................................................................................................181
MLD SNOOPING COMMANDS...............................................................................................................................193
DHCP RELAY...........................................................................................................................................................202
DHCP SERVER COMMANDS.................................................................................................................................208
DHCP SERVER SCREENING COMMANDS...........................................................................................................222
LIMITED IP MULTICAST ADDRESS.......................................................................................................................226
802.1X COMMANDS................................................................................................................................................232
ACCESS CONTROL LIST (ACL) COMMANDS......................................................................................................250
TIME RANGE COMMANDS.....................................................................................................................................270
ACL FLOW METERING COMMANDS....................................................................................................................272
SFLOW.....................................................................................................................................................................276
TIME AND SNTP COMMANDS...............................................................................................................................287
POLICY ROUTE COMMANDS................................................................................................................................293
SAFEGUARD ENGINE COMMANDS......................................................................................................................296
TRAFFIC SEGMENTATION COMMANDS..............................................................................................................299

ARP AND GRATUITOUS ARP COMMANDS.........................................................................................................301
VRRP COMMANDS .................................................................................................................................................308
ROUTING TABLE COMMANDS..............................................................................................................................315
ROUTE REDISTRIBUTION COMMANDS...............................................................................................................320
DNS COMMANDS....................................................................................................................................................325
RIP COMMANDS .....................................................................................................................................................329
DVMRP COMMANDS ..............................................................................................................................................332
PIM COMMANDS.....................................................................................................................................................337
STATIC MULTICAST ROUTE COMMANDS...........................................................................................................352
IP MULTICASTING COMMANDS............................................................................................................................354
MD5 COMMANDS....................................................................................................................................................356
OSPF CONFIGURATION COMMANDS..................................................................................................................358
ROUTE PREFERENCE COMMANDS.....................................................................................................................375
MAC NOTIFICATION COMMANDS ........................................................................................................................378
WEB-BASED ACCESS CONTROL (WAC) COMMANDS......................................................................................382
ACCESS AUTHENTICATION CONTROL COMMANDS........................................................................................388
SSH COMMANDS....................................................................................................................................................409
SSL COMMANDS ....................................................................................................................................................416
JUMBO FRAME COMMANDS ................................................................................................................................421
LLDP COMMANDS..................................................................................................................................................423
D-LINK SINGLE IP MANAGEMENT COMMANDS.................................................................................................439
STATIC MAC-BASED VLAN COMMANDS............................................................................................................449
OSPF EQUAL-COST MULTI-PATH FUNCTION COMMANDS..............................................................................452
MAC-BASED ACCESS CONTROLCOMMANDS...................................................................................................455
RSPAN COMMANDS...............................................................................................................................................466
BPDU TUNNELLING COMMANDS.........................................................................................................................472
QINQ COMMANDS..................................................................................................................................................475
LOOPBACK DETECTION COMMANDS.................................................................................................................481
COMMAND HISTORY LIST.....................................................................................................................................485
TECHNICAL SPECIFICATIONS..............................................................................................................................488

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
1
1
INTRODUCTION
The Switch can be managed through the Switch’s serial port, Telnet, or the Web-based management agent. The Command Line
Interface (CLI) can be used to configure and manage the Switch via the serial port or Telnet interfaces.
The DGS-3600 Layer 3 stackable Gigabit Ethernet switch series are members of the D-Link xStack® family. Ranging from
10/100Mbps edge switches to core gigabit switches, the xStack® switch family has been future-proof designed to provide a stacking
architecture with fault tolerance, flexibility, port density, robust security and maximum throughput with a user-friendly management
interface for the networking professional.
This manual provides a reference for all of the commands contained in the CLI for the xStack®DGS-3612, DGS-3612G, DGS-3627,
DGS-3627G and DGS-3650 series of switches. Configuration and management of the Switch via the Web-based management agent is
discussed in the User’s Guide.
NOTE: For the remainder of this manual, all versions of the DGS-3612, DGS-3612G, DGS-
3627, DGS-3627G and DGS-3650 switches will be referred to as simply the Switch or the DGS-
3627.
Accessing the Switch via the Serial Port
The Switch’s serial port’s default settings are as follows:
•115200 baud
•no parity
•8 data bits
•1 stop bit
A computer running a terminal emulation program capable of emulating a VT-100 terminal and a serial port configured as above is
then connected to the Switch’s serial port via an RS-232 DB-9 cable.
With the serial port properly connected to a management computer, the following screen should be visible. If this screen does not
appear, try pressing Ctrl+r o refresh the console screen.
DGS-3627 Gigabit Ethernet Switch
Command Line Interface
Firmware: Build 2.50.B15
Copyright(C) 2009 D-Link Corporation. All rights reserved.
UserName:
Figure 1-1. Initial CLI screen
There is no initial username or password. Just press the Enter key twice to display the CLI input cursor −DGS-3627:5#.This is the
command line where all commands are input.
Setting the Switch’s IP Address
Each Switch must be assigned its own IP Address, which is used for communication with an SNMP network manager or other
TCP/IP application (for example BOOTP, TFTP). The Switch’s default IP address is 10.90.90.90. You can change the default Switch
IP address to meet the specification of your networking address scheme.
The Switch is also assigned a unique MAC address by the factory. This MAC address cannot be changed, and can be found on the
initial boot console screen – shown below.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
2
Boot Procedure 1.10-B06
-----------------------------------------------------------------------------
Power On Self Test ...................................... 100 %
MAC Address : 00-19-5B-F5-26-C0
H/W Version : 1A1G
Please wait, loading V2.50.B15 Runtime image ............ 100 %
UART init ............................................... 100 %
Device Discovery ........................................ -
Figure 1-2. Boot screen
The Switch’s MAC address can also be found in the Web management program on the Switch Information (Basic Settings) window
in the Configuration menu.
The IP address for the Switch must be set before it can be managed with the Web-based manager. The Switch IP address can be
automatically set using BOOTP or DHCP protocols, in which case the actual address assigned to the Switch must be known.
The IP address may be set using the Command Line Interface (CLI) over the console serial port as follows:
1. Starting at the command line prompt, enter the commands config ipif System ipaddress xxx.xxx.xxx.xxx/yyy.yyy.yyy.yyy.
Where the x’s represent the IP address to be assigned to the IP interface named System and the y’s represent the
corresponding subnet mask.
2. Alternatively, you can enter config ipif System ipaddress xxx.xxx.xxx.xxx/z. Where the x’s represent the IP address to be
assigned to the IP interface named System and the zrepresents the corresponding number of subnets in CIDR notation.
The IP interface named System on the Switch can be assigned an IP address and subnet mask which can then be used to connect a
management station to the Switch’s Telnet or Web-based management agent.
DGS-3627:5#config ipif System ipaddress 10.24.22.200/255.0.0.0
Command: config ipif System ipaddress 10.24.22.200/8
Success.
DGS-3627:5#
Figure 1-3. Assigning an IP Address
In the above example, the Switch was assigned an IP address of 10.24.22.200 with a subnet mask of 255.0.0.0. The system message
Success indicates that the command was executed successfully. The Switch can now be configured and managed via Telnet, SNMP
MIB browser and the CLI or via the Web-based management agent using the above IP address to connect to the Switch.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
3
2
USING THE CONSOLE CLI
The Switch supports a console management interface that allows the user to connect to the Switch’s management agent via a serial
port and a terminal or a computer running a terminal emulation program. The console can also be used over the network using the
TCP/IP Telnet protocol. The console program can be used to configure the Switch to use SNMP-based network management software
over the network.
This chapter describes how to use the console interface to access the Switch, change its settings, and monitor its operation.
Note: Switch configuration settings are saved to non-volatile RAM using the save command. The current
configuration will then be retained in the Switch’s NV-RAM, and reloaded when the Switch is rebooted. If
the Switch is rebooted without using the save command, the last configuration saved to NV-RAM will be
loaded.
Connecting to the Switch
The console interface is used by connecting the Switch to a VT100-compatible terminal or a computer running an ordinary terminal
emulator program (e.g., the HyperTerminal program included with the Windows operating system) using an RS-232C serial cable.
Your terminal parameters will need to be set to:
•VT-100 compatible
•115200 baud
•8 data bits
•No parity
•One stop bit
•No flow control
Users can also access the same functions over a Telnet interface. Once an IP address has been set for the Switch, users can use a
Telnet program (in VT-100 compatible terminal mode) to access and control the Switch. All of the screens are identical, whether
accessed from the console port or from a Telnet interface.
After the Switch reboots and you have logged in, the console looks like this:
DGS-3627 Gigabit Ethernet Switch
Command Line Interface
Firmware: Build 2.50.B15
Copyright(C) 2009 D-Link Corporation. All rights reserved.
UserName:
PassWord:
DGS-3627:5#_
Figure 2- 1. Initial Console Screen after logging in
Commands are entered at the command prompt, DGS-3627:5#.
There are a number of helpful features included in the CLI. Entering the ?command will display a list of all of the top-level
commands.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
4
DGS-3627:5#?
Command: ?
..
?
cd
clear
clear address_binding dhcp_snoop binding_entry ports
clear arptable
clear attack_log
clear counters
clear dhcp_binding
clear fdb
clear log
clear mac_based_access_control auth_mac
clear port_security_entry port
config 802.1p default_priority
config 802.1p user_priority
config 802.1x auth_mode
config 802.1x auth_parameter ports
config 802.1x auth_protocol
config 802.1x capability ports
config 802.1x guest_vlan ports
config 802.1x init
config 802.1x reauth
CTRL+C ESC qQuit SPACE nNext Page Enter Next Entry aAll
Figure 2- 2. The ? Command
When users enter a command without its required parameters, the CLI will prompt a Next possible completions: message.
DGS-3627:5#config account
Command: config account
N
ext possible completions:
<
username>
DGS-3627:5#
Figure 2- 3. Example Command Parameter Help
In this case, the command config account was entered with the parameter <username>. The CLI will then prompt to enter the
<username> with the message, Next possible completions:. Every command in the CLI has this feature, and complex commands
have several layers of parameter prompting.
In addition, after typing any given command plus one space, all of the next possible sub-commands can be seen, in sequential order,
by repeatedly pressing the Tab key.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
5
To re-enter the previous command at the command prompt, press the up arrow cursor key. The previous command will appear at the
command prompt.
DGS-3627:5#config account
Command: config account
N
ext possible completions:
<
username
>
DGS-3627:5#config account
Figure 2- 4. Using the Up Arrow to Re-enter a Command
In the above example, the command config account was entered without the required parameter <username>, the CLI returned the
Next possible completions: <username> prompt. The up arrow cursor control key was pressed to re-enter the previous command
(config account) at the command prompt. Now the appropriate username can be entered and the config account command re-
executed.
All commands in the CLI function in this way. In addition, the syntax of the help prompts are the same as presented in this manual −
angle brackets < > indicate a numerical value or character string, braces { } indicate optional parameters or a choice of parameters,
and brackets [ ] indicate required parameters.
If a command is entered that is unrecognized by the CLI, the top-level commands will be displayed under the Available commands:
prompt.
DGS-3627:5#the
A
vailable commands:
.. ? cd clear
config copy create debug
delete dir disable download
enable erase login logout
p
ing ping6 reboot reconfig
rename reset save show
telnet traceroute upload
DGS-3627:5#
Figure 2- 5. Available Commands
The top-level commands consist of commands such as show or config. Most of these commands require one or more parameters to
narrow the top-level command. This is equivalent to show what? or config what? Where the what? is the next parameter.
For example, if you enter the create command with no additional parameters, the CLI will then display all of the possible next
parameters.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
6
DGS-3627:5#create
Command: create
N
ext possible completions:
802.1x access_profile account address_binding
arpentry authen authen_enable authen_login
cpu dhcp dot1v_protocol_group
double_vlan fdb igmp_snooping ipif
ipmroute iproute ipv6 ipv6route
link_aggregation mac_based_access_control
m
ac
_
based
_
access
_
control
_
local mac
_
based
_
vlan md5
m
ulticast
_
fdb multicast
_
range ospf pi
m
p
olicy
_
route route rspan sflow
snmp stp syslog trusted_host
vlan vlan_translation vrrp wac
DGS-3627:5#
Figure 2- 6. Next possible completions: Create command
In the above example, all of the possible next parameters for the create command are displayed.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
7
3
COMMAND SYNTAX
The following symbols are used to describe how command entries are made and values and arguments are specified in this manual.
The online help contained in the CLI and available through the console interface uses the same syntax.
Note: All commands are case-sensitive. Be sure to disable Caps Lock or
any other unwanted function that changes text case.
<angle brackets>
Purpose Encloses a variable or value that must be specified.
Syntax create ipif <ipif_name 12> <network_address> (<ip_addr/netmask>)
<vlan_name 32> {secondary | state [enable | disable]}
Description In the above syntax example, users must supply an IP interface name in the
<ipif_name> space, a VLAN name in the <vlan_name 32> space, and the
network address, including the netmask, in the <network_address>
(<ip_addr/netmask>) space. Do not type the angle brackets.
Example
Command create ipif Engineering 10.24.22.5/255.0.0.0 Design
[square brackets]
Purpose Encloses a required value or set of required arguments. One value or argument
can be specified.
Syntax create account [admin | operator | user] <username 15>
Description In the above syntax example, users must specify the admin, operator, or user
level account to be created. Do not type the square brackets.
Example
Command create account admin ctsnow
| vertical bar
Purpose Separates two or more mutually exclusive items in a list, one of which must be
entered.
Syntax create account [admin | operator |user] <username 15>
Description In the above syntax example, you must specify the admin, operator, or user
level account to be created. Do not type the backslash.
Example
Command create account admin ctsnow

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
8
{braces}
Purpose Encloses an optional value or set of optional arguments.
Syntax reset {[config | system]}
Description In the above syntax example, users have the option to specify config or
system. It is not necessary to specify either optional value, however the effect
of the system reset is dependent on which, if any, value is specified. Therefore,
with this example there are three possible outcomes of performing a system
reset. See the following chapter, Basic Commands for more details about the
reset command.
Example
command reset config
Line Editing Key Usage
Delete Deletes the character under the cursor and then shifts the remaining characters
in the line to the left.
Backspace Deletes the character to the left of the cursor and then shifts the remaining
characters in the line to the left.
Insert or Ctrl+R Toggle on and off. When toggled on, inserts text and shifts previous text to the
right.
Left Arrow Moves the cursor to the left.
Right Arrow Moves the cursor to the right.
Up Arrow Repeats the previously entered command. Each time the up arrow is pressed,
the command previous to that displayed appears. This way it is possible to
review the command history for the current session. Use the down arrow to
progress sequentially forward through the command history list.
Down Arrow The down arrow will display the next command in the command history entered
in the current session. This displays each command sequentially as it was
entered. Use the up arrow to review previous commands.
Tab Shifts the cursor to the next field to the left.
Multiple Page Display Control Keys
Space Displays the next page.
CTRL+c Stops the display of remaining pages when multiple pages are to be displayed.
ESC Stops the display of remaining pages when multiple pages are to be displayed.
n Displays the next page.
p Displays the previous page.
q Stops the display of remaining pages when multiple pages are to be displayed.
r Refreshes the pages currently displayed.
a Displays the remaining pages without pausing between pages.
Enter Displays the next line or table entry.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
9
4
BASIC SWITCH COMMANDS
The basic switch commands in the Command Line Interface (CLI) are listed (with the appropriate parameters) in the following table.
Command Parameters
create account [admin | operator | user] <username 15>
config account <username>
show account
delete account <username> {<string>}
show session
show switch
show serial_port
config serial_port {baud_rate [9600 | 19200 | 38400 | 115200] auto_logout [never | 2_minutes |
5_minutes | 10_minutes | 15_minutes]}
enable clipaging
disable clipaging
enable telnet <tcp_port_number 1-65535>
disable telnet
telnet <ipaddr> {tcp_port <value 0-65535>}
enable web <tcp_port_number 1-65535>
disable web
save {[config {<drive_id>} <pathname 64> | log | all]}
reboot {<string>}
reset {[config |system]} {<string>}
login
logout
show device_status
config command_prompt
config greeting_message {default}
show greeting_message
Each command is listed, in detail, in the following sections.

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
10
create account
Purpose Used to create user accounts.
Syntax create account [admin | operator | user] <username 15>
Description The create account command is used to create user accounts that consist of a
username of 1to 15 characters and a password of 0to 15 characters. Up to eight
user accounts can be created.
Parameters admin <username 15> –Enter a name between 1 and 15 alphanumeric
characters to define the administrator account created here.
operator <username 15> –Enter a name between 1and 15 alphanumeric
characters to define the operator account created here.
user <username 15> –Enter a name between 1and 15 alphanumeric characters
to define the user account created here.
Restrictions Only Administrator-level users can issue this command.
Example usage:
To create an administrator-level user account with the username “dlink”.
DGS-3627:5#create account admin dlink
Command: create account admin dlink
Enter a case-sensitive new password:****
Enter the new password again for confirmation:****
Success.
DGS-3627:5#
To create an operator-level user account with the username “frazier”.
DGS-3627:5#create account operator frazier
Command: create account operator frazier
Enter a case-sensitive new password:****
Enter the new password again for confirmation:****
Success.
DGS-3627:5#
To create a user-level user account with the username “reed”.
DGS-3627:5#create account user reed
Command: create account user reed
Enter a case-sensitive new password:****
Enter the new password again for confirmation:****
Success.
DGS-3627:5#

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
11
config account
Purpose Used to configure user accounts.
Syntax config account <username>
Description The config account command configures a user account that has
been created using the create account command.
Parameters <username> –Enter a name between 1and 15 alphanumeric
characters to define the administrator account to configure here.
Restrictions Only Administrator-level users can issue this command.
Example usage:
To configure the user password of “dlink” account:
DGS-3627:5#config account dlink
Command: config account dlink
Enter a old password:****
Enter a case-sensitive new password:****
Enter the new password again for confirmation:****
Success.
DGS-3627:5#
show account
Purpose Used to display user accounts
Syntax show account
Description Displays all user accounts created on the Switch. Up to eight user
accounts can exist at one time.
Parameters None.
Restrictions Only Administrator-level users can issue this command.
Example usage:
To display the accounts that have been created:
DGS-3627:5#show account
Command: show account
Current Accounts:
Username Access Level
--------------- ------------
dlink Admin
DGS-3627:5#

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
12
delete account
Purpose Used to delete an existing user account.
Syntax delete account <username> {<string>}
Description The delete account command deletes a user account that has
been created using the create account command.
Parameters <username>
<string> – Enter an alphanumeric string of up to 15 characters to
define the username.
Restrictions Only Administrator-level users can issue this command.
Example usage:
To delete the user account “System”:
DGS-3627:5#delete account System
Command: delete account System
Are you sure to delete the last administrator account?(y/n)y
Success.
DGS-3627:5#
show session
Purpose Used to display a list of currently logged-in users.
Syntax show session
Description This command displays a list of all the users that are logged-in at
the time the command is issued.
Parameters None
Restrictions None.
Example usage:
To display the way that the users logged in:
DGS-3627:5#show session
Command: show session
ID Live Time From Level Name
-- --------- ------------ ----- -----------
8 03:36:27 Serial Port 5 Anonymous
Total Entries: 1
CTRL+C ESC qQuit SPACE nNext Page pPrevious Page rRefresh

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
13
show switch
Purpose Used to display general information about the Switch.
Syntax show switch
Description This command displays information about the Switch.
Parameters None.
Restrictions None.
Example usage:
To display the Switch’s information:
DGS-3627:5#show switch
Command: show switch
Device Type : DGS-3612 Gigabit Ethernet Switch
MAC Address : 00-1C-F0-B5-40-00
IP Address : 10.24.73.21 (Manual)
VLAN Name : default
Subnet Mask : 255.0.0.0
Default Gateway : 0.0.0.0
Boot PROM Version : Build 1.10-B09
Firmware Version : Build 2.50.B15
Hardware Version : A1
Serial Number : P4F7191000001
System Name :
System Location :
System Contact :
Spanning Tree : Disabled
GVRP : Disabled
IGMP Snooping : Disabled
MLD Snooping : Disabled
RIP : Disabled
DVMRP : Disabled
PIM : Disabled
OSPF : Disabled
TELNET : Enabled (TCP 23)
CTRL+C ESC qQuit SPACE nNext Page Enter Next Entry aAll
show serial_port
Purpose Used to display the current serial port settings.
Syntax show serial_port
Description This command displays the current serial port settings.
Parameters None.
Restrictions None
Example usage:
To display the serial port setting:

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
14
DGS-3627:5#show serial_port
Command: show serial_port
Baud Rate : 115200
Data Bits : 8
Parity Bits : None
Stop Bits : 1
Auto-Logout : 10 mins
DGS-3627:5#
config serial_port
Purpose Used to configure the serial port.
Syntax config serial_port {baud_rate [9600 | 19200 | 38400 | 115200] |
auto_logout [never | 2_minutes | 5_minutes | 10_minutes |
15_minutes]}
Description This command is used to configure the serial port’s baud rate and auto
logout settings.
Parameters baud_rate [9600 | 19200 | 38400 | 115200] −The serial bit rate that will be
used to communicate with the management host. There are four options:
9600, 19200, 38400, and 115200.
never −No time limit on the length of time the console can be open with
no user input.
2_minutes −The console will log out the current user if there is no user
input for 2minutes.
5_minutes −The console will log out the current user if there is no user
input for 5minutes.
10_minutes −The console will log out the current user if there is no user
input for 10 minutes.
15_minutes −The console will log out the current user if there is no user
input for 15 minutes.
Restrictions Only Administrator and Operator-level users can issue this command.
Example usage:
To configure baud rate:
DGS-3627:5#config serial_port baud_rate 115200
Command: config serial_port baud_rate 115200
Success.
DGS-3627:5#

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
15
enable clipaging
Purpose Used to pause the scrolling of the console screen when the show
command displays more than one page.
Syntax enable clipaging
Description This command is used when issuing the show command which
causes the console screen to rapidly scroll through several pages.
This command will cause the console to pause at the end of each
page. The default setting is enabled.
Parameters None.
Restrictions Only Administrator and Operator-level users can issue this
command.
Example usage:
To enable pausing of the screen display when the show command output reaches the end of the page:
DGS-3627:5#enable clipaging
Command: enable clipaging
Success.
DGS-3627:5#
disable clipaging
Purpose Used to disable the pausing of the console screen scrolling at the
end of each page when the show command displays more than one
screen of information.
Syntax disable clipaging
Description This command is used to disable the pausing of the console screen
at the end of each page when the show command would display
more than one screen of information.
Parameters None.
Restrictions Only Administrator and Operator-level users can issue this
command.
Example usage:
To disable pausing of the screen display when show command output reaches the end of the page:
DGS-3627:5#disable clipaging
Command: disable clipaging
Success.
DGS-3627:5#

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
16
enable telnet
Purpose Used to enable communication with and management of the Switch
using the Telnet protocol.
Syntax enable telnet {<tcp_port_number 1-65535>}
Description This command is used to enable the Telnet protocol on the Switch.
The user can specify the TCP or UDP port number the Switch will
use to listen for Telnet requests.
Parameters {<tcp_port_number 1-65535>} −The TCP port number. TCP ports
are numbered between 1and 65535. The “well-known” TCP port for
the Telnet protocol is 23.
Restrictions Only Administrator and Operator-level users can issue this
command.
Example usage:
To enable Telnet and configure port number:
DGS-3627:5#enable telnet 23
Command: enable telnet 23
Success.
DGS-3627:5#
disable telnet
Purpose Used to disable the Telnet protocol on the Switch.
Syntax disable telnet
Description This command is used to disable the Telnet protocol on the Switch.
Parameters None.
Restrictions Only Administrator and Operator-level users can issue this
command.
Example usage:
To disable the Telnet protocol on the Switch:
DGS-3627:5#disable telnet
Command: disable telnet
Success.
DGS-3627:5#

xStack®DGS-3600 Series Layer 3 Gigabit Ethernet Managed Switch CLI Manual
17
telnet
Purpose Used to login remote system with telnet protocol.
Syntax telnet <ipaddr> {tcp_port <value 0-65535>}
Description This command is used to login remote system with Telnet protocol
on the Switch.
Parameters <ipaddr> – the IP address of telnet server system
{<tcp_port_number 1-65535>} – The TCP port number. TCP ports
are numbered between 1 and 65535. The “well-known＂TCP port
for the Telnet protocol is 23.
Restrictions Only Administrator and Operator-level users can issue this
command.
Example usage:
To login to the remote system using telnet on the Switch:
DGS-3627:5#telnet 10.0.0.8
Command: telnet 10.0.0.8
Success.
DGS-3627:5#
enable web
Purpose Used to enable the HTTP-based management software on the Switch.
Syntax enable web {<tcp_port_number 1-65535>}
Description This command is used to enable the Web-based management
software on the Switch. The user can specify the TCP port number the
Switch will use to listen for Telnet requests.
Parameters {<tcp_port_number 1-65535>} −The TCP port number. TCP ports are
numbered between 1 and 65535. The “well-known” port for the Web-
based management software is 80.
Restrictions Only Administrator and Operator-level users can issue this command.
Example usage:
To enable HTTP and configure port number:
DGS-3627:5#enable web 80
Command: enable web 80
Note: SSL will be disabled if web is enabled.
Success.
DGS-3627:5#
