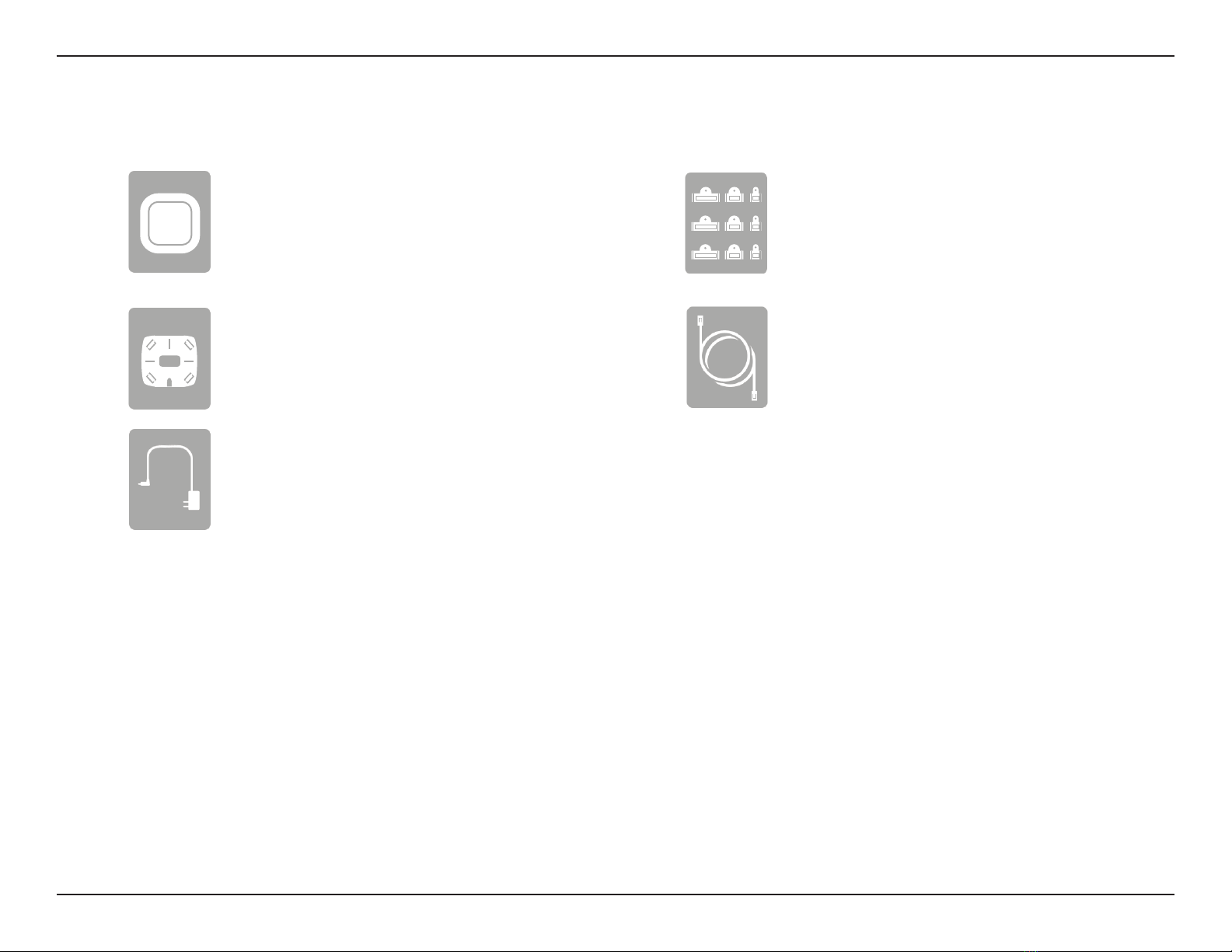

Package Contents
DBA-1210P Business Cloud Wave 2 Access Point
Mounting Ring
Power Adapter
Ceiling Bracket*
Ethernet Cable

4D-Link DBA-1210P User Manual
Section 1  - Produc t Overview
System Requirements
Network Requirements
• An Ethernet-based Network
• IEEE 802.11a/b/g/n/ac wireless clients (AP Mode)
• IEEE 802.11a/b/g/n/ac wireless network (AP Mode)
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 10 and higher
• Mozilla Firefox 36.0 and higher
• Google™ Chrome v41.0.2272.104 and higher
• Apple Safari v6.2.7 and higher
Serial, Ethernet Connection,
or Wireless connection to the
Access Point
• The computer used to manually congure the access point
must be connected to the access point by a serial cable,
Ethernet cable, or wireless connection.
Additional Documentation
Thefollowingdocumentationprovidesadditional informationaboutDBA-1210Pinstallationandmanagement:
• The Quick Installation Guide provides the information about package content and device
installation.
• The D-Link Business Cloud User Manual provides the guidance about device management
through the D-Link Business Cloud

5D-Link DBA-1210P User Manual
Section 1 - Product Overview
Introduction
The D-Link DBA-1210P Business Cloud Wave 2 Access Point provides continuous, high-speed access between wireless devices
and Ethernet devices. It is an advanced, standards-based solution for wireless networking in businesses of any size. The
DBA-1210P enables wireless local area network (WLAN) deployment while providing state-of-the-art wireless networking
features.
The DBA-1210P is managed through the D-Link Business Cloud, with an intuitive browser-based interface that enables rapid
deployment. Since the DBA-1210P is self-conguring and managed over the web, it can even be deployed at a remote location
without on-site IT sta.
This document also describes how to perform the manual networking conguration of DBA-1210P in case of it not being able
to connect to D-Link Business Cloud through the internet.
Before you power on a new DBA-1210P, review the following sections to check required hardware and software components,
client congurations, and compatibility issues. Make sure you have everything you need for a successful launch and test of
your new or extended wireless network.

6D-Link DBA-1210P User Manual
Section 1 - Product Overview
• Automatic Self Conguration - The DBA-1210P will automatically connect to the D-Link Business Cloud to
perform its self-conguration and management, meaning it can even be deployed at a remote location without
an on-site network administrator. The D-Link Business Cloud also helps to manage the deployment of new
features, bug xes, and enhancements, which are automatically pushed to the DBA-1210P.
• Faster Wireless Networking - The DBA-1210P provides an up to 1.75 Gbps1wireless connection with other
802.11ac wireless clients. This capability allows users to participate in real-time activities online, such as video
streaming, online gaming, and real-time audio.
• Compatible with IEEE802.11a/b/g/n/ac Devices - The DBA-1210P is still fully compatible with the 802.11a/b/
g/n/ac standards, so it can connect with any existing 802.11a/b/g/n/ac wireless adapters.
• Dual Band Wireless Radio - The DBA-1210P comes equipped both 2.4 Ghz and 5 Ghz high powered internal
radios that help to provide better wireless coverage and increased signal strength.
• PoE Enabled - The DBA-1210P supports PoE (Power over Ethernet) which enables it to be supplied with Ethernet
over a power cable.
• Convenient Installation - The DBA-1210P features a wall/ceiling mount for easy deployment in a variety of
locations.
• StreamlinedDesign-TheDBA-1210Pisdesignedwithaslimformfactorthateasilyblendsintoanyoceenvironment
1Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual
data throughput rate. Environmental conditions will adversely aect wireless signal range.
Features

7D-Link DBA-1210P User Manual
Section 1 - Product Overview
Hardware Overview
LEDs

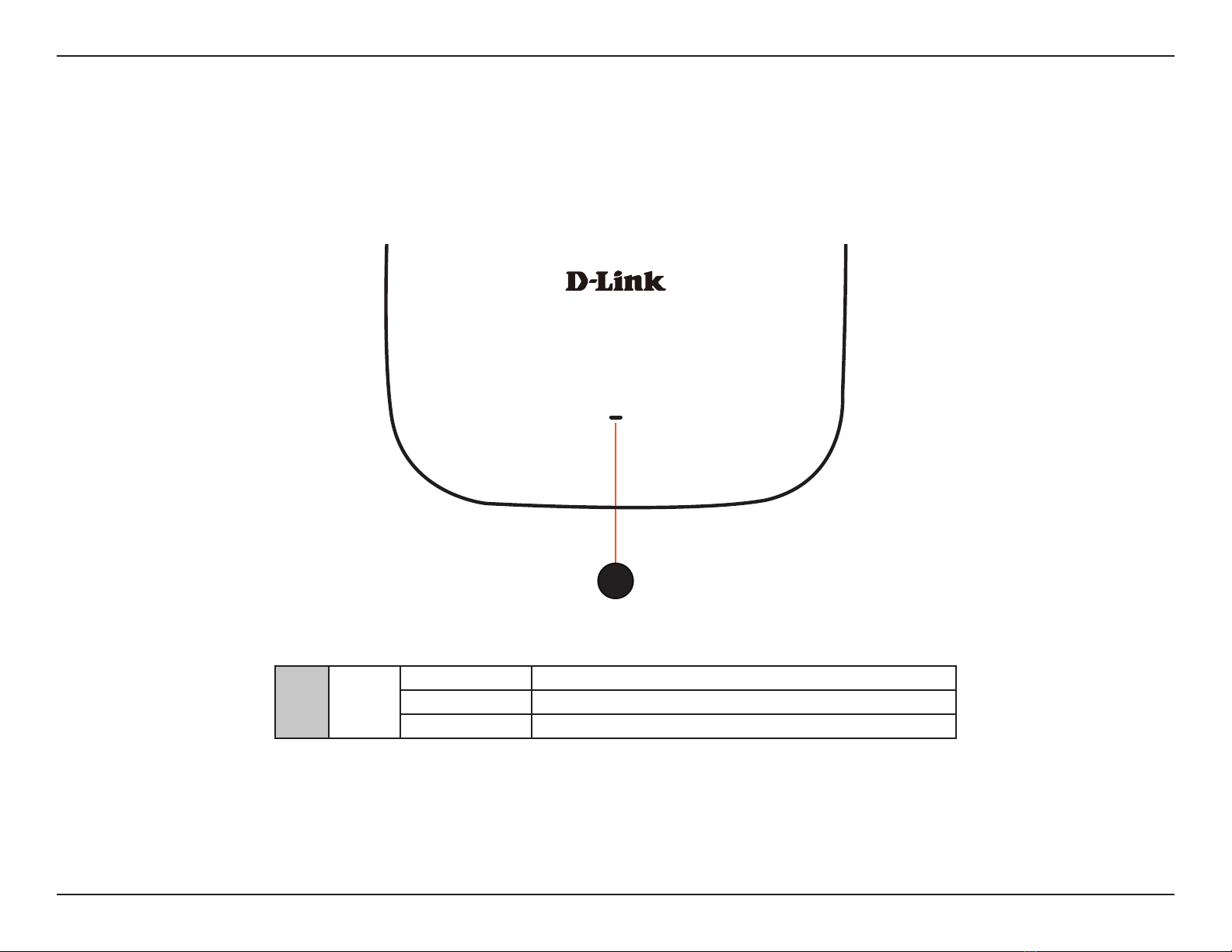

1Cloud
Solid Orange The DBA-1210P is connecting to the D-Link Business Cloud
Solid Green The DBA-1210P is currently in Cloud mode
Solid Red The DBA-1210P is not working properly in Cloud mode
1

8D-Link DBA-1210P User Manual
Section 1 - Product Overview
Hardware Overview

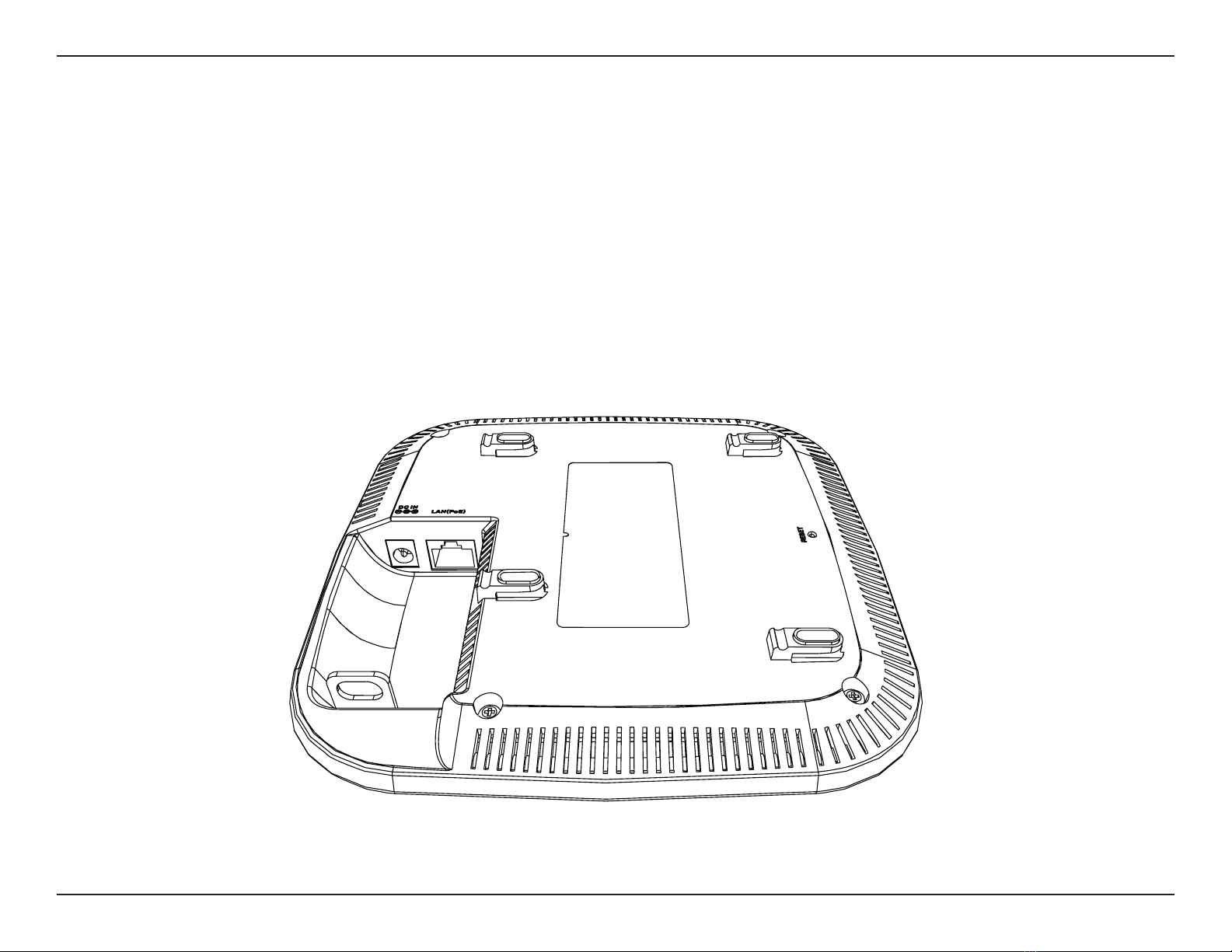

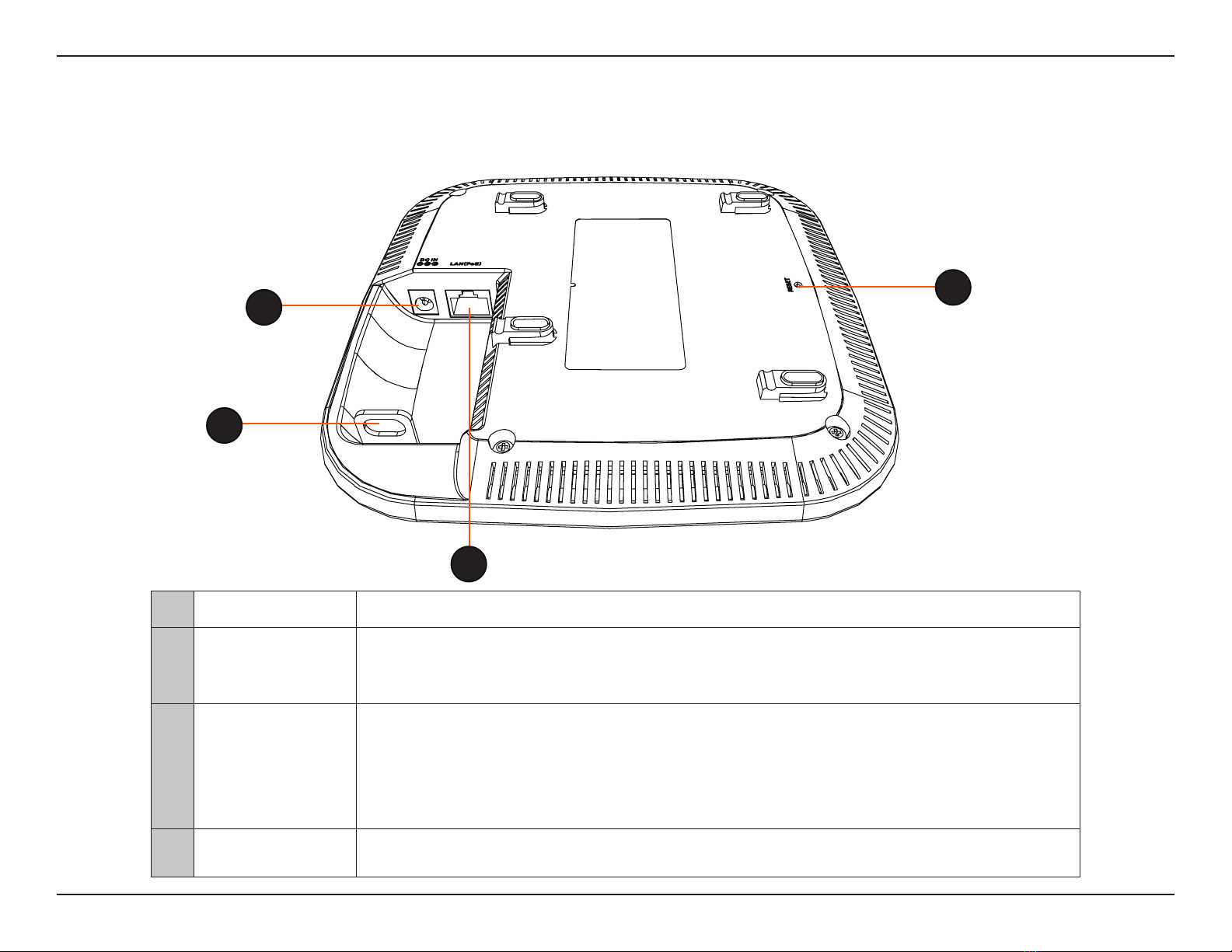

Bottom
1 Power Receptor Connects to the power adapter.
2 LAN Port (PoE)
Power is supplied through the LAN cable connected in this port via the Power over Ethernet
Injector. Please see “Installation” on page <?> for more details on how to correctly power the
DBA-1210P and connect to other networking devices.
3 Reset Button
Press the Reset Button between 2 to 5 seconds to restart the device.
Press the Reset Button between 6 to 15 seconds to restore the device to its factory
default settings.
Press the Reset Button more than 15 seconds to restore the device to its factory default
settings and also force the loading of alternate rmware.
4Kensington
Security Slot Allows the device to be secured with any Kensington Security Lock.
1
4
2
3

9D-Link DBA-1210P User Manual
Section 2 - Installation
Dynamic and Static IP Addressing on the AP
When you power on the access point, the built-in DHCP client searches for a DHCP server on the network in order to obtain
an IP Address and other network information. If the AP is not able to be assigned a DHCP IP on the network, you can manually
recongure the static IP address and relevant network setting through device Administration Web UI or CLI interface.
To manually congure network setting through device AdministrationWeb UI, please refer to“Web-based Conguration Utility”
on page 13
You can manually congure network setting through device CLI as well by any of the following methods:
• Serial Port Connection to the AP
• Telnet Connection to the AP
• SSH Connection to the AP
Please refer to“Device CLI Conguration”on page 17 for more information on how to congure the DBA-1210P using the CLI.
Caution! If you do not have a DHCP server on your internal network, and do not plan to use one, the rst thing you must do
after powering on the access point is to change the connection type from DHCP to static IP and assign a new static IP address
to the AP.
Caution! The default login information is admin/admin for both the Web UI and CLI. Please note that the credentials might
have been changed through the D-Link Business Cloud.

10D-Link DBA-1210P User Manual
Section 2 - Installation
To power on the DBA-1210P, you can use one of the two following methods:
1. Connect the supplied power adapter
2. Plug one end of your Ethernet cable into the LAN port of the DBA-1210P, and the other end into a port on a Power over
Ethernet enabled switch.
Powering the Device

11D-Link DBA-1210P User Manual
Section 3 - Conguration
The easiest way to congure the DBA-1210P is to connect
the DBA-1210P to the Internet through a switch or router.
Connect your computer to the Internet and manage the
DBA-1210P via D-Link Business Cloud. The DBA-1210P
will automatically connect to the D-Link Business Cloud,
download its conguration, and join the appropriate network.
If you are unable to connect the DBA-1210P to the D-Link
Business Cloud through the Internet due to your networking
configuration you will need to manually configure the
DBA-1210P using one of the following options.

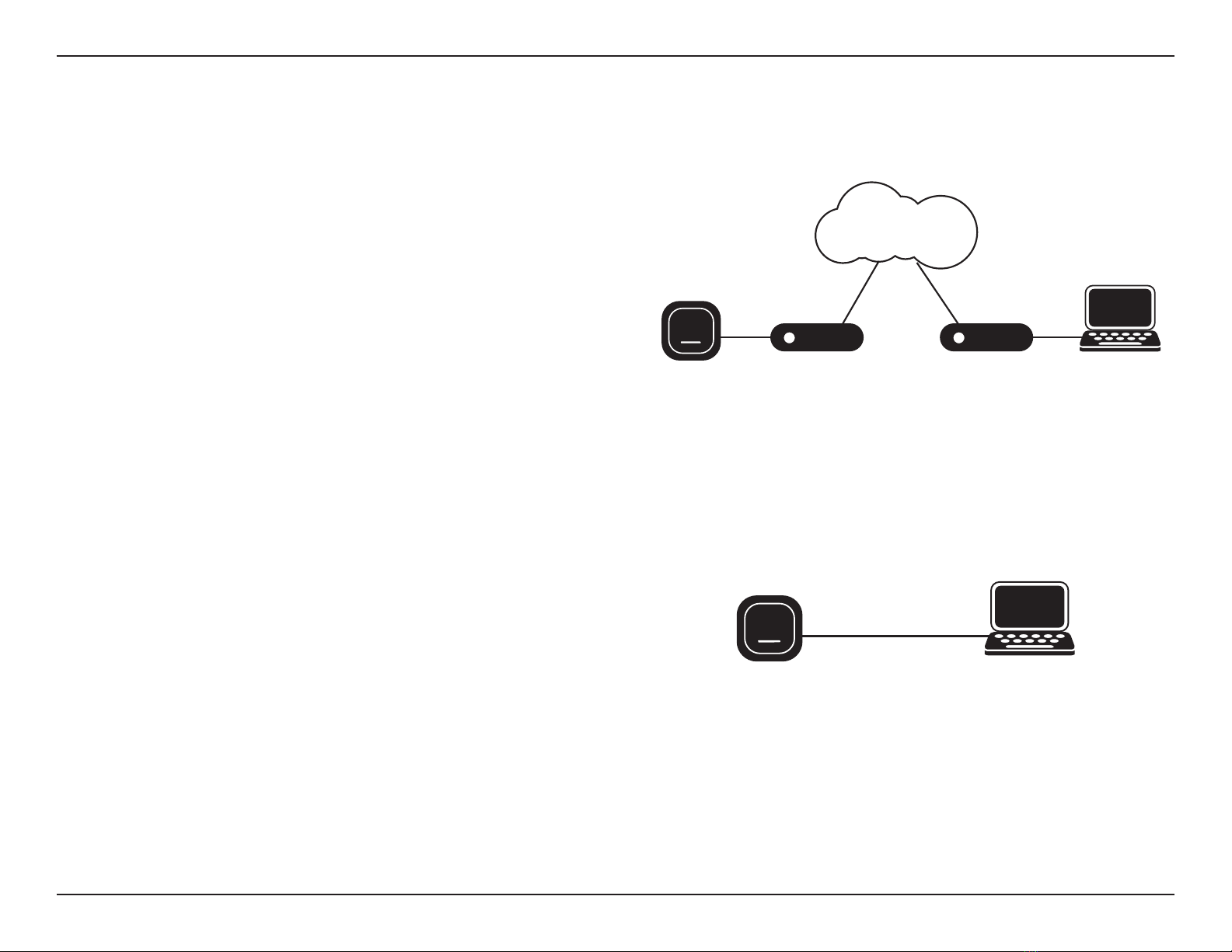

Congure the Device
Switch or RouterSwitch or Router Management
DBA-1210P
D-Link Business Cloud
DBA-1210P Management

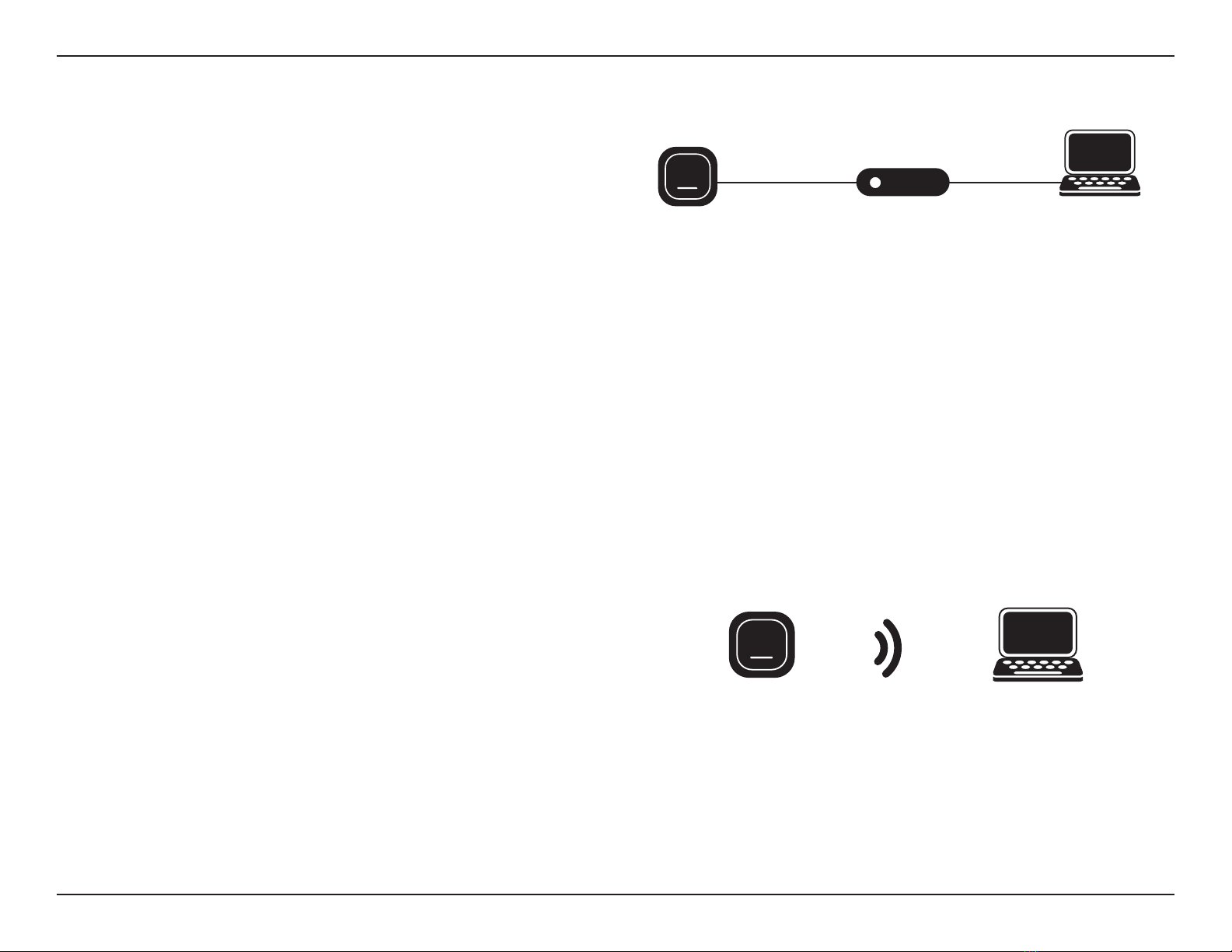

1. Connect the DBA-1210P and your computer directly via
a straight-through Ethernet cable. You can then manage
the access point from your computer using the following
steps.
Enter the DBA-1210P hostname in the address eld of your
browser and then press Enter. The default hostname is
“DBA-1210P-XXXX”where XXXX is the last 4 digits of the
MAC address listed on the device label located on the
bottom of the device.
Log in to the administration web pages. The default login
information is:
Username: admin
Password: admin

12D-Link DBA-1210P User Manual
Section 3 - Conguration
2. Connect the DBA-1210P and your computer to the same
switch or router. You can then manage the access point
from your computer using the following steps
Enter the DBA-1210P hostname in the address eld of your
browser and then press Enter. The default hostname is
“DBA-1210P-XXXX”where XXXX is the last 4 digits of the
MAC address listed on the device label located on the
bottom of the device.
Log in to the administration web pages. The default login
information is:
Username: admin
Password: admin
3. Connect your computer to the DBA-1210P wirelessly via
the SSID “DBA-1210P-XXXX”where XXXX is the last 4 digits
of the MAC address listed on the device label located on
the bottom of the device. You can then manage the access
point from your computer using the following steps.
Enter the DBA-1210P hostname in the address eld of your
browser and then press Enter. The default hostname is
“DBA-1210P-XXXX”where XXXX is the last 4 digits of the
MAC address listed on the device label located on the
bottom of the device.
Log in to the administration web pages. The default login
information is:
Username: admin
Password: admin
Switch or Router Management
DBA-1210P
DBA-1210P Management

13D-Link DBA-1210P User Manual
Section 3 - Conguration
This section will show you how to congure your new D-Link Business Cloud Wave 2 Access Point using the web-based
conguration utility.
Web-based Conguration Utility

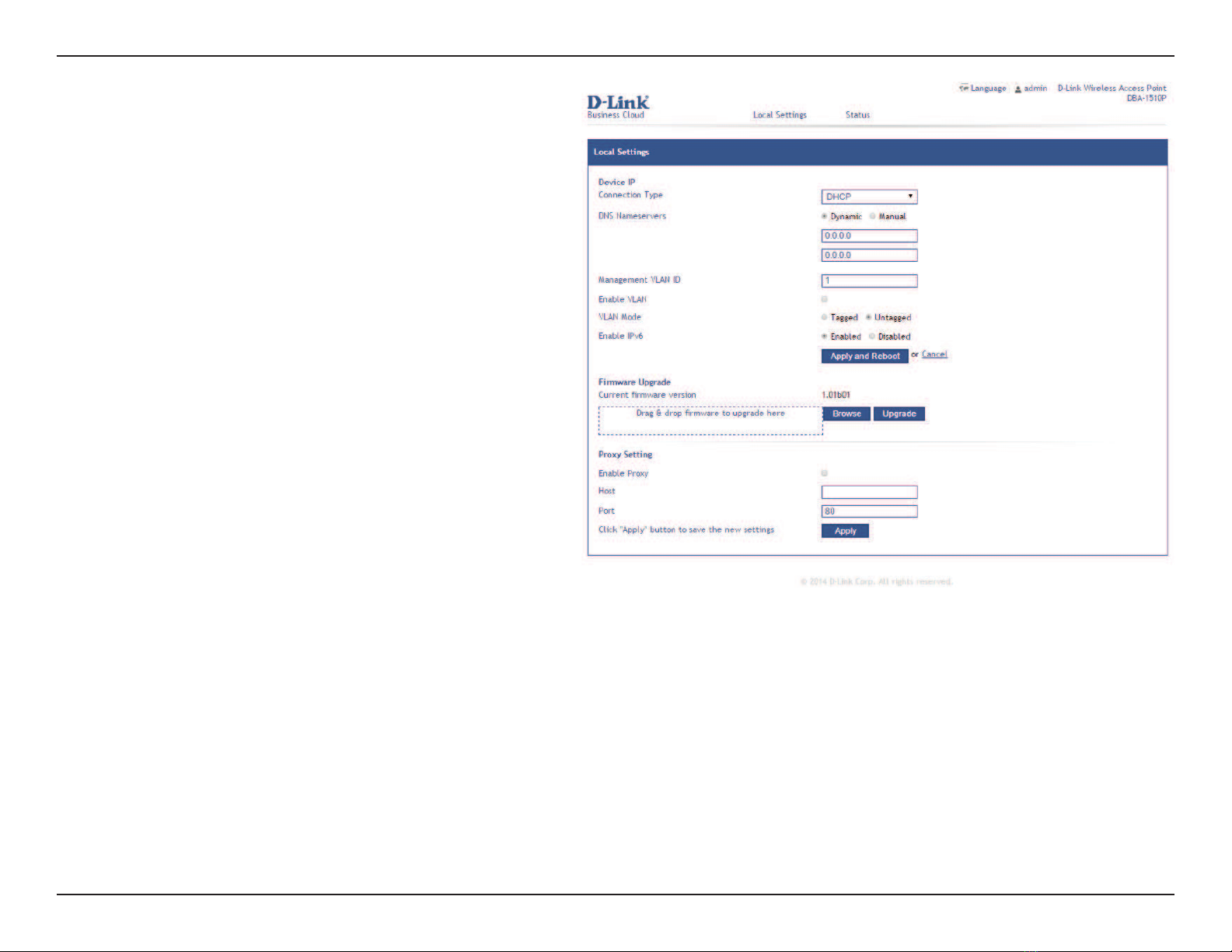

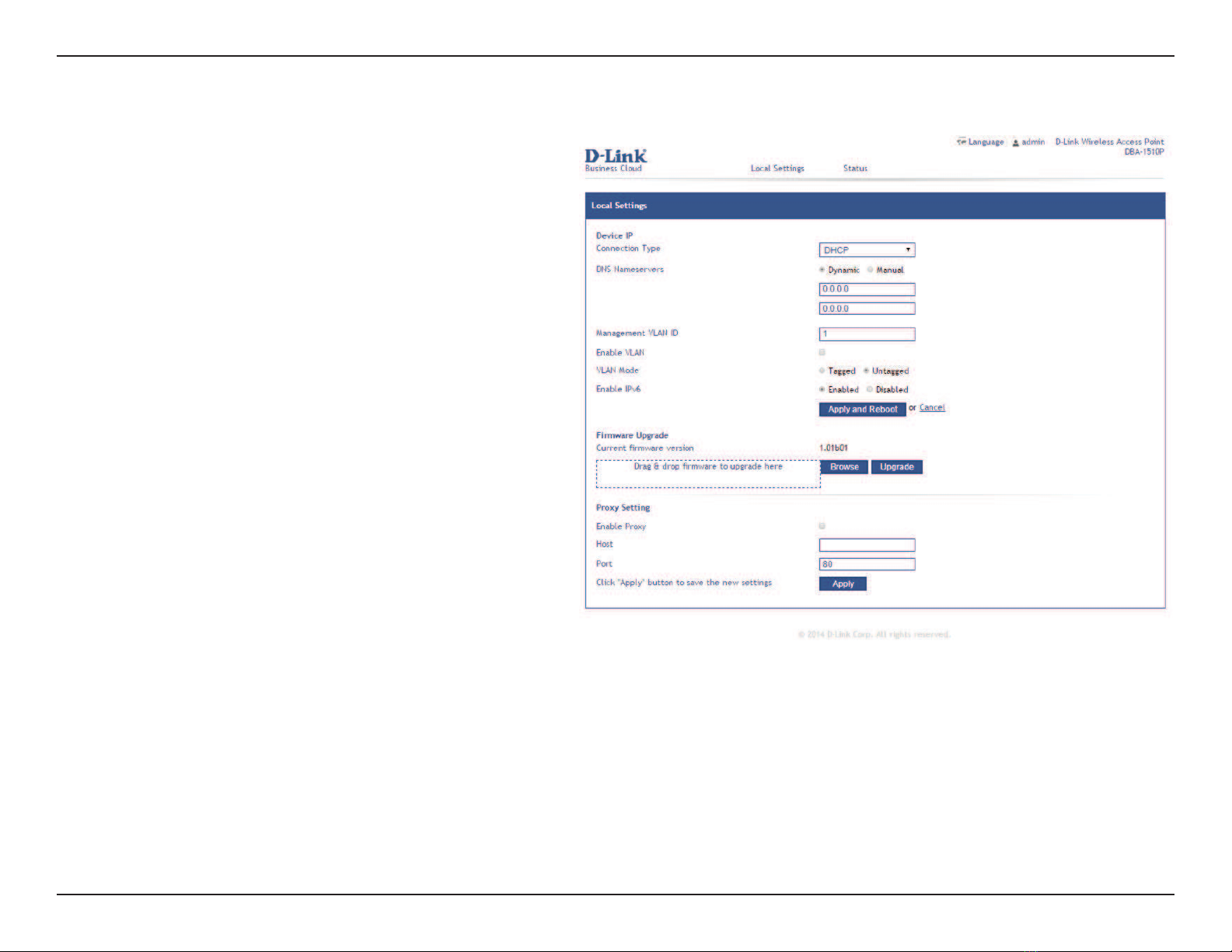

If you wish to change local settings for the DBA-1210P, you
may use the web-based conguration utility.
To access the conguration utility, open a web browser such
as Internet Explorer and enter the DBA-1210P hostname in
the address eld of your browser and then press Enter.The
default hostname is“DBA-1210P-XXXX”where XXXX is the
last 4 digits of the MAC address listed on the device label
located on the bottom of the device.

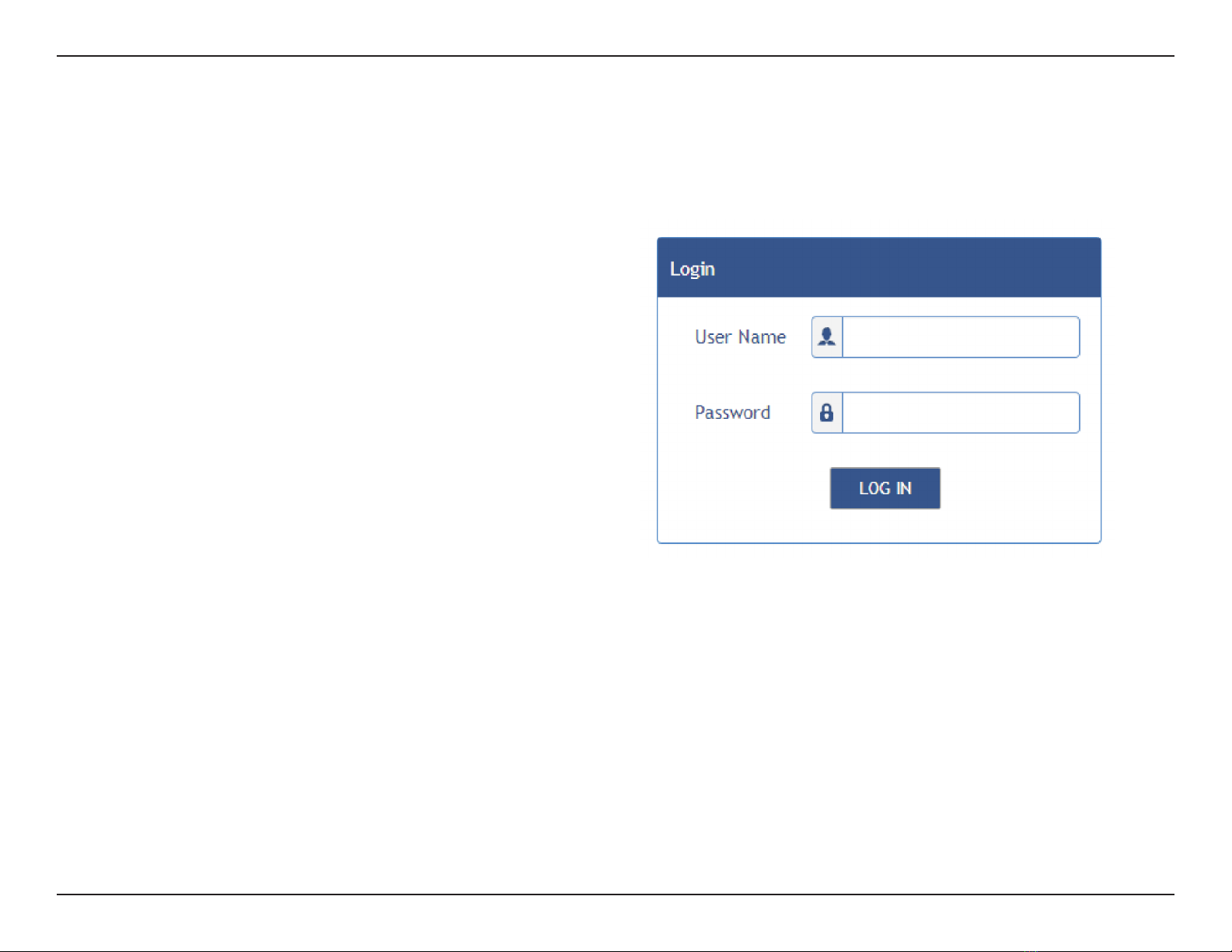

Enter admin into the User Name eld and then enteradmin
into the Password eld.

14D-Link DBA-1210P User Manual
Section 3 - Conguration

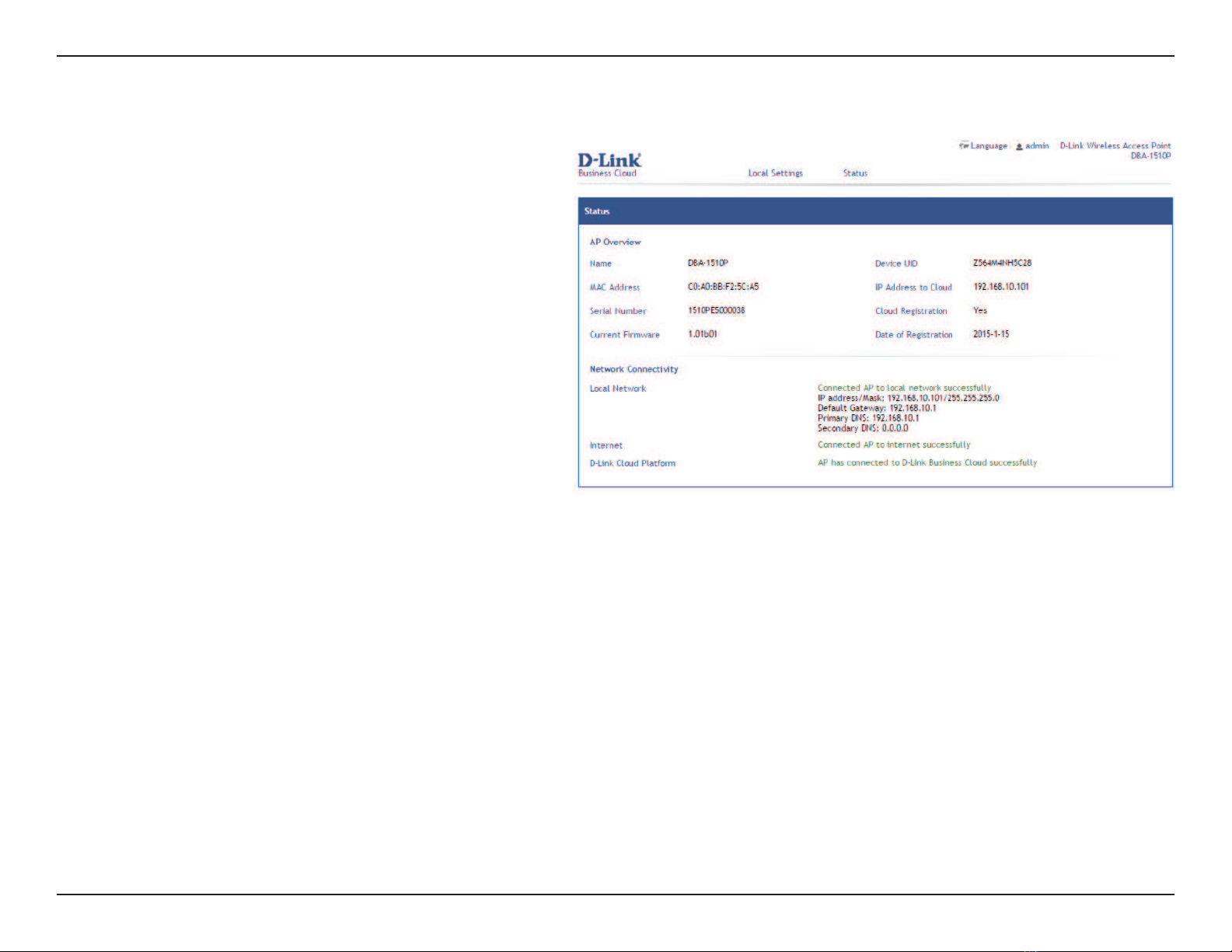

Access Point Status
From the Status page, you can view various information about the
DBA-1210P, including network status, Cloud connection status,
and device information. The following table describes the elds
and conguration options on the Status page.
Device name.
Ethernet MAC (ex. ethaddr=C0:A0:BB:6E:0A:B3)
Serial Number
Current running rmware version
The ID for D-Link Business Cloud Registration.
Ethernet IP address
The status of cloud registration. Yes/No.
The Date of registration. Ex. 2013/3/11
Local network status.
Internet connection status.
D-Link Business Cloud connection status.
Name:
Mac Address:
Serial Number:
Current
Firmware:
Device UID:
IP Address to
Cloud:
Cloud
Registration:
Date of
Registration:
Local Network:
Internet
Connection:
D-Link
Business
Cloud:

15D-Link DBA-1210P User Manual
Section 3 - Conguration
Access Point Local Settings
IfyouselectDHCP,theUAPacquiresitsIPaddress,
subnet mask, DNS, and gateway information
from a DHCP server.
If you select Static IP, you must enter information
intheStaticIPAddress,SubnetMask,andDefault
Gateway elds.
Select the mode for the DNS.
In Dynamic mode, the IP addresses for the DNS
servers are assigned automatically via DHCP.This
option is only available if you specied DHCP
for the Connection Type. In Manual mode, you
mustassignstaticIPaddressestoresolve domain
names.
The management VLAN is the VLAN associated
with the IP address you use to access the AP.The
default management VLAN ID is 1.
Provide a number between 1 and 4094 for the
management VLAN ID.
To enable VLAN, select the Enable VLAN check
box.
To disable VLAN , clear the Enable VLAN check
box.
Connection
Type:
DNS
Nameservers:
Management
VLAN ID:
Enable VLAN:
From the Local Settings page, you can manually congure the
network settings to fulll various network environments.

16D-Link DBA-1210P User Manual
Section 3 - Conguration
To enable VLAN tagging, select Tagged.
To enable VLAN untagged, select Untagged.
To enable IPv6 function, select Enabled.
To disable IPv6 function, select Disabled.
If you know the path to the new firmware
image le, enter it in the Image Filename eld.
Otherwise, click the Browse button and locate
the rmware image le.
ClickUpgrade toapplythenewrmwareimage.
UponclickingUpgradeforthermwareupgrade,
a popup conrmation window is displayed that
describes the upgrade process.
Click OK to conrm the upgrade and start the
process.
To enable proxy settings, select Enabled.
To disable proxy settings, select Disabled.
Proxy IPv4 address or URL.
Proxy port number.
VLAN Mode:
Enable IPv6:
Firmware
Upgrade:
Enable Proxy:
Host:
Port:

17D-Link DBA-1210P User Manual
Section 3 - Conguration
Device CLI Conguration
Access Point Status
YoucanviewvariousinformationbyusingthefollowingCLIcommands,includingnetworkstatus,Cloudconnectionstatus,anddevice
information. All of the parameters need the command apply to take eect.
Use the following steps to log into the CLI:
1. Connect the console cable to the console port of the device and the USB to RS-232 cable.
2. Connect the USB to RS-232 cable to the serial port of a PC, Apple, or UNIX workstation, start a terminal-emulation program, such as
HyperTerminal or TeraTerm.
3. Congure the terminal-emulation program to use the following settings:
• Baud rate: 115200 bps
• Data bits: 8
• Parity: none
• Stop bit: 1
• Flow control: none
4.The login name is admin.The default password is admin. After a successful login, the screen shows the“CLOUD_CLI>>”.
Action Commands
View the system information get system
View the model name get system model
View the MAC get management mac
View the serial number. get system serial-number
View the rmware version. get system version
View the device UID get system device-uid
View the Ethernet IP address get management ip
View cloud registration get system cloud-registration
View date of registration get system date-of-registration
View local network status get system local-network-status
View internet status get system internet-status
View cloud connection status get system cloud-connect-status

18D-Link DBA-1210P User Manual
Section 3 - Conguration
You can view various information by using the following CLI commands, including network status, Cloud connection status,
and device information. All of the parameters need the command apply to take eect.
Action Commands
Get Current Settings for the Ethernet (Wired) Internal Interface. get management
View the connection type. get management dhcp-status
Use DHCP as the connection type. set management dhcp
Use a Static IP as the connection type, and then static IP address, subnet mask
and default gateway. set management static static-ip ip_address mask netmask gateway ip_address
View the DNS name server mode. get host dns-via-dhcp
Set DNS Name servers to use static IP addresses. set host static-dns-1 ip_address
or
set host static-dns-1 ip_address static-dns-2 ip_address
Set DNS name servers to use DHCP IP addressing (Manual to Dynamic Mode). set host dns-via-dhcp {up | down}
View VLAN information. get management vlan-id
get management vlan-enable
get management vlan-mode
Enable/Disable the VLAN tagging. set management vlan-enable {up | down}
Set the VLAN ID. set management vlan-id value
Enable/Disable theVLAN mode. set management vlan-mode {tagged | untagged}
View IPv6 information. get management ipv6-enable
Enable/Disable IPv6 function. set management ipv6-enable {up | down}
Upgrade the device rmware. rmware-upgrade url
View Proxy information. get management proxy-enable
get management proxy-host
get management proxy-port
Enable/Disable Proxy server. set management proxy-enable {up | down}
Set IP address or domain name of proxy server. set management proxy-host ip_address
set management proxy-host domain_name
Set port number of proxy server. set management proxy-port port
Apply the conguration. apply
Exit command line. exit
Reboot the system. reboot
Access Point Local Settings

19D-Link DBA-1210P User Manual
Section 4 - Mounting
Mounting the Device
This section will show you how to congure your new
D-Link Business Cloud Wave 2 Access Point using the
web-based conguration utility.
To mount the DBA-1210P, use one of the following methods:

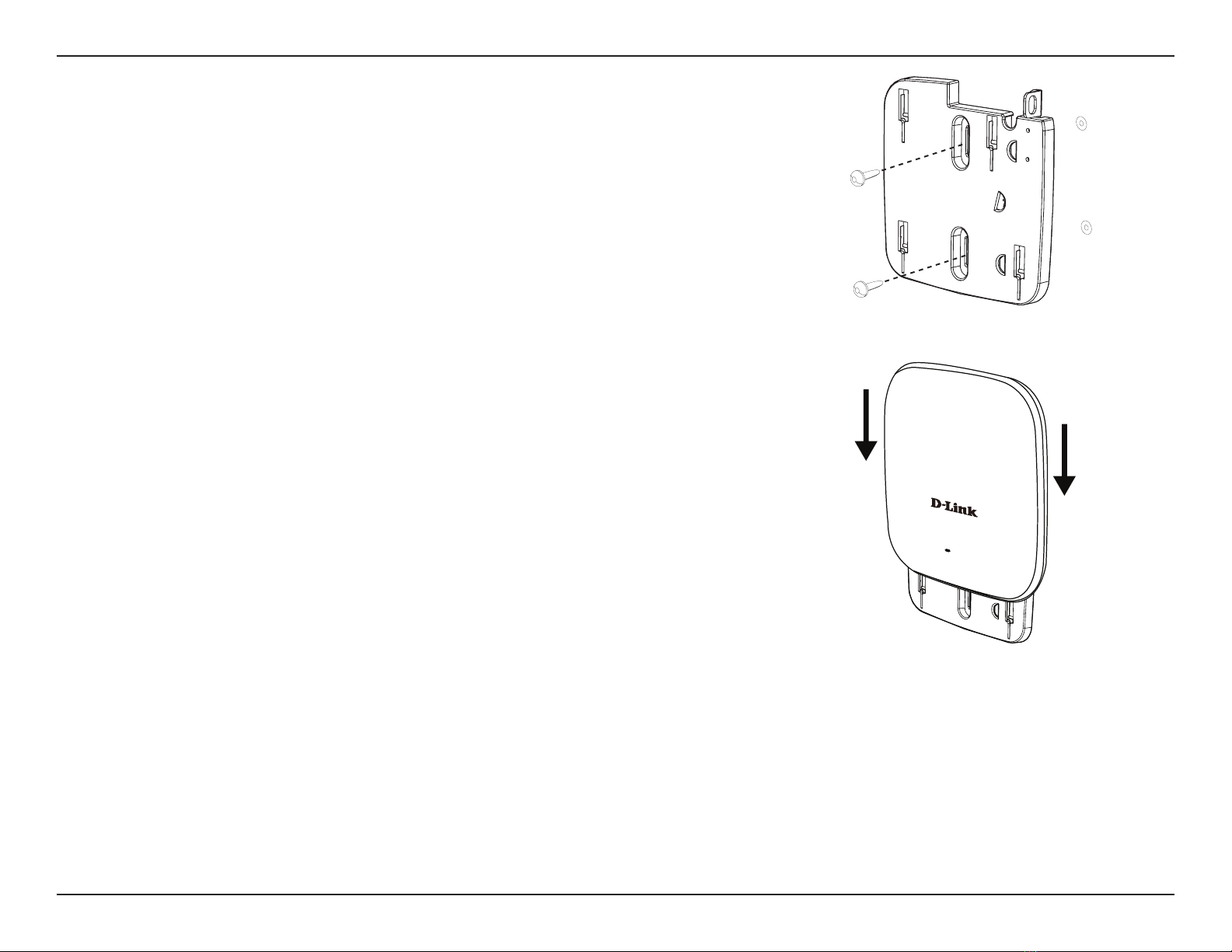

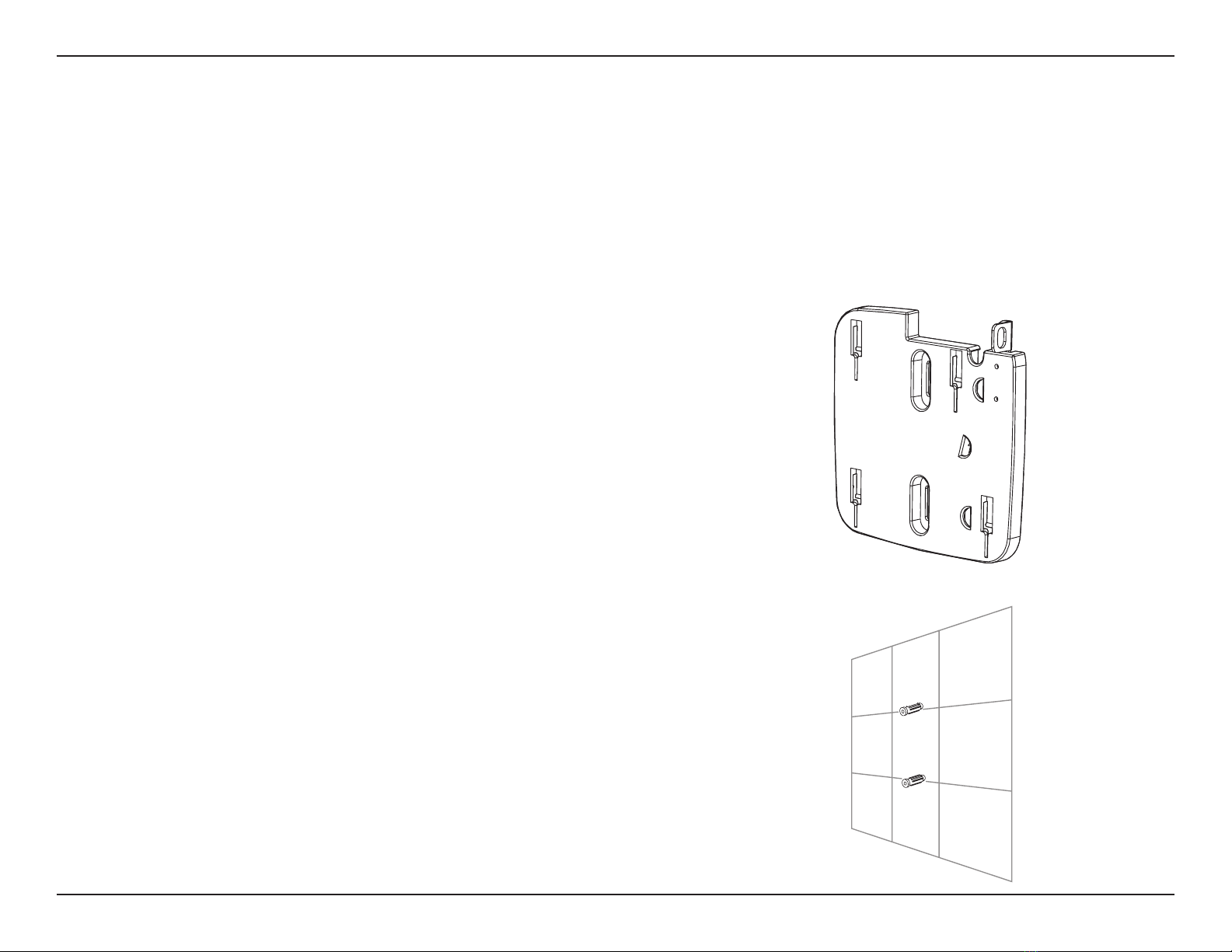

Solid wall or ceiling Installation
1. Place the mounting bracket on a wall or ceiling.
2. Mark the points where you will insert the screws. Take out
the mounting ring.
3. Drill holes in the marked points and insert the plastic wall
anchors.

20D-Link DBA-1210P User Manual
Section 4 - Mounting
4. Use the supplied screws to attach the mounting ring to the wall.
5. Plug the Ethernet cable into the LAN port on the access point.
6. To attach the access point to the mounting bracket.
