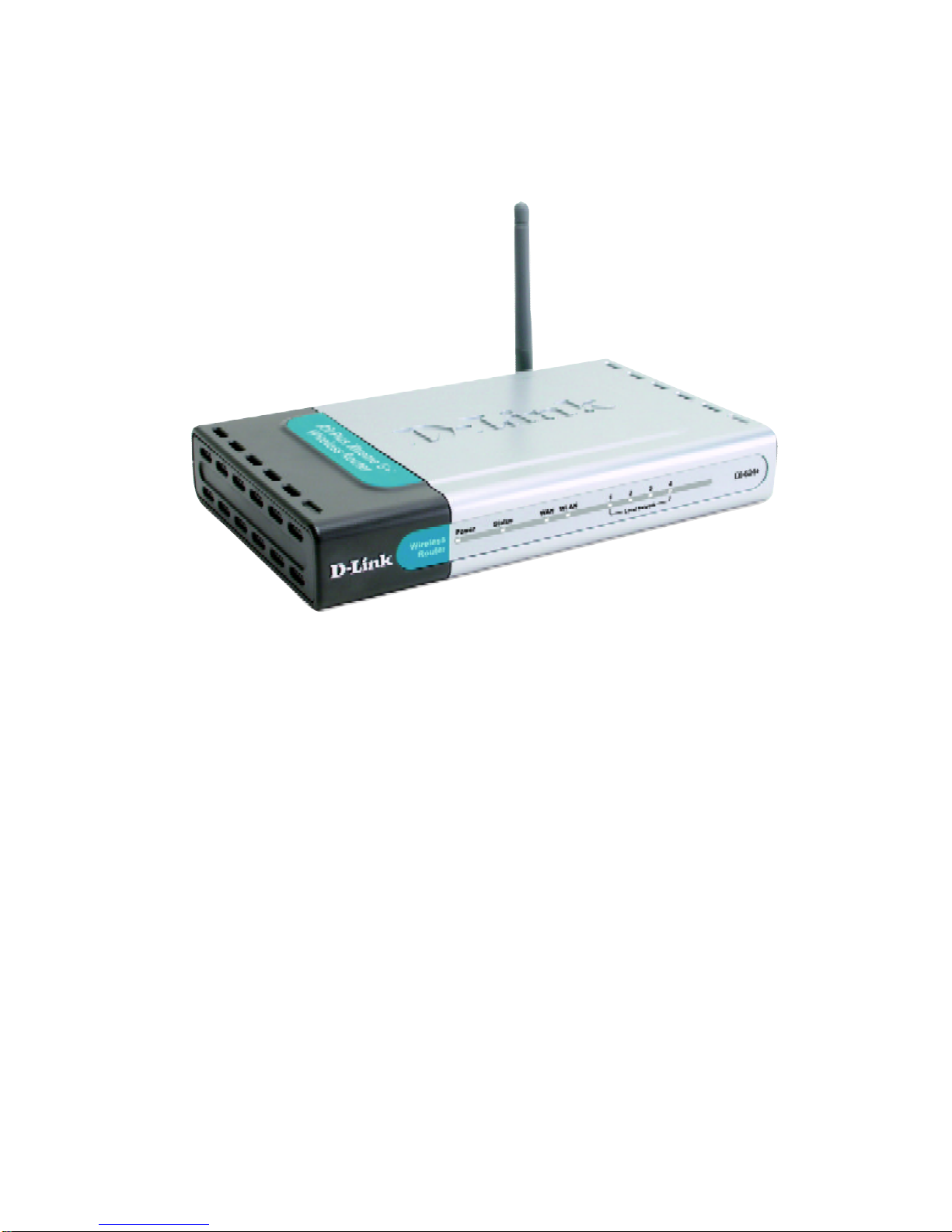

D-Link AirPlus Xtreme G+ DI-624+ User manual

High-Speed2.4GHz
Manual
Building Networks forPeople
Wireless Router
D-LinkAirPlusXtremeG+
DI-624+
TM

2
Contents
Package Contents................................................................................ 3
Introduction........................................................................................... 4
Wireless Basics ................................................................................... 8
GettingStarted................................................................................... 11
UsingtheConfigurationMenu............................................................. 12
Networking Basics ............................................................................. 39
Troubleshooting.................................................................................. 54
TechnicalSpecifications..................................................................... 61
FrequentlyAskedQuestions............................................................... 64
ContactingTechnicalSupport ............................................................. 92
WarrantyandRegistration................................................................... 93

3
InternetExplorerVersion 6.0orNetscapeNavigator
Version 6.0andAbove
ContentsofPackage:
D-LinkAirPlusXTREMEG+DI-624+
High-Speed 2.4GHzWireless Router
PowerAdapter-DC 5V,2.5A
Manualand Warrantyon CD
Quick InstallationGuide
EthernetCable(All theDI-624+’s EthernetportsareAuto-MDIX)
ComputerswithWindows,Macintosh,orLinux-based
operating systemswithan installed Ethernetadapter
PackageContents
Note:Using apowersupplywithadifferentvoltage rating than the one included withthe
DI-624+will causedamage and voidthe warrantyforthisproduct.
If anyofthe aboveitemsaremissing,pleasecontactyourreseller.
SystemRequirementsforConfiguration:
n
n
n
n
n
n
n
Ethernet-Based CableorDSLModem
n

4
Introduction
TheD-LinkAirPlusXtremeG+DI-624+High-Speed Wireless Routerisan 802.11g high-
performance,wireless routerthatsupportshigh-speed wireless networking athome,at
workorinpublicplaces.
Unlikemostrouters,the DI-624+providesdatatransfersatup to8X(compared tothe
standard11Mbps)whenusedwithotherD-LinkAirPlusXtremeGproducts.The802.11g
standardisbackwardscompatiblewith802.11b products.Thismeansthatyou do not
need tochange yourentirenetworktomaintainconnectivity.You maysacrificesomeof
802.11g’s speed when you mix802.11b and 802.11g devices,butyou will notlosethe
abilitytocommunicatewhen you incorporatethe 802.11g standardintoyour802.11b
network.You maychoosetoslowlychange yournetworkbygraduallyreplacing the 802.
11b deviceswith802.11g devices.
Inadditiontooffering fasterdatatransferspeedswhen used withother802.11gproducts,
theDI-624+hasthe newest, strongest, mostadvanced securityfeaturesavailabletoday.
When used withother802.11g WPA (WiFiProtected Access)and 802.1xcompatible
productsinanetworkwithaRADIUSserver,the securityfeaturesinclude:
WPA*AvailablearoundQ4/2003asafreedownload.:Wi-FiProtectedAccessauthorizes
and identifiesusersbased on asecretkeythatchangesautomaticallyata
regularinterval.WPAusesTKIP(TemporalKey IntegrityProtocol)tochange
thetemporalkeyevery10,000packets(apacketisakindofmessagetransmitted
overanetwork.)Thisinsuresmuchgreatersecuritythan the standardWEP
security.(Bycontrast, the olderWEPencryption required the keys tobe changed
manually.)
802.1x*Availablearound Q4/2003 asafree download.:Authentication isafirstline of
defenseagainstintrusion.IntheAuthentication process the serververifiesthe
identityofthe clientattempting toconnecttothe network.Unfamiliarclients
wouldbe denied access.
Forhomeusersthatwill notincorporateaRADIUSserverintheirnetwork,the security
forthe DI-624+,used inconjunction withother802.11g products,will still be much
strongerthan everbefore.Utilizing the PreSharedKey modeofWPA,theDI-624+will
obtainanewsecuritykeyeverytimeitconnectstothe 802.11g network.You onlyneed
toinputyourencryption information onceinthe configuration menu.Nolongerwill you
havetomanuallyinputanewWEP keyfrequentlytoensuresecurity,withtheDI-624+,
you will automaticallyreceiveanewkeyeverytimeyou connect, vastlyincreasing the
safetyofyourcommunications.

5
Connections
All EthernetPorts(WANand LAN)
areautoMDI/MDIX,meaningyoucan
useeitherastraight-through ora
crossoverEthernetcable.
The AutoMDI/
MDIXWAN portis
the connection for
the Ethernetcable
tothe Cableor
DSLmodem
AutoMDI/MDIX
LAN ports
automaticallysense
the cabletype when
connecting to
Ethernet-enabled
computers.
Receptor
forthe
Power
Adapter
Pressing the
ResetButton
restoresthe
routertoits
originalfactory
defaultsettings.

6
LEDs
WLANLED
Asolidlight
indicatesthatthe
wireless segment
isready.ThisLED
blinks during
wireless data
transmission
POWERLED
Asolidlight
indicatesaproper
connection tothe
powersupply
STATUS
Ablinking light
indicatesthatthe
DI-624+isready
WANLED
Asolidlightindi-
catesconnection
on the WANport.
ThisLEDblinks
duringdatatrans-
mission
LOCAL
NETWORKLED
Asolidlightindicates
aconnection toan
Ethernet-enabled
computeron ports1-
4.ThisLEDblinks
during datatrans-
mission

7
Features
WPA*Availablearound Q4/2003 asafree download.(WiFiProtectedAccess)
authorizesand identifiesusersbased on asecretkeythatchangesautomati-
callyataregularinterval,forexample:
802.1x*Availablearound Q4/2003 asafree download.Authentication in
conjunction withthe RADIUSserververifiesthe identityofwouldbe clients
n
n
n
TKIP(TemporalKeyIntegrityProtocol),inconjunction withaRADIUS
server,changesthetemporalkeyevery10,000packets,ensuringgreater
security
PreSharedKey mode meansthatthe homeuser,withoutaRADIUS
server,will obtainanewsecuritykeyeverytimethe he orshe connects
tothe network,vastlyimproving the safetyofcommunicationson the
network.
nBackwardscompatiblewiththe 802.11b standardtoprovide awireless data
rateofup to11Mbps
n
Fullycompatiblewiththe 802.11g standardtoprovide awireless datarateof
up to54Mbps
n
nUtilizesOFDMtechnology(OrthogonalFrequency Division Multiplexing)
nUser-friendlyconfiguration and diagnosticutilities
Operatesinthe 2.4GHzfrequencyrange
n
nConnectsmultiplecomputerstoaBroadband (CableorDSL)modemto
sharethe Internetconnection
nIPFiltering
nAdvancedFirewallfeatures
nDHCPserversupported enablesall networked computerstoautomatically
receiveIPaddresses
nWeb-basedinterfaceforManaging andConfiguring
Access Controltomanage userson the network
n
nSupportsspecialapplicationsthatrequiremultipleconnections
nEquipped with410/100MbpsEthernetports,1WANport,AutoMDI/MDIX
nURLFiltering
nDomainBlocking
Scheduling
nSupportsNATwithVPNpass-through,providing added security
nMACFiltering
n

8
Wireless Basics
D-Linkwireless productsarebased on industrystandardstoprovide easy-to-useand
compatiblehigh-speed wirelessconnectivitywithinyourhome,businessorpublicaccess
wireless networks.D-Linkwireless productswill allowyou access tothe datayou want,
whenandwhereyouwantit.Youwillbeabletoenjoythefreedomthatwirelessnetworking
brings.
AWLANisacellularcomputernetworkthattransmitsand receivesdatawithradio
signalsinstead ofwires.WLANsareused increasinglyinbothhomeand office
environments,andpublicareassuchasairports,coffeeshopsanduniversities.Innovative
ways toutilizeWLANtechnologyarehelping peopletoworkand communicatemore
efficiently.Increased mobilityand the absenceofcabling and otherfixed infrastructure
haveproven tobe beneficialformanyusers.
Wireless userscan usethe sameapplicationstheyuseon awired network.Wireless
adaptercardsusedonlaptopanddesktopsystemssupportthesameprotocolsasEthernet
adaptercards.
Peopleusewireless LANtechnologyformanydifferentpurposes:
Mobility-Productivityincreaseswhen peoplehaveaccess todatainanylocation
withinthe operating range ofthe WLAN.Managementdecisionsbased on real-time
information can significantlyimproveworkerefficiency.
LowImplementation Costs–WLANsareeasy tosetup,manage,change and
relocate.NetworksthatfrequentlychangecanbenefitfromWLANseaseofimplementation.
WLANscan operateinlocationswhereinstallation ofwiring maybe impractical.
Installation and NetworkExpansion -Installing aWLANsystemcan be fastand
easy and can eliminatethe need topull cablethrough wallsand ceilings.Wireless
technologyallowsthe networktogo wherewirescannotgo -even outside the homeor
office.
Scalability–WLANscan be configured inavarietyoftopologiestomeetthe needsof
specificapplicationsand installations.Configurationsareeasilychanged and range from
peer-to-peernetworkssuitableforasmallnumberofuserstolargerinfrastructurenetworks
toaccommodatehundredsorthousandsofusers,depending onthe numberofwireless
devicesdeployed.
Inexpensive Solution -Wireless networkdevicesareascompetitivelypriced as
conventionalEthernetnetworkdevices.

9
Standards-BasedTechnology
The DI-624+Wireless Broadband Routerutilizesthe new802.11gstandard.
The IEEE 802.11gstandardisan extension ofthe 802.11b standard.It increasesthe
datarateup to54 Mbpswithinthe 2.4GHzband,utilizing OFDMtechnology.
Thismeansthatinmostenvironments,withinthe specified range ofthisdevice,you will
be abletotransferlarge filesquicklyoreven watchamovieinMPEGformatoveryour
networkwithoutnoticeabledelays.Thistechnologyworks bytransmitting high-speed
digitaldataoveraradiowaveutilizingOFDM(OrthogonalFrequencyDivisionMultiplexing)
technology.OFDMworks bysplitting the radiosignalintomultiplesmallersub-signals
thatarethen transmitted simultaneouslyatdifferentfrequenciestothe receiver.OFDM
reducesthe amountofcrosstalk(interference)insignaltransmissions.
TheDI-624+isbackwardscompatiblewith802.11b devices.Thismeansthatifyou have
an existing 802.11b network,the devicesinthatnetworkwill be compatiblewith802.11g
devicesatspeedsofup to11Mbpsinthe 2.4GHzrange.
Wireless Basics (continued)

10
Wireless Basics (continued)
Installation Considerations
The D-LinkAirPlusXtremeG+DI-624+letsyou access yournetwork,using awireless
connection,fromvirtuallyanywherewithinitsoperating range.Keep inmind,however,
thatthe number,thickness and location ofwalls,ceilings,orotherobjectsthatthe
wireless signalsmustpass through,maylimitthe range.Typicalrangesvarydepending
on the typesofmaterialsand background RF(radiofrequency)noiseinyourhomeor
business.The keytomaximizing wireless range istofollowthesebasicguidelines:
Keep thenumberofwallsandceilingsbetweentheDI-624+and othernetwork
devicestoaminimum-eachwall orceiling can reduceyourD-Linkwireless
product’s range from3-90 feet(1-30 meters.)Position yourdevicessothat
the numberofwallsorceilingsisminimized.
Beawareofthe directline between networkdevices.Awall thatis1.5feet
thick (.5meters),ata45-degree angleappearstobe almost3feet(1meter)
thick.Ata2-degree angleitlooks over42 feet(14 meters)thick!Position
devicessothatthe signalwill travelstraightthrough awall orceiling (instead
ofatan angle)forbetterreception.
Keep yourproductaway(atleast3-6feetor1-2meters)fromelectrical
devicesorappliancesthatgenerateextremeRFnoise.
Building Materialscan impede the wireless signal-asolidmetaldooror
aluminumstudsmayhaveanegativeeffectonrange.Trytoposition wireless
devicesand computerswithwireless adapterssothatthe signalpasses
through drywall oropen doorways and notothermaterials.
1
2
3
4

11
PleaserememberthatD-LinkAirPlusXtremeG+wireless devicesarepre-
configured toconnecttogether,rightoutofthe box,withtheirdefaultsettings.
You will need broadband Internetaccess (aCableorDSL-subscriberline into
yourhomeoroffice)
ConsultwithyourCableorDSLproviderforproperinstallation ofthe modem
Connectthe CableorDSLmodemtotheDI-624+Wireless Broadband Router
(see the printed Quick Installation Guide included withyourrouter.)
If you areconnecting adesktop computertoyournetwork,install theD-Link
AirPlusXtremeG+DWL-G520+wireless PCIadapterintoan availablePCIslot
on yourdesktop computer.You mayalsoinstall theDWL-520+.
(See the printed Quick Installation Guide included withthe networkadapter.)
Install theD-LinkDWL-G650+wireless Cardbusadapterintoalaptop computer.
(See the printed Quick Installation Guide included withthe DWL-G650+.)
Getting Started
Foratypicalwireless setup athome(as shownabove),
please do thefollowing:
Setting up a
Wireless
Infrastructure
Network
1
2
3
4
Install theD-LinkDFE-530TX+adapterintoadesktop computer.The four
EthernetLANportsoftheDI-624+areAutoMDI/MDIXand will workwithboth
Straight-ThroughandCross-Overcable.
(See the printed Quick Installation Guide included withthe DFE-530TX+.)
6
5

12
Type admininthe User
Namefield
Leavethe Passwordblank
Click OK
Wheneveryou wanttoconfigureyournetworkorthe
DI-624+,you can access the Configuration Menu by
opening the web-browserand typing inthe IPAddress
oftheDI-624+.TheDI-624+defaultIPAddress is
shownatright:
nOpen the web browser
nType inthe IPAddress of
the Router(http://192.168.0.1)
n

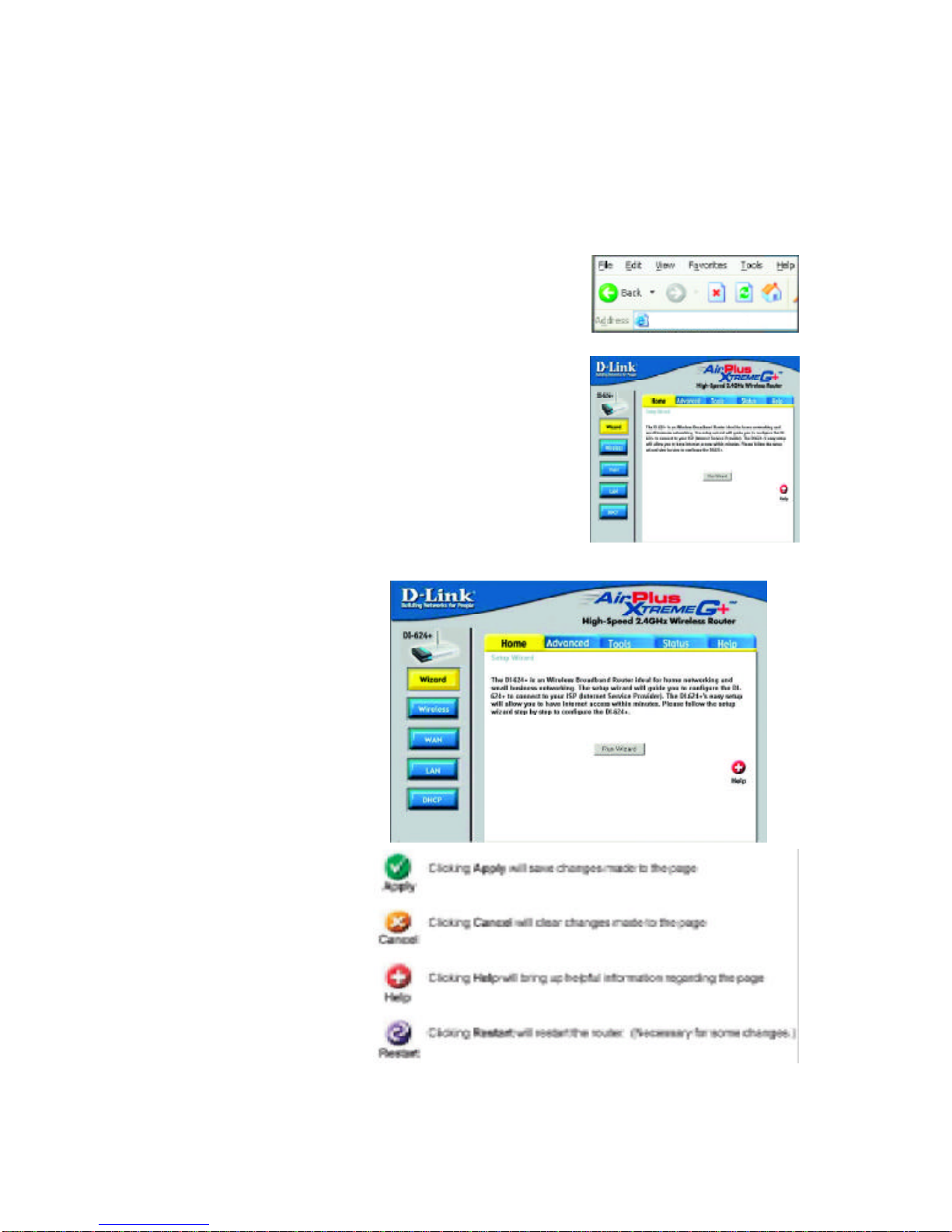

Using the Configuration Menu
Home>Wizard
The Home>Wizard
screen will appear.
Pleaserefertothe
Quick Installation
Guideformoreinfor-
mationregardingthe
Setup Wizard.
Note:ifyou havechanged the defaultIPAddress assigned
tothe DI-624,makesuretoenterthe correctIPAddress.
n
Thesebuttonsappear
on mostofthe configu-
ration screensinthis
section.Pleaseclick on
the appropriatebutton
atthe bottomofeach
screen afteryou have
made aconfiguration
change.
http://192.168.0.1
n

13
Using theConfiguration Menu (continued)

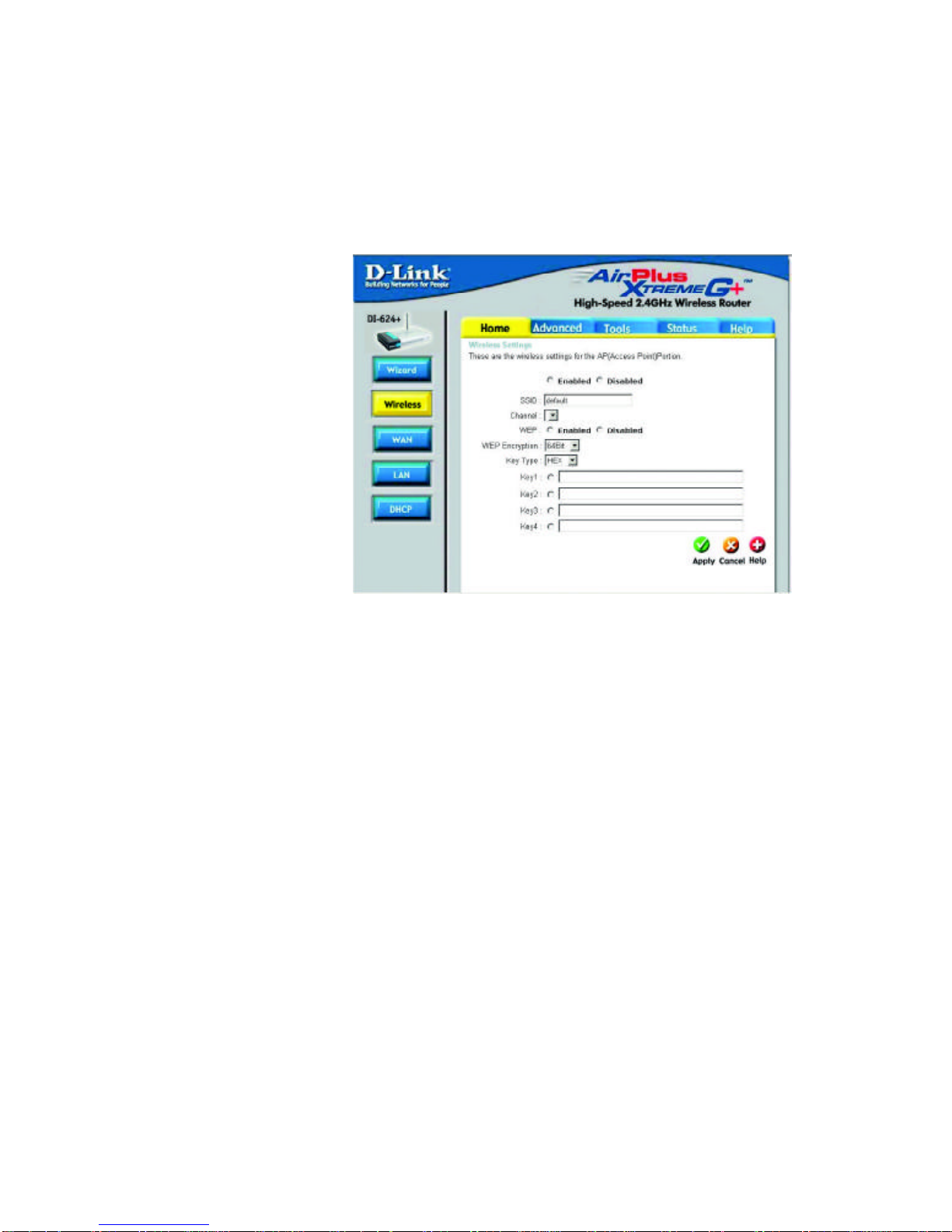

Home>Wireless
Keys 1-4-Inputup to4WEP keys;selectthe one you wishtouse.
Key Type-SelectHEX orASCII
WEP Encryption-Selectthe levelofencryption desired:64-bit, or128-bit
SSID-ServiceSetIdentifier(SSID)isthe namedesignated foraspe-
cificwireless localarea network(WLAN).The SSID’s factory
defaultsetting isdefault.The SSIDcan be easilychanged to
connecttoan existing wireless networkortoestablishanew
wireless network.
WEP-Wired EquivalentPrivacy (WEP)isawireless securityprotocol
forWireless LocalAreaNetworks (WLAN).WEP providessecu-
ritybyencrypting the datathatissentoverthe WLAN.Select
EnabledorDisabled.Disabledisthe defaultsetting.(Note:If
you enableencryption on theDI-624+makesuretoalsoenable
encryption on all the wireless clientsorwireless connection will
notbe established.)
Channel-6isthe defaultchannel.All deviceson the networkmustshare
the samechannel.(Note:The wireless adapterswill automati-
callyscan and matchthe wireless setting.)

14
Using theConfiguration Menu (continued)

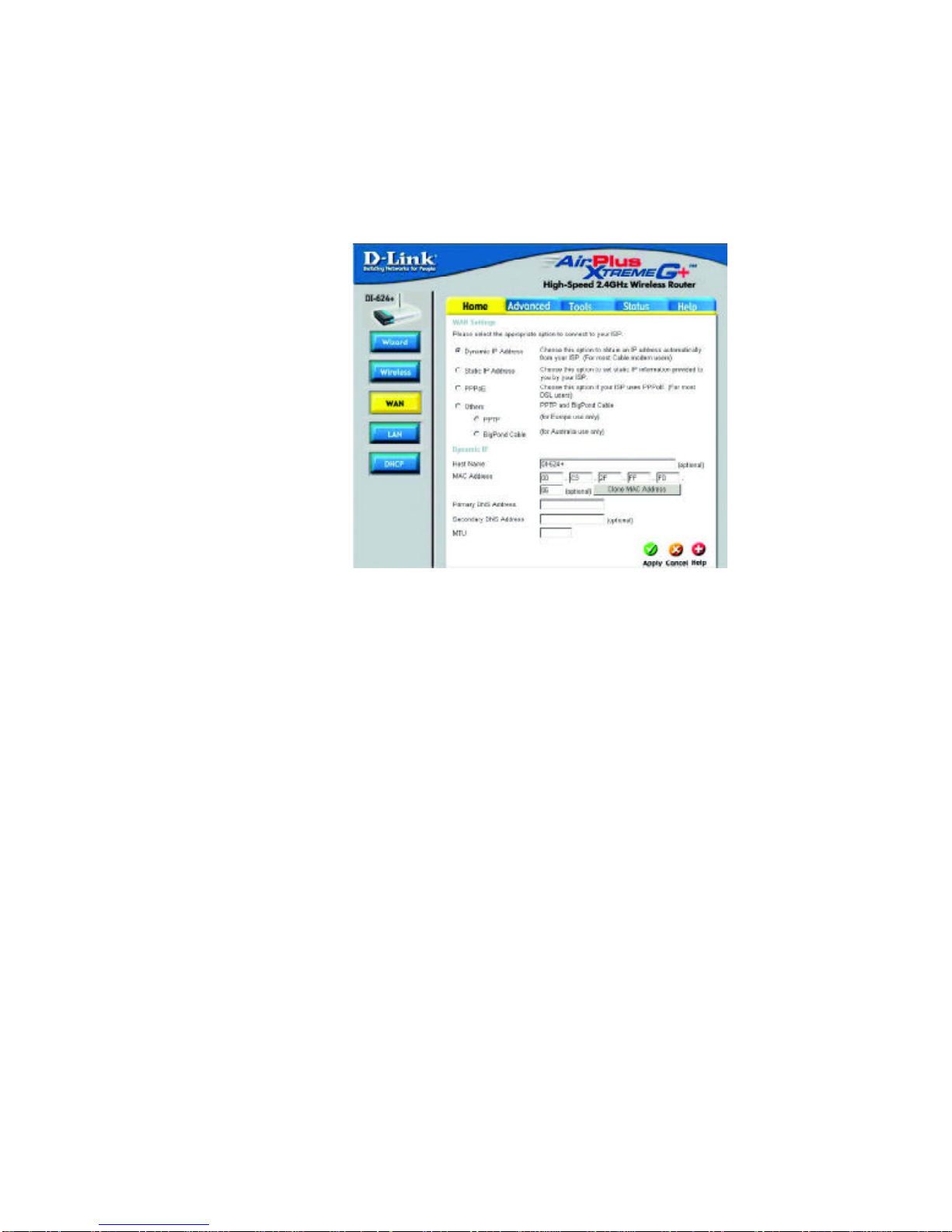

Home>WAN >DynamicIPAddress
DI-754
HostName-The HostNameisoptionalbutmaybe required bysomeISPs.
The defaulthostnameisthedevicenameofthe Routerand may
bechanged.
MAC Address-The defaultMACAddress issettothe WAN’s physicalinter-
faceMACaddress on the Broadband Router.It isnotrecom-
mended thatyou change the defaultMACaddress unless re-
quired byyourISP.
Clone
MAC Address-The defaultMACaddress issettothe WAN’s physicalinterface
MACaddress on the Broadband Router.You can usethe “Clone
MACAddress”button tocopythe MACaddress ofthe Ethernet
Cardinstalled byyourISP and replacethe WANMACaddress
withthe MACaddress ofthe router.It isnotrecommended that
you change the defaultMACaddress unless required byyour
ISP.
Dynamic
IPAddress-ChooseDynamicIPAddress toobtainIPAddress information
automaticallyfromyourISP.Selectthisoption ifyourISP does
notgiveyou anyIPnumberstouse.Thisoption iscommonly
used forCablemodemservices.
Primary/
SecondaryDNS
Address-
EnteranMTUvalueonlyifrequiredbyyourISP.Otherwise,leave
itathe defaultsetting.
MTU-
EnteraDNSAddress ifyou do notwishtousethe one
provided byyourISP.

15
Using theConfiguration Menu (continued)

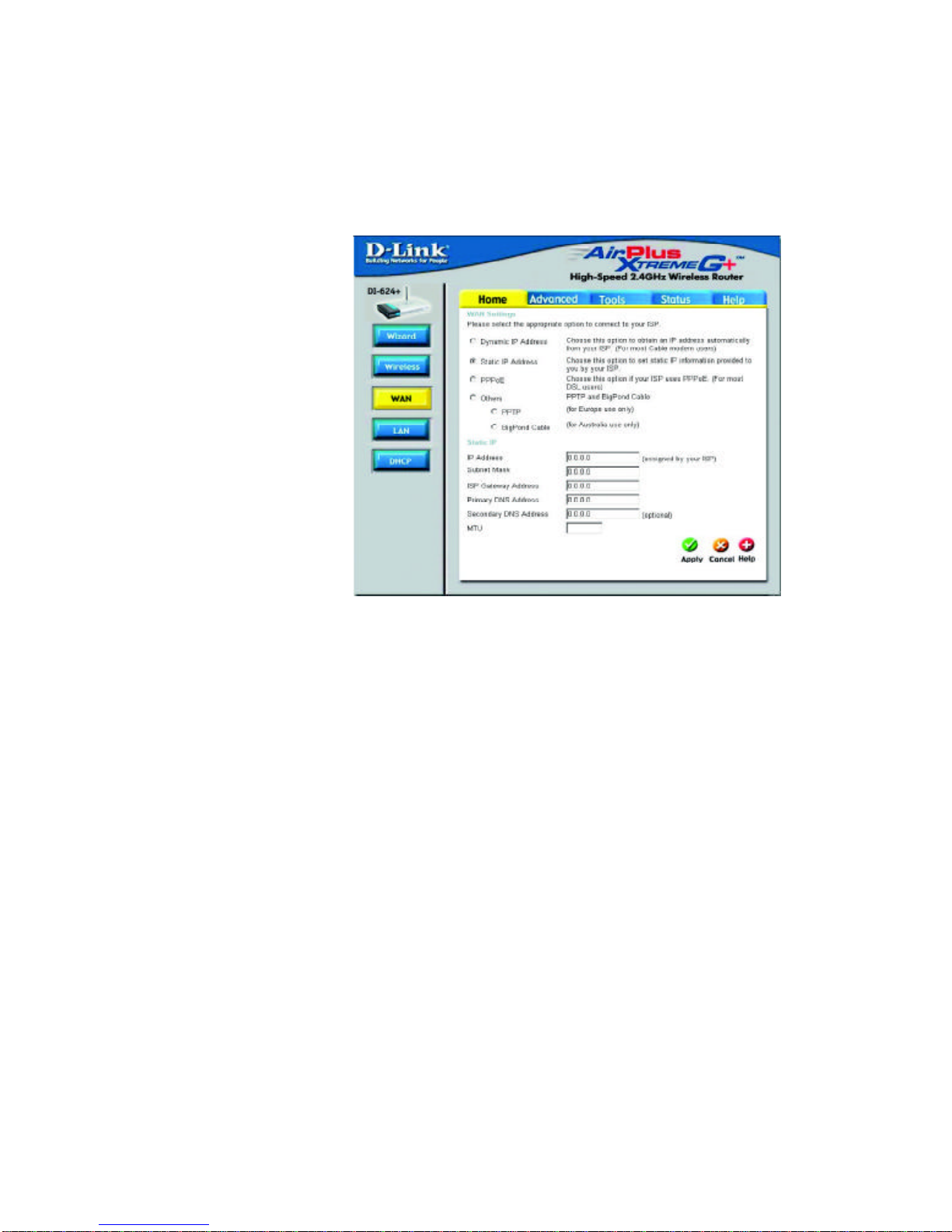

Home>WAN >StaticIPAddress
StaticIPAddress-
IPAddress-
SubnetMask-
ISP
Gateway Address-
Primary
DNSAddress-
Secondary
DNSAddress-
ChooseStaticIPAddress ifallWANIPinformationisprovided to
you byyourISP.You will need toenterinthe IPaddress,subnet
mask,gatewayaddress,andDNSaddress(es)provided toyou
byyourISP.EachIPaddress entered inthe fieldsmustbe inthe
appropriateIPform,whicharefouroctetsseparated byadot(x.
x.x.x).The Routerwill notacceptthe IPaddress ifitisnotinthis
format.
Inputthe publicIPAddress provided byyourISP
InputyourSubnetmask.(All devicesinthe networkmusthave
the samesubnetmask.)
Inputthe publicIPaddress ofthe ISP towhichyou are
connecting
Inputthe primaryDNS(DomainNameServer) IPaddress
provided byyourISP
Thisisoptional
EnteranMTUvalueonlyifrequiredbyyourISP.Otherwise,leave
itatthe defaultsetting.
MTU-

16
Using theConfiguration Menu (continued)

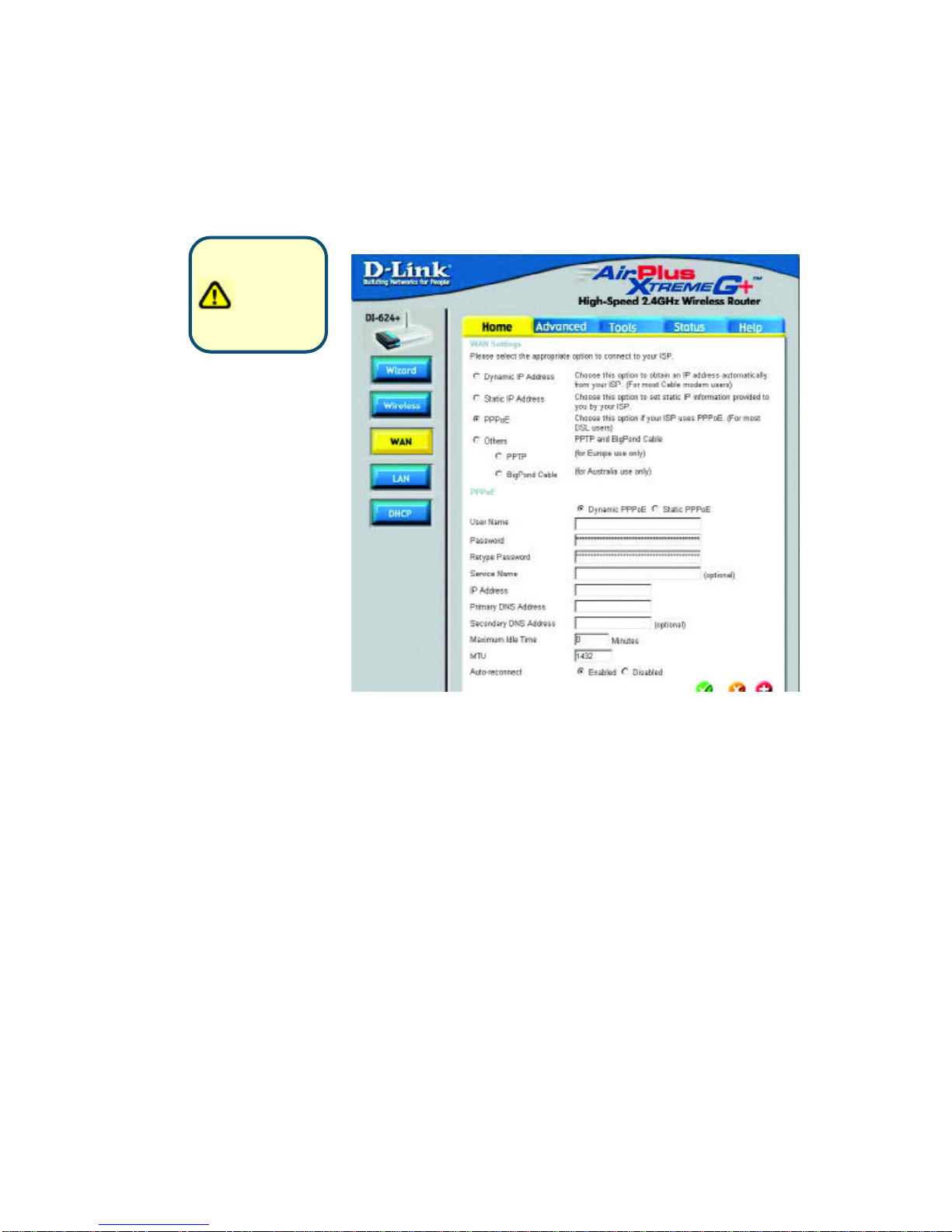

Home>WAN >PPPoE
IPAddress-Thisoption isonlyavailableforStaticPPPoE.Enterthe static
IPAddress forthe PPPoEconnection.
(Continued on the nextpage)
UserName-YourPPPoEusernameprovided byyourISP.
Service Name-Enterthe ServiceNameprovided byyourISP (optional).
RetypePassword-Re-enterthe PPPoEpassword
PPPoE-
StaticPPPoE-you havean assigned (static)IPAddress.
Choosethisoption ifyourISP usesPPPoE.(MostDSLusers
will selectthisoption.)
DynamicPPPoE-receiveanIPAddressautomaticallyfromyourISP.
PrimaryDNS
Address-PrimaryDNSIPaddress provided byourISP
SecondaryDNS
Address-Thisoption isonlyavailableforStaticPPPoE.Enterthe static
IPAddress forthe PPPoEconnection.
ChoosePPPoE(Point
toPointProtocolover
Ethernet)ifyourISP
usesaPPPoE
connection.YourISP
will provide you witha
usern amea n d
password.Thisoption
istypicallyused for
DSLservices.Select
DynamicPPPoEtoob-
tainan IPaddress au-
tomaticallyforyour
PPPoEconnection.
SelectStaticPPPoE
touseastaticIPad-
dressforyourPPPoeE
connection.
Pleasebe sureto
removeany
existing
PPPoEclient
software
installed on your
computers.

17
Using theConfiguration Menu (continued)
Home>WAN >PPPoEcontinued

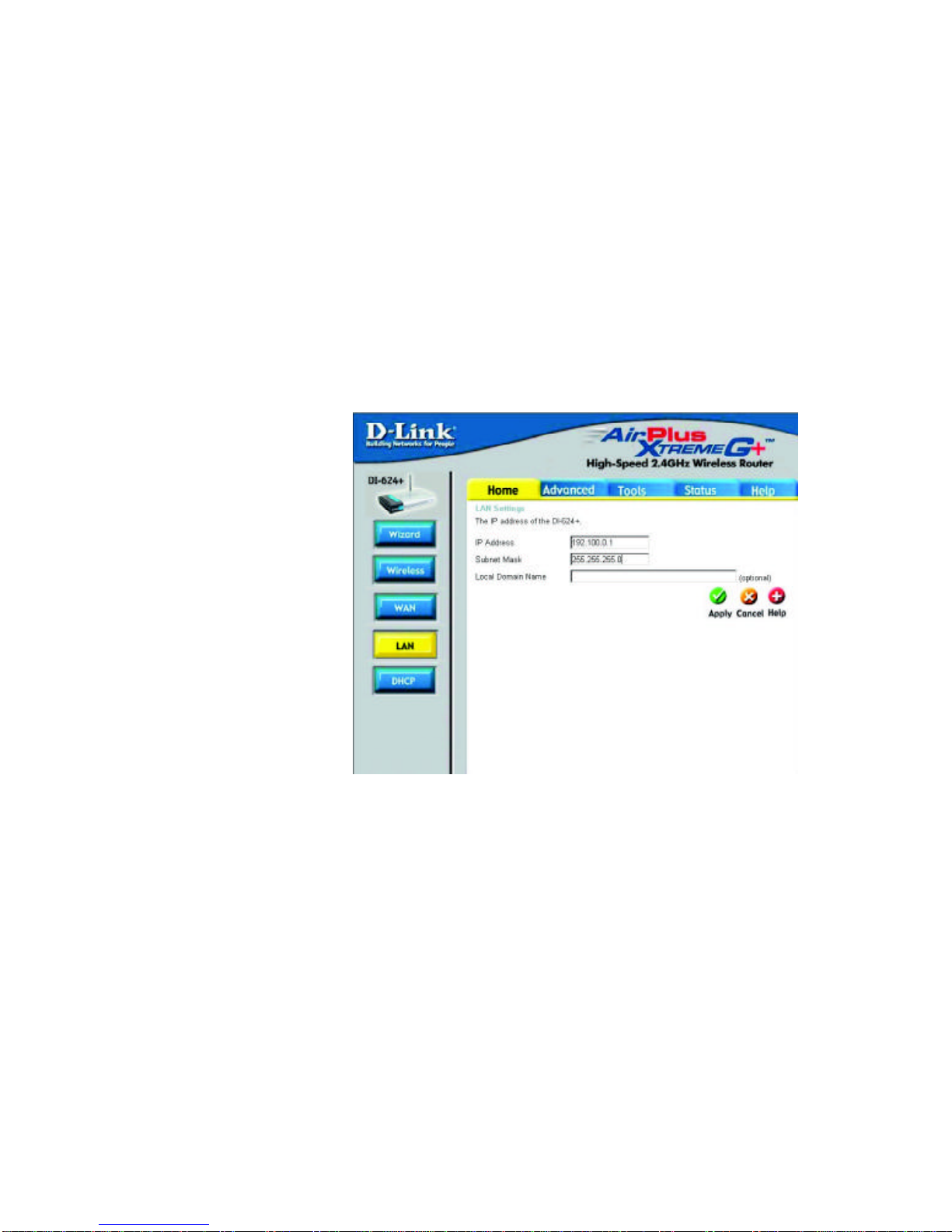

Home>LAN
LANisshortforLocalAreaNetwork.Thisisconsidered yourinternalnetwork.Theseare
the IPsettingsofthe LANinterfacefortheDI-624+.Thesesettingsmaybe referred toas
Privatesettings.You maychange the LANIPaddress ifneeded.The LANIPaddress is
privatetoyourinternalnetworkand cannotbe seen on the Internet.
Auto-reconnect- If enabled,the DI-624+will automaticallyconnecttoyourISP
afteryoursystemisrestarted orifthe PPPoEconnection is
dropped.
MTU-MaximumTransmissionUnit-1492 isthe defaultsetting-you may
needtochangetheMTUforoptimalperformancewithyourspe-
cificISP.
LocalDomain-Thisfieldisoptional.Enterinthe localdomainname.
SubnetMask-The subnetmask ofthe LANinterface.
The defaultsubnetmask is255.255.255.0
IPAddress-The IPaddress ofthe LANinterface.The defaultIPaddress is:
192.168.0.1

18
Using theConfiguration Menu (continued)

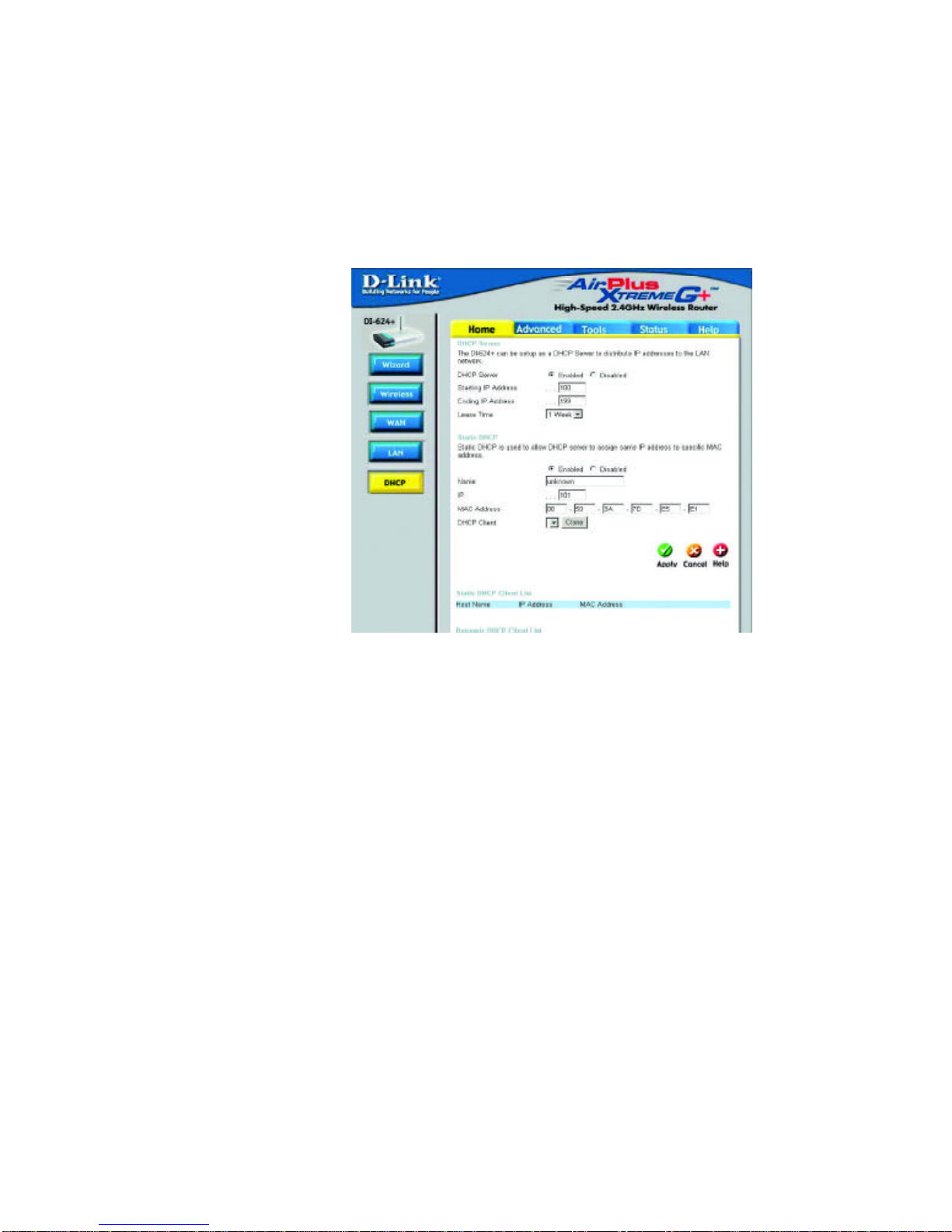

Home>DHCP
DHCPstandsforDynamicHostControlProtocol.TheDI-624+hasabuilt-inDHCPserver.
TheDHCPServerwill automaticallyassign an IPaddress tothe computerson the LAN/
privatenetwork.BesuretosetyourcomputerstobeDHCPclientsbysetting theirTCP/
IPsettingsto“Obtainan IPAddressAutomatically.”When you turnyourcomputerson,
theywill automaticallyload the properTCP/IPsettingsprovided bythe DI-624+.The
DHCPServerwill automaticallyallocatean unused IPaddress fromthe IPaddress pool
tothe requesting computer.You mustspecifythe starting and ending address ofthe IP
address pool.
DHCPServer-SelectEnabledorDisabled.The defaultsetting isEnabled.
Starting
IPAddress-The starting IPaddress fortheDHCPserver’s IPassignment
Ending
IPAddress-The ending IPaddress fortheDHCPserver’s IPassignment
Lease Time-The lengthoftimeforthe IPlease.Enterthe Leasetime.The
defaultsetting isone hour
DI-754

19

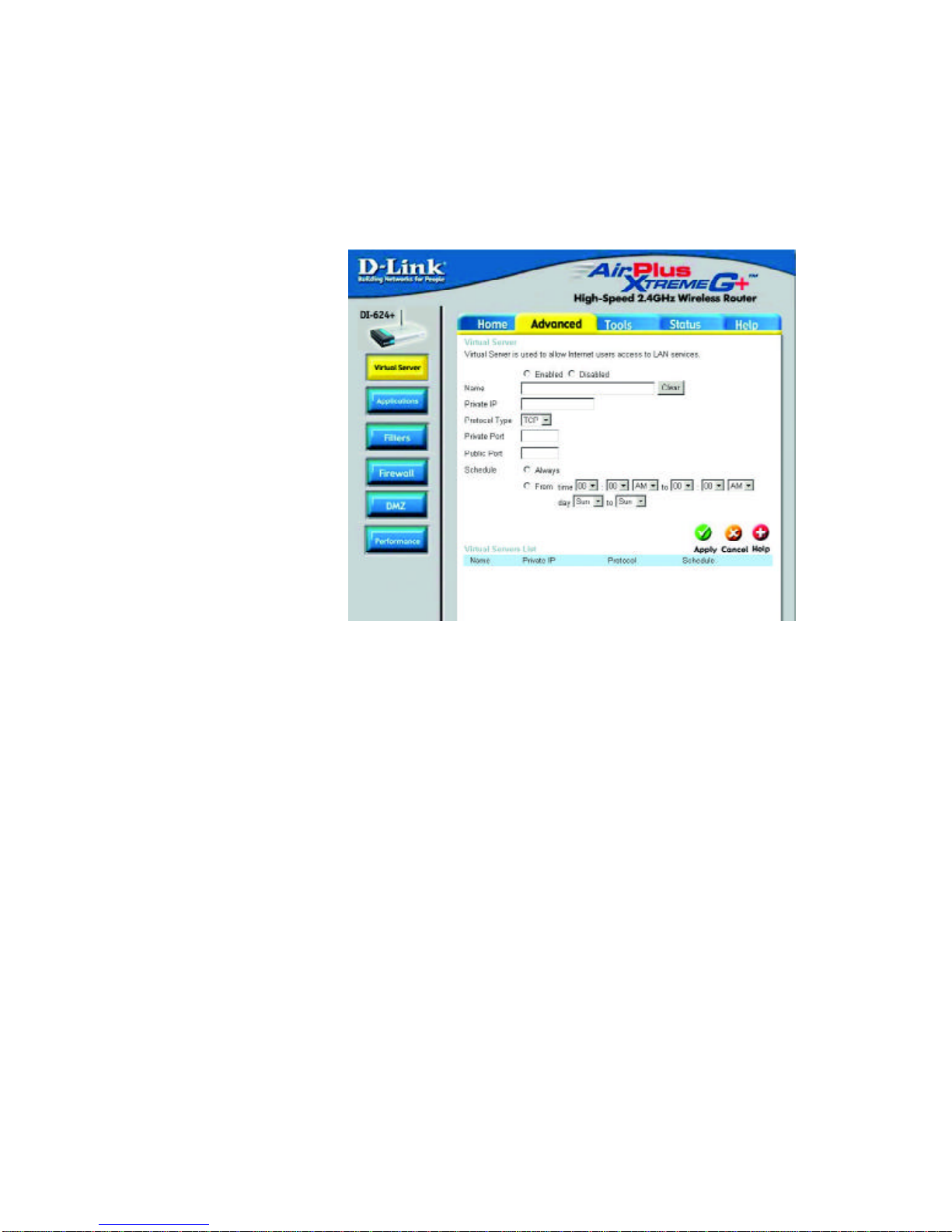

Advanced>VirtualServer
Using theConfiguration Menu (continued)
TheDI-624+can be configured asavirtualserversothatremoteusersaccessing Web
orFTPservicesviathe publicIPaddress can be automaticallyredirected tolocal
serversinthe LAN(LocalAreaNetwork).
TheDI-624+firewall featurefiltersoutunrecognized packetstoprotectyourLAN
networksoall computersnetworked withtheDI-624+areinvisibletothe outside
world.If you wish,you can makesomeofthe LANcomputersaccessiblefromthe
Internetbyenabling VirtualServer.Depending on the requested service,theDI-624+
redirectsthe externalservicerequesttothe appropriateserverwithinthe LANnetwork.
TheDI-624+isalsocapableofport-redirection meaning incoming traffictoaparticular
portmaybe redirected toadifferentporton the servercomputer.
Eachvirtualservicethatiscreated will be listed atthe bottomofthe screen inthe
VirtualServersList. Therearepre-defined virtualservicesalreadyinthe table.You
mayusethembyenabling themand assigning the serverIPtousethatparticular
virtualservice.

20
Advanced>VirtualServercontinued
Using theConfiguration Menu (continued)
Example#1:
ProtocolType-The protocolused forthe virtualservice
PublicPort- The portnumberon the WAN(WideAreaNetwork)side thatwill
be used toaccess the virtualservice.
PrivatePort- The portnumberofthe serviceused bythe PrivateIPcomputer
Schedule-The scheduleoftimewhen the virtualservicewill be enabled.
The schedulemaybe settoAlways,whichwill allowthe
particularservicetoalways be enabled.If itissettoTime,
selectthe timeframeforthe servicetobe enabled.If the
systemtimeisoutside ofthe scheduled time,the servicewill
be disabled.
VirtualServer-SelectEnabledorDisabled
Name-Enterthe namereferencing the virtualservice
PrivateIP-Theservercomputerinthe LAN(LocalAreaNetwork)thatwill be
providingthevirtualservices.
If you haveaWeb serverthatyou wanted Internetusersto
access atall times,you wouldneed toenableit. Web (HTTP)
serverison LAN(LocalAreaNetwork)computer192.168.0.
25.HTTPusesport80,TCP.
Name:WebServer
PrivateIP:192.168.0.25
ProtocolType:TCP
PrivatePort: 80
PublicPort: 80
Schedule:always
