D-Teg TX4000B User manual

TX4000
3G ENABLED VEHICLE RECORDER
Thank you for purchasing the TX4000 Vehicle Recorder.
Model: TX4000GE (with 3G module for WCDMA Band1(2,100MHz)/
Band8 (900MHz))
Model: TX4000B (without 3G module)
Please ensure that you read and understand this USER GUIDE
and use it before connecting and installing this Recorder.
Please store the USER GUIDE in an easily accessible location.
USER GUIDE
VER 1.0.0 1st Edition

2
SAFETY ADVICE
GPS RECEPTION
CONTENTS
INTRODUCTION
FUNCTIONS
LEDS &BUZZER SPECIFICATION
INSTALLATION
Operation –On Screen Display
Axis Adjustments by Device Positions

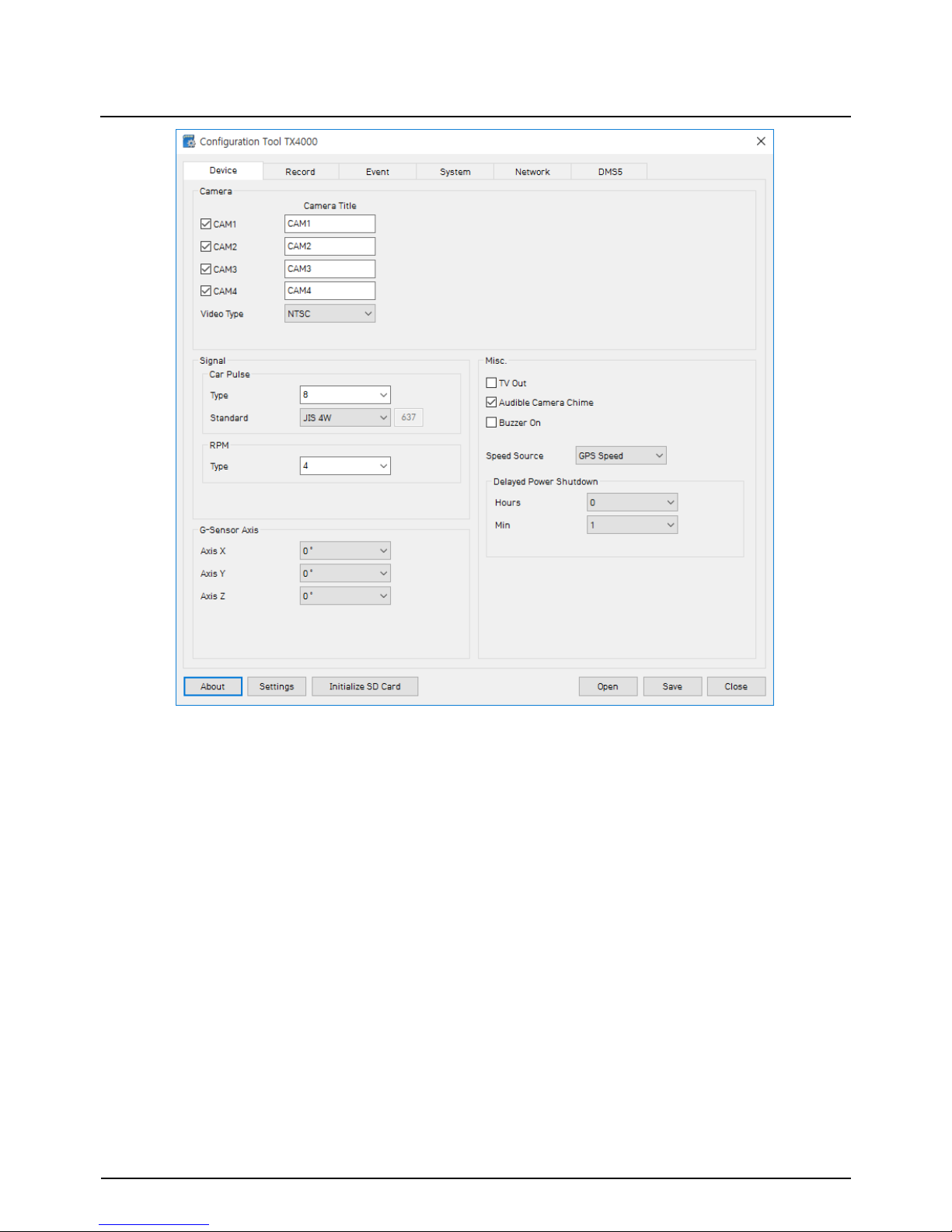

CONFIGURATION TOOL USER GUIDE
SOFTWARE INSTALLATION
INITIALIZE SD CARD
DEVICE SETTINGS
RECORD SETTINGS
EVENT SETTINGS
SYSTEM SETTINGS
NETWORK SETTINGS
DMS5 SETTINGS
SOFTWARE USER GUIDE
PC VIEWER SOFTWARE SETTINGS
OPEN THE SD CARD
OPEN FILES
PLAYBACK
DRIVE DATA
TRACKING MAP
EVENT SEARCH
PRIVACY SETTINGS
SAVE JPEG AND MP4 FILE
PRINT IMAGE
BACKING UP FILES
BACKUP DATA LIST AND EXPORT
SPECIFICATION
APPENDIX RECORDING TIME TABLE
APPENDIX UPGRADE
TECHNICALSUPPORT AND WARRANTY
INDEX
3
4
5
6
8
11
12
13
14
17
18
19
20
21
23
25
26
19
28
30
31
32
33
35
36
37
38
39
40
41
42
43
44
45
46

3
Caution
Damages due to productionmalfunction,loss of data, or other damages occurring
while using this product shall not be the responsibility of the manufacturer.
Although the productis a device used for recording videos,the product maynot save
all videos in the case of a malfunction. In the case of an accident, the sensor may not
recognize the shock when the impact is light and as a result it may not begin
recording automatically.
SAFETY ADVICE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
Caution
Install the product where it does not block driver’s visibility and where there is
no airbag installed. This could cause an accident or might injure passengers in
case of accident
Please make sure you follow the safety advice/instructions given in the user guide.
Caution
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Batteryfor RTC(Real Time Clock) inside

4
GPS RECEPTION
1. Activate the product in an area without large buildings to
improve GPS reception.
2. The temperature range for optimum operation of the
GPS receiver in your car is -10 ~ 50°C.
3. When using the product for the first time or after a long
period (more than three days), it may take a little longer to
recognize your current location.
It may take between five and thirty minutes to get GPS reception.
GPS reception may be impaired under the following circumstances
1) If there is an object at the end of the GPS antenna
2) If your vehicle has metallic elements on the windshields
3) If equipment generating electromagnetic waves that interfere with the GPS
signal is installed in the vehicle e.g.: Other GPS devices such as a certain
type of wireless activatedalarms, MP3 and CD players and camera alarms
using GPS.
4) If you are using a receiver connected by cable, electric interference can be
avoided by simply changing the location of the receiver (antenna).
5) On heavily overcast or cloudy days, if the vehicle is in a covered location
such as under a bridge or raised roadway, in a tunnel, an underground
roadway or parking area, inside a building or surrounded by high-rise
buildings.
6) If GPS signal reception is poor, it may take longer to locate your current
position when the vehicle is moving than when it is stationary.
The commercial purpose GPS has the average range error of more
than 15 meters and the range error could be more than 100 meters
due to environmental conditions like buildings, roadside trees etc.

5
CONTENTS
TX4000
Vehicle Recorder
Camera input cable
Remote Controller
(with double sided tape)
Power Cable
GPS Antenna module
Wire Splice clip and Velcro Sticker
3G Antenna (onlyfor TX4000GE)
Audio/Video out cable

6
INTRODUCTION
Serial port
FRONT
REAR
SD Memory Card Slot
SD Locking Switch
External Microphone input
Debug port for
development
USB port for Wi-Fi dongle
Camera input
Remote Controller input
GPS input USB to Serial input
Audio/Video output &
Speed, RPM, Alarm inputs
Power input
3G antenna connector
(Only for TX4000GE)
Internal Microphone
& Buzzer

7
INTRODUCTION
Remote Controller
M2 button M1 button
PANIC
Button
POWER CABLE
Green LED (Network)
Blue LED (Record)
Red LED (Warning)
Black (Ground)
Red (Power Battery +)
White (Power ACC + )
Blue (Speed)
Brown (Alarm out2 ), Low(0V) to High (5V)
3 x Black (Ground)
Orange (Alarm out1), Low(0V) to High (5V)
Alarm in/out Cable
White (Alarm In1, Voltage on/off (3~70V))
Green (Alarm In3, Voltage on/off (3~70V))
Gray (RPM)
Purple (Alarm In2, Voltage on/off (3~70V))

8
FUNCTIONS
Automatic Booting
Make sure the main unit and all component are properly connected.
Once the TX4000 has been wired to your car power source the TX4000 will be
boot up, this will take around 30 seconds for the unit to be ready to record.
Continuous Record (When Record mode set as “Continuous”)
This is the default mode for recording. In this setting the unit will begin recording
after boot up and record the entire time the unit is powered.
The resolution and frame rates can be set as per your requirements. You can change
the configuration of the recording using the TX4000 configuration Tool. To do this,
please see the ‘Settings’ section on page 21.
NOTE: The unit will not start recording immediately after power on. It takes
around 30 seconds for the built-in power backup system to charge. Thereafter,
the SD card will be ready to record.
Dual Record (Continuous & Event Record)
The continuous record fps is 1fps and the file will be stored on the “Normal” folder.
Event record will work according to the Fps setting for example 30frames per second
recording and the file will be stored on the “Event” folder
Event Record (When Record mode set as “Event”)
The unit will record when triggered by an impact(G-Sensor) or a push of the ‘PANIC’
button or Over speed or Alarm In1~3. Each event file contains up to 20 seconds prior
& up to 20 seconds post event.
And the event file can be extended by 2nd trigger during event record.
When events are triggered continuously, for every event, 20 seconds post-recording
from the time of the event will be added to the event data file with a maximum
recording time of 3 minutes. When this 3 minutes is reached, the file will be split and a
new file will be created but the data will be continuous.
Do not Record
The DRV (Drive Data) file will be recorded during driving at “Do Not Record” mode.
And the unit can send limited API like live track to Server.
NOTE: The DRV file consists of GPS and G-sensor data and it helps to find specific data
or driving behaviors. The DRV file overwrites the oldest data. The DVR files will be
made every 10 minutes.

9
FUNCTIONS
G-Sensor Calibration
1. Set G-Sensor Axis using the configuration tool.
2. “selfadj.ini” should be in the config folder of the SD card.
3. Install the unit and park the vehicle on a flat surface .
4. Turn on the unit and wait until it start record.
5. Press and hold the “M1” button more than 2 seconds.
6. You will hear “beep” when you press “M1” button and then you will hear
another “beep” after 2seconds. Then release “M1” button.
7. Then calibration will be done within 2 seconds.
Built-in power backup (Super Capacitor)
When power to the unit is interrupted, TX4000 creates the last
file using the internal Super Capacitor.
Time and Date
Set your time zone using the configuration tool then TX4000 get’s time from the
GPS satellite's.
SD Memory Card Format
Please format [initialize] the SD card using the “Configuration Tool TX4000”
software.
G-Sensor Calibration is needed after installing the TX4000.
Power off vehicle and take out SD memory card
Turn off the power and then check the BLUE LED light. Once the LED light
is not on, you can now safely remove the SD memory card.
Safely Removal SD Card

10
FUNCTIONS
Parking Mode Recording
Live Screening
With an external monitor attached, the TX4000 offers the option to screen video
live.
With parking mode activated and on normal recording mode, the TX4000 will
change to parking mode when the vehicle is not moving for more than 5 minutes,
recording at 1 FPS.
To optimize use and prolong life of your SD cards please follow the below
instructions.
1. Use only compatibly tested SD cards.
2. Only use dry and clean SD cards.
3. Format SD cards at least once every month or when the SD card seems
corrupted. This will wipe all data, images, and file names on the card
reducing recording errors.
4. Insert or remove SD cards only when the device is completely powered off.
Wait until the blue LED is completed off before removing SD card.
5. SD cards used for continuously recording equipment such as a drive record
er, typically last only 6~12 months. Exchange SD cards periodically
Precautions for SD cards
Delayed Power Shutdown
Control the duration of time using the configuration tool. TX4000 stays powered
and recording/networking after shutdown.

11
LEDS & BUZZER SPECIFICATION

12
INSTALLATION
Park your vehicle on a flat level surface.
Turn off the engine before installing the TX4000.
1) Find installation location for TX4000 like Glove box, under dash, trunk.
2) Use provided Velcro adhesive to secure TX4000 recorder. Velcro can be
attached and detached freely.
NOTE: The adhesive will not stick well with dust or oil, etc.
Please make sure the surface is clean before applying.
3) Install the cameras(sold separately) with double side tape to the windshield
or other flat surfaces as been below. Adjust camera view. Make sure the lens
has an unobstructed view.
Interior Camera
Exterior Camera
4) Install the remote controller onto dash within reach of the driver using
provided double side tape.
5) Arrange the power cable neatly alongside of the windshield and door pillar
trim. The TX4000 requires a continuous 12/24volt power source from the
vehicle. Connect the “Red cable (Battery+)” to a fuse (see
picture below). It should be connected to a fuse that has
power all the time from car battery. And the “White
cable(ACC+)” should be connected to a fuse that has
power when you start the engine. The ground cable
should be contacted at the car body or battery negative.
Start on the car after installation.

13
Operation –On Screen Display
The following displays can only be seen when a monitor is connected.
The default display is 2*2 with all cameras shown, to change, press [M2] button to
select which camera to view. Each press will change the camera on display with
the last option being all camera views.
4Cameras(2x2) => Camera1 => Camera2 => Camera3 => Camera4

14
Axis Adjustments by Device Positions
Driving Direction
F
: Front
RR
: Rear
T
: Top
B
: Bottom
R
: Right-side
L
: Left side
T
L
B
RRF
X: 0, Y: 0, Z:0
T
L
B
FRR
X: 0, Y: 0, Z:180
1) When device is in an upright position
T
F
B
LR
X: 0, Y: 0, Z:270
T
RR
B
RL
X: 0, Y: 0, Z:90
2) When device is in an upside down position
B
L
T
RRF
X: 180, Y: 0, Z:0
B
L
T
FRR
X: 180, Y: 0, Z:180
B
F
T
LR
X: 180, Y: 0, Z:270
B
RR
T
RL
X: 180, Y: 0, Z:90

15
Axis Adjustments by Device Positions
3) When device is in a sideway position with the TOP to the left
R
L
RR
F
L
R
F
RR
X: 270, Y: 0, Z:0 X: 270, Y: 180, Z:0
F
RR
R
L
RR
F
L
R
X: 270, Y: 90, Z:0
4) When device is in a sideway position with the TOP to the right
L
R
RR
F
R
L
F
RR
X: 90, Y: 0, Z:0 X: 90, Y: 180, Z:0
F
RR
L
R
RR
F
R
L
X: 90, Y: 90, Z:0

16
Axis Adjustments by Device Positions
5) When device is in a sideway position with the TOP facing front
L
R
B
T
X: 90, Y: 0, Z:270
R
L
B
T
X: 270, Y: 0, Z:90
F
RR
B
T
X: 180, Y: 90, Z:0
R
6) When device is in a sideway position with the TOP facing rear
R
L
T
B
X: 270, Y: 0, Z:270
L
R
T
B
X: 90, Y: 0, Z:90
F
RR
T
B
X: 0, Y: 90, Z:0
L
REMARK: Do no install the device with the Front facing down position.

17
CONFIGURATION TOOL USER GUIDE
Configuration Tool TX4000 Software
PC SYSTEM REQUIREMENT
If the PC does not meet the minimum system requirement, the
Configuration Tool Software may not function properly.
OS Windows Vista. Windows 7, Windows 8/8.1
CPU Core 2 Duo 2.5GHz or Higher
RAM 2GB or Higher
Interface SD Memory Card Reader
HDD
Free space
Install : 55MB or Higher
Backup : 4GB or Higher
Display 1024 x 768 pixel/True Color or higher
Recommended PC specifications for Configuration Tool Software

18
SOFTWARE INSTALLATION
1. Double click [setup.exe]
2. Select the language
3. Select destination location
4. Select Start Menu Folder then follow the dialog box prompts.
5. The “Configuration Tool TX4000” icon will be displayed on your desktop.
NOTE: To Un-install the Configuration Tool TX4000 Software
Make sure the program is not running and open the ‘Control Panel’
Select ‘Remove Program’ and remove the Configuration Tool TX4000 Software.
Please ask the Configuration Tool TX4000 Software to your distributor.

19
INITIALIZE SD CARD
Click!
To initialize the SD card quickly, click on the above icon and you will be presented
with the following screen to choose the SD card to initialize. Click ‘OK’ when
selected.
On the following screen, check the ‘Quick Format’ button and uncheck the ‘Keep
current configuration files’ and Click ‘Start’ to begin initialization.

20
DEVICE SETTINGS
Camera check box
Check all the cameras you wish to use.
Camera Title
Use the alphabet and numbers to rename (max 10 digits) the cameras. The new
names will be displayed on the all recordings.
Video Type: Set the video type ”NTSC or PAL”
Car Pulse Type: Select the vehicle’s car pulse type.
Car Pulse Standard: Select the vehicle’s car pulse standard.
RPM Type: Select the vehicle’s RPM type.
G-Sensor Axis: Refer to page 14 in this manual and set Axis.
TV out: Check it to see live screen.
Audible Camera Chime: Turn the Chime on or off
Buzzer On: Turn the Buzzer on or off
Speed Source: Choose the speed source “GPS or Pulse” to use it on the unit.
Delayed Power Shutdown: Set delayed power shutdown time.
