DAB FEKABOX 110 Series Operating and maintenance manual

ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE
INSTRUCTIONS DE MISE EN SERVICE ET D'ENTRETIEN
INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
INSTALLATIONSANWEISUNG UND WARTUNG
INSTRUCTIES VOOR INGEBRUIKNAME EN ONDERHOUD
INSTRUCCIONES PARA LA INSTALACION Y EL MANTENIMIENTO
ɂɇɋɌɊɍɄɐɂɂ ɉɈ ɆɈɇɌȺɀɍ ɂ ɌȿɏɇɂɑȿɋɄɈɆɍ ɈȻɋɅɍɀɂȼȺɇɂɘ
NÁVOD K INSTALACI A ÚDRŽBċ
INSTRUKCJA MONTAĩU I KONSERWACJI
ȅǻǾīǿǼȈ īǿǹ ȉǾȃ ǼīȀǹȉǹȈȉǹȈǾ Ȁǹǿ ȉǾȃ ȈȊȃȉǾȇǾȈǾ
KURMA VE BAKIM BøLGøLERø
ȱɇɋɌɊɍɄɐȱȲ Ɂȱ ȼɋɌȺɇɈȼɅȿɇɇə ɌȺ ɌȿɏɇȱɑɇɈȽɈ ɈȻɋɅɍȽɈȼɍȼȺɇɇə
INSTRUCğIUNI PENTRU INSTALARE ùI ÎNTREğINERE
UPUTSTVO ZA INSTALACIJU I ODRŽAVANJE
Ᏻ⿦࿴䶲ㅢ媲㓌
FEKABOX 110
EN 12050/2
NEW

ENGLISH
23
CONTENTS
1.WARNINGS.............................................................................................................................................. 24
2.Responsibility ......................................................................................................................................... 24
3.MANAGEMENT ....................................................................................................................................... 24
3.1Storage ............................................................................................................................................. 24
3.2Transport.......................................................................................................................................... 24
4.EXAMPLE OF INSTALLATION............................................................................................................... 25
4.1Dimensions and weights ................................................................................................................ 26
5.TANK INSTALLATION ............................................................................................................................ 26
5.1Placing the tank inside the building.............................................................................................. 27
5.2Placing the tank outside the building ........................................................................................... 27
5.3Making holes for the collection, delivery and ventilation pipes................................................. 27
5.4Gluing the collection and ventilation pipes.................................................................................. 28
5.5Connecting the delivery pipe to the sewer network.................................................................... 28
5.6Connecting the ventilation pipe..................................................................................................... 28
5.7Closing the cover ............................................................................................................................ 29
5.8Provision for emergency drainage................................................................................................ 29
5.9Non-return valve.............................................................................................................................. 29
5.10Interception gate valve ................................................................................................................... 29
6.PUMP INSTALLATION............................................................................................................................ 30
7.ELECTRICAL CONNECTIONS ............................................................................................................... 32
8.FIRST START-UP.................................................................................................................................... 32
8.1Operating flow rate ......................................................................................................................... 32
8.2Operation ......................................................................................................................................... 33
9.MAINTENANCE ....................................................................................................................................... 33
10.TROUBLESHOOTING............................................................................................................................. 33
11.DISPOSAL ............................................................................................................................................... 33

ENGLISH
24
1. WARNINGS
1.1 Before installation, carefully read this documentation and that supplied with the pump
manual and the control panel.
It is indispensable to have the electric and hydraulic connections made by skilled personnel, in
possession of the technical qualifications indicated by the safety standards concerning the
design, installation and maintenance of technical plants, in force in the country where the
product is to be installed.
Failure to comply with the safety regulations not only causes risk to personal safety and
damage to the equipment, but invalidates every right to assistance under guarantee.
1.2 The term skilled personnel means persons whose training, experience and instruction, as
well as their knowledge of the respective standards and requirements for accident prevention
and working conditions, have been approved by the person in charge of plant safety,
authorizing them to perform all the necessary activities, during which they are able to
recognize and avoid all dangers. (Definition for technical personnel IEC 364).
The appliance is not intendend for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsable for
their safety. Children should be supervised to ensure that they do not play with the appliance
1.3 Check that the system has suffered no damage during transport or storage. In particular,
ensure that the external casing is perfectly entire and in excellent condition; check the
efficiency of all the tank components; replace any parts that are not perfectly efficient.
1.4 Do not use inflammable or highly corrosive liquids or anything other than indicated by standard
EN 12050-2.
1.5 If the installation is indoors, adequate drainage must be ensured in the event of leakage from
the tank
1.6 For correct installation, follow the instructions in chapters 3-4-5 below. If you want to install the
Fekabox lifting tanks outside the home, attention must be paid because the maximum
admissible load on the cover is 100 kg (see also the symbols on the cover).
2. RESPONSIBILITY
The Manufacturer does not vouch for correct operation of the machine or answer for any damage that it
may cause if it has been tampered with, modified and/or run outside the recommended work range or in
contrast with other indications given in this manual.
3. MANAGEMENT
3.1 Storage
All the products must be stored indoors, in a dry, vibration-free and dust-free environment, possibly with
constant air humidity.
3.2 Transport
Avoid subjecting the products to needless jolts or collisions.
To lift and transport the tank, use lifting equipment and the pallet supplied standard (if applicable).

ENGLISH
25

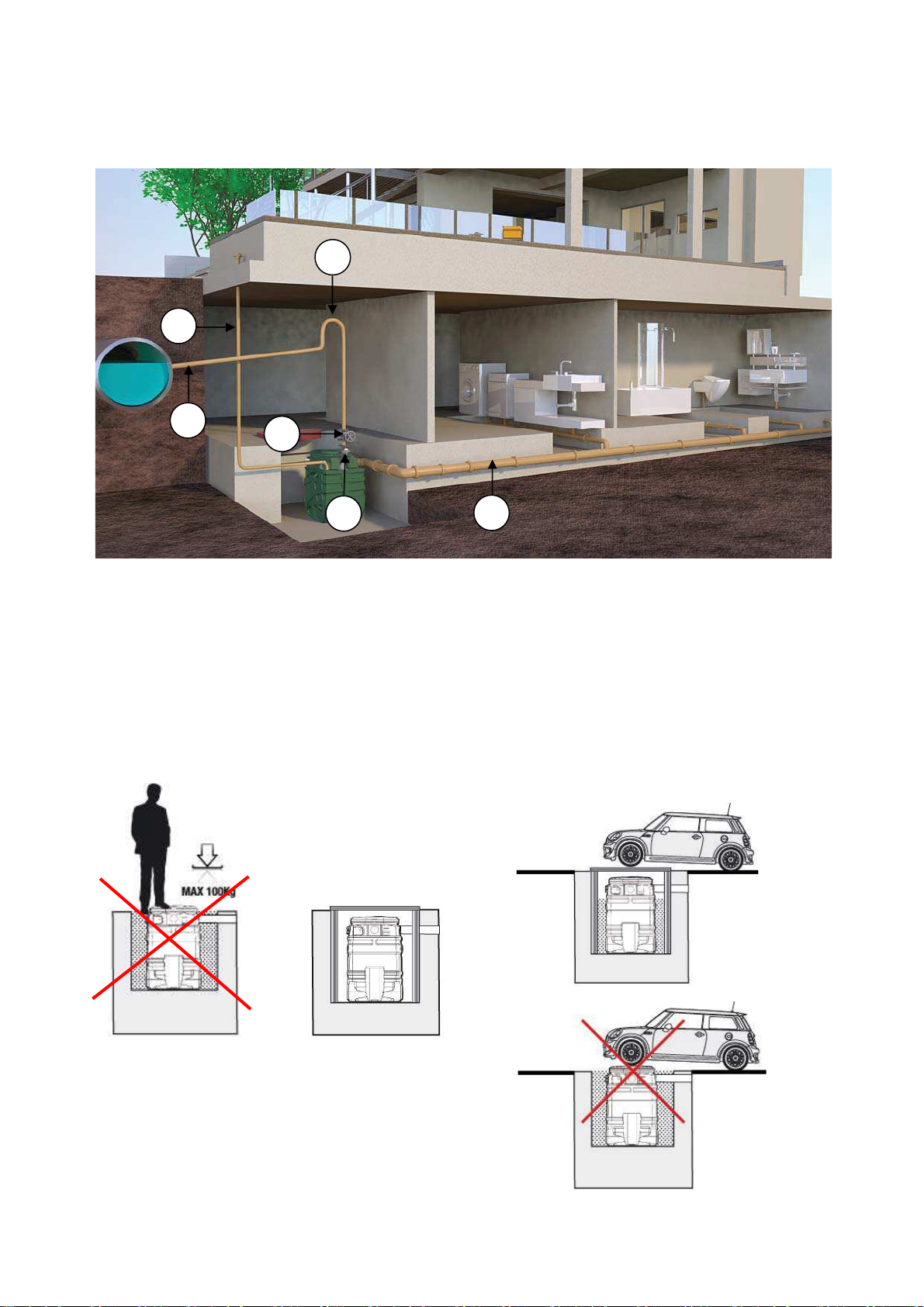

4. EXAMPLE OF INSTALLATION
FEKABOX 110 are preassembled systems, ready for installation, requiring no adjustment, ideal for collecting
and disposing of sewage and domestic waste water from basement rooms, situated below the level of the
sewer network. In compliance with the accident-prevention regulations in force, the FEKABOX 110 cannot
be used for conveying inflammable or explosive liquids, such as petrol, diesel fuel, combustible oils,
solvents, etc.
1 - Interception ball or gate valve 4 - Ventilation
2 - Delivery 5 - Collecting pipe
3 - Siphon 6 - No Return Valve
4
21
6
3
5
Fi
g
. 1 Fi
g
. 2
Fi
g
. 3

ENGLISH
26

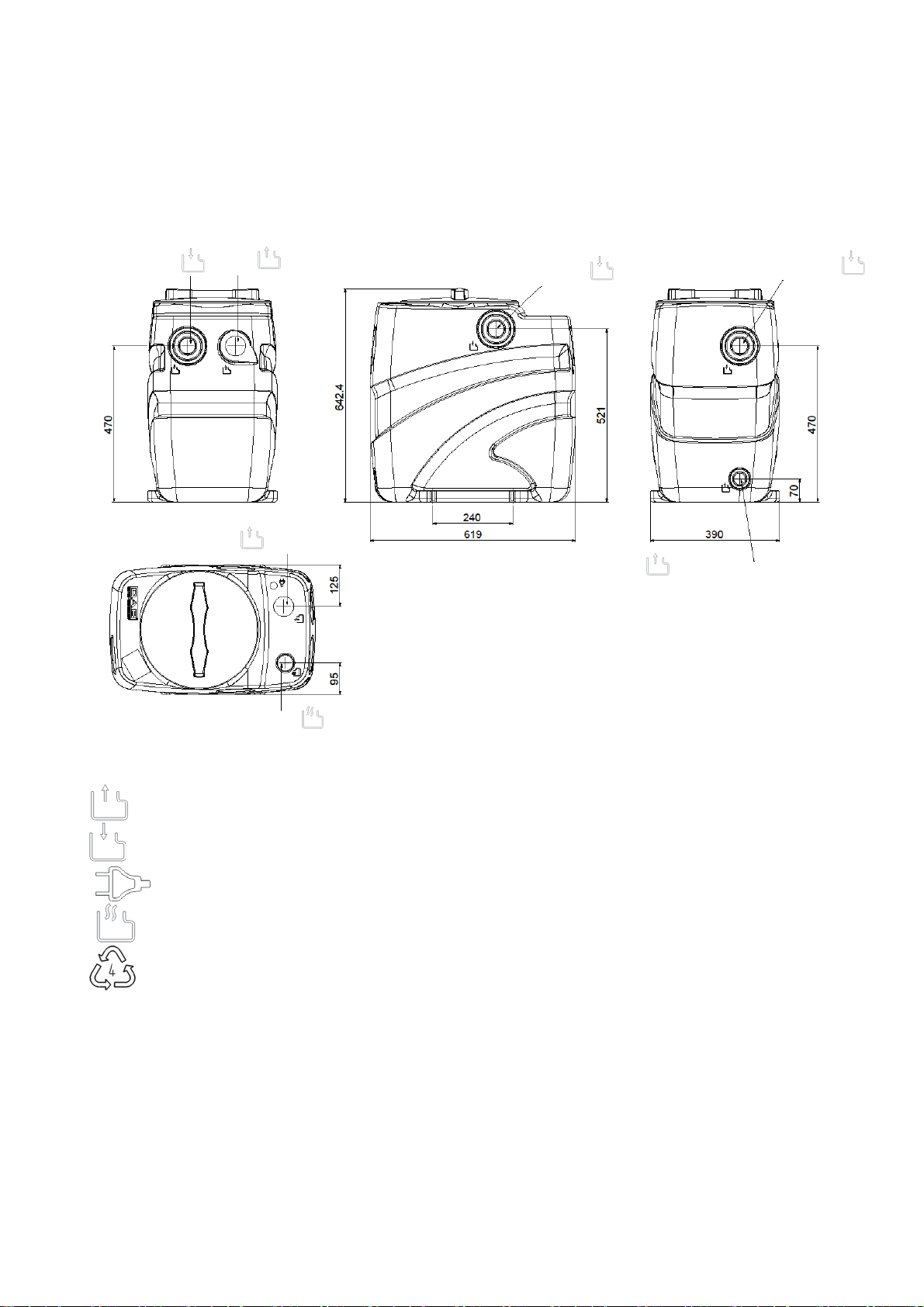

4.1 Dimensions and weights
The adhesive label on the package indicates the total weight of the system.
The dimensions below are given in millimetres.
5. TANK INSTALLATION
The lifting stations of the Fekabox 110 series have various inlet and outlet possibilities for the pipes.
Depending on the type of installation and on the local standards in force it may be necessary to provide a
siphon, a non-return valve on the pipe connecting to the public/private sewer network or to other ducts.
Always refer to the local and/or national regulations, laws and standards in force. Anyway it is recommended
to install check valves and interception valves upstream and downstream from the station. An example of
installation is shown in chapter 4.
Key to Symbols
Connection of delivery pipe or emergency outlet
Collection pipe inlet
Outlet of power cables and float cables
Connection of ventilation pipe
Recyclable material
Fekabox 110
DN50/110 G2ƎKRUL]RQWDO
RXWOHW
DN50/110 DN50/110
DN40 HPHUJHQF\GUDLQ
G2ƎYHUWLFDO
RXWOHW
DN50

ENGLISH
27
All the ducts must be installed in such a way that they are not stressed. The ducts must not
exert stress on the station. Check that the electropump is securely fixed to the pipes and that
all the hydraulic connections are tightened and watertight.
Where necessary provide suitable means for avoiding the transmission of vibrations and for protecting the
pipes against the formation of ice.
5.1 Placing the tank inside the building
The tank may be laid on the floor, under the ground or housed in a masonry pit. Fig.2, Fig.3
In any case the surface on which it is laid must be perfectly horizontal and it must be ensured that
the whole bottom of the tank is in contact with the surface.
For Fekabox 110 the cover of the tank is trafficable (max. weight 100 Kg, see fig. 1).
In indoor installations (garage, basement, technical room), the tank must be fixed to the
ground using the slots provided to prevent rotations, as indicated in figure 4.
Leave a free space of at least 60 cm around and above the station for installation and
maintenance.
5.2 Placing the tank outside the building
If the tank would not buried, to prevent damage to itself and to the seals, you should not expose it to heat
sources such as direct sunlight can be at certain times of the year.
Do not position the lifting station directly on the ground. The site chosen must not have ground
water and must not be subject to flooding. Suitable anchor the station so as to avoid rotation
and floating. For this you can use the slots on the base of the tank.
There must be a horizontal base suitable to bear the weight of the station during its operation.
Depending on the characteristics of the terrain it may be necessary to create walls with bricks,
prefabricated components or concrete. Fill the space between the ditch and the station with
sand and compact it suitably. Protect the station suitably against frost.
Do not drive vehicles over the cover (see fig. 3).
You can close the ditch with a cover (manhole) or other means for facilitating subsequent maintenance. Put
up suitable signals indicating the presence of the station so as to avoid possible damage caused
unintentionally. Ensure that there is sufficient space for installation and maintenance around and above the
lifting station.
Position any capacitor holder and/or electric control panel in a place sheltered from the
elements.
After having completed the hydraulic and electric connection, it is recommended to place clean sand around
the container to reduce any movements caused by the system and/or by the surrounding terrain.
5.3 Making holes for the collection, delivery and ventilation pipes
Choose the inlet duct already prepared for the inlet pipe so that the arrival of the liquid does not disturb the
operation of the pump float.
The Fekabox 110 tanks have multiple inlets, all marked with the symbol:
Make a hole in the tank in the determined areas, indicated by the symbols shown above.
Fig. 4
FIX THE TANK TO THE GROUND
BEFORE USE
Use screws TE M8 with respective
fixture, use specific washers for soft
materials ISO 7093

ENGLISH
28

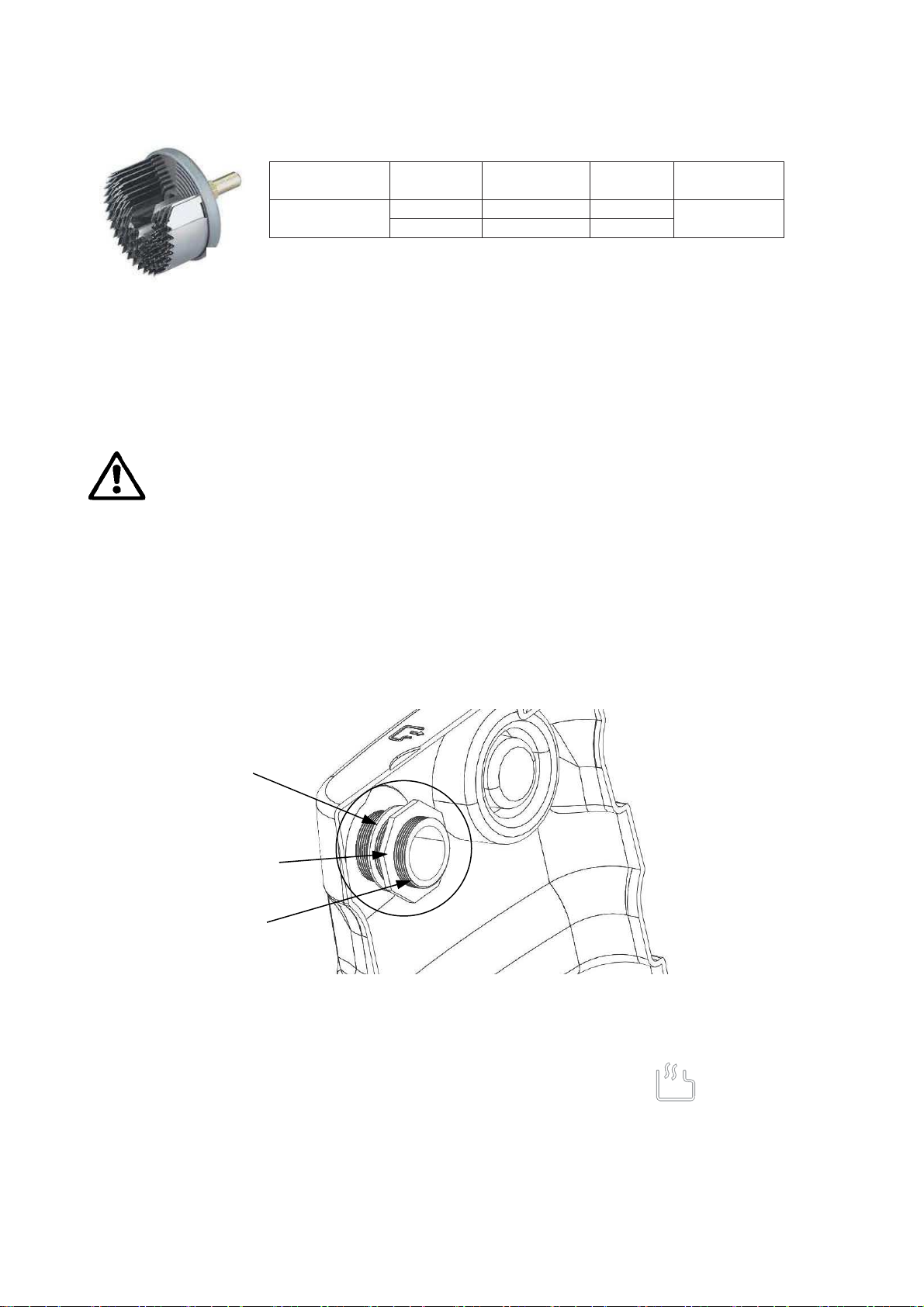

To make the hole use a hollow cutter as shown in figure 5 (indicative figure).
5.4 Gluing the collection and ventilation pipes
Before gluing the PVC pipe must be deburred and cleaned with a suitable solvent on the whole surface that
will be in contact with the tank.
To ensure that it sticks firmly, the glue must be applied on the whole newly deburred surface, at least for a
complete round.
Attention: Use glue suitable for sticking PVC materials with PE. Also check the drying times
indicated in the specific instructions for the glue used.
For the discharge pipe 2”PP (Fekabox 110) use the multifibre nylon sealant Loctite 55, the polymerising GEI
sealant Loctite 5331 or Teflon. For the steel pipe znb 2” and the other inlet connections use the most suitable
glue in accordance with the standards of the local market.
5.5 Connecting the delivery pipe to the sewer network
Fekabox 110 tanks have a 2” GAS outlet connection. It must be fitted as shown in figure 6 after having drilled
the required outlet (see par. 4.1 / 5.3).
To guarantee a perfect seal it is recommended to use Teflon or suitable glues depending on whether the
material being glued is plastic (PP or PVC) or metal.
5.6 Connecting the ventilation pipe
Remember to provide a ventilation pipe to avoid the formation of inflammable, explosive or toxic mixtures.
On the station identify the seat for the ventilation duct, marked with the symbol . Open the duct as
indicated in point 5.3 and connect the ventilation pipe so that it can evacuate any condensate from the
station. Check that the coupling is watertight.
The various national regulations may require different ratios between the diameter of the outlet pipe and
that of the ventilation pipe. Ensure that the pipe outlet is in the open (for example, above the ridge of the
roof if the station is installed inside a building) and that the exhaust gases cannot get into other places such
as buildings, rooms and similar. Avoid horizontal stretches in the ventilation duct.
Tank model Inlet
diameter
Ventilation
diameter
Cutter
diameter
Emergency
diameter
Fekabox 110 DN50 DN50 DN 44 DN 40
DN110 - DN100
Fig. 5
Fig. 6
Gasket
Ring nut
Through-hull

ENGLISH
29
5.7 Closing the cover
The tank is shipped without the gasket fitted under the cover. Prepare it as in figure 7B after having removed
the film, fig. 7A
Check that the gasket of the cover is lying in the bottom of its seat and is not twisted before screwing the
cover onto the tank.
Check that the gasket does not slip in the thread during screwing. In case of installation inside buildings, the
cover must be screwed right down to guarantee that the station is hermetically sealed against liquids and
gas.
5.8 Provision for emergency drainage
On the rear, at the base of the station, is a connection for an emergency drainage system, marked by the
symbol . You can use the connection to attach a secondary pump (for example a manual diaphragm
pump), the discharge pipe of which must be independent from that of the internal electropump in the station.
Identify the seat for the duct on the bottom of the station, open the duct and connect the emergency drainage
pipe. Check that the coupling is watertight.
5.9 Non-return valve
Install a non-return valve in the pipe connecting to the public/private sewer network. This will avoid the reflux
of liquid. Place the valve at a distance of at least 1 metre from the lifting station to allow the flow of liquid,
moved by the pump, to open the shutter of the valve (unless indicated otherwise by the manufacturer).
Always refer to the local and/or national regulations, laws and standards in force.
The non-return valves are available as accessory kits.
5.10 Interception gate valve
Install an interception valve in both the inlet pipe and the delivery pipe (connection to the public/private sewer
network). In this way maintenance work can be carried out without having to drain the whole system. Gate
valves or ball valves may be used.
The interception valves are available as accessory kits.
See example of installation in chapter 4.
A
B
Fig. 7

ENGLISH
30
6. PUMP INSTALLATION
Not applicable for models Fekabox 110 which have the pump already fitted inside.
Ensure that the difference in level between the pump and the sewage network is compatible
with the pump performance.
Fekabox 110 l:

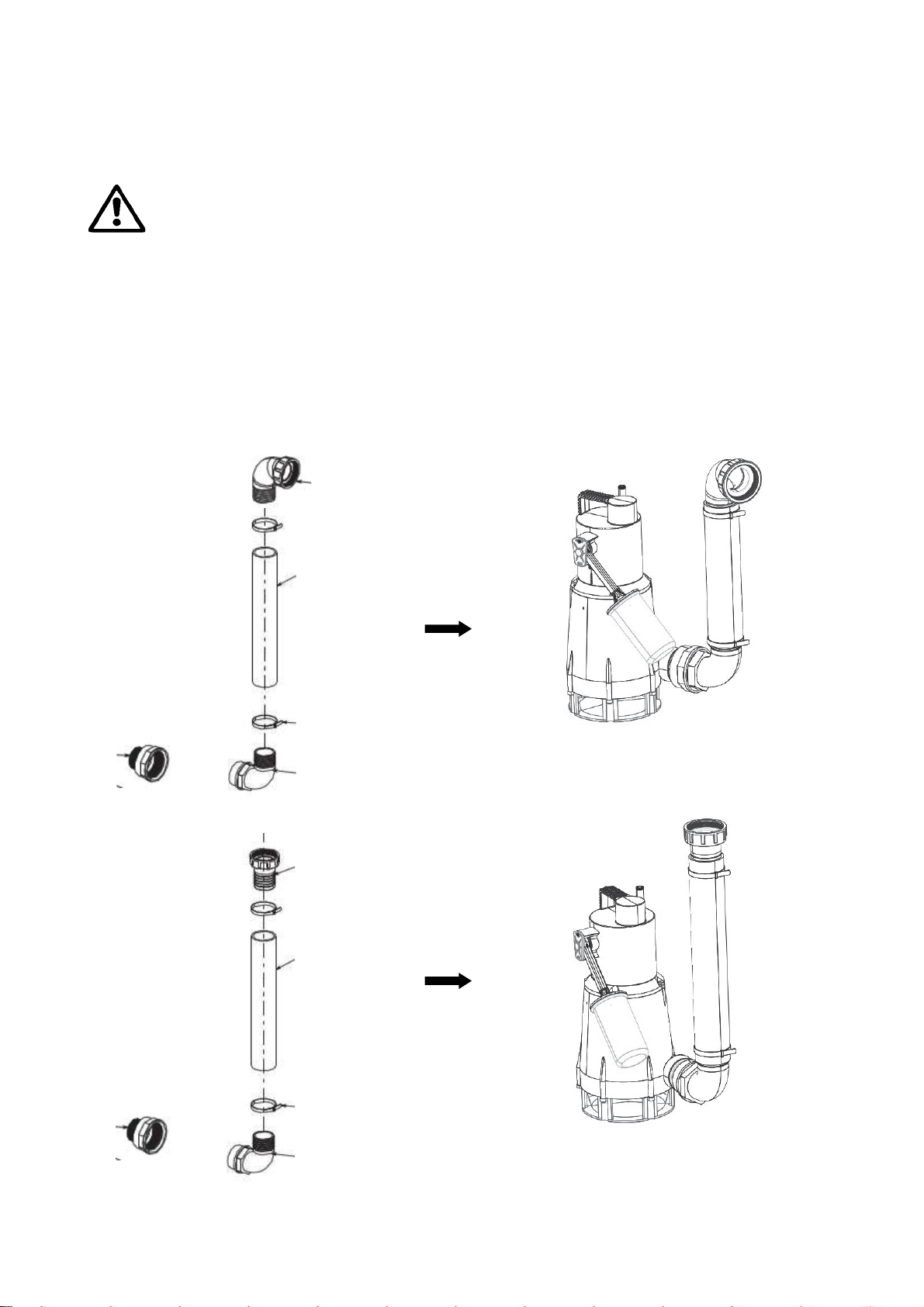

The Fekabox 110 is delivered with an installation kit containing respectively the parts in figure 8 for
installation of both the vertical and the horizontal outlet.
For the assembly of the kit, see figure 8
1. Adapter 2”F – 1”1/4M (not necessary for Feka VS-VX)
2. Curved hosetail, thread 2"x50 PP
3. Pipe tightening clamp in AISI304 DIN 3017
4. Short length of pipe in rubberized fabric 57x50 l=350
5. Curved hosetail 2”PP
6. Coupling for tank 2”PP
Fig. 8
Feka 600 horizontal outlet
Feka 600 vertical outlet
1
5
3
4
3
2
1
6
3
4
3
2

ENGLISH
31

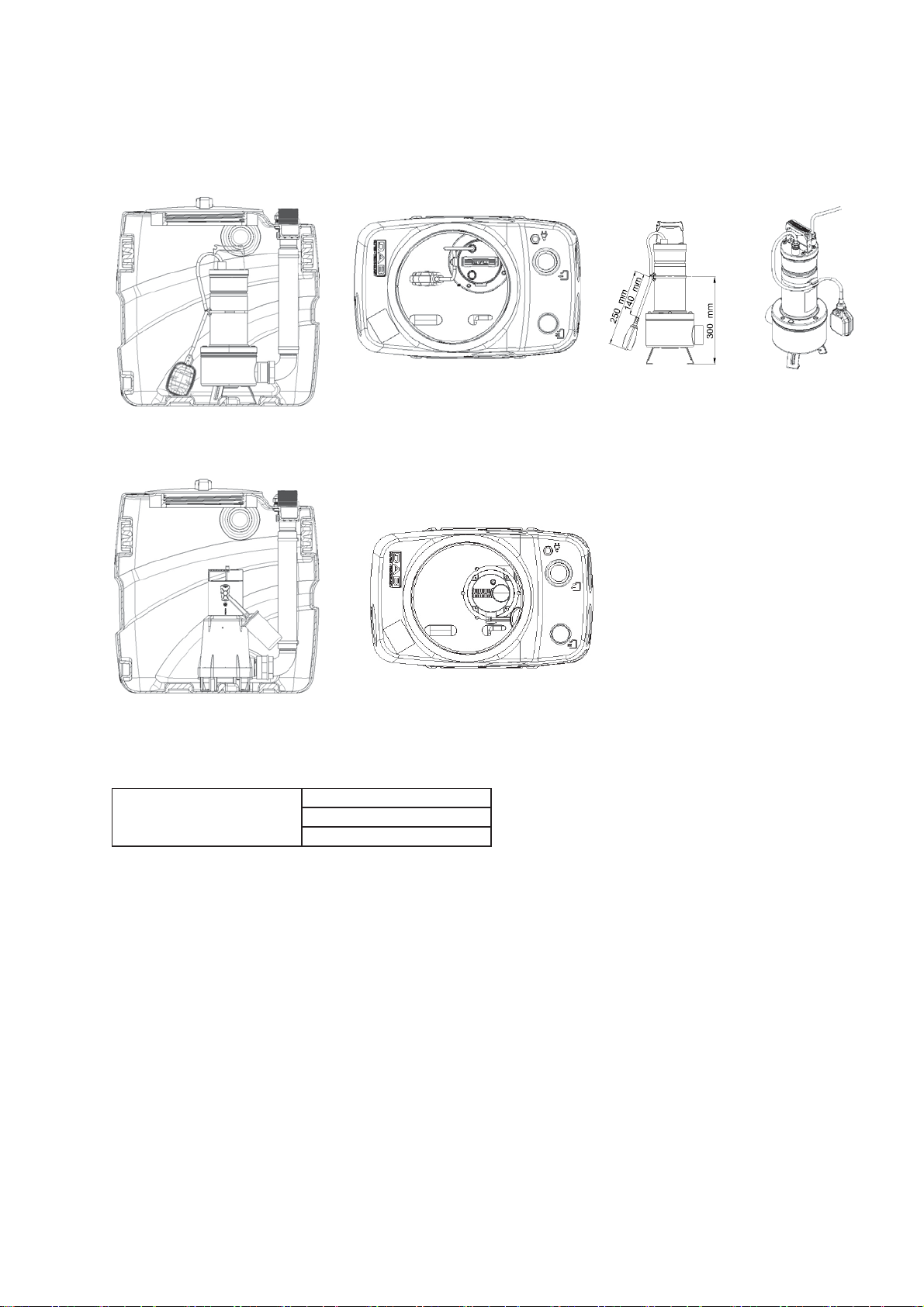

FEKABOX 110 l
PREPARED FOR THE FOLLOWING PUMPS 
FEKABOX 110
FEKA 600 MA
FEKA VS-VX 550 MA
FEKA VS-VX 750 MA
Fig. 9A
FEKA 600
Fig. 9
FEKA VS

ENGLISH
32
7. ELECTRICAL CONNECTIONS
Before connecting the system to the mains, ensure that the mains voltage is the same as the value indicated
on the pump data plate.
It is recommended to apply the pump data plate (supplied in the package in addition to the one already
applied on the pump by the manufacturer) on the tank, in a clearly visible position, or on the control box.
The connection must be made as follows:
Pump:
Pass the pump cable through the cable gland supplied in the kit.

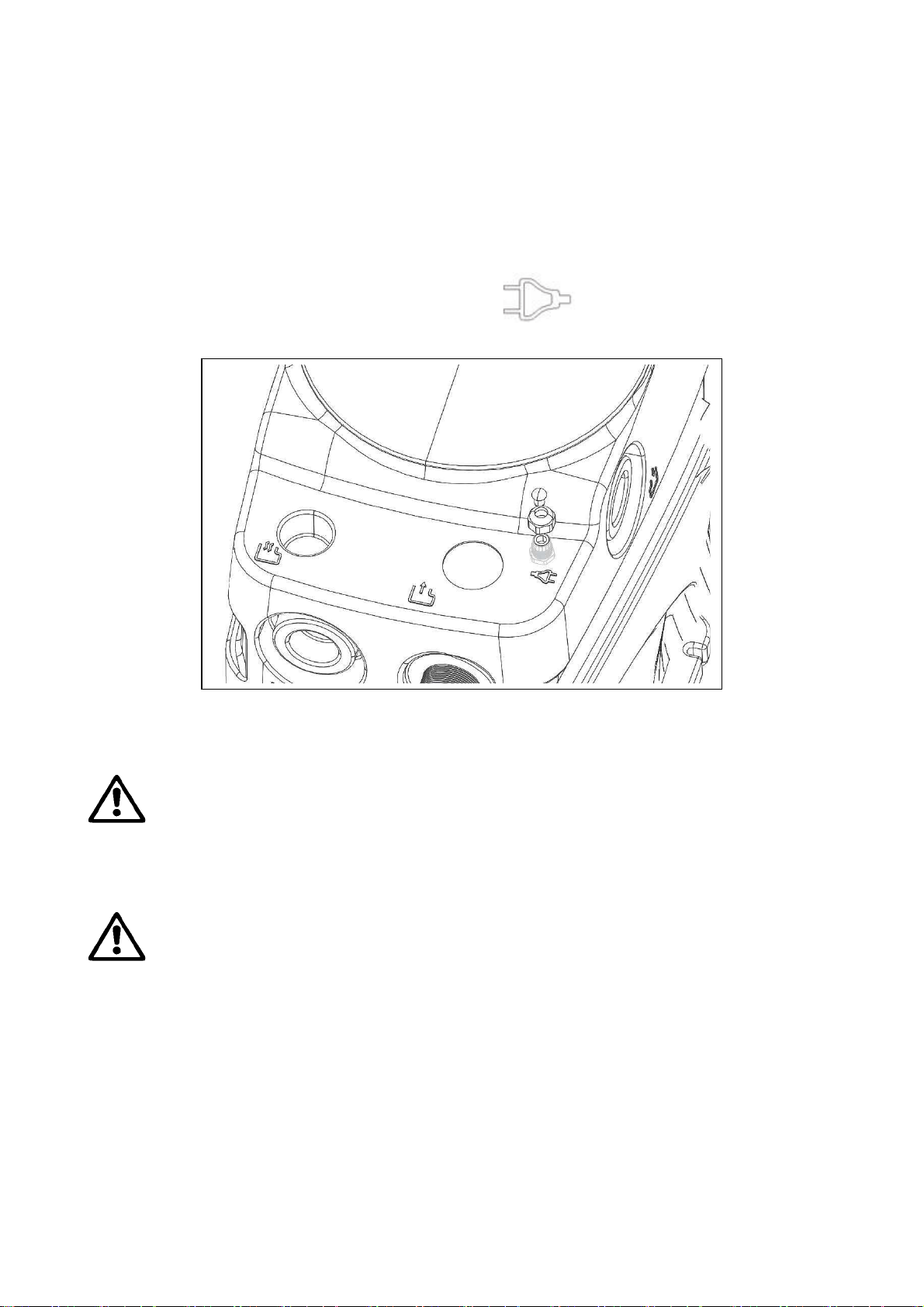

Assemble the cable gland on the tank, next to the symbol , as shown in figure 10. Then tighten
the ring nut of the cable gland on the inside of the tank.
8. FIRST START-UP
Before starting up the electropump check that in the tank system there is no residue or other
material that could harm the correct operation of the system.
In this phase you can leave the interception valve in the inlet pipe closed and fill the lifting station with clean
water. Open the interception valve in the delivery pipe and check that the pipes are tightened and perfectly
sealed and that the electropump is working correctly. Check also that the electropump is primed. Open the
interception valve in the inlet pipe and check that the station is working correctly.
The flow of liquid coming from the various utilities must not prevent the correct operation of the
floats present in the container.
In the case of a three-phase electropump, check that the impeller is turning in the correct direction. Check
also the electropump manual. Check that the levels of float intervention are correct, and if necessary adjust
them to suit the actual needs of the system. When there are two electropumps, the floats must be adjusted
so that the second pump starts after the first and only if the first is not able to send to the sewer duct as
much liquid as arrives from the various utilities. Check that the electropump cannot become unprimed during
operation. Check that the number of starts per hour is compatible with the characteristics of the system
components. Check that the system is working correctly and put it into service. Close the cover or covers of
the station, screwing them into place. If necessary, fix the cover in its seat in such a way as to prevent
unauthorised opening of the cover (see chapter 5.7).
8.1 Operating flow rate
It must be guaranteed that the speed of the liquid in the delivery pipe is at least 0.7 m/s and lower than 2.3
m/s.
Fig. 10

ENGLISH
33
8.2 Operation
When the liquid in the tank reaches the level corresponding to the closure of the float contact that commands
the electropump, the pump starts and gradually empties the container. The electropump stops when the
liquid reaches the minimum level corresponding to the opening of the float contact. When there are two
electropumps, the floats must be adjusted so that the second pump starts after the first and only if the first is
not able to send to the sewer duct as much liquid as arrives from the various utilities. There may be a float
placed higher than the others in the pumping station, its function is to indicated the presence of an
abnormally high level of the liquid in the tank.
9. MAINTENANCE
After starting up the plant, it is advisable to inspect and clean it, especially the no return valve, about every
three months. This interval may be increased after the first inspections have given a favourable outcome.
Clean the pump accurately, removing any foreign bodies stuck in the intake grille and check that the float
moves freely. If necessary, remove the pump from the tank.
It is recommended to clean the system at least once a year with running water, operating the pump
repeatedly.
10. TROUBLESHOOTING
FAULTS CHECK
(POSSIBLE CAUSES)
REMEDY
1. Water is overflowing
from the tank and the
pump is not working.
(In this situation the alarm,
if installed, must intervene.
Otherwise check the alarm
system installation
instructions.)
A. Delivery pipe blocked..
B. The pump is not correctly connected to
the delivery pipe.
C. No return valve blocked.
D. Interception valve closed.
E. Pump characteristics are insufficient.
F. The pump intake grille is blocked.
G. The impeller is worn or blocked by
foreign bodies.
A. Remove the obstructions.
B. Check that the pump slide is at
its full limit (only for 280 l
tanks).
C. Clean the valve.
D. Open the valve.
F. Remove the obstructions.
G. Remove the obstructions.
2. The alarm, if installed,
intervenes, but the
system operates
regularly.
A. Check the exact position of the alarm
float.
A. Repeat the checking and
installation operations.
11. DISPOSAL
This product or any part of it must be disposed of correctly:
1. Use public or private local systems for waste collection.
2. If that is not possible, contact Dab Pumps or the nearest authorised service workshop.
