Dacor EG366 User manual

Pa_ No102025 Rev. G
INSTALLATION
EPICURE® COOKTOP
For Use with Models: EG366, EG486
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST
EDITION OF ANSI Z21.1 STANDARD FOR HOUSEHOLD GAS APPLIANCES.

Before You Begin ......................................................................... 1
Important Safety Instructions .................................................. 1-3
General Safety Precautions ................................................... 2
Customer Service Information .................................................... 3
Planning the Installation ........................................................... 4-7
Electrical Requirements .......................................................... 4
Gas Supply Requirements ...................................................... 4
Product Dimensions ................................................................ 4
Cabinet Layout ........................................................................ 5
Installation Instructions .......................................................... 8-11
Preparing for Installation ......................................................... 8
Cooktop Installation ................................................................. 8
Cooktop Setup ........................................................................ 9

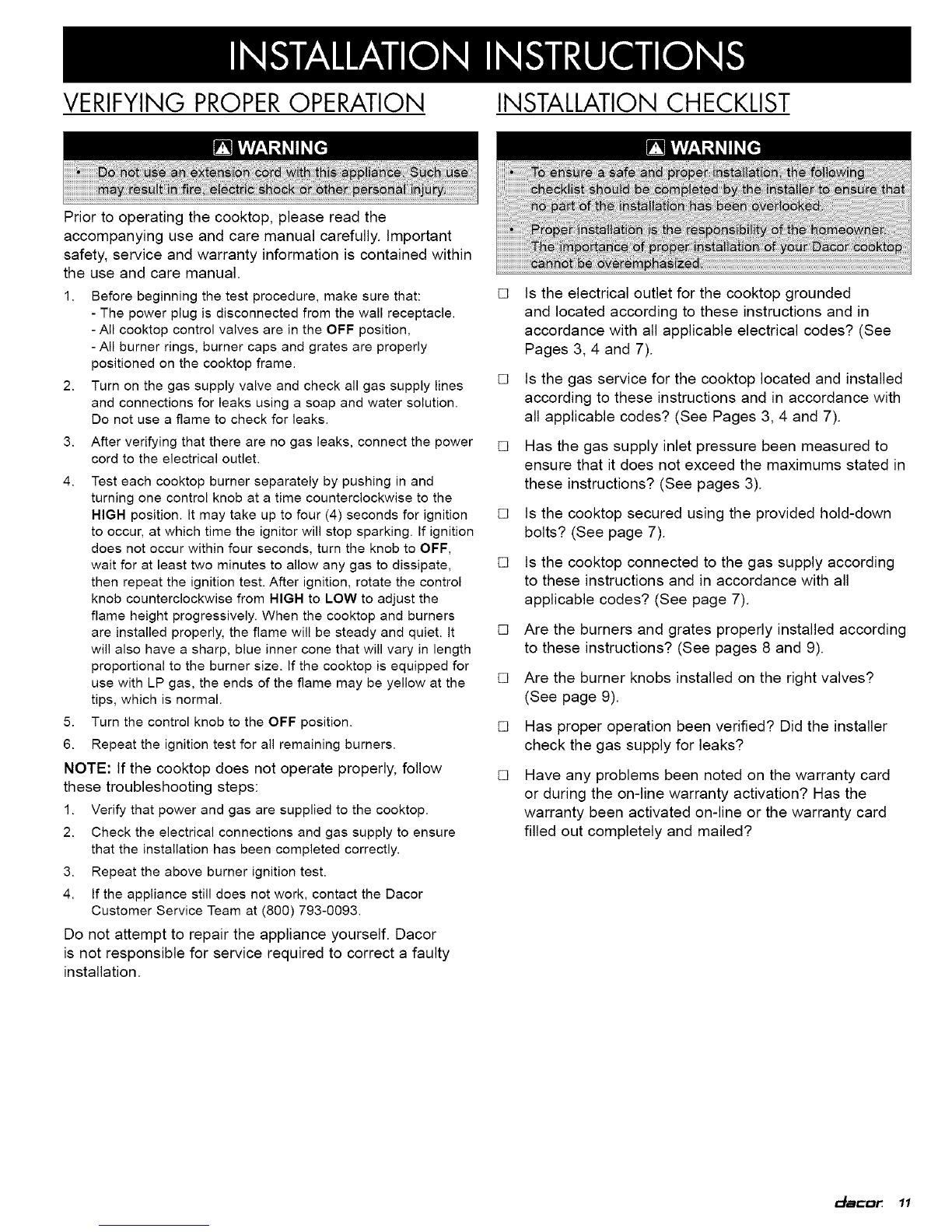

Verifying Proper Operation .................................................... 11
Installation Checklist ............................................................. 11
Notes ....................................................................................... 12-13
IMPORTANT:
• INSTALLER: tn the interest of safety and to minimize
problems, read these installation instructions
completely and carefully before you begin the
installation process. Leave these installation
instructions with the customer.
• CUSTOMER: Keep these installation instructions for
future reference and the local electrical inspector's use.
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team.
Dacor Customer Service
Phone:
Email:
Web site:
[phone]
[email protected]
www.Dacor.com
All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications.
Important Information About Safety
Instructions
The Important Safety Instructions and warnings in these
instructions are not meant to cover all possible problems
and conditions that can occur. Use common sense and
caution when installing, maintaining or operating this or any
other appliance.
Always contact the Dacor Customer Service Team about
problems and conditions that you do not understand.
Safety Symbols and Labels
_a_Qr I

GENERAL SAFETY PRECAUTIONS
To reduce the risk of fire, explosion, electric shock, serious mjury or death when mstallmg or using this appliance, follow
basic safety precautions, including the following:
1 Read the accompanying use and care manual completely before operating this appliance
2 Keep packaging materials away from children Plastic sheets and bags can cause suffocation.
3 If you receive a damaged product, immediately contact your dealer or builder Do not install or use a damaqed appliance
4 This cooktop must be properly installed and grounded by a qualified installer according to these installation instructions prior to
use The installer should show the customer the location of the gas shut off valve and the power cord so that they know where
and how to turn off the gas supply and disconnect power to the ceoktop
5 Installations with less than 2 1/2" (64mm) from the rear of the ceoktop to a combustiblei material must use Dacor; backguard
model(s) AEB3609, AEB3612, AEB4809, AEB4812 or a non-combustible material 1 See the latest version of ANSI Z223 1
6 Do not use this appliance in combination with asurface (ceuntertop) ventilation system Dacor strongly recommends the instal-
lation of a range hood m conjunction with this appliance.
7 Do not install, repair or replace any part of the cooktop unless specifically recommended in the literature accompanying it. A
quahfied service technician should perform all other service.
8 Before serwclng or installing this cooktop, make sure that the gas supply is turned off at the gas supply valve and that the
power plug is disconnected from the electrical receptacle.
9 Do not connect this cooktop to the gas supply without the supphed gas pressure regulator installed.
10 Only use the cooktop for cooking tasks expected of a home apphance as outlined in the literature accompanying it. This
cooktop is not intended for commercial use.
11. Failure to prowde proper clearances may result in a fire hazard!
12. DO NOT TOUCH THE SURFACES OF THE COOKTOP DURING OR IMMEDIATELYAFTER USE
13. Do not climb on any part of the appliance.
14 Do not leave children alone or unattended in the area around the cooktop Do not allow children to play with the controls or
touch other parts of the cooktop Do not store items of interest to children on top of or above the cooktop. Children could be
burned or injured while chmbmg on the apphance.
15. Do not attempt to use this apphance in the event of a power failure
16. Do not tamper with the controls Do not adjust or alter any part of the cooktop unless specifically instructed to do so in these
instructions.
17. Clean the ceoktop thoroughly before operating it for the first time Make sure that all the cooktop parts are dry before hghtmg a
burner
18 Keep flammable items, such as paper, cardboard, plastic and cloth away from the burners and other hot surfaces Do not place
such items on the ceoktop Do not allow pot holders to touch hot surfaces or gas burners
19. To avoid a fire hazard, do not hang flammable or heat sensitive objects over the ceektop
20. Do not use the cooktop to heat sealed containers The container and contents may explode, causing personal inJury
21 Do not wear loose or hanging apparel while using the cooktep De net allow clothing to come into contact with the cooktop and
surrounding areas dunng and immediately after use
22 Do net use towels or bulky cloth as pot holders
23. If the cooktop is near a window, de not use long curtains as window treatment The curtains could blow over the cooktop and
create a fire hazard
24. Turn the knobs to the OFF position prier to removing them from the valve stems
25. The cooktep should never be operated without the knobs and tnm nngs in place.
26 Non-stick coatings, when heated, can be harmful to birds Remove birds to a separate, well-ventilated room when operating the
coektop
I_a_nr

GENERAL SAFETY PRECAUTIONS (CONT.)
Any questions or problems with this installation
should be directed to your Dacor ®dealer or the Dacor
Customer Service Department.
Dacor Customer Service
1-800-793-0093 (U.S.A. and Canada)
Monday -- Friday 6:00 A.M.to 5:00 P.M.Pacific Time
e-mail: customerservice@Da cor.com.
website: www.Dacor.com
If the unit requires service, be sure to have the model and
serial number available when you call. The model and
serial number label is located on the under side of the
chassis.
Model Identification
EG366SCH/NG/H
T i
SIZE (in inches)
GAS TYPE
NG = Natural Gas
LP = Liquid Petroleum
(Propane)
ALTITUDE
H = High Altitude Model, 4000 ft.(1219 m) and up
No character = unit equipped for low altitude operation
_a_ar 3

ELECTRICALREQUIREMENTS
It is the owner's responsibility to ensure that the electrical
receptacle for this appliance has been installed by a qualified
electrician. The electrical installation, including minimum
supply wire size and grounding, must be in accordance with
the National Electric code ANSIINFPA 70-1993" (or latest
revision) and local codes and ordinances. A copy of this
standard may be obtained from:
National Fire Protection Association
1Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct voltage, frequency, and amperage must be
supplied to the appliance from a separate, grounded circuit
that is protected by a properly sized circuit breaker or time
delay fuse. Refer to the chart below for requirements.
PRODUCTDIMENSIONS
GAS SUPPLY REQUIREMENTS
• Check your local building codes for the proper method of
installation. In the absence of local codes, this appliance
should be installed in accordance with the National Fuel Gas
Code ANSI Z223.1.
• Be certain that the appliance being installed is correct for the
gas service being provided (natural gas or LP gas). Also, if
operating the cooktop at an altitude above 4000 ft. (1219 m)
make sure it is equipped for high altitude operation.
• See the table below for gas supply pressure requirements.
Make sure the gas supply meets minimum requirements.
• The regulator inlet accommodates a 3/4" gas line. The inlet to
the cooktop itself is equipped with a 3/4" male NPT fitting.
EG366
EG486 t 35 7/8" (911mm)
47 7/8" (1216mm)
1
4" (102mm)
28" (711mm) b
27" (686mm)
26" (660mm)
5/8" (16mm) "_
SIDE VIEW
All tolerances: +1/16", -0 (+1.6mm, -0)
t
7 3/4"
(197mm)
4_acar

CABINET LAYOUT
General Considerations
•All dimensions shown on the following pages are based on
standard American cabinets. Dimensions shown indicated
minimum clearances. When installing the cooktop, minimum
clearances must be maintained.
•The distance from the back of the cooktop to a combustible
rear wall is 2 1/2" (64mm) minimum (Figure 1).
• Installation of a non-combustible material (up to the hood) or
a backsplash is always recommended, and mandatory if the
distance to the back wall from the cooktop is less than
2 1/2" (Figure 2). When installing a backsplash, use only
Dacor ®model numbers AEB3609, AEB3612, AEB4809 or
AEB4812.
Combustible
rear wall _
2 1/2" (64mm) Min. to
combustible rear wall
,,i,l_"
FIGURE 1
Combustible
rear wall _
Backsplash mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2"
N
\
N
\
\
\
\
\
\
\
\
\
X
\
\
\
\
\
\
\
\
\
\
\
FIGURE 2
• Carefully check the location where the cooktop is to be
installed. For best performance, the cooktop should be placed
away from drafts that may be caused by doors, windows and
heating and air conditioning outlets.
• To reduce the risk of personal injury and to reduce
accumulated smoke in the room, Dacor strongly recommends
installing a hood. A range hood should project horizontally a
minimum of five (5) inches beyond the face of the cabinets.
• The countertop must cover the recessed portions of the
cooktop. All contact surfaces between the cooktop and the
counter must be solid and level.
•IMPORTANT: When installing the cooktop into a laminated
or synthetic countertop, radius the corners of the cut-out to
help avoid cracking. Consult the countertop manufacturer's
instructions for minimum corner radius, reinforcement and
heat protection requirements.
Gas and Electric Service Location
• The shaded area on the facing page shows the location
of the gas inlet and the electrical receptacle. This is the
recommended location. For replacement purposes, the
location of the existing utilities may be utilized provided they
do not interfere with the sides or rear of the cooktop. Check
local building codes for permissible gas valve locations.
• An external manual shut-off valve must be installed between
the gas inlet and the cooktop, for the purpose of turning on or
shutting off gas to the appliance.
• The regulator must be installed in the gas line that runs
from the cooktop gas inlet to the gas shut off valve. For best
performance, minimize gas pressure loss by attaching the
regulator as close as possible to the cooktop gas inlet.
The installation must allow for the following:
• Access to the gas shut-off valve and regulator when the unit
is installed.
• Access to the electrical receptacle, when the cooktop is
in place. The (48") power cord must be able reach the
receptacle.
• Access to the underside of the cooktop for service and
inspection purposes.
• The gas supply piping, gas shut-off valve and the power
receptacle must be located so they do not interfere with the
cooktop when it is installed. If installing another appliance in
the cabinet below, allow for the routing of gas and electrical
service behind it.
_acor 5

CABINET LAYOUT (CONTINUED)
4B _,
I
10" (254mm) to I
+combustible side wall *
m n mum, both s des
|
•4
1 12" (38mm)
Typical countertop
518" (16mm) thickness
Overhang,
both sides
!
c
•
Cooktop platform
1" (25mm) Minimum
thickness
_i!_!_!_i_i_!iiiiiiiiiiiiiiiiiiii!i_i!_!i_ii_ii_i_i_i_iii_iii_!_iii!i!_i_ii!_i_i_i_i_ii_iiiiiiiiiiii_iiiiiiiiii_i_!_!i!_!_i_i_iiii_i_i_i_!!!_i_i!_!_!_!_!_!_i_!_iiiiiii_i_i_i_i!i_!i!_!_!_!_!_!_!_i!i_i!ii!ii_i:ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i_i_iii'ii
i
i
2
D
T
18"
(457mm)
1
_ 7 3/4"(197mm)
2 3/4"
(70mm)
15 1/2"
(393mm)
1
30" (457mm)
Minimum
36" (g14mm)
36" (914mm)* 36" (914mm)* 24" (610mm)
EG366 42" (1067mm)**
48" (1219mm)* 48" (1219mm)* 30" (762mm)
EG486 54" (1372mm)**
*Minimum
** Recommended
All tolerances: +1/16",-0 (+l.6mm, -0) Continued...
6_aCD_

CABINET LAYOUT (CONTINUED)
All tolerances: +1/16", -0 (+l.6mm, -0)
t
12 9/16"
(319mm)
24"
(610mm)
Non combustible
rear wall
\
Hole 2 Places, 1/2" Dia.
through cooktop platform
for hold-down bolts
/
- ---0
8" (203mm)
Utility Cut-out to allow _ (152mm)
for gas and electrical r/////_
connection below l
O mmm CL
II
o o
E _ E
CABINET BASE PREPARATION - TOP VIEW
>.
3"
(76mm)
/
Non combustible
rear wall
Countertop
5/8" (16mm)
Overhang 5/8" (16mm) ,
Overhang
COUNTERTOP PREPARATION TOP VIEW
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_1_!_i_!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!_i_i_:i_iiiiii'_i_!i_ii_!_ii_i!!:!!!!i_!_!_i!_iiiiiiiiiiiii!_iii!_iiiiiiiiiiiii_!_!_i6i_i_i_i:i!_i_ii_i_i_i_:i!_i!!i!i!i_i!_!!_!!_!!_!i!_:!_!_:!_!
EG366 36" (914mm) 16 5/8" (422mm)
EG486 48" (1219mm) 20 13/16" (529mm)
_acor 7

PREPARING FOR INSTALLATION
IMPORTANT: Within the Commonwealth of Massachusetts,
this appliance must be installed by a licensed plumber or
gas fitter.
Gas and Electric Service Installation
Have the gas service installed by a qualified professional
in the location determined in the Planning the Installation
section. The gas service must include a gas shut-off valve
(not included with the cooktop) in the main gas supply line in
an accessible location under the cooktop.
Have the electrical receptacle installed by a licensed
electrician in the location determined in the Planning the
Installation section.
Unpack the Cooktop
COOKTOP INSTALLATION
• Lower the cooktop into the cut-out while feeding the electrical
cord into the utility cut-out. Center the cooktop in the cut-out.
• Secure the cooktop to the countertop utilizing the two (2)
hold-down bolts and flat washers provided. Do not over-
tighten the bolts.
IMPORTANT: Do not fasten or seal the cooktop to the
countertop using glue or caulk. The unit must be readily
removable for service. The warranty does not cover
damage due to improper installation.
Gas Line Connection
Unpack the parts box and verify that all required
components have been provided, tf any item is missing or
damaged, please contact your dealer immediately. Do not
install a damaged or incomplete appliance. The customer
must report cosmetic issues within 30 days of installation.
Parts List
3 Grates*
4 Stack Burner Caps**
4 Stack Burner Rings**
2 Crown Burner Caps
2 Crown Burner Rings
2 Crown Burner Heads
• Hold Down BoltstWashers
• 6 Knobs ***
• Stainless Steel Cleaner
• Literature Kit
• Ignitor Cleaning Brush
• WOK Ring
• Griddle
* Three 14-Inch grates for model EG486. Two 10-Inch and
one 14 Inch grate for model EG366.
** Two (2) large, two (2) small
*** Four (4) standard knobs and two (2) "MAX GRIDDLE"
knobs.
NOTE: The cooktop also includes a thread ring removal
tool (PN 101539). It is attached to the cooktop inside the
utility access hole on the bottom of the chassis. Return it
after use so that it is available if needed in the future.
8_ac:,',r
NOTE: The gas pressure regulator is pre-set at the factory
for the type of gas intended for use with the appliance. To
verify that the appliance is compatible with the type of gas
available, check the cooktop data plate on the under side
of the chassis. Cooktops intended for use with LP gas will
have "LP" as a part of the model number. Consult your
dealer if the cooktop is not compatible with the type of gas
supplied.
• Install the regulator upstream from the pipe nipple, between
the shut-off valve and the appliance. Mount it as close as
possible to the gas inlet on the cooktop for best performance.
The 3/4" male NPT gas inlet for the cooktop is located on the
bottom, at the right rear of the chassis. Ensure that the arrow
on the regulator points in the direction of the gas flow towards
the cooktop.
• Complete connection of the gas supply to the cooktop by
installing 1/2 inch flexible gas line (not included with the
cooktop) between the pressure regulator and the gas shut-off
valve. The cooktop has a 3/4" (19mm) diameter pipe nipple
inlet.

COOKTOP SETUP
Spill Tray
Install the Burner Components
NOTE: Do not attempt to adjust the burner air mixture
settings. All adjustments are preset at the factory.
• Remove the burner rings, burner caps and grates from their
shipping packages.
• Install the burners as shown.
• Gently set the grates on top of the spill tray. Put the legs of
each grate inside the corresponding dimples.
Ridge on bottom
of burner cap
STEP 2: Install
burner ring. Line
up ring tabs with
head slots. Twist
back and forth
to assure proper
seating.
STEP 3: Install
burner cap. Ridge on., ,,
cap must surround _/_ ._. 'X_
top ofnng. _(k_ _=_ 9
_Burner Ring
STEP 1: Install _ Burner Head
_r"h'ead. Put<,/
locating tap into \
keyed hole. _
_Keyed ............... Burner Base
Hole
Crown Burner Installation
Crown Burner
STEP 3: Install burner
caps. Ridge on cap
must surround top of
ring.
STEP 2: Turn ring until
it drops into place.
Twist back and forth to
assure proper seating.
STEP 1: Put burner
ring on top of the head.
Burner
Ridge on bottom
of burner cap
Burner Ring
_ner Head
Stack Burner Installation
_a=Qr 9
