Slim Raised Vent/

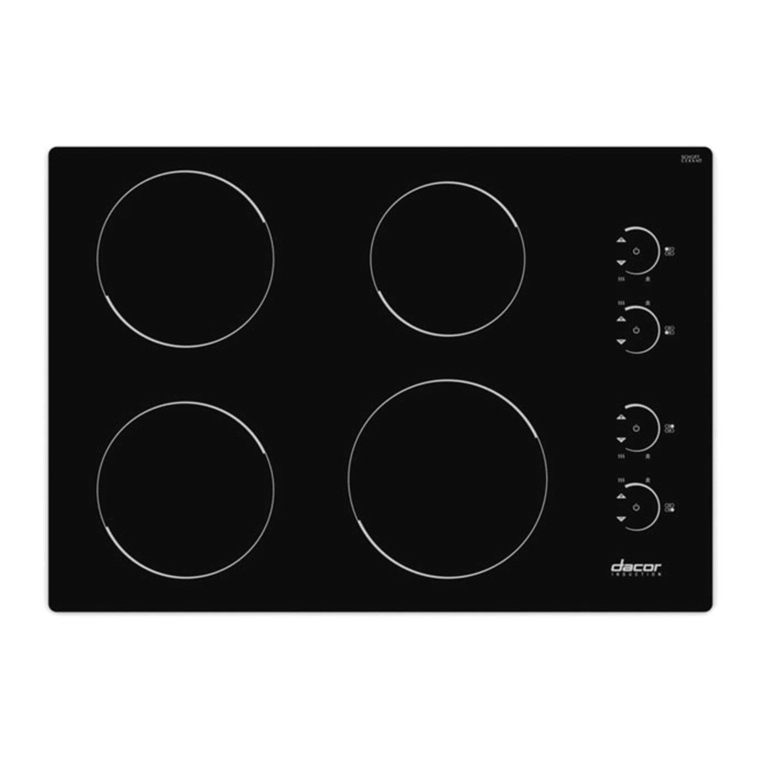

Drop-In Electric Cooktop
COMBINATION INSTALLATIONS
19 7/8"
(505mm)
Backsplash
Max.3/4" (19mm)
1/4" (6mm)
Min. flat ledge
Vertical
non-combustible
surface rear wall
Flush with
backside of
cabinet front
2 9/16"
(65mm)
28 1/2”
(724mm)
27 1/2”
(699mm)
23 1/4"
(591mm)
Min.
25"
(635mm)
CUTOUT DIMENSIONS
(ERV/PRV30 with MET/ETT/CER304)
(Top View)
19 7/8"
(505mm)
Backsplash
Max.3/4" (19mm)
1/4" (6mm)
Min. flat ledge
Vertical
non-combustible
surface rear wall
Flush with
backside of
cabinet front
2 9/16"
(65mm)
34 1/2”
(876mm)
33 1/2”
(851mm)
23 1/4"
(591mm)
Min.
25"
(635mm)
CUTOUT DIMENSIONS
(ERV/PRV36 with MET/ETT/CER365)
(Top View)
