Dacor Discovery DYWS4 Technical manual

All specications subject to change without notice. Phone: [phone]www.dacor.com
PLANNING
GUIDE
DYWS4
Discovery™ Wine Dispensing System
Document # PG15-001 Revised 03/20/13 Page 1/2
Technical Specifications/Dimensions
Vertical Distance
Bottle capacity 4
Power supply input
requirements 120 Vac, 60 Hz., 2 Amps.
Circuit requirement
120 Vac, 60 Hz., 10 Amp. 3-wire*
dedicated, circuit with grounded 3-prong
electrical outlet required
Power cord length 74” (188 cm)**
Gas tubing length 117” (297 cm)***
Appliance weight 80 lbs. (32 kg) empty
Operating (room)
temperature
Min. 50°F (10°C)
Max. 80°F (26.7°C)
* Hot (L1), Neutral (N1), Ground
** Usable length = 48 inches
*** Usable length = 72 inches
All product tolerances are ±1/16” (±1.6 mm)
unless otherwise stated.
WARNING
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
19 9/16”
(49.7 cm)
24 5/8”
(62.5 cm)
25 5/8”
(65.1 cm)
Leveling feet
Adjustable 1” to 4”
(2.5 cm to10.2 cm)
16”
(40.6 cm)
3 13/16”
(2.1 cm)
3 13/16”
(2.1 cm)
9 5/16”
(23.7 cm)

All specications subject to change without notice. Phone: [phone]www.dacor.com
PLANNING
GUIDE
DYWS4
Discovery Wine Dispensing System
Document # PG15-001 Revised 03/20/13 Page 2/2
All cabinet tolerances: +1/16” (+1.6 mm) -0,
unless otherwise stated.

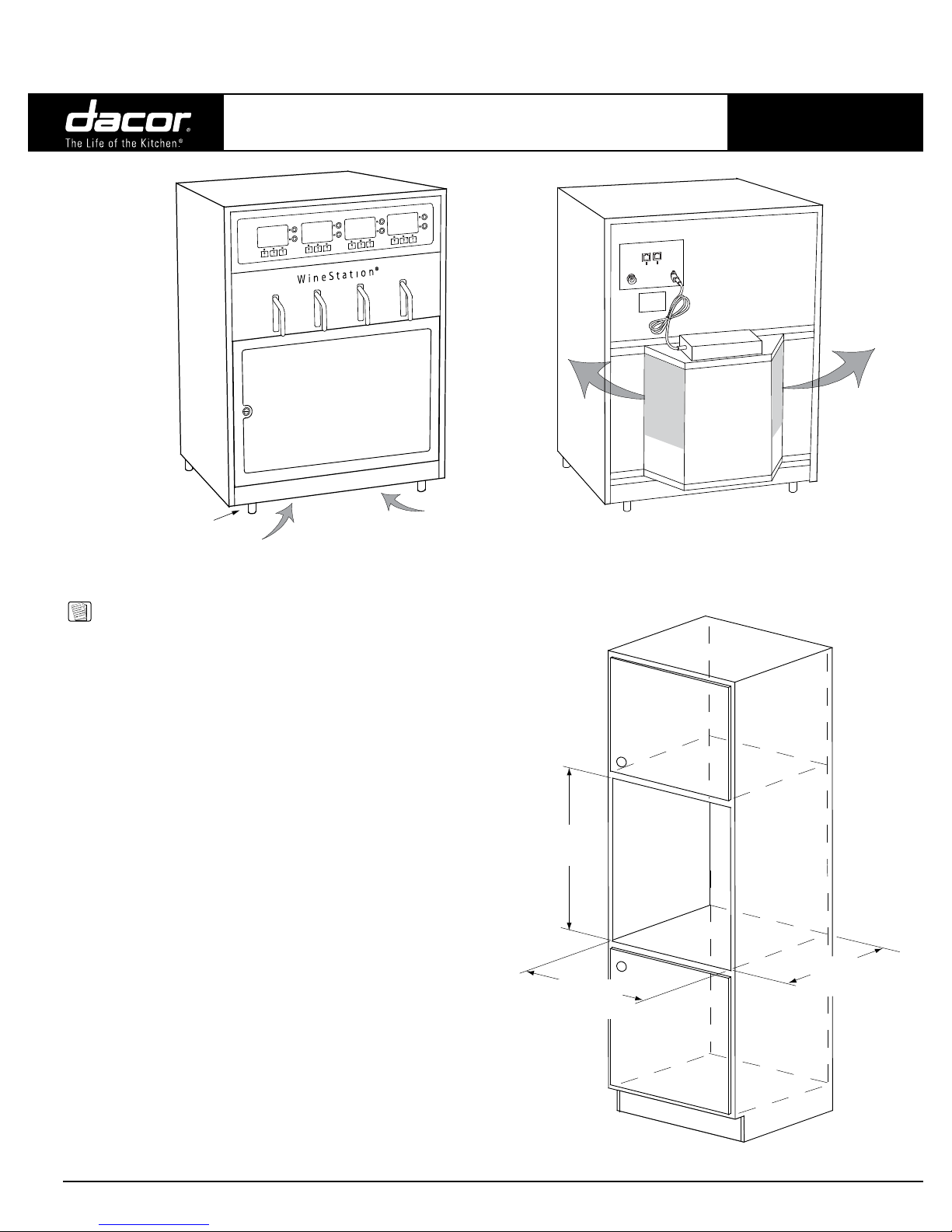

ALLOW FOR PROPER AIR CIRCULATION
MINIMUM CLEARANCE REQUIREMENTS
NOTES:
1. The wine dispensing system must be installed at a safe
distance from sources of heat, such as home appliances,
2. This appliance is designed for indoor use. It may be used
outdoors provided it is installed under cover in a dry
location and operated within the required ambient (room)
temperature (see page 1/2).
3. All maximum and minimum dimensions and clearances
shown must be met or exceeded.
4. Due to the possibility of spillage, DO NOT install this
appliance above or below any other appliance.
5. To prevent tipping, do not install this appliance in an
unrestrained, free-standing cabinet.
6. Install this appliance only on a flat, level surface capable
of supporting the appliance’s weight. Operate it only in
the upright position.
7. When determining the installation location, look for a
location that is free of potential safety hazards that might
interfere with the installation or operation of the unit or
interfere with air circulation around the unit. The location
needs to be clean, dry and free of any debris.
8. The 3-prong electrical outlet for the unit must be located
to allow for easy access when the unit is installed for
easy disconnection.
9. A minimum area of 13” H x 9” W x 4” D (33 cm H x 23 cm
W x 10 cm D) must be provided in a nearby cabinet (6 feet
or less away) for the gas cylinder, regulator and gas line
(with fittings) that supply Argon gas to the unit.
10. Installation of an external UPS with backup battery is
recommended so that the unit does not need to be reset
after a power outage.
11. Use an electrical outlet which cannot be turned off with a
switch or pull chain.
26 5/8” min.
(67.6 cm)
19 11/16” min.
(50.0 cm)
16” min.
(40.6 cm)
1” (2.5 cm)
min.
