Dacor ERV48-ER User manual

Installation Instructions
Downdraft Raised Vent
Models: ERV36-ER, ERV48-ER
Use these downdraft raised vents only with approved Dacor ® appliances.
See the installation instructions for the particular appliance model being
installed to determine suitability.
Part No. 103106 Rev. H

Important Safety Instructions .......................................... 1
Important Information About Safety Instructions .............. 1
Safety Symbols and Labels ............................................. 1
General Safety Precautions ............................................. 2
Product Specifications ..................................................... 3
Product Dimensions ......................................................... 3

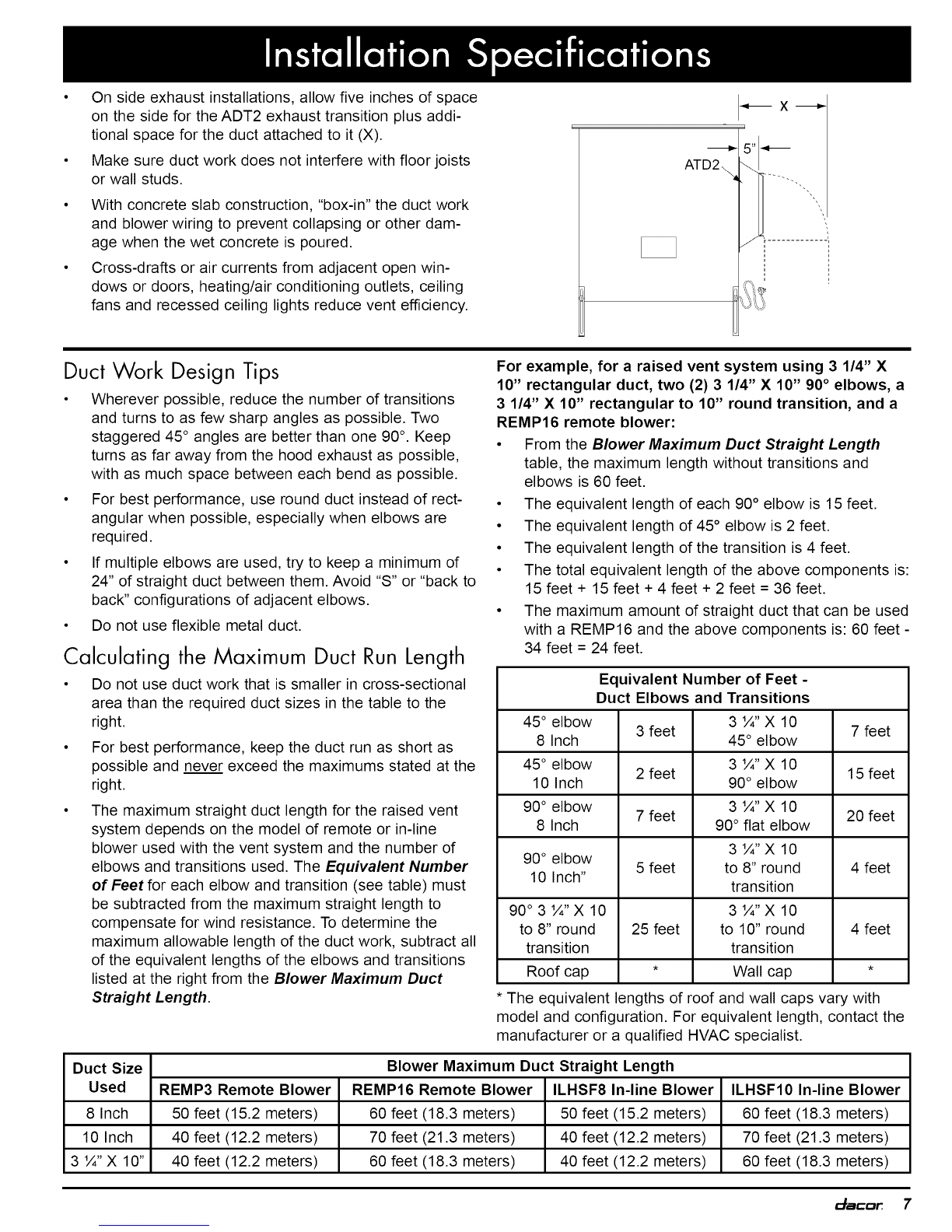

Installation Specifications ................................................ 4
Electrical Specifications ................................................... 4
Planning the Installation .................................................. 4
Planning the Duct Work ................................................... 6
Installation Instructions .................................................... 8
Installation Preparation .................................................... 8
Installation........................................................................ 8
Verifying Proper Operation ............................................. 12
Installation Checklist ...................................................... 12
Wiring Diagram ................................................................ 13
Important:
• Installer: In the interest of safety and to minimize problems, read these installation instructions completely and care-
fully before you begin the installation process. Leave these installation instructions with the customer.
• Customer: Keep these installation instructions for future reference and the local electrical inspector's use.
If You Need Help...
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have the
model and serial number of the appliance ready. The model
and serial number are printed on the product data label on
the front of the unit.
Dacor Customer Service
Phone: [phone] (U.S.A. and Canada)
Monday - Friday 6:00 A.M.to 5:00 P.M.Pacific Time
Web site: www.Dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: [phone] (U.S.A. and Canada)
Monday -- Friday 6:00 A.Mto 4:00 P.M.Pacific Time
The product data label also specifies the power supply
requirements.
Model Identification"
ERV36-ER = 36-inch wide raised vent
ERV48-ER = 48-inch wide raised vent
Tested in accordance with the latest edition of ANSI Z 21.1 standard for household gas
cooking appliances, ANSI/UL 858 household electrical ranges, CAN/CSA-C22.2 NO. 64 Standard for Household
Electric Cooking and Liquid Heating Appliances, and UL 507 electric fans.
All specifications subject to change without notice. Dacor assumes no liability for changes to specifications.
© 2007 Dacor, all rights reserved.

Important Information About
Safety Instructions
The Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or oper-
ating this or any other appliance.
Always contact the Dacor Customer Service Team
about problems and conditions that you don't under-
stand. See Customer Service Information on the fac-
ing page.
Safety Symbols and Labels
Immediate hazards that WILL result in severe personal
injury Or deathl
WARNING
Hazards 0r Unsafe practices that COULD result in severe
personal injury or death.
[_ CAUTION I
Hazards 0r Unsafe practices that COULD result in min0r
personal injury or property damage: I
DANGER I
IMPORTANT: DO not st0re 0r Use combustible, flammable or explosive Vapors and liqUids (such as gasoline)inside or
n the vcnty ofths orany other app ance, As0 keep tems that c0u d exp odel such as ....aeros0 cans away from the
range. Do not store f ammab e orexp os ve mater a s n adjacent cab nets or areas.
[_ WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through the flue(chimney) of fuel
burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety
standards such as those published by the National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), andthe local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors."
READ AND SAVE THESE INSTRUCTIONS
_mCD_ 1

General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precau-
tions, including the following:
WARNING
• Do not install or operate a damaged appliance. If you
receive a damaged appliance, contact your dealer or
builder.
• For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
• Use this raised vent only for its intended purpose as
outlined in the use and care manual. This appliance
is not intended for commercial use.
The customer should not install, repair or replace
any part of this unit unless specifically recommended
in the literature accompanying it. A qualified service
technician should perform all other service. Contact
the Dacor Customer Service Team for examination,
repair or adjustment.
• Keep all packaging materials away from children.
Plastic bags can cause suffocation.
• For proper operation, this unit must be installed with
a remote or in-line blower. Use only one of the mod-
els specified. Only one blower shall be installed.
Install or locate this appliance only in accordance
with these installation instructions the Dacor range
installation instructions and the remote or in-line
blower installation instructions. Improper installation,
adjustment, alteration, service or maintenance can
cause serious personal injury or property damage.
• Before installing or servicing the raised vent, discon-
nect the power plug from the electrical outlet.
• The installer must show the customer the location
of the electrical outlet so that the customer knows
where and how to disconnect power.
• Read the use and care manual completely before
operating this appliance.
•Do not tamper with the controls.
Never allow the filters or vent openings to become
blocked or clogged. Do not allow foreign objects,
such as cigarettes or napkins, to be sucked into the
vent holes.
• Clean the filters and all grease-laden surfaces often
to prevent grease fires and maintain performance.
Clean this appliance only as specified in the use and
care manual.
WARNING
,DO n0t ieave children or pets alone or Unattended in
the area around the range When it is in Use: Never
allow children to sit or stand on an appliancel Do
not let children play with a range or the raised vent:
Do not store items of interest to children above or
around the range,
, This app lance is equipped with a three prong
tr0und ng plug for your protection aga nst possible
_ctric shock hazards. It must be plugged into a
dedicated grounded electrical outlet: Where a stan-
dard two.prong electrical outlet is encountered it is
the pers0nal respons b litY and ob igati0n of the Cus-
t0mer to have it replaced with a dedicated, properly
i Use a power cord that is frayed or damaged,
i Use of a ground fau t interrupter (GFI)is not
recommended;
®
Grounding
type
electrical
outlet
Three prong
grounding plug
2_mC_

Product Dimensions
s
/
I
I
\
\
-" +1_ t/4" I'"
," 1(6 mm) I ",
,5/16" (8 mm) l _ _1 ,
," thick stiffener I I- '_ '
across back ' _ _" 2 13/16" _
l _1 _1 mm) '
2 1/2" .....
(64 mm)
1 15/16" [
(49 mm)
,
7.
/
I
/
/
/
2 9/16"
(65 mm)
Top cap with
vent down
!
I
I
/
J
/
I
I
4
\
|
"If! I
18 5/8"
(473 mm)
3 3/4"
(95 mm)
(25 ram)
---- Vent shown
in raised
position
t
10"
(254 mm)
30 '1
30 ¼"
(761oram) (762 rara)
37!/2, * _
(946 ram)
Model Top Cap Chassis
Number Width (A) Width (B)
ERV36-ER 36" (914 mm) 33 3/8" (848 mm)
ERV48-ER 48" (1219 mm) 43 3/8" (1102 mm)
Tolerances: +1/16", (+1.6 mm) unless otherwise stated
A
_J
Front of unit
"+Adjustable
anchor legs
Product
data label
/
28" 3 prong
grounded
power cord
/
See page 6 for exhaust
locations and dimensions
* Maximum height of
raised vent must not
exceed maximum speci-
fied counter height for
cooking appliance. See
installation instructions for
cooking appliance.
_mCD_ 3
