Thank you very much for purchasing the
DAeLECTRONICS iCtrl-R mini. Please read this
manual carefully to learn about all the functions of the
iCtrl-R mini so that you will be able to use it fully for
a long time. Keep this manual in a convenient place for
reference when necessary.
MANUALE D’USO – OPERATIONAL MANUAL
33
1

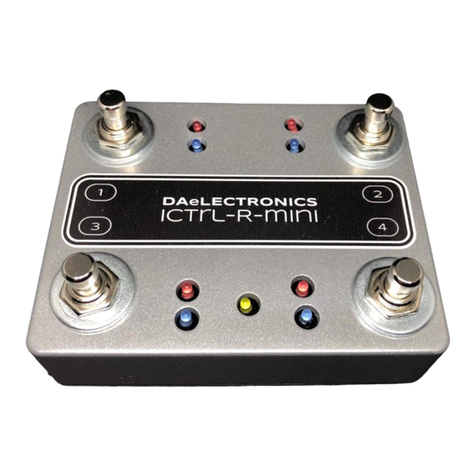

pocket MIDI CONTROLLER
iCtrl-R-mini
Grazie per aver acquistato il DAeLECTRONICS
iCtrl-R mini. Per favore leggete questo manuale con
cura per imparare tutte le funzioni dell’iCtrl-R mini

33
1
1

33
1
Warning
Before you start to use the the iCtrl-R mini pay much attention when insert and remove your USB cable from the iCtrl-R Mini input. You could
damage it irreparably!!!
Calibration
Before you start using the Expression pedal (the pedal shall ALWAYS be disconnected/connected to the controller before energizing the controller
itself) you need to activate the "Calibration" by pressing the switch 1 in mode 1 until the rapid flashing of the LED 5.Immediately after entering
the calibration mode, depress the pedal backwards to the minimum heel setting then sweep to the maximum toe setting, this will ensure you
calibrate your pedal with the iCtrl-R mini . Now pressing one of the switches of iCtrl-R mini LED 1 will blink, mode 1 will be
activated and the pedal can begin to communicate properly with the iPad (tested with Amplitube and Jamup & Bias FX) or even a PC/MAC (tested
with Guitar Rig and Amplitube & Bias FX) or other MIDI device. The default MIDI channel for iCtrl-R mini is the #1.
The calibration values will be stored until the next calibration.
MODE 1
Main Mode
At the start up the controller is set on mode 1. To switch back to mode 1 from a different one please hold switch 1 for approx 1 second until led 1
blinking.
Now we can send midi messages as follows:
PRESETS SELECTION
Preset 1 – PRESET UP > click and release switch 1
Preset 2 – STOMP/SNAPSHOT > click and release switch 2 (Midi CC 71 - Value 0-3)
Preset 3 – PRESET DOWN > click and release switch 3
Preset 4 – TUNER > click and release switch 4 (Midi CC 68 - Value 0-127
Preset 5 – ANALOG BYPASS> long click and release switch 2 (Midi CC70 - Value from 0 to 127)
2

MODE 2
PRESETS SELECTION
Preset 1 - REVERSE > click and release switch 1 (Midi CC 65 - Value from 64 to 127)
MODE 3
The Selection Mode
To switch to mode 3 please hold switch 3 for approx 1 second until led 3 blinking.
In this mode is possible to send midi messages as follows:
PRESETS SELECTION
Preset 1 - STOMP > click and release switch 1 (Midi CC 71 - Value 0)
Preset 2 - SCROLL > click and release switch 2 (Midi CC 71 - Value 1)
Preset 3 - PRESET > click and realese switch 3 (Midi CC 71 - Value 2)
Preset 4 - SNAPSHOT > click and release switch 4 (Midi CC 71 - Value 3)
FORWARD > click and release again switch 1 (Midi CC 65 - Value from 0 to 63)
Preset 2 - HALF SPEED > click and release switch 2 (Midi CC 66 - Value from 64 to 127)
FULL SPEED > click and release again switch 2 (Midi CC 66 - Value from 0 to 63)
Preset 3 - RECORD > click and realese switch 3 (Midi CC 60 - Value from 64 to 127)
OVERDUB > click and release again switch 3 (Midi CC 60 - Value from 0 to 63)
Preset 4 - PLAY > click and release switch 4 (Midi CC 61 - Value from 64 to 127)
STOP > click and release again switch 4 (Midi CC 61 - Value from 0 to 63)
The Looper Mode
To switch to mode 2 please hold switch 2 for approx 1 second until led 2 blinking.
In this mode is possible to send midi messages as follows:
Now we can send midi messages as follows:
3

MODE 4
The HX Stomp Snapshots Mode
To switch to mode 4 please hold switch 4 for approx 1 second until led 4 blinking.
In this mode is possible to send midi messages as follows:
PRESETS SELECTION
Preset 1 - STOMP SNAPSHOT 1 > click and release switch 1 (Midi CC 69 - Value 0)
Preset 2 - STOMP SNAPSHOT 2 > click and release switch 2 (Midi CC 69 - Value 1)
Preset 3 - STOMP SNAPSHOT 3 > click and realese switch 3 (Midi CC 69 - Value 2)
Preset 4 - NEXT SNAPSHOT > click and release switch 4 (Midi CC 69 - Value 8)
Preset 5 - PREVIOUS SNAPSHOT > long click and release switch 4 (Midi CC 69 - Value 9)
External Expression pedal
When an expression pedal is connected to an iCtrl-R mini, it will be always active and communicates via the control change #2 (values from 01 to
127). In addition when the pedal is set at minimum heel a CC #77 with value =0 will be sent after 400 millisecond, a CC #77 with value =127 will
be sent when the pedal is at maximum toe setting after 50ms. You can then switch on off an effect to be controlled by the expression pedal
assigningCC#77 to it.
Vslider
It’s a motion detection sensor located on the right side of the box that is always active and communicates via the control change #127 (values
from 01 to 127).
With this sensor you can send continuous MIDI CC by moving back and forth the foot or the hands from the sensor. Led #9 will be off (a CC #55 with
value =0 will be sent) after 400ms when you move away the foot or the hand from the sensor. Led #9 will be on and a CC #78 with value =127 will
be sent after holding the foot in front of the sensor for 50ms. You can then switch on off an effect to be controlled by the Vslider assigning CC#78
to it.
4

APPENDI
iCtrliCtrl
iCtrl-
--
-R mini
R miniR mini
R mini . You can connect with a MicroUSB ca le (just plug into the jack) and the iCtrl
iCtrliCtrl
iCtrl-
--
-R mini
R mini R mini
R mini will
power up or use the recharga le attery. When the USB power is powered, it will automatically switch over to USB for power, as well as start
charging the battery. This happens 'hotswap' style so you can always keep the attery as a ' ackup' power that will only get used when USB
power is lost.
When the attery is charging you can see a yellow led on through the USB hole on the ox side.
Switch in the down position the toggle switch when the USB ca le is removed and you don’t use the controller, the attery circuit will e switched
off.
When fully charged (10 hours under USB power) attery will last for approx 12 hours.
Bluetooth
iPad & iPhone
Download the app for iPad/iPhone https://itunes.apple.com/it/app/bluetooth-midi-connect/id1108321791?mt=8
Open the app and select iCtrl-R Mini Bluetooth > Connect
Go to the App to be controlled (JAM UP, AMPLITUBE and other) and enjoy it ;)
For Mac, you need to launch the Audio MIDI Setup utility from within OS ’s Utility folder (Finder>Applications>Utiltiies>Audio MIDI Setup).
Then press CMD + 2 to open the MIDI studio (or navigate to Window>Show MIDI Studio). Double click the Bluetooth module and press the
“connect” button next to your iCtrl-R mini that appears in the window.
Power Management (on Bluetooth versions)
There're two ways to power the
