Daewoo ACP-2208RD User manual

2208Series
ACP-2208RD
ACP-2208ED
ACP-2218RD
ACP-2218ED
ACP-5040RDS
ACP-5040RC
ACP-5040
0208Series
ACP-0208RD
ACP-0208ED
ACP-0218RD
ACP-0218ED
ACP-5020RDS
ACP-5020RC
ACP-5020
Service Manual
Car Audio
S/M No : ACP2208E 0
MODEL : ACP-2208 / 0208 Series
DAEWOO ELECTRONICS CO., LTD
E-mail: [email protected] Nov. 2003
4-Channel high Power (40W 4Ch)
Electronic Tuning
Electronic Volume
/ Bass/ Treble/ Balance/ Fader Control
42 Memory Capability (18FM+12MW+12LW)
Local/DX Switch
Loudness & Mute Control
Compact Disc Player
Detachable Face for Anti-Theft
10 CD-changer control (Option)
Telephone Mute Control

TABLE O CONTENTS
1. PRODUCT SPECI ICATIONS ................................................ 1
2. LINE DRAWING ....................................................................... 2
3. EMERGENCY TROUBLE SHOOT ........................................... 3
4. CD PART ............................................................................... 6
5. SCHEMATIC DIAGRAM ........................................................... 8
6. PARTS LOCATION ON P.C.BOARD ....................................... 9
7. OVERALL EXPLODED VIEW & PARTS LIST ...................... 14
8. DECK MECHANISM EXPLODED VIEW & PARTS LIST ..... 16
9. ELECTRICAL PARTS LIST......................................... 19
10. UNCTION O MICOMIC.................................................... 27
11. IC BLOCK DIAGRAM ......................................................... 33
12. LIQUID CRYSTAL DISPLAY ................................................. 37
13. OUTPUT CONNECTION DESCRIPTIONS ........................... 38

1. PRODUCT SPECI ICATIONS
AUDIO SECTION
Maximum output power : 40watts per channel into 4 ohms.
Load impedance : 4 ohms or 8 ohms
Total harmonic distortion : Less than 10% at 14 watts
Frequency response : 100Hz(±3dB), 20kHz(±3dB)
Control Bass/Treble : 10±3dB at 100Hz/10kHz
CD PLAYER SECTION
Total harmonic distortion : 0.1%
Signal to noise ratio : 80dB
Laser Diode Properties : Meterial - GaAlAs
Wave length - 775~800 nm
Laser output Power - Less than 400 uW
TUNER SECTION
(FM) Tuning range : 87.5 to 108MHz
Sensitivity : 10dBuV
Stereo separation : 30dB
Signal to noise ratio
: 60dB
(MW) Tuning range : 522 to 1620KHz at Europe
( 530 to 1710kHz at U.S.A)
Sensitivity : 22dBuV
Signal to noise ratio
:
50dB
Channel space : 9KHz (or 10KHz at U.S.A)
(LW) Tuning range : 144 to 288KHz
Usable Sensitivity : 25dBuV
GENERAL
Power requirements : DC 13.8V (10.8 ~15.6V allowable)
Negative ground
Speaker impedance : 4 or 8 ohm
Output power : Maximum 40Wx4Ch.
Current consumption : 10A (MAX)
Dimension (W H D) : 178 50 156 mm
Chassis size : 195 64 14.6 mm
Weight(Net) : 1.48Kg
Design and specifications are subject to changes for improvements without notice.
1

2
2. LINE DRAWING
2-1. RONT SIDE
2-2. REAR SIDE
ACP-2208/2218, 0208/0218 RDS Series
- RDS Function
- Compact Disc Player
- 4-Channel high Power (40W 4Ch)
- Electronic Tuning
- Electronic Volume /Bass /Treble /Balance
/Fader Control
- 42 Memory Capability (18FM+12MW+12LW)
- Local/DX Switch
- Loudness & Mute Control
- Flip-Down Detachable Face for Anti-Theft
- 10 CD-changer control
- Telephone Mute Control
ACP-2208/2218, 0208/0218 BASIC Series (Non RDS unction)
- Basic Function
- Compact Disc Player
- 4-Channel high Power (40W 4Ch)
- Electronic Tuning
- Electronic Volume /Bass /Treble /Balance
/Fader Control
- 42 Memory Capability (18FM+12MW+12LW)
- Local/DX Switch
- Loudness & Mute Control
- Flip-Down Detachable Face for Anti-Theft
- 10 CD-changer control
- Telephone Mute Control

3
3. EMERGENCY TROUBLE SHOOT
3-1. General unction
No sound from
speakers
Yes
No
Yes
Output connector
is missing
Output connector
is inferior goods
Put exactly output
connector in.
Change output
connector to
superior goods
Yes
No
Power IC, Output
Socket is inferior
goods
Change Power IC,
Output Socket to
superior goods
Yes
A
A
L.C.D or Lamp
is not turned
off.
Yes
No
Yes
Power is not
supplied Return to
Output voltage of
power IC is little.
Change Regulator
IC and check
output voltage.
Yes
No
LCD or Lamp is
inferior goods.
Change LCD or
Lamp to superior
goods.
Yes
Different each
channel have
output level
(Front, Rear,
Left, Right)
Treble or Bass
is low
unusually
Yes
No
Yes
Balance of front
and rear is in one
side
Balance of Left,
Right is in one
side.
Re-adjust Balance
of front, rear
Ref.
Balance = Center
Front / Rear
Ref.
Balance = Center
Left / Right
Ref.
Balance = Center
Treble / Bass
Ref.
Regulator IC output
Voltage = V
Ref.
Electrical Parts List
L.C.D., Lamp
Re-adjust Balance
of Left, Right
Yes
Yes
Balance of Treble
or Bass is in one
side.
Re-adjust Balance
of Treble or Bass
Yes

4
EMERGENCY TROUBLE SHOOT
3-2. Tuner unction
Hearing noise
only
Yes
No
Yes
No selected the
station
Tuner Module is
inferior goods.
Select exactly
broadcasting
frequency.
Change tuner
module to
superior goods.
Yes
Weak frequency
area caused by
elevations
Change to goods of
R.D.S function.
Yes
A
B
A
Station in
other regions
are not held.
Yes Yes
No selected the
local stations. Return to or
Extreme noise
in broadcast
Weak
separation of
FM stereo
Yes
No
Yes
Antenna
connector is
missing
Put exactly
antenna connector
in his jack
Function of auto-
switch noise
reduction
Ref.
Yes
Weak frequency
area of FM, MW
Switch
automatically to
mono mode in
weak frequency
area
Yes
B
R1 In case of located Glass Antenna, check if heat wire is cut or not in rear window.
R2 Check Antenna connector part.

EMERGENCY TROUBLE SHOOT
5
Disc is not
inserted.
Yes Yes
There is Disc in
the slot
Take out Disc
from the slot
Disc is inferior
goods
Use only superior
disc
No
Yes
A
Selection time
is longer than
unusually
Yes
Selected PAUSE
function
Release PAUSE
function
Yes
Selected MUTE
function
Release MUTE
function
Yes
Mechanism is
inferior goods
Change
Mechanism to
superior goods
Turn power on
again after turn off.
Yes
Inspect disc for
scratches.
Yes
No sound
Yes
No
Yes
disc was inserted
upside down
Insert CD with
label side down
Ref.
DWEC CD Mecha
DCM-500F
Ref.
Power Off/On
Hard Reset
No
No
No
Disc is dirty
Wipe with cleaning
cloth
Yes
A
Ref. Point
Disc is stopped
under eject
Yes
It is normal for
CD-Deck or the
slot
Yes
3-3. CD unction

6
Definition of Mechanical Mode
No
1
2
3
4
STOP MODE
LOADING
MODE
PLAY MODE
EJECT
MODE
- Disc haven’t been inserted or disc have been ejected. When disc shall be transported
into the unit
Mechanism shall be fi ed at this mode.
- Loading device can insert disc thru the slot.
- Floating device being locked.
- Disc have been inserted thru the slot in front of unit. It is transient state between STOP
mode and PLAY mode.
- If disc should be inserted at the state of POWER ON, disc shall be loaded by a series of
operation of specified device.
- After disc have being clamped on the turn-table, disc shall be rotated.
- Disc shall be played.
- Floating device being unlocked.
- Disc is to be ejected at this mode. It is transient state between PLAY mode and STOP
mode.
- If disc should be mounted at the state of POWER ON and commanded by EJECT key, disc
shall be ejected thru the slot by a series of operation of specified device.
MODE DE INITION & STATUS
Standard values / Play-ability test
No
1
2
3
4
5
Loading Time
Ejecting Time
Access Time
Disc
Discharge Force
Disc
Take-up Force
7sec + 3sec
6sec + 3sec
< 17 sec
< 15 sec
< 15 sec
< 5 sec
> 120g
> 120g
> 80g
> 90g
During play in
low temp.
> 70g
During play in
low temp.
From insertion up to make sound.
(TCD-784)
From track No.1 Between the EJECT
command and the disc eject completion.
(TCD-784)
From out-most Track, Between the PLAY
command of in-most Track and marking
sound.
Shall be measure when the center of Disc is
correspond with the center of Roller.
Shall be measure when the center of Disc is
correspond with the center of Roller.
ITEMS
CONNEC
TION
SPECI IED VALUES, CONDITIONS
STANDARD VALUES RELIABILITY LIMITS
TEST CONDITIONS, RE ERENCES
CDP MODE & PLAYABILITY
4. CD PART

7
No
8
9
10
11
12
13
14
15
16
17
Anti-Vibrational
Performance
Playability
Disc Deflection
Disc
Eccentricity
Jitter
Frequency
Response
Harmonic
Distortion
Dynamic
Range
S/N Ratio
Channel
Separation
±0.4mm
0.21mm
< 27 nsec
< 0.03% at 1kHz
> 80dB at 1kHz
> 85dB at 1kHz
> 70dB at 1kHz > 65dB at 1kHz
> 85dB at 1kHz
> 75dB at 1kHz
< 0.05% at 1kHz
20-20kHz ±3dB 20-20kHz ±3dB
< 33 nsec
0.21mm
±0.4mm
equal with
standard values
-Interruption:0.7mm
-Black Dot Disc:0.6mm
-Scratch Disc:0.6mm
- Finger Print Disc:65um
>1.0g/10Hz-20Hz, Z way
>2.0g/30Hz-200Hz, Z way
>0.6g/10Hz-20Hz, X&Yway
>1.2g/30Hz-200Hz, X&Yway
X=side to side
Y=front to back
Z=up to down
Z way only
10Hz-20Hz:0.7g
30Hz-200Hz:1.2g
-The G level should be upped to the sound
skip level from the less level slowly at the
frequency.
-Ignore the sound skip at the near of
resonance frequency(about 100Hz).
-In playing YEDS-10 Tr #5, shall perform with
vibration
-No sound skipping.
-No sound skipping in the specified range.
-The sound skipping does not include any
interpolating noise.
-No sound skipping at the ABEX 731RA Tr
No8
-The sound skipping does not include any
interpolating noise.
-E cept from specified item due to the
reliability limits of TEST DISC in the HTO
TEST.
-No sound skipping at the ABEX 713 Tr No8
-The sound skipping does not include any
interpolating noise.
-E cept from specified item due to the
reliability limits of TEST DISC in the HTO
TEST.
This measurement may be done at 20Hz,
20kHz, (1kHz=0dB)
400Hz HIGHPASS FILTER
20kHz(-60dB 24kHz) LOWPASS FILTER
20kHz(-60dB 24kHz) LOWPASS FILTER,
60dB AMP IHF-A WEIGHTING FILTER
400Hz HIGHPASS FILTER
20kHz (-60dB 24kHz)LOWPASS FILTER
ITEMS
CONNEC
-TION
SPECI IED VALUES, CONDITIONS
STANDARD VALUES RELIABILITY LIMITS
TEST CONDITIONS, RE ERENCES
7
Mechanical
Noise
Loading Eject
< 70dB(A)
Play < 40dB(A)
Access < 70dB(A)
If anything is not
error, shall not
defined.
-Test should be performed in no reverberation
room at the noise level of less than 20dB(A).
-Test should be performed at the 10cm in front
of the unit.
-IHF-A MODE (RMS-FAST)(TCD-792D)
6
Clamping Force > 130g > 130g
CD PART

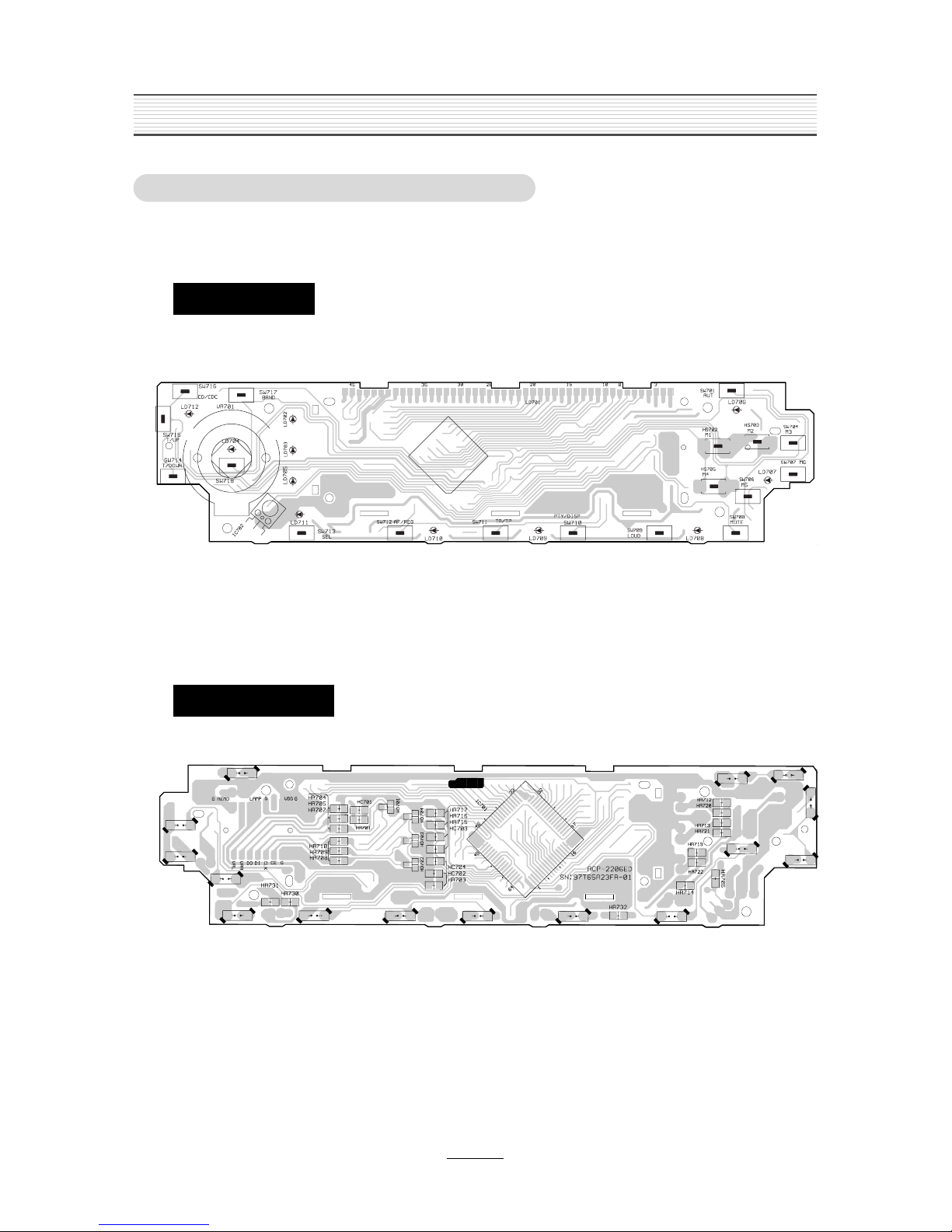

6-1. PCB MAIN / ACP-2208, 0208 Series
9
6. PARTS LOCATION ON P.C. BOARD
PART SIDE

10

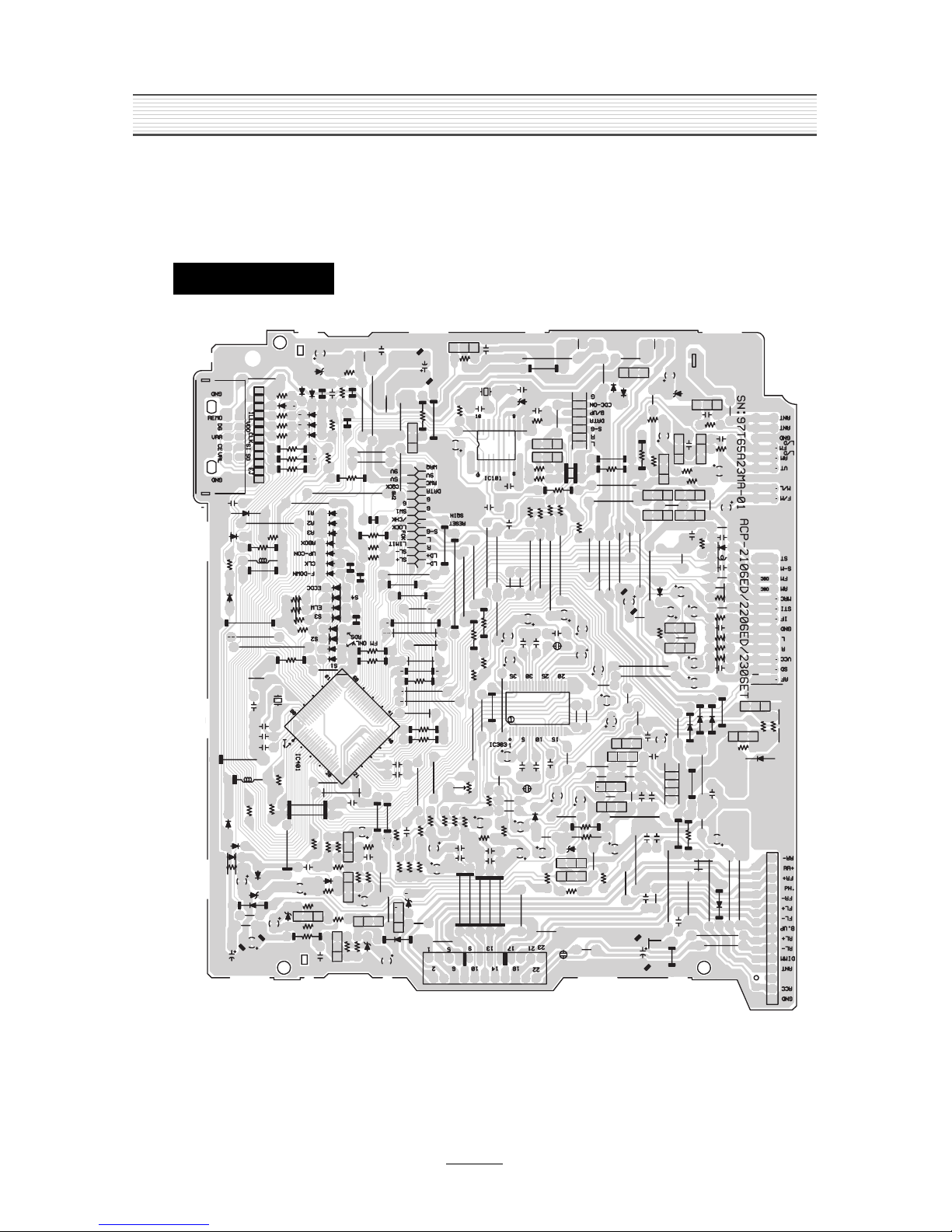

PARTS LOCATION ON P.C. BOARD for ACP-2208/ 0208 Series
BOTTOM SIDE

PARTS LOCATION ON P.C. BOARD for ACP-2208 Series
11
PART SIDE
BOTTOM SIDE
6-2. PCB RONT / ACP-2208 SERIES

PARTS LOCATION ON P.C. BOARD for ACP-0208 Series
12
PART SIDE
BOTTOM SIDE
6-3. PCB RONT / ACP-0208 SERIES

PARTS LOCATION ON P.C. BOARD for ACP-2208, 0208 Series
13
PART SIDE
BOTTOM SIDE
6-4. PCB RONT ESC

DECK MECHANISM EXPLODED VIEW & PARTS LIST
for ACP-2208, 0208 Series
17
8-1. PARTS LIST for DCM-400 /500
No PART NAME PART CODE EA DESCRIPTION
1 CHASSIS MAIN 97L0603800 1 EGCHSP40R T1.0
2 SUPPORTER D/U -R 97L2502200 1 POM(LUCEL N109-LDK)
3 SPRING SUPPORTER 97L3005700 1 SUS304-WPB
4 SUPPORTER D/U - L 97L2502700 1 POM(LUCEL N109-LDK)
5 PLATE SLIDER -L 97L0903200 1 POM(LUCEL N109-LDK)
6 SPRING DAMPER 97L3005300 3 SUS304-WPB
7 BASE D-U 97L0603600 1 POM(LUCEL MR310)
8 MOTOR SPINDLE 97L8102300 1 PANASONIC (MDN2BL3GRAS)
9 PLATE TURNTABLE 97L0903400 1 PC(TRIREX 3500G20)
10 PICK UP 97Y7500100 1 JVC OPTIMA-725B
11 SUPPORTER PICK UP 97Y2500100 1 SUS304 CSP 3/4H T=0.2
12 FPC PICK UP 97Y6500900 1 FLEXIBLE PCB
13 SHAFT SLED SCREW 97L3606500 1 SUS416
14 GEAR SLED 97L2705600 1 POM(LUCEL N109-LDK)
15 SLED RACK 97Y2701300 1 POM
16 SPRING PLATE SLED 97Y3001700 1 SUS304 CSP 3/4H T=0.2
17 GEAR CENTER 97L2705500 1 ESREL
18 MOTOR FEEDING 97L8102400 1 PANASONIC (PPN7KB10B)
19 GEAR FEED - M 97L2705400 1 POM(LUCEL N109-LDK)
20 SUPPORTER FEED 97L2502300 1 SUS304CSP 3/4H T0.2
21 PLATE CLAMP 97L0903300 1 POM(LUCEL N109-LDK)
22 CHASSIS CLAMP 97L0603900 1 EGCHSP40R T1.0
23 SPRING CLAMP 97L3005200 1 SWPB
24 DAMPER OIL 97L2G00200 3 "RUBBER,Si(OIL)"
25 HOLDER ROLLER 97L2302100 1 POM(LUCEL MR310)
26 SHAFT ROLLER 97L3605800 1 SUS303
27 GEAR ROLLER 97L2705300 1 POM(LUCEL N109-LDK)
28 ROLLER RUBBER 97L3700800 2 RUBBER
29 CHASSIS SIDE 97L0604100 1 EGCHSP40R T1.0
30 SHAFT GEAR A 97L2100300 1 SUM32
31 SHAFT GEAR B 97L2100400 1 SUM32
32 SHAFT GEAR C 97L2100500 1 SUM32
33 PLATE SLIDER -R 97L0903100 1 POM(CAPITAL FT2020)
34 LEVER RACK 97L2602000 1 POM(CAPITAL FT2020)

DECK MECHANISM EXPLODED VIEW & PARTS LIST
for ACP-2208, 0208 Series
18
No PART NAME PART CODE EA DESCRIPTION
35 SPRING RACK LEVER 97L3005600 1 SUS304-WPB
36 GEAR LOAD - A 97L2705000 1 POM(LUCEL FW715CS)
37 GEAR LOAD - B 97L2705100 1 POM(LUCEL N109-LDK)
38 GEAR LOAD - C 97L2705200 1 POM(LUCEL N109-LDK)
39 LEVER PUSH 97L2601900 1 PC
40 MOTOR LOADING 97L8102500 1 PANASONIC (PPN13LB11C)
41 BRKT LOADING 97L2401800 1 EGCHSP40R T1.0
42 GEAR WORM 97L2704900 1 POM(LUCEL N109-LDK)
43 SPRING HOLDER ROLLER-L 97L3005000 1 SWPB
44 SPRING HOLDER ROLLER-R 97L3007000 1 SWPB
45 CHASSIS TOP 97L0603700 1 EGCHSP40R T1.0
46 LEVER LOADING 97L2602100 1 EGCHSP40R T0.8
47 LEVER GUIDE - L 97L2601800 1 POM(LUCEL MR310)
48 LEVER GUIDE - R 97L2602500 1 POM(LUCEL MR310)
49 LEVER CD STOPPER 97L2602600 1 POM(LUCEL N109-LDK)
50 SPRING CD STOPPER 97L3007500 1 SUS304-WPB
51 BRKT CD GUIDE 97L2402200 1 POM(LUCEL N109-LDK)
52 SPRING GUIDE LEVER 97L3005500 1 SUS304-WPB
53 CUSHION TOP 97L4202200 1 SPONGE(MOLTO PLENE)
54 LEVER CLUTCH 97L2602200 1 EGCHSP40R T0.6
55 PCB DECK AS 97YCD00800 1 DCM-400F
56 SERVO PCB TOTAL AS 97LA107600 1 DCM-400F
SW SWITCH DETECT 97L0S00600 3 MPU10853MLB4
T1 STOPPER TRANSIST 97Y5700200 1 POM
S1 SCREW MACHINE 97L3102200 2 PAN •’1.7 2.5
S2 SCREW MACHINE 97L3102100 1 PAN •’1.7 3.5
S3 SCREW TAPPTITE 97L3103600 12 TT3 BIN •’2.0 3.5
S4 SCREW MACHINE 97L3101700 2 PAN •’2.0 2.5
S5 SCREW TAPPTITE 97Y3100200 1 TT3 BIN 1.4 X 2.5
W1 WIRE FEED MOTOR 97L3006500 1 UL1571 AWG #30
W2 WIRE LIMIT SWITCH 97L3006600 1 UL1571 AWG #30
W3 WIRE LOADING MOTOR 97L3006800 1 UL1571 AWG #30(BLK)
W4 WIRE LOADING MOTOR 97L3006800 1 UL1571 AWG #30(RED)
W5 CONN. WIRE DETECT S/W AS 97L3006700 1 UL1571 AWG #30(CONN. 4P)
PW POLYSLIDER 97L3900100 2 D2.6 D5 t0.25

B001 PCB MAIN 97T65A23MA 1 EA 190X170X1.6T FR1
CT130 CRYSTAL QUARTZ 5XJZ4R332D 1 EA HC-49/S 4.332MHZ 25PPM F
CT401 CRYSTAL QUARTZ 5XJZ4R500E 1 EA HC-49/S 4.5MHZ 30PPM F
DZ101 DIODE ZENER DKTZJ9R1B - 1 EA MTZJ 9R1B 26MM
DZ130 DIODE ZENER DKTZJ5R1A- 1 EA MTZJ 5R1A 26MM
DZ301 DIODE ZENER DKTZJ5R6B- 1 EA MTZJ 5R6B 26MM
DZ303 DIODE ZENER DKTZJ9R1B- 1 EA MTZJ 9R1B 26MM
DZ351 DIODE ZENER DKTZJ5R1A- 1 EA MTZJ 5R1A 26MM
DZ401 DIODE ZENER DKTZJ6R8B- 1 EA MTZJ 6R8B 26MM
DZ402 DIODE ZENER DKTZJ5R6B- 1 EA MTZJ 5R6B 26MM
DZ403 DIODE ZENER DKTZJ6R8B- 1 EA MTZJ 6R8B 26MM
L401 COIL INDUCTOR 5LL479K03K 1 EA 4.7UH K 03 TA 26MM
L402 COIL INDUCTOR 5LL479K03K 1 EA 4.7UH K 03 TA 26MM
Q101 TR TZRC111M-- 1 EA KRC111M
Q102 TR TZRA105M-- 1 EA KRA-105M
Q103 TR TZRC102M-- 1 EA KRC102M(KEC)
Q104 TR TZRA105M-- 1 EA KRA-105M
Q105 TR TZRC102M-- 1 EA KRC102M(KEC)
Q106 TR TZTC3113B- 1 EA KTC 3113B
Q107 TR TZTC3113B- 1 EA KTC 3113B
Q108 TR TZ2SD1862R 1 EA 2SD1862R AUTO
Q301 TR TZ2SB1240R 1 EA 2SB1240R
Q302 TR TZRC102M-- 1 EA KRC102M(KEC)
Q309 TR TZDTC323TS 1 EA DTC323TSA SPT
Q310 TR TZDTC323TS 1 EA DTC323TSA SPT
Q351 TR TZDTC323TS 1 EA DTC323TSA SPT
Q352 TR TZDTC323TS 1 EA DTC323TSA SPT
Q353 TR TZDTC323TS 1 EA DTC323TSA SPT
Q402 TR TZRC102M-- 1 EA KRC102M(KEC)
Q405 TR TZTC3199Y- 1 EA KTC-3199Y TAPING
Q406 TR TZ2SB1240R 1 EA 2SB1240R
Q407 TR TZRC102M- - 1 EA KRC102M(KEC)
Q408 TR TZRA101M-- 1 EA KRA101M(AUTO)(2201)
Q409 TR TZRC102M-- 1 EA KRC102M(KEC)
Q471 TR TZTC3199Y- 1 EA KTC-3199Y TAPING
9-1. PCB MAIN Ass’y / ACP-2208, 0208 Series
CAUTION is a recommendable part for essential stock.
R
9. ELECTRICAL PARTS LIST
19
Location PART NAME PART CODE DESCRIPTION UnitQ’ty

PARTS LIST for AGC-2208 Series
AGC-2218 Series
20
Q490 TR TZTC3198Y - 1 EA KTC3198Y-(1815Y) (AUTO)
Q501 TR TZRC101M-- 1 EA KRC101M (AUTO)(1201)
Q502 TR TZRA101M-- 1 EA KRA101M(AUTO)(2201)
ANT01 JACK ANT 97T6802500 1 EA 9.5X20X27.5
CNFR CONN AS 97T8873100 EA E12P20(W)5012P(S)
CWDCP CONNECTOR 97T6237400 1 EA 00 6232 025 104 800 ELCO
CWLO CONN AS 97T8865000 1 EA E3P 100M/M
IC101 IC AUDIO 1BU1924F-- 1 EA BU1924(SOP)
IC301 IC REGULATOR 1K1A7809P1 1 EA K1A7809API
IC303 IC CHIP EVR 1LC75371M- 1 EA LC75371M MFP36S
IC304 IC POWER 1TDA8571J- 1 EA TDA8571J-Y
IC401 IC CHIP CUSTOM 176S8016Z1 1 EA UPD178016AGC-601-3B9
IC402 IC REGULATOR 1K1A7808P1 1 EA KIA7808API
L403 COIL CHOKE 5LC301PA18 1 EA 37X1X5.2 300UH P EI-19MM
LD01 LED DLT4H11G41 1 EA LT4H11G-41(RED)
Q303 TR T2SD2395-- 1 EA 2SD2395
RV101 R SEMI FIXED RV1417504- 1 EA H500K-5X5-6N-PC-BS
TU101 TUNER FM/AM 97T7612800 1 EA KST-M4001LVO-10
Location PART NAME PART CODE DESCRIPTION UnitQ’ty

0F010 HOLDER LCD 97T2308500 1 EA “ABS XR-404,WHITE”
0F020 REFLECTION LCD 97T2227000 1 EA PC LEXAN 121 CLEAR
0F030 BRKT LCD 97T2449100 1 EA SECC T0.6
0F040 SHEET LCD 97T9609100 1 EA PC D114 93.1X26.4
0F050 CONN ZEBRA 97T6229600 1 EA
0F100 CUSHION GUIDE 97T4104500 2 EA FELT 25X4.5X0.3T BK
B002 PCB FRONT 97T65A23FR 1 EA 190X170X1.6T FR4
CB001 CABINET FRONT AS 97TCFA65GD 1 EA ACP-2206ED
CB002 CASE FRONT AS PNCFCA07GD 1 EA AKF-0827R
CB010 CABINET FRONT 97T0112400 1 EA ABS(XR-404)
CB020 CABINET BACK 97T0112500 1 EA PC(LEXAN-121) BK
CB030 WINDOW DISPLAY 97T1610700 1 EA ACRYL IH-830H
CB060 KNOB PRESET 1 97T13F7400 1 EA PC LEXAN-121
CB061 KNOB PRESET 2 97T13F7500 1 EA PC LEXAN-121
CB070 KNOB PRESET 3 97T13F7600 1 EA PC LEXAN-121
CB080 KNOB PRESET 4 97T13F7700 1 EA PC LEXAN-121
CB081 KNOB PRESET 5 97T13F7800 1 EA PC LEXAN-121
CB082 KNOB PRESET 6 97T13F7900 1 EA PC LEXAN-121
CB090 KNOB SEL 97T13F6800 1 EA PC(LEXAN-121)
CB100 KNOB MUTE 97T13F7300 1 EA PC LEXAN-121
CB110 KNOB REG 97T13F6900 1 EA ACRYL 1H-830H
CB120 KNOB TA 97T13F7000 1 EA ACRYL 1H-830H
CB130 KNOB DSP 97T13F7100 1 EA ACRYL 1H-830H
CB140 KNOB TUNE UP/DN 97T13F6300 1 EA PC(LEXAN-121)
CB150 KNOB LOUD 97T13F7200 1 EA PC LEXAN-121
CB160 KNOB AUT 97T13F6600 1 EA PC(LEXAN-121)
CB170 KNOB BAND 97T13F6500 1 EA PC(LEXAN-121)
CB180 KNOB CD 97T13F6400 1 EA PC(LEXAN-121)
CB190 KNOB OPEN 97T13F6700 1 EA ABS(XR-401)
CB200 CAP KNOB DSP 97T0442200 1 EA PC LEXAN-121
CB240 SUPPORTER BACK L 97T2503600 1 EA ABS XR-404
CB250 SUPPORTER BACK R 97T2503900 1 EA ABS XR-404
CB300 SPRING OPEN 97T3015000 1 EA SUS-304
CB310 PLATE PCB 97T0929500 1 EA PC
CB370 KNOB VOL 97T13F6000 1 EA ABS XR-401
CB380 KNOB POWER 97T13F6100 1 EA PC LEXAN-121
PARTS LIST of ront Deta. Ass’y
for ACP-2208 Series
21
Location PART NAME PART CODE DESCRIPTION UnitQ’ty
9-2-1. RONT DETA Ass’y : ACP-2208 Series

PARTS LIST of ront Deta. Ass’y
for ACP-2208 Series
22
CF010 CASE FRONT 97T0433200 1 EA PP
CF013 CUSHION
CASE FRONT 97T4212410 1 EA SPONGE T10X10X30 D/GRAY
IC701 IC DRIVER(LCD) 1HL14104-- 1 EA LD4104
LCD LCD BLACKMASKING 97T0L1630N 1 EA KXN35844AAB
LD702 LED DLT6GB3-41 1 EA LT6GB3-41-UR BLUE
LD703 LED DLT6GB3-41 1 EA LT6GB3-41-UR BLUE
LD704 LED DLGH3030-- 1 EA LGH3030C-Q1 GREEN
LD705 LED DLT6GB3-41 1 EA LT6GB3-41-UR BLUE
LD706 LED DLGH3030— 1 EA LGH3030C-Q1 GREEN
LD707 LED DLGH3030— 1 EA LGH3030C-Q1 GREEN
LD708 LED DLGH3030— 1 EA LGH3030C-Q1 GREEN
LD709 LED DLGH3030— 1 EA LGH3030C-Q1 GREEN
LD710 LED DLGH3030— 1 EA LGH3030C-Q1 GREEN
LD711 LED DLGH3030— 1 EA LGH3030C-Q1 GREEN
LD712 LED DLGH3030— 1 EA LGH3030C-Q1 GREEN
SW701 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW702 SW TACT 5S52643CL1 1 EA 1C-1P SKMA 10918A 260G
SW703 SW TACT 5S52643CL1 1 EA 1C-1P SKMA 10918A 260G
SW704 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW705 SW TACT 5S52643CL1 1 EA 1C-1P SKMA 10918A 260G
SW706 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW707 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW708 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW709 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW710 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW711 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW712 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW713 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW714 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW715 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW716 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW717 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
SW718 SW TACT 5S50101Z02 1 EA 1C-1P SKQC10918B 260G
VR701 ENCODER VOLUME 5V3503A71A 1 EA EC22B20-ZZZ
Location PART NAME PART CODE DESCRIPTION UnitQ’ty
