USER'S MANUAL
DASG15
Garden socket outlet

1
INDEX
1 .INTENDED USE ........................................................................................................................................ 2
2 .SAFETY INSTRUCTIONS ........................................................................................................................ 2
3 .COMMISSIONING AND OPERATION ..................................................................................................... 3
4 .TECHNICAL SPECIFICATIONS ............................................................................................................... 3
5. PRODUCT DESCRIPTION ...................................................................................................................... 4
6 .EXPLODED VIEW AND SPARE PART LIST ............................................................................................. 5
WARRANTY ................................................................................................................................................. 6

2
EN
1. INTENDED USE
The garden socket is designed for outdoor installation. The garden socket can either be placed
securely in the ground or used as a mobile garden extension (no permanent installation permitted).
Any other use than specified in these instructions for use, is not permitted as this will damage the
product. The garden socket is only intended for use in private households.
2. SAFETY INSTRUCTIONS
Please note the following information when using the garden socket.
This minimizes personal hazards or property damage. In the event of damage caused by non-obser
vance of these operating instructions, the guarantee expires.
No liability is accepted for any damage to property or personal injury caused or any consequential
damage resulting therefrom.
Keep the instructions for use and pass them on with the garden socket.
• This product and the packaging material are not toys and do not belong in the hands of children.
• Do not let children play unsupervised near the garden socket or other electrical devices.
• Never open, manipulate or change the garden socket. Such interventions mean danger to life from
electric shock and are prohibited for approval reasons (CE).
• Unplug the garden socket from the power source before moving it. Failure to comply may result in
electric shock. The garden socket is only voltage-free when the plug is pulled out.
• Compare the information on the nameplate with the mains voltage. Convince yourself
that the existing mains voltage corresponds to the information on the nameplate. Failure to observe
this can lead to excessive heat generation.
• Take the garden socket out of operation in the event of malfunctions and defects / damage.
Defects can occur as a result of blows, bumps or a fall from a small height. Have the garden socket
checked and, if necessary, repaired before you use it again.
Failure to comply creates the risk of electric shock.
• Never immerse the garden socket in water. The garden socket is only protected against moisture
and splash water.
• Only connect the garden socket to an earthed socket with an upstream fault current (Fl) switch
(max. 30 mA).
• Only use devices with a splash-proof plug (IP44).
Otherwise there is no protective effect.
• Position the garden socket vertically in solid ground. Use them only in areas where there is no
water retention. Only set up the garden socket at a minimum distance of 0.5 m from ponds, streams,
etc. Live parts must not fall into the water.
• Check the garden socket before using it again after it has fallen over.
There must be no water in the socket.
• Do not use the product in a potentially explosive (non-Ex-protected) environment in which there
are flammable liquids, gases or dusts. This product is not approved for this environment.
• Never pull the plug with the power cord out of the socket. Protect the power cord from oil, sharp
edges and high temperatures. Failure to comply can result in electric shock
• When connecting devices, please ensure that the rated current of the garden socket is not excee
ded. If this is not observed, there is a risk of fire due to overheating.
• Use an extension cable approved for outdoor use for additional extensions. This will reduce the
risk of electric shock.

3
Scope of delivery
Immediately after unpacking, check that the scope of delivery is complete and that the product is in
perfect condition.
1 x ground spike
1 x housing including 4 sockets and about 1.5 m, 5 m or 10 m power cord
1 x instruction manual
3. COMMISSIONING AND OPERATION
This chapter describes the basic functions of the garden socket.
Read the chapter carefully in order to understand and implement the possibilities and functions
The garden socket must be installed by an electrician (qualified electrician) or a person trained in
the electrical field in accordance with national installation regulations).
Mount or dismantle the garden socket with any type of installation in a voltage-free state.
• Screw the earth spike into the housing.
• Press the ground spike vertically with it.
• Tip of the ground spike into solid ground.
• Connect the plug to a suitable power socket. The sockets on the ground spike now carry electrici-
ty.
Cleaning
Before cleaning, pull out the power plug.
For reasons of electrical safety, clean the product with a damp cloth. Do not use harsh detergents
or chemicals.
Disposal
Do not dispose of the garden socket with household waste.
4. TECHNICAL SPECIFICATIONS
Class protection: IP44
Product dimension: 158*95.5*170 mm (Spike height: 142 mm)
Material: Copper, rubber and PP
Ratings: 50 Hz 16 A 250 V〜Max. 3680 W
Operating mode: Plug-in

4
EN

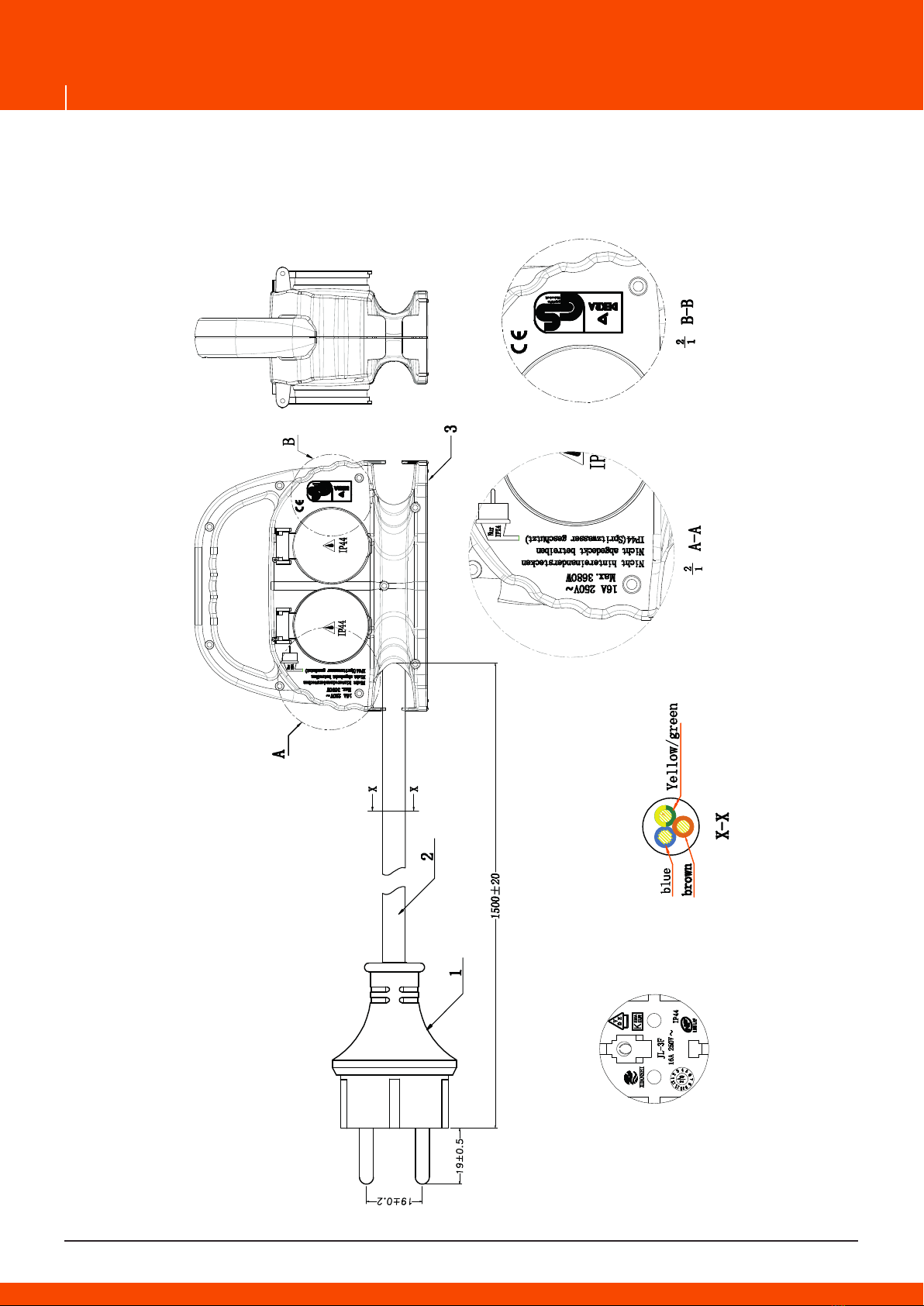

5. PRODUCT DESCRIPTION
1. Plug (JL-3F)
2. Cable (H07RN-F 3G1.5 mm2)
3. Socket (XS-XBD4)

5
1
2
3
10
9 8 7
5
4
6
18
17
15
14 13
19
16
6. EXPLODED VIEW AND SPARE PART LIST
1. Waterproof caps x4
2. Housing x1
3. Housing x1
4. Insert body x1
5. Nut of spike x1
6. Cable ring x1
7. Conductive copper parts x4
8. Protection box x4
9. Springs x4
10. Protection block x4
11. Shrapnel of grounding x4
12. Connecting sheet of grounding x2
13. Pressing sheeting x1
14. T3.0 Screws x11
15. Rivets x4
16. Waterproof strip x1
17. Springs of caps x4
18. Hollow rivets x4
19. Spike x1

GUARANTEE
WARRANTY DOES NOT COVER
Product model
Serial number
Username
Date of sale
Company
Client's signature
The warranty period starts from the date of sale of the products and covers 2 years for all power products.
During the warranty period, free failures caused due to the use of poor-quality materials in the production and
manufacturer workmanship admitted fault are removed. The guarantee comes into force only when warranty card
and cutting coupons are properly filled. The product is accepted for repair in its pure form and full completeness.
• Mechanical damage (cracks, chips, etc.) and damage
caused by exposure to aggressive media, foreign objects
inside the unit and air vents, as well as for damage occurred
as a result of improper storage (corrosion of metal parts);
• Failures caused by overloading or product misuse, use of
the product for other purposes. A sure sign of overload
products is melting or discoloration of parts due to the high
temperature, simultaneous failure of two or more nodes,
teaser on the surfaces of the cylinder and the piston or
destruction of piston rings. Also, the warranty does not
cover failure of the automatic voltage regulator due to
incorrect operation;
• Failure caused by clogging of the fuel and cooling systems;
• Wearing parts (carbon brushes, belts, rubber seals, oil
seals, shock absorbers, springs, clutches, spark plugs,
mufflers, nozzles, pulleys, guide rollers, cables, recoil starter,
chucks, collets, removable batteries, filters and safety
elements, grease, removable devices, equipment, knives,
drills, etc.);
• Electrical cables with mechanical and thermal damage;
• Product opened or repaired by a non-authorized service center.
• Prevention, care products (cleaning, washing, lubrication,
etc.), installation and configuration of the product;
• Natural wear products (production share);
• Failures caused by using the product for the needs related
to business activities;
• If the warranty card is empty or missing seal (stamp) of the Seller;
• The absence of the holder's signature on the warranty card.
