USER'S MANUAL
DAS360L
Screwdriver

1
INDEX
1 . PARTS....................................................................................................................................................... 2
2 . SAFETY INFORMATION.......................................................................................................................... 3
3. LAYOUT .................................................................................................................................................... 5
4. POPER USE ............................................................................................................................................. 6
5. TECHNICAL DATA ................................................................................................................................... 6
6. BEFORE STARTING THE EQUIPMENT ................................................................................................. 6
7. OPERATION ............................................................................................................................................. 7
8. CLEANING AND MAINTENANCE .......................................................................................................... 8
9. DISPOSAL AND RECYCLING ................................................................................................................. 8
10. WARRANTY ............................................................................................................................................ 9

2
EN
1
23
6
4
9
12
1
2
3
8
10
11
14
3
5
8
9
5
13
7
4
8
14
5a 1 12
b c
13
1. PARTS

3
IMPORTANT! When using equipment, a few safety precautions must be observed to avoid injuries
and damage. Please read the complete operating manual with due care. Keep this manual in a safe
place, so that the information is available at all times. If you give the equipment to any other person,
give them these operating instructions as well. We accept no liability for damage or accidents which
arise due to non-observance of these instructions and the safety information.
2. SAFETY INFORMATION
General safety instructions for electric tools
Caution!
Read all safety regulations and instructions. Any errors made in following the safety regulations and
instructions may result in an electric shock,re and/or serious injury. Keep all safety regulations and
instructions in a safe place for future use.
The term “electric tool” used in the safety instructions refers to electric tools operated from the
mains power supply (with a power cable) and to battery operated electric tools (without a power
cable).
1. Workplace safety
a) Keep your work area clean and well illuminated. Untidy or unlit work areas can result in accidents.
b) Do not operate the electric tool in an environment where there is a risk of explosions and where
there are inflammable liquids gases or dust. Electric tools produce sparks which could set the dust
or vapours alight.
c) Keep the electric tool out of the reach of children and other persons. If there is a distraction, you
may lose control of the appliance.
2. Electrical safety
a) The connector plug from this electric tool must fit in to the socket . The plug should never be
altered in any way. Never use adapter plugs together with earthed electric tools. Unaltered plugs and
correct sockets reduce the risk of an electric shock.
b) Avoid bodily contact with earthed surfaces such as pipes, heating, ovens and fridges. The risk of
electric shock is increased if your body is earthed.
c) Keep the tool out of the rain and away from moisture. The ingress of water into an electric tool
increases the risk of an electric shock.
d) Do not use the cable to carry the electric tool, to hang it up or to pull it out of the socket. Keep the
cable away from heat, oil, sharp edges and moving parts of the appliance. Damaged or entangled
cables increase the risk of an electric shock.
e) If you are working outdoors with an electric tool, only use extension cables which are designed
specifically for this propose. Using specially designed outdoor extension cables, the risk of electric
shock is reduced.
f) If operation of the electric tool in a damp environment can not be avoided, use a earth-leakage
circuit-breaker. The earthleakage circuit-breaker reduces the risk of an electric shock.
3. Safety of persons
a) Be careful, watch what you are doing and use an electric tool sensibly. Do not use the tool if you
are tired or under the influence of drugs, alcohol or medication. A momentof inattention when using
the electric tool can result in serious injuries.
b) Wear personal protection equipment and always wear safety goggles. Wearing
personal protection (such as dust masks, non-slip safety shoes, safety helmet or ear protection,
depending upon the type and use of the electric tool) reduces the risk of injury.

4
EN
c) Make sure that the appliance cannot start up accidentally. Ensure that the electric tool is switched
off before you connect it to the power supply and/or insert the battery, or pick up or carry the tool. If
your tool or if you connect the appliance to the mains when it is switched on, this can lead to
accidents.
d) Remove keys and wrenches before switching on the electric tool. A tool or key which comes into
contact with rotating parts of the appliance can lead to injuries.
e) Avoid abnormal working postures. Make sure you stand squarely and keep your balance at all
times. In this way, you can control the electric tool better in unexpected circumstances.
f) Wear suitable work clothes. Do not wear loose clothing or jewellery. Keep hair, clothes and gloves
away from moving parts. Loose clothing, jewellery or long hair can get trapped in moving parts.
g) If vacuuming devices and draining devices can be fitted , make sure that these are correctly
attached and correctly used. The use of a dust extraction system can reduce the danger posed by
dust.
4. Usage and treatment of the electric tool
a) Do not overload the appliance. Use the correct tool for your work. You will be able to work better
and more safely within the given performance boundaries.
b) Do not use an electric tool with a defective switch. An electric tool that cannot be repaired.
c) Pull the plug out of the socket and/or remove the battery before making any adjustments to the
appliance, changing accessories or put the appliance down. This safety measure prevents starting
the electric tool unintentionally.
d) Keep unused electric tools out of the reach of children. Do not allow people who are not familiar
with the appliance or who have not read these instructions to use the appliance. Electric tools are
dangerous if they are used by inexperienced people.
e) Clean your electric tool carefully. Check whether moving parts are functioning properly and not
jamming, whether parts are broken or damaged enough that the functioning of this electric tool is
affected. Have damaged parts repaired before using the appliance. Many accidents are caused by
badly maintained electric tools.
f) Keep your cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting
edges will jam less and are easier to control.
g) Make sure to use electric tools, accessories, attachments, etc. in accordance with these instruc-
tions. Take the conditions in your work area and the job in hand into account. Using electric tools for
any purpose other than the one for which they are intended can lead to dangerous situations.
5. Using and handling the cordless tool
a) Ensure that the tool is switched off before you insert the battery. Inserting a battery into an electric
tool that is switched on can cause accidents.
b) Only charge the batteries in chargers that are recommended by the manufacturer. A charger that
is designed for a certain type of battery becausemay pose a fire risk if it is used with other types of
battery.
c) Use only the correct batteries in the electric tools. The use of other batteries may result in injuries
and a fire risk.
d) Keep unused batteries away from paper clips, coins, keys, nails, screws and other metallic
objects that could cause a short circuit between the contacts. A short circuit between the battery
contacts may cause burns or a fire.
e) In case of incorrrect use, fluid may escape from the battery. Avoid contact with it. If you touch it by
accident , rinse the affected are with water. If you get the fluid in your eyes, also seek medical
advice. Leaking battery fluid can cause skin irritation or burns.

5
6. Service
a) Have your electric tool repaired only by trained personnel using only genuine spare parts. This will
ensure that your electric tool remains safe to use. Hold the equipment by the insulated handles when
carrying out work during which the screw or the plug-in tool could strike concealed power cables.
Contact with a live cable may also make the metal parts of the equipment live and cause an electric
shock.
Description of symbols
Pay attention to all the signs and symbols shown in these instructions and on your tool. Make a note
of these signs and symbols. If you interpret the signs and symbols correctly, your work with the
machine will be safer and better.
IMPORTANT!
Read the instructions for use beforestarting the machine.
Wear safety goggles.
Wear ear protection.
Wear good quality, strong gloves.
Always use breathing apparatus when materials which generate dust.
End of life machines contain valuable materials and therefore they should not be placed in
household waste. We would ask you to play your part in protecting resources and help
protect the environment by returning this machine to a return point (if one is available)
when it reaches the end of its life.

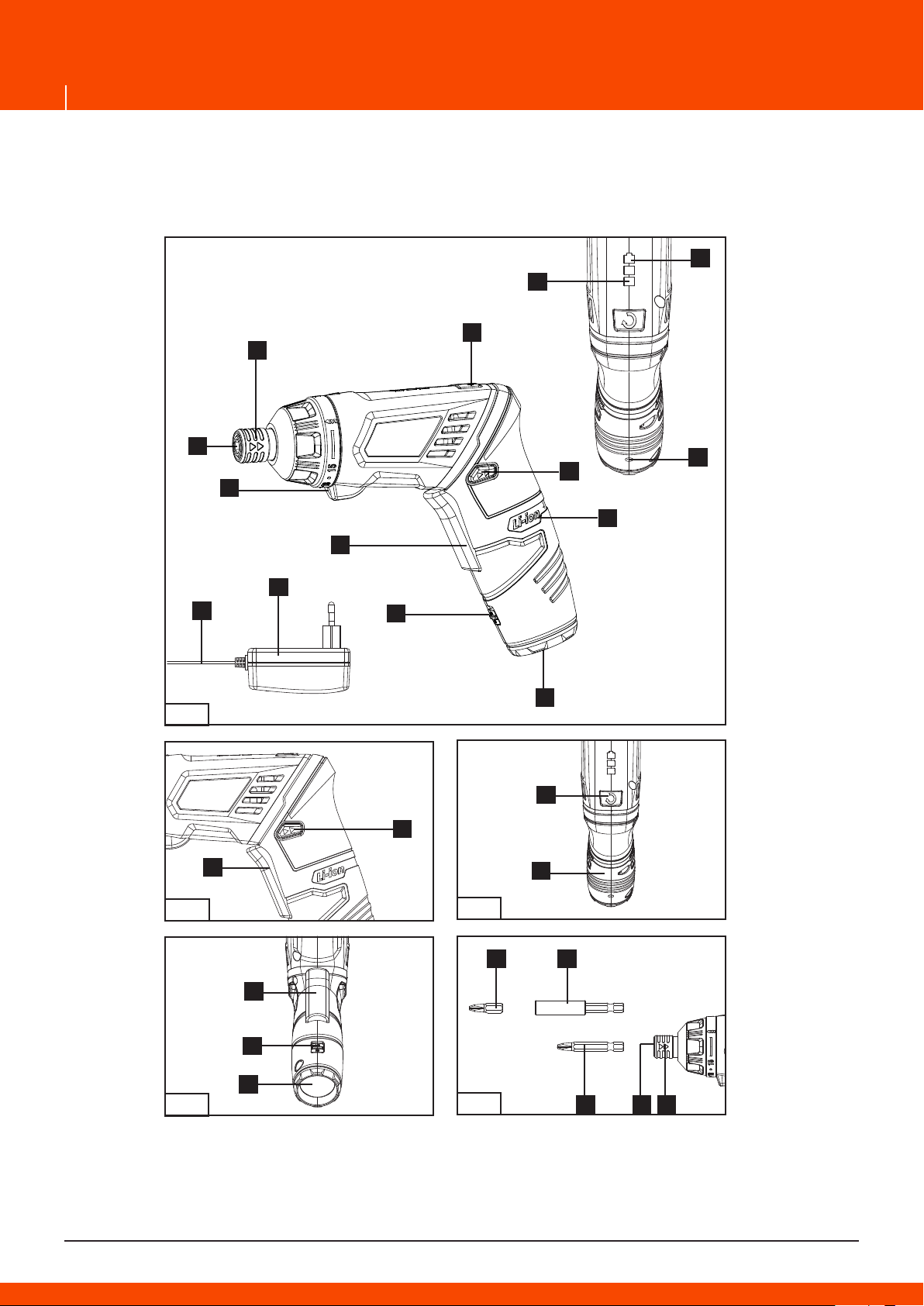

3. LAYOUT
1. Bit chuck
2. Lamp
3. Locking button
4. Battery capacity indicator
5. Handle
6. Charging control lamp
7. Charging connection
8. On/Off switch
9. Clockwise/Counter-clockwise selector switch
10. Battery charger
11. Charging cable
12. Locking sleeve
13. Work light switch button
14. Work light

6
EN
4. PROPER USE
The cordless screwdriver is designed for tightening and undoing screws. The machine is to be used
only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator
and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of
this. Please note that our equipment has not been designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
5. TECHNICAL DATA
Power: 3.6 V
No load speed: 210 rpm
Max torque: 5 N.m
Clutch: 15+1 setting
Battery: 1300 mAh Li-ion
Charging time: 3 hours
Quick Release Chuck: 1/4"
Includes:
Foldable body & Spindle-Lock
Power LED work light
Power display/LED Light
49x25 mm bits
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure lev e l 57.5 dB(A)
KpA uncertainty 3 dB
LWA sound power level 68.5 dB (A)
KWA uncertainty 3 dB
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 60745.
Screwing without hammer action
Vibration emission value ah <2,5 m/s2
K uncertainty = 1,5 m/s2
IMPORTANT! The vibration value changes according to the area of application of the electric tool
and may exceed the specified value in exceptional circumstances.
6. BEFORE STARTING THE EQUIPMENT
Be sure to read the following information before you use your cordless screwdriver for the first time:
1. Charge the battery pack with the charger supplied.
2. Only ever use screwdriver bits which are suitable for the purpose and in faultless condition.
3. Always check for concealed electric cables and gas and water pipes when drilling and screwing
in walls.

7
7. OPERATION
6.1 Charging the battery (Fig. 1)
The battery is protected from exhaustive discharge. An integrated protective circuit automatically
switches off the equipment when the battery is flat. In this case the bit chuck will cease to turn.
WARNING! Do not press the ON/OFF switch anymore if the protective circuit has actuated. Thismay
damage the battery.
1. Check that your mains voltage is the same as that marked on the rating plate of the battery char-
ger. Plug the battery charger in the plug socket and connect the charging cable to the charging
connection. The charging process starts as soon as the charging cable is connected to the charging
adapter.
2. The red LED (6) will come on to indicate that the battery pack is being charged.
3. When the charging control lamp (6) all three lights lit, said charging is complete. Important! The
handle may become a little warm during the charging process. This is normal.
If the battery pack fails to charge, please check whether there is voltage at the socket-outlet and
check for proper contact with the charging contacts in the battery charger.
If the battery still fails to charge, send the battery charger and the screwdriver to our customer
services department.
Timely recharging of the battery pack will help it serve you well for a long time.
You must recharge the battery pack when you notice that the power of the screwdriver drops.
Never allow the battery pack to become fully discharged. This will cause it to develop a defect.
6.2 Changeover switch (Fig. 2/Item 9)
The slide switch above the ON/OFF switch is for setting the direction of rotation of the cordless
screwdriver and for preventing the cordless screwdriver from being switched on inadvertently.
You can select between clockwise and counterclockwise rotation. Change the direction of rotation
only when the equipment is at a standstill. If you fail to observe this point, the gearing may become
damaged. When the slide switch is in the middle position, the ON/OFF switch is blocked.
6.3 ON/OFF switch (Fig. 2 / Item 8)
Press the On/Off switch to switch the cordless screwdriver on. Release the ON/OFF switch to
switch off the tool.
6.4 LED lamp
The LED lamp (2)and(14) can be used in poor lighting conditions to illuminate the area where you
want to screw.
Button(8)control the LED lamp(2) ON/OFF
Button(13)control the LED lamp(14) ON/OFF
Don't put the light point-blank you and other people's eyes
6.5 Angle setting (Fig. 3/Item 3)
The screwdriver can be locked into 2 different angle settings. To do so, press the locking button
(3) and move the screwdriver into the desiredposition (Press the release button and by turning
the handle (5) to the right). Then release the locking button (3).

8
EN
IMPORTANT! You switch on the screwdriver, make sure that it is correctly locked in the angle posi-
tion in question.
6.6 Battery capacity indicator (Fig. 4/Item 8)
press the button auf ON/Switch. The battery capacity indicator (4) indicates the
charge state of the battery on 3 colored LEDs.
All LEDs illuminate: The battery is fully charged
The yellow and red LED illuminate: The battery has an adequate remaining charge.
Red LED: The battery is empty, recharge the battery
6.7 Changing the tool (Fig. 5)
IMPORTANT! Set the changeover switch to its centre position whenever you carry out any wor (for
example changing the tool, maintenance work, etc.) on the cordless screwdriver.
• Pull back and hold the locking sleeve (12).
• Insert the bit (a) into the bit chuck (1) and let go of the locking sleeve (12).
• Check that it is secure by attempting to pull the tool apart again.
6.8 Screwdriving
We recommend using self-centering screws (e.g. Torx screws, recessed head screws) designed for
reliable working. Be sure to use a bit that matches the screw in shape and size. Set the torque, as
described elsewhere in these operating instructions, to suit the size of screw.
8. CLEANING AND MAINTENANCE
Always pull out the mains power plug before starting any cleaning work.
7.1 Cleaning
• All safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the
equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you hace finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents
or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep
into the device.
7.2 Maintenance
There are no parts inside the equipment which require additional maintenance.
9. DISPOSAL AND RECYCLING
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is
raw material and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic. Defec-
tive components must be disposed of as special waste. Ask your dealer or your local council.

GUARANTEE
WARRANTY DOES NOT COVER
Product model
Serial number
Username
Date of sale
Company
Client's signature
The warranty period starts from the date of sale of the products and covers 2 years for all power products.
During the warranty period, free failures caused due to the use of poor-quality materials in the production and
manufacturer workmanship admitted fault are removed. The guarantee comes into force only when warranty card
and cutting coupons are properly filled. The product is accepted for repair in its pure form and full completeness.
• Mechanical damage (cracks, chips, etc.) and damage
caused by exposure to aggressive media, foreign objects
inside the unit and air vents, as well as for damage
occurred as a result of improper storage (corrosion of metal
parts);
• Failures caused by overloading or product misuse, use
of the product for other purposes. A sure sign of overload
products is melting or discoloration of parts due to the
high temperature, simultaneous failure of two or more
nodes, teaser on the surfaces of the cylinder and the
piston or destruction of piston rings. Also, the warranty
does not cover failure of the automatic voltage regulator
due to incorrect operation;
• Failure caused by clogging of the fuel and cooling systems;
• Wearing parts (carbon brushes, belts, rubber seals, oil
seals, shock absorbers, springs, clutches, spark plugs,
mufflers, nozzles, pulleys, guide rollers, cables, recoil starter,
chucks, collets, removable batteries, filters and safety
elements, grease, removable devices, equipment, knives,
drills, etc.);
• Electrical cables with mechanical and thermal damage;
• Product opened or repaired by a non-authorized service
center.
• Prevention, care products (cleaning, washing, lubrication,
etc.), installation and configuration of the product;
• Natural wear products (production share);
• Failures caused by using the product for the needs
related to business activities;
• If the warranty card is empty or missing seal (stamp) of the Seller;
• The absence of the holder's signature on the warranty card.
WARRANTY CARD
The product is in good conditions and fully complete. Read and agree the terms of the warranty.
Product
Model
Company
Date
of sale
Product
Model
Company
Date
of sale
Product
Model
Company
Date
of sale

www.daewoopowerproducts.com
Manufactured under license of Daewoo International Corporation, Korea
