Daewoo DVQ-10H1FCN User manual

Service Manual
TV / VCR Cmobination
CHASSIS : CN-083
Model : DVQ-10H1FCN
(DVQ-9H1FC)
S/M No. : TCN083BEF0
Nov. 2002
DAEWOO ELECTRONICS Corp.
http ://svc.dwe.co.kr
ITEMS MODEL DVQ-10H1FCN (DVQ-9H1FC) REMARK
TV
SECTION
STANDARD NTSC-M
TUNING SYSTEM Frequency Synthesizer(FS Tuning System
TUNING RANGE VHF : 2 - 13(12
UHF : 14 -69(56
CATV : 1-125(125
ANTENNA INPUT IMPEDENCE 75 ohm Unbalanced
AUXILIARY INPUT TERMINAL Front : Video, Audio
VIDEO
SECTION
FORMAT VHS NTSC Standard
VCR SYSTEM Rotary 2-Head Helical Scanning
Monaural System
AUDIO RECORDING SYSTEM Monaural
TAPE SPEED SP:33.35mm/sec; EP:11.12mm/sec
LP:16.67mm/sec PLAY ONLY
INPUT Video :1Vp-p,75 Ohm
Audio :3.8dBm, over 100K Ohm
TIMER PROGRAMING 6 Event/1 Month
GENERAL POWER INPUT AC 120V 60Hz, DC 12V
POWER CONSUMPTION 47W(AC 120V , 54W(DC 12V
SOUND OUTPUT 1 W
SPEAKER 3W 8 OHM
OPRATING TEMPERATRE 5
° C to 40 °C
REMOTE CONTROL R-39A02
SPECIAL FUNTION 3-Language OSD
With CAPTION
V-Chip
K-50MECHA
One Touch Record
Repeat Play
Energy Star Power (Stand-By:3W Under
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).

-1-
SAFETY INSTRUCTION 2
SPECIFICATION 5

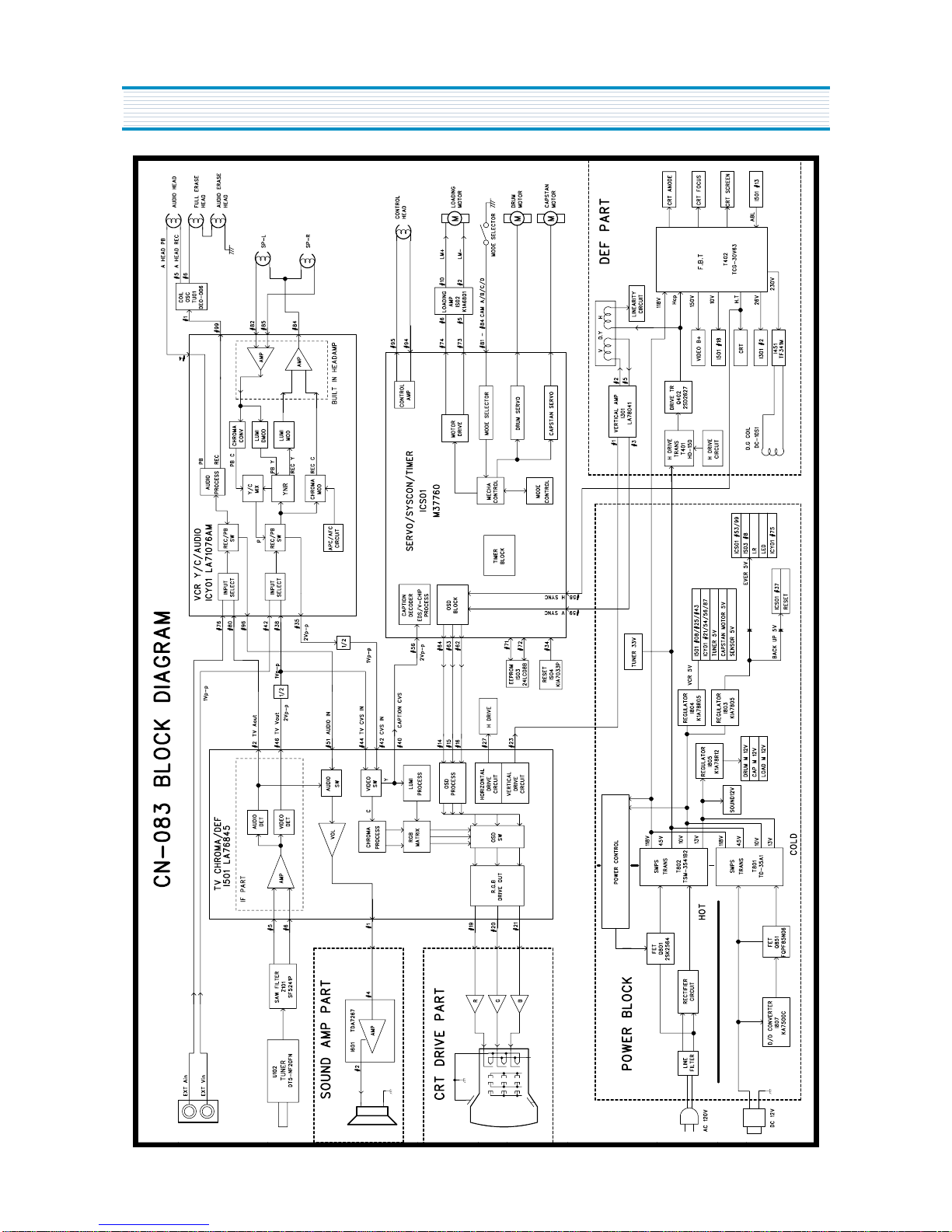

CIRCUIT BLOCK DIAGRAM 6
ALIGNMENT INSTRUCTIONS 8
1.SERVICE MODE ADJUSTMENTS 8
2.ASSEMBLY ADJUSTMENTS 10
3.VCR DECK ADJUSTMENTS 12
SCHEMATIC DIAGRAM 13

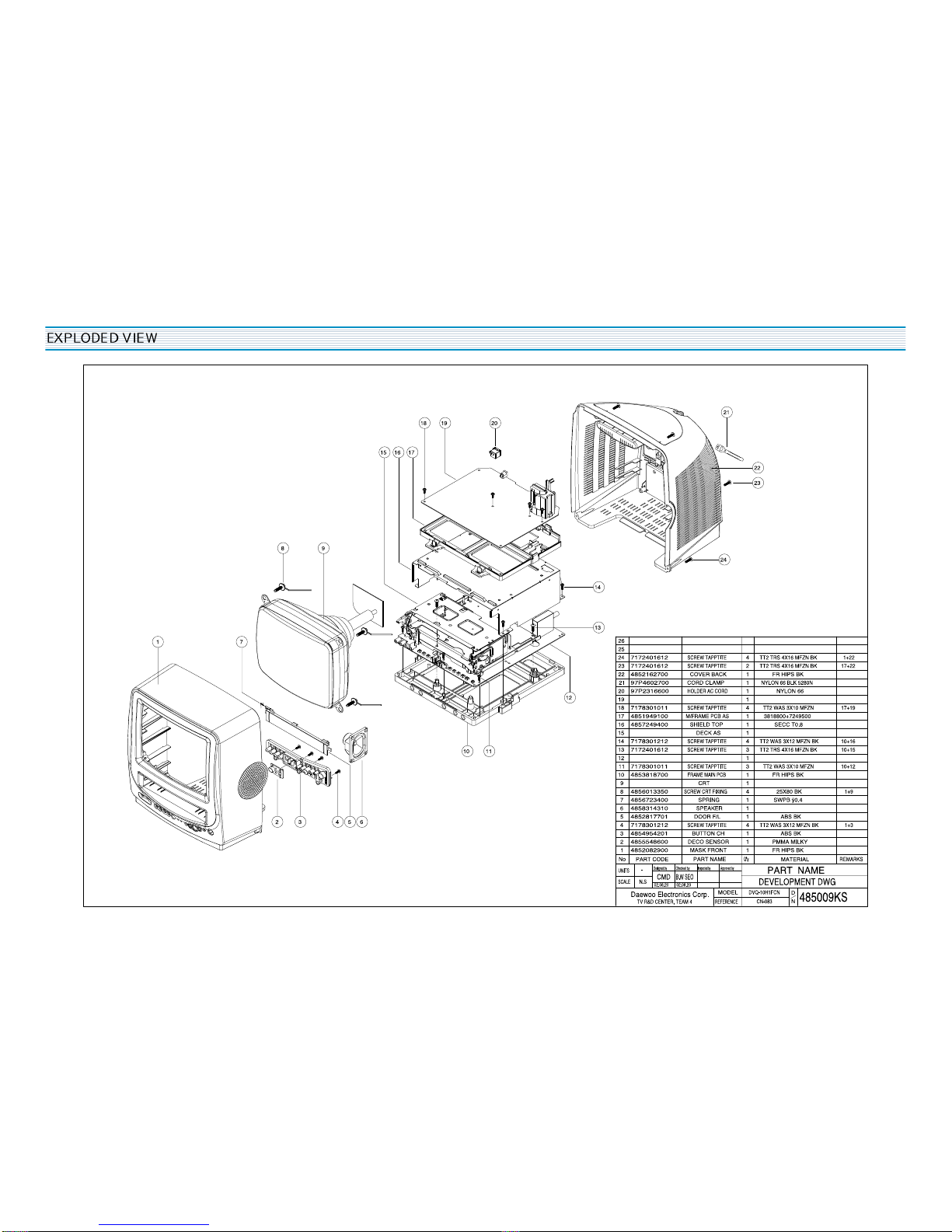

EXPLODED VIEW 15

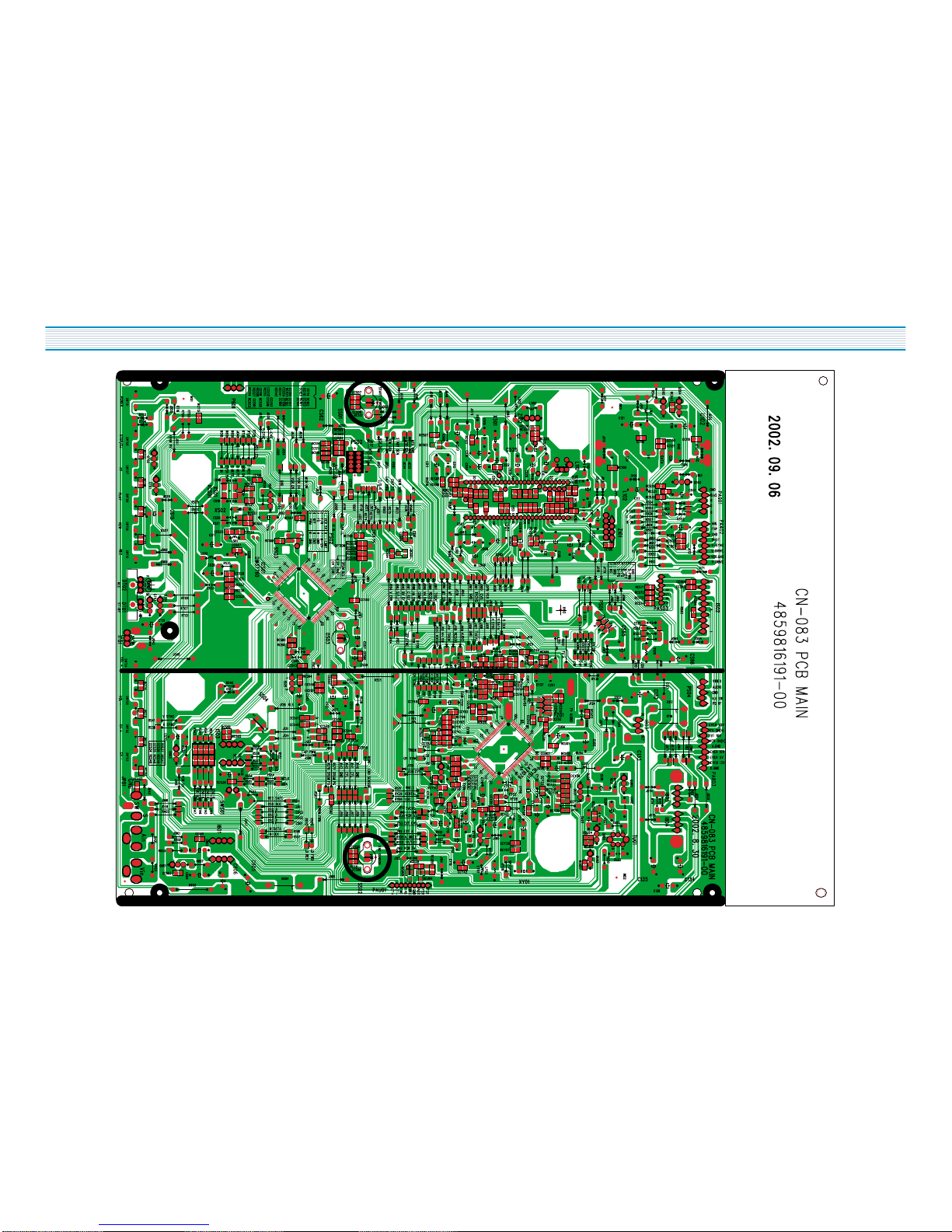

PRINTED CIRCUIT BOARD 16
SERVICE PARTS LIST 18
IC DESCRIPTION 29
TROUBLESHOOTING GUIDE 37
TABLE OF CONTENTS
APPENDIX ( Appendix is provided only by internet [http://svc.dwe.co.kr] )

-2-

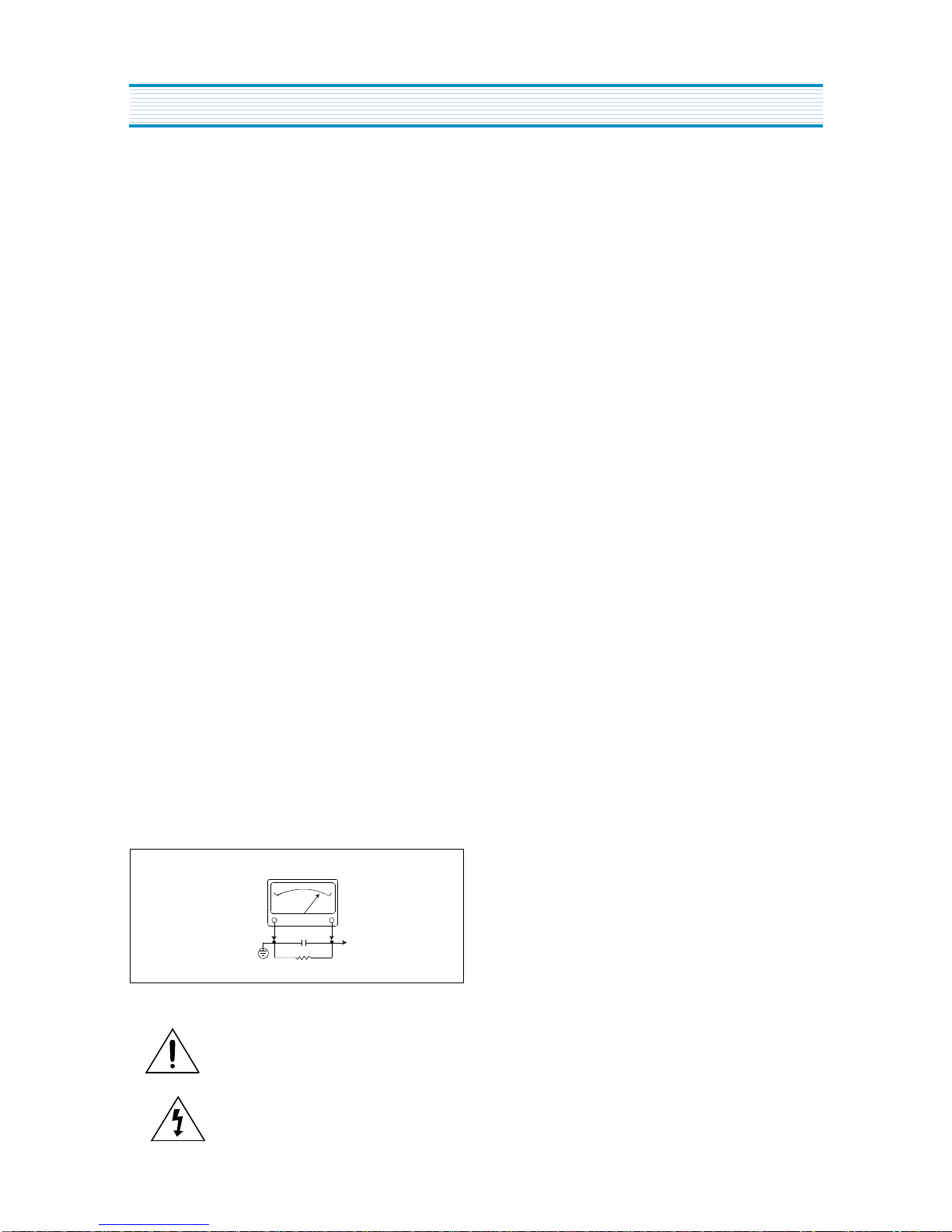

SAFETY INSTRUCTION
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY.
NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC-
TURER°ØS APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY
VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANT
RESULTING PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE THOR-
OUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY CHECKS AND
SERVICING GUIDELINES. TO DO OTHERWISE, INCREASES THE RISK OF
POTENTIAL HAZARDS AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTECTION
FROM A.C. LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRECTED, A CHECK
SHOULD BE MADE OF THE FOLLOWING:
SUBJECT:FIRE & SHOCK HA ARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY AS
TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS. THIS IS
ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE TRANS-
PORTED TO AND FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES SUCH AS
INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN RELIEFS, POWER
SUPPLY CORDS, AND OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE, THAT THE SAFETY PURPOSE OF THE
POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD SOL-
DER JOINTS, SOLDER SPLASHES OF SHARP SOLDER POINTS. BE CER-
TAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION TO
PARTS AND COMPONENTS, FOR FRAYED LEADS, DAMAGED INSULATION
(INCLUDING A.C. CORD , AND REPLACE IF NECESSARY. FOLLOW ORIGI-
NAL LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING TUBE OR A
RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND PRO-
TRUDING METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF RESISTOR,
CAPACITORS, ETC. MUST BE REPLACED WITH EXACT FACTORY TYPES.
DO NOT USE REPLACEMENT COMPONENTS OTHER THAN THOSE SPECI-
FIED OR MAKE UNRECOMMENDED CIRCUIT MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE STE ALWAYS PERFORM AN A.C. LEAKAGE
TEST ON ALL EXPOSED METALLIC PARTS OF THE CABINET. (THE CHAN-
NEL SELECTOR KNOB, ANTENNA TERMINALS, HANDLE AND SCREWS TO
BE SURE THE SET IS SAFE TO OPERATE WITHOUT DANGER OF ELECTRI-
CAL SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER DURING
THIS TEST USE AN A.C. VOLTMETER, HAVING 5000 OHMS PER VOLT OR
MORE SENSITIVITY, IN THE FOLLOWING MANNER : CONNECT A 1500 OHM
10 WATT RESISTOR, PARALLELED BY A .15 MFD. 150V A.C. TYPE CAPACI-
TOR BETWEEN A KNOWN GOOD EARTH GROUND (WATER POPE, CON-
DUIT, ETC. AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.
MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500 OHM
RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG AND
REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED METALLIC
PART. VOLTAGE MEASURED MUST NOT EXCEED .75 VOLTS R.M.S THIS
CORRESPONDS TO 0.5 MILLIAMP A.C. NAY VALUE EXCEEDING THIS LIMIT
CONSTITUTES A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED
IMMEDIATELY.
SUBJECT : GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED
TO ALERT THE SERVICE PERSONNEL TO THE PRES-
ENCE OF UNINSULATED “DANGEROUS VOLTAGE”
THAT MAY BE OF SUFFICIENT MAGNITUDE TO CON-
STITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE SERVICE
PERSONNEL TO THE PRESENCE OF IMPORTANT
SAFETY INFORMATION ON SERVICE LITERATURE.
SUBJECT : X-RADIATION
1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PERSON-
NEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTENTIAL
SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PICTURE TUBE.
HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN THE HIGH VOLT-
AGE IS AT THE FACTORY SPECIFIED LEVEL. THE PROPER VALUE IS
GIVEN IN THE APPLICABLE SCHEMATIC. OPERATION AT HIGHER VOLT-
AGES MAY CAUSE A FAILURE OF THE PICTURE TUBE OR HIGH VOLTAGE
SUPPLY AND, UNDER CERTAIN CIRCUMSTANCES, AMY PRODUCE RADIA-
TION IN EXCESS OF DESIRABLE LEVELS.
2. ONLY FACTORY SPECIFIED C.R.T ANODE CONNECTORS MUST BE USED.
DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN COLOR SETS.
ALWAYS RE-INSTALL THEM.
3. IT IS ESSENTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN ACCU-
RATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRATION OF THE
METER SHOULD BE CHECKED PERIODICALLY AGAINST A REFERENCE
STANDARD. SUCH AS THE ONE AVAILABLE AT YOUR DISTRIBUTOR.
4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY THERE
IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY TIME A COLOR
CHASSIS IS SERVICED, THE BRIGHTNESS SHOULD BE RUN UP AND
DOWN WHILE MONITORING THE HIGH VOLTAGE WITH A METER TO BE
CERTAIN THAT THE HIGH VOLTAGE DOES NOT EXCEED THE SPECIFIED
VALUE AND THAT IT IS REGULATING CORRECTLY. WE SUGGEST THAT
YOU AND YOUR SERVICE ORGANIZATION REVIEW TEST PROCEDURES
SO THAT VOLTAGE REGULATION IS ALWAYS CHECKED AS A STANDARD
SERVICING PROCEDURE, AND THAT THE HIGH VOLTAGE READING BE
RECORDED ON EACH CUSTOMER°ØS INVOICE.
5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN A
PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE, AVOID
BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND THE HIGH
VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT LONGER THAN IS
NECESSARY TO LOCATE THE CAUSE OF EXCESSIVE VOLTAGE.
6. REFER TO HV, B+ AND SHUTDOWN ADJUSTMENT PROCEDURES
DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS (WHERE
USED .
SUBJECT : IMPLOSION
1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTEGRA
IMPLOSION PROTECTION SYSTEM. BUT CARE SHOULD BE TAKEN TO
AVOID DAMAGE DURING INSTALLATION. AVOID SCRATCHING THE
TUBE. OF SCRATCHED REPLACE IT.
2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBYHOLE OR
CLOSELY FITTING SHELF SPACE, OVER OR CLOSE TO HEAT DUCT, OR IN
THE PATH OF HEATED AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO
INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIATORS
WHERE STEAM LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT REAR VENTING.
THE CUSTOMER SHOULD ALSO AVOID THE USE OF DECORATIVE
SCARVES OR OTHER COVERINGS WHICH MIGHT OBSTRUCT VENTILA-
TION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMERCIAL
MOUNTING KIT, MUST FOLLOW THE FACTORY APPROVED MOUNTING
INSTRUCTIONS. A PRODUCT MOUNTED TO A SHELF OR PLATFORM MUST
RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN SPAC-
ERS TO PROVIDE ADEQUATE AIR FLOW ACROSS THE BOTTOM, BOLTS
OR SCREWS USED FOR FASTENERS MUST NOT TOUCH ANY PARTS OR
WIRING. PERFORM LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON
SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS
PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS MOUNT-
ING TO THE CART. CAUTION THE CUSTOMER ON THE HAZARDS OF TRY-
ING TO ROLL A CART WITH SMALL CASTERS ACROSS THRESHOLDS OR
DEEP PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND WHICH
HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES. INC. FOR
USE WITH THEIR SPECIFIC MODEL OF TELEVISION RECEIVER OR
GENERICALLY APPROVED FOR USE WITH T.V.S OF THE SAME OR
LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS,
EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SINGLE
OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO HOME AND
FAMILY.
10WATT
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE, CONDUIT, ETC.
1500 OHM
A.C. VOLTMETER
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
0.15 uF

-3-
SAFETY INSTRUCTION
CAUTION : Do not attempt to modify this product in any way. Unau-
thorized modifications will not only void the warranty, but may lead to
your being liable for any resulting property damage or user injury.
Service work should be performed only after you are thoroughly
familiar with all of the following safety checks and servicing guide-
lines. To do otherwise, increases the risk of potential hazards and
injury to the user.
SAFETY CHECKS
After the original service problem has been corrected, a check should
be made of the following:
SUBJECT : FIRE & SHOCK HA ARD
1. Be sure that all components are positioned in such a way as to
avoid possibility of adjacent component shorts. This is especially
important on those chassis which are transported to and from the
repair shop.
2. Never release a repair unless all protective devices such as insula-
tors, barriers, covers, shields, strain reliefs, and other hardware
have been reinstalled per original design.
3. Soldering must be inspected to discover possible cold solder joints,
frayed leads, damaged insulation (including A.C. cord , solder
splashes or sharp solder points. Be certain to remove all loose for-
eign particals.
4. Check for physical evidence of damage or deterioration to parts
and components, and replace if necessary follow original layout,
lead length and dress.
5. No leads or components should touch a receiving tube or a resistor
rated at 1 watt or more. Lead tension around protruding metal sur-
faces must be avoided.
6. All critical components such as fuses, flameproof resistors, capaci-
tors, etc. must be replaced with exact factory types. Do not use
replacement components other than those specified or make
unrecommended circuit modifications.
7. After re-assembly of the set always perform an A.C. leakage test
on all exposed metallic parts of the cabinet, (the channel selector
knob, antenna terminals, handle and screws to be sure the set is
safe to operate without danger of electrical shock. Do not use a
line isolation transformer during this test. Use an A.C. voltmeter,
having 5000 ohms per volt or more sensitivity, in the following
manner : connect a 1500 ohm 10 watt resistor, paralleled by a 15
mfd. 150V A.C. type capacitor between a known good earth
ground (9water pipe, conduit, etc. and the exposed metallic parts,
one at a time. Measure the A.C. voltage across the combination of
1500 ohm resistor and 0.15 MFD capacitor. Reverse the A.C. plug
and repeat A.C. voltage measurements for each exposed metallic
part. Voltage measured must not exceed 0.75 volts R.M.S. This
corresponds to 0.5 milliamp A.C. Any value exceeding this limit
constitutes a potential shock hazard and must be corrected imme-
diately.
GRAPHIC SYMBOLS :
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the service personnel to the presence of uninsu-
lated “dangerous voltage” that may be of suffi-
cienty magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral tri-
angle is intended to alert the service personnel
to the presence of important safety information
in service literature.
Fuse symbol is printed on pcb adjacent to the
fuse, with “RISK OF FIRE REPLACE FUSE AS
MARKED”. The symbol is explained in the ser-
vice manual with the following wording or equiv-
alent.
“CAUTION : FOR CONTINUED PROTECTION AGAINST FIRE
HAZARD, REPLACE ONLY WITH SAME TYPE (6.3A, 250V ” and
“
ATTENTION : AFIN D’ASSU UNE PROTECTION PERMANENTE
CONTRE LES RISQUES D’INCENDIE, REMPLACER UNIQUE-
MENT PAR UN FUSIBLE DE MEME TYPE ET DE ”6.3A, 250V”.
SUBJECT : X-RADIATION
1. Be sure procedures and instructions to all service personnel cover
the subject of X-rays in current T.V. receivers is the picture tube.
However, this tube does not emit X-rays when the high voltage is
at the factory specified level. The proper value is given in the appli-
cable schematic. Operation at higher voltages may cause a failure
of the picture tube or high voltage supply and, under certain cir-
cumstances, may produce radiation in excess of desirable levels.
2. Only factory specified C.R.T. anode connectors must be used.
Degaussing shields also serve as X-ray shield in color sets.
Always re-install them.
3. It is essential that the serviceman has available an accurate and
reliable high voltage meter. The calibration of the meter should be
checked perio - dically against a reference standard. Such as the
one available at your distributor.
4. When the high voltage circuitry is operating properly there is no
possibility of an X-radiation problem. Every time a color chassis is
serviced, the brightness should be run up and down while monitor-
ing the high voltage with a meter to be certain that the high voltage
does not exceed the specified value and that it is regulating cor-
rectly. We suggest that you and your service organization review
test procedures so that voltage regulation is always checked as a
standard servicing procedure. And that the high voltage reading be
recorded on each customer’s invoice.
5. When troubleshooting and making test measurements in a
receiver with a problem of excessive high voltage, avoid being
unnecessarily close to the picture tube and the high voltage compartment.
Do not operate the chassis longer than is necessary to locate the
cause of excessive voltage.
6. Refer to HV, B+and Shutdown adjustment procedures described in
the appropriate schematic and diagrams(where used .
10WATT
Good ear h ground,
such as he wa er
pipe, condui , e c. 1500 OHM
A.C. VOLTMETER
Place his probe
on each exposed
me al par .
0.15 uF

-4-
SAFETY INSTRUCTION
SUBJECT : IMPLOSION
1. All direct viewed picture tubes are equipped with an integral implo-
sion protection system, but care should be taken to avoid damage
during installation. Avoid scratching the tube. If scratched, replace
it.
2. Use only recommended factory replacement tubes.
SUBJECT : TIPS ON PROPER INSTALLATION
1. Never install any receiver in closed-in recess, cubbyhole or closely
fitting shelf space over, or close to heat duct, or in the path of
heated air flow.
2. Avoid conditions of high humidity such as : Outdoor patio installa-
tions where dew is a factor. Near steam radiators where steam
leakage is a factor, etc.
3. Avoid placement where draperies may obstruct rear venting. The
customer should also avoid the use of decorative scarves or other
coverings which might obstruct ventilation.
4. Wall and shelf mounted installations using a commercial mounting
kit, must follow the factory approved mounting instructions. A
receiver mounted to a shelf or platform must retain its original
feet(or the equivalent thickness in spacers to provide adequate
are flow across the bottom, bolts or screws used for fasteners
must not touch and parts or wiring. Perform leakage test on cus-
tomized installations.
5. Caution customers against the mounting of a receiver on sloping
shelf or a tilted position, unless the receiver is properly secured.
6. A receiver on a roll-about cart should be stable on its mounting to
the cart. Caution the customer on the hazards of trying to roll a cart
with small casters across thresholds or deep pile carpets.
7. Caution customers against the use of a cart or stand which has not
been listed by underwriters laboratories, inc. For use with their
specific model of television receiver or generically approved for
use with T.V.’s of the same or larger screen size.

-5-
SPECIFICATION
ITEMS MODEL DVQ-10H1FCN(DVQ-9H1FC) REMARK
TV
SECTION
STANDARD NTSC-M
TUNING SYSTEM Frequency Synthesizer(FS Tuning System
TUNING RANGE VHF : 2 - 13(12
UHF : 14 -69(56
CATV : 1-125(125
ANTENNA INPUT IMPEDENCE 75 ohm Unbalanced
AUXILIARY INPUT TERMINAL Front : Video, Audio
VIDEO
SECTION
FORMAT VHS NTSC Standard
VCR SYSTEM Rotary 2-Head Helical Scanning
Monaural System
AUDIO RECORDING SYSTEM Monaural
TAPE SPEED SP:33.35mm/sec; EP:11.12mm/sec
LP:16.67mm/sec PLAY ONLY
INPUT Video :1Vp-p,75 Ohm
Audio :3.8dBm, over 100K Ohm
TIMER PROGRAMING 6 Event/1 Month
GENERAL POWER INPUT AC 120V 60Hz, DC 12V
POWER CONSUMPTION 47W (AC 120V , 54W (DC 12V
SOUND OUTPUT 1W
SPEAKER 3W 8 OHM
OPRATING TEMPERATRE 5
° C to 40 °C
REMOTE CONTROL R-39A02
SPECIAL FUNTION 3-Language OSD
With CAPTION
V-Chip
K-50MECHA
One Touch Record
Repeat Play
Energy Star Power (Stand-By:3W Under

-6-
CIRCUIT BLOCK DIAGRAM

-7-

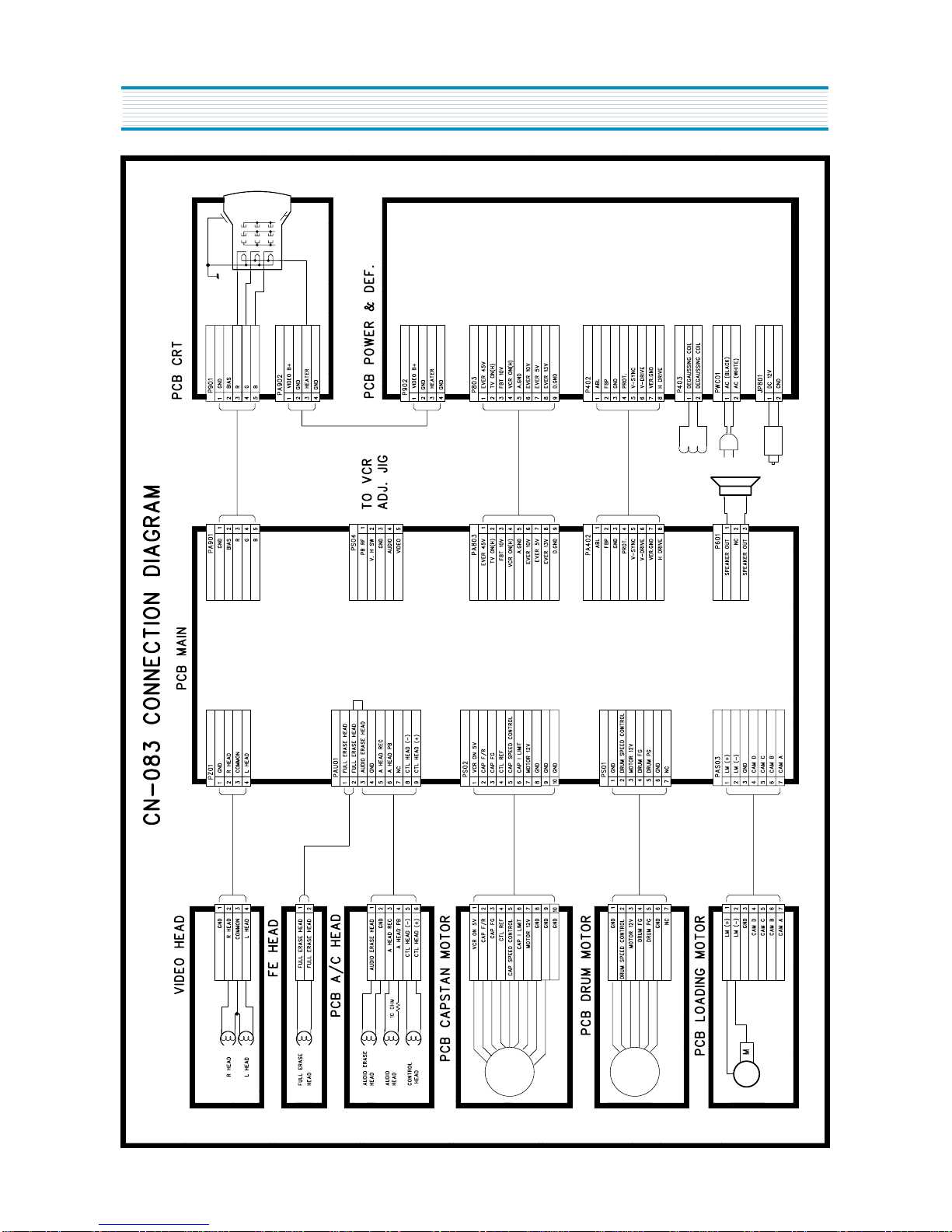

CONNECTION DIAGRAM

-8-
ALIGNMENT INSTRUCTIONS
1. SERVICE MODE ADJUSTMENTS
Follow the steps below whenever service adjustment is required. See Table-A.
and Table-B to determine if service adjustments are required.
1 How to enter the service mode using the user remote control.
 Turn the set on.
 Direct the remote control to the reception window of your TV/VCR
 Push buttons of remote control in sequence as follows.
1 Z MUTE Z RECALL Z MUTE
 Then, the screen will appear as follows.
 Using the channel up (  or down (  buttons, select the item you wish to adjust..
The curser (
U move you wish to adjust item.
 Using the volume up ( U or down( buttons to enter in the sevice mode you wish to adjust.
 You adjust the values of service mode, automatically save to EEPROM
Table-A : Adjust the values of service mode when a part is replaced
PART
REPLACE
ADJUSTMENT
NOTE
NECESSARY UNNECESSARY
ICS01
(TIMER/SYSCON O Data is stored in IS03(EEPROM
I501
(TV CHROMA O
IS03
(EEPROM O
Initial setting values are written from ICS01
Adjusting Items
S5:IFC, S6:GEO, S8:W/B, S9:DP, S11:PG Adjust
CRT O Adjusting Items
S2:SCRN, S6:GEO, S8:W/B, S9:DP
VCR DECK
(DRN-9200 OAdjusting Items related to VCR DECK only. S10:ATK OFF, S11:PG Adjust
ICY01
(VCR Y/C O
U
S2
S5
S6
S8
S9
S10
S11
S12
FIELD SVC
SCRN
IFC
GEO
W/B
DP
ATK OFF
PG Adjus
FACT

-9-
ALIGNMENT INSTRUCTIONS
Table-B
*1 indicates the items with differnt settings each of sets.
*2 CROSS BW: Internal pattern of Device(I501:LA76845
Whenever you select the "CROSS BW" using volume up(
U or down( button,
the screen is changing like this;
VOL UP ( U )
NORMAL BLACK WHITE100 WHITE60 CROSS
VOL DOWN ( )
MODE ADJUSTMENT ITEMS DATA REMARK
INITIAL RANGE
S2 Screen Adjustment - -
S5:
IF
CONTROL
AGC Auto - - Automatical adjustment
AGC Vol 3.75V - Select AGC reference voltage (3.75V
AGC * 1 0-63 Align RF AGC threshold
VIDEO LEV 007 0-7 Must be set to 7
FM LEV 005 0-31 Must be set to 5
HFREQ 032 0-63 NOT USED
CROSS BW * 2 - - NOT USED
S6:
GEOMETRY
H CENTER (Horizontal center * 1 0-31 Using internal cross pattern
(CROSS BW * 2
V SIZE (Vetical Size * 1 0-127
V CENTER (Vertical Center * 1 0-63
V SC (Vertical S-Correction 0 0-31 Must be set to 0
V LIN (Vertical Linearity 20 0-31 Must be set to 20
NO SD POWER OFF NO Automatically turn off in 15min for no received signal (YES
CROSS BW * 2 - -
HBLKR 1 0-6 Must be set to 1
HBLKL 6 0-6 Must be set to 6
S8:
WHITE
BALANCE
RD(Red Drive * 1 0-127 Using internal 100% WHITE pattern
(CROSS BW * 2
GD(Green Drive 10 0-15
BD(Blue Drive * 1 0-127
RB(Red Bias * 1 0-255 Using internal 60% WHITE pattern
(CROSS BW * 2
GB(Green Bias * 1 0-255
BB(Blue Bias * 1 0-255
CROSS BW * 2 - -
S9
D.P
Brightness * 1 0-63
sharpness 0 0-63
Color 30 0-63
Tint 27 0-63
S10 ATK(Auto Tracking OFF - - For VCR DECK Adjustment
S11 PG Adjustment - - Automatically P.G Adjustment
S12 FACT - - Factory Initialization

-10-
ALIGNMENT INSTRUCTIONS
2. ASSEMBLY ADJUSTMENTS
1) SCREEN ADJUSTMENT(S2)
 Enter the service mode and select service adjustment S2
 You can see the horizontal straight line on the screen
 Adjust the Screen Control volume(located on FBT so that the horizontal straight line on screen may be disappear.
 Press the MENU button to exit the screen adjustment mode.
2) FOCUS ADJUSTMENT(S2)
 Turn in a local station and the Focus Control volume(located on FBT for best picture details at light condition.
3) RF-AGC ADJUSTMENT(S5)
 Receive a good local channel.
 Enter the service mode and select service adjustment S5
 You can see the OSD as shown in below.
 Select AGC item, press volume up ( U or down( buttons until noise or beet in picture disappears.
4) GEOMETRIC ADJUSTMENT(S6)
 Enter the service mode and select service adjustment S6
 You can see the OSD as shown in below.
 Use the CH up (  or down (  buttons to select "CROSS BW" item.
 Use the VOL up ( U button to select internal cross pattern.
AGC Au o
IF CONTROL
AGC Vol 3.75V
AGC 000
VIDEO LEV
005 FM LEV
007
HFREQ 032
CROSS BW
H CENTER
GEOMETRY
V SIZE 060
V CENTER 040
V SC
020 V LIN
000
NO SD POWER OFF NO
CROSS BW
020
HBLKR 1 HBLKL 6
H CENTER
GEOMETRY
V SIZE 060
V CENTER 040
V SC
020
V LIN
000
NO SD POWER OFF NO
CROSS BW
020
HBLKR 1 HBLKL 6
- Figure1 -

-11-
ALIGNMENT INSTRUCTIONS
4-1.HORI ONTAL CENTER Adjustment
 Select H CENTER item, adjust H CENTER data value to obtain proper horizontal centering of the internal cross
pattern at the left and right of the screen.
4-2.VERTICAL CENTER Adjustment
 Select V CENTER item, adjust V CENTER data value to center the raster properly on the screen.
4-3.VERTICAL SI E Adjustment
 Select V SIZE item, adjust V SIZE data value to proper vertical size as figure 1.
5) WHITE BALANCE ADJUSTMENT(S8)
 Enter the service mode and select service adjustment S8.
 You can see the OSD as shown in below.
NOTE:
The color coordinator to x:265, y:270.
 Use the CH up(  or down (  buttons to select "CROSS BW" item.
 Use the VOL up ( U button to select internal WHITE60 pattern.
 Use the CH   buttons to select RB/GB/BB item, adjust data until a good white.
 Use the CH   buttons to select "CROSS BW" item.
 Use the VOL U button to select internal WHITE100 pattern.
 Use the CH   buttons to select RD/BD item, adjust data until a good white.
6) D.P(DIGITAL PRESET) ADJUSTMENT(S9)
SUBBRIGHTNESS Adjustment
 Receive a good local channel.
 Enter the service mode and select service adjustment S9
 You can see the OSD as shown in below.
NOTE :
SUBBRIGHTNESS = RETMA PATTERN : 8%
 Select Brightness item, adjust Brightness data value to obtain normal brightness level.
Sharpness
 Fixed value = 000
Color
 Fixed value = 035
Tint
 Fixed value = 022
RD
GD 010
BD 063
GB
127 BB
127
CROSS BW
063
RB
127
D.P
Brigh ness 042
Sharpness 000
Color
022Tin
035

-12-
3. VCR DECK ADJUSTMENTS
1) X-DISTANCE & P2,P3 ADJUSTMENT(S10)
 Connect Path JIG to connector PS04, Playback the test tape (DN-2,7KHz
 Connect oscilloscope CH1 to V.SW(PS04 #2 ,CH2 to PB RF(PS04 #1 and trigger on CH1.
 Enter the service mode and select service adjustment S10
 Use the VOL up( U button to set ATK Off CEN.
 Turn the X-distance screw to maximum of PB-RF.
 Use the VOL up( U button to set ATK Off MIN and MAX.
 If PB-RF is not smooth, adjust P2,P3.
❁ P2, P3
VH SW
RF
2 P.G ADJUSTMENT(S11
 Playback the test tape (DN-2,7KHz
 Enter the service mode and select service adjustment S11
 Push the "REC" KEY once, P.G Adjustment is Automatically.
 Connect oscilloscope CH1 to V/SW(PS04 #2 ,CH2 to CVS(PS04 #5 and trigger on CH1,
Confirm The P.G is 6.5H(412msec .
3 AUDIO AZIMUTH ADJUSTMENT
 Playback the test tape (DN-2,7KHz
 Connect oscilloscope and level meter to Aout(PS04 #4 .
 Turn the azimuth screw to maximum 7KHz level.
4 FACTORY OUTGOING MODE(S12
 If you select the S12, then the set becomes factory outgoing status.
 You can see the channel to "02" or if the set playback you can see the OSD "AUTO TRACKING"
ALIGNMENT INSTRUCTIONS

-13-
SCHEMATIC DIAGRAM (POWER & DEF.)

-14-
SCHEMATIC DIAGRAM(MAIN)

-15-
4859808660
4851941600
4859816191
MAIN PCB
UNION PCB 246 X 246 X 51.6
DRN-9200
330 X 246 X t1.6
A23KQU22X02
4859610440

-16-
PRINTED CIRCUIT BOARD(MAIN)

-17-
PRINTED CIRCUIT BOARD(POWER & DEF.)

-18-
SERVICE PARTS LIST
" " is safety component, so it must be used the same component.
CAUTION
ZZ100 48B4139A02 TRANSMITTER R-39A02 (AAA)
REMOCON
ZZ110 PTACPWH611 ACCESSORY AS DVQ-10H1FCN
00001 4850A02510 ANT ROD S3BW216B (L=600 MM)
00002 4850A00250 TRANS ANT MATCHING IMT-06
00003 4859910010 CORD CAR AS DLF-1033+SPT-2=2000
00004 48586083E1 MANUAL INSTRUCTION ENGLISH
M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400
ZZ120 PTBCSHH611 COVER BACK AS DVQ-10H1FCN
M211 4852162700 COVER BACK FR HIPS BK 10H1
ZZ130 PTPKCPH611 PACKING AS DVQ-10H1FCN
M801 4858061700 BOX CARTON SW-2 10H1
M811 4858100V00 PAD EPS 10H1
M822 4858219300 BAG P.E P.E FOAM T0.5X850X850
ZZ131 48519A6510 CRT GROUND NET 1001S-1015-1P
ZZ132 58G0000160 COIL DEGAUSSING DC-10S1
ZZ140 PTCACAH611 CABINET AS DVQ-10H1FCN
M201A 4856013355 SCREW CRT FIXING 25X50 WH
M201B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M201C 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M351 4853535600 HOLDER CORD NYROLN 66
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV)
M682 4856812001 TIE CABLE NYLON66 DA100
V901 4859610440 CRT A23KQU22X02 P38
ZZ200 PTFMSJH611 MASK FRONT AS DVQ-10H1FCN
M191 4851948600 BUTTON CTRL 4954201+5548600 10H1
M191A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
M201 4852082900 MASK FRONT FR HIPS BK 10H1
M281 4852817701 DOOR F/L ABS BK
M281A 4856723400 SPRING SWPB 0.4
ZZ210 PTSPPWH611 SPEAKER AS DVQ-10H1FCN
PA601 4850703S50 CONNECTOR YH025-03+35098+ULW=200
SP01 4858314310 SPEAKER SP-5070A01 3W 8 OHM
ZZ290 PTMPMSH611 PCB MAIN MANUAL AS DVQ-10H1FCN
DS03 DS15312H-- LED IR SI5312-H
DS03A 97P2339600 HOLDER IR ABS
DT01 DKLR114L-- LED KLR114L
DT02 DSD50RH51B LED SD50-RH51BGRW
I501 1LA76845N- IC LA76845N
I601 1TDA7267-- IC AUDIO AMP TDA7267
I803 PTJ2SW6900 HEAT SINK ASS`Y 1L7805CV-- + 7174300811
00001 1L7805CV-- IC REGULATOR L7805CV
0000A 4857026900 HEAT SINK AL EX
0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I804 PTD2SW4617 HEAT SINK ASS`Y 1K78R05--- + 7174300811
I804 1K78R05--- IC REGULATOR KIA78R05PI
I804A 4857024617 HEAT SINK AL EX
I804B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
I805 1K78R12--- IC REGULATOR KIA78R12PI
LOC PART CODE PART NAME DESCRIPTION REMARK
I805A 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
IS02 1K1A6801K- IC MOTOR DRIVER KIA6801K
IS03 1AT24C08PC IC AT24C08-10PC
IT01 1356VF6--- IC PREAMP 356VF6
JP01 4859109950 JACK PIN BOARD PH-JB-9710A
L102 58C5580019 COIL CHOKE TRF-9225 (0.55UH)
L110 58N0000042 COIL VCO TRF-V008
M191 4851941600 DECK AS DRN-9200
M351 4853535200 HOLDER LED FR HIPS BK
M381 4853818700 FRAME MAIN PCB FR HIPS BK 10H1
M381A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN
M721 4857249400 SHIELD TOP SECC T0.8
M721A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M721B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK
M721C 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK
M721D 97P0475800 CASE SHI PREAMP ET T0.4
PA402 4850708S06 CONNECTOR YH025-08+YBNT025-08=200
PA803 4850709S01 CONNECTOR YH025-09+YST025+ULW=200
PA901 4850705N10 CONNECTOR SMH250-05+YBNT250+ULW=300
PAS03 4850707V07 CONNECTOR 60-8283-3078-45+ULW=150
PAU01 4850706N07 CONNECTOR 60-8283-3068-45+USW=250
PS01 4859292320 CONN WAFER GF120-07S-TS
PS01A 4859200170 CONN FFC K-7X100-0.25
PS02 4859278220 CONN WAFER TKC-G10P-A1
PZ01 4859292220 CONN WAFER GF120-04S-TS-R
SS01 TST5811B-- TR PHOTO ST-5811(B-RANK)
SS01A 97P2343500 HOLDER TR ABS FR
SS02 TST5811B-- TR PHOTO ST-5811(B-RANK)
SS02A 97P2343500 HOLDER TR ABS FR
SS03 4850S00001 SENSOR REEL SG-258S
SS04 4850S00001 SENSOR REEL SG-258S
SS05 4850S00003 SENSOR DEW SY-DS-3
SWS01 5SN0101Z20 SW DETECT JDS1105-6XD
TU01 5800000032 COIL OSC DE0-006
U102 4859721730 TUNER VARACTOR DT5-NF20F N
XS01 5XYR03276C CRYSTAL QUARTZ C-001R 32.768000KHZ 20PPM
XS02 5XJ16R000E CRYSTAL QUARTZ HC-49S 16.000000MHZ 30PPM
Z101 5PM1876D-- FILTER SAW M1876D
Z102 5PYXT4R5MB FILTER CERA XT 4.5MB
ZZ200 PTMPJ2H611 PCB CHIP MOUNT B AS DVQ-10H1FCN
CC103 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC104 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC107 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC108 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CC109 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CC113 HCQK809DCA C CHIP CERA 50V CH 8PF D 2012
CC114 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC115 HCBK152KCA C CHIP CERA 50V X7R 1500PF K 2012
CC118 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
LOC PART CODE PART NAME DESCRIPTION REMARK
✔In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if youneed the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)

-19-
SERVICE PARTS LIST
CC120 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CC123 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC130 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CC131 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CC506 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC510 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC513 HCQK181JCA C CHIP CERA 50V CH 180PF J 2012
CC516 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC521 HCQK180JCA C CHIP CERA 50V CH 18PF J 2012
CC524 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CC532 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CC553 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CC601 HCBK153KCA C CHIP CERA 50V X7R 0.015MF K 2012
CCS04 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCS05 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCS08 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCS11 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCS12 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCS16 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCS24 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012
CCS25 HCQK220JCA C CHIP CERA 50V CH 22PF J 2012
CCS29 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCS31 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CCS32 HCQK201JCA C CHIP CERA 50V CH 200PF J 2012
CCS34 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CCS35 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CCS36 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CCS37 HCQK101JCA C CHIP CERA 50V CH 100PF J 2012
CCS43 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCS48 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CCS49 HCBK102KCA C CHIP CERA 50V X7R 1000PF K 2012
CCS50 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCS53 HCQK391JCA C CHIP CERA 50V CH 390PF J 2012
CCS54 HCBK332KCA C CHIP CERA 50V X7R 3300PF K 2012
CCS61 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCS63 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCS64 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCU02 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCU03 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCU08 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCU09 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCU10 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCU11 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCU13 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCU14 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCU15 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCU17 HCBK222KCA C CHIP CERA 50V X7R 2200PF K 2012
CCU18 HCBK152KCA C CHIP CERA 50V X7R 1500PF K 2012
CCY02 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCY03 HCQK391JCA C CHIP CERA 50V CH 390PF J 2012
CCY04 HCQK201JCA C CHIP CERA 50V CH 200PF J 2012
CCY05 HCQK390JCA C CHIP CERA 50V CH 39PF J 2012
CCY08 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCY12 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
LOC PART CODE PART NAME DESCRIPTION REMARK
CCY13 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCY20 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCY21 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCY28 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCY33 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCY34 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012
CCY35 HCBK473KCA C CHIP CERA 50V X7R 0.047MF K 2012
CCY36 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCY38 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCY40 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCY41 HCQK510JCA C CHIP CERA 50V CH 51PF J 2012
CCY42 HCBK103KCA C CHIP CERA 50V X7R 0.01MF K 2012
CCZ02 HCFK104ZCA C CHIP CERA 50V Y5V 0.1MF Z 2012
CCZ03 HCQK510JCA C CHIP CERA 50V CH 51PF J 2012
ICS01 1DW760EA1Q IC MICOM DW37760MCH-EA1
ICY01 1LA71076AQ IC CHIP Y/C LA71076AM
QCS01 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCS02 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCU04 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCU05 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QCY03 T2SC2412KB TR CHIP 2SC2412K-T146-BR
RC101 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RC102 HRFT104JCA R CHIP 1/10 100K OHM J 2012
RC103 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC104 HRFT473JCA R CHIP 1/10 47K OHM J 2012
RC105 HRFT473JCA R CHIP 1/10 47K OHM J 2012
RC108 HRFT331JCA R CHIP 1/10 330 OHM J 2012
RC109 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC110 HRFT472JCA R CHIP 1/10 4.7K OHM J 2012
RC501 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC502 HRFT222JCA R CHIP 1/10 2.2K OHM J 2012
RC503 HRFT824JCA R CHIP 1/10 820K OHM J 2012
RC509 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
RC510 HRFT392JCA R CHIP 1/10 3.9K OHM J 2012
RC512 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC513 HRFT152JCA R CHIP 1/10 1.5K OHM J 2012
RC514 HRFT472FCA R CHIP 1/10 4.7K OHM F 2012
RC515 HRFT103JCA R CHIP 1/10 10K OHM J 2012
RC516 HRFT622JCA R CHIP 1/10 6.2K OHM J 2012
RC517 HRFT123JCA R CHIP 1/10 12K OHM J 2012
RC520 HRFT390JCA R CHIP 1/10 39 OHM J 2012
RC521 HRFT824JCA R CHIP 1/10 820K OHM J 2012
RC522 HRFT301JCA R CHIP 1/10 300 OHM J 2012
RC523 HRFT331JCA R CHIP 1/10 330 OHM J 2012
RC527 HRFT223JCA R CHIP 1/10 22K OHM J 2012
RC528 HRFT272JCA R CHIP 1/10 2.7K OHM J 2012
RC529 HRFT102JCA R CHIP 1/10 1K OHM J 2012
RC530 HRFT153JCA R CHIP 1/10 15K OHM J 2012
RC531 HRFT122JCA R CHIP 1/10 1.2K OHM J 2012
RC541 HRFT205JCA R CHIP 1/10 2M OHM J 2012
RC542 HRFT564JCA R CHIP 1/10 560K OHM J 2012
RC543 HRFT473JCA R CHIP 1/10 47K OHM J 2012
RC553 HRFT121JCA R CHIP 1/10 120 OHM J 2012
RCA03 HRFT000-CA R CHIP 1/10 0 OHM 2012
LOC PART CODE PART NAME DESCRIPTION REMARK
