Daewoo DTK-28 Series User manual

Service Manual
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.
S/M No.TCP850FEF0
CHASSIS : CP-850/F
MODEL : DTK-28
DTK-29
JUN.2006

CP-850/F Service Manual
-1-
CONTENTS
1 MAIN FEATURES 5
1.1 SPECIFICATIONS 5
1.1.1 GENERAL 5
1.2 CHANNEL/FREQUENCY TABLE 6
1.3 ATSS SORTING METHOD 9
1.3.1 GENERAL CASE 9
2 SAFETY INSTRUCTION 11
3 ALIGNMENT INSTRUCTIONS 12
3.1 MICROCONTROLLER CONFIGURATION : SERVICE MODE 12
3.2 SERVICE MODE NAVIGATION 12
3.3 MICROCONTROLLER CONFIGURATION : OPTION BITS 12
3.3.1 OPTION 1 13
3.3.2 OPTION 2 13
3.4 TV SET ALIGNMENT 13
3.4.1 LOCAL OSCILLATOR ALIGNMENT 13
3.4.2 G2 ALIGNMENT 13
3.4.3 WHITE BALANCE 14
3.4.4 FOCUS 14
3.4.5 VERTICAL GEOMETRY 14
3.4.6 HORIZONTAL PICTURE CENTRING 14
3.4.7 EAST / WEST CORRECTION 14
3.4.8 AGC 15
4 IC DESCRIPTION 16
4.1 TELETEXT DECODER WITH EMBEDDED 8-BIT CONTROLLER 16
4.1.1 BLOCK DIAGRAM OF THE SDA55XX 16
4.1.2 DESCRIPTION 16
4.1.3 IC MARKING AND VERSION 17
4.1.4 PINNING 17
4.2 VSP9405 - SCAN RATE CONVERTER INCLUDING MULTISTANDARD COLOUR
DECODER 18
4.2.1 BLOCK DIAGRAM OF THE VSP9405 19
4.2.2 DESCRIPTION 19
4.2.3 PINNING 21
4.3 DDP 3315C - DISPLAY AND DEFLECTION PROCESSOR 26
4.3.1 BLOCK DIAGRAM OF THE DDP 3315C 26
4.3.2 DESCRIPTION 27
4.3.3 PINNING 29
4.4 MSP341X MULTISTANDARD SOUND PROCESSOR 31
4.4.1 BASIC FEATURES OF THE MSP 341X 31
4.4.1.1 Demodulator & NICAM Decoder Section 31

CP-850/F Service Manual
-2-
4.4.1.2 DSP-Section (Audio Baseband Processing) 32
4.4.1.3 Analogue Section 32
4.4.1.4 NICAM & FM/AM-Mono 32
4.4.1.5 German 2-Carrier System (DUAL FM System) 32
4.5 TDA4470 - MULTISTANDARD VIDEO-IF AND QUASI PARALLEL SOUND PROCESSOR 35
4.5.1 DESCRIPTION 35
4.5.2 FEATURES 35
4.5.3 PINNING 35
4.5.4 BLOCK DIAGRAM 36
4.6 TDA894XJ STEREO AUDIO AMPLIFIER 37
4.6.1 FEATURES 37
4.7 TDA835XJ VERTICAL AMPLIFIER 38
4.7.1 TDA8353J 38
4.8 TDA6108JF 40
4.9 24C16 - 16 KB EEPROM 41
4.10 STR - W6754 42
4.10.1 GENERAL DESCRIPTION 42
4.10.2 FEATURES 42
4.10.3 BLOCK DIAGRAM 42
4.10.4 ELECTRICAL CHARACTERISTICS 43
5 CP-850/F CHASSIS DESCRIPTION 45
5.1 BLOCK DIAGRAM 45
5.2 IF SECTION 46
5.2.1 BLOCK DIAGRAM 46
5.2.2 VISION IF AMPLIFIER 47
5.2.3 TUNER-AND VIF-AGC 47
5.2.4 FPLL, VCO AND AFC 47
5.2.5 VIDEO DEMODULATION AND AMPLIFIER 48
5.2.6 SOUND IF AMPLIFIER AND SIF-AGC 48
5.2.7 QUASI-PARALLEL-SOUND (QPS) MIXER 48
5.2.8 STANDARD SWITCH 48
5.2.9 L SWITCH 48
5.2.10 INTERNAL VOLTAGE STABILISER 48
5.3 VIDEO / RGB
5.3.1 FRONT END 48
5.3.1.1 CVBS Front-End 48
5.3.1.2 Input Selector 49
5.3.1.3 Signal Levels And Gain Control 49
5.3.1.4 Synchronization 49
5.3.1.5 Chroma Decoder 49
5.3.1.6 Luminance Processing 49

CP-850/F Service Manual
-3-
5.3.1.7 RGB Front-End 49
5.3.1.8 Signal Processing 49
5.3.1.8.1 Horizontal Prescaler 49
5.3.1.8.2 Noise Reduction 50
5.3.1.8.3 Noise Measurement 50
5.3.1.8.4 Operation Modes 50
5.3.1.8.5 Digital 656 Output 50
5.3.2 BACK END 50
5.3.2.1 Digital Input Interface 50
5.3.2.2 Horizontal Scaler 50
5.3.2.3 Luma Contrast and Brightness 50
5.3.2.4 Black Level Expander/Compressor (BLEC) 50
5.3.2.5 Luma Sharpness Enhancer (LSE) 51
5.3.2.6 Dynamic Peaking 51
5.3.2.7 Luma Transient Improvement (LTI) 51
5.3.2.8 Mixing of Dynamic Peaking and LTI 51
5.3.2.9 Chroma Transient Improvement 51
5.3.2.10 Analog Back End 52
5.3.2.11 Analog RGB Insertion 52
5.3.2.12 CRT Measurement and Control 52
5.3.2.13 Synchronization and Deflection 53
5.3.2.14 EHT Compensation 53
5.4 MICROCONTROLLER 53
5.4.1 MICROCONTROLLER FEATURES 53
5.4.2 ACQUISITION FEATURES 54
5.4.3 PORTS 54
5.4.4 CONTROLLER I/O PIN CONFIGURATION AND FUNCTION TABLE 54
5.4.5 OVER CURRENT PROTECTION 55
5.5 TELETEXT DISPLAY 55
5.6 SOUND PROCESSING 56
5.6.1 ANALOGUE SOUND IF - INPUT SECTION 56
5.6.2 QUADRATURE MIXERS 56
5.6.3 PHASE AND AM DISCRIMINATION 56
5.6.4 NICAM DECODER 57
5.6.5 DSP SECTION 57
5.6.6 SOUND MODE SWITCHING 57
5.7 SOUND AMPLIFICATION 57
5.7.1 POWER AMPLIFIER 57
5.7.2 MODE SELECTION 57
5.8 VERTICAL DEFLECTION 58
5.8.1 FLYBACK VOLTAGE 58
5.8.2 PROTECTION 58
5.8.3 GUARD CIRCUIT 58
5.8.4 DAMPING RESISTOR 58

5.8.5 EAST-WEST AMPLIFIER (TDA8358J ONLY) 58
6 SERVICE PARTS LIST 59
7 SCHEMATIC DIAGRAM 66
8 PRINTED CIRCULT BOARD 67
9 EXPLODED VIEW 69
CP-850/F Service Manual
-4-

CP-850/F Service Manual
-5-
1 MAIN FEATURES
1.1 SPECIFICATIONS
1.1.1 GENERAL
TV standard PAL - SECAM B/G D/K, PAL I/I, SECAM L/L
Colour system Tuner PAL, SECAM
AV PAL, SECAM, PAL 60, NTSC M, NTSC 4.43
Sound system NICAM B/G, I, D/K, L,
FM 2Carrier B/G, D/K
Power 29"(4:3) Real Flat :110W approx.
consumption 28"(16:9) Real Flat : 110W approx.
Sound Output Power 7W x 2 (at 60% mod, 10%THD)
Speaker 12W 8 ohm x2
Teletext system 9 pages memory FASTEXT (FLOF or TOP)
Aerial input 75 ohm unbalanced
Channel coverage Off-air channels, S-cable channels and hyperband
Tuning system frequency synthesiser tuning system
Visual screen size 28" : 66cm
29" : 68cm
Channel indication On Screen Display
Program Selection 100 programmes
Aux. terminal EURO-SCART 1 : Audio / Video In and Out, R/G/B
In, Slow and Fast switching.
EURO-SCART 2 : Audio / Video In and Out, SVHS In.
AV3 : Audio-Video Jack on front of cabinet.
Headphone jack (3.5 mm) on front of cabinet
SVHS3 (option) : Jack on front of cabinet /sound
input common with AV3.
Remote Control R-49C05
1.1.2 EURO-SCART 1 (21 Pin)
Pin Signal Description Matching value
1 Audio Output Right 0.5 Vrms, Impedance < 1 k , ( RF 54% Mod )
2 Audio Input Right 0.5 Vrms, Impedance > 10 k
3 Audio Output Left 0.5 Vrms, Impedance < 1 k , ( RF 54% Mod )
4 Audio Earth
5 Blue Earth
6 Audio Input Left 0.5 Vrms, Impedance > 10 k
7 Blue Input 0.7 Vpp 0.1V, Impedance 75

CP-850/F Service Manual
-6-
1.2 CHANNEL/FREQUENCY TABLE
1.2.1 CHANNEL/FREQUENCY TABLE

CP-850/F Service Manual
-7-
CHANNEL EUROPE CCIR FRANCE GB(IRELAND) EAST OIRT
C01 46.25 - 45.75 49.75
C02 48.25 55.75 (L ) 53.75 59.25
C03 55.25 60.5 (L ) 61.75 77.25
C04 62.25 63.75 (L ) 175.25 85.25
C05 175.25 176.00 183.25 93.25
C06 182.25 184.00 191.25 175.25
C07 189.25 192.00 199.25 183.25
C08 196.25 200.00 207.25 191.25
C09 203.25 208.00 215.25 199.25
C10 210.25 216.00 223.25 207.25
C11 217.25 189.25 (LUX) 231.25 215.25
C12 224.25 69.25 (L ) 239.25 223.25
C13 53.75 76.25 (L ) 247.25 -
C14 - 83.25 (L ) 49.75 -
C15 82.25 90.25 57.75 -
C16 - 97.25 65.75 -
C17 183.75 - 77.75 -
C18 192.25 - 85.75 -
C19 201.25 - - -
C20 - - - -
C21 471.25 471.25 471.25 471.25
C22 479.25 479.25 4 79.25 479.25
C23 487.25 487.25 487.25 487.25
C24 495.25 495.25 495.25 495.25
C25 503.25 503.25 503.25 503.25
C26 511.25 511.25 5 11.25 511.25
C27 519.25 519.25 519.25 519.25
C28 527.25 527.25 527.25 527.25
C29 535.25 535.25 535.25 535.25
C30 543.25 543.25 543.25 543.25
C31 551.25 551.25 551.25 551.25
C32 559.25 559.25 559.25 559.25
C33 567.25 567.25 567.25 567.25
C34 575.25 575.25 575.25 575.25
C35 583.25 583.25 583.25 583.25
C36 591.25 591.25 591.25 591.25
C37 599.25 599.25 599.25 599.25
C38 607.25 607.25 607.25 607.25
C39 615.25 615.25 615.25 615.25
C40 623.25 623.25 623.25 623.25
C41 631.25 631.25 631.25 631.25
C42 639.25 639.25 639.25 639.25
C43 647.25 647.25 647.25 647.25
C44 655.25 655.25 655.25 655.25
C45 663.25 663.25 663.25 663.25
C46 671.25 671.25 671.25 671.25
C47 679.25 679.25 679.25 679.25
C48 687.25 687.25 687.25 687.25
C49 695.25 695.25 695.25 695.25
C50 703.25 703.25 703.25 703.25
C51 711.25 711.25 711.25 711.25
C52 719.25 719.25 719.25 719.25
C53 727.25 727.25 727.25 727.25
C54 735.25 735.25 735.25 735.25
C55 743.25 743.25 743.25 743.25
C56 751.25 751.25 751.25 751.25
C57 759.25 759.25 759.25 759.25
C58 767.25 767.25 767.25 767.25

CP-850/F Service Manual
-8-
CHANNEL EUROPE CCIR FRANCE GB(IRELAND) EAST OIRT
C59 775.25 775.25 775.25 775.25
C60 783.25 783.25 783.25 783.25
C61 791.25 791.25 791.25 791.25
C62 799.25 799.25 799.25 799.25
C63 807.25 807.25 807.25 807.25
C64 815.25 815.25 815.25 815.25
C65 823.25 823.25 823.25 823.25
C66 831.25 831.25 831.25 831.25
C67 839.25 839.25 839.25 839.25
C68 847.25 847.25 847.25 847.25
C69 855.25 855.25 855.25 855.25
C70 863.25 863.25 863.25 863.25
C71 69.25 - - -
C72 76.25 - - -
C73 83.25 - - -
C74 90.25 - - -
C75 97.25 - - -
C76 59.25 - - -
C77 93.25 - - -
S01 105.25 104.75 103.25 105.25
S02 112.25 116.75 111.25 112.25
S03 119.25 128.75 119.25 119.25
S04 126.25 140.75 127.25 126.25
S05 133.25 152.75 135.25 133.25
S06 140.25 164.75 143.25 140.25
S07 147.25 176.75 151.25 147.25
S08 154.25 188.75 159.25 154.25
S09 161.25 200.75 167.25 161.25
S10 168.25 212.75 - 168.25
S11 231.25 224.75 - 231.25
S12 238.25 236.75 - 238.25
S13 245.25 248.75 255.25 245.25
S14 252.25 260.75 263.25 252.25
S15 259.25 272.75 271.25 259.25
S16 266.25 284.75 279.25 266.25
S17 273.25 296.75 287.25 273.25
S18 280.25 136.00 295.25 280.25
S19 287.25 160.00 303.25 287.25
S20 294.25 - - 294.25
S21 303.25 303.25 - 303.25
S22 311.25 311.25 311.25 311.25
S23 319.25 319.25 319.25 319.25
S24 327.25 327.25 327.25 327.25
S25 335.25 335.25 335.25 335.25
S26 343.25 343.25 343.25 343.25
S27 351.25 351.25 351.25 351.25
S28 359.25 359.25 359.25 359.25
S29 367.25 367.25 367.25 367.25
S30 375.25 375.25 375.25 375.25
S31 383.25 383.25 383.25 383.25
S32 391.25 391.25 391.25 391.25
S33 399.25 399.25 399.25 399.25
S34 407.25 407.25 407.25 407.25
S35 415.25 415.25 415.25 415.25
S36 423.25 423.25 423.25 423.25
S37 431.25 431.25 431.25 431.25
S38 439.25 439.25 439.25 439.25
S39 447.25 447.25 447.25 447.25
S40 455.25 455.25 455.25 455.25
S41 463.25 463.25 463.25 463.25

CP-850/F Service Manual
-9-
1.3 ATSS SORTING METHOD
The TV set sweeps all the TV bands from beginning of VHF to end of UHF. The TV controlling software for each
program checks if a VPS CNI code is transmitted (this system exists for German, Swiss and Austrian transmissions).
If no VPS CNI code is found, then the system checks if a CNI code is transmitted as part of the teletext transmission
( Packet 8/30 format 1 and format 2). If such a code ( VPS or teletext ) is found and if this code is in the ATSS list, the
program is automatically named.
If the transmission does not have VPS CNI, and no teletext service is available, then there is no possibility of the
program being automatically named.
The programs found are then sorted in 4 groups :
Group I : It contains all the programs from the selected country and named by the TV controlling software. Within this
group the sorting order is fixed by the ATSS list.
Group II : It contains all the programs with a strong signal strength which are not listed in group I.
Group III : It contains all the programs with a weak signal strength which are not listed in group I.
Group IV : If two or more programs with the same code are found, only the strongest ( or if they have the same level
the one with the lowest frequency) is listed in group I, II or III. The others are listed in group IV.
1.3.1 GENERAL CASE 1.3.2 SPECIAL CASE
Program Group Skip
number
1
... Group II
m
m+1
... Group III
p
p+1
... Group IV
q
q+1
... not used
99
0
Special case : Country selection = Others
Program Group Skip
number
1
2 Group I
...
n
n+1
... Group II
m
m+1
... Group III
p
p+1
... Group IV
q
q+1
... not used
99
0

CP-850/F Service Manual
-10-
Note : If two programs with the same name but a different code are found these two programs
are listed in group I, II or III .
The sorting order within group II, III, and IV is based on the channel frequency. The program
with the lowest frequency is allocated the first rank in its group, and so forth until the last
program of the group which has the highest frequency.
Special case : France
If France is selected, the TV controlling software first sweeps all TV bands with France system
selected ( positive video modulation) and then a second time with Europe system selected
( negative video modulation).
Special case : Switzerland
If Switzerland is selected the TV controlling software first sweeps all TV bands with Europe
system selected (negative video modulation) and then a second time with France system
selected ( positive video modulation).
Special case : GB
Note for satellite receiver users : Before starting ATSS turn on your satellite receiver and tune to
“SKY NEWS”
If GB is selected the TV controlling software seeks for programs only in UHF ( C21 to C70 ).
The sorting order is :
1 - BBC1
2 - BBC2
3 - ITV
4 - CH4
5 - CH5
6 - NEWS (Sky News)
If two or more “identical” programs ( same name but different code e.g. BBC1 and BBC1
Scotland ) are found the following programs in the list will be shifted up. (1 - BBC1, 2 - BBC1, 3
-
BBC2, 4 - ITV, 5 - CH4, 6 - CH5, 7 - NEWS, ..)
If one of the programs above is not found, the associated program number remains empty
( freq.=467.25 MHz - Skip selected - no name ? system = GB).
example A : 1 - BBC1, 2 - BBC2, 3 - ITV, 4 - -----, 5 - CH5, 6 - NEWS, ...
example B ( if 2 BBC1 found ) : 1 - BBC1, 2 - BBC1, 3 - BBC2, 4 - ITV, 5 - -----, 6 - CH5, 7 -
NEWS, ...

CP-850/F Service Manual
-11-
2 SAFETY INSTRUCTION
WARNING: Only competent service personnel may carry out work involving the testing or repair
of this equipment.
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid
such hazards, the high voltage must not exceed the specified limit. The nominal value of the
high voltage of this receiver is 25-26 KV (20”-21”) or 26 KV (25” - 28”) at max beam current.
The high voltage must not, under any circumstances, exceed 27.5 KV (20”), 29KV (21”),
29.5 KV (25”) or 30 KV (28”). Each time a receiver requires servicing, the high voltage
should be checked. It is important to use an accurate and reliable high voltage meter.
2. The only source of X-RAY Radiation in this TV receiver is the picture tube. For continued X-
RAY RADIATION protection, the replacement tube must be exactly the same type tube as
specified in the parts list.
SAFETY PRECAUTION
Potentials of high voltage are present when this receiver is operating. Operation of the receiver
outside the cabinet or with the back board removed involves a shock hazard from the receiver.
Servicing should not be attempted by anyone who is not thoroughly familiar with the
precautions necessary when working on high voltage equipment.
Discharge the high potential of the picture tube before handling the tube. The picture tube is
highly evacuated and if broken, glass fragments will be violently expelled.
If any Fuse in this TV receiver is blown, replace it with the FUSE specified in the Replacement
Parts List.
When replacing a high wattage resistor (metal oxide film resistor) in the circuit board, keep the
resistor 10 mm away from circuit board.
Keep wires away from high voltage or high temperature components.
This receiver must operate under AC 240 volts, 5O Hz. NEVER connect to a DC supply or any
other voltage or frequency.
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this equipment have special safety-related
characteristics. These characteristics are often passed unnoticed by a visual inspection and the
X-RAY RADIATION protection afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in this manual and its supplements, electrical
components having such features are identified by designated symbol on the parts list. Before
replacing any of these components, read the parts list in this manual carefully. The use of
substitutes replacement parts which do not have the same safety characteristics as specified in
the parts list may create X-RAY Radiation.

CP-850/F Service Manual
-12-
3 ALIGNMENT INSTRUCTIONS
3.1MICROCONTROLLER CONFIGURATION : SERVICE MODE
To switch the TV set into service mode please see instruction below.
1 - Select PR. number 91
2 - Adjust sharpness to minimum and exit all menus.
3 - Within 2 seconds press the key sequence : RED - GREEN - menu
The software version is displayed beside the word Service, e.g. “SERVICE V1.00”.
To exit SERVICE menu press menu key or Stand By key.
3.2 SERVICE MODE NAVIGATION
Pr Up/Down remote keys : cycle through the service items available.
Vol -/+ remote keys : Dec./Increment the values within range - Cycle trough option bits.
OK key : Toggle bits in option byte
Order Item Default setting
1 HOR CEN
2 RED GAIN
3 GRN GAIN
4 RED BIAS
5 GRN BIAS
6 AGC LEVEL
7 G2 - SCREEN
8AFT
9 OPTION1
10 OPTION2
11 OPTION3
12 AVL
13 PARABOLA
14 HOR WIDTH
15 CORNER T
16 CORNER B
17 HOR. PARAL
18 V.LINEAR
19 EW TRAPEZ
20 S CORRECT
21 VERT CENT
22 VERT SIZE
23 SHIPPING
24 INST. LOCK
25 LKB LOCK HOTEL
26 AV1 START FUNCTION
27 MAX. VOL

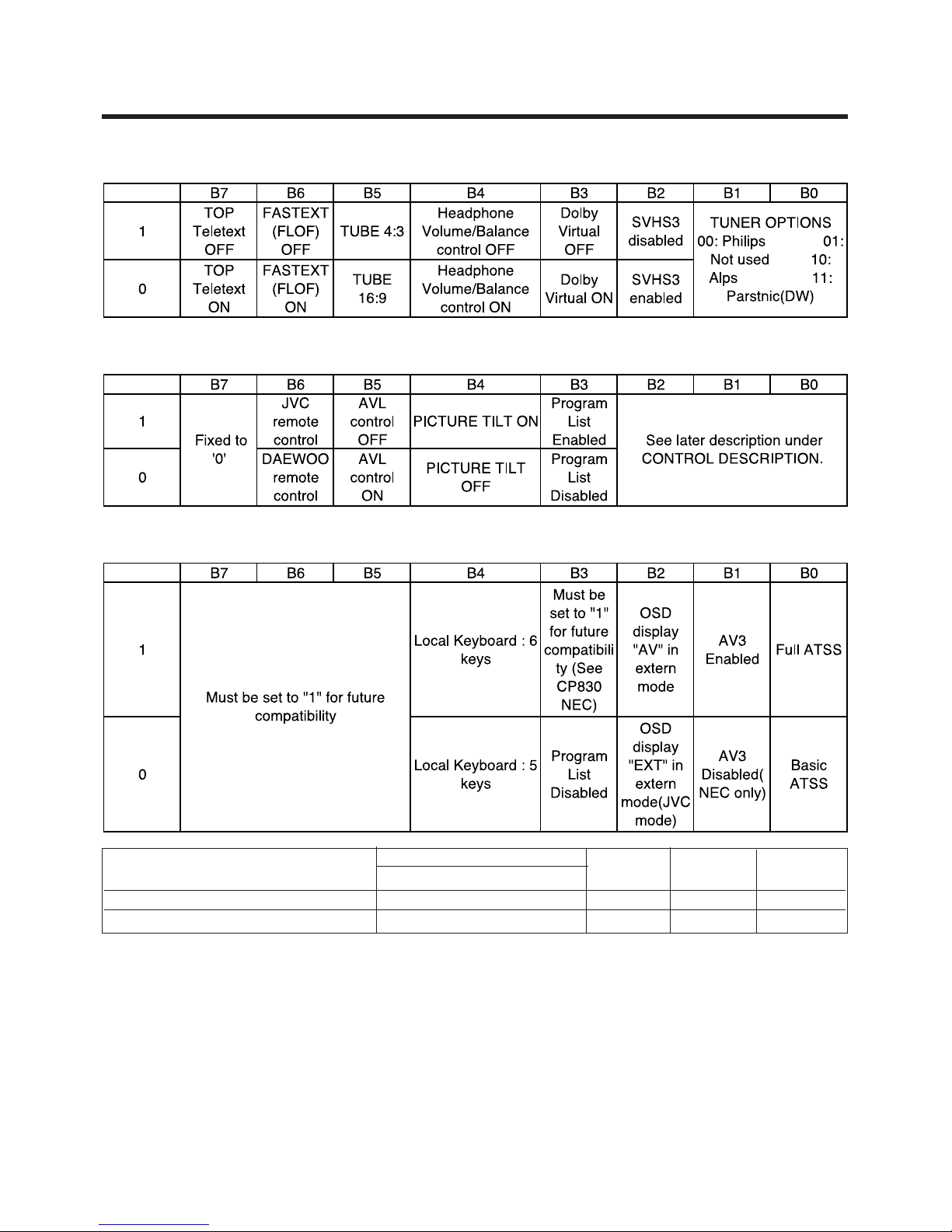

3.3 MICROCONTROLLER CONFIGURATION : OPTION BITS
There are two option bytes available (16 bits in all). These option bits are available from Service
mode. First find the OPTION1/OPTION2/OPTION3 control, and then use the Volume PLUS/MINUS
buttons on the remote control keypad to locate the bits, and OK key to toggle them. The table
below shows the two option bytes available;

CP-850/F Service Manual
-13-
All values modified are immediately memorised in eeprom.
3.4 TV SET ALIGNMENT
3.4.1 LOCAL OSCILLATOR ALIGNMENT
Tune a colour bar pattern. The frequency of the signal carrier must be accurate (Max +/- 10KHz
deviation from the nominal channel frequency).
Find AFT item in service mode.
Adjust the coil L150 to bring the cursor to central position : 32.
3.4.2 G2 ALIGNMENT
- Tune a colour bar pattern.
- Find the G2 - SCREEN item in service mode.
- Adjust screen volume ( on FBT ) to bring the cursor to central position : 32.
Tube Beam Current(mA) B2 B1 B0
Nominal Max
4/3 - Real Flat, 16/9 – Real Flat 1.30 1.45 1 1 0
1.35 1.50 1 1 1
3.3.1 OPTION 1
3.3.2 OPTION 2
3.3.3 OPTION 3

CP-850/F Service Manual
-14-
3.4.3 WHITE BALANCE
- Select a dark picture and adjust RED BIAS and GRN BIAS to the desired colour temperature.
- Select a bright picture and adjust RED, GRN and BLUE GAIN to the desired colour temperature.
3.4.4 FOCUS
Adjust the Focus volume ( on FBT ) to have the best resolution on screen.
3.4.5 VERTICAL GEOMETRY
Adjust V. LINEAR (linearity), S CORRECT (S. Correction), VERT SIZE (Vertical amplitude), VERT CENT (vertical
centring) to compensate for vertical distortion.
3.4.6 HORIZONTAL PICTURE CENTRING
Adjust HOR CEN (Horizontal centre) to have the picture in the centre of the screen.

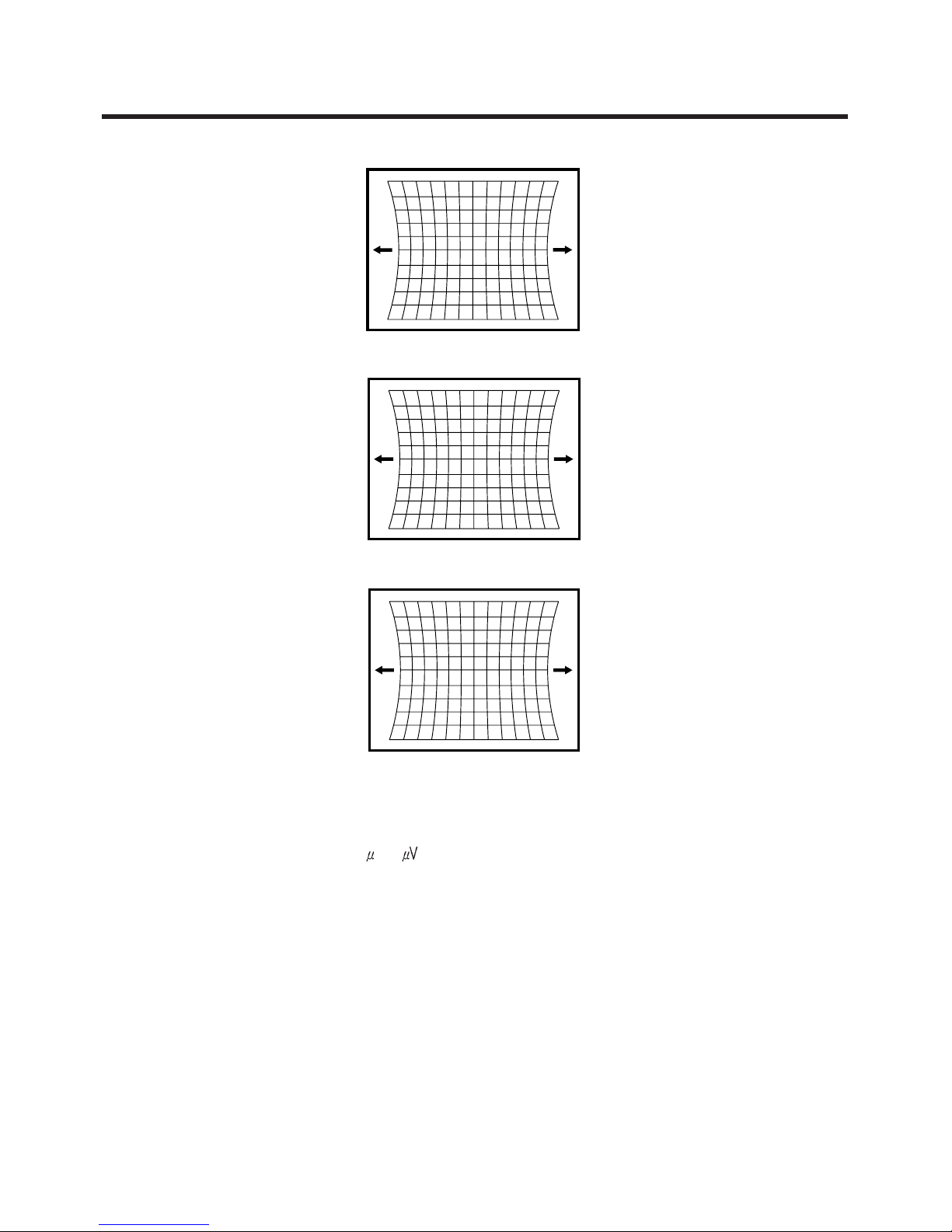

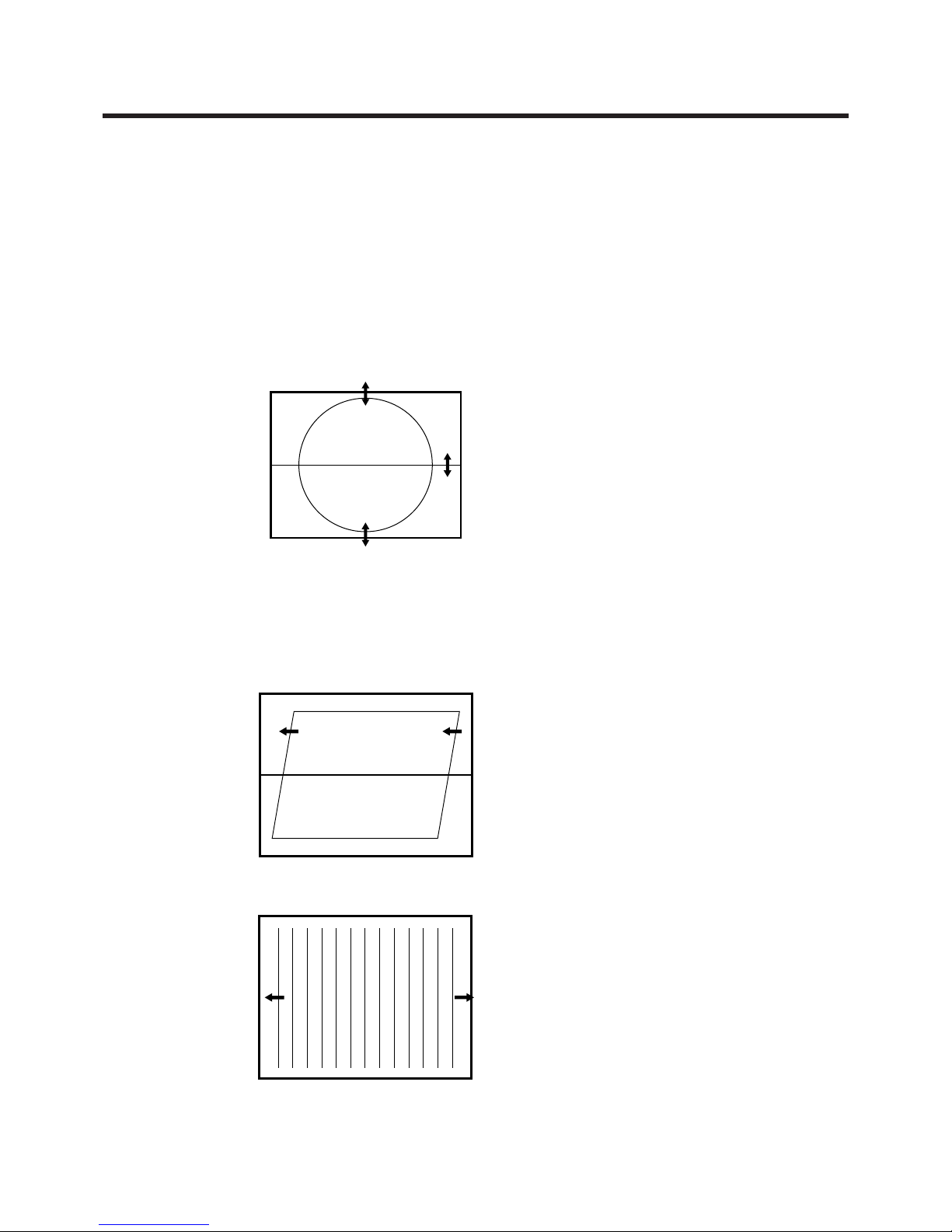

3.4.7 EAST / WEST CORRECTION
Adjust the PARABOLA, HOR WIDTH, CORNER, HOR PARAL, EW TRAPEZ, to compensate for
geometrical distortion.
HOR PARAL
HOR WIDTH
adjust for 90% overscan.

CP-850/F Service Manual
-15-
PARABOLA
CORNER B & CORNER T
EW TRAPEZ
3.4.8 AGC
- Make sure option bits are correct for the tuner fitted on the chassis (See above how to change option bits).
- Adjust the antenna signal level at 62 dB V± 2
- Tune a colour bar pattern.
- Find the “ AGC ” item in service mode.
- Press the key
“ OK ” on the remote keypad and wait until AGC level stabilise to the optimum value.
- Alternatively, use
“ Vol Up/Dwn ” keys to adjust manually to the desired Tuner Take Over Point (TOP).

CP-850/F Service Manual
-16-
4.1.2 DESCRIPTION
The SDA 55xx is a single chip teletext decoder for decoding World System Teletext data as well as Video
Programming System (VPS), Program Delivery Control (PDC), and Wide Screen Signalling (WSS) data used for PAL
plus transmissions (line 23).
The device provides an integrated general-purpose, fully 8051-compatible Microcontroller with television specific
hardware features. The microcontroller has been enhanced to provide powerful features such as memory banking,
data pointers and additional interrupts etc.
The on-chip display unit for displaying Level 1.5 teletext data is also used for customer defined on-screen displays.
Internal XRAM consists of 16 Kbytes. Device has an internal ROM of 128 Kbytes.
The SDA 55xx supports a wide range of standards including PAL, NTSC and contains a digital slicer for VPS, WSS,
PDC, TTX and Closed Caption, an accelerating acquisition hardware module, a display generator for Level 1.5 TTX
data and powerful On screen Display capabilities based on parallel attributes, and Pixel oriented characters (DRCS).
The 8-bit Microcontroller runs at 360 ns. cycle time (min.). Controller with dedicated hardware does most of the
internal TTX acquisition processing, transfers data to/from external memory interface and receives/transmits data via I
2 C-firmware user-interface. The slicer combined with dedicated hardware stores TTX data in a VBI buffer of 1
Kilobyte. The Microcontroller firmware performs all the acquisition tasks (hamming-and parity-checks, page search
and evaluation of header control bits) once per field. Additionally, the firmware can provide high-end Teletext-features
like Packet-26-handling, FLOF, TOP and list-pages.
4 IC DESCRIPTION
4.1 TELETEXT DECODER WITH EMBEDDED 8-BIT CONTROLLER
TVText Pro is a 8-bit controller based on a enhanced 8051 core with embedded teletext, On screen Display and TV
controller functions.
4.1.1 BLOCK DIAGRAM OF THE SDA55XX
4.1.2

CP-850/F Service Manual
-17-
4.1.4 PINNING
PSDIP 52-pin Pin Name Type Short Description
1 SCL IN/OUT Software driven I2C bus Clock line
2 SDA IN/OUT Software driven I2C bus Data line
3 S/SW2 IN Slow switching control for SCART 2.
4 S/SW2 IN (See Microcontroller I/O pin configuration)
5 OCP IN Switch Off the set when the voltage goes below a trigger level
6 n.c.
7 n.c.
8 Reset Out OUT Driven by controlling software to reset video IC ’ s.
9 VDD2.5 IN Supply voltage 2.5V
10 VSS IN Ground (0V)
11 VDD3.3 IN Input/Output 3.3V
12 CVBS IN CVBS input for the acquisition circuit
13 VDDA2.5 IN Supply voltage for analog components
14 VSSA IN Ground for analog components
15 S/SW1 IN Slow switching control for SCART 1.
16 AGC IN ADC input, for AGC alignment only
17 KEY IN ADC input, local key sensing
18 AFT IN ADC input, AFT input
19 HS IN Horizontal sync for OSD/Txt synchronisation
20 VS IN Vertical sync for OSD/Txt synchronisation
21 MODESW OUT High : Negative video modulation (B, G, D, K,I)
Low : Positive video modulation (L / L
’ )
22 L/L ’ OUT High : L ’ , Low : L
23 IR IN Remote control signal input
24 INT IN Interrupt input from audio processor
4.1.3 IC MARKING AND VERSION
Chassis IC marking OSD languages ATSS countries Text
CP-850/F AUSTRALIA, BULGARIAN, Australia, Austria, Belgium,
CZECH, GERMAN, Switzerland, Czech
DANISH, SPANISH, Republic, Germany,
FRENCH, FINNISH, Denmark, Spain, PAN-EUROPEAN
GREEK, France, Finland, GB, LATIN, CYRILLIC,
HUNGARIAN, Greece, Hungary, Italy, GREEK.
ITALIAN, Ireland, Norway,
NORWEGIAN, Netherlands, Portugal,
DUTCH, POLISH, Poland, Sweden,
ROMANIAN, Others
RUSSIAN,
SWEDISH,

CP-850/F Service Manual
-18-
PSDIP 52-pin Pin Name Type Short Description
25 PROJECT50
26 n.c.
27 n.c.
28 n.c.
29 VSS IN Ground (0V)
30 VDD3.3 IN Input/Output 3.3V
31 n.c.
32 n.c.
33 RESET IN A low level on this pin resets the device.
34 XTAL2 OUT Output of the inverting oscillator amplifier
35 XTAL1 IN Input of the inverting oscillator amplifier
36 VSSA IN Ground for analog components
37 VDDA2.5 IN Supply voltage for analog components
38 R OUT OUT Red output
39 G OUT OUT Green output
40 B OUT OUT Blue output
41 BK OUT OUT Blanking
42 VDD2.5 IN Supply voltage 2.5V
43 VSS IN Ground (0V)
44 VDD3.3 IN Input / Output 3.3V
45 n.c.
46 n.c.
47 n.c.
48 AGC OUT Tuner TOP adjustment
49 FACTORY
50 D/G COIL
51 LED OUT High : Green LED, Low : Red LED
52 POWER OUT High : SMPS ON, Low : SMPS in stand by
4.2 VSP9405C - SCAN RATE CONVERTER INCLUDING MULTISTANDARD COLOUR DECODER
The VSP 94x5C comprises all main functions of a digital featurebox in one monolithic IC.
The device comprises a digital multistandard color decoder, a RGB interface with fast-blank capability (SCART), digital
ITU656 input, scaling units including panorama, embedded DRAM for upconversion, picture improvements, temporal
noise reduction as well as A/D and D/A converter.

CP-850/F Service Manual
-19-
4.2.1 BLOCK DIAGRAM OF THE VSP9405C
VSP 94x5C
4.2.2 DESCRIPTION
Integrated Video Matrix switch
- Up to seven CVBS inputs, up to two Y/C inputs,
- Up to three CVBS outputs (even when Y/C input)
- 9 bit amplitude resolution for CVBS, Y/C A/D converter
- AGC (Automatic Gain Control)
