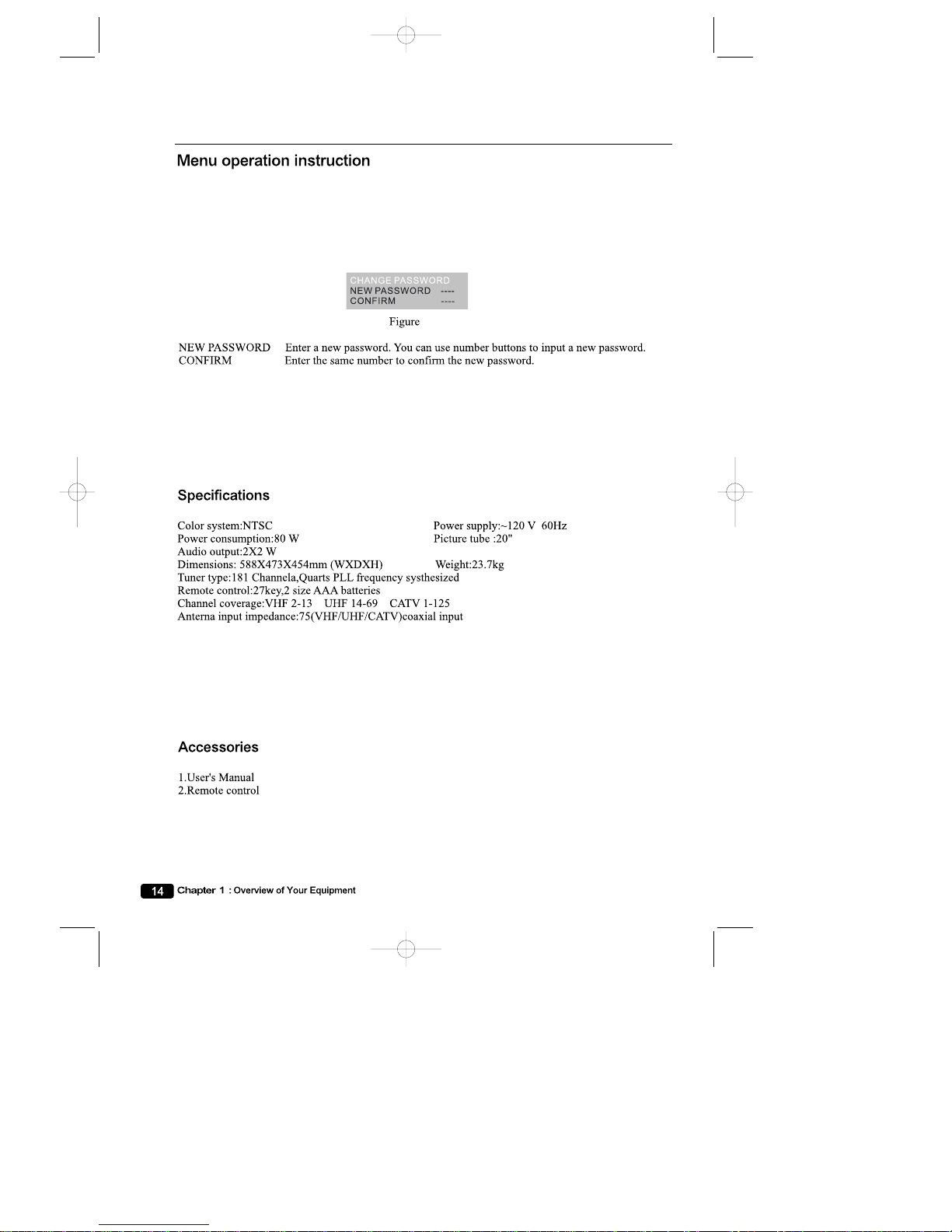

Daewoo DTQ-20U9SC User manual

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying
the appliance.
WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID
THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
NOTE TO CATV SYSTEM INSTALLER
THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO ARTICLE
820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR PROPER GROUNDING AND, IN PARTICULAR,
SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE
BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.
CAUTION
The AC power cord provided with this product is polarized (one blade wider than the other).
To prevent electrical shock, match wide blade of plug to wide slot, fully insert the AC plug into a stan-
dard 120V~, 60Hz polarized outlet.
NOTE
Never connect the plug to an electrical source other than one providing 120V~, 60Hz power. Use only the attached power
cord. If the polarized AC cord does not fit into a non-polarized outlet, do not cut or file the blade. You are responsible for hav-
ing the obsolete outlet replaced with a polarized outlet.
If you feel a static discharge when touching the unit, and the unit does not function, simply unplug the unit from the outlet.
When you plug the unit back in, it should work normally.
Do not install power cords near any heating element or cooking appliances.
230E101-R6 2005.3.2 11:15 AM 페이지51

Important Safeguards
SAFETY
IMPORTANT SAFEGUARDS
PLEASE READ ALL THESE INSTRUCTIONS REGARDING YOUR TELEVISION EQUIPMENT AND
RETAIN FOR FUTURE REFERENCE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED
ON THE TV RECEIVER.
1 Read all of these instructions.
2 Save these instructions for later use.
3 Unplug this television equipment from the wall
outlet before cleaning. Do not use liquid clean-
ers or aerosol cleaners. Use a damp cloth for
cleaning.
4 Do not use attachments not recommended by
the television equipment manufacturer as they
may result in the risk of fire, electric shock or
other personal injury.
5 Do not use this television equipment near
water, for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement,
or near a swimming pool, or the like.
6 Do not place this television equipment on an
unstable cart, stand, or table. The television
equipment may fall, causing serious injury to a
child or adult, and serious damage to the equip-
ment. Use only with a cart or stand recom-
mended by the manufacturer, or sold with the
television equipment. Wall or shelf mounting
should follow the manufacturer's instructions,
and should use a mounting kit approved by the
manufacturer.
6A An appliance and cart combination should be
moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance
and cart combination to overturn.
7 Slots and openings in the cabinet and the back
or bottom are provided for ventilation and to
ensure reliable operation of the television
equipment; and to protect it from overheating,
these openings, must not be blocked or covered.
The openings should never be blocked by plac-
ing the television equipment on a bed, sofa, rug,
or other similar surface. (This equipment should
never be placed near or over a radiator or heat
register.) This television equipment should not
be placed in a built-in installation, such as a
bookcase, unless proper ventilation is provided.
8 This television equipment should be operated
only from the type of power source indicated on
the marking label. If you are not sure of the
type of power supplied to your home, consult
your television dealer or local power company.
9 This television equipment is equipped with a
polarized alternating current line plug (a plug
having one blade wider than the other). This
plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, con-
tact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
polarized plug.
10 Do not allow anything to rest on the power
cord. Do not locate this television equipment
where the cord will be abused by persons walk-
ing on it.
11 Follow all warnings and instructions marked on
the television equipment.
12 For added protection for this television equip-
ment during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent
damage to the equipment due to lightning and
power-line surges.
PORTABLE CART WARNING
S3126A
230E101-R6 2005.3.2 11:15 AM 페이지52

Important Safeguards
13 An outside antenna system should not be locat-
ed in the vicinity of overhead power lines or
other electric light or power circuits, or where it
can fall into such power lines or circuits. When
installing an outside antenna system, extreme
care should be taken to keep from touching such
power lines or circuits, as contact with them
might be fatal.
14 Do not overload wall outlets and extension
cords, as this can result in fire or electric shock.
15 Never push objects of any kind into this televi-
sion equipment through openings, as they may
touch dangerous voltage points or short-out
parts that could result in a fire or electric shock.
Never spill liquid of any kind on the television
equipment.
16 Do not attempt to service this television equip-
ment yourself, as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
17 Unplug this television equipment from the wall
outlet and refer servicing to qualified service
personnel under the following conditions:
(a) When the power-supply cord or plug is dam-
aged or frayed.
(b) If liquid has been spilled, or objects have fall-
en into the television equipment.
(c) If the television equipment has been exposed
to rain or water.
(d) If the television equipment does not operate
normally by following the operating instruc-
tions. Adjust only those controls that are cov-
ered by the operating instructions as an
improper adjustment of other controls may
result in damage and will often require exten-
sive work by a qualified technician to restore
the TV receiver to its normal operation.
(e) If the television equipment has been
dropped or the cabinet has been damaged.
(f) When the television equipment exhibits a
distinct change in performance - this indi-
cates a need for service.
18 When replacement parts are required, be sure
the service technician has used replacement
parts specified by the manufacturer that have
the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
19 Upon completion of any service or repairs to
this television equipment, ask the service tech-
nician to perform safety checks to determine
that the television is in a safe operating condi-
tion.
20 If an outside antenna or cable system is con-
nected to the television receiver, be sure the
antenna or cable system is grounded so as to
provided some protection against voltage
surges and built-up static charges.
Section 810 of the National Electrical Code,
ANSI/NFPA N0.70-1984, provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size
of grounding conductors, location of
antenna-discharge unit, connection to ground-
ing electrodes, and requirements for the ground-
ing electrode.
230E101-R6 2005.3.2 11:15 AM 페이지53

Daewoo Electronics
America Inc.
120 Chubb Avenue,
Lyndhurst, NJ 07071
Dear Customer :
Daewoo Electronics America Inc. would like to thank you for choosing this color television receiver. It
incorporates a host of features designed to give you excellent performance for many years to come.
We realize that you’re eager to turn it on and begin enjoying the high-quality pictures it delivers just as
quickly as possible, but we ask you to take a few minutes to read the instructions in the booklet to familiarize
yourself with the receiver, its functions and some features which may be new to you. If you follow the
instructions, this unit should give you many years of viewing pleasure.
If for any reason it does not, we want to hear about it. Please write to us at the address above. Daewoo
always welcomes comments and suggestions on this or any of our other products.
On the other hand, when you discover the enjoyment, reliability and ease of use that is built into it, we
hope that you will tell your friends, and consider Daewoo when you make your next purchase of home
entertainment equipment.
In addition to TV receivers, Daewoo produces a full line of audiovisual products built to the same high
design, engineering, and manufacturing standards as this unit.
Here are a few tips that will keep your TV receiver looking great and performing for years to come.
.Avoid putting it in excessively hot locations. Damage to the cabinet or premature component failures
can result.
.There are ventilation holes in the bottom and rear of the cabinet. Make sure that they remain unob-
structed. Do not place the receiver on top of a thick cloth.
.If you don’t plan to use the receiver for several days, it’s a good idea to unplug it from the power outlet.
.Many common household cleaning agents, sprays, solvents, and polishes will cause permanent damage to
the surface of the cabinet. The best cleaning agents are mild soap and a damp cloth.
Again, thank you for choosing this Daewoo product. We have employed advanced engineering techniques
in its design, and manufactured it in one of the world’s most up-to-date production facilities. The result is
a TV receiver that we know you will be as proud to own as we were to create.
Very truly yours,
Daewoo Electronics
America Inc.
230E101-R6 2005.3.2 11:15 AM 페이지54

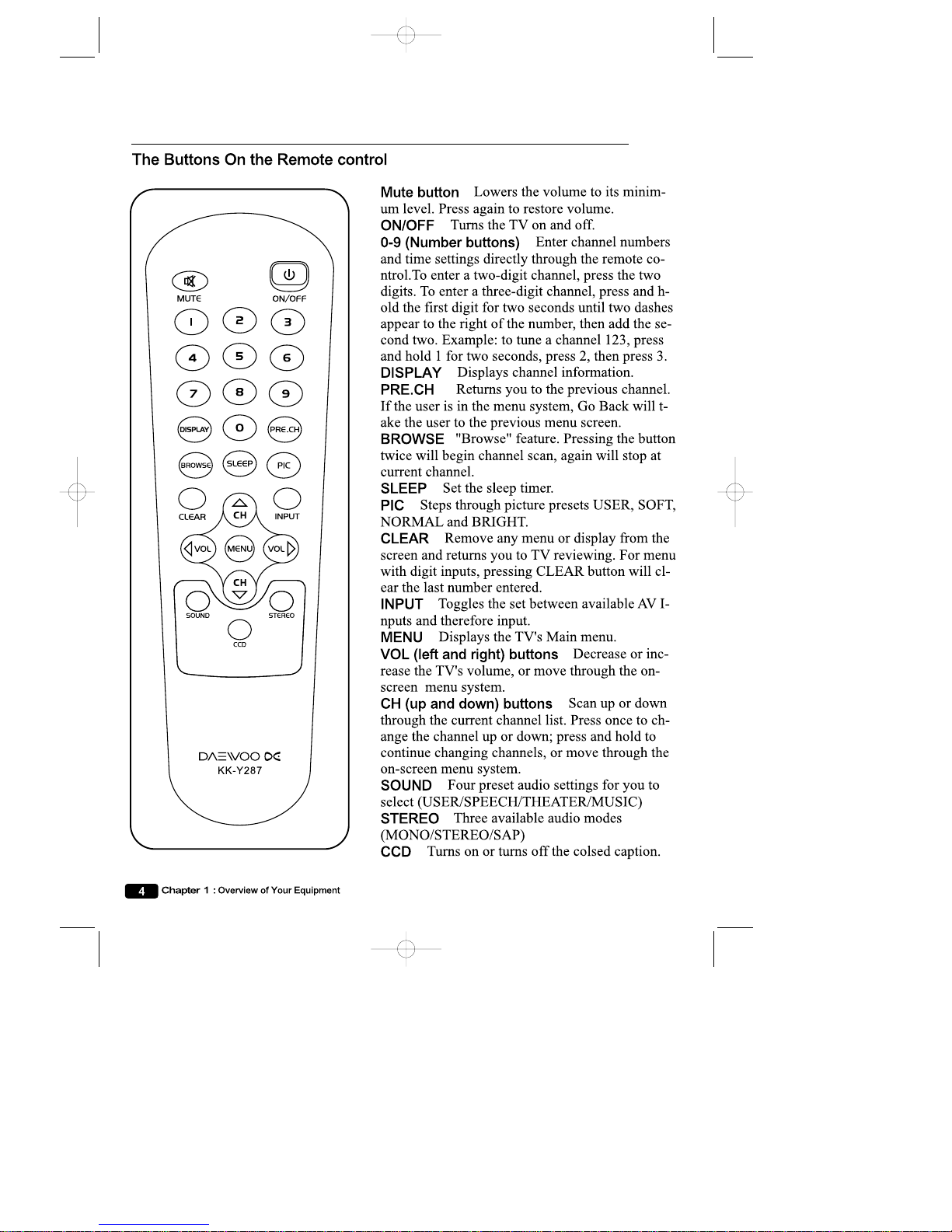

7
Chapter 2 : Connecting an Antenna or Cable to Your TV
Antennas with two sets of leads
You might have two sets of leads from your antenna system, especially if you have one antenna for
VHF signals and one antenna for UHF signals.
If your antenna system has both a coaxial lead and twin 300-ohm leads ,you must obtain a combin-
er (available at your local electronics store). Press or screw the coaxial lead onto the combiner; place
the twin leads underneath the screws on the combiner and tighten the screws. Press the cable from
combiner onto the antenna terminal on the back of your TV.
If your antenna system has two sets of twin 300-ohm leads,
you must obtain a combiner (available
at your local electronics store). Place one set of twin leads underneath the screws on the combiner
and tighten the screws. Do the same with the other set of twin leads. Press the cable from the com-
biner onto antenna terminal on the back of your TV.
Connecting a cable system
If your cable set-up is not described below, please
contact your cable company for more information.
If your cable system does not require the use of a
cable box,
simply press or screw the incoming
cable onto the antenna terminal on the back your
TV.
230E101-R6 2005.3.2 11:15 AM 페이지7

8
Chapter 2 : Connecting an Antenna or Cable to Your TV

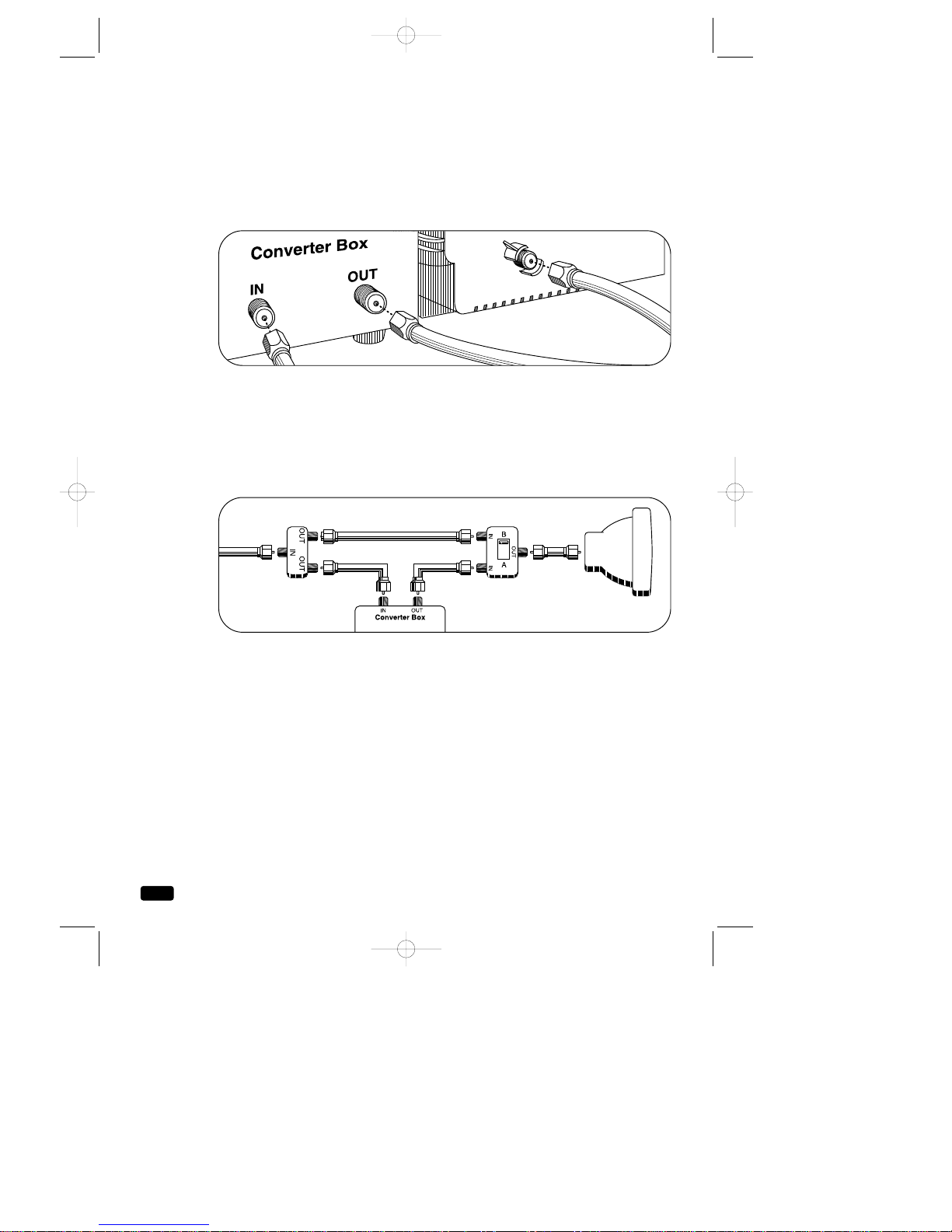

If your cable system requires you to use a converter box for all channels, connect the incoming cable
to the IN terminal on the converter box. Connect another cable between the OUT terminal on the con-
verter box and the antenna terminal on the TV. You will need to keep your TV tuned to channel 3 or 4
and change channels using the converter box.
If your cable system only requires you to use a converter box for some channels (i. e. pay-TV chan-
nels),
follow these steps: Find the primary incoming coaxial cable. Plug this cable into a splitter (avail-
able at your local electronics store). Connect one coaxial cable between one OUT terminal on the
splitter and the IN terminal on the converter box. Connect another coaxial cable between the other
OUT terminal on the splitter and the B-IN terminal on an A/B switch (available at your local electron-
ics store.) Connect a third coaxial cable between the OUT terminal on the converter box and the A-IN
terminal on the A/B switch. Finally, connect a coaxial cable between the OUT terminal on the A/B
switch and the antenna terminal on the back of your TV.
When the A/B switch is in the A position, you need to change channels on the converter box (and
your TV should be tuned to channel 3 or 4); when the A/B switch is in the B position you can change
channels on the TV.
Connecting Other Pieces of Equipment
You may want to connect a VCR, laser disc player, satellite receiver, or another type of equipment to
your TV. We recommend that you follow the instructions included with the piece of equipment you
wish to connect.
Safety Note
If you plan on being away from your home for an extended period of time, or if a thunderstorm is
approaching, you should unplug your television, and you may wish to disconnect your TV from a
rooftop or satellite antenna. You do not need to disconnect your TV from a cable system.
230E101-R6 2005.3.2 11:15 AM 페이지8
