Daewoo DWC-UD1212 User manual

Service Manual
Drum Washing Machine
Model:DWC-UD1212
Apr. 2008
Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
S/M No. : CUD121DC01

10
1. PANEL F AS
5. PARTS LIST BY ASS’Y
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
A01 PANEL F OUTER 3614287900 ABS 1
A02 PANEL F INNER 3614288000 ABS 1
A03 DECORATOR START 3611686300 ABS 1
A04 BUTTON POWER 3616637100 ABS 1
A05 DECORATOR COURSE 3611686200 ABS 1
A06 WINDOW COURSE 3615505700 Trans parency ABS 1
A07 BUTTON DIAL IN 3616637300 ABS 1
A08 BUTTON DIAL OUT 3616637500 Trans parency 1
A09 BUTTON START 3616637600 ABS 1
A10 BUTTON RES 3616637200 ABS 1
A11 BUTTON FUNCTION 3616637700 ABS 1
A12 WINDOW DISPLAY 3615505600 Trans parency ABS 1
A13 CASE HANDLE 3611146800 ABS 1
A14 HANDLE CAP 3612611300 ABS 1
A15 SPRING CASE HANDLE 3615116000 SUS 304, D=0.6 1
A16 CASE PCB F 3611146700 HIPS 1
A17 HOLDER LED 3613054000 ABS 1
A18 HOLDER LED COURSE 3613053900 ABS 1
A19 PCB AS DWD-T120R FRONT PCB ASSY 1
ῡῡttQQRRUUGG@
@
PANEL F AS: 36142T1211
PEDIR PANEL F AS
PEDIR PANEL F AS
NO DISPONIBLE
PCB AS
PRPSSW2D31
CASE DETERGENT AS:
36111T1200
PEDIR CASE 
DETERGENT AS
PEDIR CASE 
DETERGENT AS
NO DISPONIBLE

12

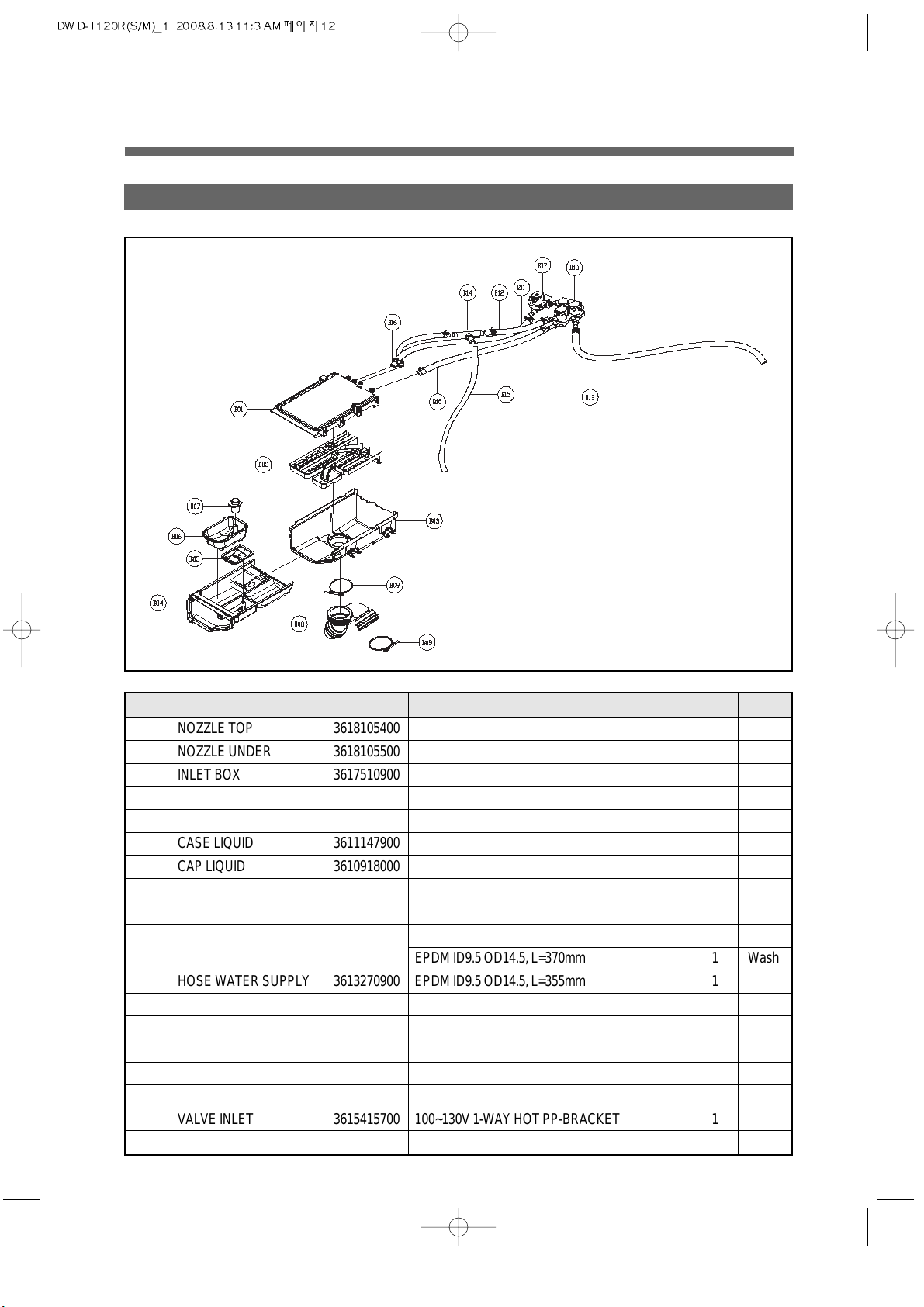

2. INLET BOX AS
No. PARTS NAME CODE SPECIFICATIONS Q’TY
REMARK
B01 NOZZLE TOP 3618105400 PP 1
B02 NOZZLE UNDER 3618105500 PP 1
B03 INLET BOX 3617510900 PP 1
B04 CASE DETERGENT 3611146400 PP 1
B05 CAP SOFTENER 3610918300 PP 1
B06 CASE LIQUID 3611147900 PP 1
B07 CAP LIQUID 3610918000 PP 1
B08 HOSE INLET 3613272000 EPDM, "U" TRAP 1
B09 CLAMP AS 3611203200 ID=60, WIRE+GUIDE+BOLT+NUT 2
B10 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=320mm 1 Combo
EPDM ID9.5 OD14.5, L=370mm 1 Wash
B11 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=355mm 1
B12 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=170x2 2
B13 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, L=460mm 1
B14 PIPE JOINT(HOSE INLET) 3614413300 PP 1
B15 HOSE WATER SUPPLY 3613270930 EPDM ID8.5 OD12.5, L=530mm 1
B16 CLAMP HOSE 3611205800 100H, ID=13.8 W=10.0 0.9T 8
B17 VALVE INLET 3615415700 100~130V 1-WAY HOT PP-BRACKET 1
B18 VALVE INLET 3615415060 100~130V 3-WAY 1
INLET BOX AS:
3617505721
PEDIR INLET BOX AS
PEDIR INLET BOX AS
PEDIR INLET BOX AS
CASE LIQUID AS: 
3611148100
PEDIR CASE LIQUID AS
PEDIR CASE LIQUID AS
CASE DETERGENT AS: 
36111T1200
NO DISPONIBLE PARA ESTE MODELO
NO DISPONIBLE PARA ESTE MODELO

13

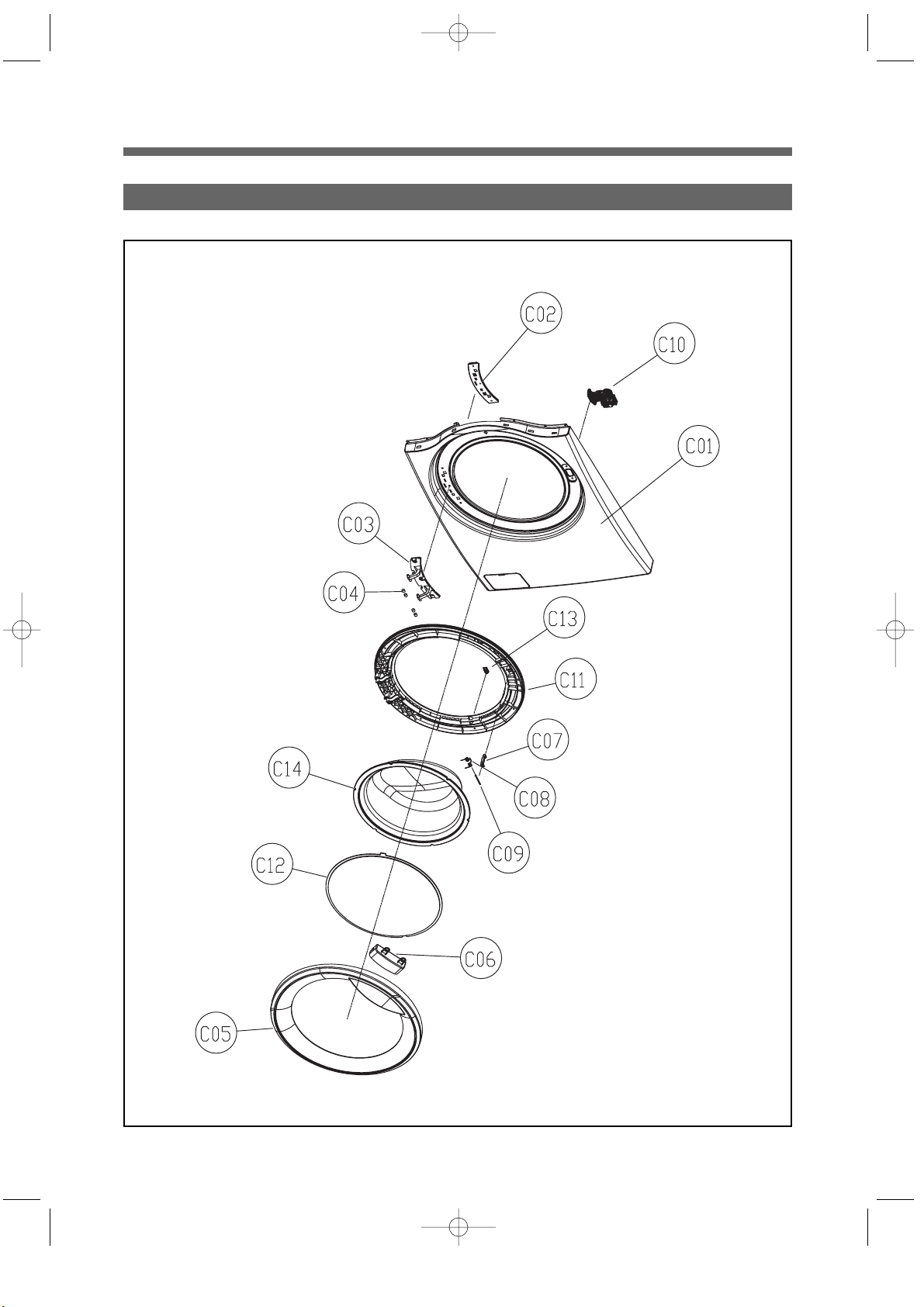

3. CABINET F ASSY

14
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
C01 CABINET F 3610813000 SECD 0.8 t 1
C02 PLATE HINGE SUPPORT 3614539800 SPG 0.8 t 1
C03 HINGE DOOR 3612903800 AL 1
C04 CAP HINGE DOOR 3610916500 POM 4
C05 FRAME DOOR O 3612209905 ABS, CR 1
C06 HANDLE COVER 3612611500 ABS 1
C07 HOOK DOOR 3613100900 ZNDC 1
C08 SPRING HOOK 3615115400 SUS304 1
C09 HOOK SHAFT 3613101000 SUS, D=3.0 1
C10 SWITCH DOOR LOCK 3619047200 DL-S1 125V 16A 1
C11 FRAME DOOR I 3612209800 PP 1
C12 PROTECTOR GLASS 3618304300 PC 1
C13 STOPPER DOOR 3615202400 ABS 1
C14 DOOR GLASS 361A110600 GLASS 1
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
DOOR AS: 3610DRT100

15

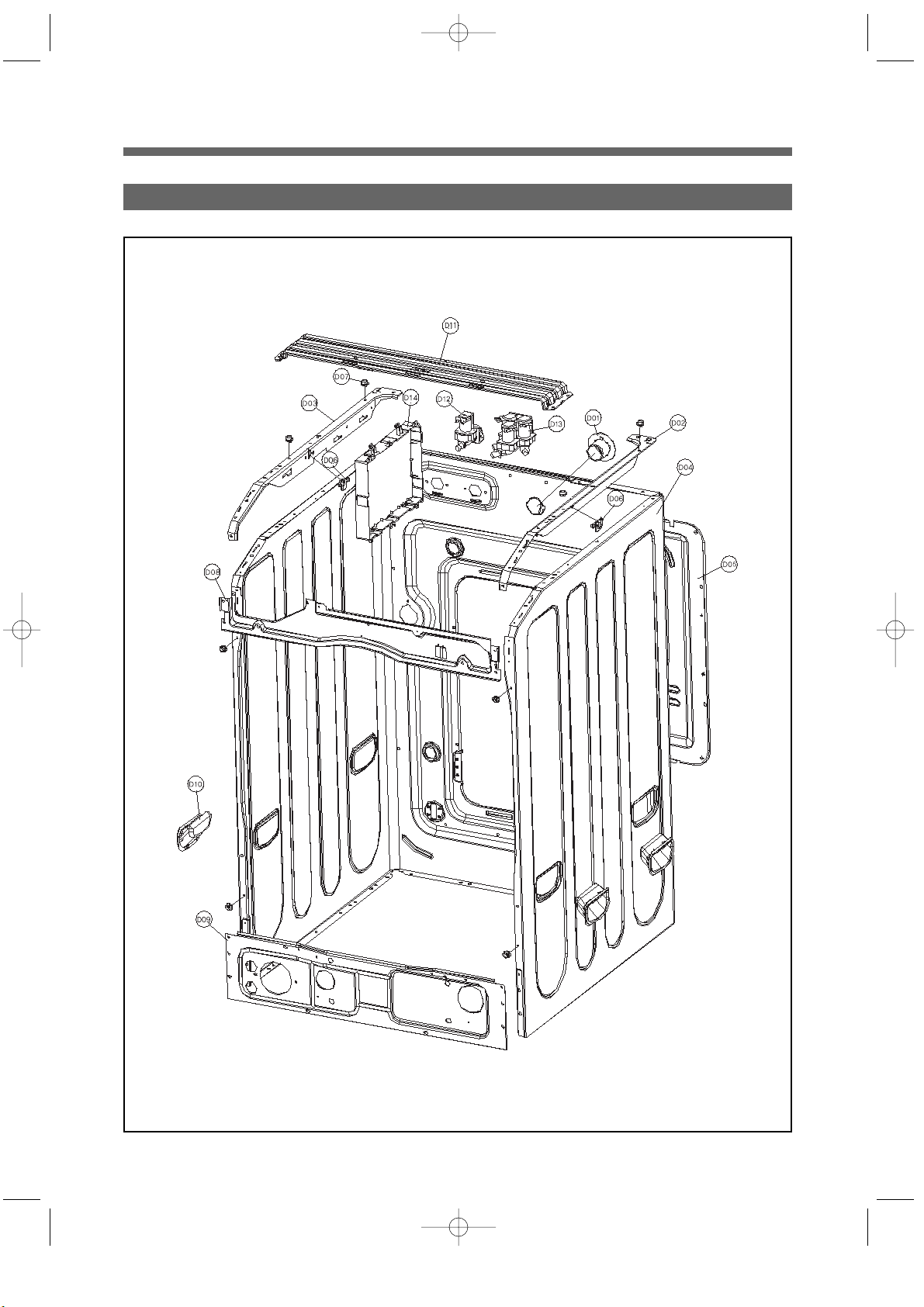

4. CABINET ASSY

16
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
D01 NOZZLE AIR 3618103110 PP, DWD-100DR 1
D02 FRAME TOP R 3612209300 GI 1.6 t 1
D03 FRAME TOP L 3612209400 GI 1.6 t 1
D04 CABINET 3610812900 SGCC 0.8 t 1
D05 COVER BACK AS 3611425540 COVER BACK + PAD CABINET 1
D06 STOPPER SPRING 3615202200 POM, DWD-100DR 2
D07 FIXTURE PLATE 3612008000 POM, 130RP 8
D08 FRAME UPPER 3612209500 SBHG, 1.2 t 1
D09 FRAME LOWER 3612204200 SBHG, 1.2 t 1
D10 HANDLE CABINET 3612608100 PP, DWD-100DR 4
D11 FRAME COVER 3612209600 SBHG, 1.2 t 1
D12 VALVE INLET 3615414800 HOT, 220~240 1
D13 VALVE INLET 3615415060220~240V,3WAY,RINSE GUIDE,PP/BRACKET 1
3615414900 220~240V,2WAY,PP/BRACKET
D14 CASE PCB MAIN 3611146200 HIPS, DWD-T110R 1
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE PARA ESTE MODELO
PRPSSW2D41

17

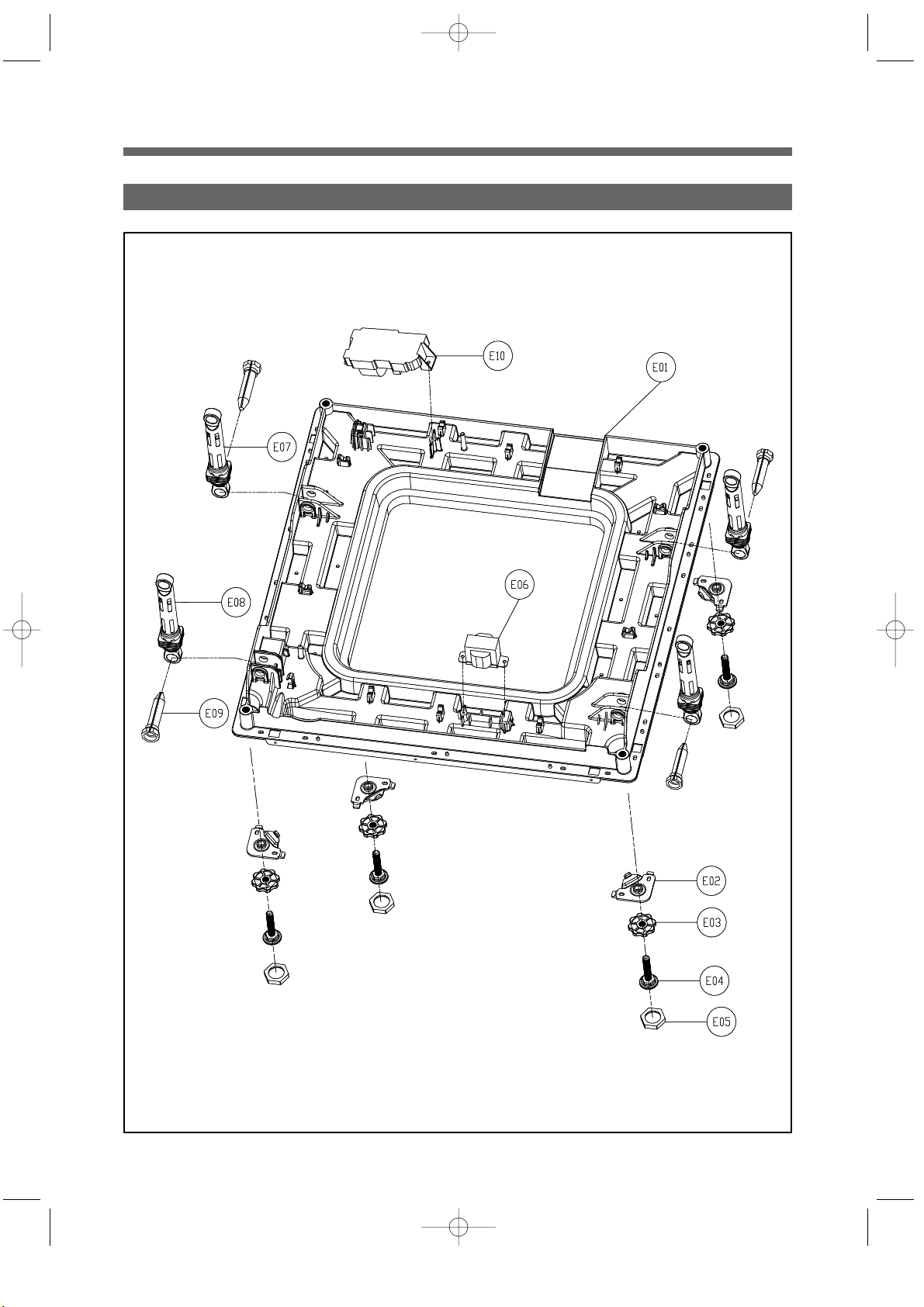

5. BASE U AS

18
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
E01 BASE U 3610393200 PP, DWD-T120R 1
E02 SUPPORTER LEG 3615303600 PO+, 3.0T 4
E03 FIXTURE LEG 3612006400 ABS, DWD-100DR 4
E04 SPECIAL BOLT 3616029000 10 X 1.25, 51MM 4
E05 FOOT 3612100600 BUTYL, DWD-100DR 4
E06 REACTOR 52G043J003DWD-100DR, 4A 1
E07 DAMPER FRICTION 361A700150 110N AKS ST=170-260 DL=197.5 LOW NOISE 2
E08 DAMPER FRICTION 361A700110 70N AKS ST=170-260 DL=197.5 LOW NOISE 2
E09 DAMPER PIN 361A700200 AKS D=14.5 4
E10 EMI FILTER(K19B) 3611908770
DWLF-K19(B110),X0.47U.Y1000P.VAR471K.NON FUSE 1
NO DISPONIBLE
NO DISPONIBLE
LEG ADJUST AS:
3617703600
E03+E04+E05
PEDIR 
LEG ADJUST AS
PEDIR
LEG ADJUST AS
PEDIR 
LEG ADJUST AS

19
6. TUB ASSY

20
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
F01 BALANCER WEIGHT 3616109000 DWD-T120R 1
F02 GASKET DRY 3612323900 EPDM 1
F03 NOZZLE SHOWER 3618104000 PP, DWD-100DR 1
F04 DAMPER PIN 361A700200 AKS D=14.5 4
F05 DAMPER FRICTION 361A700110 AKS, 70N 2
F06 TUB FRONT 3618829800 FRPP, DWD-T120R 1
F07 DRUM FRONT 3617003101 SUS, 0.5T 1
F08 LIFTER WASH 361A400600 PP NANO-SILVER 3
F09 DRUM CENTER 3617003010 SUS, 0.6T 1
F10 DRUM REAR 3617003210 SUS, 0.6T 1
F11 SPIDER AS 361A300200 SPIDER(ALDC)+SHAFT(S45C) 1
F12 GASKET TUB 3612324300 L=1810 1
F13 AIR TRAP AS 3610AAR120 DWD-T120R 1
F14 SPRING SUSPENSION 3615115800 DWD-T120R 2
F15 UNIT BUBBLE PUMP 3612804150 230V 1
36189L4G00 100V~130V 1
F16 HOSE AIR 3613266300 EPDM 1
F17 TUB REAR 3618829700 FRPP, DWD-T120R 1
F18 BEARING HOUSING 3616304600 ALDC 1
F19 BEARING INNER 3616303100 6206Z 1
F20 BEARING OUTER 3616303200 6205Z 1
F21 UNIT STATOR BLDC 36189L4830 36SLOT 1
F22 UNIT ROTOR BLDC 36189L4900 MAGNET24 1
F23 HEATER WASH 3612802410 230V 2000W 1
3612802440 100-130V 1000W 1
3612802430 110V 1000W 1
F24 HOSE DRAIN I 3613272500 EPDM 1
F25 FIXTURE HEATER 3612009300 SUS0.7T 1
F26 DRAIN MOTOR 3619TAK00 110V 1
F27 DAMPER FRICTION 361A700150 AKS 2
F28 UNIT DRAIN PUMP AS 36189L4F00 220-240V / 50Hz 1
36189L5710 110-127V / 60 Hz 1
NO DISPONIBLE
GASKET AS:
36100T1200
PEDIR
GASKET AS
PEDIR DRUM AS
PEDIR DRUM AS
PEDIR DRUM AS
DRUM AS:36100E2L60
PEDIR TUB 
REAR AS
PEDIR TUB 
REAR AS
TUB REAR AS:
361882T120
NO DISPONIBLE
THERMISTOR WASH
361AAAAB10
TERMISTOR RESISTENCIA DE CALENTAMIENTO

21

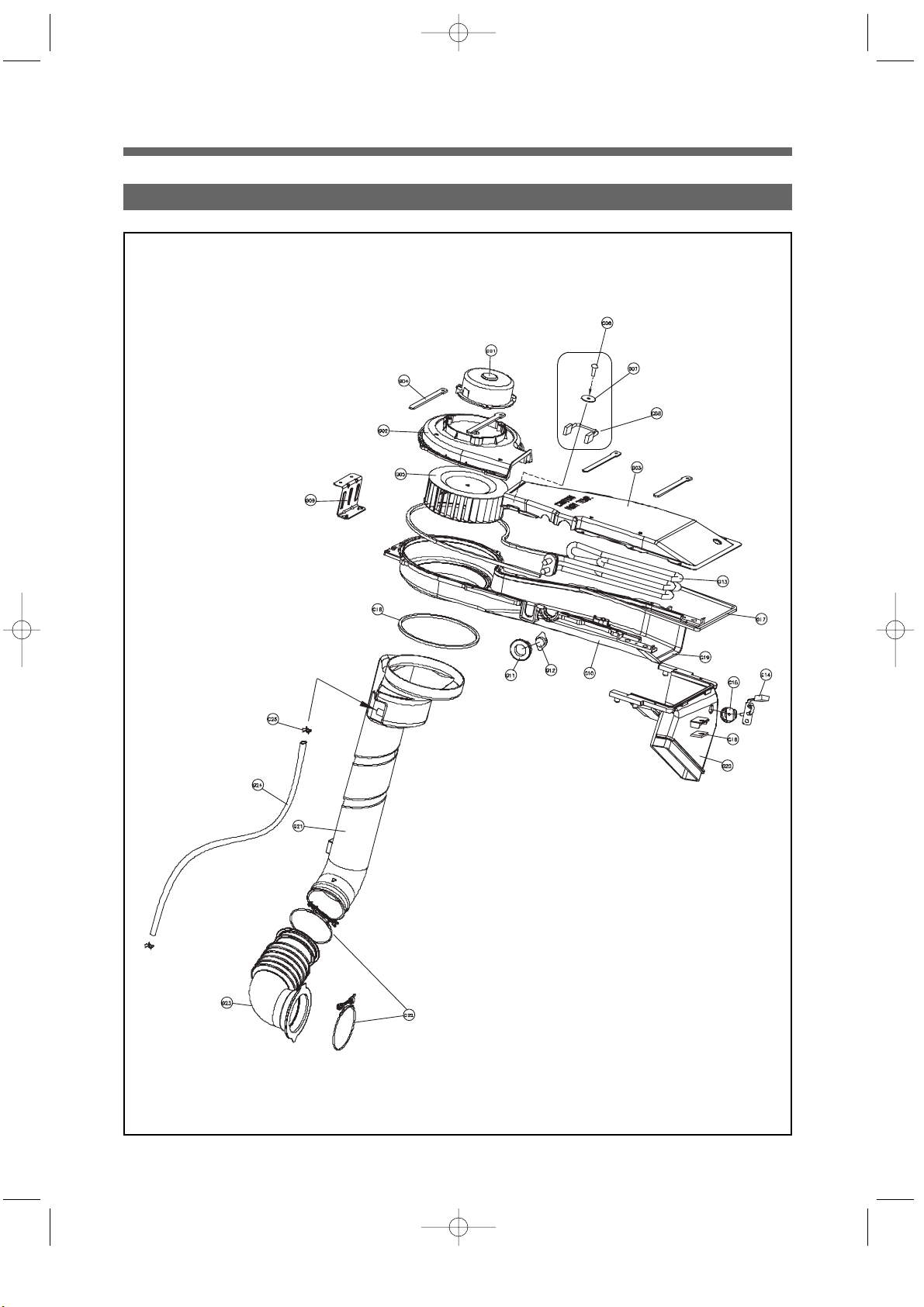

7. DUCT B AS + DUCT PIPE AS

22
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
G01 UNIT FAN MOTOR 36189L3Z20 ISM-7780 6DWWA 24V. 1
G02 COVER DUCT 3611428700 ALDC 1
G03 DUCT B UPPER 361A202100 ALCOST 0.5T 1
G04 CLAMP CORD 3611203330 DABE-2, A=9, B=5,3, L=105 3
G05 FAN AS 3611885900 DI33 FAN 1
G06 SCREW TAPPING 7122400811 T2S TRS 4x8 1
G07 SPECIAL SCREW AS 3616030100 TAPTITE P, TRS 4*16, WASHER 1
G08 FUSE TEMPERATURE 361A800120 128ᴱ(G4A0115C) 15A 250V 1
G09 FRAME HEATER FRANGE 3612209700 SBHG 1.2t 1
G10 DUCT B LOWER 361A202200 AL, 3t 1
G11 PACKING THERMOSTAT
3614009900 SILICON 1
G12 SWITCH THERMOSTAT 3619046500 ON 120ᴱOFF 150ᴱ230V 1
G13 HEATER DRY 3612801400 230V 2100W 1
3612802100 120V 1200W 1
3612801300 110V 1200W 1
G14 THERMISTOR DRY 361AAAAC30 R40=26.065ὶ, R90=4.4278ὶ1
G15 PACKING RUBBER 3614009800 SILICON 1
G16 CUSHION DRY 3611570500 NBR, 20 x20 x 3T 2
G17 GASKET SEAL A 3612324200 EPDM FOAM, DIA=5, L=1335 1
G18 GASKET SEAL B 3612320810 EPDM FOAM, L=412, 4.9 x 4.4 x 4.8 1
G19 GASKET INLET 3612323800 EVA, 10 x 211 x 1T 1
G20 DUCT GUIDE 361A202300 AL, 3T 1
G21 DUCT AS 361A200850 T120R 1
G22 CLAMP AS(DUCT) 3611203700 DUCT 2
G23 BELLOWS DUCT 3616403000 EPDM 1
G24 H0SE WATER SUPPLY 3613270900 T120R 1
G25 CLAMP SPRING 3611203800 ID=15.5, T=0.6, B=10 2
DUCT B AS:
3610DUTA34
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE
NO DISPONIBLE

23
8. PLATE TOP ASSY
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
H01 PLATE TOP 3614539900 SECC 1.2T 1
H02 LABEL CAUTION 3613553830 PVC, SILK 1
H03 LABEL INSTALL 3613555700 ART+OPP, WATER VALVE STICKER 1
PEDIR
PLATE T AS
NO DISPONIBLE
NO DISPONIBLE
PLATE T 
AS:
3614531920

36
5-1. Testing Mode
PCB and other electronic parts will be tested without water supply whether they are normal or not.
1) Process
press power button --> press "SPIN" button 3 times with pressing "WASH" button --> 'L d' will be shown on LED -->
Whenever pressing "TEMP" button 1 time, below process will be occurred.
MICOM Ver. --> L C (Lock Closed) --> run (count) ---> b1, b2, b3, b4, b5, b6, b7
-> F (Fan Motor) -> H (Hot V/V)
-> C (Cold V/V) -> P (prewashing V/V) -> d ( dry V/V) -> bb (bubble)
-> dr (drain motor) -> L O(Lock S/W Open)
2) More details
1 When turn on 'LOCK' signal, all process is conducting normaly.
2 When working starts, the PCB displays all the sensor conditions.
3 In this case, BLDC Motor is not tested. In order to test it, select spin or rinse.
5-2. Continous testing mode
1) Process
after pressing "WASH", "RINSE", "SPIN" button simultaniously, press "POWER" button.
ALL LED On --> SPIN button ---> ALL LED off
--> L C (Lock Close) ---> r (Motor right) --> L (Motor Left)
--> F ( Fan Motor) ---> H (Hot V/V) --> C (Cold V/V) --> b (Pre whsh V/V) --> d ( dry V/V)
--> bb (bubble) --> h1 (Wash heater)--> h2(Dry heater) --> dr (Drain motor On)
-->L O(Lock S/W Open)
2) More tails
1 LED test can be done with all LED On.
2 All sensor conditions will be shown on PCB during processing.
5. TEST MODE

37
6-1. IE (Input Error) - Error in water supply
1) Conditions of Occurrence
ῡIn case the designated water level is not reached in 5 minutes during water supply or re-supply
2) All LEDs are turned off and 'IE' blinks in18:88 display.
3) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
4) Error display is cleared when turning off/ on power.
6-2. OE (Output Error) - Error in drainage
1) Conditions of Occurrence
ῡIn case water level does not reach reset point in 10 minutes after drainage starts
2) All LEDs are turned off and 'OE' blinks in 18:88 display.
3) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
4) Error display is cleared when turning off/ on power.
6-3. UE (Unbalance Error)
1) Conditions of Occurrence
ῡIn case main spin-drying is not reached within 20 cycles of balance spin-drying
ῢIn case balance spin-drying fails during interim spin-drying, UE occurs as the cycle moves to the next
process.
2) All LEDs are turned off and 'UE' blinks in 18:88 display.
3) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
4) Error mode is cleared by opening door and organizing the laundry in spin-dry chamber, closing door and
pressing start/ temporary stop button. Then, spin-drying begins again.
6-1. Error Display

38
6-4. LE (Lock Error) - Door opening error
1) Conditions of Occurrence
ῡWhen intending to begin cycle by pressing start/ temporary stop button while door is opened
2) All LEDs are turned off and 'LE' blinks in 18:88 display.
3) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
4) Error display is cleared when turning off/ on power.
6-5. E1 - Water level detection error
1) Conditions of Occurrence
ῡIn case water level is below reset or overflow is detected in line test mode
2) Water supply motor is kept on until water level falls below reset.
3) All LEDs are turned off and 'E1' blinks in 18:88 display.
4) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
5) Error display is cleared when turning off/ on power.
6-6. E2 - Overflow error
1) Conditions of Occurrence
ῡIn case water level in water tank is above overflow level due to continuous operation of water supply
valve
2) Water supply motor is kept on until water level falls below reset.
3) All LEDs are turned off and 'E2' blinks in 18:88 display.
4) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
5) Error display is cleared when turning off/ on power.

39
6-7. E4 - Water leakage during washing
1) Conditions of Occurrence
ῡIn case water level falls below re-supply even after 15 times of re-supply prior to finishing of water
heating
2) All LEDs are turned off and 'E4' blinks in 18:88 display.
3) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
4) Error display is cleared when turning off/ on power.
6-8. E9 - Abnormalities in water level sensor
1) Conditions of Occurrence
ῡIn case water level frequency is of 15KHz or lower and 30KHz or higher during cycle due to
abnormalities in water level sensor, etc.
2) All LEDs are turned off and 'E9' blinks in 18:88 display.
3) Error buzzer alarm is sounded for 10 seconds per every 10 minutes.
4) Error display is cleared when turning off/ on power.

40
6-9. Motor-related Error
1) E5 (DC-Link High Voltage) Error
ῡIn case DC-link voltage to IPM increases to 450V or higher
ῢMotor operation is stopped and 'E5' is shown in display window.
ΰError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ῤError display is cleared when turning off/ on power.
2) E6 (EMG) Error
ῡIn case current detected with EMG port is of 20A or higher
ῢMotor operation is stopped and 'E6' is shown in display window.
ΰError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ῤError display is cleared when turning off/ on power.
3) E7 (Direction) Error
ῡIn case signal of Hall IC is different from the predicted signal according to direction of rotation
ῢMotor operation is stopped and 'E7' is shown in display window.
ΰError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ῤError display is cleared when turning off/ on power.
4) E8 (Initial Operation Fail) Error
ῡIn case input signal of Hall IC is abnormal due to problems in motor connection, etc.
ῢMotor operation is stopped and 'E8' is shown in display window.
ΰError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ῤError display is cleared when turning off/ on power.
6-10. Error in Temperature Sensor
1) H2 Error - Washing temperature sensor open/ short
ῡIn case washing temperature sensor is defective or not connected
ῢError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ΰError display is cleared when turning off/ on power.
2) H4 Error - Washing temperature sensor overheating
ῡIn case temperature detected by washing temperature sensor is 95ᴱor higher
ῢError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ΰError display is cleared when turning off/ on power.

41
3) H5 Error - Water temperature error in wool/ delicate course
ῡIn case water temperature in wool/ delicate course is 45ᴱor higher
ῢError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ΰError display is cleared when turning off/ on power.
4) H6 Error - Abnormality in washing heater
ῡWithin 15 minutes after heater operation begins;
In case standard temperature is of 42ᴱor lower: If temperature does not increase by 2ᴱor more In
case standard temperature is higher than 42ᴱ: If temperature does not increase by1ᴱor more
ῢIf temperature falls below standard temperature by 2ᴱor more due to re-supply of water, etc.,
standard temperature is reset as the current temperature and error check time of15 minutes is reset.
ΰError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ῤError display is cleared when turning off/ on power.
5) H8 Error - Washing heater overheating
ῡIn case washing heater temperature increases by 5ᴱor more within 30 seconds when there is no
water in tank, etc.
ῢError buzzer alarm is sounded for 10 seconds per every 10 minutes.
ΰError display is cleared when turning off/ on power.
