Daewoo DWF-200AS User manual

Service Manual
Model:DWF-200AS
Auto Washer
S/M No. : WF200AS001
Oct. 2003

AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHING MACHINE
Contents
1. SPECIFICATIONS 44444444444444444444444444444444444444444444444444444444444444 2
2. STRUCTURE OF THE WASHING MACHINE444444444444444444444444444444444444444 3
3. DIRECTIONS FOR INSTALLATION AND USE 4444444444444444444444444444444444444 4
INSTALLATION OF THE UNDER BASE COVER 4444444444444444444444444444444444444444 4
HOW TO INSTALL ON AN INCLINED PLACE4444444444444444444444444444444444444444444 4
HOW TO CONNECT THE INLET HOSE444444444444444444444444444444444444444444444444 5
HOW TO CLEAN THE FILTER 44444444444444444444444444444444444444444444444444444444 6
4. FEATURE AND TECHNICAL EXPLANATION44444444444444444444444444444444444444 7
FEATURE OF THE WASHING MACHINE 4444444444444444444444444444444444444444444444 7
AUTOMATIC WATER SUPPLY SYSTEM FOR BLANKET WASH 44444444444444444444444444 7
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE4444444444444444444444444444 8
AUTOMATIC DRAINING TIME ADJUSTMENT444444444444444444444444444444444444444444 8
AUTOMATIC UNBALANCE ADJUSTMENT444444444444444444444444444444444444444444444 9
CIRCULATING-WATER COURSE AND LINT FILTER 444444444444444444444444444444444444 9
LINT FILTER44444444444444444444444444444444444444444444444444444444444444444444444 10
RESIDUAL TIME DISPLAY4444444444444444444444444444444444444444444444444444444444 10
DRAIN MOTOR44444444444444444444444444444444444444444444444444444444444444444444 10
GEAR MECHANISM ASS’Y 444444444444444444444444444444444444444444444444444444444 11
5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT444444444444444444444444444 12
GEAR MECHANISM ASS’Y REPLACEMENT444444444444444444444444444444444444444444 12
MOTOR SYNCRONOUS AND VALVE REPLACEMENT444444444444444444444444444444444 14
6. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH
SPRING PROBLEM444444444444444444444444444444444444444444444444444444444444 15
THE STRUCTURE OF GEAR MECHANISM4444444444444444444444444444444444444444444 15
HOW TO CHECK THE CLUTCH SPRING PROBLEM44444444444444444444444444444444444 16
THE PROCESS OF DISASSEMBLE44444444444444444444444444444444444444444444444444 17
THE PROCESS OF ASSEMBLE 44444444444444444444444444444444444444444444444444444 19
REPLACE THE CASE FILTER ASSY 4444444444444444444444444444444444444444444444444 21
7. TROUBLE SHOOTING GUIDE 44444444444444444444444444444444444444444444444444 22
CONCERNING WATER SUPPLY 4444444444444444444444444444444444444444444444444444422
CONCERNING WASHING 4444444444444444444444444444444444444444444444444444444444 23
CONCERNING DRAINING 4444444444444444444444444444444444444444444444444444444444 24
CONCERNING SPINING444444444444444444444444444444444444444444444444444444444444 25
CONCERNING OPERATING 44444444444444444444444444444444444444444444444444444444 26
8. PRESENTATION OF THE P.C.B ASS’Y 444444444444444444444444444444444444444444 27
CONCERNING ERROR MESSAGE 44444444444444444444444444444444444444444444444444 27
APPENDIX
WIRING DIAGRAM44444444444444444444444444444444444444444444444444444444444444444 28
PARTS DIAGRAM444444444444444444444444444444444444444444444444444444444444444444 32
PARTS LIST 44444444444444444444444444444444444444444444444444444444444444444444444 36
CIRCUIT DIAGRAM 4444444444444444444444444444444444444444444444444444444444444444 39

1. SPECIFICATIONS
2
SPECIFICATIONS
NO. ITEM DWF-200AS
1 POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE AND CYCLE
2 POWER CONSUMPTION
3 MACHINE WEIGHT
4 DIMENSION (WXHXD)
5 WASHING COURSE
6 WATER CONSUMPTION
7 WATER LEVEL SELECTOR
8 OPERATING WATER PRESSURE 0.3kgf/cm2~8kgf/cm2 (2.94 N/cm2~78.4N/cm2)
950Hz
60Hz
10 PULSATOR AGITATOR 4 WINGS + 4 BEADS (Ø406mm)
11 WATER LEVEL CONTROL ELECTRONICAL SENSOR
12 GEAR MECHANISM ASS’Y HELICAL GEAR
13 LINT FILTER O
14 SOFTENER INLET O
15 FUNCTION FOR SOAK WASH O
16 ALARM SIGNAL O
17 RESIDUAL TIME DISPLAY O
18 AUTO. WATER SUPPLY O
19
FUNCTION FOR BUBBLE AND RADICAL O
20 AUTO RE-FEED WATER O
21 AUTO POWER OFF O
110/60
750W
127/60
600W
220/50
600W
220/60
630W
240/50
720W
NON-PUMP
48Kg
PUMP
49Kg
FULL AUTOMATIC 6 COURSE
(FUZZY, HEAVY, BLANKET, LIGHT, ECONOMIC, DELICATE)
630 X 1070 X 670
250 L
HIGH 97 L
MEDIUM 77 L
LOW 62 L
E.LOW 56 L
WASH : 135 - 145 rpm, SPIN : 685 - 710 rpm
WASH : 135 - 150 rpm, SPIN : 695 -745 rpm
* : POUR DIRECTLY INTO TUB AFTER FINAL RINSE.
REVOLUTION
PER MINUTE
In case of moving Washing Machine, please
follow the following picture.
NOTES

DRYTEN [OPTION]
HOSE DRAIN [FOR PUMP]
COVER UNDER (OPTION)
HOSE DRAIN CLAMP
WATER TAP ADAPTER
HOSE DRAIN[FOR NONPUMP]
INLET HOSE
CONNECTOR INLET [OPTION]

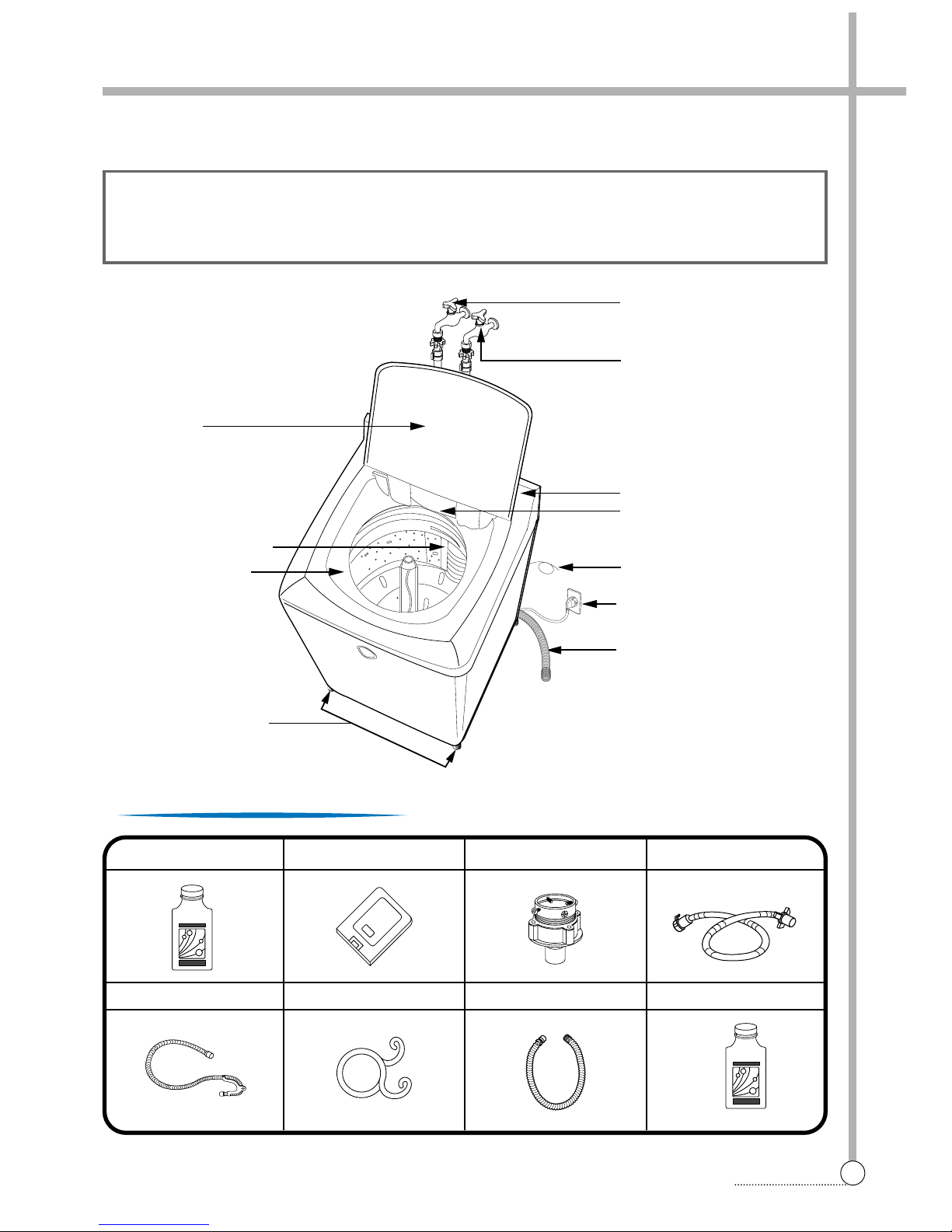

2. STRUCTURE OF THE WASHING MACHINE
3
STRUCTURE
•HOT WATER TAP
•COLD WATER TAP
After using the washer,
close the water tap, In case
of the single valve model,
there is no hot water valve.
After using the washer,
close the water tap
•CASE DETERGENT
AND SOFTENER
•BLEACH INLET
•ADJUSTABLE LEG
•CONTROL PANEL
•HOSE DRAIN
•POWER CORD
In case of 3-wire power cord
ground wire will not be provided
•GROUND WIRE(OPTION)
•FRAME FALL(3EA)
•DOOR
A ccessories (Full Option)
The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
•The drawings in this book may vary from your washer model.
They are designed to show the different features of all models covered by this book,
Your model may not include all features.
DRYTEN
UP
DRYTEN

3. DIRECTIONS FOR INSTALLATION AND USE
4
DIRECTIONS
The openings must not
be obstructed by carpet-
ing when the washing
machine is installed on a
carpeted floor.
󱇧󱇧
Installation Of The Noise Insulation Plate
󱇧󱇧
How To Install On An Inclined Place
●The place where it would be exposed to
direct sunlight.
●The place nearby a heater or heat appli-
ance.
●The place where it would be supposed
to be frozen in winter.
●The kitchen with coal gas and a damp
place like a bathroom.
NOTES
10Cm
Install the washer on a horizontal
solid floor. If the washer is installed
on an unsuitable floor, it could make
considerable noise and vibration.
Installing Place
Never install in these places
2Push the noise insulation plate
into the end, which decrease
the noise made by this washer.
1The packing box
opened, there is a
noise insulation plate
at the bottom of the back
2Check the Horizon
Status
Check the position of tub above
the center of the washer.
1Horizon
Setting
After controlling the height
by turning the adjustable
leg, let the washer put
down to the ground.
Keep the machine body
more than 25cm apart from
the wall surface. It will
make easy cleaning the
drain filter which is equipped
at the back side of it. And if
it comes into contract vibra-
tion may occur.

5
CONNECTION
FOR ORDINARY TAP
6Connect the inlet hose adapter
of the hose to the water inlet of
the washer by turning it clock-
wise to be fixed tightly.
•Please check the rubber packing
inside the inlet hose adapter of
the hose.
1Pull down the collar
of the inlet hose to
separate it from the
water tap adapter. 2Loosen the four
screws at the water
tap adapter, but don’t
loosen the screws until
they are separated from
the water tap adapter.
4Remove the tape,
and screw connector
B into connect A tightly. 5Connect the inlet
hose to the water tap
adapter by puling down
the collar of the hose end.
3Connect the water tap
adapter to the water tap tight-
en the four screws evenly
while pushing up the adapter
so that the rubber packing
can stick to the water tap
tightly.
󱇧󱇧
How to Connect the Inlet Hose
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : this could cause damage to couplings.
FOR SCREW-SHAPED TAP 3Insert the inlet hose adapter
into the water inlet of a washer
and turn it to be fixed.
•Check the packing in the inlet
1Connect the inlet
hose to the water tap
by screwing the con-
nector D tightly. 2Connect the connec-
tor-inlet supplied if
necessary.
Inlet Hose
Connector D Rubber
Packing
Connector C
Connector
Inlet
Rubber
Packing
Connector D
Connector C
Hose
TAPE
Connector B
Connector A

6
CONVENIENCE
󱇧󱇧
How To Clean The Filter
4
Remove the dirt
from the inlet filter
with a brush.
1
Pull the
power plug
out before
cleaning it.
2
Turn off the
water supply
to the washer
and sperate the
inlet hose.
3
Pull the
inlet filter out.
CLEANING THE LINT FILTER
CLEANING THE WATER INLET FILTER
•Clean the filter when water leaks from, the water inlet.
CLEANING THE DRAIN FILTER
•In case “U”shape drain hose, this filter’s equipped at the back side of washer.
•This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ...
•If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could be caused.
1Put down the
remained water in the
hose. And put a container
under the filter to collect
water.
2Turn the cap counter
clockwise. 3Pull out the filter assembly off the case of the main body.
6Turn the cap clockwise tightly.
4Clean the drain filter
removing the foreign
stuffs. 5
Put in the filter along the
guiding prominence of the
case. Please note the left
position of the filter adjusting
the groove to the guide rib.
FILTER CONTAINER
CAP
SLIT
CASE
FILTER
CAP
CAP
FILTER
CAP
FILTER CASE
GUIDE
RIB
SLIT
CAP
1Pull the cap agitator
upward. 2Pull the filter lint
upward. 3
Turn the filter lint upside down,
wash to the lint off with water.
4
Return the filter assy as it was, and
insert it into the pulsator agitator.

4. FEATURE AND TECHNICAL EXPLANATION
7
FEATURE
Feature of the Washing Machine
1First applying the Radical Technology in the world ... go beyond washing, sterilize your colthes and deodorize a bad
smell.
2The first air bubble washing system in the world.
3Quiet washing through the innovational low-noise design.
4Improving washing performance by more than 35%, while reducing power consumption by 40%.
5The laundry detergent dissolves well in water because of the air bubble washing system.
6The adoption of the water currents to adjust the unbalanced load.
7One-touch operation system.
Automatic Water Supply System For Blanket Wash
The water level would be lowered because the blanket absorbs water at the beginning of washing. Therefore, after
2 minutes, the operation is interrupted to check the water level, and then the water is supplied again until the select-
ed water level is reached.

8
FEATURE
FUNCTIONAL PRINCIPLE
1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to
“OFF”point
2 In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 90 Residual drain time.
The time remembered by micom.
FUNCTIONAL PRINCIPLE
Bubble Motor supplies the air from the bottom of outer tub to the inner space of Pulsator Agitator, the air is dispersed
by the rotation of Pulsator Agitator. Air-bubble is created by the centrifugal force, and rises up.
Draining Good draining The washer begins spin process after drainage.
condition Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than Continue draining
15 minutes
More than Program stops and gives the alarm with blinked on display lamp.
15 minutes
Functional Principle of Bubble Washing Machine
ACROSS SECTION
Automatic Drainning time Adjustment
This system adjusts the draining time automatically according to the draining condition.
Air bubble
Tub
Outer tub
Pulsator Agitator

9
FEATURE
Contact of safety switch Lid closing
Lid opening
Contact lever A
Normal (ON)
Position of
unbalanced load (OFF)
Automatic Unbalance Adjustment
Circulating-Water Course and Lint Filter
The alarm finished when you close the lid after opening
it. Check the unbalance of the wash load and the instal-
lation condition.
NOTES
Tub
Outer tub
Water
channel
Pulsator
Agitator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1When the lid is closed, the safety switch con-
tact is “ON”position.
2In case that wash loads get uneven during
spin, the outer tub hits the safety switch
due to the serious vibration, and the spin
process is interrupted.
3In case that P.C.B. ASS’Y gets “OFF”signal
from the safety switch, spin process are
stopped and rinse process is started auto-
matically by P.C.B. ASS’Y.
4If the safety switch is operated due to the
unbalance of the tub, the program is
stopped and the alarm is given.
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the Pulsator Agitator rotates during the
washing or rinsing process, the water below
the Pulsator Agitator fans creates a water cur-
rents as shown in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.

10
FEATURE
Much lint may be obtained according to the kind of
clothes to be washed and some of the lint may also
sticks to the clothes.
To minimize this possibility a lint filter is provided in
the center of pulsator agitator to filter the wash water
as it is discharged from the water channel. It is good
to use the lint filter during washing.
HOW TO REPLACE LINT FILTER
1Pull the cap agitator upward.
2Turn the lint filter inside out, and wash the lint off with water.
3Return the filter as it was, and fix the filter lint into the pulsator agitator.
When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
STRUCTURE
FUNCTIONAL PRINCIPLE
1When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and revolves
the pulley by gear assembly for reducing.
2When the pulley is rotated, the pulley winds the wire to open the drain valve.
3Therefore, rotation of pulley changed to the linear moving of wire.
4The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.
5After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the
lever.
6When the power is turned off, the drain valve is closed because the wire returns to original position.
Bleach Inlet
Pulsator
Agitator
Pull
Loosen
Pulley
Lever
Inductive ring
Magnet
Coil of motor
Magnet of motor
Lint Filter
Residual Time Display
Drain Motor
Bleach
Inlet
Pulsator
Agitator

11
FEATURE
The proper water currents is made by the rotation of pulsator agitator at a low speed to prevent the damage to the
small sized clothes.
Planetary gear Sun gear
Internal gear
Pulsator Agitator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1800 (60Hz)
1500 (50Hz)
Gear Unit as
Directly
V.BELT
Tub
695-745r.p.m(60Hz)
685-710r.p.m(50Hz)
Pulsator Agitator
135-150r.p.m(60Hz)
135-145r.p.m(50Hz)
Spinner Pulley
695-745r.p.m(60Hz)
685-710r.p.m(50Hz)
Gear Mechanism Ass y

5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
12
DIRECTIONS

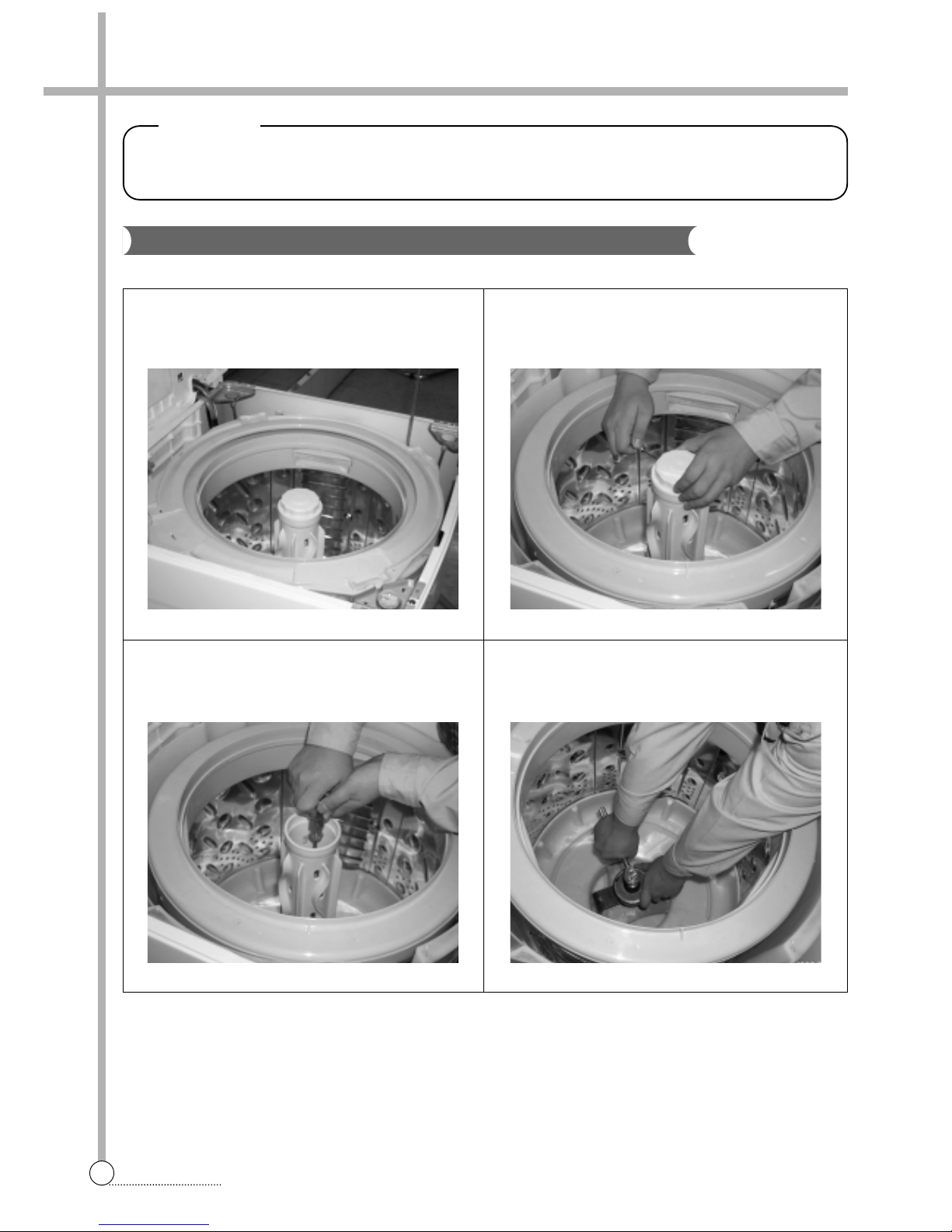

Gear Mechanism Ass y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning
1Raise the top plate on the outer cabinet.
2Loosen four screws mounting outer tub cover and
remove outer tub cover from the tub ass’y.
4Loosen the pulsator agitator mounting screw and
remove the pulsator agitator.
3Remove the cap agitator and filter lint from the pulsator
agitator ass’y by using screw driver
5Remove the special nut by using “T”type box wrentch.
6Remove the special washer.

13
DIRECTIONS

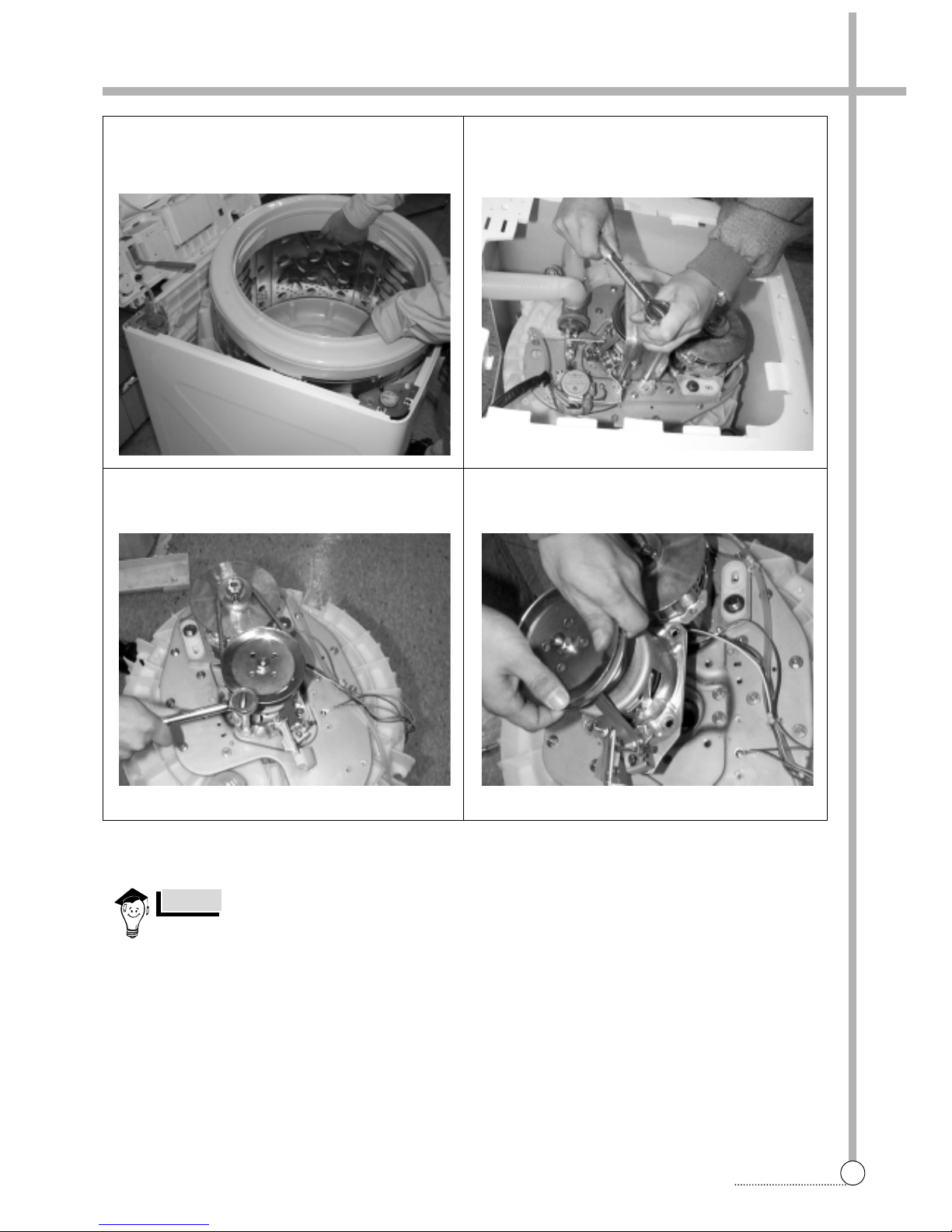

To assemble the gear mechanism ass’y, reverse the disassembly procedure.
NOTES
7Remove the tub i assy.
qRemove four special bolt of gear mechanism assy by
using a box wrentch.
8Lay the front of the washer on the floor.
9Remove four special bolts of gear protect by using a box
wrentch and remove gear protect.
0Remove the V-belt.
wPull out the gear mechanism assy.

14
DIRECTIONS

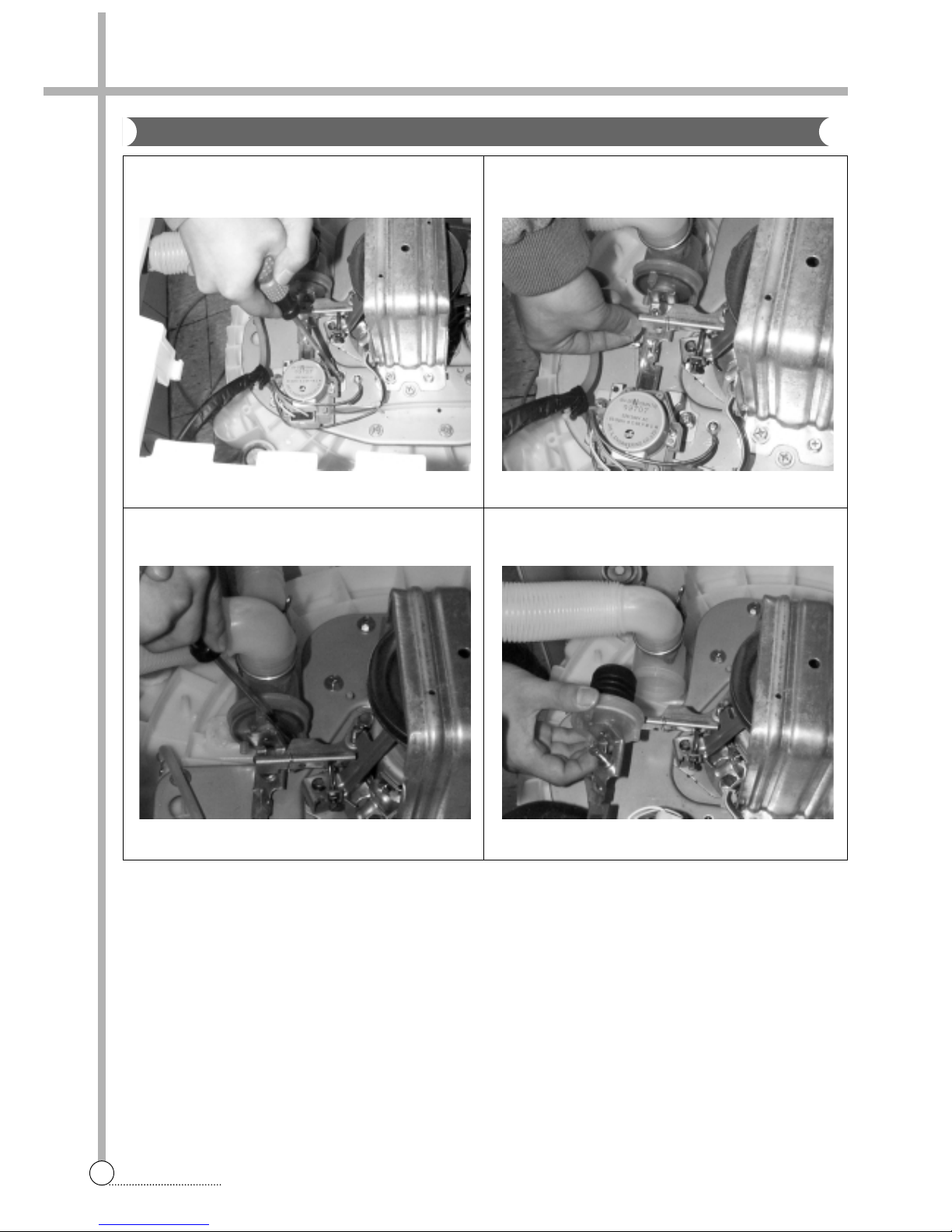

1Lay the front of the washer on the floor.
2Loosen two special screw of motor synchronous.
5Turn the valve by using screw driver as shown in picture.
3Take out the wire of motor synchronous from the braket.
4Separate the motor synchronous from the base.
6Remove the valve lid from the valve drain assy.
MOTOR SYNCHRONOUS AND VALVE REPLACEMENT (NON PUMP MODEL)
Motor Synchronous And Valve Replacement(Non Pump Model)

15
THE REPAIR
6. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
●●TOOL FOR REPLACING THE CLUTCH BOSS ASSEMBLE●●
Tool name Specification Q’ty
Fixing jig 1
Ratchet handle 1
Socket and extension bar socket : 10mm, 17mm per each
Some cotton yarn some
The Structure O f G ear M echanism

16
THE REPAIR
NO. PARTS NAME SPECIFICATION CODE Q’TY
1 CLUTCH SPRING 1.5*1.5 3615110000 1
2 CLUTCH BOSS PP 3619301300 1
3 GREASE beacon#325 3g
PACKING PACKING THE CLUTCH BOSS ASS’Y1
METHOD BY USING VINYL PACK
1) THE LAUNDARY IS IN THE SPIN TUB UNEVENLY WHEN JUST STARTING SPIN PROCESS.
2) THEREFORE, IT CAUSE THE SERIOUS NOISE AND VIBRATION WHEN WASHING AND SPINNING
PROCESS OR SUPPLING WATER IRREGULARY WHEN SPINNING PROCESS
AND CAUSE SHORT OF SPIN PERFORMANCE.
IN THIS CASE, YOU MUST EMPTY THE SPIN TUB FIRST.
1) TO CHECK THE REVOLUTION OF SPIN TUB. IF THE SPIN TUB DOES NOT REVOLVE AND ONLY
THE PULSATOR IS TURNING, THAT IS CLUTCH SPRING DEFECT.
2) TO CHECK THE SPIN SPEED(RPM) BETWEEN SPIN TUB AND PULSATOR.
IF YOU FIND THE DIFFERENT SPIN SPEED BETWEEN SPIN TUB AND PUSATOR, THIS IS ALSO
CLUTCH SPRING DEFECT.
IN THIS CASE, WE ARE GOING TO SUPPLY THE CLUTCH BOSS ASSEMBLY INSTEAD OF GEAR
MECHANISM ASSEMBLEY. PLEASE REFER TO FOLLOWING FIG.
PROBLEM
CHECKING METHOD
THE CLUTCH BOSS ASSEMBLY
CLUTCH BOSS ASS’Y PART CORD : 3619301400
Ho wTo CheckTheClutchSpring Problem

17

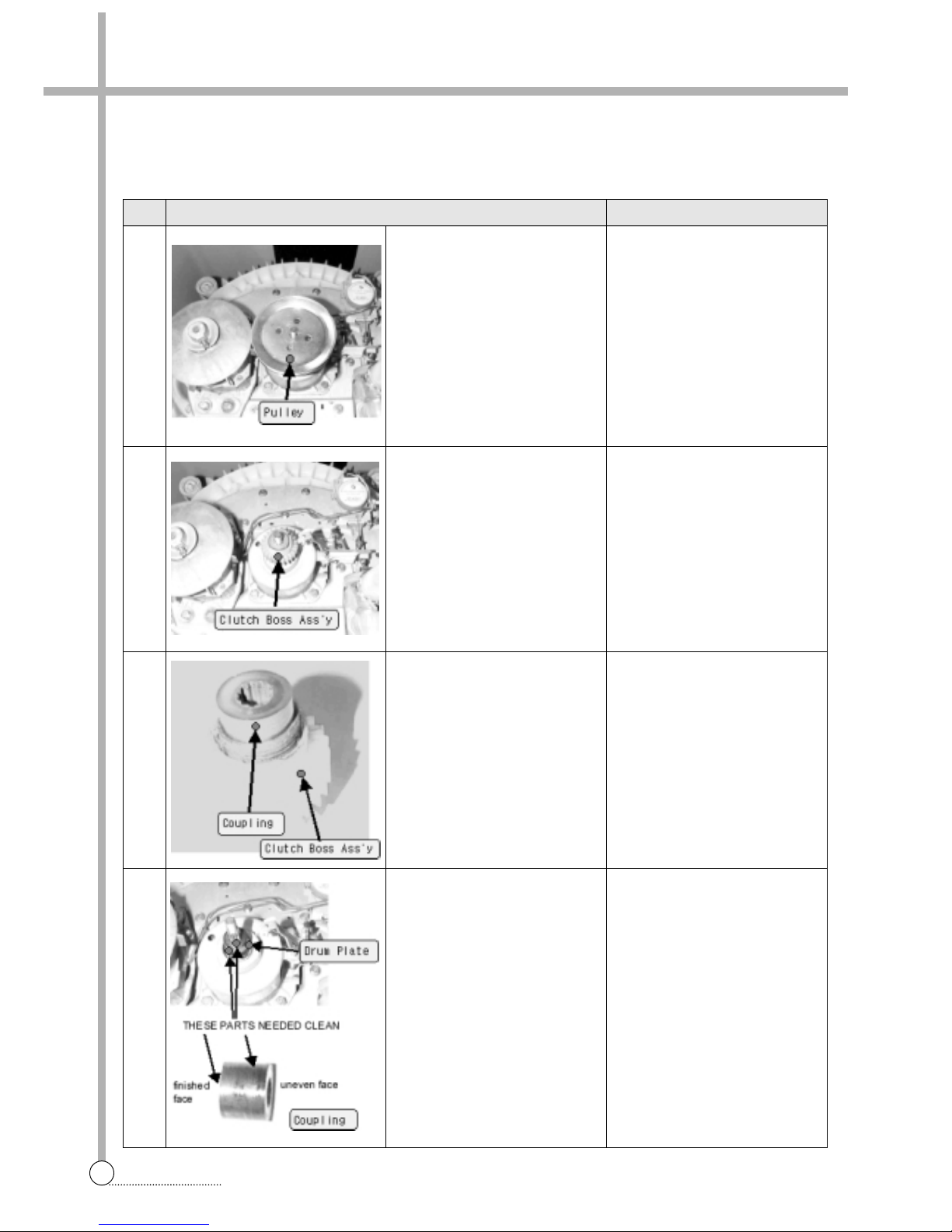

THE REPAIR
No. Process Notice
Disassemble 1
1
2
3
4
Release screws marked 4-point
Remove the protector
Remove the v-belt
Loosen the fastening nut
Disassemble the spring washer
Use wrench or driver
- ratchet handle
- extension bar
- socket : 10mm
Use fixing jig for pulley as to
see fig 1.
and 17mm-socket for nut
Take out plain washer if it has
The Process Of Disassemble

18
THE REPAIR
No. Process Notice
Disassemble 2
5
6
7
8
Disassemble the pulley
Disassemble the clutch boss
assembly
Separate coupling from clutch
boss ass’y
Cleaning
Catch the boss and pull
upward with spiral rotate in the
clockwise direction
Clean the drum plate, coupling
surface and contact face
between drum plate and cou-
pling
It is necessary to keep cotton
piece goods being dry and
clean

19
THE REPAIR
No. Process Notice
Assemble 1
1
2
3
4
Assemble the coupling
Assemble the new clutch boss
ass’y
Assemble the pulley
Assemble the spring washer
Check the uneven face of cou-
pling is assembled upward
- Push in the clutch boss ass’y
with rotating on the clockwise
direction.
-
After assembling, rotate on the
clockwise more 2~3 teeth and
pull out the pulley shaft upward
If there was plain washer, you
have to assemble plain washer
the first and then assemble
spring washer
The Process Of Assemble
