Daewoo DWF-261AW User manual

Service Manual
Auto Washer
Model: DWF-261AW
S/M No. :
Sep. 2010
✔Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).

AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
WASHING MACHINE
Contents
1. SPECIFICATIONS ............................................................................................... 2
2. STRUCTURE OF THE WASHING MACHINE............................................................... 3
3. DIRECTIONS FOR INSTALLATION AND USE............................................................. 4
INSTALLATION OF THE COVER UNDER......................................................................... 4
HOW TO INSTALL ON AN INCLINED PLACE .................................................................... 4
HOW TO CONNECT THE INLET HOSE ........................................................................... 5
HOW TO CLEAN THE FILTER ........................................................................................................................6
4. FEATURE AND TECHNICAL EXPLANATION ............................................................. 7
FEATURE OF THE WASHING MACHINE ......................................................................... 7
WATER CURRENT TO ADJUST THE UNBALANCED LOAD.................................................. 7
AUTOMATIC WATER SUPPLY SYSTEM FOR BLANKET WASH............................................. 7
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE................................................ 8
AUTOMATIC DRAINING TIME ADJUSTMENT................................................................... 8
AUTOMATIC UNBALANCE ADJUSTMENT....................................................................... 9
CIRCULATING-WATER COURSE AND LINT FILTER........................................................... 9
LINT FILTER........................................................................................................... 10
RESIDUAL TIME DISPLAY ......................................................................................... 10
DRAIN MOTOR....................................................................................................... 10
GEAR MECHANISM ASS’Y ........................................................................................ 11
5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT.............................................. 12
GEAR MECHANISM ASS’Y REPLACEMENT ................................................................... 12
MOTOR DRAIN AND VALVE REPLACEMENT ................................................................. 14
6. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM ........... 15
THE STRUCTURE OF GEAR MECHANISM............................................................................................... 15
HOW TO CHECK THE CLUTCH SPRING PROBLEM............................................................................... 16
THE PROCESS OF DISASSEMBLING........................................................................................................ 17
THE PROCESS OF ASSEMBLING .............................................................................................................. 19
7. TROUBLE SHOOTING GUIDE .............................................................................. 22
CONCERNING WATER SUPPLY..................................................................................................................22
CONCERNING WASHING............................................................................................................................. 23
CONCERNING DRAINING............................................................................................................................ 24
CONCERNING SPINNING ............................................................................................................................ 25
CONCERNING OPERATING ........................................................................................................................ 26
8. PRESENTATION OF THE P.C.B ASS’Y ................................................................... 27
APPENDIX
WIRING DIAGRAM......................................................................................................................................... 28
PARTS DIAGRAM .......................................................................................................................................... 29
PARTS LIST.................................................................................................................................................... 33

2
SPECIFICATIONS
1POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE AND CYCLE
2POWER CONSUMPTION
3MACHINE WEIGHT
4DIMENSION (WXHXD) 630 X 1075 X 670
5WASHING COURSE
6WATER CONSUMPTION 250 L
7WATER LEVEL SELECTOR
8
OPERATING WATER PRESSURE 0.3kgf/cm2~8kgf/cm2(2.94 N/cm2~78.4N/cm2)
9REVOLUTION PER MINUTE WASH : 130 - 150 RPM, SPIN : 695 -748 RPM
10 PULSATOR 6 WINGS (ø 406mm)
11 WATER LEVEL CONTROL ELECTRONICAL SENSOR
12 GEAR MECHANISM ASS’Y HELICAL GEAR
13 LINT FILTER O
14 SOFTENER INLET O
15 FUNCTION FOR SOAK WASH O
16 ALARM SIGNAL O
17 RESIDUAL TIME DISPLAY O
18 AUTO. WATER SUPPLY O
19 FUNCTION FOR BUBBLE AND RADICAL O
20 AUTO RE-FEED WATER O
21 AUTO POWER OFF O
no. item DWF-261AW
1. SPECIFICATIONS
In case of moving Washing Machine, please
follow the following picture.
NOTES
FULL AUTOMATIC 8 COURSES
(FUZZY, JEANS, ECONOMIC, EXTRA DIRTY, HEAVY LOAD, CLEANING,
COLOR, WOOL)
HIGH
MEDIUM
LOW
E.LOW
97 L
77 L
62 L
56 L
60Hz
PUMP
600 W
51Kg
60Hz

COVER UNDER (OPTION) WATER TAP ADAPTER INLET HOSE
HOSE DRAIN (FOR PUMP) HOSE DRAIN CLAMP HOSE DRAIN (FOR NON-PUMP)
2. STRUCTURE OF THE WASHING MACHINE
3
STRUCTURE
ACCESSORIES (FULL OPTION)

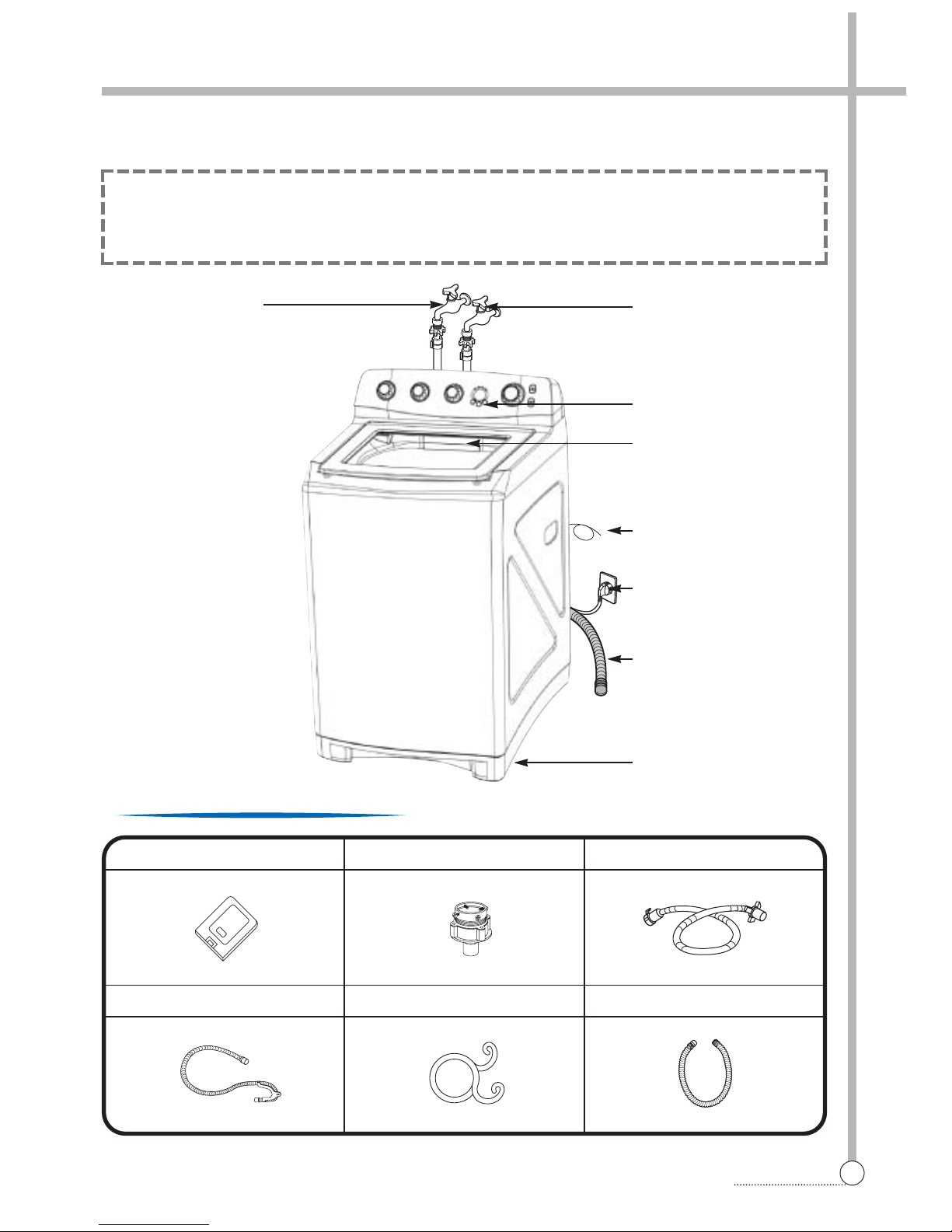

The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
• The drawings in this book may vary from your washer model.
They are designed to show the different features of all models covered by this book, Your model may not
include all features.
• COLD WATER TAP
After using the washing
machine, close the water tap.
• HOT WATER TAP
After using the washing
machine, close the water tap.
In case of the single valve
model, there is no hot water
valve.
• CONTROL PANEL
• POWER CORD
• GROUND WIRE(OPTION)
In case of 3-wire power cord
ground wire will not be
provided.
• HOSE DRAIN
• ADJUSTABLE LEG
• CASE DETERGENT
AND SOFTENER
UP

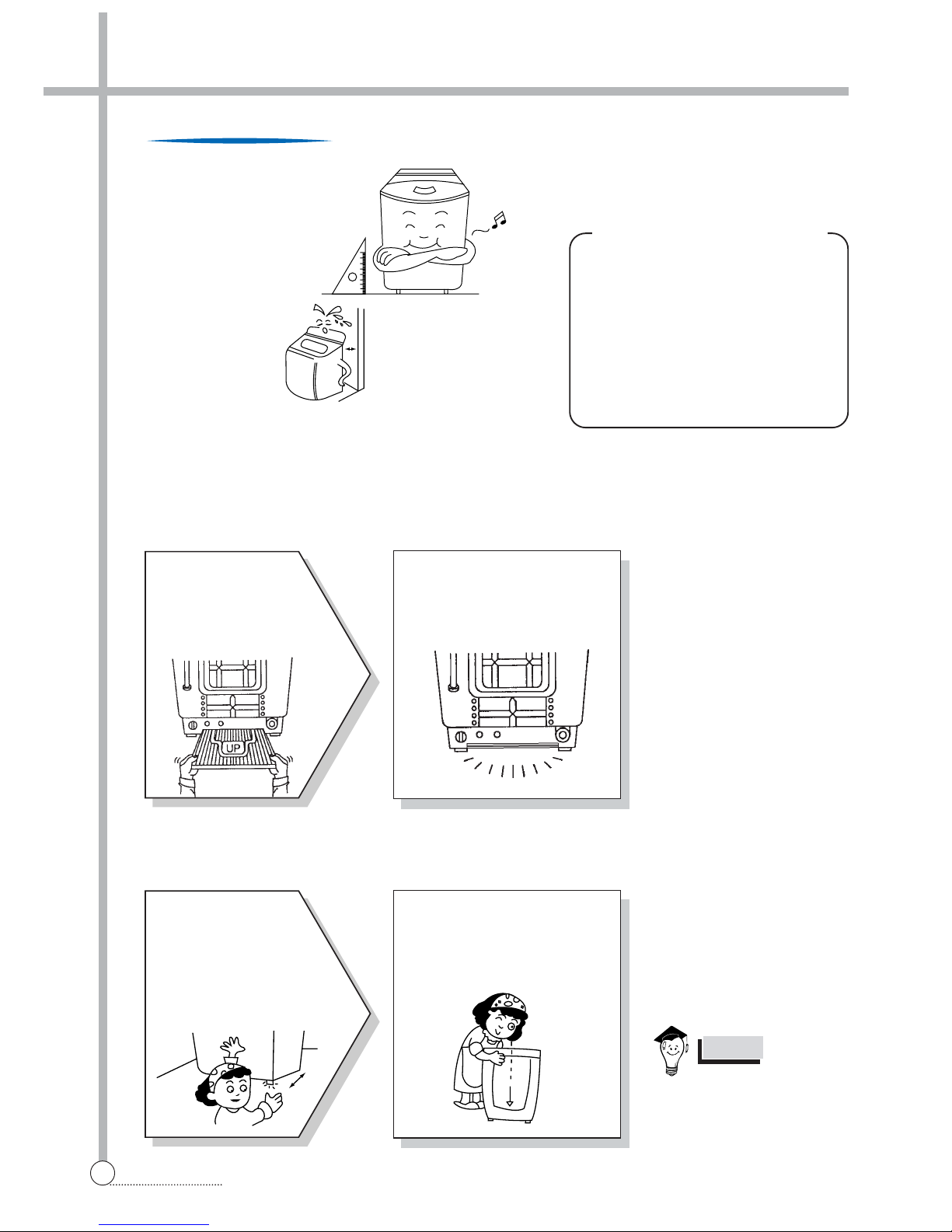

3. DIRECTIONS FOR INSTALLATION AND USE
4
DIRECTIONS
The openings must not
be obstructed by carpet-
ing when the washing
machine is installed on a
carpeted floor.
■■Installation Of the COVER UNDER (Noise Insulation Plate)
■■How To Install On An Inclined Place
●The place where it would be exposed to
direct sunlight.
●The place nearby a heater or heat
appliance.
●The place where it would be supposed
to be frozen in winter.
●The kitchen with coal gas and a damp
place like a bathroom.
NOTES
10Cm
Install the washer on a horizontal
solid floor. If the washer is installed
on an unsuitable floor, it could make
considerable noise and vibration.
INSTALLING PLACE
Never install in these places
2Push the COVER UNDER to
the end. This reduces the
noise from washing machine.
1In the packing box or
the tub of the washer,
there is the COVER
UNDER. Put the
COVER UNDER at the
bottom of the back.
2Check the Horizon
Status
Check the position of tub above
the center of the washer.
1Horizon
Setting
After controlling the height
by turning the adjustable
leg, let the washer put
down to the ground.
Keep the machine body
more than 25cm apart from
the wall surface. It will
make easy cleaning the
drain filter which is equipped
at the back side of it. And if
it comes into contract
vibration may occur.
* The drawing of the COVER UNDER is variant from your model
25cm

5
CONNECTION
FOR ORDINARY TAP
6Connect the inlet hose adapter
to the water inlet of the washer
by turning it clockwise to be
fixed tightly.
• Please check the rubber packing
inside the inlet hose adapter.
1Pull down the collar
of the inlet hose to
separate it from the
water tap adapter. 2Loosen the four
screws at the water
tap adapter, but don’t
loosen the screws until
they are separated from
the water tap adapter.
4Remove the tape,
and screw connector
B into connector A
tightly. 5Connect the inlet
hose to the water tap
adapter by pulling down
the collar of the hose end.
3Connect the water tap
adapter to the water tap and
tighten the four screws evenly
with pushing up the adapter
so that the rubber packing
can stick to the water tap
tightly.

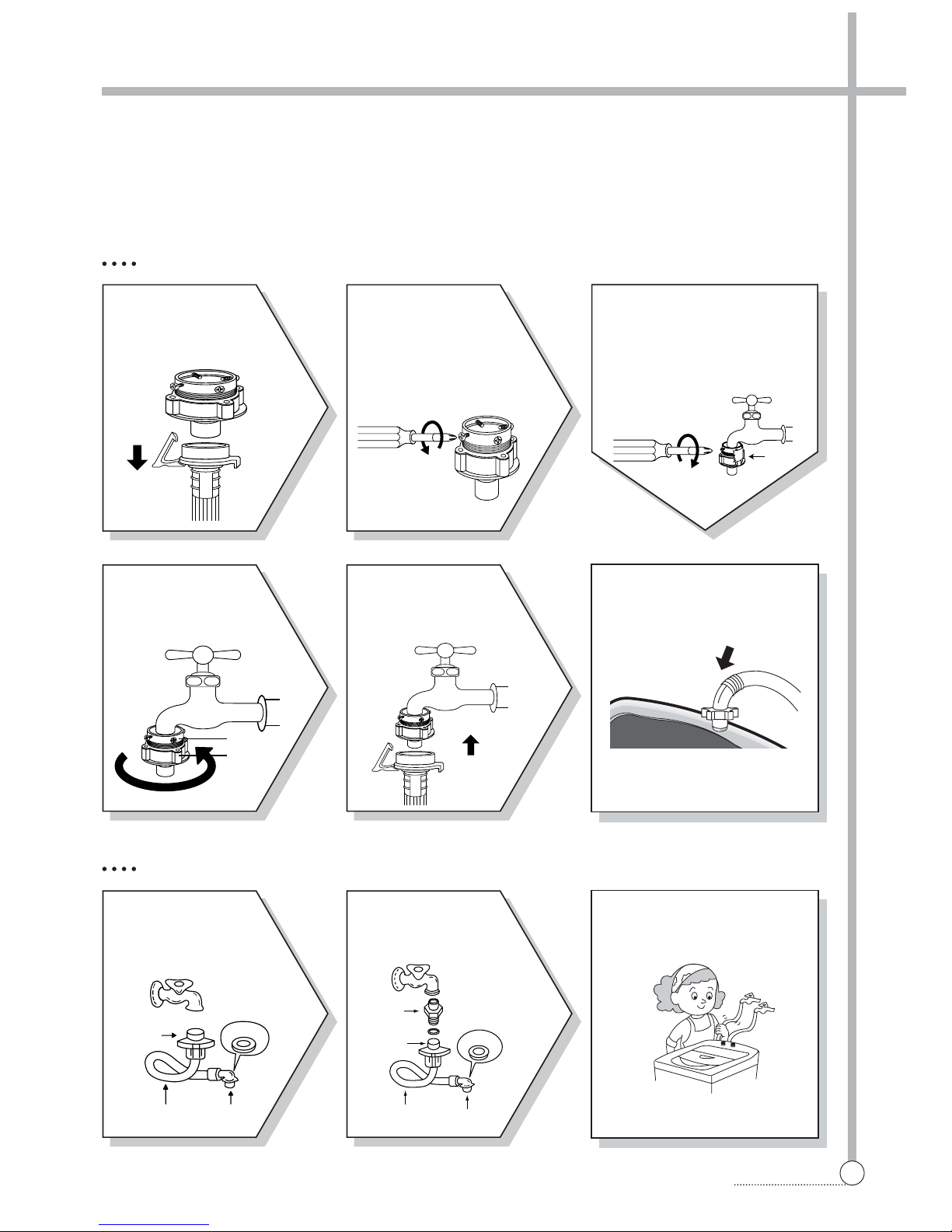

■■How to Connect the Inlet Hose
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : this could cause damage to couplings.
FOR SCREW-SHAPED TAP 3Insert the inlet hose adapter
into the water inlet of a washer
and turn it to be fixed.
• Check the packing in the inlet
1Connect the inlet
hose to the water tap
by screwing the
connector D tightly. 2Connect the
connector-inlet
supplied if necessary.
Inlet Hose
Connector D Rubber
Packing
Connector C
Connector
Inlet
Rubber
Packing
Connector D
Connector C
Hose
TAPE
Connector B
Connector A

6
CONVENIENCE
■
HOW TO CLEAN THE FILTER
4
Remove the dirt
from the inlet filter
with a brush.
1
Pull the
power plug
out before
cleaning it.
2
Turn off the
water supply
to the washer
and sperate the
inlet hose.
3
Pull the
inlet filter out.
CLEANING THE LINT FILTER
CLEANING THE WATER INLET FILTER
• Clean the filter when water leaks from, the water inlet.
CLEANING THE DRAIN FILTER
• In case “U” shape drain hose, this filter’s equipped at the back side of washer.
• This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ...
• If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could be caused.
3Return the filter as it was, and
insert the filter frame into the
slot.
1Pull the Filter frame
upward. 2Turn the lint filter inside out, wash to
the lint off with water.
1Put down the
remained water in the
hose. And put a container
under the filter to collect
water.
2Turn the cap counter
clockwise. 3Pull out the filter assembly off the case of the main body.
6Turn the cap clockwise tightly.
4Clean the drain filter
removing the foreign
stuffs. 5
Put in the filter along the
guiding prominence of the
case. Please note the left
position of the filter adjusting
the groove to the guide rib.
Lint Filter Filter Frame
FILTER
FILTER
FILTER
CAP
CAP
CAP
CAP
SLIT
CASE
CONTAINER
FILTER
CAP
CASE
SUIT
GUIDE
RIB

7
FEATURE
4. FEATURE AND TECHNICAL EXPLANATION
WASH DRAIN SPIN FILL RINSE 1 DRAIN SPIN FILL RINSE 2 DRAIN •••
MOTOR C.W
SIGNAL C.C.W
TIME(SEC.) 0.3 0.3 0.3 0.3 0.3 0.3 •••••••
60 SEC.(About 50 Times)WASH
RINCE 30 SEC.(About 25 Times)
Feature of the Washing Machine
1 First applying the Radical Technology in the world ... go beyond washing, sterilize your clothes and deodorize a
bad smell.
2 The first air bubble washing system in the world.

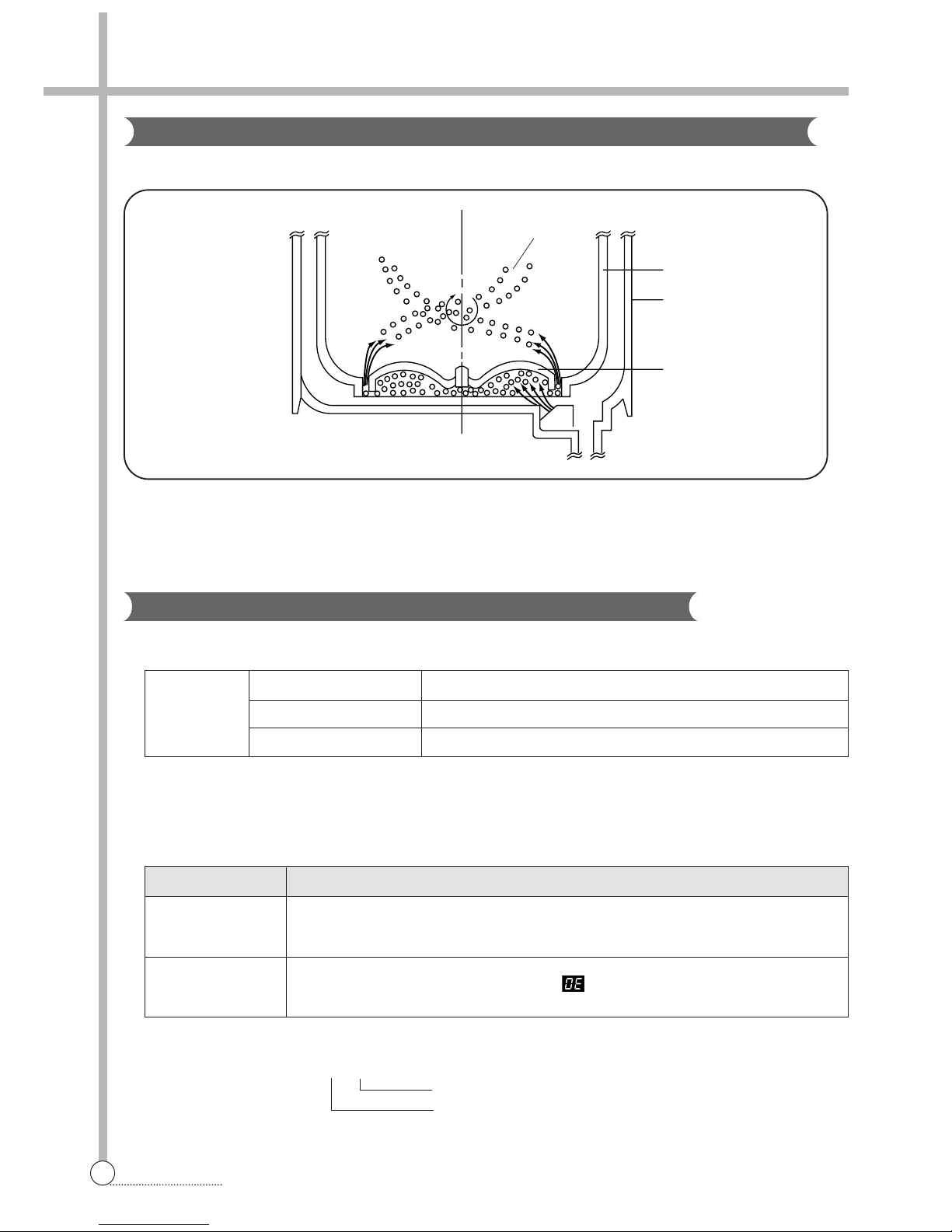

3 Quiet washing through the innovational low-noise design.
4 Improving washing performance by more than 35%, while reducing power consumption by 40%.
5 The laundry detergent dissolves well in water because of the air bubble washing system.
6 The adoption of the water currents to adjust the unbalanced load.
7 One-touch operation system.
Water Current to Adjust the Unbalanced Load
It is a function to prevent eccentricity of the clothes after wash by rotating pulsator C.W and C.C.W for 60
seconds.(But, the SUIT course have no operation of the water currents to adjust the unbalanced load.)
EFFECT
It reduces vibration and noise effectively while spinning.
WATER FLOW
Automatic Water Supply System for Blanket Wash
The water level would be lowered because the blanket absorbs water at the beginning of washing. Therefore, after
2 minutes, the operation is interrupted to check the water level, and then the water is supplied again until the
selected water level is reached.

8
FEATURE
FUNCTIONAL PRINCIPLE
1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to
“OFF” point
2 In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 90 Residual drain time.
The time remembered by micom.
FUNCTIONAL PRINCIPLE
Bubble Motor supplies the air from the bottom of outer tub to the inner space of pulsator, the air is dispersed by the
rotation of pulsator. Air-bubble is created by the centrifugal force, and rises up.
Draining Good draining The washer begins spin process after drainage.
condition Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than Continue draining
15 minutes
More than Program stops and gives the alarm with blinked on display lamp.
15 minutes
Functional Principle of Bubble Washing Machine
ACROSS SECTION
Automatic Drainning time Adjustment
This system adjusts the draining time automatically according to the draining condition.
Air bubble
Tub
Outer tub
Pulsator

9
FEATURE
Contact of safety switch
Contact lever A
Normal (ON)
Position of
unbalanced load (OFF)
Automatic Unbalance Adjustment
Circulating-Water Course and Lint Filter
The alarm finished when you close the lid after opening
it. Check the unbalance of the wash load and the
installation condition.
NOTES
Filter Tub
Outer tub
Water
channel
Pulsator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1. When the lid is closed, the safety switch
contact is "ON' position.
2. In case that wash loads get uneven during
spin, the outer tub hits the safety switch due
to the serious vibration, and the spin
process is interrupted.
3. In case that P.C.B. ASS’Y gets “OFF” signal
from the safety switch, spin process is
stopped and rinse process is started
automatically.
4. If the safety switch is operated due to the
unbalance of the tub, the program is
stopped and the alarm is given.
CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the pulsator rotates during the washing
or rinsing process, the water below the
pulsator fans creates a water currents as
shown in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.
Lid opening

10
FEATURE
Much lint may be obtained according to the kind of clothes
to be washed and some of the lint may also stick to the
clothes.
To minimize this possibility a lint filter is provided on the
upper part of the tub to filter the wash water as it is
discharged from the water channel. It is good to use the lint
filter during washing.
HOW TO REPLACE LINT FILTER
1 Pull the filter frame upward.
2 Turn the lint filter inside out, and wash the lint off with water.
3 Return the filter as it was, and fix the filter frame to the slot.
When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
STRUCTURE
FUNCTIONAL PRINCIPLE
1 When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and revolves
the pulley by gear assembly for reducing.
2 When the pulley is rotated, the pulley winds the wire to open the drain valve.
3 Therefore, rotation of pulley changed to the linear moving of wire.
4 The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.
5 After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the
lever.
6 When the power is turned off, the drain valve is closed because the wire returns to original position.
Pull
Loosen
Pulley
Lever
Inductive ring
Magnet
Coil of motor
Magnet of motor
Lint Filter
Residual Time Display
Drain Motor
Filter

11
FEATURE
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small
sized clothes.
Planetary gear Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1800 r.p.m (60Hz)
1500 r.p.m (50Hz)
Gear Unit as
Directly
V-Belt
Tub
710-740r.p.m(60Hz)
640-675r.p.m(50Hz)
Pulsator
125-140r.p.m(60Hz)
130-150r.p.m(50Hz)
Spinner Pulley
710-740r.p.m(60Hz)
640-675r.p.m(50Hz)
Gear Mechanism Ass’y

12
5. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
12
DIRECTIONS
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCONNECT
THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning

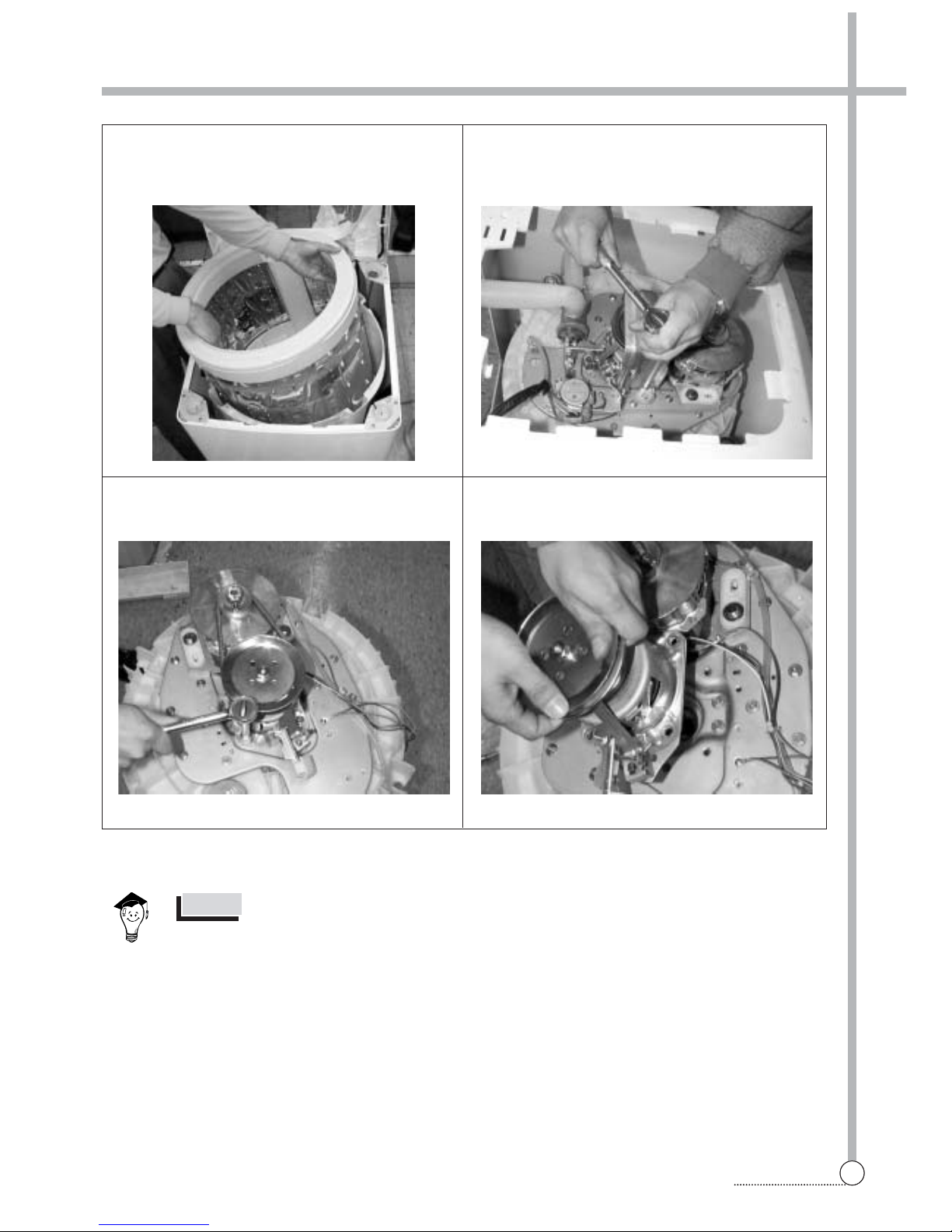

GEAR MECHANISM ASS’Y REPLACEMENT
1Raise the top plate on the outer cabinet.
2Loosen four screws mounting outer tub cover and
remove outer tub cover from the tub ass’y.
4Loosen the pulsator mounting screw and remove the
pulsator.
3Remove the cap pulsator from the pulsator assy by
using screw driver
5Remove the special nut by using “T” type box wrentch.
6Remove the special washer.

1313
DIRECTIONS
To assemble the gear mechanism ass’y, reverse the disassembly procedure.
NOTES
7Remove the tub i assy.
qRemove four special bolt of gear mechanism assy by
using a box wrentch.
8Lay the front of the washer on the floor.
9Remove four special bolts of gear protect by using a box
wrentch and remove gear protect.
0Remove the V-belt.
wPull out the gear mechanism assy.

14

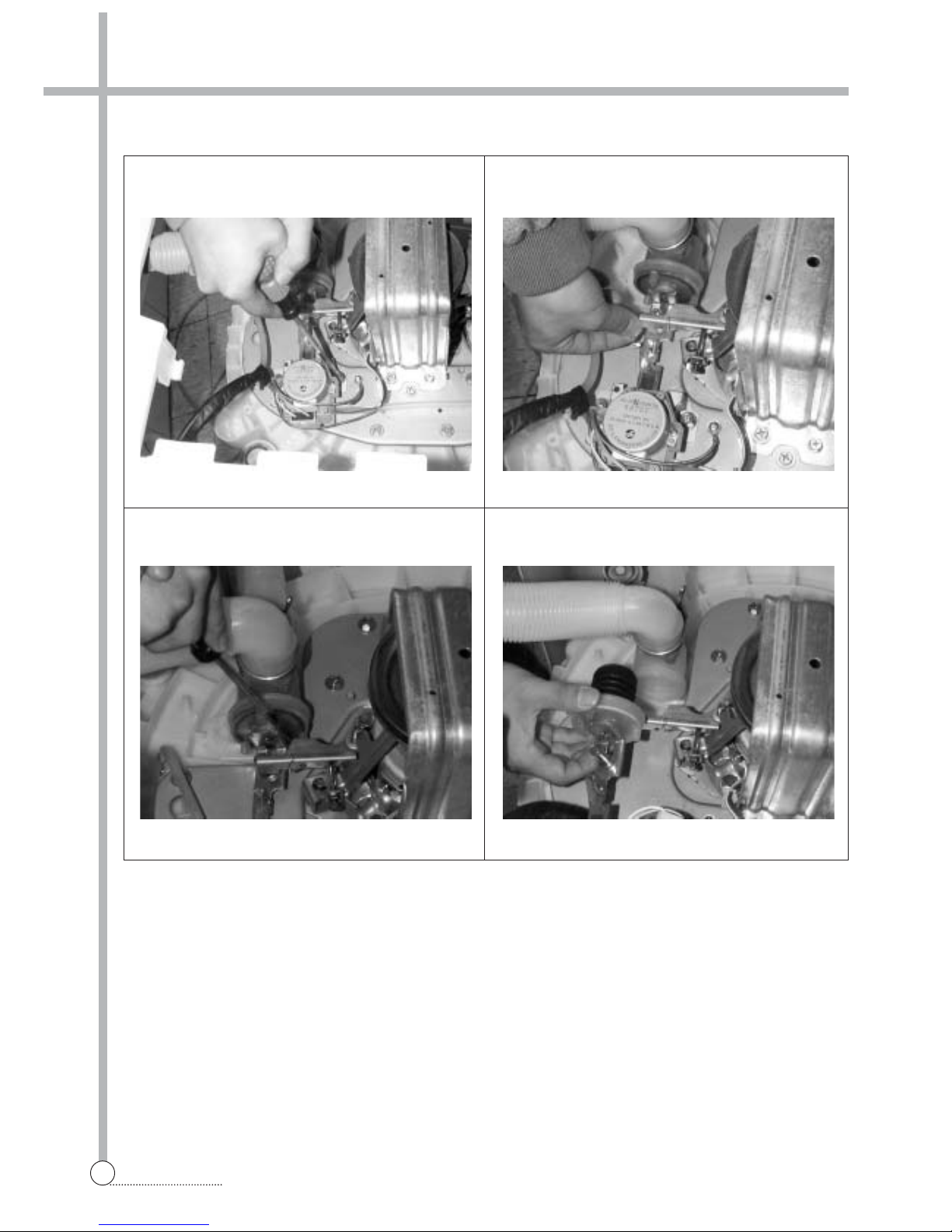

DIRECTIONS
1Lay the front of the washer on the floor.
2Loosen two special screw of motor synchronous.
5Turn the valve by using screw driver as shown in picture.
3Take out the wire of motor synchronous from the braket.
4Separate the motor synchronous from the base.
6Remove the valve lid from the valve drain assy.
MOTOR SYNCHRONOUS AND VALVE REPLACEMENT (NON PUMP MODEL)

15
6. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
THE REPAIR
●TOOL FOR REPLACING THE CLUTCH BOSS ASSEMBLY●
Tool name Specification Q’ty
Fixing jig 1
Ratchet handle 1
Socket and extension bar socket : 10mm, 17mm per each
Cotton yarn some

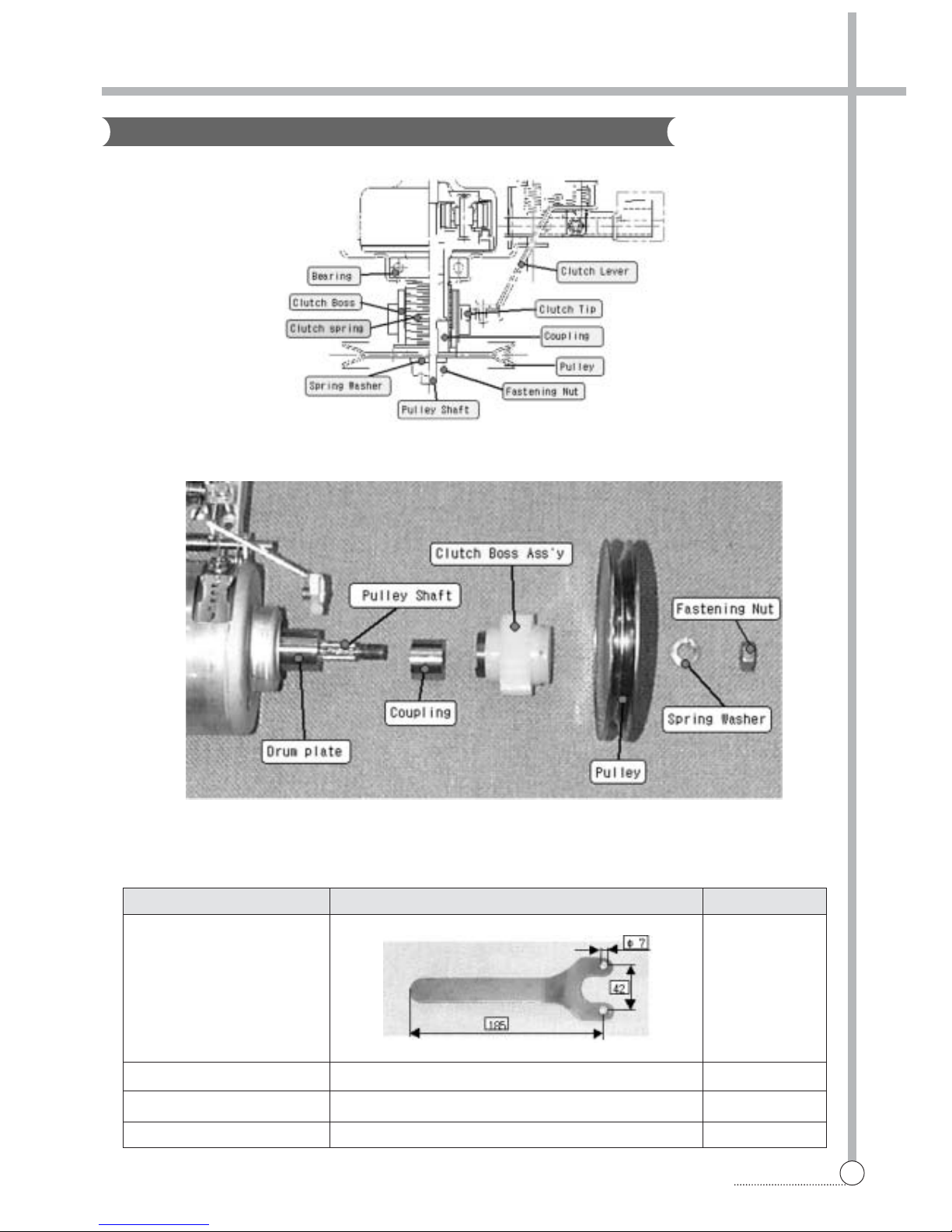

the structure of gear mechanism

16
THE REPAIR
NO. PARTS NAME SPECIFICATION CODE Q’TY
1CLUTCH SPRING 1.5*1.5 3615110000 1
2CLUTCH BOSS PP 3619301300 1
3GREASE beacon#325 3g
PACKING PACKING THE CLUTCH BOSS ASS’Y 1
METHOD BY USING VINYL PACK
CHECKING METHOD
IN THIS CASE, YOU MUST EMPTY THE SPIN TUB FIRST.
1) TO CHECK THE REVOLUTION OF SPIN TUB.
IF THE SPIN TUB DOES NOT REVOLVE AND ONLY THE PULSATOR IS TURNING, THAT IS
CLUTCH SPRING DEFECT.
2) TO CHECK THE SPIN SPEED(RPM) BETWEEN SPIN TUB AND PULSATOR.
IF YOU FIND THE DIFFERENT SPIN SPEED BETWEEN SPIN TUB AND PULSATOR, THIS IS ALSO
CLUTCH SPRING DEFECT.
IN THIS CASE, WE ARE GOING TO SUPPLY THE CLUTCH BOSS ASSEMBLY INSTEAD OF GEAR
MECHANISM ASSEMBLY. PLEASE REFER TO FOLLOWING FIG.
THE CLUTCH BOSS ASSEMBLY
CLUTCH BOSS ASS’Y PART CORD : 3619301400
how to check the clutch spring

17
THE REPAIR
No. Process Notice
Disassembling 1
1
2
3
4
Release screws marked 4-point
Remove the protector
Remove the v-belt
Loosen the fastening nut
Disassemble the spring washer
Use wrench or driver
- ratchet handle
- extension bar
- socket : 10mm
Use fixing jig for pulley as to
see fig 1.
and 17mm-socket for nut
Take out plain washer if it has
The Process Of Disassembling

18
THE REPAIR
No. Process Notice
Disassembling 2
5
6
7
8

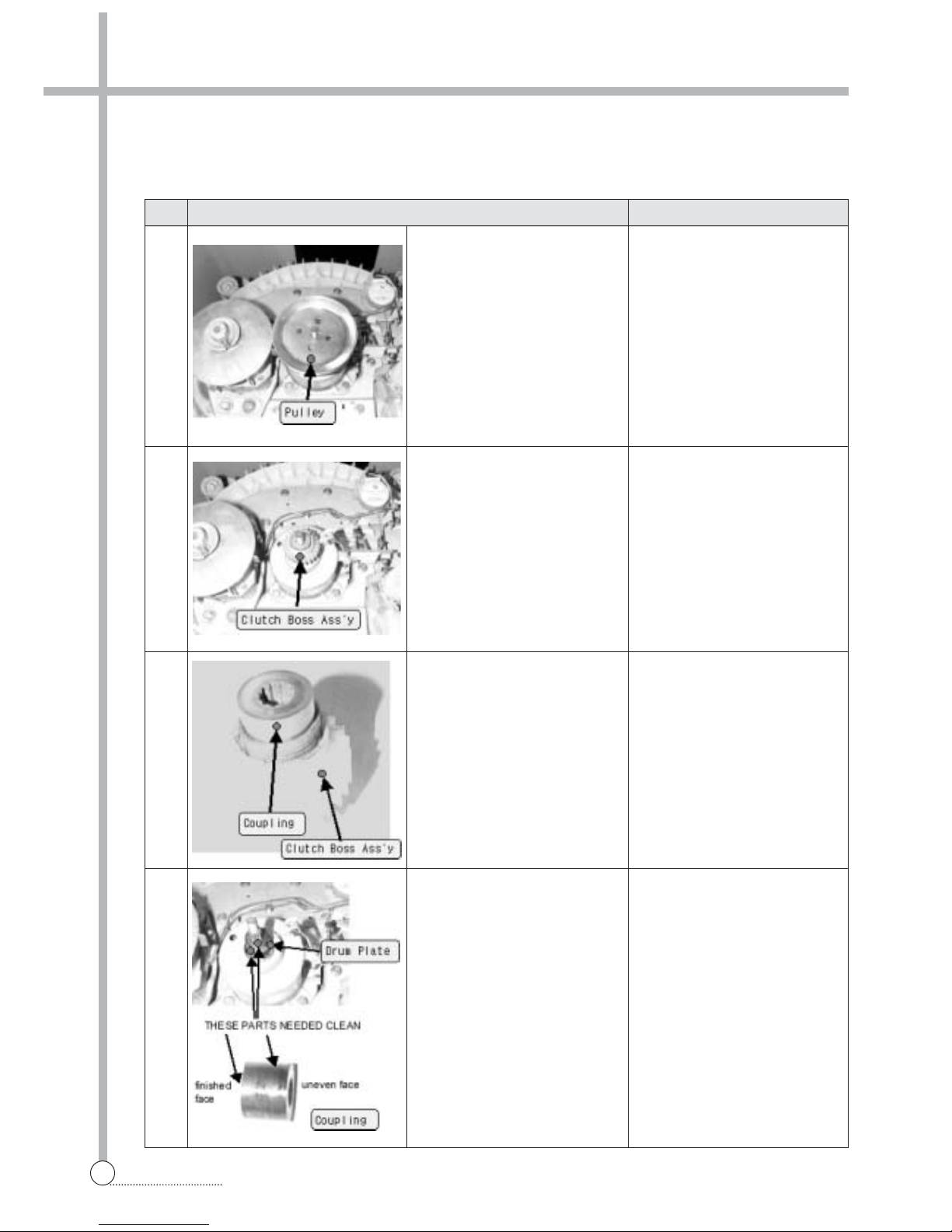

Disassemble the pulley
Disassemble the clutch boss
assembly
Separate coupling from clutch
boss ass’y
Cleaning
Catch the boss and pull
upward with spiral rotate in the
clockwise direction
Clean the drum plate, coupling
surface and contact face
between drum plate and
coupling
It is necessary to keep cotton
piece goods being dry and
clean

19
THE REPAIR
No. Process Notice
Assembling 1
1
2
3
4

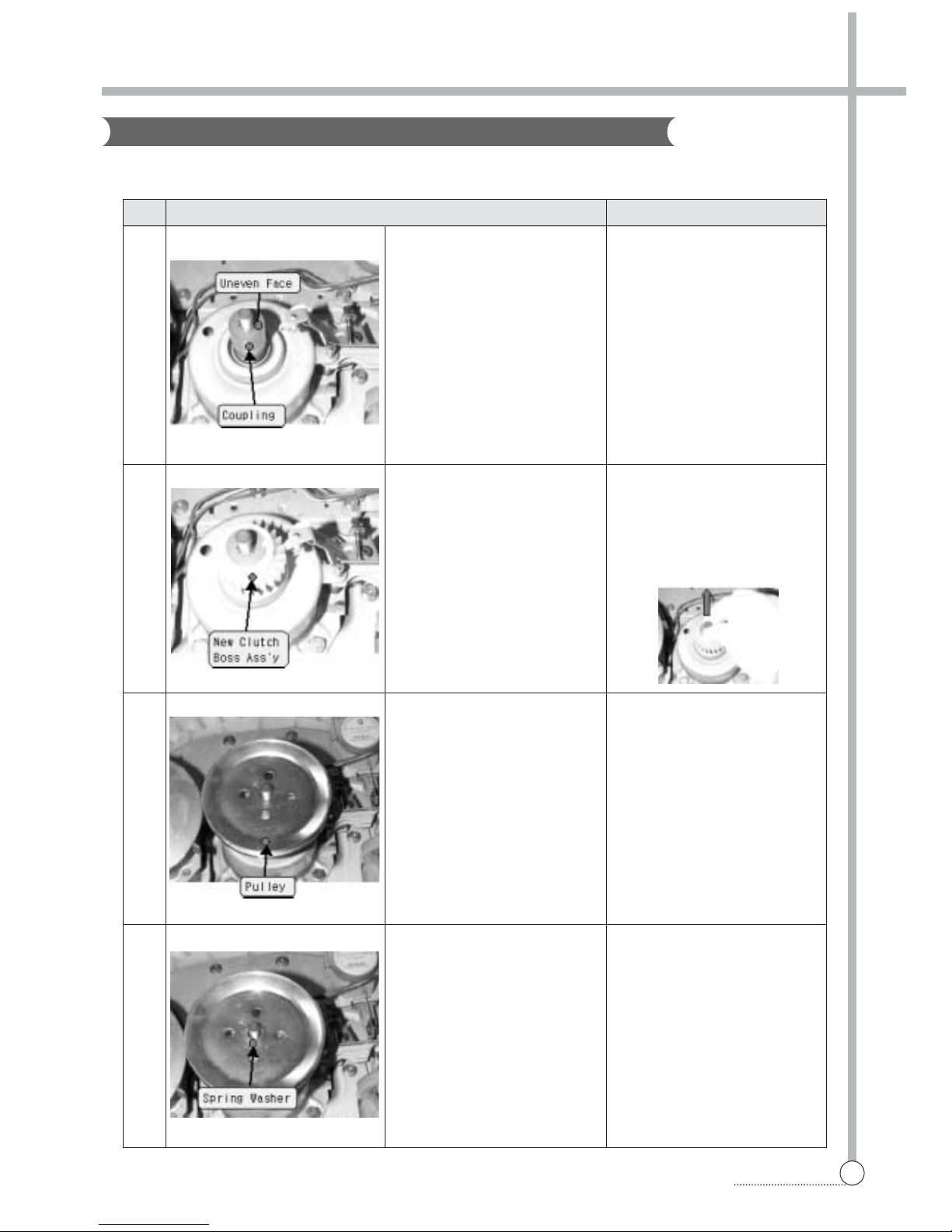

Assemble the coupling
Assemble the new clutch boss
ass’y
Assemble the pulley
Assemble the spring washer
Check the uneven face of
coupling is assembled upward
- Push in the clutch boss ass’y
with rotating on the clockwise
direction.
-
After assembling, rotate on the
clockwise more 2~3 teeth and
pull out the pulley shaft upward
If there was plain washer, you
have to assemble plain washer
the first and then assemble
spring washer
The Process Of Assembling
