INSTRUCTION MANUAL
First applying the Air Bubble Washing System in the world.
Improving washing performance by more than 35%, while
reducing power consumption by 40%.
Applying One-Touch Operation System.
Realizing calm washing through the innovational low-noise
First applying the Radical Technology in the world ... go beyond
washing, sterilize your colthes and deodorize a bad smell.
design.
Before operating this washer, please read this instruction
completely. Thank you
Model: DWF-200M/240M
=
Full-Auto Electric Washing Machine
➣Your washer is equipped with the
➣
Your washer is adopted the Radical
Technology that can sterilize your clothes
and deodorize a bad smell and prevent
discoloration.
bubble generator that generates a
great deal of air bubble.
➣The air bubbles knock the dirt out
of the clothes during wash and
they push up the heavy dirt to
remove it during rinse.
➣Because the double washing
method using both air bubble &
water current is applied to this
washer, wash efficiency is excellent
in comparison with the original
washer system.
The First Radical Technology and
Air Bubble Washing System in the World
CONTENTS Page
PA RTS AND FEATURES.......................................................2
WASHER SAFETY.................................................................3
INSTALLATION INSTRUCTIONS.........................................4
ELECTRICAL REQUIREMENTS..........................................5
INLET HOSE CONNECTION................................................6
OPERATING YOUR WASHER.............................................7
THE FUNCTIONS OF THE CONTROL PANEL.................8
WASHING PROCEDURE AND COURSE SELECTION .......9
GENERAL PROCEDURE FOR OPERATION...................11
CARING FOR YOUR WASHER.........................................12
HOW TO CLEAN THE FILTER...........................................13
REMOVING STAINS............................................................14
TROUBLE SHOOTING........................................................15
SPECIFICATION..................................................................16
A NOTE TO YOU
Thank you for buying a DAEWOO appliance.
DAEWOO washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer properly and safely.
Please read it carefully.
DWF-200/240M(101) 97.1.194:21PM ˘`1

2
WATER TAP ADAPTER INLET HOSE

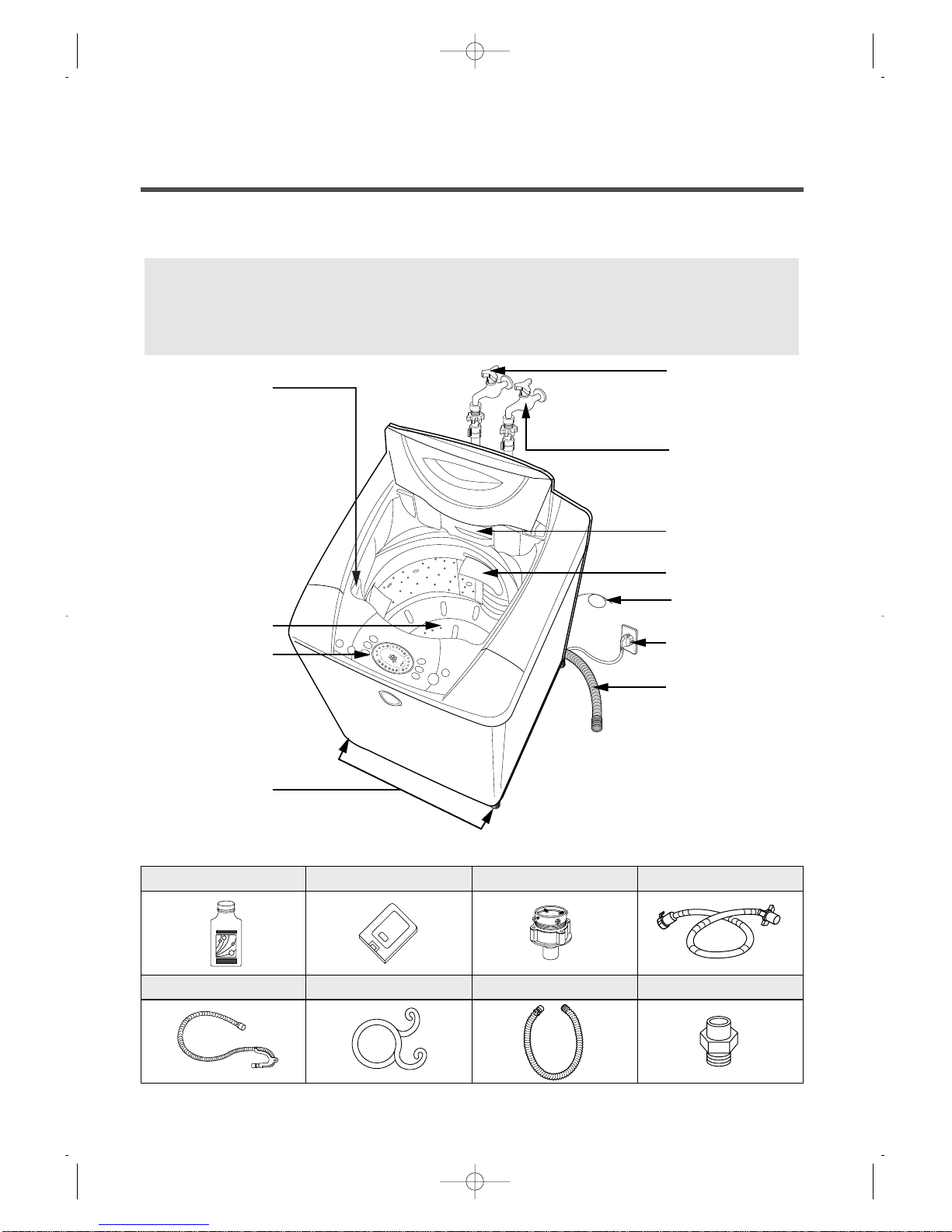

PARTS AND FEATURES
DRYTEN (OPTION) COVER UNDER (OPTION)
HOSE DRAIN (FOR NON-PUMP)HOSE DRAIN CLAMP
HOSE DRAIN (FOR PUMP) CONNECTOR INLET(OPTION)
UP
DRYTEN
The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
•
The drawings in this book may vary from your washer model.
They are designed to show the different features of all models covered by this book,
Your model may not include all features.
ACCESSORIES
•HOSE DRAIN
•POWER CORD
•LINT FILTER(2EA)
•HOT WATER TAP
•COLD WATER TAP
After using the washer,
close the water tap, In case
of the single valve model,
there is no hot water valve.
After using the washer,
close the water tap
In case of 3-wire power cord
ground wire will not be provided
•CASE DETERGENT
AND SOFTENER
•BLEACH INLET
•ADJUSTABLE LEG
•PULSATOR
•CONTROL PANEL
•GROUND WIRE(OPTION)
RINSE
1
1
3
5
7
9
6
234
10
14 18
SPIN
ECO.
HEAVY
FUZZY
NIGHT
WOOL
SOAK
BLANKET
FEED
DWF-200/240M(101) 97.1.194:21PM ˘`2

3
Read all instructions before using your washer
Save these instructions
Your safety is important to us.
To reduce the risk of fire, electrical shock, or injury when using your washer, follow
basic precautions including the following:
Understanding your responsibilities
•Do not wash items that are soiled with vegetable or cooking oil.
These items may contain some oil after laundering.
Due to the remaining oil, the fabric may smoke or catch fire by itself.
•Do not use chlorine bleach and ammonia or acid (Such as vinegar or rust remover) in the
same wash. Hazardous fumes can form.
•Unplug power supply cord before attempting to service your washer.
•Do not wash fiber glass materials.
Small particles can stick to fabrics and cause skin irritation.
•Do not use hot water that temperature is over 50˚C (120˚F).
It can cause a deformation of plastic parts.
•Do not spray water on the control panel and back cover of the washer.
It can cause a fire or an electric shock.
•Flammable fluids (dry-cleaning solvents,
kerosene, gasoline, etc.) should not be
used or stored in near your washer.
.Do not add flammable fluids to your wash
water.These substances give off vapors
that can create a fire hazard or explosion.
•Do not allow children to operate, play
with, or crawl on or inside your washer.
Supervise children closely when your
washer is used near them.
•After starting a cycle, do not reach into
the spin basket unless all motion stops.
•Do not tamper with the controls.
Please ...
•Have only a qualified person install, repair,
or replace parts on washer.
•Maintain washer properly.
•Protect washer from the weather and
keep it where the temperature will not fall
below freezing.
•Do not install the washer at a place of
extremely high humidity. It could cause an
Electrical shock or a short circuit.
•Connect washer to the correct outlet,
electrical supply, water supply, and drain.
•Ground washer properly.
WASHER SAFETY
•If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order
to avoid a hazard
•If the appliance is supplied from a cord
extension set or electrical portable outlet
device it should be positioned so it is not
subjected to splashing or ingress of moisture.
DWF-200/240M(101) 97.1.194:21PM ˘`3

4

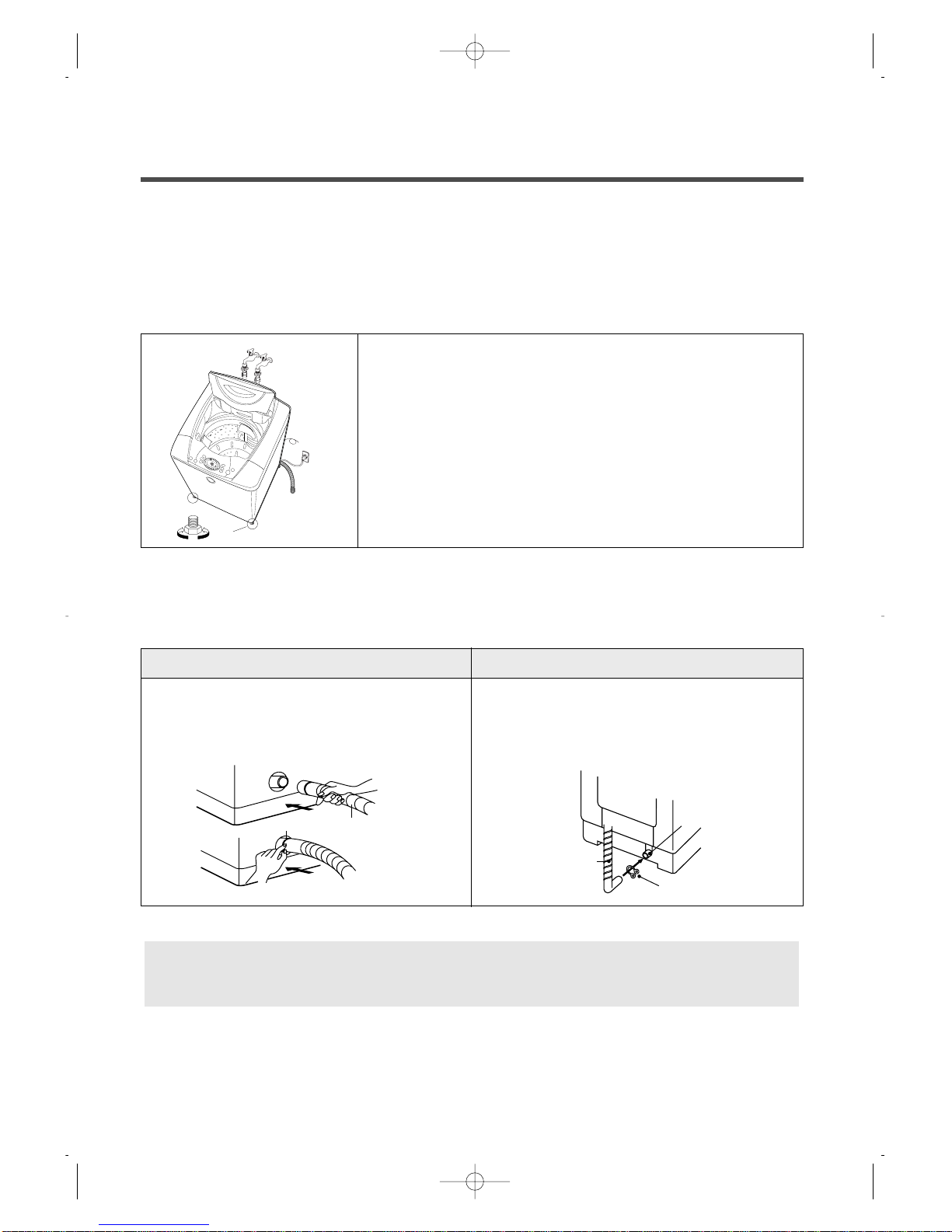

Non-Pump Model Pump Model
Location of washer
Check location where washer will be installed. Make sure you have everything
necessary for correct installation.
Proper installation is your responsibility.
•Do not place or store your washer below 0˚C (32˚F) to avoid any damage from freezing.
•Install the washer on the horizontal solid floor.
Drain system
Never forget to install drain hose before operating your washer.
The packing box is opened, there are a drain hose, and a hose clamp in the washer.
INSTALLATION IN STRUCTIONS
•Connect the drain hose to the drain outlet
at the back of the washer, and fasten
it tightly with the clamp attached.
•Connect the drain hose to the drain outlet
at the back of the washing machine,
and fasten it tightly with the clamp
supplied.
Hose clamp Drain hose
Hose Clamp
Drain Outlet
Drain hose
If the washer is installed on an unsuitable floor, it could
make considerable noise, vibration and cause a malfunction.
If washer is not level, adjust the front leg(A) up or down for
horizontal setting.
•Earthed electrical outlet(B) is required with 20cm of
bottom back of washer cabinet.
•Hot and cold water faucets (C) must be within 1M of the
upper back of the washer cabinet and provide water
pressure 0.3kgf/cm2-8kgf/cm2 (29.4kPa-784.5kPa).
C
UP DOWN A
A
B
NOTES
• The opening must not be obstructed by carpeting when the washing machine is
installed on a carpeted floor.
RINSE
1
1
3
5
7
9
6
234
10
14 18
SPIN
ECO.
HEAVY
FUZZY
NIGHT
WOOL
SOAK
BLANKET
FEED
DWF-200/240M(101) 97.1.194:21PM ˘`4

5
Recommended earthing method
WARNING

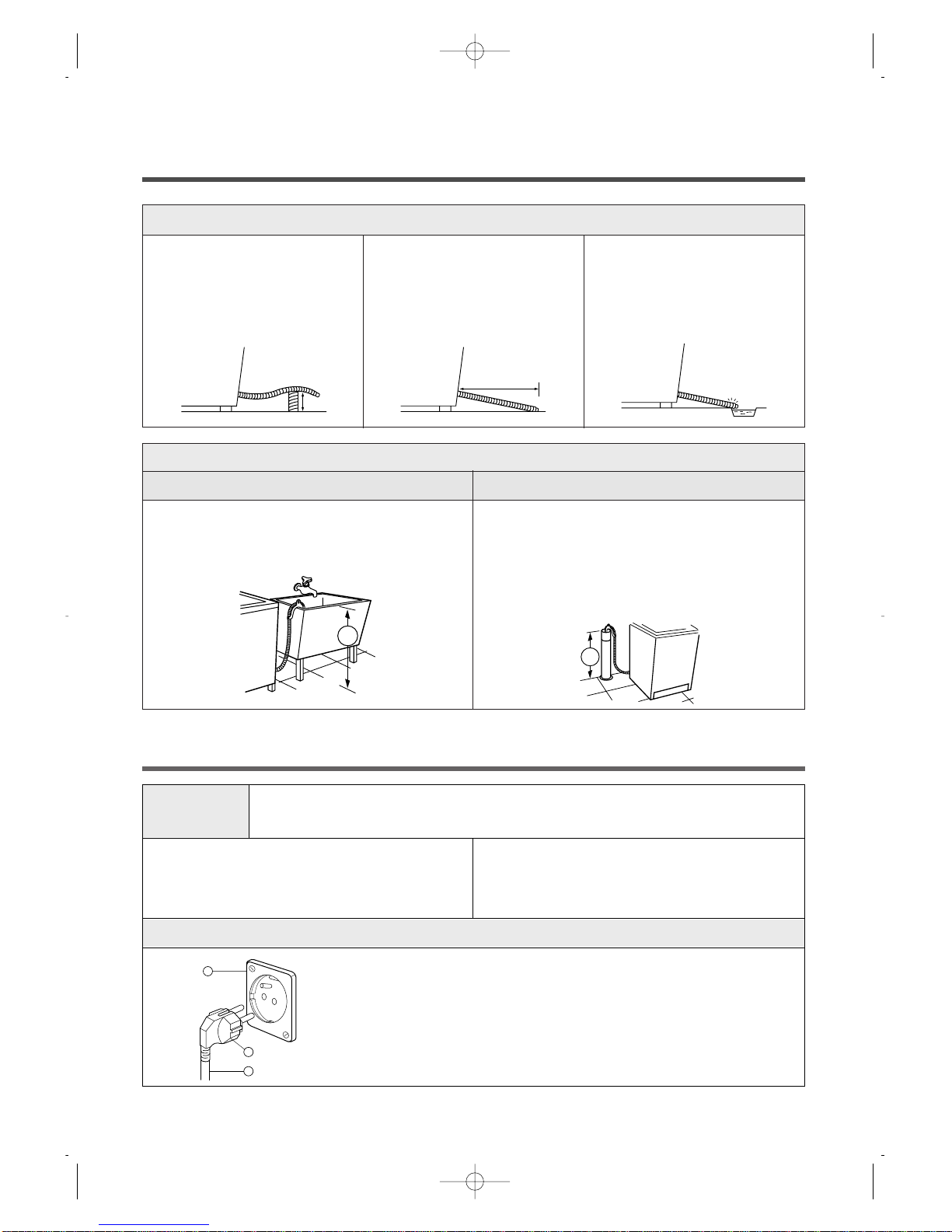

Laundry tub drain system Standpipe drain system
Pump Model
Non-Pump Model
1In case that it goes over
a door sill.
Don’t let the height of
the drain hose exceed
20cm from the bottom
of washer.
2In case of extending the
drain hose.
Don’t let the total length
exceed 3m.
3Be careful that the end
of the drain hose is not
immersed in water.
•Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (A)
•Needs a 3cm minimum diameter
standpipe with minimum carry away
capacity of 30liters per minute.
•Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (B)
20Cm
ELECTRICAL REQUIREMENTS
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord (A) having a
earthing plug (B). To minimize possible shock hazard, the cord must
be plugged into a mating earthing-type wall receptacle (C).
If a mating wall receptacle is not available, it is the personal
responsibility and obligation of the customer to have the proper
earthed wall receptacle installed by a qualified electrician.
•Electrical earth is required on this washer
•If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
•Don’t earth to a gas pipe
•Don’t change the power supply cord plug.
•Check with a qualified electrician if you are not
sure the washer is properly earthed.
electrical shock hazard:failure to follow these instructions could result in
death or serious injury.
3m
A
B
C
B
A
DWF-200/240M(101) 97.1.194:21PM ˘`5

6
Be careful not to confuse hot water inlet and cold water inlet.
In using only one water tap or in case of attached one water inlet valve, connect the
inlet hose to the cold water inlet valve.
For Screw-Shaped Tap
For Ordinary Tap
INLET HOSE CONNECTION
1Pull down the collar of
the inlet hose to separate
it from the water tap
adapter.
2Loosen the four screws
properly in fitting into
water tap.
3Fit the water tap adapter
into the water tap
and tighten the four
screws evenly while
pushing up the adapter
so that the rubber
packing can attach to the
water tap tightly.
4Remove the tape, and
screw connector B into
connect A tightly.
5Connect the inlet hose to
the water tap adapter by
pulling down the collar of
the hose end.
6Connect the inlet hose
adapter of the hose to
the water inlet of the
washer by turning it
clockwise to be fixed
tightly.
•Please check the rubber
packing inside the inlet hose
adapter of the hose.
1Connect the inlet hose to
the water tap by
screwing the connector
tightly.
2Connect the connector-
inlet supplied if
necessary.
3Insert the inlet hose
adapter into the water
inlet of a washer and turn
it to be fixed.
*Cheek the packing in the inlet
TAPE
.
Connector
Connector
Rubber
Packing
Hose
Connector
Connector
Rubber
Packing
Hose
Connector
inlet
Connector B
Connector A
DWF-200/240M(101) 97.1.194:21PM ˘`6

7
Loading
Sorting
Preparing clothes for washing
To obtain the best wahing results, you must operate your washer properly.
This section gives you this important information.
OPERATING YOUR WASHER
•Close zippers, snaps, and hooks to avoid
snagging other items.
Remove pins, buckles, and other hard
objects to avoid scratching the washer
interior.
•Empty pockets and turn them inside out.
•Turn down cuffs and turn synthetic knits
out to avoid pilling.
•Tie strings and sashes so they will not
tangle.
•Treat spots and stains.
(see "Removing stains" on page14)
•Drop items into washer loosely. Items
should move easily through wash water
for best cleaning and wrinkle-free results.
•Load washer properly and select correct
load size setting.
Overloading and selecting a setting too
small for the wash load can:
- cause poor cleaning
- increase wrinkling
- create excessive lint
- wear out items faster (because of pilling)
•Mix large and small items in each load.
Load evenly to maintain washer balance.
An off balance load can make the washer
vibrate during spin.
•Reduce wash time when using a small
load size setting. Loads with only a few
small items need less wash time.
•Use a large load size setting to reduce
wrinkling with permanent press clothes
and some synthetic knits. These items
should have more room to move in the
water than heavy items (towels, jeans)
•Separate heavily soiled items from, lightly soiled ones, even if they would normally be
washed together.
•Separate dark colors from light colors, color
DWF-200/240M(101) 97.1.194:21PM ˘`7

8

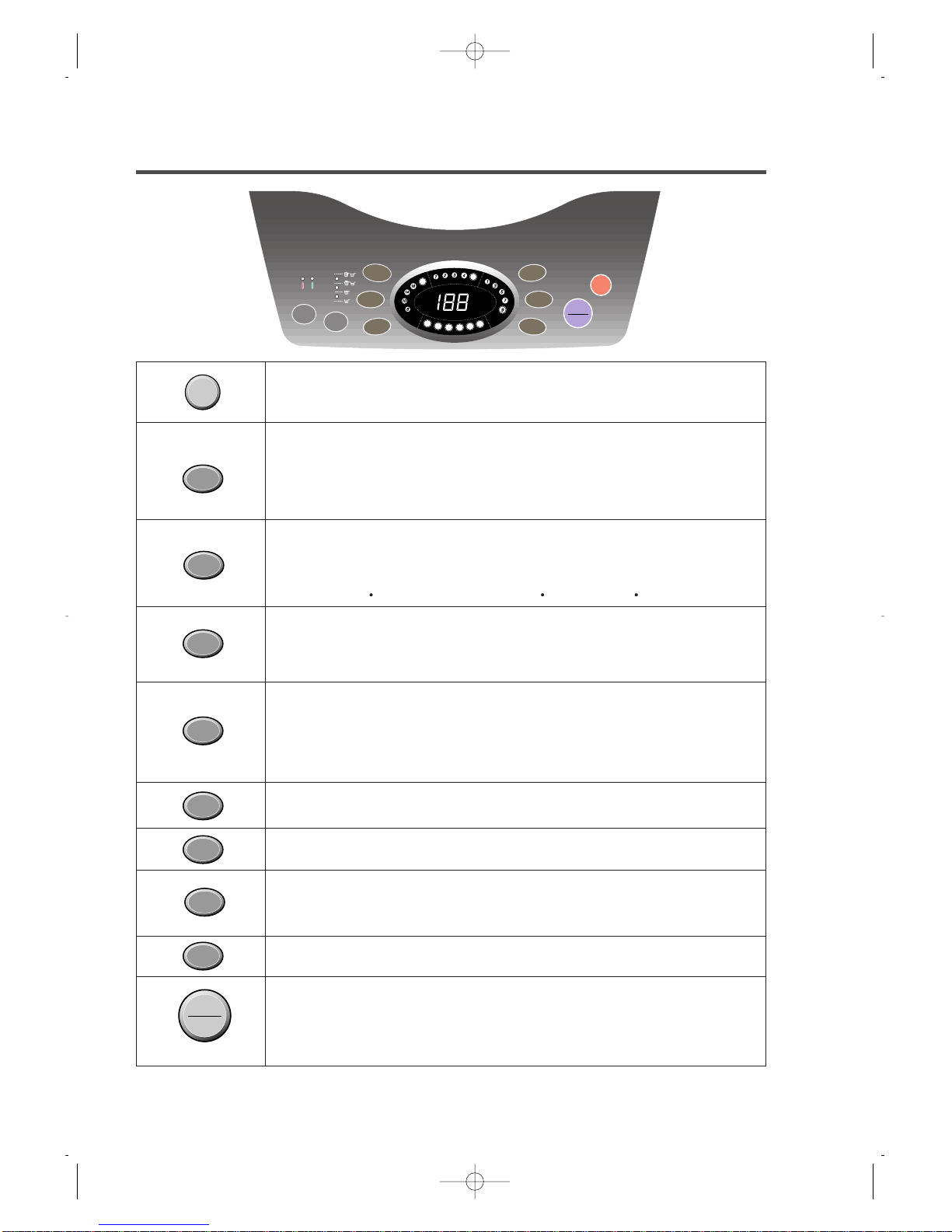

THE FUNCTIONS OF THE CONTROL PANEL
•Press this button to turn the power "ON" or "OFF".
•It can be used to choose water temperature to be supplied.
•As the button is pressed, water temperature will be repeated.
COLD ➝COLD + HOT ➝HOT
•In case of the single valve model, there is no wash temperature
selector function.
•It can be used to adjust amount of water according to the size of the
load to be washed.
•As the button is pressed, water level is selected by
•It can be used to adjust washing time.
•As the button is pressed, you will see the repeated.
MEDIUM ➝ ➝ HIGH ➝
•It can be used to select the full-automatic course.
•As the button is pressed, course will be selected by following order:
BLANKETFUZZY ➝➝ WOOL ➝LIGHT ➝HEAVY ➝ECONOMY.
•This button selects the number of times you want to rinse.
•As the button is pressed, It will repeat.
1 time rinse 1 time shower feed ➝ 2 times rinse ➝ 2 times shower feed ➝ ➝
3 times rinse 3 times shower feed➝4 times rinse 4 times shower feed➝
➝
➝OFF➝
•In case of the pump model, there is no shower rinse or spray rinse selector function.
•Operation and temporary stop is repeated as it is pressed.
•When you want to change course in operating;
press the "START/HOLD" button ➝Select the course that you want to
change ➝press the "START/HOLD" button again.
POWER
WASH
TEMP.
WATER
LEVEL
WASH
RINSE
•It can be used to change spin time.
•It can be used to pre-engage time for wash.
•As the button is pressed, it will repeat. 5 7 ➝9➝1➝3
➝OFF
SPIN
RES.
•It can be used to selet the economic course.
ECONOMY
COURSE
HOLD
START
FULL
A
U
T
O
M
A
T
I
C
W
A
S
H
I
N
G
M
A
C
H
I
N
E
Millennium
F
U
L
L
A
U
T
O
M
A
T
I
C
W
A
S
H
I
N
G
M
A
C
H
I
N
E
WATER
LEVEL
COURSE
WASH
TEMP.
START
HOLD
POWER
WASH
RINSE
SPIN
RES.
WASH TEMP.
REMAIN
H.
WASH
HOT COLD
RES.
MIN.
SPIN
RINSE
OE
IE
LE
UE
SOAK FEED
FUZZY
BLANKET
WOOL ECO.
DETERGENT
NIGHT HEAVY
HOUR.
ECONOMY
M.
L.
E.L.
➝ ➝ LOW ➝E.LOW
6➝10 ➝ ➝ 18 ➝OFF➝
SOAK(WASH 18 MIN. + SOAK 60 MIN.) 14
DWF-200/240M(101) 97.1.194:21PM ˘`8

9
FULL AUTOMATIC COURSE
1. FUZZY COURSE (SENSOR);
•This selection is for general washing except extraordinary clothes.
•It is possible for changing water temperature what you want.
•Artificial brain sensor selects properly the various kind of washing condition such as
washing time, rinse times, spin time and water level.
2. BLANKET COURSE;
•This selection is effective for blanket, curtain, carpet, etc ...
•Do not wash general-electric blanket absolutely. (4kg’s limitation for one-time-wash)
Procedure to press the button;
4. LIGHT COURSE
•This selection is effective for washing light or less dirty wash. Procedure to press the button;
•Washing time, Rinse times and spin time are selected by artificial brain sensor automatically depend on
•Also, it is possible for changing water temperature what you want.
amount of Laundary.
3. WOOL COURSE
•This selection is effective for wool clothes.
•Do not put leather clothes, or chamois clothes into the washing tub for washing.
It may cause shrinkage or deformation to the clothes.
•Please use the neutral deter gents only.
•The water temperature is fixed to "COLD"
•The water level is fixed to "MEDIUM".
•1.5kg’s limitation for one-time-wash.
WASHING PROCEDURE AND COURSE SELECTION
POWER
START
HOLD
COURSE
POWER
START
HOLD
adjust to
"WOOL"
POWER START
HOLD
COURSE
adjust to water
level and water
temperature and
washing time, rinse times,
spin time.
6. ECONOMY COURSE;
•This selection is useful to reduce water consumption and washing time for less dirty
•It is possible to use exclusive button.
clothes.
POWER
COURSE
START
HOLD
adjust to
"ECONOMY" adjust to
water level and
water temperature and
washing time, rinse times,
spin time.
adjust to
"BLANKET"
COURSE
POWER
START
HOLD
adjust to
"LIGHT"
5. HEAVY COURSE
•This selection is effective for blue-jean, climbing clothes, ruck sack, sports wear, etc ...
•Washing time, Rinse times and spin time are selected by artificial brain sensor automatically depend on
•Also, it is possible for changing water temperature what you want.
a mount of Laundary.
COURSE
POWER
START
HOLD
adjust to
"HEAVY"
DWF-200/240M(101) 97.1.194:21PM ˘`9

10
GUIDES FOR OTHER USEFUL PROGRAMS
Reserved Washing
• Reservation can be made from 2 hours to 48hours.
example) To make reservation to complete washing in 8hours.
• Now the reservation is mode.
• WOOL course is not selected.
• The displaying time shows the finishing time you want.
Partial Selection Among Wash, Rinse or Spin
REMAIN
adjust to "8"
REMAIN
"--" shall blink
adjust to
the course
you want.
close
the lid
HOUR
RES
HOUR
RES
RES.RES.COURSE
HOLD
START
Procedure of processing
Only Wash
Only Rinse
Wash &
Rinse
Wash & Spin
Only Spin
Again the
Rinse &
Spin, after
washing
Only Drain
1Press
the Power
button
2Select the
washing time what
you want.
2
Select the rinsing
times what you want.
2Select the
washing time &
rinsing times what
you want.
2Select the
washing time&
spining time what
you want.
2Select the
spining time what
you want.
2Select the rinsing
times & spining time
what you want.
2Press the Spin
button.
Partial
process
POWER
WASH
RINSE
RINSE
WASH
WASH
SPIN
RINSE
RINSE
SPIN
SPIN
3Select the water
level and water
temperature what
you want.
WATER
LEVEL
WASH
TEMP.
4Press the
Start/Hold button
with closing
Lid(Door)
. After this process,
the Drain Process is
not happen.
If want, use the Spin
button.
(Refer to below)
HOLD
START
After process, the
buzzer give the
information.
And then, The
Power switch will be
soon turned off
automatically.
3Press the
Start/Hold button
with closing
Lid(Door)
HOLD
START
3Press the
Start/Hold button
with opening
Lid(Door)
After process, the
buzzer give the
information and PCB
display the “LE”
signal.
But, The Power
switch is not turned
off automatically.
HOLD
START
DWF-200/240M(101) 97.1.194:21PM ˘`10

11
GENERAL PROCEDURE FOR OPERATION
1. Add measured detergent to the washer, (Follow manufacturer’s directions for safe use)
2. OPTIONAL STEP
If desired, add measured liquid chlorine bleach to the bleach inlet, use only liquid chlorine
in the bleach inlet
* Follow manufacturer’s direction for safe use.
4. Close the washer lid (door)
5. Press the power button.
6. Select the cycle. The full automatic cycle has four settings; FUZZY, BLANKET, WOOL, LIGHT
HEAVY, ECONOMY.(See page 9)
3. OPTIONAL STEP
•Pour liquid fabric softener into the dispenser using the amount recommended on the package.
Avoid dripping or spilling any fabric softener on the load.
•Dilute fabric softener with warm water.
Fill dispenser with warm water until liquid reaches the base line in the case.
The dispenser is for liquid fabric softener use only. (See page 2)
•The liquid fabric softener will be put into the TUB automatically when final Rinse process.
7. Press the START/HOLD button.
NOTE
• Do not let bleach splash, drip, or run down into washer
basket.
Undiluted bleach will damage any fabric it touches.
• Do not use this dispenser to add powdered chlorine or
color safe bleach to your wash load. The dispenser is for
liquid chlorine bleach use only.
Detergent
Inlet Hole
Base Line
Softener inlet
DWF-200/240M(101) 97.1.194:22PM ˘`11

12
To winterize washer To use washer again
Exterior Interior
CARING FOR YOUR WASHER
Proper care of your washer can extend its life. This section explains how to care for
your washer properly and safely.
Cleaning your washer
Winter storage or moving care
Install and store your washer where it will not freeze. Because some water may stay in the
hoses, freezing can damage your washer.
If storing or moving your washer during freezing weather, winterize it.
Non-use or vacation care
Operate your washer only when you are at home.
If will be on vacation or not using your washer for an extended period of time, you should:
•Unplug the power supply cord or turn off eletrical power to the washer.
•Turn off the water supply to the washer .
This helps avoid accidental flooding (due to a water pressure surge) while you are away.
Wipe up detergent, bleach, and other spills
with a soft, damp cloth or sponge as they
occur. Occasionally wipe the outside of the
washer to keep it looking like new one.
Clean interior with 250ml of chlorine bleach
mixed with 500ml of detergent.
Run washer through a complete cycle.
Repeat process if necessary.
•Turn off water faucet.
•Disconnect and drain water inlet hoses
•Run washer on a drain and spin setting
(see page 10) for 1 minute.
•Unplug the power supply cord.
•Flush water pipes and hoses.
•Reconnect water inlet hoses.
•Turn on water faucet.
•Reconnect power supply cord.
Do not put sharp or metal object in your
washer, they can damage the finish. Check all pockets for
pins, clips, money, bolts, nuts, etc.
Do not lay these objects on your washer after emptying
pockets.
DWF-200/240M(101) 97.1.194:22PM ˘`12

13
HOW TO CLEAN THE FILTER
Cleaning the Lint Filter
Cleaning the drain filter
•In case "Pump-Model" drain hose, this filter’s equipped at the back side of washer.
•This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ...
•If the drain filter is not cleaned at proper time (every 10 times of use), Drain problem could
be caused.
1Pull the Fiter frame up-
ward. 2Turn the lint filter inside
fout, wash to the lint of 3Return the filter as it was,
and insert the filter frame
1Pull the power
plug out before
cleaning it.
2Turn off the water
supply to the
washer and
sperate the inlet
hose.
3Pull the inlet filter
out. 4Remove the dirt from the inlet
filter with a brush.
1Put down the remained
water in the hose. And
put a container under the
2Turn the cap counter 3Pull out the filter
assembly.
4Clean the drain filter. 5Put in the filter along the
guiding prominence of
the case. Please note the
left position of the filter
adjusting the groove to
the guide rib.
6Turn the cap clockwise
Cleaning the water inlet filter
• Clean the filter when water leaks from, the water inlet.
with water
Filter Frame
Lint Filter
filter to collect water .
FILTER CONTAINER
clockwise.
CAP
CASE
FILTER
CAP
CAP
FILTER
CASE
GUIDE
RIB
SUIT
into the slot
CAP
tightly.
CAP
DWF-200/240M(101) 97.1.194:22PM ˘`13

14
Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results.
Soaking helps remove protein-type stains like blood, milk, or grass. Prewashing helps loosen
soil before washing.
Stain removal rules
•Use warm water for soaking or prewashing stained laundry. Hot water can set stains.
•Most stains are easier to remove when they are fresh. Old or set stains may not coconut
•Before treating any stain, find out what kind of stain it is, how old the stain is, what kind of
fabric it is, and if the fabric is color fast. (Check the care label)
•Washing and drying can set some stains.
•Start with cold or warm water, hot water can set some stain.
•When bleach is recommended, use a bleach that is safe for the fabric.
•Put the stained area face down on a paper towel or white cloth. Apply the stain remover
to the back of the stain. This forces the stain off fabric instead of through it.
Stain removal guide
STAIN TO REMOVE
REMOVING STAINS
Blood
Chewing gum
Cocoa, Chocolate
Coffee
Cream/Milk
Ice cream
Deodorant
Egg
Fabric/Softener
Fruit stains
Grass
Grease and oil
Iron or rust
Lipstick
Mildew
Mud
Paint-oil based
Paint-water based
Scorch marks
Rinse immediately in COLD water.
If stain remains, soak in cold water with an enzyme prewash.
Use ice in plastic bag to harden the gum.
Scrape off what you can and then sponge with white spirits.
Sponge with COLD water and soak in an enzyme prewash.
If stains persist, rub in a little detergent and rinse in cold water.
Blot up quickly and rinse out in COLD water.
Rub in a little detergent and wash in the maximum temperature allowed for the
fabric type.
Rinse in COLD water and wash normally.
If stain is still apparent, sponge with white spirits.
Rub affected area with white vinegar and then rinse under running COLD water.
Sponge with white spirits.
Treat stiffened areas with enzyme prewash
Soak in a COLD enzyme prewash, rinse and wash normal.
Rub affected area with bar soap and wash normally.
Treat as soon as pressible by sponging with COLD water.
Rub a little detergent on the stain and wash normally
Sponge with white sprites.
Rub in an enzyme prewash and wash as normal
Lay the affected area face down on an absorbent cloth and work from the back.
Sponge with white spirits or dry cleaning fluid. Wash normally.
Apply lemon juice and salt and place in the sun. Wash normally.
Sponge with white methylated spirits and wash normally.
Wash in WARM water and detergent.
Moisten area with lemon juice, dry in the sun and wash normally.
If stain persists and the fabric allows, use a bleach.
Brush off any dry mud. Rinse in cold water.
If stain persists rub in a little detergent and wash normally.
Scrape off any fresh paint and sponge with a non flammable dry cleaning fluid
and wash normally.
Treat while still wet, rinse in WARM water and wash normally.
Dampen a cloth with hydrogen peroxide, lay it over the affected area and press
with a fairly hot iron.
DWF-200/240M(101) 97.1.194:22PM ˘`14

15
PROBLEM CHECK POINT
• These cases are not malfunctions
• The sound "wing" heard during water supply is the operating sound made by the water
inlet valve.
• The sound "sha" heard in stopping the tub is the sound that comes from the
autobalancer of the tub.
• The sound "wung" heard during wash or spin is the operating sound made by the air
bubble generator.
TROUBLE SHOOTING
•The washer will not spin;
If the clothes is collected on one side
during spin and the tub becomes
unbalanced, the spin operation will be
interrupted, and then this unbalanced
condition will be corrected by following
operation: WATER SUPPLY RINSE
DRAIN However if the unbalanced
condition is unchanged despite repeating
the above operation, the lamp will
light up, and the buzzer will sound to
indicate a problem.
Most problems are easily solved if you understand the cause.
Check the following list for problem befor calling for service.
Before calling for service, check these
•The washer will not
operate at all.
•Water is not supplied;
If water supply is not finished within 20
minutes, the lamp will light up, and
the buzzer will sound to indicate a problem.
•The washer will not drain;
If the drain is not finished within selected
time, lamp will light up, and the buzzer
will sound to indicate a problem.
•Is there a power failure?
•Is the power cord correctly connected to an electric outlet?
•Is the electric fuse broken?
•Did you turn on the power?
•Did you press Start/Hold button?
•Is there correct amount of water in the tub?
•Did you connect the inlet hose and open the water tap?
•Is the inlet hose or the water tap frozen?
•Is the water supply shut off?
•Does foreign matter block up the inlet hose filter?
•Is the drain hose frozen or blocked up by dirt?
•Is the drain hose kinked or deformed?
•Is the end of the drain hose immersed in water?
•Is there excessive dirt inside the pump housing?
•Is the clothe in the tub collected on one side?
•Is the washing machine installed on an uneven floor or is the
vibration serious?
•Is the lid open?
(The lamp will light up in this case.)
NOTE
Please check the point before calling for a service.
If the supply cord is damaged, it must only be replaced by a repair shop appointed by
manufacturer, because special purpose tools are required.
DWF-200/240M(101) 97.1.194:22PM ˘`15

16
MODEL NO. DWF-200M DWF-240M
Power Source
AC110~127V, 220V/60Hz AC220~240V/50Hz AC100~127V, 220V/60Hz AC220~240V/50Hz
Power Consuption 550W 480W 600W 550W
Dimension (W✕H✕D, mm) 630 ✕1040 ✕670 630 ✕1060 ✕670
Unit Weight 47kg / 48kg (Pump) 49kg / 50kg (Pump)
Standard Water Consumption 250 270
Standard Water Level
•HIGH (97 ) •MEDIUM (77 )
•LOW (66 ) •E.LOW (42 ) •HIGH (103 ) •MEDIUM (87 ) •LOW (70 ) •E.LOW (43 )
Operating Water Pressure 0.3kgf/cm2~8kgf/cm 2(29.4kPa~784.5kPa)
Wash Mode
Multi — Washing Type (Radical + Air-Bubble + Pulsator)
SPECIFICATION
NOTE
• In case of moving Washing Machine, please follow the following
picture.
Front Top
DWF-200/240M(101) 97.1.194:22PM ˘`16
