USER´S MANUAL
GAE 50-80-100
WATER PUMPS

TABLE OF CONTENTS
1.0 - OPERATION SAFETY
1.1 - Operation Safety 2
2.0 - COMPONENTS
3
3.0 - PRE-OPERATION INSPECTION
3.1 - Engine Oil Check 4
3.2 - Fuel Level Check 5
3.3 - Air Filter Check 6
3.4 - Hose Connections 7
4.0 - OPERATION
4.1 - Pump Placement 8
4.2 - Priming Water 9
4.3 - Starting Trash Pump 9
4.4 - Stopping the Engine 10
5.0 - MAINTENANCE
5.1 - Importance of Maintenance 11
5.2 - Maintenance Schedule 11
5.3 - Oil Maintenance 12
5.4 - Air Filter Service 13
5.5 - Spark Plug Service 14
5.6 - Fuel Sediment Cup 15
5.7 - Fuel Drainage 15
5.8 - Impeller Cleaning 16
5.9 - Transportation 17
5.10 - Storage 17
5.11 - External Parts Cleaning 18
6.0 - TROUBLESHOOTING 18
7.0 - SPECIFICATIONS 19
1
English

1.0 - SAFETY PRECAUTIONS
1.1 - Operation Safety
• Always perform a pre-operation check before starting the engine.
• Properly clean and maintain the equipment.
• Operate the Trash Pump according to instructions for safe and
dependable service.
• Read user manual carefully before operating this product! Failure to do
so may result in serious harm to the user and to the equipment.
• This product emits poisonous carbon monoxode gas. Do not operate in
an enclosed area.
• Be careful not to touch the exhaust system during operation due to risk
of burns.
• Pay attention to the warning labels. The engine exhaust system will
become heated during operation and remains hot immediately after the
engine is stopped.
•
ventilated area with the engine stopped.
• When refueling the Trash Pump, keep it away from cigarettes, open
• Place at least 5ft away from buildings or other equipment during
operation.
• Run on a level surface to avoid fuel spills
• Know how to stop the engine quickly and understand operation of all
the controls. Never permit anyone to operate this equipment without
proper training.
• Keep children, pets and machinery with rotating parts away during
operation.
• Do not touch the spark plug while the engine is operating or shortly after
the engine has been shut down.
• Do not use this product to work with caustic liquids.
English
2

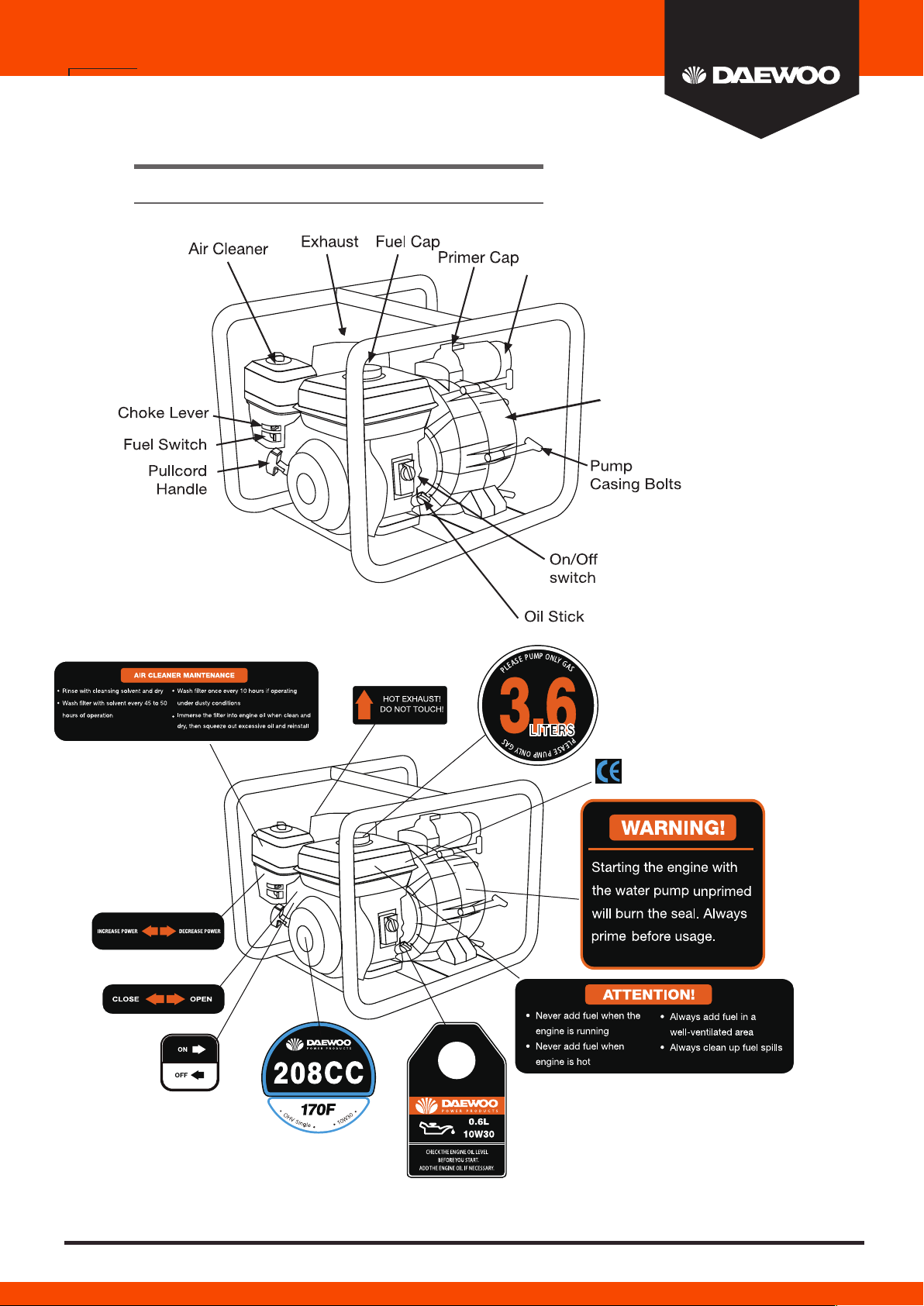

2.0 IDENTIFICATION OF COMPONENTS
Outlet Port
Trash Pump
English
3

3.0 - PRE-OPERATING PROCEDURE
Inspect all components for damage and to ensure that none are missing. If
you require a replacement, do not operate this tool until all parts are present
and in proper working order.
Do not modify or create accessories for this equipment. Using modified
components may result in damage and may void the warranty. Contact
customer service if you suspect that this equipment has been tampered with.

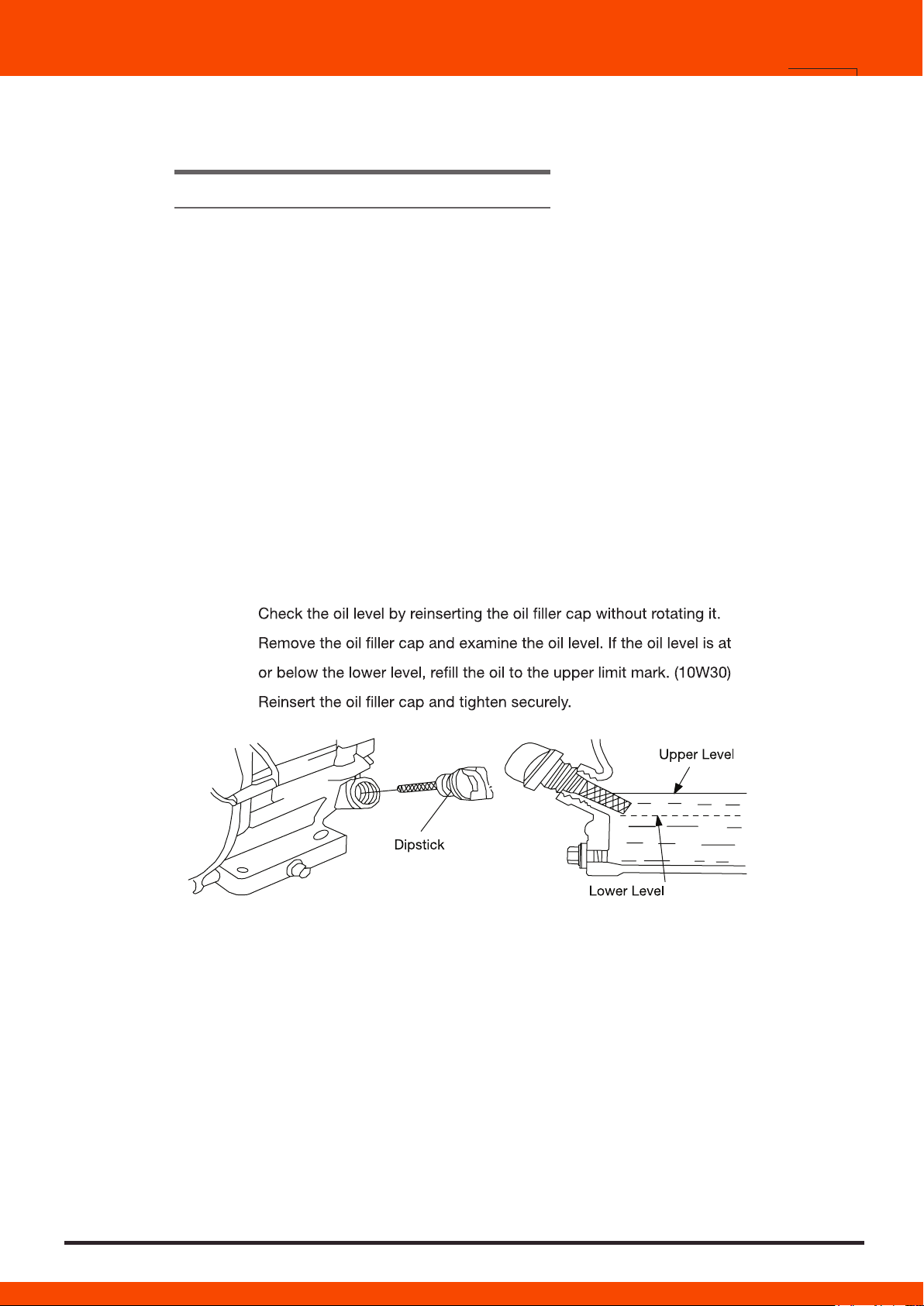

3.1 - Engine Oil Check
1. Ensure the Trash Pump is on a level surface.
2. Inspect engine oil:
• Take out the dipstick and clean it with a dry towel.
•
English
4

3. If necessary, add engine oil - Open oil inlet located opposite the recoil
starter handle. Remove the dipstick and pour in the supplied oil with a
funnel. Do not operate without oil.
Reservoir can hold maximum 20 fl.oz of 10W30 oil - do not over fill.
Engine oil is a major factor affecting engine performance and service life. Non-
detergent or vegetable oils are not recommended.
3.2 - Fuel Level Check
1. Check the fuel level by opening the tank and visually inspecting
2.
English
5

Gasoline is highly flammable and explosive under certain conditions. Refuel in
a well-ventilated area with the engine stopped. Do not smoke or allow open
flames or sparks in the area where the Trash Pump is being refueled or where
gasoline is stored. Do not overfill the tank. Be careful not to spill fuel when
refueling. Wipe up any spilled gasoline and let the area dry before starting the
engine. Gasoline substitutes such as gasohol are not recommended. They
may be harmful to the fuel system components
3.3 - Check the Air Filter
1.
element and inspect for cleanliness.
2.
and then soak in clean engine oil.
3. Squeeze out all excess oil and reinstall. Replace the element if it is
damaged.
Check the air filter according to the maintenance schedule. Always inspect
the air filter before using the Trash Pump. Clean Air Filter every 3 months or
after 50hrs of operation according Section 5.4: Air Filter Service procedure.
English
6

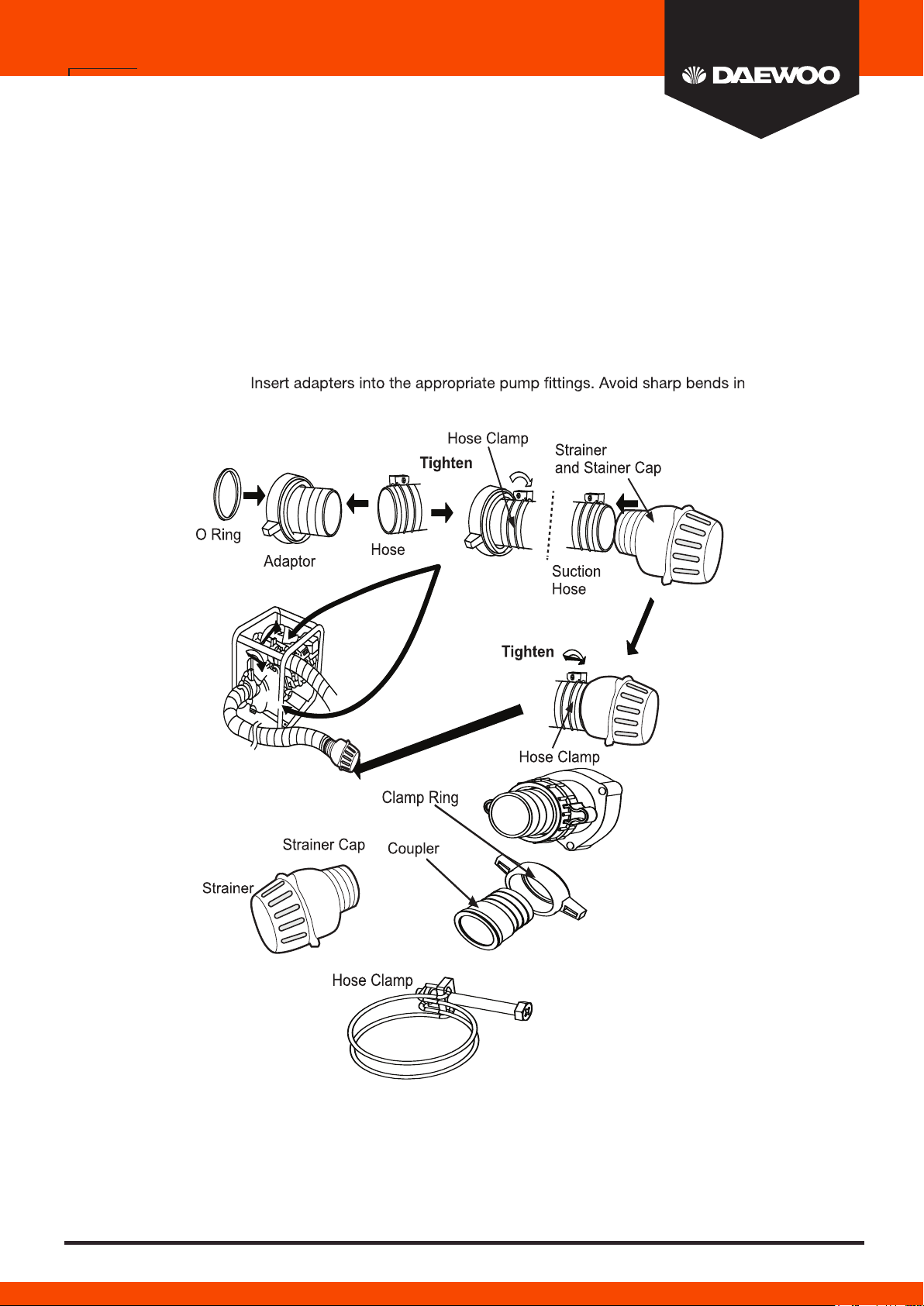

3.4 - Hose Connections
1. Insert adapters into each end of the suction and discharge hoses.
2. Attach O-Rings to the adaptors.
3. Tighten the hose clamp around the discharge hose.
4. Insert strainer into the suction hose and tighten the hose clamp around
the hose.
5.
the hoses and do not place heavy objects on top.
7
English

4.0 - OPERATION
4.1 - Pump Placement
Placement is an important step in safely operating this product.
1. Refer to diagram for proper placement instructions.
2. Ensure that the suction head is less than the discharge head.
3. Increasing the discharge head will decrease output.
4. Ensure pump is primed to minimize the suction head.
Suction head is the height to which a pump can raise water on the suction
side, measured from the water level in the sump. Discharge head is the vertical
distance between the intake level of the water pump and the level at which
it discharges water freely. Total head is the sum of the suction and discharge
head.
8
English

4.2 - Priming Water
Make sure to prime the pump with water prior to operating it. Priming creates
a vacuum that helps to start the flow of water.
1. Unscrew the primer cap and insert the neck of the water container into
the opening. Gradually tilt until the reservoir is full.
2. Tighten the cap back on.
3. In case of dry operation (running the pump without priming), stop the
engine immediately and allow it to cool before following the priming
procedure.
Do not operate without priming. Doing so will overheat the engine and result
in damage to the system. Ensure that the priming water does not contain
debris.
4.3 - Starting the Trash Pump
RECOIL START METHOD
1. Rotate the fuel valve lever to ON position.
2. If the engine is cold: Push the choke lever to the CLOSE position out to
close the choke.
9

3. Grasp the recoil starter handle and pull it until the engine starts.
Do not allow the recoil starter to snap back. Return it slowly by hand
4. Push the choke lever to the OPEN position as the engine warms up. The
choke is used to provide the proper mixture when the engine is cold. It
can be opened and closed manually by moving the choke lever to the
closed position to enrich the mixture for cold starting.
5. After 5 minutes, slowly push the throttle lever to the OPEN position.
Engine RPMs will increase until engine reaches its stable running speed.
If the engine backfires or does not start repeated attempts, contact customer
support and do not attempt to use the Trash Pump.
4.4 - Stopping the Engine

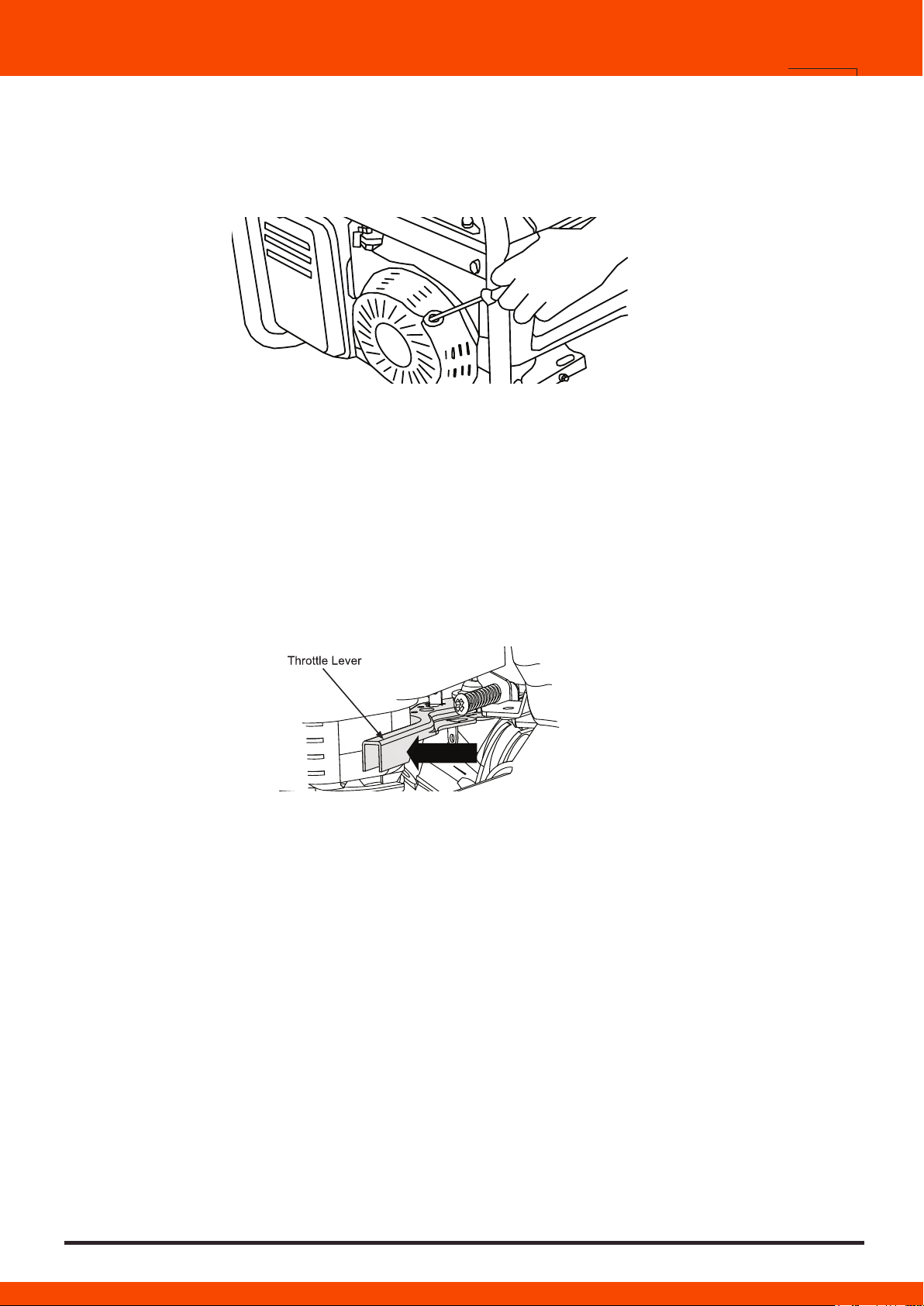

1. Return the throttle lever to the IDLE position (towards the right)
2. Turn the engine switch to the OFF position
3. Turn the fuel valve to the OFF position
In an emergency, the engine can be quickly stopped by turning the engine
switch to the OFF position.
10
English

5.0 - MAINTENANCE
5.1 - Importance of Maintenance
Proper maintenance ensures safe, economical and trouble-free operation. Improper
maintenance may cause the Trash Pump to malfunction and can lead to serious
injuries. Contact daewoo Power Customer Support if you have any maintenance
questions.
5.2 - Maintenance Schedule
ITEM TASK DAILY
EVERY
20
HOURS
EVERY
50
HOURS
EVERY
100
HOURS
EVERY
300
HOURS
Spark
Plug
Check condition,
adjust gap and clean.
Replace if necessary.
•
Engine Oil
Check oil level •
Replace • •
Air Filter Clean, replace if
necessary •
Fuel Filter
Clean fuel valve and
necessary.
•
Valve Clear-
ance
Check and adjust
when engine is cold. •
Fuel Line
Check fuel hose for
cracks and other
damage. Replace if
necessary.
•
Exhaust
System
Check for leakage.
Tighten or replace
gasket if necessary.
•
Clean or replace if
necessary.
•
Carburetor Check choke opera-
tion • •
Cooling
System
Check for water dam-
age. •
Starting
System
Check recoil starter
assembly. •
English
11

5.3 - Oil Change and Oil Drainage
Used motor oil can cause skin irritations if left in long-tern contact with skin.
Wash hands thoroughly with soap and water after handling oil.
Do not dispose of used oil in drains or on soil. Local service shops provide
environmentally-friendly disposal methods.
1.
2. Place a pan under the engine.
3. Remove the oil drain screw and allow the oil to completely drain into the
pan.
4.
5.
12
English

5.4 - Air Filter Service
Using gasoline or other flammable solvents can cause a fire or explosion. Do
not use these to clean the air filter.
Do not operate this product without an air filter.
1.
2.
3.
4.
English
13

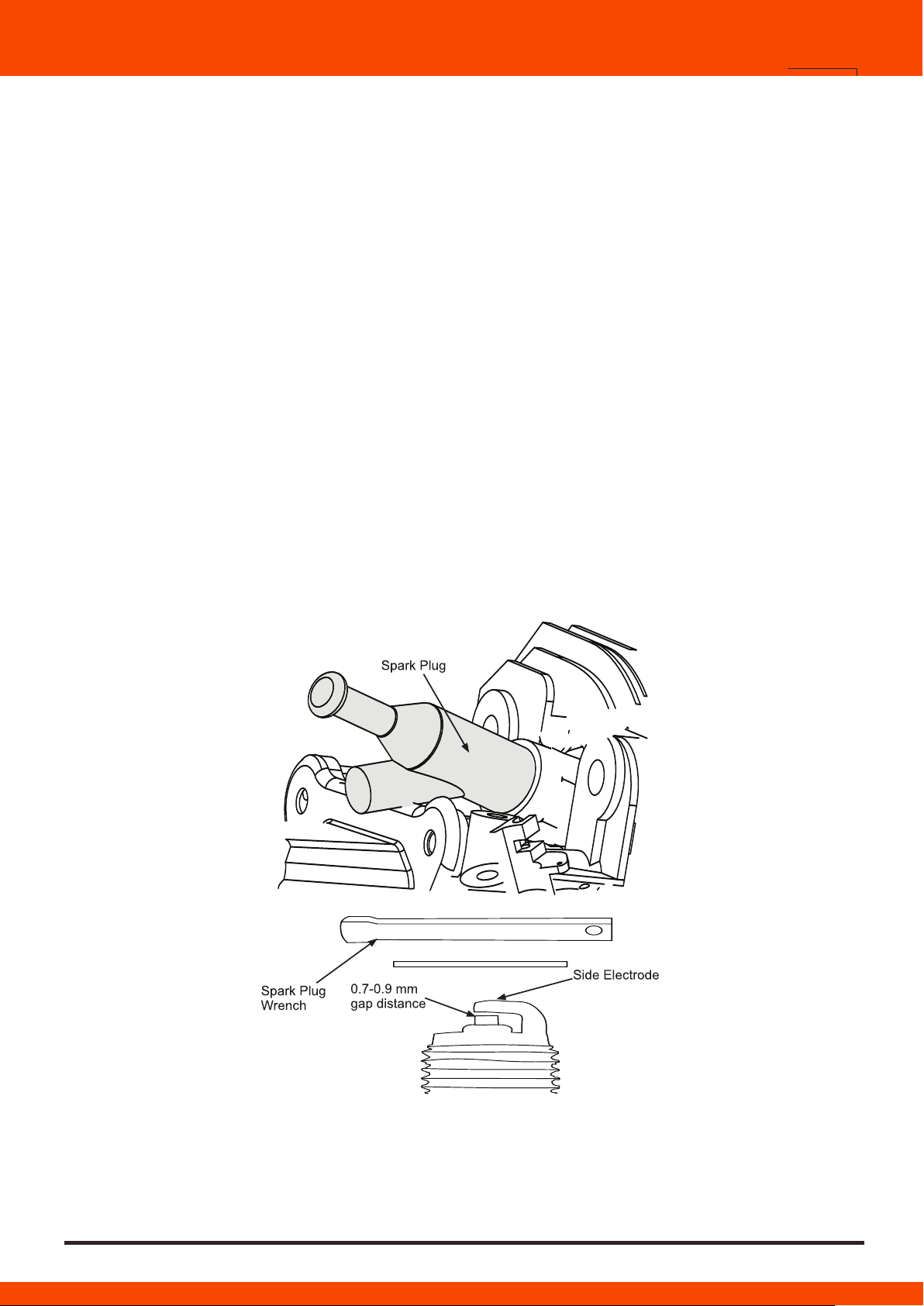

5.5 - Spark Plug Service
Do not rinse spark plug in water. Follow guidelines and be careful not to
overtighten the spark plug.
Tighten ½ turn when installing a new spark plug.
Tighten ¼ turn when re-installing an old spark plug.
1. Disconnect and remove the spark plug using a wrench.
2. Inspect the spark plug and clean any dirt from the electrodes with a wire
brush. If electrodes are worn or show signs of wear, replace spark plug.
3. Measure the electrode gap with a spark plug gauge and adjust as
necessary by bending the side electrodes. Ensure that the gap is
between 0.7 and 0.9mm
4. Reinsert the plug carefully. Tighten with a spark plug wrench.
14
English

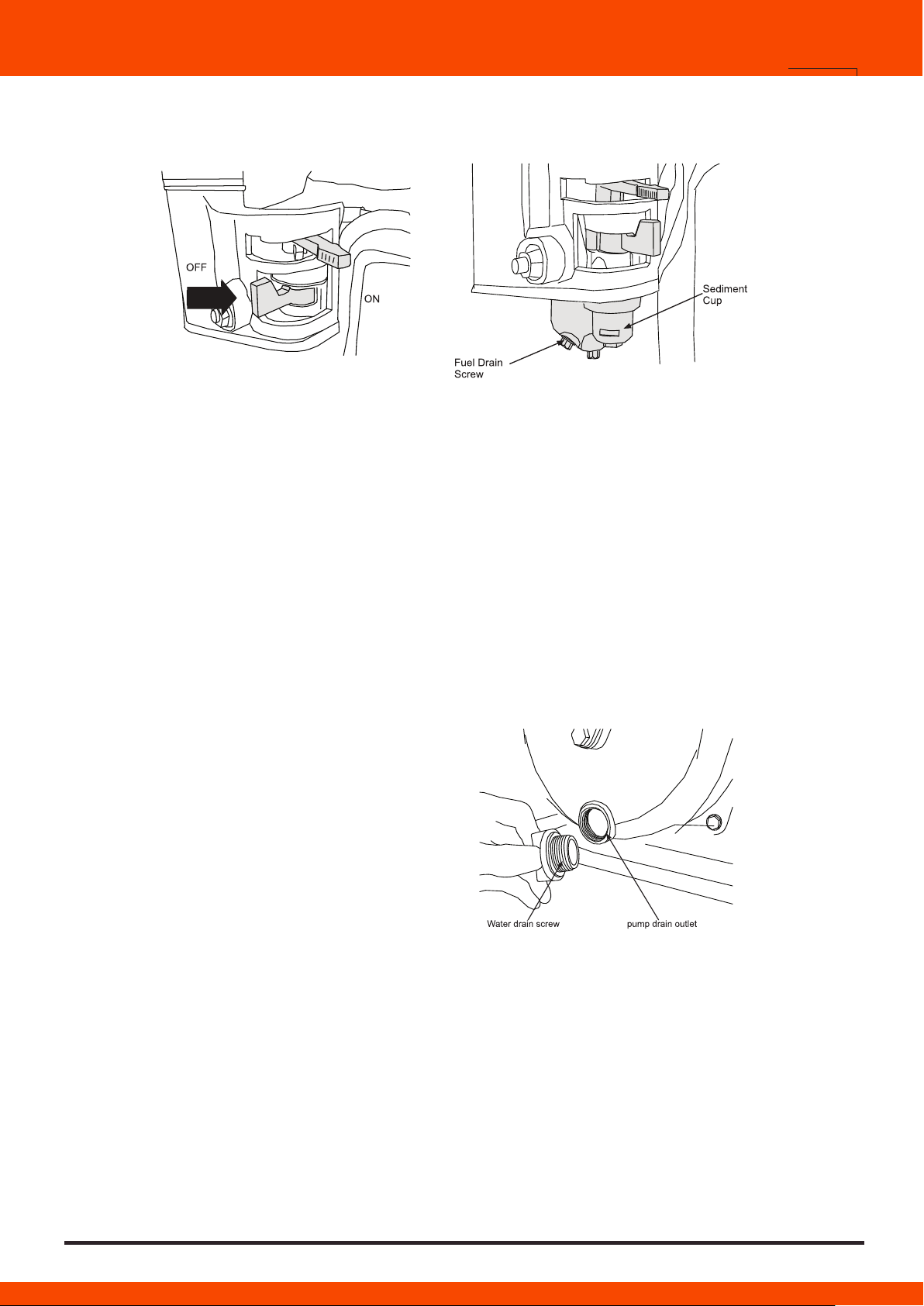

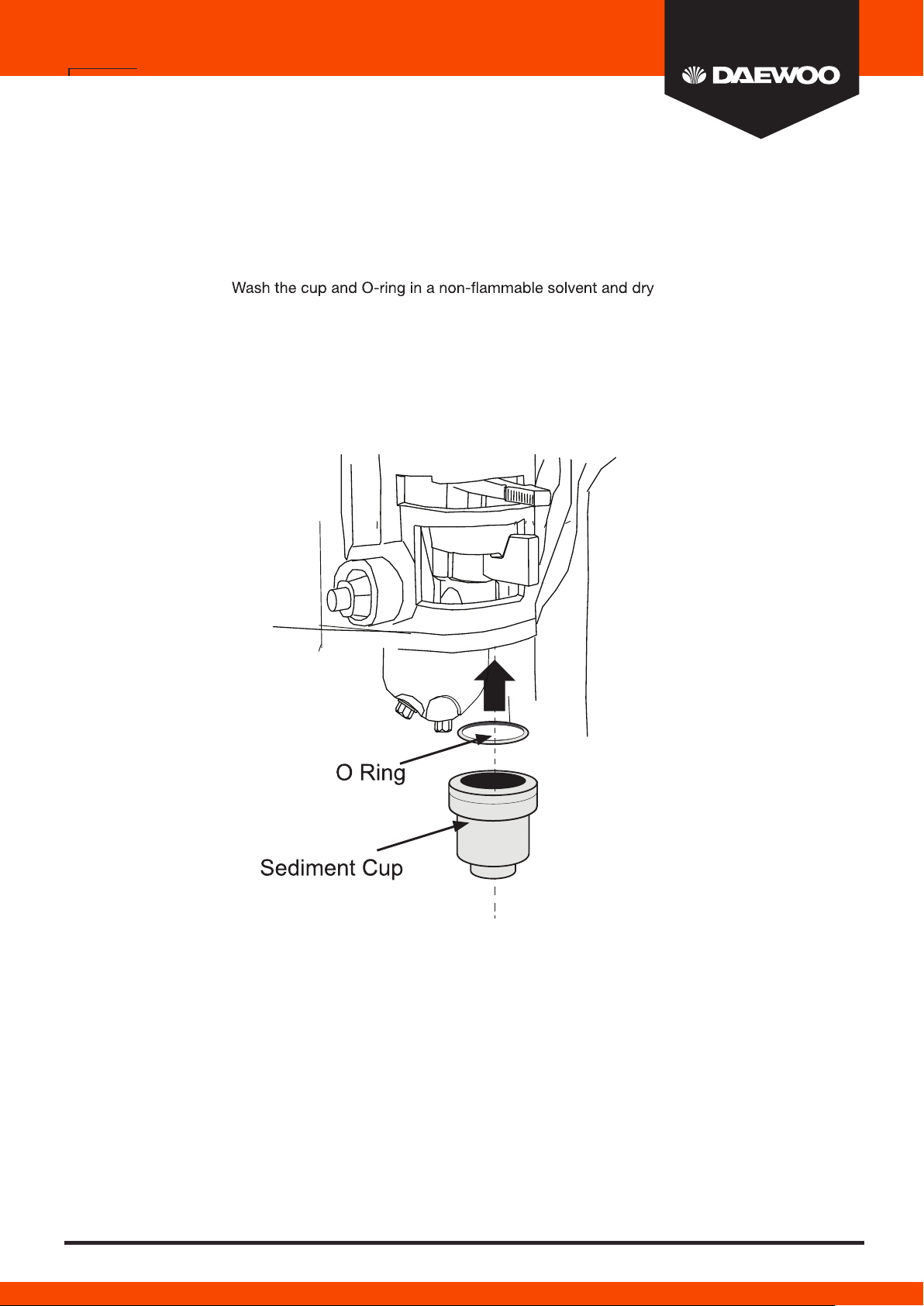

5.6 - Fuel Sediment Cup Service
1. Switch fuel valve to the OFF position.
2. Unscrew the sediment cup using a wrench and remove the O-ring.
3.
thoroughly.
4. Place the O-ring in the fuel valve, then attach sediment cup. Tighten
securely.
5. Switch the fuel valve to the ON position and check for leaks. Replace
O-ring if leakage occurs.
5.7 - Fuel Drainage
1. Place container underneath the while removing the drain screw from the
carburetor.
2. Turn the fuel valve to ON and slowly remove the fuel drain screw.
3. Allow fuel to drain fully and reinsert the screw.
English
15

5.8 - Impeller Cleaning
Impeller cleaning is important when storing pump for long periods of time. It is also
advisable as part of regular maintenance checks.
QUICK METHOD
1. Fill pump with fresh water through primer opening.
2. Start pump and allow it to run for up to 8 minutes or until water
evaporates upon contact with engine block.
3. Drain water through pump drain outlet.
4. Flush pump with clean water (puring it through primer opening).
5. Reinsert drain screw.
INTENSIVE CLEANING
1. Remove / unscrew all 6 pump casing bolts from the pump.
2. Carefully remove the outside casing, exposing the impeller.
3. Clean impeller using regular soap and water, if necessary use a light
scrubbing tool to remove debris.
4. Reinstall casing on trash pump and fasten all bolts.
16
English

When reinstalling the casing, ensure that the rubber seal is properly secure all
around the perimeter of the opening.
5.9 - Transportation
Engine and exhaust can become hot. Avoid contact due to risk of burns and
fires. Allow engine to cool before transporting unit.
Do not drop or strike the pump during transport. Avoid placing heavy objects
on the frame or gas tank.
• Make sure engine and fuel valve are in the OFF positions
• Keep the unit level to prevent spillage.
• Place pump on a solid, level surface and secure it to prevent movement
during transport
5.10 - Storage
Do not store close to sources of heat, flames or sparks
Do not store in extremely humid or dusty areas
Do not store with gasoline still inside carburator or gas tank
1. Clean the impeller and drain water out
2. Drain gasoline from tank and carburator
3. Change engine oil
4. Slide fuel valve to OFF position
5. Place pump in an appropriate storage area at temperatures above 32°F
6. Cover inlet and outlet ports
7. Cover unit to protect it from dust
17
English

5.11 - External Parts Cleaning
Keeping the external parts clean can prevent debris build-up and ensure easy
access during maintenance.
Do not use a pressure washer to clean this product. Delicate electrical
components may be damaged.
1. Place unit in a well-lit area
2.
areas around the gas tank and oil ports.
3. Use a soft, damp cloth to clean off remaining residue and debris.
4. Allow unit to dry before using it.
6.0 - TROUBLESHOOTING
following these instructions, contact technical support before attempting to use or repair the product.
ISSUE CAUSE ACTION
Engine will not
start
Faulty spark plug
Use a wrench to remove the spark
plug and follow procedure for
cleaning or replacing
Clogged fuel line Check fuel line for leaks. Unclog if
necessary
Wrong fuel type with appropriate fuel
Carburator not getting air or fuel Take to service dealer
Starter not functioning Take to service dealer
Power is low Throttle lever unadjusted Slide throttle lever to increase
power output
Water output
is low
Clogged strainer Remove debris and rinse with water
Suction hose blocked with debris Remove obstruction
Damaged hoses Replace hoses
Clogged impeller Remove obstruction
Lose hose clamps Tighten or replace hose clamps
Leaking seals Take to service dealer
No water
output
Incorrect pump placement Reposition pump (see placement
section of manual)
Pump is not primed Prime pump
Pump mechanism is damaged Take to service dealer
18
English

7.0 - SPECIFICATIONS
TRASH PUMP
Discharge Port Diameter
Suction Port Diameter
Maximum Discharge
Maximum Lift
Maximum Suction
GAE50
50mm
50mm
80mm
80mm
100mm
100mm
30m /h
30m
6m
3
GAE80
45m /h
25m
6m
3
GAE100
69m /h
18m
6m
3
Operating Temperature
Range 0°-40°C
ENGINE
Type 7 HP, Single Cylinder, forced air cooling, 4-stroke,
OHV 25 deg tilt
Displacement (cm3) 208cc
Ignition mode Non-contact transistor
Starting mode Recoil Start
Fuel tank capacity 3.6L3.6L 6.5L
Oil capacity
Fuel Type Unleaded gasoline, propane
Running Volume 68dB (at 7m)
Running Time Per
Tank (hours) 6
67dB (at 7m)
6
69dB (at 7m)
7
BOX
L x W x H 520*405*460mm
Dry Weight 25kg
610*460*550mm
31kg
470*380*400mm
23kg
19
English
