DAEYANG MEDICAL LUMISLIM User manual

Doc. No. DYMLUMISLIM-a
Rev. No. 1
Date JUL 9, 2010
LUMISLIM
manual
DAEYANG MEDICAL CO., LTD.

Representate exclusivo para Colombia:
3
General Information
LUMISLIM is a device used for reducing the fat by shining the emitted
light energy (laser) over the skin.
Read, understand and follow all of the Safety Precautions found in this
section and throughout this manual prior to System use.
Observe all applicable precautionary measures for treatment.
Keep informed on appropriate indications and contraindication for the use
of the LUMISLIM.
Warranty
This product is warranted against defects in materials and workmanship
for a period of one year from the date of shipment.
The Company will at its option, repair or replace components which prove
to be defective during the warranty period, provided that the repairs or re-
placements are carried out by the Company or its approved agents.
The Company will consider itself responsible for the effects on safety,
reliability and performance of the product :-only if assembly operations,
re-adjustments, modications or repairs are carried out by persons autho-
rized by it, only if the product is used in accordance with the instructions
for use, only if the electrical installation of the relevant room complies with
the appropriate national requirements.
Should the product be returned to the Company for repair, it must be sent
carriage paid.
Consumable items, for example, Pad and Power cord are not included
from the above warranty.
General Information
Warranty
Precautionary Instructions
CAUTION
WARNING
DANGER
Introduction
Benets of the product
Technical Specication
Safety Precautions
Features of LUMISLIM
Unit
Accessories
User Interface
How to Use
How to use the product
Administration and caution
Safety Tips
Self Checking Point
Before Calling for Service
GUARANTEE
DAEYANG MEDICAL CO., LTD.
CONTENTS

Representate exclusivo para Colombia:
4 5
Precautionary Instructions
The precautionary instructions found in this section and throughout this manual are
indicated by specic symbols. Understand these symbols and their denitions before
operating this equipment. The denition of these symbols are as follows;
=CAUTION Text with a “CAUTION” indicator will explain possible
Safety infractions that could have the potential to cause minor to moderate injury or
damage to equipment.
=WARNING Text with a “WARNING” indicator will explain possible
Safety infractions that will potentially cause serious injury and equipment damage.
=DANGER Text with a “DANGER” indicator will explain possible
Safety infractions that are imminently hazardous situations that would result in death
or serious injury.
NOTE:- Throughout this manual “NOTE” may be found. These Notes are helpful infor-
mation to aid in the particular area or function being described.
CAUTION
• Please confer with a professional technician before using the product.
• Every accessories needed to plug in with accurate position.
• Do not install the product in the oily, smoky, damp and dusty area or the area which
is easy to getsplashed by water(rain).
• Please observe the recommended operation time and method.
(do not use any other things than the product supplied by the manufacturer.)
• Install the product on a level area.
• Please confer with a doctor when you feel abnormal in your body while using the
product.
• Please unplug the power cord when you have nished using it or will not expect to
use it for a long period. (There may be a risk of re.).
• Do not bend the electrical cord or accessories using force or place a sharp or
heavy object on them. (There may be a risk of electrical shock or re.)
• Do not plug several power cords of electrical appliances into one receptacle at the
same time. (There may be a risk of re.)
• Check out for the rated voltage when you install the product.
(There may be a risk of circuit damage or re unless the rated voltage is not used.)
• The person in charge of handling the LumiSlim should be familiar with all safety
regulations and operation procedures specied in this User Manual.
• Problems occurring due to carelessness in using or managing the system in the
middle of using it are excluded from warranty coverage for service.
As for any part different from the contents described in this User manual, be sure to
make an inquire to the installer of the LumiSlim before using the device.

Representate exclusivo para Colombia:
6 7
WARNING
DANGER
• If you have any problems with this product, immediately stop using this product and
contact our customer service center or stores where you bought this product.
• People who suffer from or are suspicious to have a disease including malignancy,
high fever, pregnancy, skin disease or any other diseases around the used body part,
excessive general weakening, allergy symptoms or who need to use a life-support
should confer with a doctor before using the product.
• Do not put any inammables on the product except the belt that we provide.
• Do not disassemble, repair and remodel the product at discretion of a user. Please
contact the sales store or customer service center for help to repair it. (There may be
a risk of electrical shock or re).
• Please contact the customer service center for a check and repair of the product for
the following cases:
- There is a damage on a cable or plug, and the product doesn’t work properly.
- The product was dropped and damaged.
- The product is wet with water.
• Please insert a plug in a wall socket with grounded.
• Do not use a damaged electrical cord or aged receptacle.
(There may be a risk of electrical shock or re).
• Do not give a shock to the product or accessories.
• Do not put the electode to your eye directly to prevent from your eye damage
(Light emitted from this LUMISLIM contains visible rays or invisible substances harm
ful to eyes.
Be careful not to directly look at the light and lest it be reected on the reective surface.
In order to prevent the emitted or reected light from being exposed accidently, all per-
sons in charge
who are using this system should be sure to wear the protective glasses.
Also, be careful lest the light face eyes.
Even in case that the output is low, you may suffer a fatal eye injury.)
• Do not pull the power cord using force or touch the power plug with a wet hand.
(There may be a risk of electrical shock or re).
• Stop using the product and unplug the power cord immediately when there is thunder
and lightening or an earthquake.(There may be a risk of electrical shock or re)
• Dangers of explosions and re.
• Do not operate the device in a place where there are volatile substances like ductile
anesthetics, alcohol, gasoline or solvents.
We recommend you to use nonvolatile substances or tools, if possible.
And always keep a re extinguisher near the device.

Representate exclusivo para Colombia:
8 9
Introduction
The LUMISLIM is composed of the power ON/OFF key, emergency switch, output part
where light is emitted, monitor where you can see the whole situation, touch panel that
enables you to operate the device by direct touch and micro control part that controls all
motions, and it is a device used for relieving pain by shining the emitted light energy (laser)
over the skin. Its maximum outlet is 160mW × 4, 40mW x 2.
Benets of the product
• Its beautiful appearance goes well with the interior design
• Easy and simple control LCD touch screen
All operations of the device can be made by direct touch, and you can see the
whole functions on the monitor.
• Its one-touch way makes the program setting simple and convenient

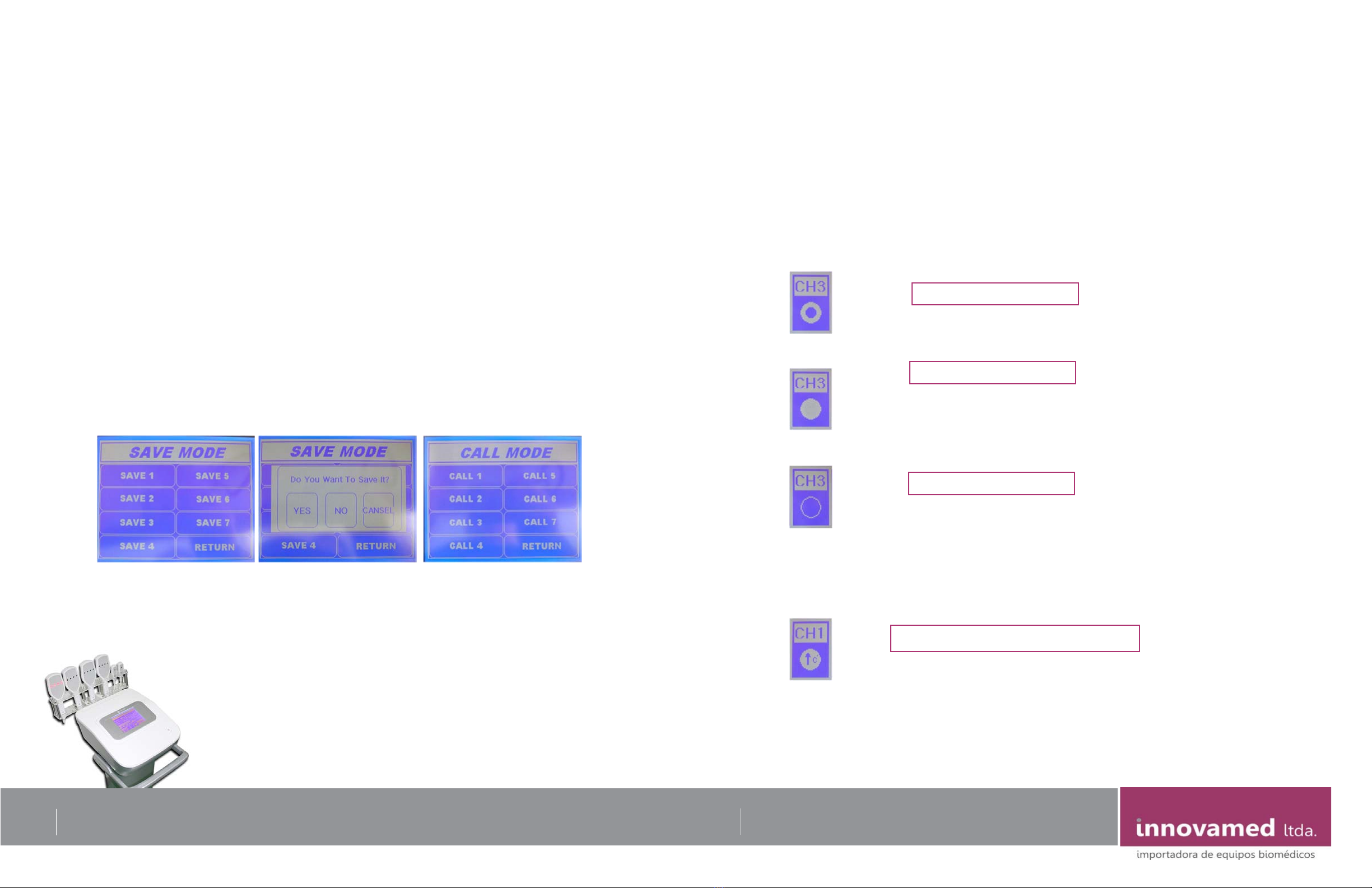

• How to save (SAVE touch) to or call (CALL touch) from the memory.
It is convenient if you use frequently used functions by saving them.
(Random saving from SAVE1 ~ SAVE7 available)
• Time setting and output control can be freely adjusted
Technical Specication.
General
Power Input …………………………………………………………………………… AC85-264V / 50-60Hz
Maximum Power Consumption ………………………………………………………………………… 32W
Classication (EN60601-1) ………………………………………………….…………….… Class 1, Type B
Mains Fuses ……………………………………………………………………..…………… T3A (5 x 20 mm)
Size (height x width x depth) ……………………………………………..…………… 820 x 306 x 358 mm
Weight …………………………………………………………………………………………………… 9.2 kg
Pulse …………………………………………………………………………………………………5Hz~1K
Hz Output strength …………………………………………………………………… Maximum 40mW × 18
Treatment Timer ……………………………………………………………………………… 0 to 30 minutes
Safety Device …………………………………………………………………….… Zero Start, Safety Switch
The LUMISLIM is designed to operate from any 50/60Hz single phase supply between AC
85~264Vac.
All information on model, serial number, and month/year of manufacture is located on
the rear panel.
Environmental Conditions for Transport and Storage
• Temperature 5 to 400
• Relative Humidity 5 to 95%
• Atmospheric Pressure 500 to 1060 hPa

Representate exclusivo para Colombia:
10 11
Safety Precautions
Please read the manual thoroughly before using the product.
Using this manual, you can easily and quickly understand how to use the product.
People who suffer from or are suspicious to have a disease including malignancy, high
fever, pregnancy, skin disease or any other diseases around the used body part, ex-
cessive general weakening, allergy symptoms or who need to use a life-support should
confer with a doctor before using the product.
Use only certied-safe accessory items.
Use only those accessory items listed in the equipment’s instruction manual. For any
other accessory items, employed should be certied as safe for such use by a testing
authority.
Features of LUMISLIM
Unit
Side View
Rear View
Side View
1. LCD display for control
2. Sub On/Off Switch
3. Handle
4. Pad support
5. Pad
Rear View
1. Power Inlet
2. On/Off Switch(Main)
3. Interlock connector
4. Fuse (2 x T3A )
5. Pad linkage
6. Pad connection cord xing bar
5
1
2
4
3
6 5
1
2
4
3

Representate exclusivo para Colombia:
12 13
Accessories
No. Name Function
1 Multi Pad Composed of four outlet ports, as the part from which
the light is released
2 Single Pad Composed of one outlet port, as the part from which
the light is released
3 Protective glasses Glasses to protect the eyes of the curer and patients
4 Fixing belt Belt xing the Pad to the body
5 Power cord Electric wire connecting the power supply to the
device
User Interface
No Name Function
1 Program Displayed Program
(POWER,PULSE,TIME,WAVELENGTH)
2 Operation Display Display of the picture of motion by channel
3 INTENSITY Select Output Power
4 SAVE/CALL How to save (SAVE touch) to or call (CALL touch)
from the memory
5 START Program Start
12
345
1
23
4
5

Representate exclusivo para Colombia:
14 15
How to Use
How to use the product
1) Before setting up
1) Be sure to set the product on a
at even surface (If not damage may
occur)
4) Do not place liquids on or near
the product(This may result in
electrical shock, damager or/and
re)
2) Do not set the product in a damp
and dirty area (This may result in
electrical shock or re)
5) Product must be turn off when
not in use
3) Do not place ame, candle,
cigarettes on the product
6) Please in-
stall and use
the specied
order.
2) Product set up
(1) Unzip the storage bin inside the box. Take out the unit, PAD, etc.
(2) Connect all of Pads to the respective jack on the front.
(3) Plug the power cord into a power outlet. Ensure the outlet is congured for AC85-
264Vac.
3) How to operate and use the device
(1) Preparations before use
①Connect the power supply cable to the power connection terminal of the body and then turn
the power switch on. Connect the power supply within AC85-264V / 50-60HZ.
②Turn the sub power switch on the front side of the device ON.
③Check if the screen is displayed as in the Picture screen 1.
(Picture screen 1)
Power
Switch
Power con-
nection termi-
nal

Representate exclusivo para Colombia:
16 17
(2) Operation method for light emission
(Picture screen 2)
• When the sub power switch is 9ON:, normal gures are displayed as in the main screen of
Picture screen 2.
• If you touch the mode to use according to the purpose of the procedure, the curser is cre-
ated, and if you want to change the settings, you can do so by touching the
part.
• Set and change the strength, pulse, time and memory of the laser output to use by touch-
ing the part. (time setting of 10 minutes recommended)
• If you touch the /START/part after xing the Pad on the affected area by using the belt,
light is released.
(3) How to use the Pad on the part of the body.
No Procedure Description
1Check whether the Pad cable is properly connected
to the equipment.
Multi Pad should be connected to
Ch1~Ch4
2Apply enough Accent PPC cream on the desired part.
2Attach pad to the desired part such as abdomen and
arms or legs by using band.
3
Two more laser probes are positioned onto the region
of the lymphatic nodes closest to the treatment zone.
[Refer. Lymphatic System]
4Select desired frequency program by using Pulse
mode of programs. [Refer. Protocol of LLL]
Frequency Range(Hz) :
5, 50, 100, 500, 1000
5 Set operating time Time(Min) : 5, 10 , 15, 20, 25, 30
6Select desired output power by using POWER on the
screen. [Refer. Protocol of LLL]
Output Power Range(mW) :
80, 100, 120, 140, 160
7 Select the output CH that is attached on the body CH1~CH6
8 Press the Start Button
* Cautions!
* Warning!
The patient must be held the safety switch if it is not comfortable during treatment.
V
V
V
V
As the light may affect the sight of the user when the device operates, the user never fails to
wear the protective glasses, and the people around the user should wear protective glasses
or other protective equipment.
Appeared such as picture of left when you
press the safety switch

Representate exclusivo para Colombia:
18 19
(4) How to save (SAVE touch) to or call (CALL touch) from the memory
*It is convenient if you use frequently used functions by saving them.
(Random saving from SAVE1 ~ SAVE7 available)
1. SAVE
On the main screen (Picture screen 3) touch the desired mode among『POWER, PULSE,
TIME, WAVELENGTH『and move the curser. Conrm the setting change to use by touching the
『,『 part and then touch 『SAVE『of the main screen.
The screen appears to have changed as in the following Picture screen 3, and if the desired
one of SAVE1 - SAVE7 is touched, the screen as in the Picture screen 4 appears again.
- If you touch『YES『, saving is done.
- If you touch『NO『, you can return to the state of Picture screen 3 to select the place for
saving again.
- If you touch『CANCEL『, it returns to the original state (Picture screen 2).
(Picture screen 3) (Picture screen 4) (Picture screen 5)
2. CALL
It is the function used to call the functions saved in the No. 1 SAVE mode, and if the CALL
part is touched in the main screen (Picture screen 2), the screen changes as in the Picture
screen 5.
If the desired CALL part is touched, the screen returns to the main screen (Picture screen 2)
and the gures that have been saved after changing and setting are displayed.
If you want to return without CALL, touch the 『RETURN』part.
(5) Explanation of the picture signs showing the state of motion by channel
- Displays that the Pad is normally connected to the channel in the STAND-BY state
-Displays that the Pad connected to the channel works normally in the START state
- Displays that the Pad stops its motion in the condition that it is normally connected to the
channel in the STAND-BY or START state
If the screen is touched once on the Normal connection or Normal motion screen, motion
stops and the screen shifts.
- If the temperature of the Pad rises over the standard in the motion state, the motion stops
automatically to protect the skin, and the state of the screen changes.
If the temperature falls below the standard, the motion starts automatically.
If you want to return without saving, touch the 『RETURN』part
Normal Connection
Normal Motion
Articial Stopping
The temperature rises over the standard

Representate exclusivo para Colombia:
20 21
The screen returns to the normal state.
- It is used when converting various channels of the state of the articial stop at one go.
- Displays the condition that the Pad is not connected to the body
(6) Cautions when using the device
- As the inside of the device should be manipulated by an expert engineer, random
disassembling may cause trouble.
- During the procedure you should wear protective glasses and be very careful lest the light
shine to eyes.
- Prohibit the use of the device around volatile matter or metal substances.
- As the operation of the device may stop when the voltage of the place where it is installed
is not uniform, use it after installing A.V.R (Automatic Voltage Regulator) as occasion de
mands.
- It is safe only when you use the device after making sure to conrm the control panel be
fore using it.
- As heat may be generated during the use, it is prohibited to use the device on one area for
a long time and check the part of the procedure while using it.
- Please use the device after careful reading of the User Manual before use.
- After nishing the use of the device, keep the power cord separating it from the socket.
(7) How to store and maintain the device after use
- It is good to keep the device at room temperature (5oC ~
40oC).
- Keep the device in a well-ventilated indoor place away from
direct light that is not damp.
- No shock should be given from the outside of the device.
- Keep the power cord separating it from the socket.
- Keep the key separately in order to prevent any unauthor
ized use by other people besides the manager.
Administration and caution
Safety Tips
1) Unplug the electrical cord from
the wall outlet when not in use
6) Do not handle or pull the power
cord with wet hands. This may re-
sult in electrical shock.
2) Do not disassemble, modify, or
attempt to x the product. When
repair is required, please call for
service.
7)Do not plug product into electri-
cal outlets shared with other elec-
tric appliances. This may result in
re.
3) If you hear or experience abnor-
mal sounds or functions, turn off
the power immediately and call for
service.
8) Do not use damaged power
cords, or outlet. This may result in
re or electrical shock.
4) Do not bend or mistreat the
power cord. This may result in
electrical shock.
9) Insert a plug in a wall outlet with
ground.
5) Unplug product from electrical
outlet in the event of an electrical
storm to avoid damage, electric
shock, or re.
10) When the
product is ex-
posed to water
or moister, un-
plug the outlets
and do not use.
Self Checking Point
1) Before using the product
(1) Does the power code Insert a plug in a wall outlet?
(2) Did you check the connection between main frame and the Pad?
(3) Did you check the connection line?
(4) Did you check the power switch ON?
(5) Do you see any problem with screen?
2) After using the product
(1) Did you check the power switch OFF?
(2) Did you check the plug off in a wall outlet?
(3) Did you clean the Pad?
All connected Channels “ON”
The handpiece is not connected

Representate exclusivo para Colombia:
22 23
Before Calling for Service
I don’t see any sign of light on the front panel.
Check Solution
Did you check the power cord?
Did you check the power switch?
Did you check the fuse?
Plug into wall outlet
Power on the switch
Replace the fuse.
If possible persist, unplug and call for ser-
vice.
I can’t see the output of Red lamp of Laser.
Check Solution
Did you check the connections between
Pad?
Do you see any foreign substance on the
Pad ?
Reconnect the connection line.
Remove the foreign substance with alco-
hol gauze..
LCD doesn’t display
Check Solution
Did you check the connections of power?
Did you turn on the Power switch?
Did you check the FUSE?
Plug in the input socket.
Check the Power switch
Check the FUSE
If possible persist, unplug and call for ser-
vice.
GUARANTEE
All DaeYang Medical units are guaranteed against defects in material and workmanship for a
period of one year after the date of purchase – with the exception of accessories and subject to
normal wear.
Should your unit develop a fault, please return it to the distributor in the country where the unit
was purchased.
Local Distributor
DISTRIBUTOR Representante exclusivo en Colombia:
INNOVAMED Ltda.
www.innovamedequipos.com
Cel. 317 502 3531 • Tel. [phone]
Ocina principal: Carrera 37 No. 53-51, Bucaramanga
[email protected]
[email protected]
MANUFACTURER DAEYANG MEDICAL CO. LTD.
#1656-1, DONGHWARI, MUNMAKEUP,
WONJUSI, GANGWONDO, KOREA
Phone No. : [phone]
Fax No. : [phone]
http://www.daeyangmed.com
