Dahua HAC-ME1200D User manual

HDCVI
Siren and White Light Camera
User’s Manual
V1.0.1

Foreword I
Foreword
General
This user’s manual (hereinafter referred to be "the Manual") introduces the functions,
installation and operations of the camera.
Safety Instructions
The following categorized signal words with defined meaning might appear in the Manual.
Signal Words
Meaning
Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.
Indicates a potential risk which, if not avoided, could result in
property damage, data loss, lower performance, or unpredictable
result.
Provides methods to help you solve a problem or save you time.
Provides additional information as the emphasis and supplement
to the text.
Revision History
No.
Version
Revision Content
Release Time
1
V1.0.0
First Release.
June 20, 2018
2
V1.0.1
Print Correction
August 1, 2018
Privacy Protection Notice
As the device user or data controller, you might collect personal data of others' such as face,
fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be
in compliance with the local privacy protection laws and regulations to protect the legitimate
rights and interests of other people by implementing measures include but not limited to:
providing clear and visible identification to inform data subject the existence of surveillance
area and providing related contact.
About the Manual
The Manual is for reference only. If there is inconsistency between the Manual and the
actual product, the actual product shall prevail.
We are not liable for any loss caused by the operations that do not comply with the Manual.
The Manual would be updated according to the latest laws and regulations of related
regions. For detailed information, see the paper manual, CD-ROM, QR code or our official

Foreword II
website. If there is inconsistency between paper User's Manual and the electronic version,
the electronic version shall prevail.
All the designs and software are subject to change without prior written notice. The product
updates might cause some differences between the actual product and the Manual. Please
contact the customer service for the latest program and supplementary documentation.
There still might be deviation in technical data, functions and operations description, or
errors in print. If there is any doubt or dispute, please refer to our final explanation.
Upgrade the reader software or try other mainstream reader software if the Manual (in PDF
format) cannot be opened.
All trademarks, registered trademarks and the company names in the Manual are the
properties of their respective owners.
Please visit our website, contact the supplier or customer service if there is any problem
occurred when using the device.
If there is any uncertainty or controversy, please refer to our final explanation.

Important Safeguards and Warnings III
Important Safeguards and Warnings
Electrical Safety
All installation and operation should conform to your local electrical safety codes.
The power source shall conform to the requirement of the Safety Extra Low Voltage (SELV)
standard, and supply power with rated voltage which conforms to Limited power Source
requirement according to IEC60950-1. Please note that the power supply requirement is
subject to the device label.
A readily accessible disconnect device shall be incorporated in the building installation
wiring.
Make sure if the camera power adapter meets the camera operating voltage requirement
before powering up the device (The material and length of the power cable might influence
the device voltage).
Prevent the power cable from being trampled or pressed, especially the plug, power socket
and the junction extruded from the device.
We assume no liability or responsibility for all the fires or electrical shock caused by
improper handling or installation.
Environment
Do not aim the device at strong light to focus, such as lamp light and sun light.
Transport, use and store the device within the range of allowed humidity and temperature.
Keep the camera away from water or other liquid to avoid damages to the internal
components.
Keep sound ventilation to avoid heat accumulation.
Heavy stress, violent vibration or water splash are not allowed during transportation,
storage and installation.
Pack the device with standard factory packaging or the equivalent material when
transporting the device.
It is recommended to use the device together with lightning arrester to improve lightning
protection effect.
It is recommended to ground the device to enhance reliability.
It is recommended to use qualified video transmission cable to improve video quality. It is
recommended to use RG59 coaxial cable or higher standard.
Use standard components or accessories provided by manufacturer and make sure the
device is installed and maintained by professional engineers.

Important Safeguards and Warnings IV
The surface of the image sensor should not be exposed to laser beam radiation in an
environment where a laser beam device is used.
Do not provide two or more power supply sources for the device; otherwise it might
damage the device.
When the camera is in the condition of PoC power supply, do not connect any other device
between the camera and PoC transceiver including UTC, Balun, optical transceiver,
distributor and convertor and so on; otherwise, the device might get burned.
PoC supply voltage is up to 52V. Do not dismantle the device during normal operation;
otherwise it might cause danger to both device and users due to high voltage.

Table of Contents V
Table of Contents
Foreword.................................................................................................................................................... I
Important Safeguards and Warnings.................................................................................................... III
1 Introduction............................................................................................................................................ 1
General.......................................................................................................................................... 11.1 Features........................................................................................................................................ 11.2
2 Design..................................................................................................................................................... 2
Dimension..................................................................................................................................... 22.1 Components.................................................................................................................................. 32.2 Cable............................................................................................................................................. 32.3
3 Installation.............................................................................................................................................. 5
4 General Configuration .......................................................................................................................... 8
Opening Main Menu...................................................................................................................... 84.1 Setting Audio Input........................................................................................................................ 94.2 Operating OSD Menu ................................................................................................................. 104.3
5 Configuring Alarm............................................................................................................................... 12
Configuring Alarm Priority........................................................................................................... 125.1 Customizing Sound and FlashlightAlarm................................................................................... 125.2 Connecting Node Device............................................................................................................ 125.3 5.3.1 Connecting Node Device from OSD menu ...................................................................... 13
5.3.2 Connecting Node Device from XVR................................................................................. 13
6 Maintenance......................................................................................................................................... 15

Introduction 1
1 Introduction
General1.1
This series of camera comply with the HDCVI standard and support the transmission of audio,
video and control signal over coaxial cable. They produce video signal with megapixel
resolution and require XVR device that comply with the HDCVI standard to achieve high speed,
long distance and zero lag transmission of the signal.
This series of camera can help to drive away threats before any damage happens; they can
deter intruders with motion-activated siren and white light alarm. They are applicable to cover
the high definition monitoring needs for locations like financial center, telecom site, supermarket,
hotel, government, school and factory.
Features1.2
720p series support over 800 meter real-time transmission of video and control signal from
RG59 cable; for 1080p and above, the distance is 500 meter.
Effectively enhanced alarm accuracy by combing PIR and motion detection.
Customizable siren and white light alarm.
PIR detection range: horizontal range: 110˚; detection distance: 2 m–10 m.
Auto switch from vivid color images by day and black-and-white images at night with ICR.
Provide clear IR imaging by adjusting IR light to moving objects with smart IR.
Configuring devices easily with OSD menu.
IP67 rated.

Design 2
2 Design
Dimension2.1
Model A (mm [in])Figure 2-1
Model B (mm [in])Figure 2-2

Design 3
Components2.2
Model AFigure 2-3
Table 2-1 Model A components list
No.
Component Name
No.
Component Name
No.
Component Name
①
white light
②
Lens
③
MIC
④
PIR sensor
⑤
Speaker
—
—
Model BFigure 2-4
Table 2-2 Model B components list
No.
Component Name
No.
Component Name
No.
Component Name
①
Lens
②
PIR sensor
③
MIC
④
White light
⑤
Light sensor
⑥
Speaker
Cable2.3
Cable type might vary with different cameras, and the actual product shall prevail.

Design 4
Cable listFigure 2-5
For more information about cable ports, see Table 2-3; for the operation method of ⑥(DIP
switch), see Table 2-4.
Table 2-3 Cable information
No.
Port Name
Function
①
12V DC
Power Input
Inputs 12V DC power. Please be sure to supply power as instructed in the
Manual.
Device abnormity or damage could occur if power is not supplied correctly.
②
Video Output
Connects to XVR to output video signal.
③
Audio Input
Connects to sound-pick-up devices to receive audio signal.
④
DIP Switch
Dial switches to change output mode. Switch up indicates "ON", switch down
indicates "OFF."
Table 2-4 DIP switch operation
Switch1
Switch2
Output Mode
OFF
OFF
CVI
ON
ON
CVBS
ON
OFF
AHD
OFF
ON
TVI

Installation 5
3 Installation
Make sure the mounting surface is strong enough to hold at least three times of the
camera weight.
Do not install the camera to the place near electric cable, high-power electric appliance or
strong magnetic field and current.
Do not install the camera to the place exposed to direct sunlight.
Do not install the camera to the place with drastic wind speed changes.
Do not install the camera to the place with excessive temperature.
Do not install the camera to the place with obstructions within the detection range.
Do not install the camera to the place with massive metal objects around.
The following figures are for reference only, and the actual product shall prevail.
For the installation diagram and item list, see Figure 3-1, Figure 3-2 and Table 3-1.
Model A installationFigure 3-1

Installation 6
Model B installationFigure 3-2
Table 3-1 Installation item list
No.
Item
No.
Item
①
Device
②
Self-tapping screw
③
Expansion bolt
④
Mounting surface
Confirm the position of screw holes (and the cable outlet hole if it needs to go throughStep 1 the mounting surface④) and drill them on the mounting surface④, and then insert the
expansion bolts③in the screw holes.
Align the screw holes on the bracket to those on the mounting surface④, and then pullStep 2 the cable out through mounting surface or the side cable tray. Attach the bracket to the
mounting surface④with the self-tapping screws②.
Connect the device①to power source and the XVR device, and the live view screen isStep 3 displayed.
Loosen the locking screws and aim the lens to the ideal angle, and then fasten them,Step 4 see Figure 3-3 and Figure 3-4. Model A adjustmentFigure 3-3

Installation 7
Model B adjustmentFigure 3-4

General Configuration 8
4 General Configuration
Power up the camera and connect it to XVR device with coaxial cable, then the live view screen
is displayed. The following instructions will guide you to configure your camera.
The number of the coaxial port on XVR will display at the lower left corner of each window
to indicate the corresponding camera.
Interfaces of different XVR might vary, and the actual product shall prevail.
Opening Main Menu4.1

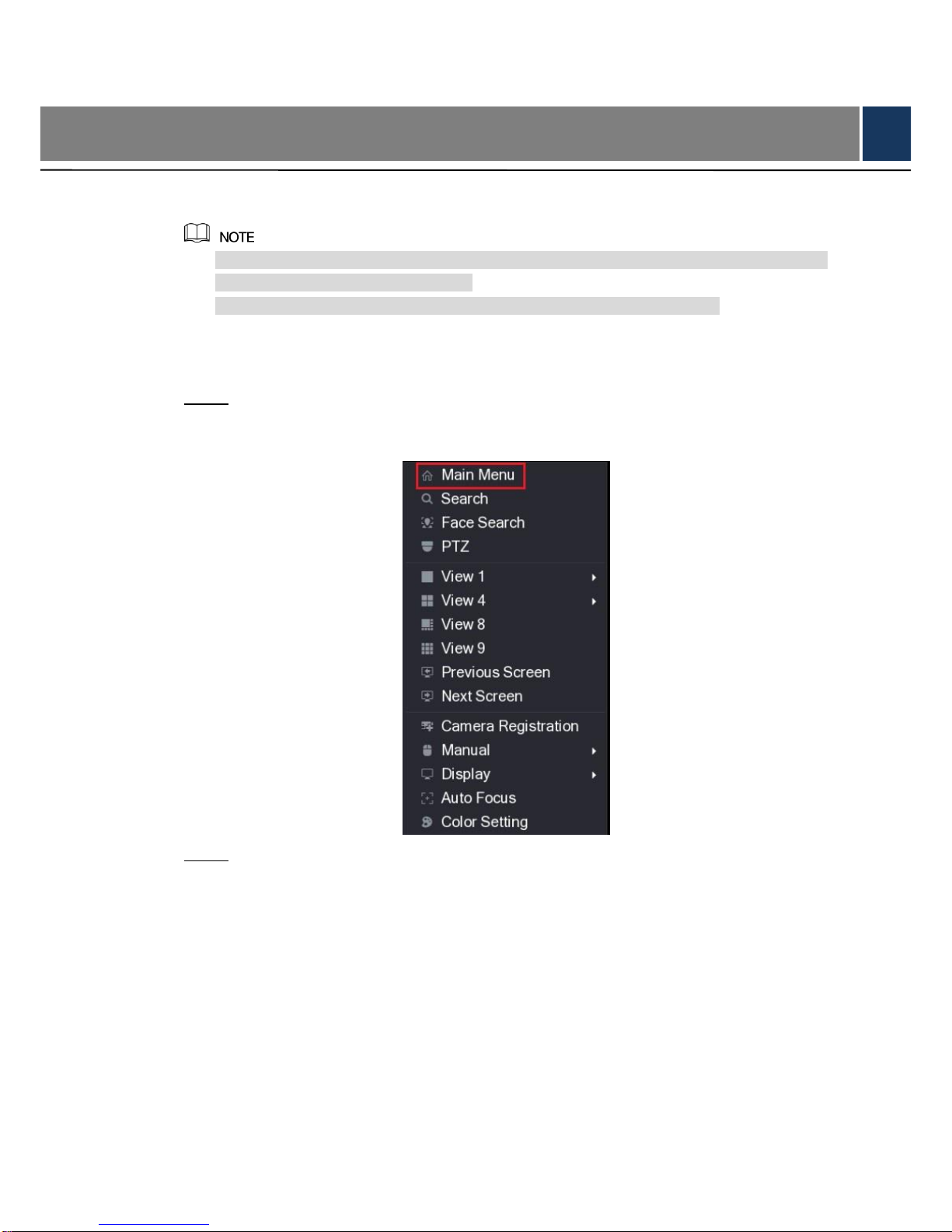

In the live view screen interface, right-click anywhere on the screen.Step 1 The shortcut menu is displayed. See Figure 4-1.
Shortcut menuFigure 4-1
Click Main Menu.Step 2 The Main Menu interface is displayed. See Figure 4-2.

General Configuration 9
Main menu interfaceFigure 4-2
Right-click anywhere on the screen to return to the previous interface until it goes back to live
view screen.
Setting Audio Input4.2
Audio signal acquisition is available on select models.
In the Main Menu interface (Figure 4-2), select CAMERA > ENCODE > Encode.Step 1 The Encode setting interface is displayed. See Figure 4-3.
Encode setting interfaceFigure 4-3
In the Channel list, select the camera that you want to configure according to theStep 2 coaxial port number.

General Configuration 10
In the Main Stream column, click More Setting.Step 3 The More Setting interface is displayed, see Figure 4-4.
More setting interface
Figure 4-4
In the More Setting interface, you can configure the audio settings.Step 4
Enable Audio Encode function.
In the Audio Format list, leave to the default.
In the Audio Source list, select HDCVI.
Click Save to save the settings.Step 5 The Encode setting interface is displayed (Figure 4-3).
In the Encode setting interface (Figure 4-3), click Apply.Step 6

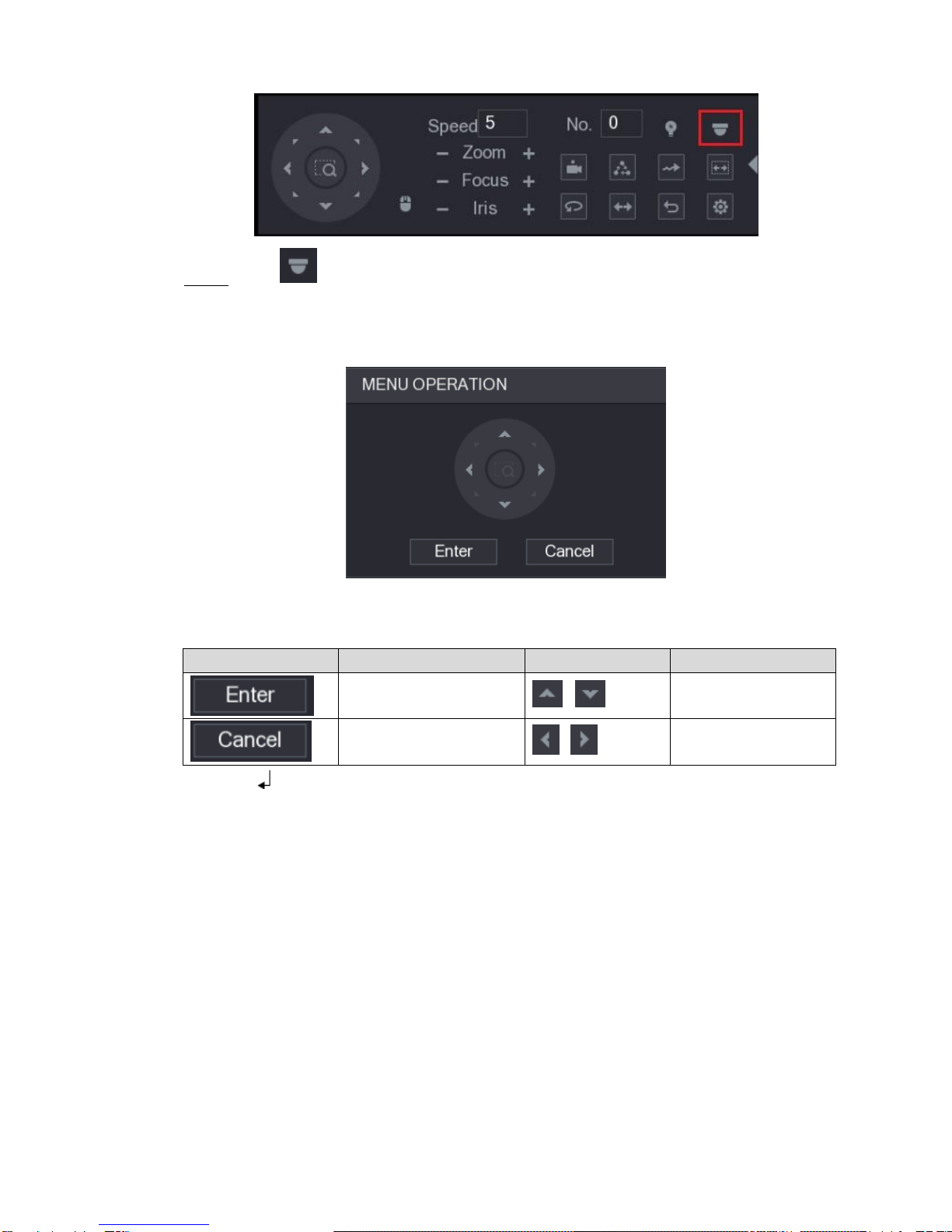

Operating OSD Menu4.3
The OSD menus of different cameras might vary, and the actual product shall prevail.
In the live view screen interface, right-click within the live view window of the cameraStep 1 that you want to configure.
The shortcut menu (Figure 4-1) is displayed.
Click PTZ.Step 2 The PTZ setting interface is displayed. See Figure 4-5.
PTZ setting interfaceFigure 4-5
Click to see more options. See Figure 4-6.Step 3

General Configuration 11
PTZ setting optionsFigure 4-6
Click .Step 4 The MENU OPERATION panel is displayed. See Figure 4-7.
The OSD menu of the corresponding camera is displayed on the live view screen.
Menu Operation panelFigure 4-7
For the function of the buttons in the MENU OPERATION panel, see Table 4-1.
Table 4-1 Menu Operation panel function
Button
Function
Button
Function
Enter or confirm an item
,
Select item
Exit OSD menu
,
Change item value
If there is " " as the value of an OSD item, click Enter to go to the next level of this item. Click
Return to go back to the previous level. Clicking Cancel is to exit OSD menu without saving the
modifications.

Configuring Alarm 12
5 Configuring Alarm
This chapter introduces how to configure and customize alarm mode, and how to use the
camera as a gateway to connect compatible wireless node devices to the XVR.
Gateway function is available on select models.
For more detailed configuration, see the user's manual of XVR or the corresponding node
device.
Configuring Alarm Priority5.1
In the OSD menu (see "4.3 Operating OSD Menu"), select Advanced > Alert > Priority.
If you select Camera Setting, the camera would perform siren and white light alarm as
configured in the camera.
If you select XVR Setting, the camera would perform siren and white light alarm as
configured in the XVR.
For more information about XVR Setting, see the XVR user's manual.
If the camera is not being used with the XVR, It is recommended to set the alarm priority to
Camera Setting to ensure the best alarm accuracy.
Customizing Sound and Flashlight Alarm5.2
This part is available only when the alarm priority is set to Camera Setting.
In the OSD menu (see "4.3 Operating OSD Menu"), select Advanced > Alert.
On the Whitelight Alert item, set it to ON, and then enter the item.
In Mode, You can select between Normally On or Flash.
If you select Flash, you can set the Flash Frequency from Low, Medium and
High.
In the Alert Duration, you can adjust from 5 seconds to 30 seconds.
On the Audio Alert item, set it to ON, and then enter the item.
In the Audio item, you can select from the three audios.
In the Volume item, you can select from Low, Medium and High.
In the Alert Duration, you can adjust from 5 seconds to 30 seconds.
Connecting Node Device5.3
This function is available on select models.

Configuring Alarm 13
5.3.1 Connecting Node Device from OSD menu
In the OSD menu (see "4.3 Operating OSD Menu"), select Advanced.Step 1 On the Enroll item, set it to ON, and the camera enters pairing mode.Step 2 Operate the node device and enter pairing mode according to corresponding manual.
After Paring is completed, you can check the information of the connected device in theStep 3 Sensor Pairing interface, see Figure 5-4.
5.3.2 Connecting Node Device from XVR
In the Main Menu interface (Figure 4-2), select IoT > MANAGER > Sensor Pairing.Step 1 The Sensor Pairing interface is displayed. See Figure 5-1.
Sensor pairing interfaceFigure 5-1
Click Add.Step 2 The Add interface is displayed. See Figure 5-2.
Add interfaceFigure 5-2
In the Access Type list, select Camera Gateway.Step 3

Configuring Alarm 14
Click Pair, and the camera enters pairing mode.Step 4 Operate the node device and enter pairing mode according to corresponding manual.
After Paring is completed, see Figure 5-3.

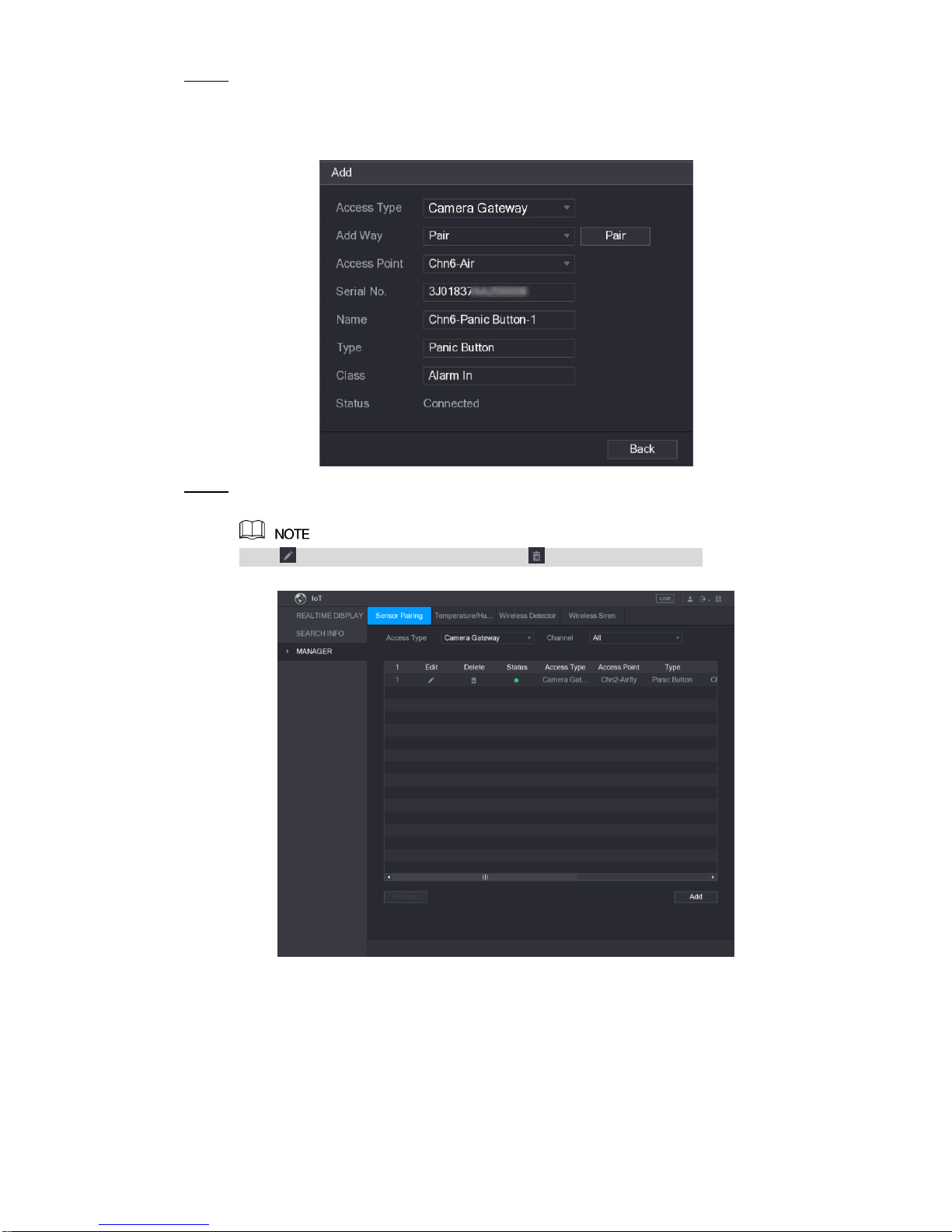

Paring completedFigure 5-3
Click Back.Step 5 The information of the connected device is displayed. See Figure 5-4.
Click to modify the device name; click to delete node device.
Connected deviceFigure 5-4
