Table of Contents
Table of Contents
Nomenclature......................................................................................................................1
Indoor ............................................................................................................................1
Outdoor..........................................................................................................................1
Product Line-Up.............................................................................................................2
Application Information .....................................................................................................4
Operating Range ...........................................................................................................4
Refrigerant Circuit Diagrams .........................................................................................5
Installation Guideline .....................................................................................................9
Sound Data........................................................................................................................14
Sound Pressure Level ................................................................................................14
NC Curve.....................................................................................................................15
Engineering & Physical Data...........................................................................................18
Performance Data.............................................................................................................22
Calculation Steps.........................................................................................................22
Performance Tables.....................................................................................................24
Outline & Dimension ........................................................................................................37
Wiring Diagram .................................................................................................................41
Service & Maintenance ....................................................................................................50
Troubleshooting ...............................................................................................................52
DAIKIN_FT(Y).indb iiiDAIKIN_FT(Y).indb iii 10/15/2012 4:27:08 PM10/15/2012 4:27:08 PM

Nomenclature
1
Nomenclature
Indoor
FT(Y) 10 J X V1
Power Supply
V1: 1 phase 50 Hz 220-240V
Production
X: OYLM
Product Series
J: J Series
F: F Series
Capacity
10: 10000 Btu/hr
Model
FT: Wall Mounted (Cooling Only)
FTY: Wall Mounted (Heatpump)
Outdoor
R(Y) 09 C X V1
Power Supply
V1: 1 phase 50 Hz 220-240V
Y1: 3 phase 50 Hz 220-240V
Production
X: OYLM
Product Series
C: C Series
D: D Series
Capacity
09: 9000 Btu/hr
Model
R: Single Split Condensing Unit (Cooling Only)
RY: Single Split Condensing Unit (Heatpump)
DAIKIN_FT(Y).indb 1DAIKIN_FT(Y).indb 1 10/15/2012 4:27:08 PM10/15/2012 4:27:08 PM

Nomenclature
2
Product Line-Up
Indoor Unit
FT(Y)
Nomenclature
Classification
Handset PCB Fin Air Purification Others
BRC52A62 BRC52A61 L2 LGSN Hydrophilic (Blue) Saranet Filter Negative Ionizer Auto Random Restart Orifice Kit
COOLING
FT10JXV1 X X X X X
FT15JXV1 X X X X X
FT20JXV1 X X X X X
FT25JXV1 X X X X X
FT30FXV1 XXXXX
HEATPUMP
FTY09JXV1 X X X X X
FTY15JXV1 X X X X X
FTY20JXV1 X X X X X
FTY25JXV1 X X X X X
FTY30FXV1 X X X X
DAIKIN_FT(Y).indb 2DAIKIN_FT(Y).indb 2 10/15/2012 4:27:08 PM10/15/2012 4:27:08 PM

Nomenclature
3
Outdoor Unit
R(Y)
Nomenclature
Classification
Refrigerant Control Fin Safety Devices Compressor Others
Cap Tube TXV Hydrophilic (Blue) Hydrophilic (Gold) Bare Aluminium Contactor High Pressure Switch Low Pressure Switch Rotary Scroll Drain Elbow
COOLING
R09CXV1 X X X
R09CGXV1 X X X
R15CXV1 X X X
R15CGXV1 X X X
R18CXV1 X X X
R18CGXV1 X X X
R25CXV1 X X X
R25CGXV1 X X X
R28CXV1 X X X
R28CGXV1 X X X
R30DXV1 X X X X X
R30DGXV1 X X X X X
R30DXY1 X X X X X
R30DGXY1 X X X X X
HEATPUMP
RY09CXV1 X X X X
RY09CGXV1 X X X X
RY15CXV1 X X X X
RY15CGXV1 X X X X
RY20CXV1 X X X X
RY20CGXV1 X X X X
RY25CXV1 X X X X
RY25CGXV1 X X X X
RY28CXV1 X X X X
RY28CGXV1 X X X X
RY30DXV1 X X X X X X X
RY30DGXV1 X X X X X X X
DAIKIN_FT(Y).indb 3DAIKIN_FT(Y).indb 3 10/15/2012 4:27:08 PM10/15/2012 4:27:08 PM

4
Application Information
Application Information
Operating Range
Ensure the operating temperature is in allowable range.
Cooling
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
DB (°C)
46
43
19
14 19 23 Indoor WB (°C)
Heating
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
WB (°C)
18
15 20 27 Indoor DB (°C)
10
-9
DAIKIN_FT(Y).indb 4DAIKIN_FT(Y).indb 4 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM

5
Application Information

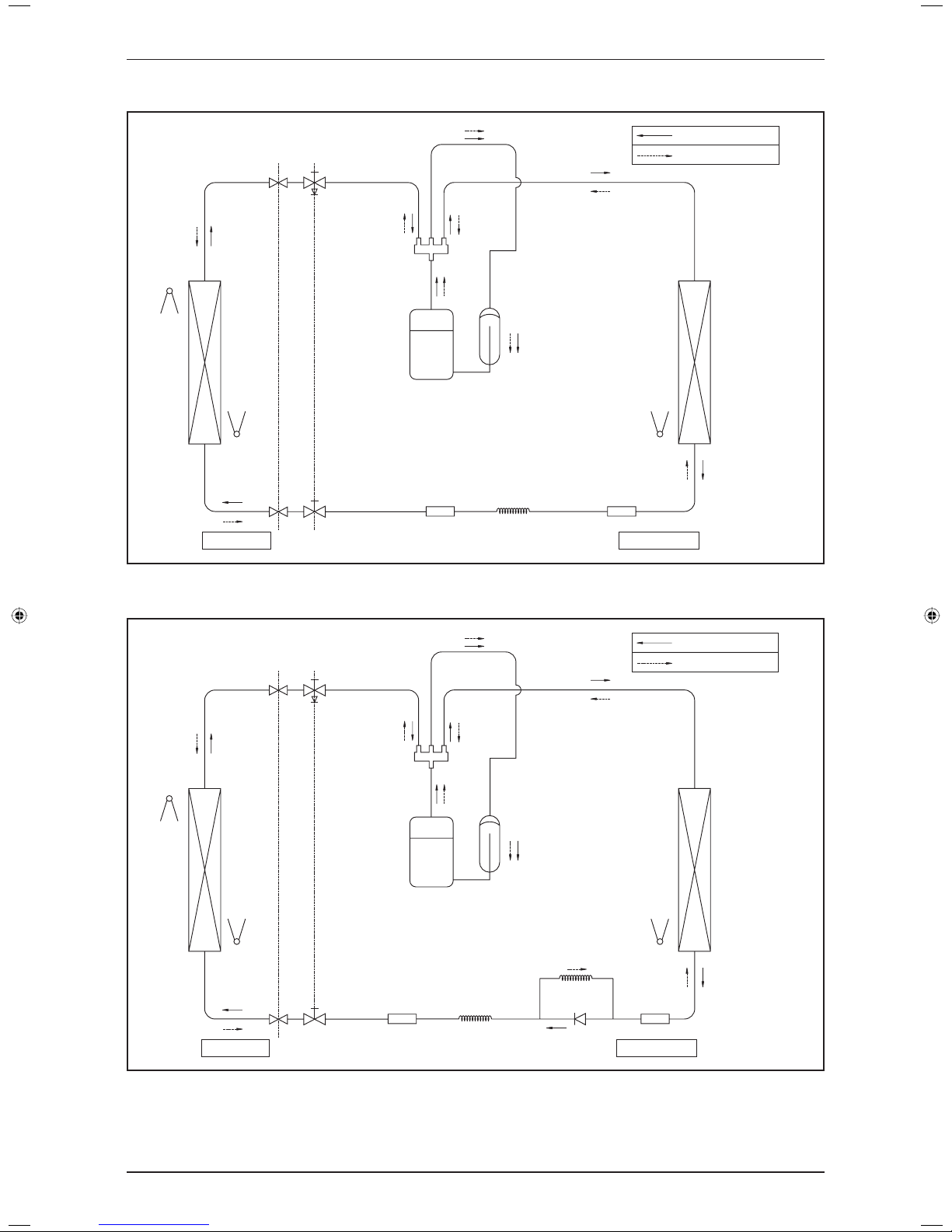

Refrigerant Circuit Diagrams

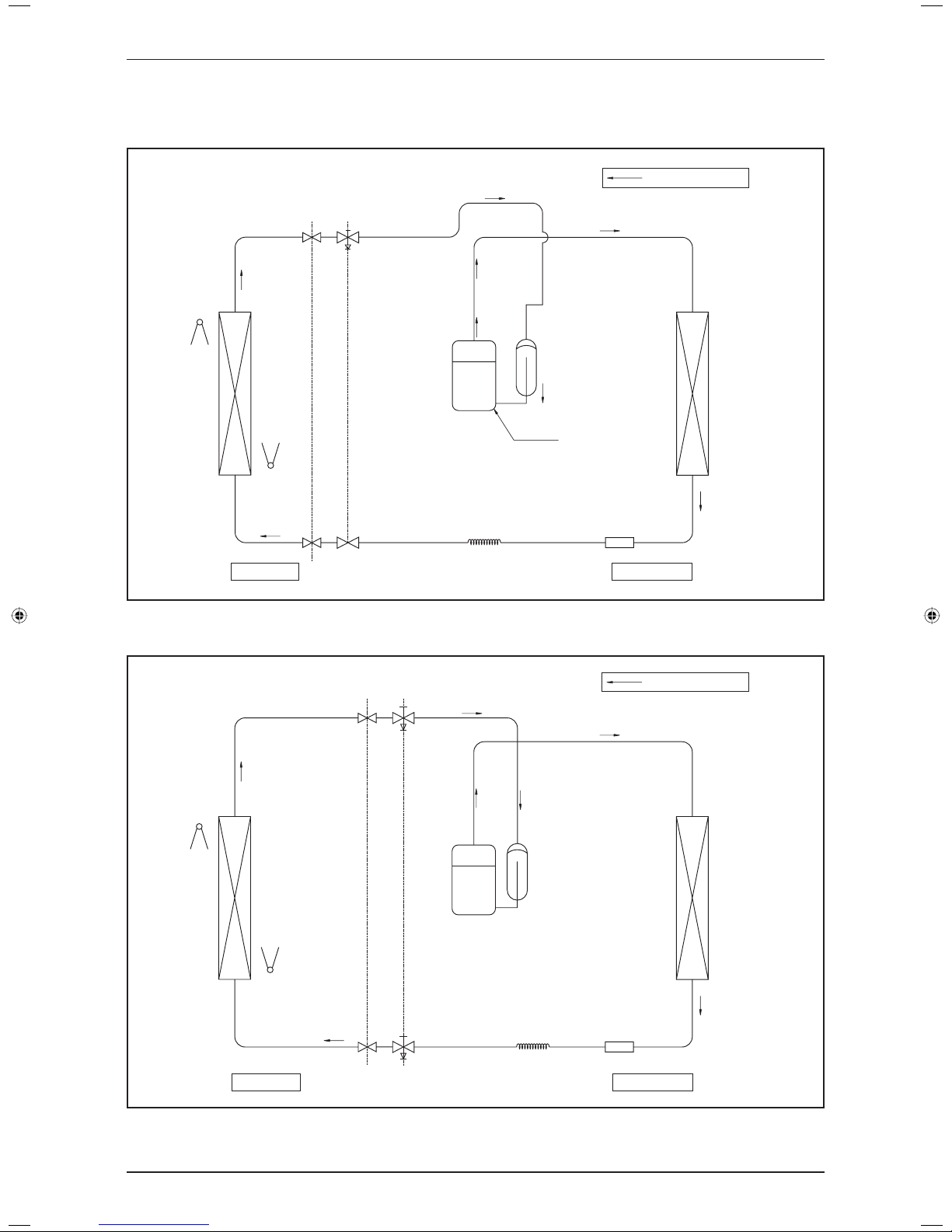

Model: FT10JXV1 – R09CXV1 / FT15JXV1 – R15CXV1 / FT20JXV1 – R18CXV1
COOLING OPERATION
3 WAY
VALVE
DISCHARGE
ACCUMULATOR
COMPRESSOR
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
2 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
INDOOR UNIT OUTDOOR UNIT
Model: FT25JXV1 – R25CXV1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
DAIKIN_FT(Y).indb 5DAIKIN_FT(Y).indb 5 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM

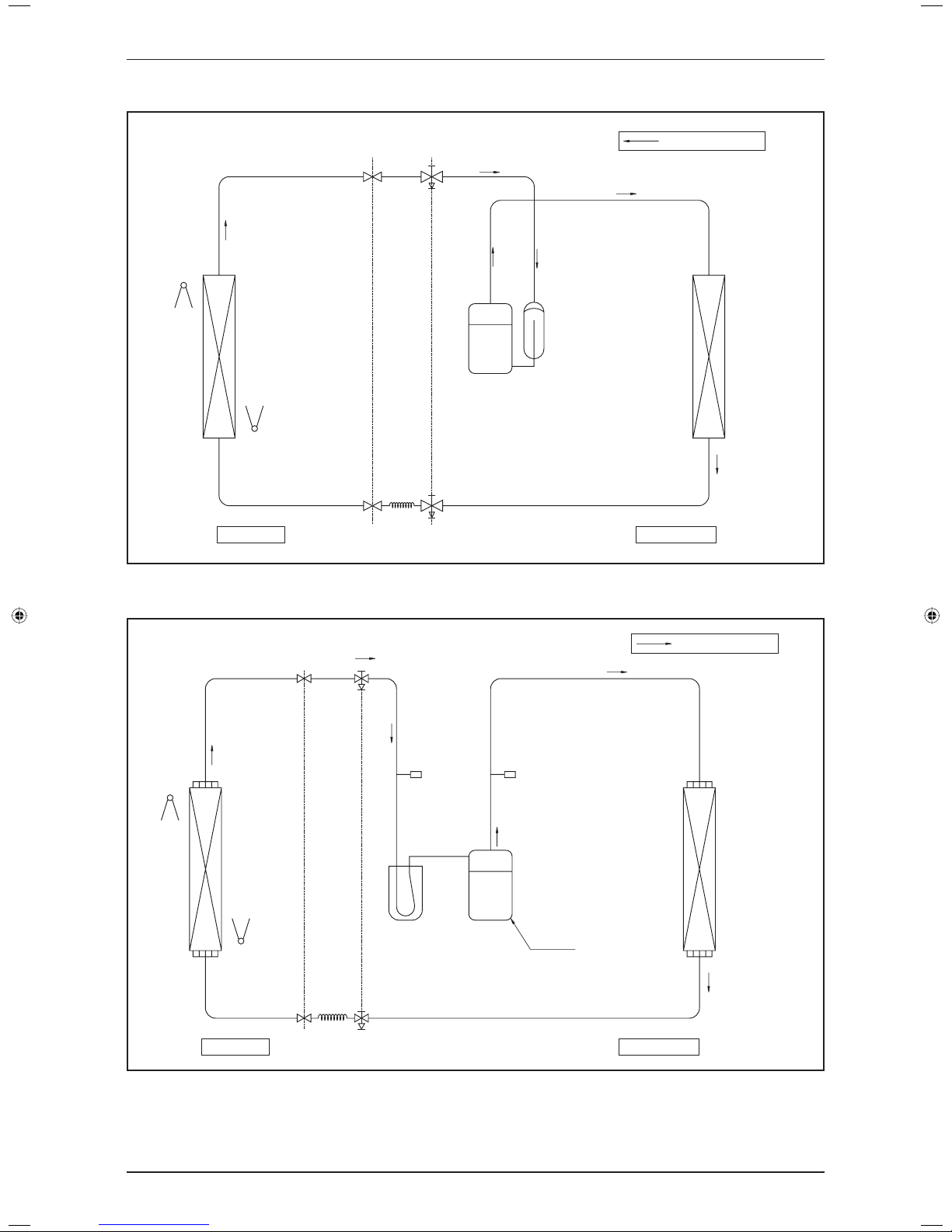

6
Application Information
Model: FT30FXV1 – R28CXV1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
3 WAY
VALVE
ORIFICE
HEAT EXCHANGER
(OUTDOOR UNIT)
Model: FT30FXV1 – R30DXV1 / FT30FXV1 – R30DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
DISCHARGE
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
3 WAY
VALVE
ORIFICE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
HEAT EXCHANGER
(OUTDOOR UNIT)
COMPRESSOR
DAIKIN_FT(Y).indb 6DAIKIN_FT(Y).indb 6 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM

7
Application Information
Model: FTY09JXV1 – RY09CXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
2 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
Model: FTY15JXV1 – RY15CXV1 / FTY20JXV1 – RY20CXV1
COOLING OPERATION
HEATING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
HEATING CAP
TUBE
CHECK
VALVE
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
2 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
DAIKIN_FT(Y).indb 7DAIKIN_FT(Y).indb 7 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM

8
Application Information
Model: FTY25JXV1 – RY25CXV1 / FTY30FXV1 – RY28CXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
Model: FTY30FXV1 – RY30DXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER
BIFLOW
TXV
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
4 WAY VALVE
HIGH
PRESSURE
SWITCH
ACCUMULATOR
COMPRESSOR
DAIKIN_FT(Y).indb 8DAIKIN_FT(Y).indb 8 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM

9
Application Information
Installation Guideline
Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them.
Installation Diagram
Front panel
50mm or more from walls
(on both sides)
Indoor unit
Air filter
M4 x 12L
30mm or more from ceiling Caulk pipe hole
gap with putty.
Cut thermal insulation pipe
to an appropriate length and
wrap it with tape, making
sure that no gap is left in the
insulation pipe’s cut line.
Wrap the insulation pipe with the
finishing tape from bottom to top.
Outdoor Unit
Opening service lid
Service lid is opening/closing
type.
Opening method
1) Remove the service lid
screws.
2) Pull out the service lid
diagonally down in the
direction of the arrow.
3) Pull down.
Service lid
Outdoor Clearance
If the condensing unit is operated in an atmosphere containing oils (including machine
oils), salt (coastal area), sulphide gas (near hot spring, oil refinery plant), such as
substances may lead to failure of the unit.
A
AIR INLET AIR DISCHARGE
B
OBSTACLE OBSTACLE
C
AIR INLET
SERVICE SPACE
D
OBSTACLE OBSTACLE
ALL MODELS
Minimum Distance
A
300 mm
B
1000 mm
C
300 mm
D
500 mm
DAIKIN_FT(Y).indb 9DAIKIN_FT(Y).indb 9 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM

10
Application Information

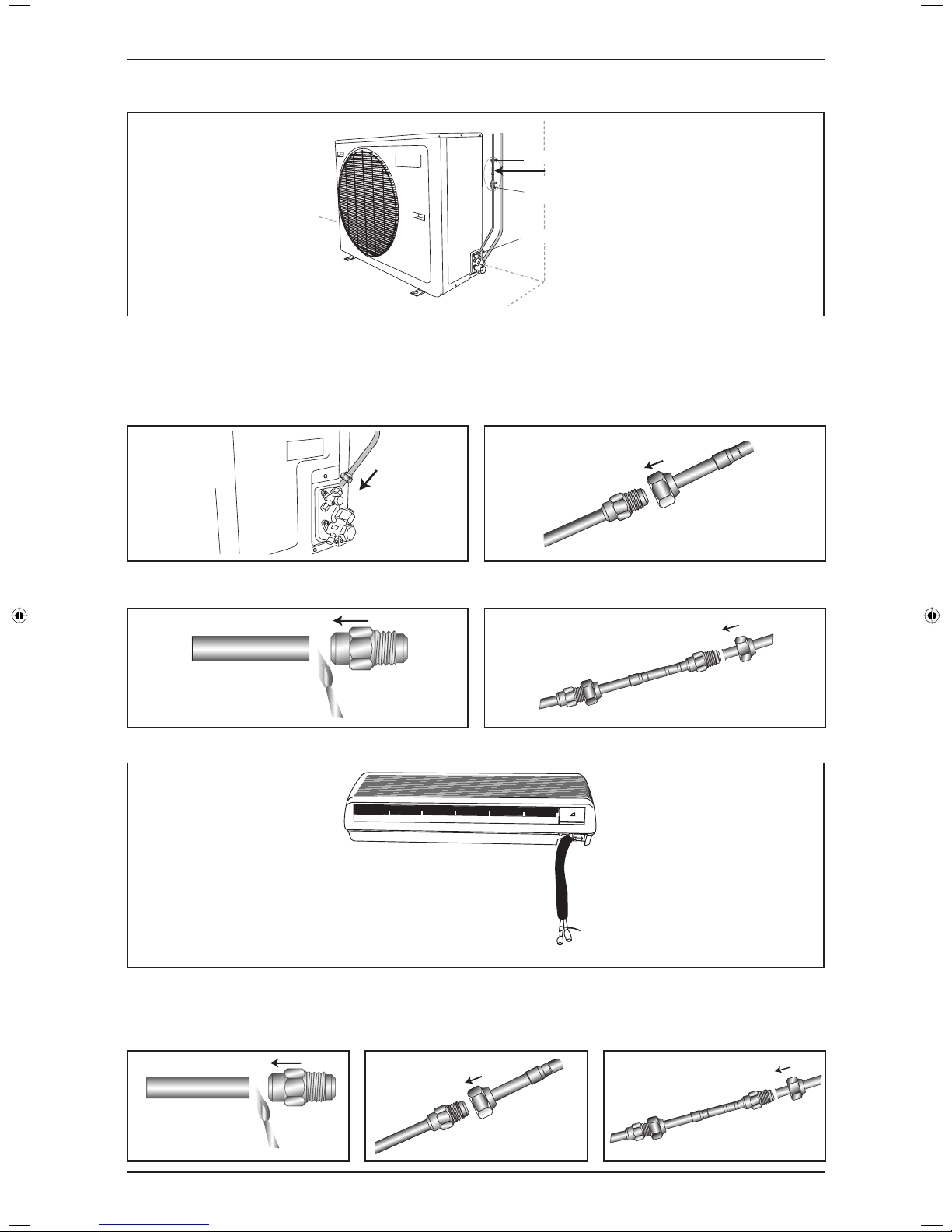

Installation of Orifice Pipe
3 2 1
1
2
3
4
4
Orifice Pipe
Outdoor Unit Indoor Unit
Orifice
Pipe, connecting
Flare nut 3/8" (Female)
Flare joint 3/8" (Male)
Note:
This installation is only for FT30F/R28C & FT30F/R30D
The orifice pipe must be installed in the correct direction as shown above.
Improper direction may cause failure to the operating system.
A. Outdoor unit orifice pipe installation (where installation space is wide enough)
Orifice Pipe
Step 2
Step 1
Steps:
1. Directly connect the “Female” nut of the orifice
pipe to the liquid valve.
2. Flare the liquid pipe and connect it to the “Male”
joint of the orifice pipe.
Orifice Pipe
Liquid Pipe
DAIKIN_FT(Y).indb 10DAIKIN_FT(Y).indb 10 10/15/2012 4:27:09 PM10/15/2012 4:27:09 PM

11
Application Information
B. Outdoor unit orifice pipe installation (where installation space is limited)
Step 4
Step 3
Step 2
Step 1
Orifice Pipe
If the orifice pipe cannot be connected directly to the liquid valve due to space constraint, it can be connected
in between of the liquid pipe.
Steps:
1. Flare the liquid pipe and connect it to the liquid
valve.
2. Braze an additional “Male” joint to the liquid pipe.
Liquid Pipe
Brazer
3. Connect the “Female” nut of the Orifice pipe to
the“Male” joint.
Liquid Pipe Orifice Pipe
4. Flare another liquid pipe and connect it to the
“Male” joint of the orifice pipe.
Liquid Pipe
Orifice Pipe
C. Indoor unit orifice pipe installation
Indoor Unit
Orifice Pipe
Steps:
1. Braze an additional “Male” joint
to the liquid pipe.
Liquid Pipe
Brazer
2. Connect the “Female” nut of the
Orifice pipe to the“Male” joint.
Liquid Pipe Orifice Pipe
3. Flare another liquid pipe and
connect it to the “Male” joint of
the orifice pipe.
Liquid Pipe
Orifice Pipe
DAIKIN_FT(Y).indb 11DAIKIN_FT(Y).indb 11 10/15/2012 4:27:10 PM10/15/2012 4:27:10 PM

12
Application Information
Cable Size
Model Unit FT10JXV1 FT15JXV1 FT20JXV1 FT25JXV1
R09CXV1 R15CXV1 R18CXV1 R25CXV1
Power supply cable size
Number of wire
mm21.5
3
1.5
3
2.5
3
2.5
3
Interconnection cable size
Number of wire
mm21.5
3
1.5
3
2.5
3
2.5
3
Recommended fuse A 15 15 20 20
Model Unit FT30FXV1
R28CXV1 R30DXV1 R30DXY1
Power supply cable size
Number of wire
mm22.5
3
2.5
3
1.5
5
Interconnection cable size
Number of wire
mm22.5
3
2.5
4
1.5
4
Recommended fuse A 20 20 15
Model Unit FTY09JXV1 FTY15JXV1 FTY20JXV1 FTY25JXV1
RY09CXV1 RY15CXV1 RY20CXV1 RY25CXV1
Power supply cable size
Number of wire
mm21.5
3
1.5
3
2.5
3
2.5
3
Interconnection cable size
Number of wire
mm21.5
5
1.5
5
2.5
5
2.5
5
Recommended fuse A 15 15 20 20
Model Unit FTY30FXV1 FTY30FXV1
RY28CXV1 RY30DXV1
Power supply cable size
Number of wire
mm22.5
3
4
3
Interconnection cable size
Number of wire
mm22.5
5
2.5
6
Recommended fuse A 20 25
DAIKIN_FT(Y).indb 12DAIKIN_FT(Y).indb 12 10/15/2012 4:27:10 PM10/15/2012 4:27:10 PM

13
Application Information
Refrigerant Piping

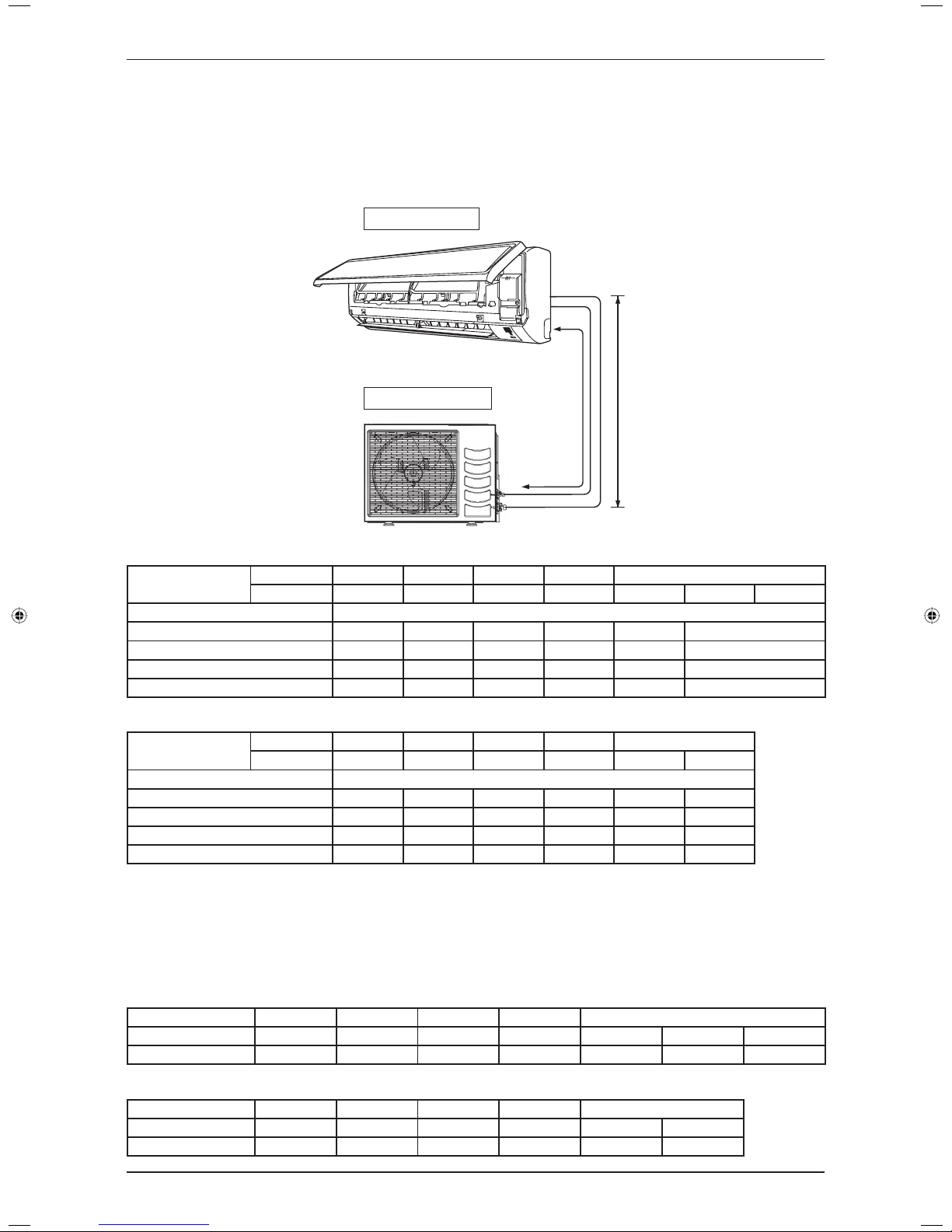

Piping Length and Elevation
When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases,
system piping resistance to the refrigerant flow increases, thus lowering the cooling capacity, and as the result
the compressor may become defective. Always choose the shortest path and follow the recommendation as
tabulated below:
Outdoor Unit
Indoor Unit
LH
Cooling Only Model
Model Indoor
FT10JXV1 FT15JXV1 FT20JXV1 FT25JXV1 FT30FXV1
Outdoor R09CXV1 R15CXV1 R18CXV1 R25CXV1 R28CXV1 R30DXV1 R30DXY1
Min. Allowable Length (L), m 3
Max. Allowable Length (L), m 12 12 25 35 15 45
Max. Allowable Elevation (E), m 5 5 15 20 8 15
Gas Pipe Size, mm/(in) 9.52 / (3/8") 12.70 / (1/2") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8")
Liquid Pipe Size, mm/(in) 6.35 / (1/4") 6.35 / (1/4") 6.35 / (1/4") 9.52 / (3/8") 9.52 / (3/8") 9.52 / (3/8")
Heatpump Model
Model Indoor
FTY09JXV1 FTY15JXV1 FTY20JXV1 FTY25JXV1 FTY30FXV1
Outdoor RY09CXV1 RY15CXV1 RY20CXV1 RY25CXV1 RY28CXV1 R30DXV1
Min. Allowable Length (L), m 3
Max. Allowable Length (L), m 12 12 15 15 15 45
Max. Allowable Elevation (E), m 5588815
Gas Pipe Size, mm/(in) 9.52 / (3/8") 12.70 / (1/2") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8") 15.88 / (5/8")
Liquid Pipe Size, mm/(in) 6.35 / (1/4") 6.35 / (1/4") 6.35 / (1/4") 9.52 / (3/8") 9.52 / (3/8") 9.52 / (3/8")
Additional Charge
The refrigerant gas is charged in the outdoor unit and, if the piping length is 7.6m, additional charge of the
refrigerant after vacuuming is not necessary.
When the piping length is more than 7.6m, additional refrigerant charge (g) per additional 1m length as
tabulated:
R22 – Cooling Only
Indoor FT10JXV1 FT15JXV1 FT20JXV1 FT25JXV1 FT30FXV1
Outdoor R09CXV1 R15CXV1 R18CXV1 R25CXV1 R28CXV1 R30DXV1 R30DXY1
Add. Charge, g/m 20 20 19 39 55 55 55
R22 – Heatpump
Indoor FTY09JXV1 FTY15JXV1 FTY20JXV1 FTY25JXV1 FTY30FXV1
Outdoor RY09CXV1 RY15CXV1 RY20CXV1 RY25CXV1 RY28CXV1 RY30DXV1
Add. Charge, g/m 20 20 20 55 58 55
•
•
DAIKIN_FT(Y).indb 13DAIKIN_FT(Y).indb 13 10/15/2012 4:27:10 PM10/15/2012 4:27:10 PM

14

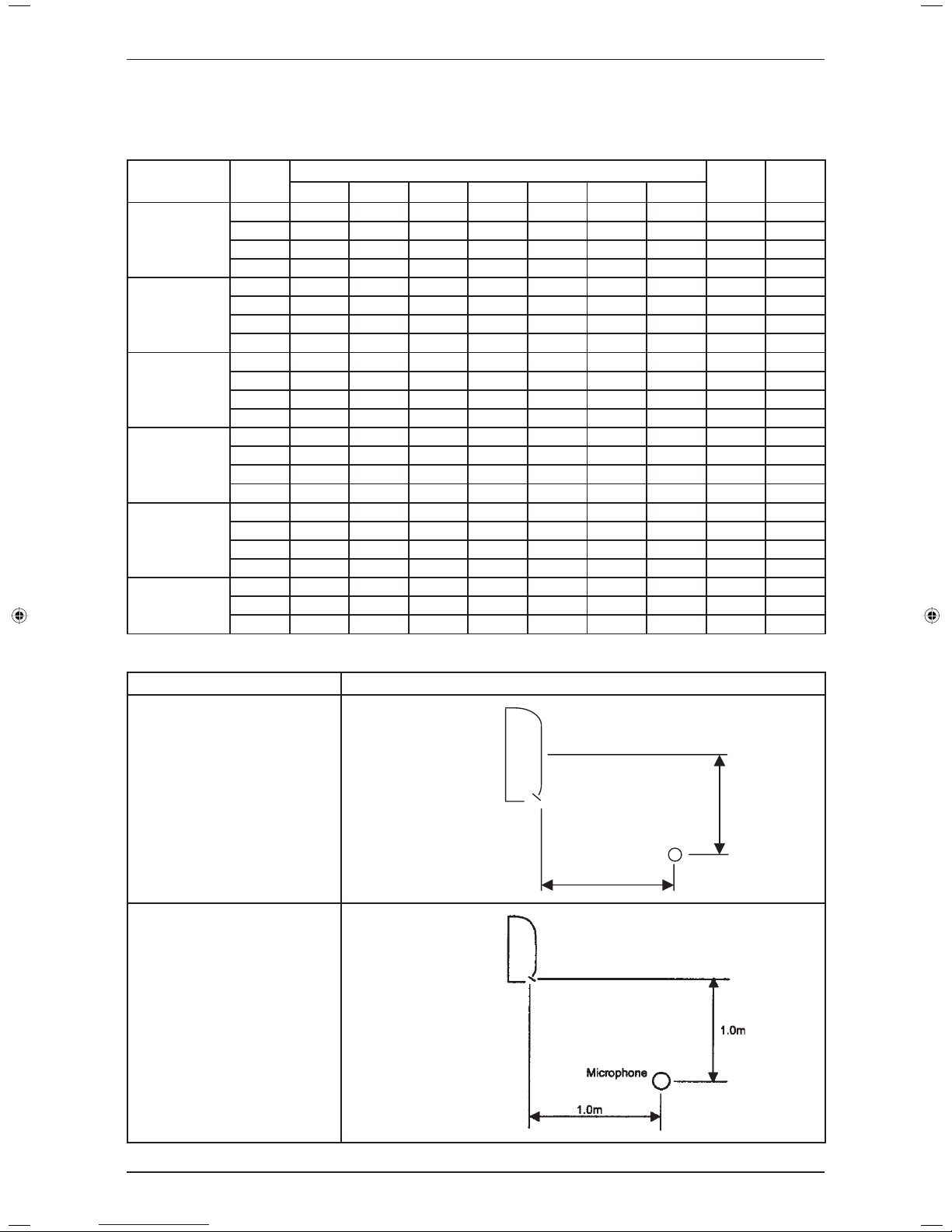

Sound Data
Sound Data
Sound Pressure Level
Model Speed 1/1 Octave Sound Pressure (dB, ref 20μPa) Overall
(dBA)
Noise
Criteria
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
FT10JXV1
High 31 35 36 34 30 22 9 38 33
Med 26 30 31 27 22 13 5 32 25
Low 24 26 27 22 15 7 7 27 21
Quiet 23 24 25 20 13 6 5 25 -
FTY09JXV1
High 30 32 33 29 25 19 9 34 28
Med 27 29 31 27 22 20 11 32 25
Low 24 26 28 23 19 19 11 29 22
Quiet 24 25 27 22 18 19 11 28 22
FT(Y)15JXV1
High 34 37 38 36 33 25 13 40 35
Med 31 33 34 30 26 17 11 35 29
Low 30 28 29 24 19 11 10 29 23
Quiet 29 27 28 23 18 11 10 28 22
FT(Y)20JXV1
High 21 31 36 38 36 27 15 42 37
Med 17 28 34 35 32 23 13 39 34
Low 14 26 31 32 29 20 12 36 32
Quiet 12 25 31 31 27 20 13 35 30
FT(Y)25JXV1
High 40 42 42 42 39 32 20 46 43
Med 37 39 39 39 36 27 19 43 39
Low 34 37 37 36 32 24 18 40 37
Quiet 31 35 35 33 29 22 18 37 33
FT(Y)30FXV1
High 42 46 45 44 41 35 28 49 43
Med 40 45 44 43 35 33 27 47 42
Low 37 43 43 40 35 30 26 45 39
Model Measuring Location
FT10/FTY09JXV1
FT(Y)15JXV1
FT(Y)20JXV1
FT(Y)25JXV1
Microphone
1.0m
0.8m
Standard : JIS C 9612
FT(Y)30FXV1
Standard : JIS B 8615
DAIKIN_FT(Y).indb 14DAIKIN_FT(Y).indb 14 10/15/2012 4:27:10 PM10/15/2012 4:27:10 PM

15
Sound Data
NC Curve
FT10JXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20μPa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
M
L
Q
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
M
L
Q
FTY09JXV1
0
10
20
30
40
50
60
70
12 5 25 0 50 0 100 0 200 0 400 0 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20μPa)
DAIKIN_FT(Y).indb 15DAIKIN_FT(Y).indb 15 10/15/2012 4:27:10 PM10/15/2012 4:27:10 PM

16
Sound Data
Sound pressure level (dB, ref 20μPa)
FT(Y)15JXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
M
L
Q
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
H
M
L
Q
NC-20
N
C
-
30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
FT(Y)20JXV1
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20μPa)
DAIKIN_FT(Y).indb 16DAIKIN_FT(Y).indb 16 10/15/2012 4:27:10 PM10/15/2012 4:27:10 PM

17
Sound Data
H
M
L
Q
NC-20
N
C
-
30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
FT(Y)25JXV1
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20μPa)
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
H
M
L
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
FT(Y)30FXV1
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20μPa)
DAIKIN_FT(Y).indb 17DAIKIN_FT(Y).indb 17 10/15/2012 4:27:11 PM10/15/2012 4:27:11 PM
