1 Specifications
VRV
®
System IndoorUnit FXKQ-MAVE CeilingMou
1-1 TECHNICAL SPECIFICATIONS FXKQ25MAVE FXKQ32MAVE FXKQ40MAVE FXKQ63MAVE
Capacity Cooling kW 2.80 3.60 4.50 7.10
Heating kW 3.20 4.00 5.00 8.00
Power Input (50Hz) Cooling kW 0.066 0.066 0.076 0.105
Heating kW 0.046 0.046 0.056 0.085
Power Input (60Hz) Cooling kW 0.069 0.069 0.092 0.120
Heating kW 0.049 0.049 0.072 0.100
Casing Material Galvanised steel
Dimensions Unit Height mm 215 215 215 215
Width mm 1110 1110 1110 1310
Depth mm 710 710 710 710
Weight Unit kg 31 31 31 34
Heat Exchanger Dimensions Nr of Rows 2223
Fin Pitch mm 1.75 1.75 1.75 1.75
Face Area m² 0.180 0.180 0.180 0.226
Nr of Stages 11 11 11 11
Fan Type Sirocco fan
Quantity 1111
Air Flow Rate Cooling High m³/min 11.00 11.00 13.00 18.00
Low m³/min 9.00 9.00 10.00 15.00
FanMotorQuantity 1111
Model 3D12H1AN1V1 3D12H1AN1V1 3D12H1AP1V1 4D12H1AJ1V1
Output (high) W 15 15 20 45
Drive Direct drive
Refrigerant Name R-410A
Cooling Sound Pressure High dBA 38.0 38.0 40.0 42.0
Low dBA 33.0 33.0 34.0 37.0
Piping connections Liquid (OD) Type Flare connection
Diameter mm 6.35 6.35 6.35 9.52
Gas Type Flare connection
Diameter mm 12.7 12.7 12.7 15.9
Drain Diameter mm 32 32 32 32
Heat Insulation Foamed Polyethylene
Decoration Panel Model BYK45FJW1 BYK45FJW1 BYK45FJW1 BYK71FJW1
Colour White
Dimensions Height mm 70 70 70 70
Width mm 1240 1240 1240 1440
Depth mm 800 800 800 800
Weight kg 8.5 8.5 8.5 9.5
Air Filter Resin net with mold resistance
Refrigerant control Electronic expansion valve
Temperature control Microprocessor thermostat for cooling and heating
Safety devices PC board fuse
Drain pump fuse
Fan motor thermal fuse Fan motor thermal fuse Fan motor thermal
protector
Fan motor thermal
protector
Standard Accessories Installation and operation manual
Metal clamp for drain hose
Clamps
Insulation for hanger bracket
Positioning jig for installation
Paper pattern for installation
Drain hose
Insulation for fitting
Sealing pads
Screws
Washer
Air outlet blocking pad

•VRV
®Systems • Indoor Units 3
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
1 Specifications
Notes Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor temperature
: 35°CDB, equivalent refrigerant piping : 7.5m (horizontal)
Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB,
6°CWB, equivalent refrigerant piping : 7.5m (horizontal)
Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.
Sound pressure levels are measured at 220V
1-2 ELECTRICAL SPECIFICATIONS (50HZ) FXKQ25MAVE FXKQ32MAVE FXKQ40MAVE FXKQ63MAVE
Power Supply Name VE
Phase 1~
Frequency Hz 50
Voltage V 220-240
Current Minimum circuit amps (MCA) A 0.3 0.3 0.3 0.5
Maximum fuse amps (MFA) A 15 15 15 15
Full load amps (FLA) A 0.2 0.2 0.2 0.4
Voltage range Minimum V -10%
Maximum V +10%
Notes Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminals
is not below or above listed range limits.
Maximum allowable voltage range variation between phases is 2%.
MCA/MFA : MCA = 1.25 x FLA
MFA is smaller than or equal to 4 x FLA
Next lower standard fuse rating minimum 15A
Select wire size based on the MCA
Instead of a fuse, use a circuit breaker
1-3 ELECTRICAL SPECIFICATIONS (60HZ) FXKQ25MAVE FXKQ32MAVE FXKQ40MAVE FXKQ63MAVE
Power Supply Name VE
Phase 1~
Frequency Hz 60
Voltage V 220
Current Minimum circuit amps (MCA) A 0.4 0.4 0.5 0.6
Maximum fuse amps (MFA) A 15 15 15 15
Full load amps (FLA) A 0.3 0.3 0.4 0.5
Voltage range Minimum V -10%
Maximum V +10%
Notes Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminals
is not below or above listed range limits.
Maximum allowable voltage range variation between phases is 2%.
MCA/MFA : MCA = 1.25 x FLA
MFA is smaller than or equal to 4 x FLA
Next lower standard fuse rating minimum 15A
Select wire size based on the MCA
Instead of a fuse, use a circuit breaker
1-1 TECHNICAL SPECIFICATIONS FXKQ25MAVE FXKQ32MAVE FXKQ40MAVE FXKQ63MAVE

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
4
2 Safety device settings
3 Options
3D006691K
FXKQ25MA FXKQ32MA FXKQ40MA FXKQ63MA
PC BOARD FUSE 250V 5A
FAN MOTOR THERMAL FUSE °C146
±3-
FAN MOTOR THERMAL PROTECTOR °C-OFF:120
±5/ ON: 105 or less
DRAIN PUMP THERMAL FUSE °C145
FXKQ25MA FXKQ32MA FXKQ40MA FXKQ63MA
DECORATION PANEL BYK45FJW1 BYK71FJW1
PANEL SPACER KPBJ52F56W KPBJ52F80W
LONG LIFE REPLACEMENT FILTER KAFJ521F56 KAFJ521F80
AIR DISCHARGE GRILL K-HV7AW K-HV9AW
AIR DISCHARGE BLIND PANEL KDBJ52F56W KDBJ52F80W
FLEXIBLE DUCT (WITH SHUTTER) KFDJ52F56 KFDJ52F80
3D037081A
Air discharge grill
Decoration panel
(For front discharge)
Long life filter Panel spacer
Fresh air intake position
Shutter
Flexible duct (with shutter)

•VRV
®Systems • Indoor Units 5
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
4 Control systems
Individual control systems
Centralised control systems
Others
3D034600C
FXKQ25MA FXKQ32MA FXKQ40MA FXKQ63MA
WIRED REMOTE CONTROL BRC1D52
INFRARED REMOTE CONTROL Heat pump BRC4C61
Cooling only BRC4C63
FXKQ25MA FXKQ32MA FXKQ40MA FXKQ63MA
CENTRALISED REMOTE CONTROL DCS302C51
UNIFIED ON/OFF CONTROL DCS301B51
SCHEDULE TIMER DST301B51
FXKQ25MA FXKQ32MA FXKQ40MA FXKQ63MA
WIRING ADAPTER KRP1B61
WIRING ADAPTER FOR ELECTRICAL APPENDICES (1) KRP2A61
WIRING ADAPTER FOR ELECTRICAL APPENDICES (2) KRP4A51
REMOTE SENSOR KRCS01-1
ELECTRICAL BOX WITH EARTH TERMINAL (3 BLOCKS) KJB311A
ELECTRICAL BOX WITH EARTH TERMINAL (2 BLOCKS) KJB212A
NOISE FILTER (FOR ELECTROMAGNETIC INTERFACE USE ONLY) KEK26-1A
EXTERNAL CONTROL ADAPTER FOR OUTDOOR UNITS (INSTALLATION ON INDOOR UNIT) DTA104A61

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
6
5 Capacity tables
5 - 1 Cooling capacity tables
FXKQ-MA
CA03A095
TC: Total capacity;kW – SHC: Sensible capacity;kW
Unit size Nominal
capacity
Outdoor
air temp.
Indoor air temperature
14.0WB 16.0WB 18.0WB 19.0WB 20.0WB 22.0WB 24.0WB
20.0DB 23.0DB 26.0DB 27.0DB 28.0DB 30.0DB 32.0DB
°CDBTCSHCTCSHCTCSHCTCSHCTCSHCTCSHCTCSHC
25 2.8 10.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.4 2.5 3.7 2.5
12.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.4 2.5 3.6 2.5
14.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.4 2.5 3.6 2.5
16.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.4 2.5 3.5 2.4
18.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.4 2.5 3.5 2.4
20.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.4 2.5 3.4 2.4
21.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.4 2.5 3.4 2.4
23.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.3 2.5 3.4 2.3
25.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.3 2.5 3.3 2.3
27.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.2 2.4 3.3 2.3
29.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.2 2.4 3.2 2.3
31.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.1 2.4 3.2 2.3
33.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 3.0 2.5 3.1 2.4 3.1 2.3
35.0 1.9 1.9 2.3 2.2 2.6 2.3 2.82.43.02.53.02.43.12.3
37.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 2.9 2.5 3.0 2.4 3.0 2.3
39.0 1.9 1.9 2.3 2.2 2.6 2.3 2.8 2.4 2.9 2.5 2.9 2.3 3.0 2.2
32 3.6 10.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.3 2.9 4.7 2.9
12.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.3 2.9 4.7 2.9
14.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.3 2.9 4.6 2.9
16.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.3 2.9 4.6 2.8
18.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.3 2.9 4.5 2.8
20.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.3 2.9 4.4 2.8
21.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.3 2.9 4.4 2.7
23.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.2 2.9 4.3 2.7
25.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.2 2.8 4.3 2.7
27.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.1 2.8 4.2 2.7
29.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.1 2.8 4.2 2.6
31.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 4.0 2.7 4.1 2.6
33.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.8 2.9 3.9 2.7 4.0 2.6
35.0 2.4 2.2 2.9 2.5 3.4 2.6 3.62.73.82.93.92.74.02.6
37.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.7 2.8 3.8 2.7 3.9 2.6
39.0 2.4 2.2 2.9 2.5 3.4 2.6 3.6 2.7 3.7 2.8 3.8 2.7 3.8 2.6
40 4.5 10.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.4 3.5 5.9 3.5
12.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.4 3.5 5.8 3.5
14.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.4 3.5 5.8 3.4
16.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.4 3.5 5.7 3.4
18.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.4 3.5 5.6 3.3
20.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.4 3.5 5.5 3.3
21.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.4 3.5 5.5 3.3
23.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.3 3.4 5.4 3.2
25.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.2 3.4 5.3 3.2
27.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.2 3.3 5.3 3.2
29.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.1 3.3 5.2 3.1
31.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 5.0 3.2 5.1 3.1
33.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.8 3.3 4.9 3.2 5.0 3.1
35.0 3.0 2.6 3.6 2.8 4.2 3.2 4.53.24.73.34.93.25.03.0
37.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.7 3.3 4.8 3.1 4.9 3.0
39.0 3.0 2.6 3.6 2.8 4.2 3.2 4.5 3.2 4.6 3.2 4.7 3.1 4.8 3.0
63 7.1 10.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.5 5.4 9.3 5.6
12.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.5 5.4 9.2 5.5
14.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.5 5.4 9.1 5.4
16.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.5 5.4 9.0 5.3
18.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.5 5.4 8.8 5.3
20.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.5 5.4 8.7 5.2
21.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.5 5.4 8.7 5.2
23.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.4 5.3 8.5 5.1
25.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.3 5.3 8.4 5.0
27.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.1 5.2 8.3 5.0
29.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 8.0 5.1 8.2 4.9
31.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 7.9 5.1 8.1 4.9
33.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.6 5.2 7.8 5.0 7.9 4.8
35.0 4.8 4.0 5.7 4.5 6.6 5.0 7.15.17.55.27.75.07.84.8
37.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.4 5.1 7.5 4.9 7.7 4.8
39.0 4.8 4.0 5.7 4.5 6.6 5.0 7.1 5.1 7.2 5.0 7.4 4.9 7.6 4.7

•VRV
®Systems • Indoor Units 7
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
5 Capacity tables
5 - 2 Heating capacity tables
FXKQ-MA
CA03A095
Unit Size Nominal capacity Outdoor
air temperature
Indoor air temperature °CDB
16.0 18.0 20.0 21.0 22.0 24.0
°CDB °CWBkWkWkWkWkWkW
25 3.2 -19.8 -20.0 1.9 1.9 1.9 1.9 1.9 1.9
-18.8 -19.0 1.9 1.9 1.9 1.9 1.9 1.9
-16.7 -17.0 2.1 2.1 2.0 2.0 2.0 2.0
-14.7 -15.0 2.2 2.2 2.2 2.2 2.2 2.1
-12.6 -13.0 2.3 2.3 2.3 2.3 2.3 2.3
-10.5 -11.0 2.4 2.4 2.4 2.4 2.4 2.4
-9.5 -10.0 2.5 2.4 2.4 2.4 2.4 2.4
-8.5 -9.1 2.5 2.5 2.5 2.5 2.5 2.5
-7.0 -7.6 2.6 2.6 2.6 2.6 2.6 2.6
-5.0 -5.6 2.7 2.7 2.7 2.7 2.7 2.7
-3.0 -3.7 2.8 2.8 2.8 2.8 2.8 2.8
0.0 -0.7 3.0 3.0 3.0 3.0 3.0 2.8
3.0 2.2 3.1 3.1 3.1 3.1 3.0 2.8
5.0 4.1 3.3 3.2 3.2 3.1 3.0 2.8
7.0 6.0 3.4 3.4 3.2 3.1 3.0 2.8
9.0 7.9 3.5 3.4 3.2 3.1 3.0 2.8
11.0 9.8 3.6 3.4 3.2 3.1 3.0 2.8
13.0 11.8 3.6 3.4 3.2 3.1 3.0 2.8
15.0 13.7 3.6 3.4 3.2 3.1 3.0 2.8
32 4.0 -19.8 -20.0 2.4 2.4 2.3 2.3 2.3 2.3
-18.8 -19.0 2.4 2.4 2.4 2.4 2.4 2.4
-16.7 -17.0 2.6 2.6 2.6 2.6 2.6 2.5
-14.7 -15.0 2.7 2.7 2.7 2.7 2.7 2.7
-12.6 -13.0 2.9 2.8 2.8 2.8 2.8 2.8
-10.5 -11.0 3.0 3.0 3.0 3.0 3.0 3.0
-9.5 -10.0 3.1 3.1 3.1 3.1 3.0 3.0
-8.5 -9.1 3.1 3.1 3.1 3.1 3.1 3.1
-7.0 -7.6 3.2 3.2 3.2 3.2 3.2 3.2
-5.0 -5.6 3.4 3.4 3.4 3.4 3.4 3.4
-3.0 -3.7 3.5 3.5 3.5 3.5 3.5 3.5
0.0 -0.7 3.7 3.7 3.7 3.7 3.7 3.5
3.0 2.2 3.9 3.9 3.9 3.9 3.7 3.5
5.0 4.1 4.1 4.1 4.0 3.9 3.7 3.5
7.0 6.0 4.2 4.2 4.0 3.9 3.7 3.5
9.0 7.9 4.3 4.3 4.0 3.9 3.7 3.5
11.0 9.8 4.5 4.3 4.0 3.9 3.7 3.5
13.0 11.8 4.5 4.3 4.0 3.9 3.7 3.5
15.0 13.7 4.5 4.3 4.0 3.9 3.7 3.5
40 5.0 -19.8 -20.0 3.0 2.9 2.9 2.9 2.9 2.9
-18.8 -19.0 3.0 3.0 3.0 3.0 3.0 3.0
-16.7 -17.0 3.2 3.2 3.2 3.2 3.2 3.2
-14.7 -15.0 3.4 3.4 3.4 3.4 3.4 3.4
-12.6 -13.0 3.6 3.6 3.6 3.5 3.5 3.5
-10.5 -11.0 3.7 3.7 3.7 3.7 3.7 3.7
-9.5 -10.0 3.8 3.8 3.8 3.8 3.8 3.8
-8.5 -9.1 3.9 3.9 3.9 3.9 3.9 3.9
-7.0 -7.6 4.0 4.0 4.0 4.0 4.0 4.0
-5.0 -5.6 4.2 4.2 4.2 4.2 4.2 4.2
-3.0 -3.7 4.4 4.4 4.4 4.4 4.4 4.4
0.0 -0.7 4.7 4.6 4.6 4.6 4.6 4.4
3.0 2.2 4.9 4.9 4.9 4.8 4.7 4.4
5.0 4.1 5.1 5.1 5.0 4.8 4.7 4.4
7.0 6.0 5.2 5.2 5.0 4.8 4.7 4.4
9.0 7.9 5.4 5.3 5.0 4.8 4.7 4.4
11.0 9.8 5.6 5.3 5.0 4.8 4.7 4.4
13.0 11.8 5.6 5.3 5.0 4.8 4.7 4.4
15.0 13.7 5.6 5.3 5.0 4.8 4.7 4.4
63 8.0 -19.8 -20.0 4.7 4.7 4.7 4.7 4.7 4.7
-18.8 -19.0 4.9 4.9 4.8 4.8 4.8 4.8
-16.7 -17.0 5.1 5.1 5.1 5.1 5.1 5.1
-14.7 -15.0 5.4 5.4 5.4 5.4 5.4 5.4
-12.6 -13.0 5.7 5.7 5.7 5.7 5.7 5.7
-10.5 -11.0 6.0 6.0 6.0 6.0 6.0 5.9
-9.5 -10.0 6.1 6.1 6.1 6.1 6.1 6.1
-8.5 -9.1 6.3 6.3 6.2 6.2 6.2 6.2
-7.0 -7.6 6.5 6.5 6.4 6.4 6.4 6.4
-5.0 -5.6 6.8 6.7 6.7 6.7 6.7 6.7
-3.0 -3.7 7.0 7.0 7.0 7.0 7.0 7.0
0.0 -0.7 7.5 7.4 7.4 7.4 7.4 7.0
3.0 2.2 7.9 7.8 7.8 7.7 7.5 7.0
5.0 4.1 8.1 8.1 8.0 7.7 7.5 7.0
7.0 6.0 8.4 8.4 8.0 7.7 7.5 7.0
9.0 7.9 8.7 8.5 8.0 7.7 7.5 7.0
11.0 9.8 8.9 8.5 8.0 7.7 7.5 7.0
13.0 11.8 9.0 8.5 8.0 7.7 7.5 7.0
15.0 13.7 9.0 8.5 8.0 7.7 7.5 7.0

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
8
6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing

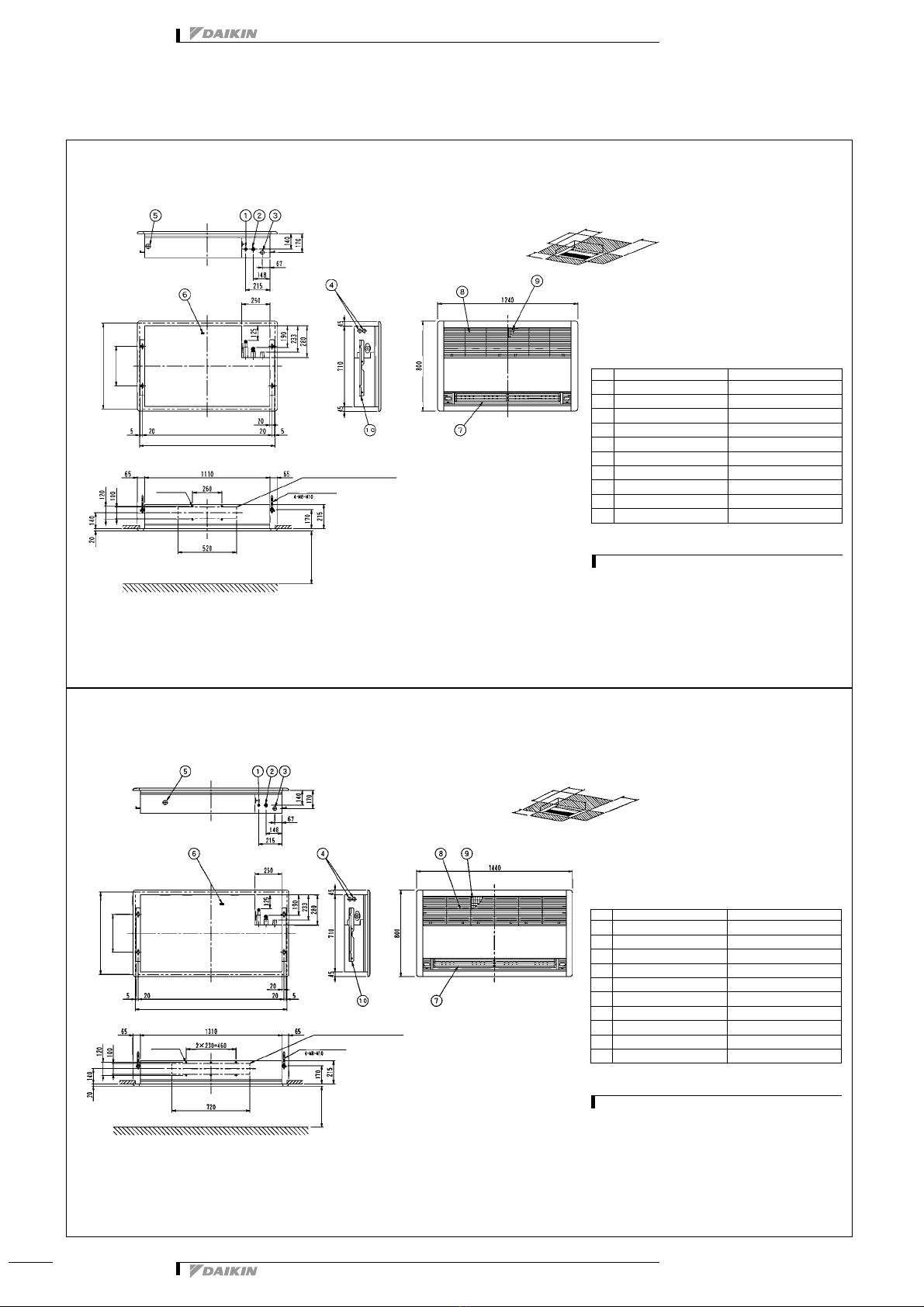

FXKQ25,32,40MA
3D038840

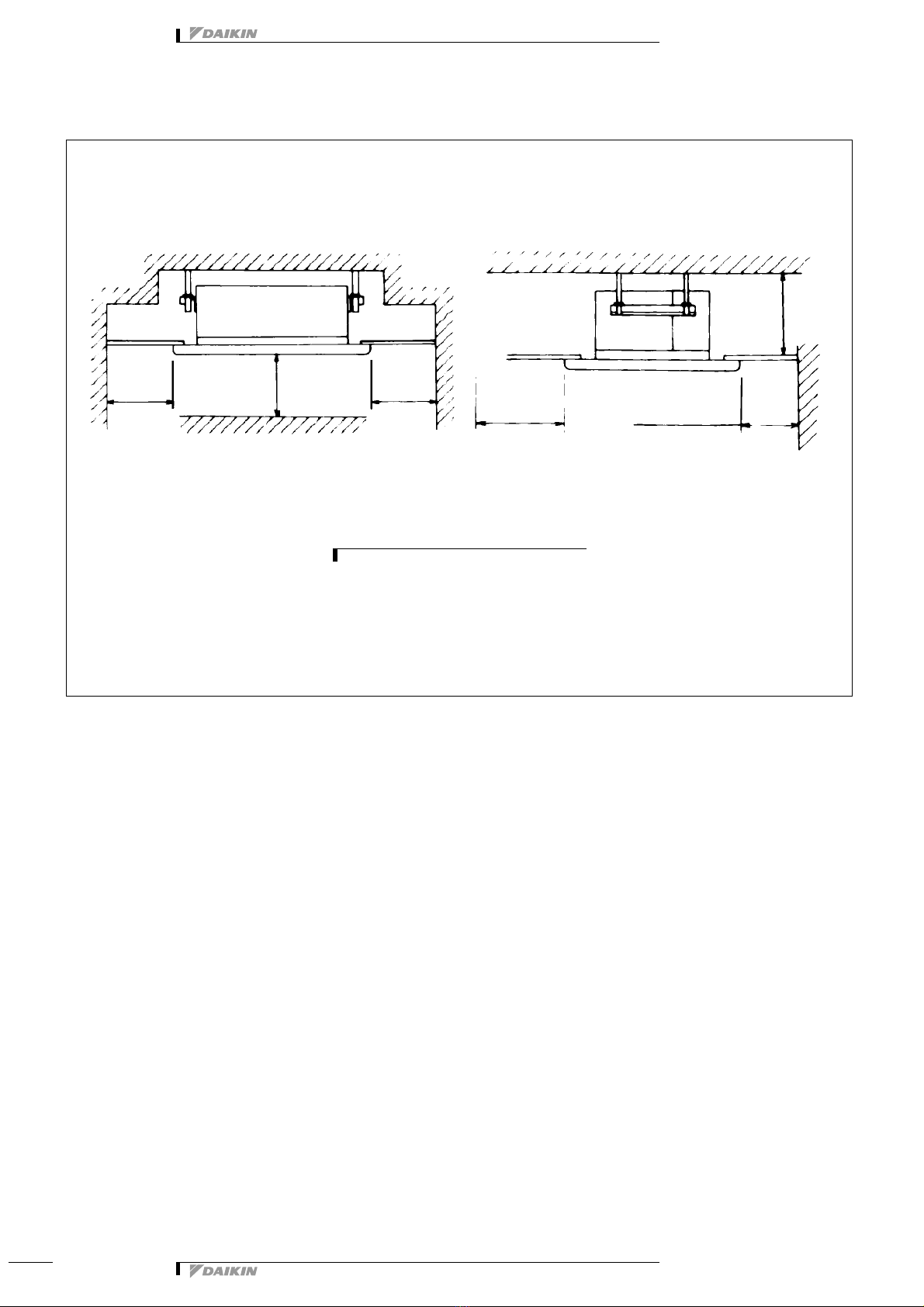

200 mm or more
20 mm or more
1,500 mm or
more
200 mm or more
Required installation space
1,150 (Suspension position)
1,200 (Ceiling opening)
760 (Ceiling opening)
4-M4 hole Suspension bolt
Front discharge duct position
Required installation space
1,000 or more
350 (Suspension position)
NOTES
1 Location of unit’s name plate:
• For main body: Bottom part of fan housing inside of air suction grille.
• For decoration panel: Service lid face inside of air suction grille.
2 When installing an optional accessory, refer to the installation drawings.
Nr. Name Description
1Liquid pipe connection ø 6.4 Flare connection
2Gas pipe connection ø 12.7 Flare connection
3Drain pipe connection VP25 (O.D. ø 32)
4Wire intake
5Interunit wiring connection
6Grounding terminal Inside switch box (M4)
7Discharge
8Air suction grille
9Long life filter
10 Suspension bolt
FXKQ63MA
3D038841
20 mm or more
1,500 mm or
more 200 mm or more
200 mm or more
Required installation space
1,350 (Suspension position)
1,400 (Ceiling opening)
760 (Ceiling opening)
350 (Suspension position)
6-M4 hole Suspension bolt
Front discharge duct position
(Required installation space)
1,000 or more
NOTES
1 Location of unit’s name plate:
• For main body: Bottom part of fan housing inside of air suction grille.
• For decoration panel: Service lid face inside of air suction grille.
2 When installing an optional accessory, refer to the installation drawings.
Nr. Name Description
1Liquid pipe connection ø 9.5 Flare connection
2Gas pipe connection ø 15.9 Flare connection
3Drain pipe connection VP25 (O.D. ø 32)
4Wire intake
5Interunit wiring connection
6Grounding terminal Inside switch box (M4)
7Discharge
8Air suction grille
9Long life filter
10 Suspension bolt

•VRV
®Systems • Indoor Units 9
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
6 Dimensional drawing & centre of gravity
6 - 2 Centre of gravity
FXKQ-MA

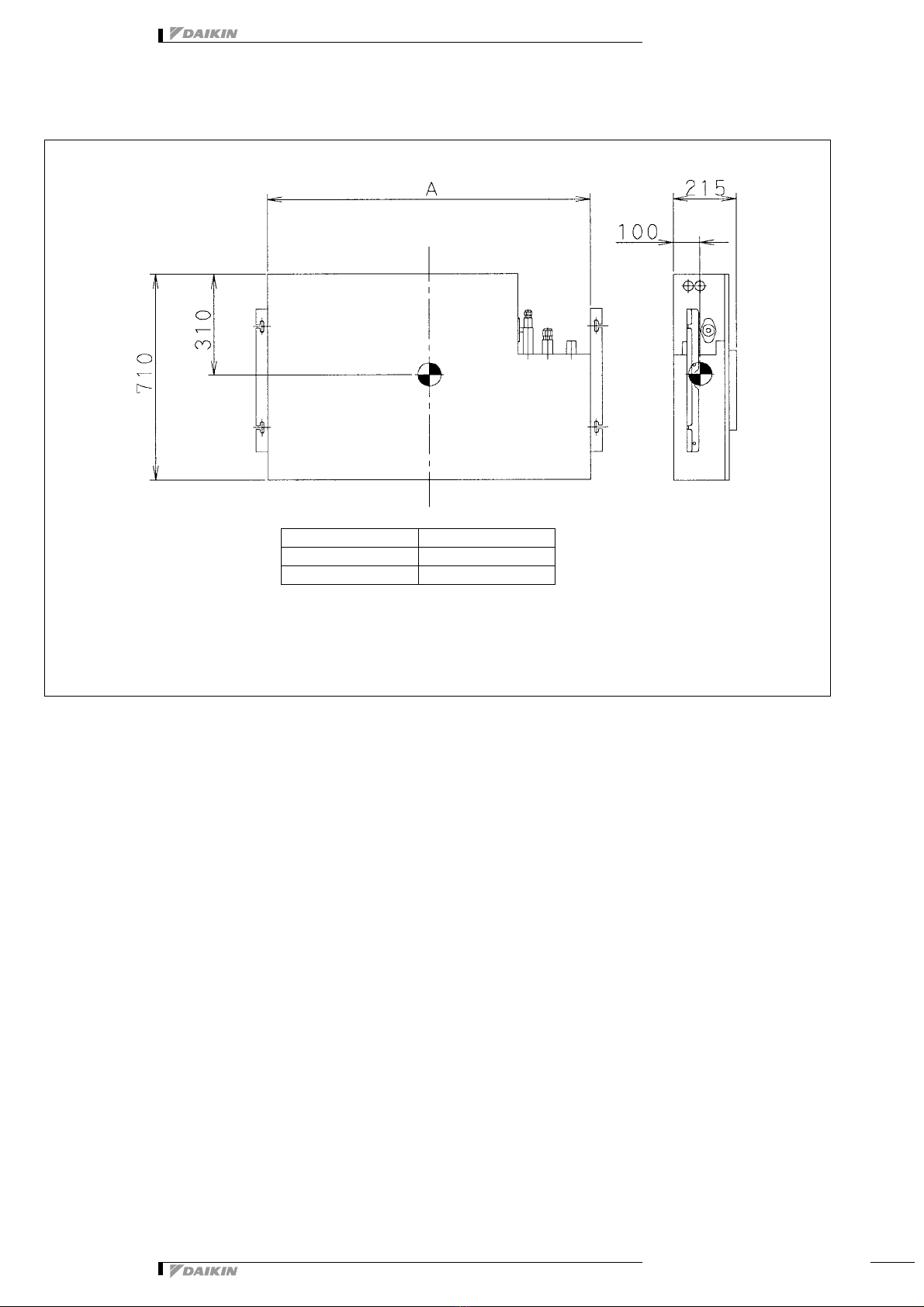

4D037079A
Model A
FXKQ25,32,40MA 1,110
FXKQ63MA 1,310

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
10
7 Piping diagram
FXKQ-MA
4D034245A
Heat exchanger
Fan
Filter Filter
Electronic expansion
valve
Liquid pipe connection port
Gas pipe connection port
Piping connection diameters
Model Gas Liquid
FXKQ25,32,40MA ø12.7 ø6.4
FXKQ63MA ø15.9 ø9.5

•VRV
®Systems • Indoor Units 11
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
8 Wiring diagram
8 - 1 Wiring diagram
FXKQ-MA
3D039564B
Power supply
Electric parts box
Note 2
Input from outside
Note 1
Transmission wiring central
remote control
Wired remote control
(Optional accessory)
220-240V
~
50Hz
220V
~
60Hz
Note 3
NOTES
1 In case using central remote control, connect it to the unit in accordance with the attached instruction manual.
2 When connecting the input wires from outside, forced off or on/off control operation can be selected by remote control.
In details, refer to the installation manual attached the unit.
3 In case high E.S.P. operation, change over the wiring connection from X2A to X3A.
4 Use copper conductors only.
Indoor Unit R1T Thermistor (Air)
A1P Printed circuit board R2T•R3T Thermistor (Coil)
A2P Terminal board S1Q Limit switch (Swing flap)
C1R Capacitor (M1F) T1R Transformer (220-240V/22V)
F1U Fuse (훾, 5A, 250V) X1M Terminal block (Power)
HAP Light emitting diode (Service monitor-green) X2M Terminal block (Control)
K1R-K3R Magnetic relay (M1F) Y1E Electronic expansion valve
KAR Magnetic relay (M1S) Wired remote control
KPR Magnetic relay (M1P) R1T Thermistor (Air)
M1F Motor (Indoor fan) SS1 Selector Switch (Main/Sub)
M1P Motor (Drain pump) Connector for optional parts
M1S Motor (Swing flap) X16A Connector (Adapter for wiring)
Q1M Thermo switch (M1F embedded) X18A Connector (Wiring adapter for electorical appendices)
COLORS : BLK : Black PNK : Pink
BLU : Blue RED : Red
BRN : Brown WHT : White
GRY : Gray YLW : Yellow
ORG : Orange
,
: Terminal block
: Connector
: Terminal
: Field wiring

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
12
9 Sound data
9 - 1 Sound level data
FXKQ-MA
NOTES
1 Reference acoustic pressure 0dB=0.0002μbar
2 Operation noise differs with operation and ambient conditions
3 Measuring place: anechoic chamber
Model Sound pressure level - 220 V Sound pressure level - 240 V Sound power level
HLHL
FXKQ25MA 38 33 40 35 *
FXKQ32MA 38 33 40 35 *
FXKQ40MA 40 34 42 36 *
FXKQ63MA 42 37 44 39 *
* data were not available at the time of publication

•VRV
®Systems • Indoor Units 13
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
9 Sound data
9 - 2 Sound pressure spectrum

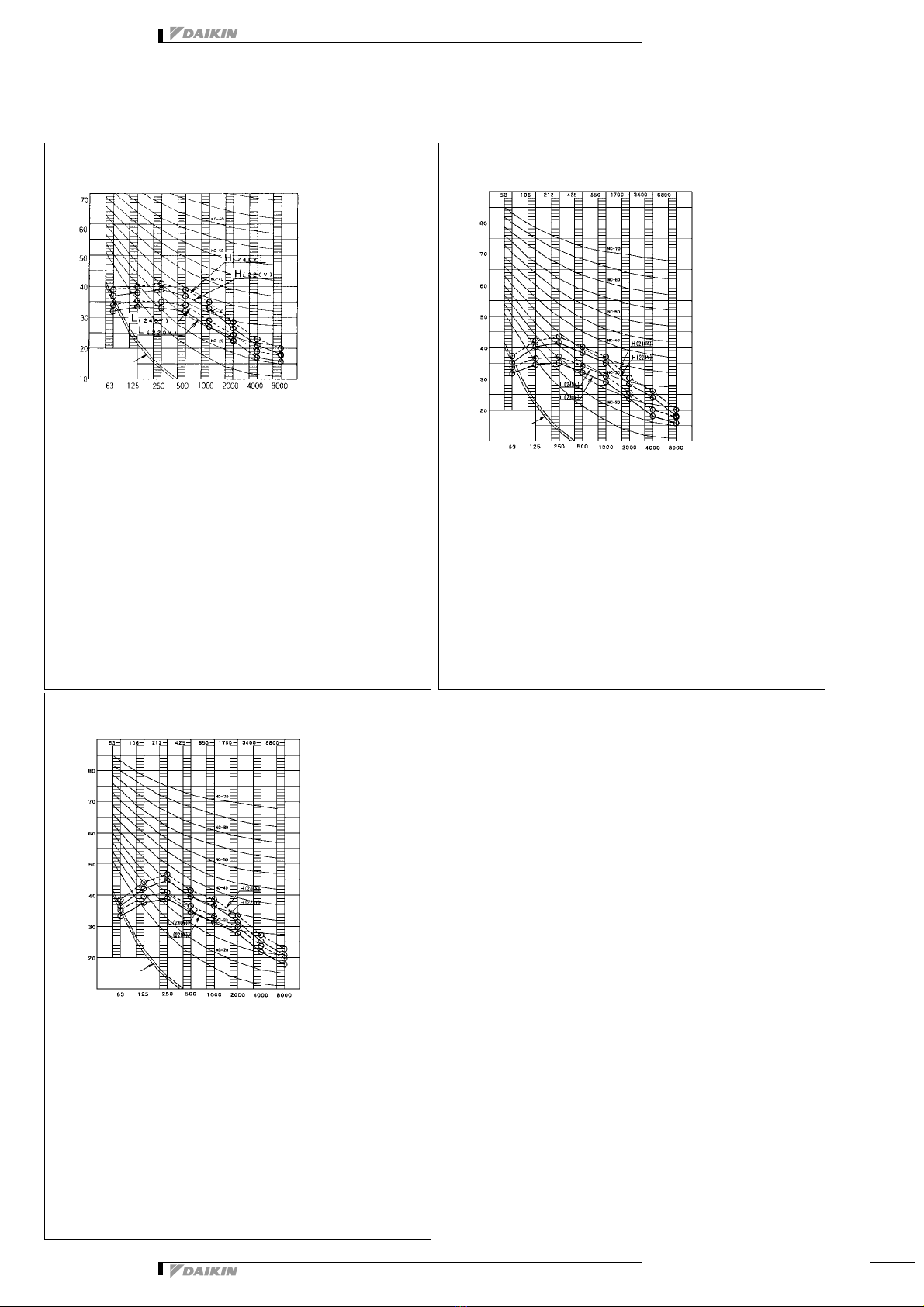

FXKQ25,32MA 4D037071
Octave band center frequency (Hz)
Sound pressure level dB (0dB=0.0002 m bar)
Approximate
threshold
hearing for
continuous noise
FXKQ40MA 4D037072
Octave band center frequency (Hz)
Octave band sound pressure level dB (0dB=0.0002 μbar)
Approximate
threshold
hearing for
continuous noise
FXKQ63MA 4D037073
Octave band center frequency (Hz)
Octave band sound pressure level dB (0dB=0.0002 μbar)
Approximate
threshold
hearing for
continuous noise

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
14
10 Air flow pattern
FXKQ63MA

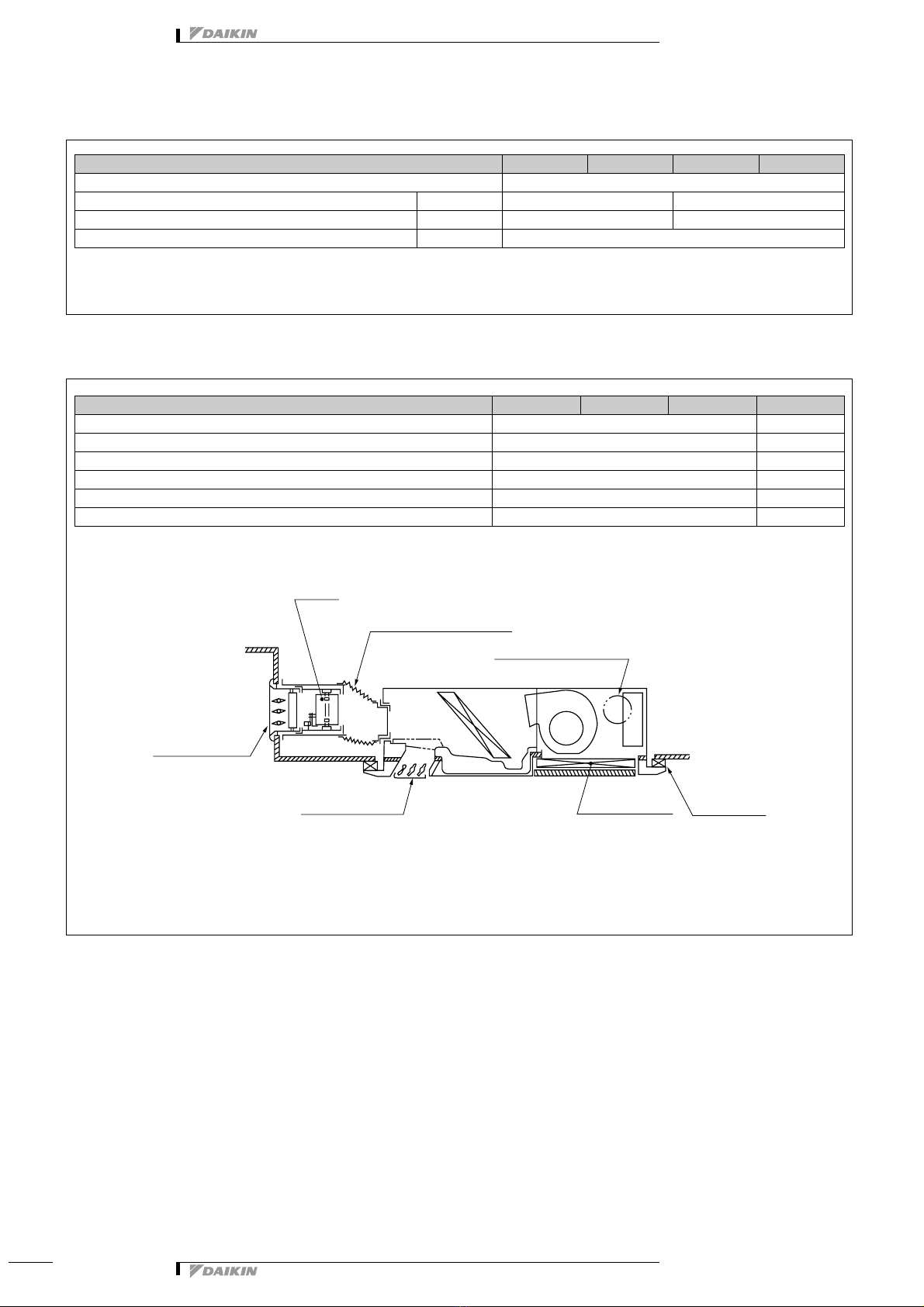

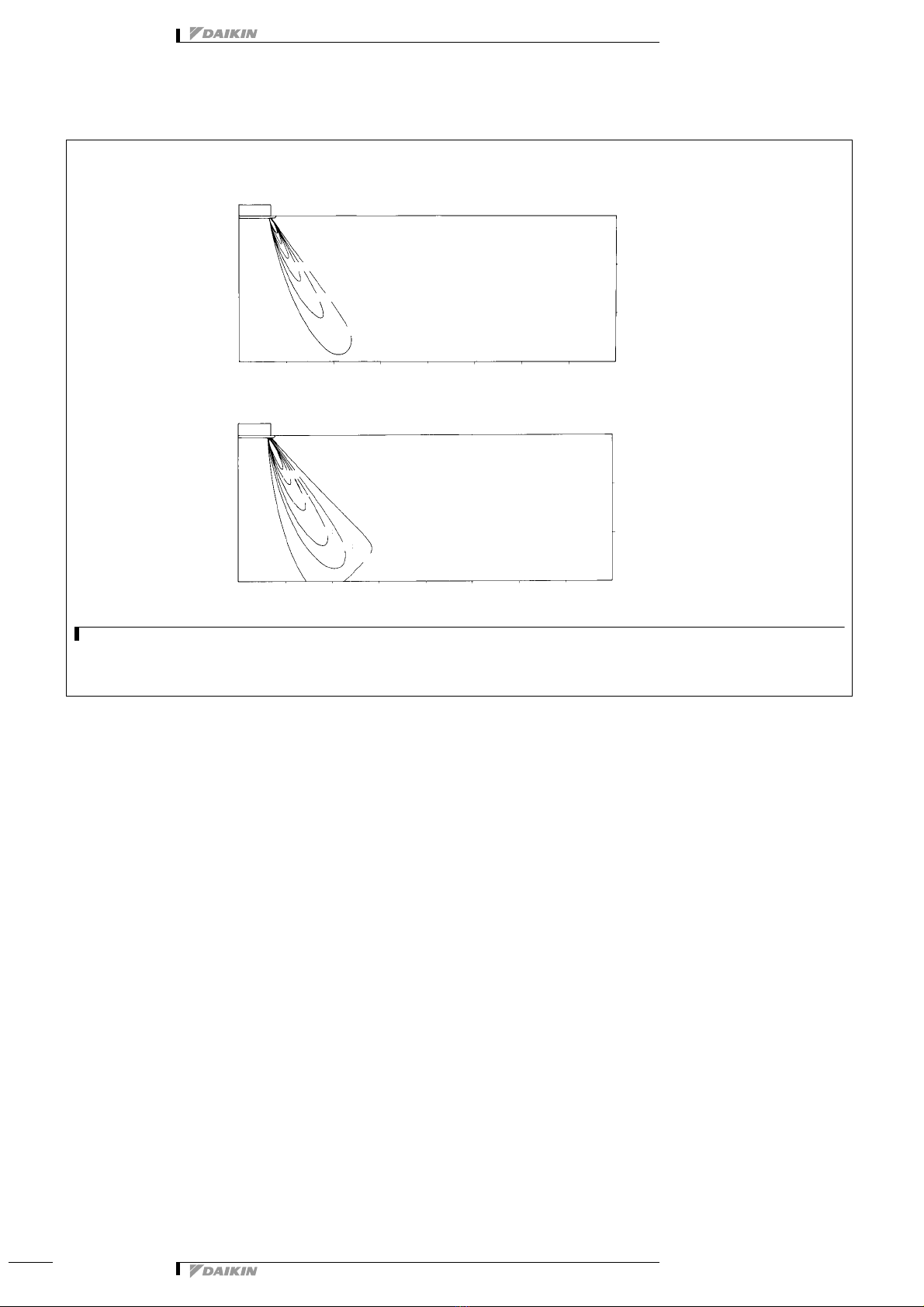

Heating air velocity distribution
Lower air blow
Heating temperature distribution
Lower air blow
NOTES
1 The corner type is applicable on a high ceiling. The standard set-up height is 3 m. Shown here is the measurement distribution at the ceiling
height of 3 m.
0 m 1 m 2 m 3 m 4 m
0 m
1 m
2 m
1.5 m/sec
1.0 m/sec
0.5 m/sec
3 m
5 m 6 m 7 m 8 m
0 m 1 m 2 m 3 m 4 m
0 m
1 m
2 m
3 m
5 m 6 m 7 m 8 m
27°C
22°C
25°C
30°C
33°C

•VRV
®Systems • Indoor Units 15
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
11 Installation
11 - 1 Drainage instructions

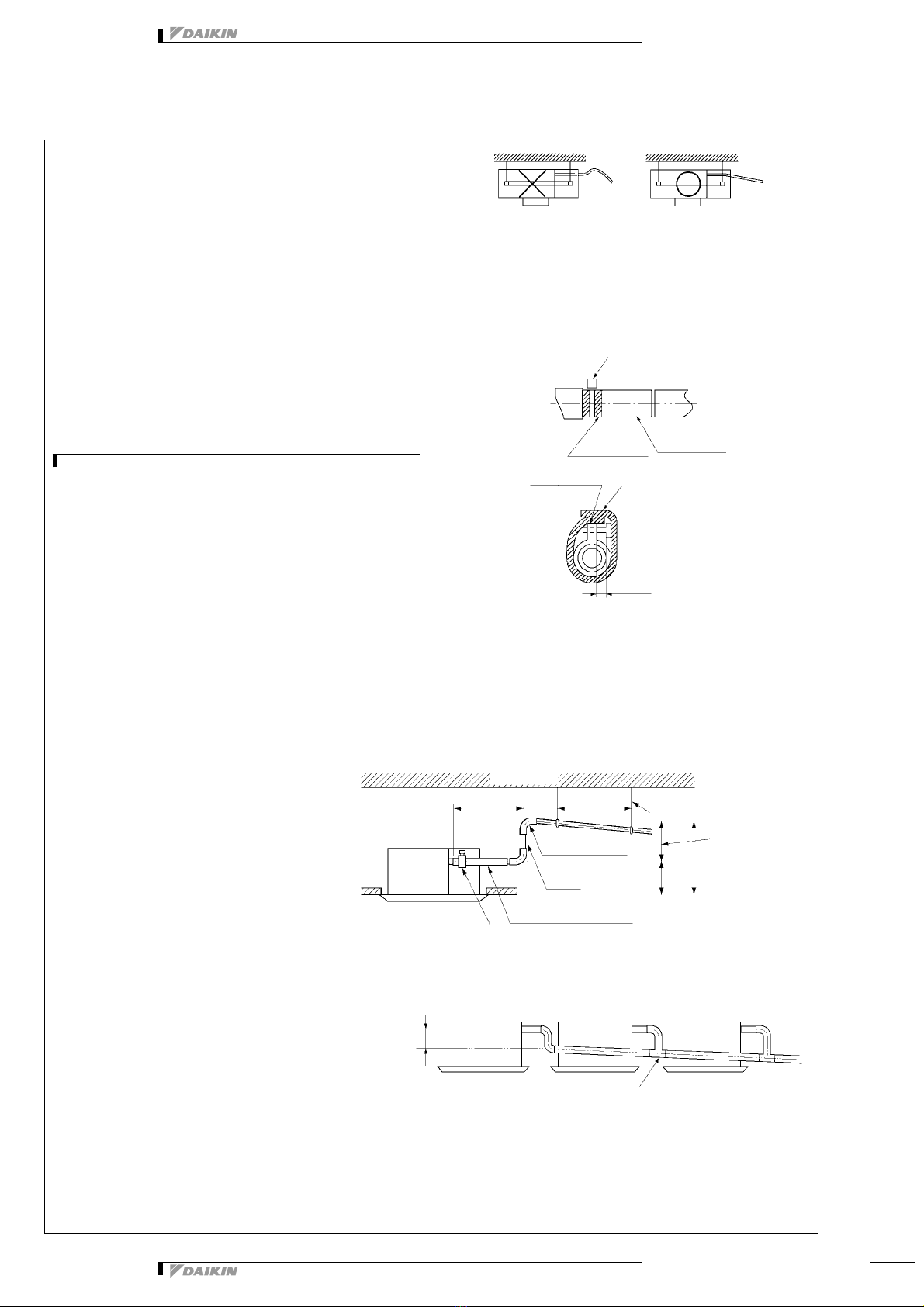

Rig the drain pipe as shown below and take measures against
condensation. Improperly rigged piping could lead to leaks and
eventually wet furniture and belongings.
Install the drain pipes.
• Keep piping as short as possible and slope it downwards so that
the air does not remain trapped inside the pipe.
• The diameter of the drain pipe should be larger than or equal to
the diameter of the connecting pipe (Vinyl tube; pipe size: 25 mm;
outer dimension: 32 mm).
• Use the attached drain hose and clamp metal. Insert the drain hose
into the drain socket, up to the white tape. Tighten the clamp until
the screw head is less than 4 mm from the hose.
• Wrap the attached sealing pad over the clamp and drain hose to
insulate.
• Insulate the drain hose inside the building.
• Insulate the clamp and drain hose with the attached large sealing
pad. If the drain hose cannot be sufficiently set on a slope, execute
the drain raising piping. Secure a downward gradient of 1/100 or
more for the drain pipe. To accomplish this, mount supporting
brackets at an interval of 1 - 1.5 m.
Precautions when installing drain-up piping.
• Make sure the drain-up piping is maximum 330 mm high. Install
the drain-up piping horizontally, and make sure it is not further
than 300 mm from the base of the drain socket.
• Use the following outline if installing concentrated drain piping. If
converging multiple drain pipes, install according to the procedure
shown on the right.
Select converging drain pipes whose gauge is suitable for the operating capacity of the unit.
CAUTION
1 Installing the unit at an angle opposite to the drain piping might
cause leaks.
Clamp metal
Clamp metal
(attached)
Large sealing pad
(attached)
Tape (white)
< 4 mm
Drain hose
Ceiling slab
Clamp metal (attached) Drain hose (attached)
Riser
< 300
< 500
170
1-1.5 m
Drain-up piping
Support bracket
Adjustable (< 330)
> 100 mm
T-joint converging drain pipes

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
16
11 Installation
11 - 1 Drainage instructions
When piping work is finished
• Check if drainage flows smoothly. Open the inspection opening,
add approximately 1,000 cc of water slowly into the drain pan and
check drainage flow.
When electric wiring work is finished
• Check drainage flow during COOL running, explained under “TEST
OPERATION”
When electric wiring work is not finished
• Remove the electric parts box lid, connect power supply and
remote control to the terminals.
Next, press the inspection/test operation button on the
remote control. The unit will engage the test operation mode.
Press the operation mode selector button until selection
FAN OPERATION . Then, press the ON/OFF button .
The indoor unit fan and drain pump will start up. Check that the
water has drained from the unit. Press to go back to the
first mode.
NOTE
1 Use the drain outlet for maintenance to drain water from the
drain pan.
Inspection opening
Portable pump
Bucket Drain outlet for maintenance (with rubber plug)
CAUTION
1 Do not connect the drain piping directly to sewage pipes that
smell of ammonia. The ammonia in the sewage might enter the
indoor unit through the drain pipes and corrode the heat
exchanger.
Power supply
KV1 type 1 ~ 220-240V
PC board Power supply terminal
Copper wire
Electric parts box lid.

•VRV
®Systems • Indoor Units 17
• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
11 Installation
11 - 2 Suspension bolt pitch position
FXKQ-MA
Decoration panel
Ceiling opening port
Indoor unit
Suspension bolt (4 pc.)
Model A B C D
FXKQ25,32,40MA 1,110 1,150 1,200 1,240
FXKQ63MA 1,310 1,350 1,400 1,440

• Indoor Units • CEILING MOUNTED CORNER CASSETTE • FXKQ-MAVE
•VRV
®Systems • Indoor Units
18
11 Installation
11 - 3 Service space
FXKQ-MA
200 or more 200 or more
20 or more1,500 or more
(Suction side)
(Discharge side)
220 or more
1,000 or more
NOTES
1 Above figures mean minimum values
