Daikin FTX-GV Instruction manual

Air Conditioning
Technical Data
Wall mounted unit
EEDEN13-100
FTX-GV

• Split - Sky Air • Indoor Unit 1
• Indoor Unit • Wall mounted unit • FTX-GV
TABLE OF CONTENTS
FTX-GV
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Centre of gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

• Indoor Unit • Wall mounted unit • FTX-GV
1
1
• Split - Sky Air • Indoor Unit
2
1 Features
IndoorUnit Split-Sk FTX-GVWallmounte • Online controller (optional): control your indoor unit from any location
via smartphone, laptop, pc, tablet or touch screen
• 3-D air flow combines vertical and horizontal auto swing to circulate
a stream of warm or cool air right to the corners of even large spaces
• Indoor unit silent operation: "silent" button on the remote control
lowers the operation sound of the indoor unit by 3dBA
• Horizontal auto swing moves the discharge flaps left and right for
efficient air and temperature distribution throughout the room
• Outdoor unit silent operation: "silent" button on the remote control
lowers the operation sound of the outdoor unit by 3dBA to ensure a
quiet environment for the neighbourhood.
• Home leave operation maintains the indoor temperature at your
specified comfort level during absence, thus saving energy
• Dry programme allows humdity levels to be reduced without
variations in room temperature
• Movement sensor saves power consumption in unoccupied rooms:
when the room is empty, the unit switches to economy mode after 20
minutes and restarts when a person enters the room.
• Night set mode saves energy by preventing overcooling or
overheating during night time
5 steps 5 steps

3
1
2
• Split - Sky Air • Indoor Unit 3
• Indoor Unit • Wall mounted unit • FTX-GV
2 Specifications
Standard Accessories : Indoor unit fixing screws; Quantity : 2;
Standard Accessories : Mounting plate; Quantity : 1;
Standard Accessories : Remote control holder; Quantity : 1;
Standard Accessories : Batteries; Quantity : 2;
Standard Accessories : Wireless remote control; Quantity : 1;
Standard Accessories : Installation manual; Quantity : 1;
Standard Accessories : Operation manual; Quantity : 1;
Standard Accessories : Titanium apatite photocatalytic air purification filter; Quantity : 2;
2-1 Technical Specifications FTX50GV FTX60GV FTX71GV
Power input Cooling Nom. kW 0.034 0.040 (2) / 0.040 (3) / 0.040 (4) 0.045 (2) / 0.045 (3) / 0.045 (4)
Heating Nom. kW 0.036 0.045 (2) / 0.045 (3) / 0.045 (4) 0.060 (2) / 0.060 (3) / 0.06 (4)
Casing Colour White
Dimensions Unit Height/Width/Depth mm 290/1,050/238
Packed unit Height/Width/Depth mm 337/1,147/366
Weight Unit kg 12
Packed unit kg 17
Heat exchanger Length mm 863
Rows Quantity 2
Fin pitch mm 1.4
Stages Quantity 16
Tube type ø7 Hi-XD
Fin Type ML fin (Multi louver)
Fan Type Cross flow fan
Air flow rate Cooling High m³/min 14.7 16.2 17.4
cfm 519 572 614
Nom. m³/min 14.7 16.2 17.4
cfm 519 572 614
Low m³/min 10.3 11.4 11.6
cfm 364 403 410
Silent operation m³/min 9.5 10.2 10.6
cfm 335 360 374
Heating High m³/min 16.1 17.4 19.7
cfm 568 614 696
Nom. m³/min 13.9 15.1 16.9
cfm 491 533 597
Low m³/min 11.5 12.7 14.3
cfm 406 448 505
Silent operation m³/min 10.2 11.4 12.7
cfm 360 403 448
Fan motor Model ARW30W8P43DK
Speed Steps 5 + silent, + auto
Cooling High/Medium/Low/
Silent operation rpm 1,240/1,080/930/860 1,330/1,170/1,010/920 1,410/1,220/1,040/950
Heating High/Medium/Low/
Silent operation rpm 1,270/1,110/960/870 1,360/1,200/1,040/950 1,520/1,330/1,150/1,040
Output High W 43
Sound power level Cooling High/Nom. dBA 59/59 61/60 -/63
Heating High dBA 58 60 62
Sound pressure level Cooling High/Nom./Low/Silent operation dBA 43/39/34/31 45/41/36/33 46/42/37/34
Heating Super high/High/Nom./Low/
Silent operation dBA -/42/38/33/30 -/44/40/35/32 -/46/42/37/34
Refrigerant Type R-410A
Piping connections Liquid OD 6.35
Gas OD 12.7 15.9
Drain 18
Heat insulation Both liquid and gas pipes
Temperature control Microcomputer control
Air direction control Right, Left, Horizontal, Downward
Air filter Type Removable / washable / mildew proof

• Indoor Unit • Wall mounted unit • FTX-GV
1
2
• Split - Sky Air • Indoor Unit
4
2 Specifications
Notes
(1) SL: The silent fan level of the air flow rate setting
(2) 220V
(3) 230V
(4) 240V
2-2 Electrical Specifications FTX50GV FTX60GV FTX71GV
Power supply Name V1
Phase 1~
Frequency Hz 50
Voltage V 220-240
Current Nominal running
current(RLA)-50Hz Cooling A 0.16 (2) / 0.15 (3) / 0.15 (4) 0.19 (2) / 0.18 (3) / 0.17 (4) 0.21 (2) / 0.20 (3) / 0.19 (4)
Heating A 0.17 (2) / 0.16 (3) / 0.16 (4) 0.21 (2) / 0.20 (3) / 0.19 (4) 0.28 (2) / 0.27 (3) / 0.26 (4)
Wiring connections -
50Hz For power supply Quantity - 3
Remark 3 for power supply, 4 for interunit wiring (Earth wire included) 4 for interunit wiring (earth wire included)

3
1
3
• Split - Sky Air • Indoor Unit 5
• Indoor Unit • Wall mounted unit • FTX-GV
3 Options
3 - 1 Options

• Indoor Unit • Wall mounted unit • FTX-GV
1
4
• Split - Sky Air • Indoor Unit
6
4 Dimensional drawings
4 - 1 Dimensional Drawings
FTX50-60GV
3D055875A
The mark
Left Rear Rear Right
(Space for
maintenance)
Min. 50
Model name
plate
Terminal block
with earth
terminal (inside)
Wall hole for
embedded piping
ø 80 hole
Infrared
remote control
Signal
transmitter
Front grille fixing screws
(inside)
Flaps
Operation lamp
Signal receiver
Indoor unit on/off
switch
Room temp. thermistor
(inside)
Intelligent eye sensor
Timer lamp
Home leave lamp
Horizontal blade
(automatic)
Cooling Heating Dry
Vertical blade (automatic)
Fan Wall hole
ø 80 hole
STANDARD LOCATIONS OF WALL HOLES
BLADE ANGELS
Gas pipe ø12.7 Cut
(the lenght of pipe outside
the unit: about 430)
Liquid pipe ø6.4 Cut
(the lenght of pipe outside the
unit: about 480)
Drain hose for VP13
(connection part
I.D. 14.0, O.D. 18.0)
(The hose length
of outside the unit:
about 530)
Min. 50
(Space for
maintenance)
Min. 30
(Space for
performance)
REQUIRED SPACE
Air flow (indoor)
(For performance and maintenance)
shows piping direction
(Including
installation plate)
FTX71GV
3D055876A
The mark
Left Rear Rear Right
(Space for
maintenance)
Min. 50
Model name
plate
(Including
installation plate)
Terminal block
with earth
terminal (inside)
Wall hole for
embedded piping
ø 80 hole
Infrared
remote control
Signal
transmitter
Front grille fixing screws
(inside)
Flaps
Operation lamp
Signal receiver
Indoor unit on/off
switch
Room temp. thermistor
(inside)
Intelligent eye sensor
Timer lamp
Home leave lamp
Horizontal blade
(automatic)
Cooling Heating Dry
Vertical blade (automatic)
Fan Wall hole
ø 80 hole
STANDARD LOCATIONS OF WALL HOLES
BLADE ANGELS
Gas pipe ø15.9 Cut
(the lenght of pipe outside
the unit: about 430)
Liquid pipe ø6.4 Cut
(the lenght of pipe outside the
unit: about 480)
Drain hose for VP13
(connection part
I.D. 14.0, O.D. 18.0)
(The hose length
of outside the unit:
about 530)
Min. 50
(Space for
maintenance)
Min. 30
(Space for
performance)
REQUIRED SPACE
Air flow (indoor)
(For performance and maintenance)
shows piping direction

3
1
5
• Split - Sky Air • Indoor Unit 7
• Indoor Unit • Wall mounted unit • FTX-GV
5 Centre of gravity
5 - 1 Centre of Gravity
FTX50-71GV
4D065971BBB
%

• Indoor Unit • Wall mounted unit • FTX-GV
1
6
• Split - Sky Air • Indoor Unit
8
6 Piping diagrams
6 - 1 Piping Diagrams

3
1
7
• Split - Sky Air • Indoor Unit 9
• Indoor Unit • Wall mounted unit • FTX-GV

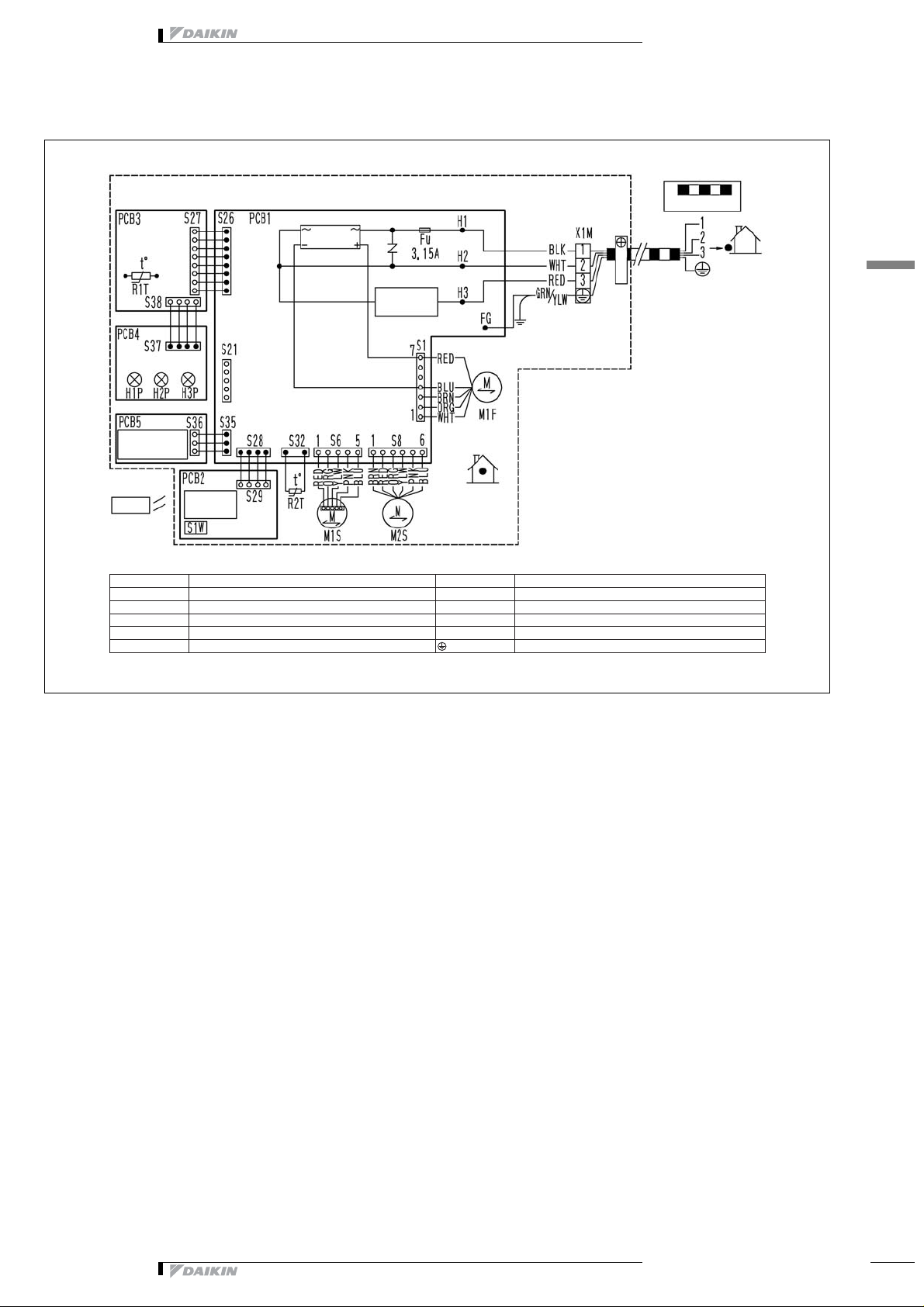

7 Wiring diagrams
7 - 1 Wiring Diagrams - Single Phase
FTX50-71GV
3D038530U
FG Frame ground PCB1~PCB5 Printed circuit board
FU Fuse R1T,R2T Thermistor
H1~H3 Harness S1~S38 Connector
H1P~H3P Pilot lamp S1W Operation switch
M1F Fan motor X1M Terminal strip
M1S, M2S Swing motor Protective earth
LED1 LED2 LED3
RECTIFIER
Transmission
circuit
Intelligent eye
sensor
Signal
receiver
Indoor
infrared
remote
control
Field wiring
Outdoor
CAUTION
Note that operation will restart
automatically if the main power
supply is turned off and then back
on again.
U

• Indoor Unit • Wall mounted unit • FTX-GV
1
8
• Split - Sky Air • Indoor Unit
10

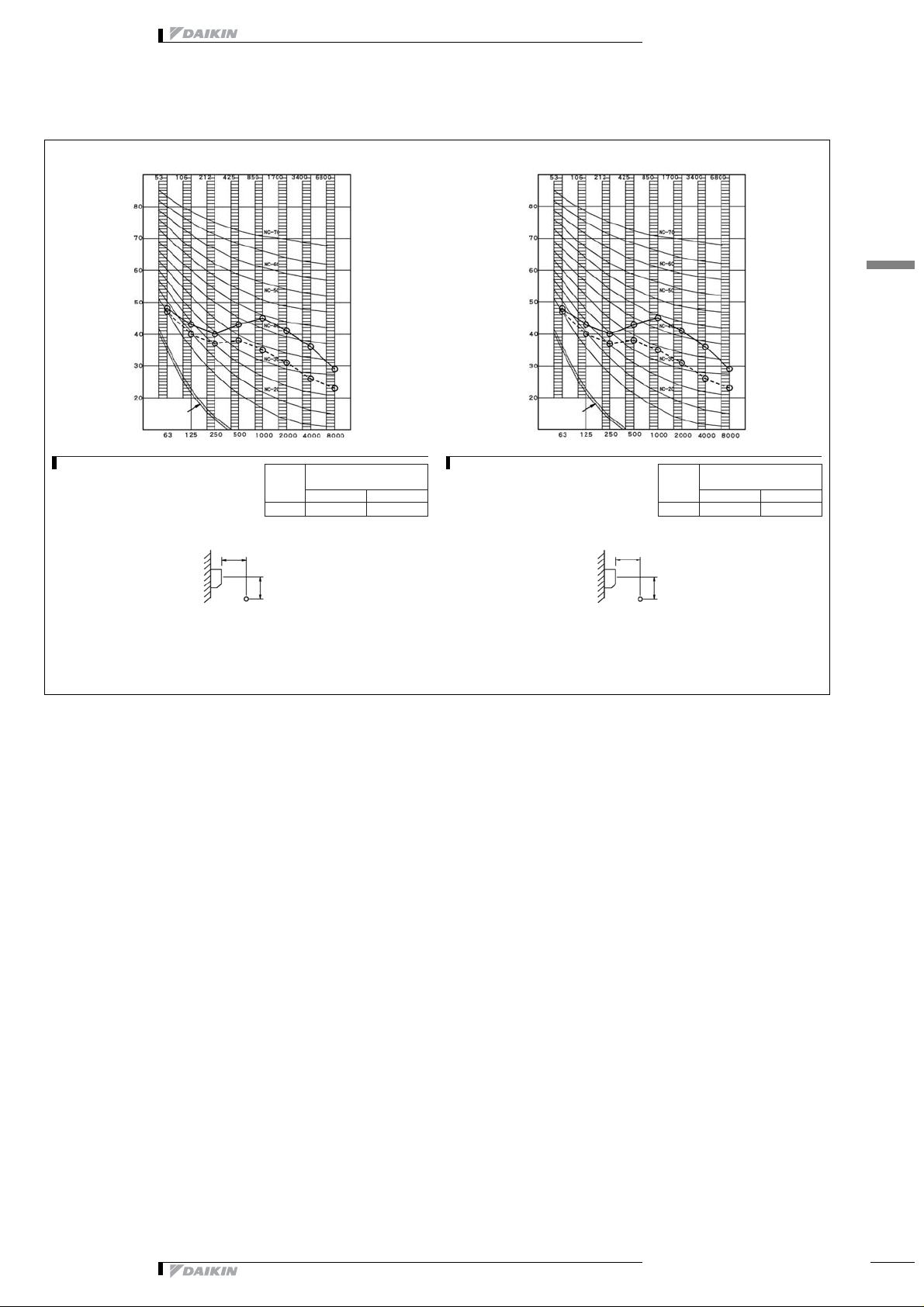

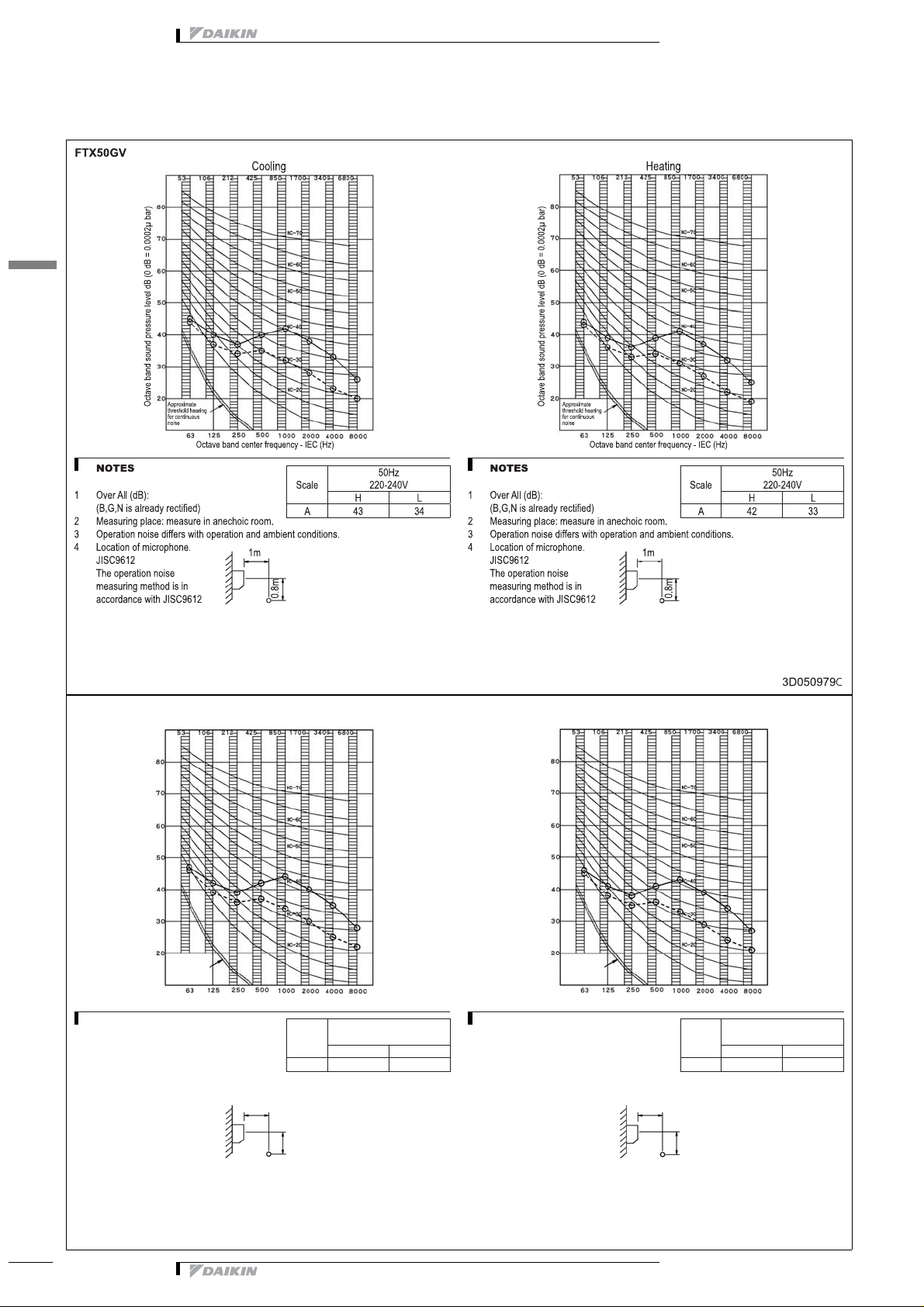

8 Sound data
8 - 1 Sound Pressure Spectrum
FTX60GV
3D051227EEEEE
NOTES
1 Over All (dB):
(B,G,N is already rectified)
2 Measuring place: measure in anechoic room.
3 Operation noise differs with operation and ambient conditions.
4 Location of microphone.
JISC9612
The operation noise
measuring method is in
accordance with JISC9612
NOTES
1 Over All (dB):
(B,G,N is already rectified)
2 Measuring place: measure in anechoic room.
3 Operation noise differs with operation and ambient conditions.
4 Location of microphone.
JISC9612
The operation noise
measuring method is in
accordance with JISC9612
Octave band sound pressure level dB (0 dB = 0.0002μ bar) Octave band sound pressure level dB (0 dB = 0.0002μ bar)
Octave band center frequency - IEC (Hz) Octave band center frequency - IEC (Hz)
Scale
50Hz
220-240V
HL
A45 36
Scale
50Hz
220-240V
HL
A44 35
Approximate
threshold hearing
for continuous
noise
Approximate
threshold hearing
for continuous
noise
1m 1m
0.8m 0.8m
Cooling Heating
E

3
1
8
• Split - Sky Air • Indoor Unit 11
• Indoor Unit • Wall mounted unit • FTX-GV
8 Sound data
8 - 1 Sound Pressure Spectrum
FTX71GV
3D051225D
3D051225D 3D051225D
NOTES
1 Over All (dB):
(B,G,N is already rectified)
2 Measuring place: measure in anechoic room.
3 Operation noise differs with operation and ambient conditions.
4 Location of microphone.
JISC9612
The operation noise
measuring method is in
accordance with JISC9612
NOTES
1 Over All (dB):
(B,G,N is already rectified)
2 Measuring place: measure in anechoic room.
3 Operation noise differs with operation and ambient conditions.
4 Location of microphone.
JISC9612
The operation noise
measuring method is in
accordance with JISC9612
Octave band sound pressure level dB (0 dB = 0.0002μ bar) Octave band sound pressure level dB (0 dB = 0.0002μ bar)
Octave band center frequency - IEC (Hz) Octave band center frequency - IEC (Hz)
Scale
50Hz
220-240V
HL
A46 37
Scale
50Hz
220-240V
HL
A46 37
Cooling Heating
Approximate
threshold hearing
for continuous
noise
Approximate
threshold hearing
for continuous
noise
1m 1m
0.8m 0.8m

Daikin Europe N.V. participates in the Eu-
rovent Certification programme for Air con-
ditioners (AC), Liquid Chilling Packages
(LCP) and Fan coil units (FCU), Check on-
going validity of certificate online: www.eu-
rovent-certification.com or using:
www.certiflash.com”
EEDEN13-100 • 03/13 • Copyright Daikin The present publication supersedes EEDEN12-100
The present leaflet is drawn up by way of information only and does not
constitute an offer binding upon Daikin Europe N.V.. Daikin Europe N.V.
has compiled the content of this leaflet to the best of its knowledge. No
express or implied warranty is given for the completeness, accuracy, re-
liability or fitness for particular purpose of its content and the products
and services presented therein. Specifications are subject to change
without prior notice. Daikin Europe N.V. explicitly rejects any liability for
any direct or indirect damage, in the broadest sense, arising from or re-
lated to the use and/or interpretation of this leaflet. All content is copy-
righted by Daikin Europe N.V.
BARCODE
Daikin products are distributed by:
Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende
