Installation Manual 3P581074-2D
DGE601A52
1English
Safety Precautions
Also see the installation manual provided with the equipment that you connect.
Please read these “SAFETY PRECAUTIONS” carefully before installing the unit, and be
sure to install the unit correctly.
• The installation manual and the “SAFETY PRECAUTIONS” contain important information
regarding safety. Be sure to observe all precautions.
WARNING Failure to follow these instructions properly may result in per-
sonal injury or loss of life.
CAUTION
Failure to observe these instructions properly may result in
property damage or personal injury, which may be serious
depending on the circumstances.
• After completing the installation, conduct a trial run to check for faults, and explain to the
customer how to operate the unit and take care of it with the aid of the operation manual. Ask
the customer to store the installation manual along with the operation manual for future refer-
ence.
WARNING
• Ask your dealer or other qualied personnel to take installation work.
Do not attempt to install the unit yourself. Improper installation may result in an electric
shock or re.
• Do not relocate or reinstall the unit yourself.
Improper installation work may result in an electric shock or re.
Ask your local dealer to carry out the relocation and reinstallation of the unit.
• Install the unit in accordance with the instructions in this installation manual.
Improper installation may result in an electric shock or re.
• Be sure to use only the specied accessories and parts for the installation work.
Failure to use the specied parts may result in the DGE601A52 falling, an electric shock, or
re.
• Install the unit on a foundation strong enough to withstand the weight of the unit.
A foundation of insufcient strength may result in the equipment falling and causing injury.
• Always perform the installation work with the power supply shut off.
Touching energised electric parts causes an electric shock.
• Do not disassemble, modify or repair the unit.
An electric shock or re may be caused.
• Make sure that all wiring is secured, that the specied wires are used, and that there
is no strain on the terminal connections or wires.
Improper connection or securing of wires may result in abnormal heat build-up or re.
• The choice of materials and installations must comply with the applicable national
and international standards.
01_EN_3P581074-2D.indd 1 2021/06/25 14:12:08

2Installation Manual 3P581074-2D
DGE601A52
English
WARNING
• Carry out the installation work taking earthquakes into account.
Failure to do so during installation work may result in the unit falling and causing accidents.
• Make sure that a separate power supply circuit is provided for this unit and that all
electrical work is carried out by qualied personnel according to local laws and regu-
lations and this installation manual.
An insufcient power supply capacity or improper electrical construction may lead to an
electric shock or re.
• When wiring the power supply position the wires so that the electric parts box lid can
be securely fastened.
Improper positioning of the electric parts box lid may result in an abnormal heat build-up, an
electric shock, or re.
• Be sure to earth the unit.
Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead.
Imperfect earthing may result in an electric shock or re.
• Install an earth leakage breaker, as required.
Failure to install an earth leakage breaker may result in an electric shock or re.
• This unit is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
•
Children should be supervised to ensure that they do not play with the unit.
This equipment is not suitable for use in locations where children are likely to be present.
01_EN_3P581074-2D.indd 2 2021/06/25 14:12:08

Installation Manual 3P581074-2D
DGE601A52
3English
CAUTION
• Be very careful when transporting the unit.
• Safely dispose of the packing materials.
Tear apart and throw away plastic packaging bags so that children will not play with them.
If children play with a plastic bag which was not torn apart, they face the risk of suffocation.
• This unit is a class B product.
• In a domestic environment, this product may cause radio interference.
In such cases, the user may be required to take adequate measures.
•
Disposal requirements: the dismantling of the unit and of other parts must be done in
accordance with relevant local and national legislation.
• Fill wiring intake hole with putty.
Entry of water or insects may result in electric leakage or malfunction.
• Do not operate with wet hands.
An electric shock and malfunction may be caused.
• Do not wash the unit with water.
An electric shock or re may be caused.
• Install the unit, its power cord, and its wiring at least 1m away from televisions or
radios.
This is to prevent picture interference and noise. (Depending on the incoming signal
strength, a distance of 1m may not be sufcient to eliminate noise.)
• Do not install the unit in the following places.
1.
In places with a high concentration of mineral oil spray or vapour (e.g. a kitchen).
Plastic parts will deteriorate, parts may fall off and water leakage could result.
2. Near machinery emitting electromagnetic radiation.
Electromagnetic radiation may disturb the operation of the control system and result in a
malfunction of the unit.
3. In places where ammable gas may leak, where there is carbon bre or ignitable dust
suspensions in the air, or where volatile ammables such as paint thinner or gaso-
line are handled.
Operating the unit in such places may result in re.
4. In places with high temperatures or where the unit is exposed to direct ames.
Abnormal heat build-up or ring may be caused.
5. In moist areas or places that are exposed to water.
Water entering the unit may cause electric shock and malfunction.
01_EN_3P581074-2D.indd 3 2021/06/25 14:12:08

4Installation Manual 3P581074-2D
DGE601A52
English
Contents
1 Before Installation ........................................................................................................ 6
1.1 Checking that all accessories are included ........................................................ 6
1.2 Understanding external dimensions ................................................................... 7
1.3 Understanding terminals and switches .............................................................. 7
1.3.1 Rear face ................................................................................................ 7
1.3.2 Front face ............................................................................................... 8
1.4 Determining installation place .......................................................................... 10
1.4.1 Installation place and mounting direction ............................................. 10
1.4.2 Environmental conditions ..................................................................... 10
1.4.3 Wiring of cables.................................................................................... 11
1.4.4 Required space .................................................................................... 14
1.5 Equipment which can be connected to the DGE601A52 ................................. 14
2 Installation .................................................................................................................. 1 5
2.1 DIN rail mounting ............................................................................................. 15
2.1.1 Installation procedure ........................................................................... 15
2.1.2 Removal from DIN rail .......................................................................... 17
2.2 Screw-mounting to control enclosure ............................................................... 18
2.2.1 Accessory parts ................................................................................... 18
2.2.2 Installation procedure ........................................................................... 18
2.3 Adding a DGE601A53 ...................................................................................... 19
3 Electrical Wiring ......................................................................................................... 22
3.1 Connecting to the DGE601A51, or equivalent equipment ............................... 22
3.1.1 Terminals location and schematic connection diagram ........................ 23
3.1.2 Wiring specications ............................................................................ 26
3.1.3 Address setup and termination resistor ............................................... 27
01_EN_3P581074-2D.indd 4 2021/06/25 14:12:08

Installation Manual 3P581074-2D
DGE601A52
5English
3.2 Connecting DIII-NET compatible air conditioners ............................................ 28
3.2.1 Terminals location and schematic wiring diagram ................................ 28
3.2.2 Wiring specications ............................................................................ 31
3.2.3 Precautions for using multiple centralised controllers .......................... 31
3.3 Connecting an emergency stop input device or electric energy meters ........... 33
3.3.1 Terminals location and schematic connection diagram ........................ 33
3.3.2 Wiring specications ............................................................................ 34
3.4 Connecting the power supply ........................................................................... 35
3.4.1 Terminals location and schematic connection diagram ........................ 35
3.4.2 Wiring specications ............................................................................ 40
4 Setting addresses for each air conditioner ............................................................. 4 1
4.1 Setting addresses with wired remote controller (BRC1H*) .............................. 41
4.2 Setting addresses with navigation remote controller (BRC1E*) ....................... 59
4.3 Setting address on the outdoor unit ................................................................. 70
4.3.1 Steps for setting the outdoor unit Airnet address ................................. 71
4.3.2 Setting the demand address and enabling demand setting ................. 71
4.3.3 Setting items LED (segment) display ................................................... 72
5 Quick Operation Guide .............................................................................................. 73
5.1 Restarting the unit ............................................................................................ 73
01_EN_3P581074-2D.indd 5 2021/06/25 14:12:08

6Installation Manual 3P581074-2D
DGE601A52
English
1 Before Installation
Before you start installing, make the following preparatory checks.
• Check that the DGE601A52 comes with all accessories.
• Conrm where the terminals and switches of the DGE601A52 are located.
• Check that an appropriate space for installing the DGE601A52 is available.
1.1 Checking that all accessories are included
Based on the following accessory list, check that all accessories for the DGE601A52
are included.
If there is any missing or defective part, contact the DAIKIN dealer where you pur-
chased the product.
<Accessories included with DGE601A52>
A B C
B-2
B-1
B-3
A DGE601A52, 1pc.
B (B-1) Clamp for xing power supply cable, 2pcs.
(B-2) Wood screw (3mm diameter x 15mm length) for securing the body, 4pcs.
(B-3) Round crimp-type terminal (2-M4), 1pc.
C Installation manual (This manual), 1pc.
01_EN_3P581074-2D.indd 6 2021/06/25 14:12:09

Installation Manual 3P581074-2D
DGE601A52
7English
1.2 Understanding external dimensions
81.2 mm70 mm
25.2 mm
2 mm
120 mm
124 mm
74 mm
A B C
138mm
(When DIN rail lock is
“closed”)
146mm
(When DIN rail lock is
“open”)
A Power supply unit
B DGE601A53
C End cover
1.3 Understanding terminals and switches
Understand the arrangement of terminals and switches on the unit to facilitate the
installation procedure.
For details including the cable type, terminal size, and precautions, refer to “3. Electrical
Wiring”.
1.3.1 Rear face
On the rear face of the DGE601A52 there is a DIN rail lock for use when installing on a
DIN rail.
<Rear face>
A
A DIN rail lock
01_EN_3P581074-2D.indd 7 2021/06/25 14:12:09

8Installation Manual 3P581074-2D
DGE601A52
English
1.3.2 Front face
All the terminals used during installation are located on the front face of the DGE601A52.
The power supply terminals are covered with a terminal cover for safety.
In addition to these terminals, several switches and LEDs are also located on the front
face of the DGE601A52.
<Front face of DGE601A52>
A B G
F
Q
E H I
K
M
J
L
N
DC
O
P
Symbol Name Explanation
A[Intake for power
supply cable] Intake for power supply cable.
B[Inter-unit lock] Knob for locking the power supply unit and
DGE601A53.
C[Power supply unit]
Terminals for the connection of the power supply.
These terminals are covered with a protective
cover.
A singe phase 100 to 240 V AC (at 50/60 Hz)
power supply voltage is required.
D[DC OUT] LED LED (Green) When DC output is normal, this LED
is lit.
E[Di]
Terminals for stopping air conditioner operation
by an external signal in case of an emergency, or
for connecting electric energy meters.
01_EN_3P581074-2D.indd 8 2021/06/25 14:12:09

Installation Manual 3P581074-2D
DGE601A52
9English
F[plus ADP IF]
Terminals for connecting a DGE601A51, intelli-
gent Touch Manager (referred to as iTM below),
DGE601A52, or iTM plus adaptor.
G[DIII]
Terminals for connecting the “DIII-NET” commu-
nication line, for communication with the DAIKIN
air conditioners.
H[POWER] LED LED (Green) When the power is turned on, this
LED is always lit.
I[ALV] LED LED (Green) When the CPU is operating nor-
mally, this LED blinks.
J[ALARM] LED LED (Red) When the body is operating normally,
this LED is unlit.
K[DIII] LED LED (Orange) When communication with DIII-
NET is being carried out, this LED blinks.
L[plus ADP Tx] LED LED (Green) When DIII plus ADP data is being
sent, this LED is lit.
M[Rx] LED LED (Orange) When DIII plus ADP data is being
received, this LED is lit.
N[RESET//] switch Switch for restarting the DGE601A52.
O[TERM] switch
Switch for activating the termination resistor, in
case you want to connect the DGE601A52 with
another DGE601A52, DGE601A51, iTM, iTM
plus adaptor (using the plus ADP IF terminal).
(Factory default: OFF)
P[DIII MASTER] switch
Switch for changeover of DIII-NET MAIN/SUB.
(Factory default: ON)
ON: MAIN
OFF: SUB
Q[PORT] dial switch
Dial switch for setting the port number of the
DGE601A52.
Possible settings are from 3 to 8 if connecting to
DGE601A51, and from 2 to 8 when connecting to
iTM.
01_EN_3P581074-2D.indd 9 2021/06/25 14:12:09

10 Installation Manual 3P581074-2D
DGE601A52
English
The table below shows the status of the ALV/ALARM LEDs during normal operation
and in case of failure.
NOTE
LED status and operation
Operating condition ALV ALARM
Normal Blinking Unlit
Hardware failure Unlit Lit
Address failure Lit Lit
DGE601A51, iTM and DGE601A52 com-
munication failure Lit Blinking
1.4 Determining installation place
Be sure to install in a place that meets the conditions described in 1.4.1 to 1.4.3 below.
1.4.1 Installation place and mounting direction
Below are the description of the installation place and mounting direction. Be sure to
conrm the requirements.
• Installation place: Indoor and inside a control enclosure (lockable, or unable to be
opened without special tools) (For details, refer to “CAUTION” in “Safety Precau-
tions”)
• Mounting direction: Vertical only
1.4.2 Environmental conditions
Check that the installation environment meets the following conditions.
• Ambient temperature: -10 to 50°C
• Ambient humidity: 85% RH or less (without condensation)
• DGE601A52 operation is not affected by electromagnetic waves.
01_EN_3P581074-2D.indd 10 2021/06/25 14:12:09

Installation Manual 3P581074-2D
DGE601A52
11English
1.4.3 Wiring of cables
For an example of DGE601A52 cable wiring, refer to the cable wiring diagram (exam-
ple) shown below.
<Cable wiring diagram (example)>
A
A
A Cable duct
01_EN_3P581074-2D.indd 11 2021/06/25 14:12:09

12 Installation Manual 3P581074-2D
DGE601A52
English
Wiring to each terminal
When wiring to [plus ADP IF], [DIII], and [Di 1-4], perform operations on the terminal
block and carry out the wiring as shown below.
(1) Push in the opening knob with a precision at-head screwdriver and open the
insertion port.
(2) Insert the cable into the open insertion port.
(3) Move the opening knob forward and down and insert the cable.
(4) Make sure that the connected cable has not come out.
When using stranded cable, make sure that no strands are protruding.

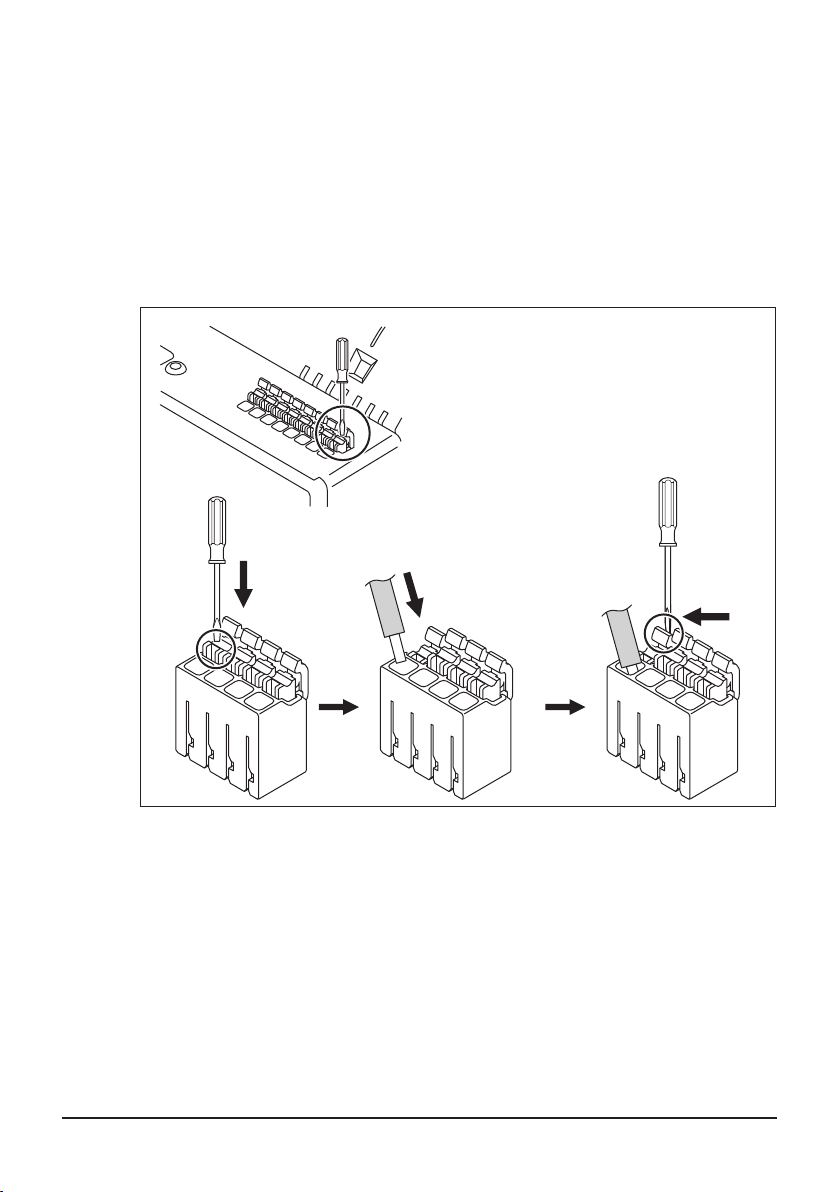

<How to wire to the terminal block>
(1)
(2) (3)
A
A Precision at-head screwdriver
01_EN_3P581074-2D.indd 12 2021/06/25 14:12:09

Installation Manual 3P581074-2D
DGE601A52
13English
Make the length of the peeled portion of the cable 9mm.
Refer to the [strip gauge] on the end cover.
When peeling, be careful not to scratch the nish of the exposed part of the cable.
<Cable peeling allowance>
Bad example
Frayed Too short Bent Too long
9 mm End cover
Good example
01_EN_3P581074-2D.indd 13 2021/06/25 14:12:09

14 Installation Manual 3P581074-2D
DGE601A52
English
1.4.4 Required space
The gure shown below indicates the space required for installation.
• There is a minimum clearance of 20mm from the top edge and 20mm from the bot-
tom edge
• Close contact in a lateral direction is possible, if attaching a DGE601A51 or similar
Required installation space
<DGE601A52 installation space>
20 mm
20 mm
A
C
C
B
A To p
B Wall
C Cable duct
Do not install DIN rails vertically.
1.5 Equipment which can be connected to the DGE601A52
The DGE601A52 can be connected to the following equipment.
• DGE601A51
• iTM
• iTM plus adaptor
01_EN_3P581074-2D.indd 14 2021/06/25 14:12:09

Installation Manual 3P581074-2D
DGE601A52
15English
2 Installation
You can install the DGE601A52 in 2 ways.
• DIN rail mounting
• Screw-mounting to control enclosure
In case of new installation, rst add the DGE601A53 to the DGE601A52.
After that, install both the DGE601A52 and DGE601A53.
2.1 DIN rail mounting
2.1.1 Installation procedure
Mount to a 35mm DIN rail.
<Mounting to DIN rail>
Do not use screws to secure the unit onto the DIN rail.
01_EN_3P581074-2D.indd 15 2021/06/25 14:12:09

16 Installation Manual 3P581074-2D
DGE601A52
English
(1) Set all upper and lower DIN rail locks to the “open” position.
(2) Press the DGE601A52 against the DIN rail.
(3) Set all upper and lower DIN rail locks to the “closed” position.
<Steps for mounting to DIN rail>
(1)
(1) (1)
(1)
(2) (3)
(3)
“open”
“closed”
“closed”
“open”
NOTE
If you need to make the mounting stronger, use DIN rail fasteners.
01_EN_3P581074-2D.indd 16 2021/06/25 14:12:09

Installation Manual 3P581074-2D
DGE601A52
17English
2.1.2 Removal from DIN rail
(1) While supporting the DGE601A52 with your hand, set all upper and lower DIN rail
locks to the “open” position.
(2) Remove the DGE601A52 from the DIN rail.
<Steps for removal from DIN rail>
(2)
(1)
(1)
NOTE
When removing from DIN rails, if the work area is narrow and you cannot operate the
DIN rail locks with your ngers, the DIN rail locks can be operated by inserting a
at-head screwdriver into the area marked with a circle.
01_EN_3P581074-2D.indd 17 2021/06/25 14:12:09

18 Installation Manual 3P581074-2D
DGE601A52
English
2.2 Screw-mounting to control enclosure
Secure to the control enclosure using the 4 supplied screws for securing the body.
When securing with screws, secure with all DIN rail locks set to the “open” position.
(For opening and closing the DIN rail locks, refer to “2.1.1 Installation procedure”.)
2.2.1 Accessory parts
To mount to the control enclosure, use the following accessory mounting parts.
• Wood screw (3mm diameter x 15mm length) for securing the body, 4pcs.
2.2.2 Installation procedure
(1) Set all DIN rail locks to the “open” position.
(2) Secure with screws through all DIN rail lock screw holes.
<Steps for mounting to control enclosure>
(1)
(1) (1)
(1)
“open”
“closed”
“closed”
“open”
01_EN_3P581074-2D.indd 18 2021/06/25 14:12:10
