Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
3English
All phases of the eld-installation, including, but not limited to, electrical, piping, safety, etc.
must be in accordance with manufacturer’s instructions and must comply with national,
state, provincial and local codes.
Read these SAFETY CONSIDERATIONS carefully before installing the controller.
After completing the installation, ensure that the controller operates properly during the
startup operation.
Train the customer to operate and maintain the controller. Inform customers that they
should store this Installation Manual with the User’s Manual for future reference.
Always use a licensed installer or contractor to install this product. Improper installation
can result in electrical shock, re, or explosion.
Meanings of WARNING, CAUTION, and NOTE Symbols.
WARNING Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
It may also be used to alert against unsafe practices.
NOTE Indicates situations that may result in equipment or prop-
erty-damage accidents only.
WARNING
•Only qualied personnel must carry out the installation work.
•Consult your Daikin dealer regarding relocation and reinstallation of the con-
troller.
Improper installation work may result in electric shocks or re.
•Install the controller in accordance with the instructions in the installation man-
ual.
Improper installation may cause electrical shocks or re.
•Use only specied accessories and parts for installation work.
Failure to use specied parts may result in electric shocks, re, or the unit falling.
•Do not disassemble, reconstruct, or repair.
Electric shock or re may occur.
•Make sure that all wiring is secured, that specied wires are used, and that no
external forces act on the terminal connections or wires.
Improper connections or installation may result in re.
•Before touching electrical parts, turn off the unit.
Safety Considerations

4Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
CAUTION
•Keep water out of the controller.
•To avoid electric shock due to entry of water or insects, ll the wiring through-
hole with putty.
•Do not wash the controller with water as it may result in electrical shocks or
re.
•Do not touch the controller buttons with wet ngers.
Touching the buttons with wet ngers can cause an electric shock.
•Do not install the controller in the following locations:
(a) Where a mineral oil mist or oil spray or vapor is produced, for example, in a
kitchen.
Plastic parts may deteriorate and fall off.
(b) Where corrosive gas, such as sulfurous acid gas, is produced.
(c) Near machinery emitting electromagnetic waves.
Electromagnetic waves may disturb the operation of the control system and cause
the unit to malfunction.
(d) Where ammable gas may leak, where there is carbon ber or ignitable dust
suspensions in the air, or where volatile ammables such as thinner or gaso-
line are handled.
Operating the unit in such conditions can cause a re.
(e) High temperature area or directly amed point.
Heating and/or re can occur.
(f) Moist area, where there is exposure to water.
If water enters the inside of the controller, it may cause electric shock and electrical
components may fail.
NOTE
•Install the control wires for the controller at least 3.5 feet (1 meter) away from
televisions or radios to prevent image interference or noise.
Depending on the radio waves, a distance of 3.5 feet (1 meter) may not be sufcient
to eliminate the noise.

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
5English
Contents
1 Before Installation ................................................................................................... 7
1.1 Checking that all accessories are included ................................................................................ 7
1.2 Understanding external dimensions .......................................................................................... 8
1.3 Understanding where terminals and switches are located ........................................................ 8
1.3.1 Front face ......................................................................................................................... 8
1.4 Determining installation place .................................................................................................. 10
1.4.1 Installation place and mounting direction ...................................................................... 10
1.4.2 Environmental conditions .............................................................................................. 10
1.4.3 Required space ............................................................................................................. 11
2 Electric wiring ........................................................................................................ 12
2.1 Connecting intelligent Touch Manager ..................................................................................... 13
2.1.1 Terminal location and schematic wiring diagram ........................................................... 13
2.1.2 Wiring specications ...................................................................................................... 13
2.1.3 Address setup and termination resistor ......................................................................... 14
2.2 Connecting DIII-NET-compatible air conditioning equipment ................................................... 15
2.2.1 Terminal location and schematic wiring diagram ........................................................... 16
2.2.2 Wiring specications ...................................................................................................... 17
2.2.3 Precautions for using multiple centralized controllers.................................................... 17
2.3 Connecting an emergency stop input device or power meter .................................................. 18
2.3.1 Terminal location and schematic wiring diagram ........................................................... 19
2.3.2 Wiring specications ...................................................................................................... 19
2.4 Connecting power supply ........................................................................................................ 20
2.4.1 Terminal location and schematic wiring diagram ........................................................... 20
2.4.2 Wiring specications ...................................................................................................... 21
3 Secure installation of iTM plus adaptor .............................................................. 22
3.1 Screw mounting to control enclosure ....................................................................................... 22
3.1.1 Installation procedure .................................................................................................... 22
3.2 DIN rail mounting ..................................................................................................................... 23
3.2.1 Removal from DIN rail ................................................................................................... 24
4 Setting DIII-NET address for each air conditioner .............................................. 25
4.1 Names of buttons and display areas ....................................................................................... 25
4.1.1 Setting address with wired remote controller ................................................................. 26
4.1.2 Setting address with navigation remote controller ......................................................... 28
4.1.3
Setting an unique address to each unit (when Power Proportional Distribution (option) is used) ... 29

6Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
5 Quick Operation Guide ......................................................................................... 30
5.1 Viewing target area and management point information in list format ..................................... 30
5.2 Displaying areas and management points ............................................................................... 30
5.3 Starting/stopping an area or management point ..................................................................... 31

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
7English
1 Before Installation
Before you start installing the iTM plus adaptor, complete the following checks:
•Check that the iTM plus adaptor comes with all accessories.
•Understand where the terminals and switches of the iTM plus adaptor are located.
•Make sure that an appropriate space for installing the iTM plus adaptor is available.
1.1 Checking that all accessories are included
Based on the following accessory list, check that all accessories for the iTM plus adaptor
are included. If there is any missing or defective part, contact your DAIKIN dealer where
you purchased the product.
<Accessories included with iTM plus adaptor>
A B
C
D
d-1
a-1
b-1
c-1

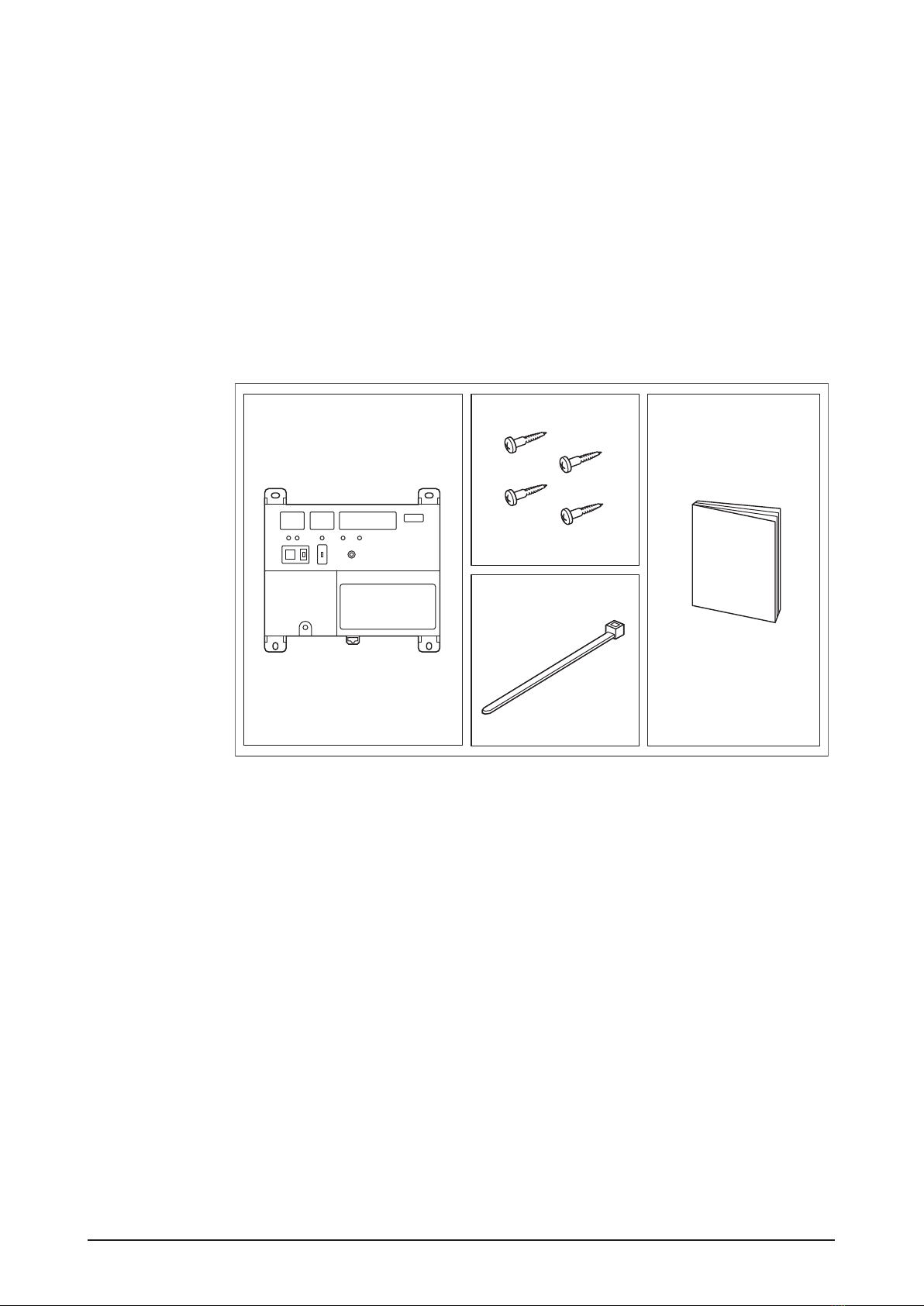

A (a-1) iTM plus adaptor body (1 pc.)
B (b-1) Round-head wood screw (φ3.5×16), 4 pcs.
C (c-1) Clamp, 1 pc.
D (d-1) Installation manual (This manual), 1 pc.

8Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
1.2 Understanding external dimensions

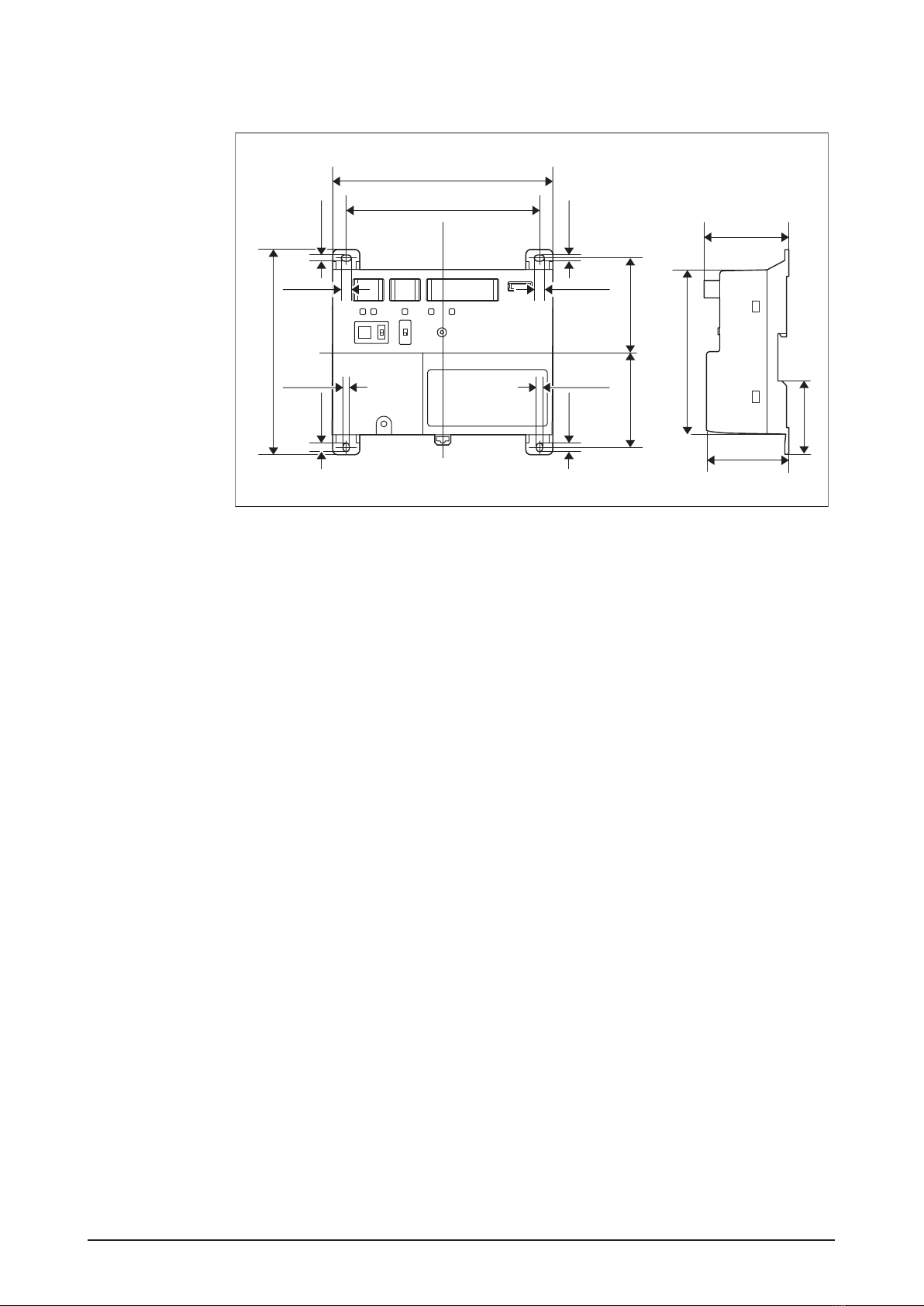

•iTM plus adaptor body
5-7/8
4-23/32
2-11/162-21/32
2-1/16
6-5/16
2-13/32
2-13/32
(in.)
1/4 1/4
5/32 5/32
1/4
5/32
1/4
5-1/2
5/32
1.3 Understanding where terminals and switches are located
Understand the arrangement of terminals and switches on the unit and draw up an ef-
cient work plan. For connection details including the cable type, terminal size, and wiring
precautions, refer to “2. Electric wiring”.
1.3.1 Front face
All the terminals used during installation are located on the front face of the iTM plus
adaptor. The power supply terminal is protected with a cover for safety. Remove the screw
to detach the cover.
Besides the terminals, there are several switches and LEDs on the front face of the iTM
plus adaptor.

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
9English
<Front face of iTM plus adaptor>
A
FI
J K L M N
G H
B C D
POWER
100-240V
~
50/60Hz
LN
E
A [plus ADP IF] The terminal for connecting with the intelligent Touch Manager or other
iTM plus adaptor.
B [DIII] The communication line connection terminals for “DIII-NET”, which enables
communications with DAIKIN’s air conditioning equipment.
C [Di] The terminals for stopping air conditioners according to the external signal in an
emergency, for connecting a power meter to calculate the electricity usage of indi-
vidual indoor air conditioners, or for other operations.
D [RESERVE] No Use.
E [POWER] The power line connection terminals. These terminals are covered with a
protective cover. A power supply voltage of 24 VAC (at 60 Hz) is required. Near the
terminal block, there is a blue resin cable mount for securing the power supply cable
with the clamp.
F [plus ADP ADDRESS] The switch for selecting the address of the iTM plus adaptor.
For each iTM plus adaptor, set a unique number between 2 to 8.
G [TERM] The switch used to activate the termination resistor of the terminal iTM plus
adaptor in the connection with other iTM plus adaptor or the intelligent Touch Man-
ager (using the plus ADP IF terminal). (Factory default: OFF)
H [DIII MASTER] The switch for setting “MASTER” or “SLAVE” for the iTM plus adaptor
when there are multiple DIII-NET centralized controllers such as the intelligent Touch
Manager are used. (Factory default: MASTER)
I [RESET//] The switch for restarting the iTM plus adaptor.
J [Tx] (Green) The indicator that indicates when on that data is being sent to the intel-
ligent Touch Manager.
K [Rx] (Orange) The indicator that indicates when on that data is being received from
the intelligent Touch Manager.
L [DIII MONITOR] (Yellow) This LED blinks when the DIII-NET communication is per-
formed.
M [CPU ALIVE] (Green) This LED blinks when the CPU operates properly.
For details on LED operations, refer to the “LED status and operation table” shown on
the next page.
N [ALARM] (Red) This LED is lit or blinks when there is a failure. For details on LED
operations, refer to the “LED status and operation table” shown on the next page.

10 Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
The table below shows the status of the CPU ALIVE/ALARM LED when the iTM plus
adaptor is operating normally or failed.
NOTE
[LED status and operation table]
Operating condition CPU ALIVE ALARM
Normal Blink Off
Hardware failure Off On
Address failure On On
Communication failure between
intelligent Touch Manager and iTM
plus adaptor
On Blink
1.4 Determining installation place
Be sure to install the iTM plus adaptor in a place that meets the conditions described in
1.4.1 to 1.4.3.
1.4.1 Installation place and mounting direction
Below are the description of the installation place and mounting direction. Be sure to
conrm.
•Installation place: Indoor, inside control enclosure (which must be lockable or designed
to be opened only with a special tool)
•Mounting direction: Vertical only
1.4.2 Environmental conditions
Check that the installation environment meets the following conditions:
•Ambient temperature: 14 to 122 °F
•Ambient humidity: 85% RH or less (without condensation)

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
11English
1.4.3 Required space
The gure shown below indicates the space required for installation.
•Make sure that there is a minimum clearance of 25/32 in. between each unit and wiring
ducts.
•Multiple iTM plus adaptors can be installed without clearance in the horizontal direction.
<Installation space required for iTM plus adaptor>
Required installa-
tion space
1-9/16
1-9/16
25/32
25/32
25/32
(in.)
A
A
6-5/16
5-7/8
A Wiring duct

12 Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
2 Electric wiring
This chapter describes the procedure for connecting the iTM plus adaptor with intelligent
Touch Manager, DIII-NET-compatible air conditioning devices and other equipment.
In addition to air conditioners, the iTM plus adaptor can be connected and work with a
wide range of equipment. However, the required connection procedures vary depending
on the equipment to be connected.
Do not connect more than two wires to the same terminal.
Required proce-
dures
•2.1 Connecting intelligent Touch Manager
•2.2 Connecting DIII-NET-compatible air conditioning equipment
•2.4 Connecting power supply
Equipment-spe-
cic procedures
•2.3 Connecting an emergency stop input device or power meter
WARNING
•Do not turn on the power supply before all wire connections are completed.
Not doing so may cause an electric shock.
•After the wiring is completed, double-check that all wires are connected cor-
rectly before turning on the power supply.
•All eld supplied parts and materials, electric works must conform to local
codes.
•All wiring must be performed by an authorized electrician.
CAUTION
Provide a cable trap before the terminal block and perform wiring to prevent
water entry. Water splashing onto the terminal block may result in an electric
shock or re.
B
A
C
A Terminal block
B With trap
C Without trap

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
13English
2.1 Connecting intelligent Touch Manager
The iTM plus adaptor is a device that increases the number of air conditioners controlled
by the intelligent Touch Manager. It needs to be connected to an intelligent Touch Manager
to provide this capability.
2.1.1 Terminal location and schematic wiring diagram
Connect the plus ADP IF terminal of the iTM plus adaptor to the plus ADP IF terminal on
the rear face of the intelligent Touch Manager. Note that these terminals have polarity. Be
sure to connect the positive wire to the “+” terminal and the negative wire to the “–” termi-
nal.
Also, connect the intelligent Touch Manager to the termination of the wiring.
<Terminal location and schematic wiring diagram>
A intelligent Touch Manager
(For details, refer to the “intelligent Touch Manager Installation Manual (EM11A018)”.)
B iTM plus adaptor
C plus ADP IF (intelligent Touch Manager)
D plus ADP IF (iTM plus adaptor)
E iTM plus adaptor on which termination resistor must be enabled
2.1.2 Wiring specications
•Cable type: CPEV or FCPEV cable
•Core thickness: AWG22-19
•Cable length: The overall cable length between the intelligent Touch Manager and the
terminal iTM plus adaptor is 164 ft. or less.
•Wiring connection type: sequential connections

14 Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
2.1.3 Address setup and termination resistor
For each iTM plus adaptor, a unique address needs to be set. The number for the intelli-
gent Touch Manager is always set to "1". Therefore, the setting range for the iTM plus
adaptor is from “2” to “8”.
Use the plus ADP ADDRESS switch on the front face of the iTM plus adaptor to set the
address.
Moreover, the termination resistor needs to be set for the iTM plus adaptor which is the
farthest from the intelligent Touch Manager.
To set the termination resistor, change the position of the TERM switch on the front face
of the iTM plus adaptor to ON position.
<plus ADP ADDRESS switch and TERM switch>
NOTE
If the two LEDs, CPU ALIVE and ALARM, both light up during power-on after installa-
tion, there is a possibility of a problem with the address assignment:
•An invalid address is set. (“0”, “1”, and “9” are not allowed.)
•A duplicate address is used.
You must assign a unique address between 2 and 8 for each iTM plus adaptor. Power
off the unit once, check and correct the address, and then turn it on again.
Check the status of the two LEDs, CPU ALIVE and ALARM.

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
15English
2.2 Connecting DIII-NET-compatible air conditioning equipment
DIII-NET is a unique air conditioning equipment communication capability developed by
DAIKIN. Using DIII-NET, you can centrally control multiple DIII-NET-compatible air condi-
tioning devices by connecting them to your intelligent Touch Manager.
The iTM plus adaptor allows you to connect additional 64 groups of air conditioners per
unit. Considering that the intelligent Touch Manager can be connected with a maximum of
seven iTM plus adaptors, you can control a total of 512 groups of air conditioners at a
maximum using a single intelligent Touch Manager.
WARNING
•Be sure to perform the operation during power-off conditions. Not doing so
may cause an electric shock.
•The maximum length of adhered wiring of high current electrical line of power
wires and weak current line of communication wires must be kept to 65 ft. or
less.
NOTE
The setting range of DIII address for the air conditioners controlled via the iTM plus
adaptor is also from “1-00” to “4-15”. The intelligent Touch Manager adds a DIII-NET
port number to each address for identication. For example, “2:1-00” and “3:1-02”.

16 Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
2.2.1 Terminal location and schematic wiring diagram
To connect the DIII-NET communication line, use F1 and F2 terminals with “DIII” mark.
The two terminals do not have polarity. The following schematic wiring diagram is an
example for when multiple air conditioners are connected.
CAUTION
Make sure that the wires you are connecting to the F1 and F2 terminals are not
power wires. Inadvertently connecting power wires to these terminals results in
a failure of the air conditioner or iTM plus adaptor.
<Schematic diagram of wiring between air conditioning equipment>
F2F1
F1, F2 P1, P2 F1, F2 P1, P2F1, F2 P1, P2F1, F2 P1, P2F1, F2 P1, P2
F1, F2 F1, F2
F1, F2 P1, P2 F1, F2 P1, P2F1, F2 P1, P2F1, F2 P1, P2F1, F2 P1, P2
F1, F2 F1, F2
E
F
A
B C D D D D D
A
B C D D D D D
A Outdoor unit
B OUT - OUT communication (terminal)
C IN - OUT communication (terminal)
D Indoor unit
E A maximum of 16 indoor units can be connected per remote controller group.
F A maximum of 64 remote controller groups (128 indoor units) can be connected for
one DIII-NET. When the power proportional distribution is applied, the maximum num-
ber of indoor units is 64.

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
17English
NOTE
•What’s a remote controller group?
A single remote controller can simultaneously control a maximum of 16 indoor units.
This capability is referred to as group control. A remote controller group is a group of
indoor units controlled under the same remote controller.
[Schematic diagram of remote controller group]
F1, F2 P1, P2 F1, F2 P1, P2 F1, F2 P1, P2 F1, F2 P1, P2
A
A Max.16 Indoor units
2.2.2 Wiring specications
•Cable type: 2-core vinyl-insulated vinyl-sheathed cable/vinyl cabtyre cable or 2-core
shielded cable
•Core thickness: AWG18-16
•Terminal treatment: Use a round crimp-type terminal (M3) with insulating sleeve.
CAUTION
•Do not use multicore cables with three or more cores.
•When using a shielded cable, connect only one end of the cable to the ground.
•Keep the DIII-NET communication wiring at least 1-31/32 in. away from power supply
wiring.
•The maximum wiring length is 3280 ft. and total wiring length is 6561 ft. or less.
When using a shielded wire, the total wiring length is limited to 4921 ft. or less.
2.2.3 Precautions for using multiple centralized controllers
The “centralized controller” refers to the equipment (e.g. the intelligent Touch Manager)
that control multiple air conditioners. Besides the intelligent Touch Manager, the DAIKIN's
product portfolio includes a wide range of centralized controllers suitable for different
applications or building sizes, which can be used in combination to construct an optimal
air conditioning control system.
If multiple centralized controllers are connected on the DIII-NET network, you must set
MASTER and SLAVE relationship for those controllers.
Assign only one of those controllers to MASTER, and other controllers to SLAVE.
The iTM plus adaptor is set to MASTER by default. Change the setting to SLAVE in any of
the following cases:
•Where Interface for use in BACnet is installed in parallel.
•Where Interface for use in LONWORKS is installed in parallel.
•If there is another intelligent Touch Manager or iTM plus adaptor which is assigned to
MASTER.

18 Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
<DIII MASTER>
To change the setting of the iTM plus adaptor to
SLAVE, change the position of the DIII MASTER
switch to the upper position (the position with
“SLAVE” mark).
SLAVE
MASTER
When installing multiple centralized controllers, set only the highest priority controller to
MASTER and all other controllers to SLAVE according to the following order of priority:
High
(1) Interface for use in BACnet
(2) Interface for use in LONWORKS
(3) intelligent Touch Manager (Main), iTM plus adaptor (Main)
(4) Central Remote Controller (Main)
(5) intelligent Touch Manager (Sub), iTM plus adaptor (Sub)
(6) Central Remote Controller (Sub)
(7) ON/OFF Controller (Main)
(8) ON/OFF Controller (Sub)
Priority
Low
Centralized controllers that cannot be connected to the same network as the iTM
plus adaptor.
•CALCULATE UNIT
•intelligent Processing Unit
•Parallel Interface
•Intelligent Touch Controller
•DIII-NET Plus Adapter
•Residential Central Remote Controller
•Schedule Timer
•Wiring Adaptor for Electrical Appendices (1) (KRP2)
2.3 Connecting an emergency stop input device or power meter
The iTM plus adaptor can perform operations such as an emergency stop of air condition-
ers according to the external signal input device, and an electricity usage calculation for
each air conditioner (for power proportional distribution) according to the pulse inputs from
a power meter.
WARNING
•Be sure to perform the operation during power-off conditions. Not doing so
may cause an electric shock.
•Do not clamp high-current cables together with low-current cables.
NOTE
Power distribution is available for a maximum of 64 air conditioners (indoor units) per
DIII-NET port.

Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
19English
2.3.1 Terminal location and schematic wiring diagram
Use the terminal with the “Di” mark to connect the pulse signal line. The iTM plus adaptor
accepts four types of signals through its four channel terminals, Di1, Di2, Di3, and Di4,
and two COM terminals (ground).
< Schematic wiring diagram with Di
terminals>
NOTE
The COM terminals are all connected internally.
So, you can use either of them.
However, you can connect up to two wires
simultaneously to each COM terminal.
When using an open collector type output, con-
nect the COM terminal to the negative side.
Di1 Di2 COM Di3 Di4 COM
2.3.2 Wiring specications
•Cable type: CPEV cable
•Core thickness: AWG22-19
•Cable length: 656 ft. or less <Pulse width>
A
B
A Pulse width: 20 to 400 ms
B Pulse interval: 100 ms or more
CAUTION
•The contact connected to the contact input terminal must be capable of han-
dling 10 mA at 16 VDC.
•If an instantaneous contact is used for triggering an emergency stop, use one
that has an energization time of 200 ms or more.

20 Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
2.4 Connecting power supply
Connect the iTM plus adaptor to an power supply.
WARNING
Be sure to perform the operation during power-off conditions. Do not turn on the
power supply before all wire connections are completed. Not doing so may cause
an electric shock.
2.4.1 Terminal location and schematic wiring diagram
<Removing protective cover>
For safety reasons, power connection terminals are
covered with a protective cover. Remove this cover
before you start connecting the power supply. Take
out the screw using a Phillips screwdriver to remove
the cover. After connecting the power supply, attach
the cover back to its original position.
Next, connect the power supply to the three terminals, L (Live), N (Neutral), and ground in
the POWER section. Perform the grounding work without fail. Be sure to x the power
supply cable to the blue resin cable mount located to the right of the terminals using the
clamp.
<Connecting power supply>
A
B
LN
C
D
A Earth
B Earth leakage breaker
C Power supply (24VAC, 60Hz)
D Clamp xing position
