DAINCUBE DTP10-L Instructions for use

Embedded based teaching pendant optimized for industrial robots.
DTP10-L
Hardware user’s manual
(R1) Version
DAINCUBE Corp.
ARM Cortex-A9 Linux system
FORM 170703F –2018.07.03
DTP10-L Hardware user’s manual
Form 140108F-180703—July, 2018
DAINCUBE Corp.
Web: www.daincube.com
E-mail: [e-mail]
Tel: [phone]~4
Fax: [phone]
#401-701, Bucheon TechnoPark 4-Danji,
655 Pyeongcheon-ro, Wonmi-gu, Bucheon-Si,
Gyeonggi-Do, Republic of Korea
Copyright © 2005–2018 Daincube
All rights reserved.
Printed in the Republic of Korea

Preface
Copyright notice
Copyright © 2005–2018 Daincube. All rights reserved.
Copying of this document, and giving it to others and the use or communication of the Contents thereof, is
forbidden without express authority. Offenders are liable to the payment of damages.
All rights are reserved in the event of the grant of a patent or the registration of a utility model or design.
Important information
This documentation is intended for qualified audience only. The product described herein is not an end user
product. It was developed and manufactured for further processing by trained personnel.
Disclaimer
Although this document has been generated with the utmost care no warranty or liability for correctness or
suitability for any particular purpose is implied. The information in this document is provided “as is” and is
subject to change without notice.
Trademarks
All used product names, logos or trademarks are property of their respective owners.
Product support
DAINCUBE Corp.
Web: www.daincube.com
E - MAIL: su[email protected]
Safety precautions
Be sure to observe all of the following safety precautions.
Strict observance of these warning and caution indications are a MUST for preventing accidents, which
could result in bodily injury and substantial property damage. Make sure you fully understand all definitions
of these terms and related symbols given below, before you proceed to the manual.
Symbols
The following symbols may be used in this specification:
⚠Warning
Warnings indicate conditions that, if not observed, can cause personal injury.
⚠Caution
Cautions warn the user about how to prevent damage to hardware or loss of data.
✏Note
Notes call attention to important information that should be observed.

Revision history
Revision
Data
Comment
Version 0.1
2017.06.03
Initial Version
Version 0.2
2018.07.03
New Version
Version 1.0
2018.11.23
Change option
Version 1.1
2019.04.01
Add Emergency Stop Switch table, Change Mode Select Switch
table
Version 1.2
2019.06.20
Excluding external SPI memory specifications

Contents
1. Introduction ...................................................................................................................6
1.1. General precautions................................................................................................................6
2. Safety information.........................................................................................................6
3. Warranty and warranty coverage.................................................................................7
3.1. Warranty period ......................................................................................................................7
3.2. Scope of the warranty.............................................................................................................7
3.3. Service coverage ....................................................................................................................7
4. Description.....................................................................................................................8
4.1. Processor Module Specifications ............................................................................................8
4.2. Front view.............................................................................................................................10
4.3. Top view and dimension .......................................................................................................10
4.4. Rear view and dimension......................................................................................................11
4.5. System cable ........................................................................................................................11
5. Features .......................................................................................................................12
5.1. The key features of DTP10-L include....................................................................................12
5.2. Operating and Display panel.................................................................................................12
5.3. LCD & Touch screen.............................................................................................................12
5.4. Safety switch.........................................................................................................................12
5.5. User’s interface.....................................................................................................................12
5.6. Communication.....................................................................................................................13
6. Function.......................................................................................................................13
6.1. Operation keys and functions................................................................................................13
6.2. System cable and connector.................................................................................................18
7. Optional accessories ..................................................................................................21
7.1. Junction box..........................................................................................................................21
7.1.1. Junction box pin configuration .........................................................................................................22
7.1.2. Junction box Mechanical Information ..............................................................................................23
7.1.3. Junction Box Installation Instructions...............................................................................................24
7.2. Wall Bracket..........................................................................................................................24
7.3. Touch Pen ............................................................................................................................25
7.4. Holder...................................................................................................................................25
7.5. Other accessories parts ........................................................................................................26
8. Installation guide.........................................................................................................27
8.1. 26pin system cable configuration..........................................................................................28
8.2. Connections example............................................................................................................29
8.3. Wiring....................................................................................................................................30
8.3.1. Emergency Switch wiring.................................................................................................................30
8.3.2. Enabling Switch wiring.....................................................................................................................30
8.3.3. Select Switch wiring.........................................................................................................................30
8.3.4. Power...............................................................................................................................................31
8.3.5. Noise................................................................................................................................................31
8.3.6. Method wiring...................................................................................................................................33
8.3.7. Earthing............................................................................................................................................35
8.3.8. Ethernet wiring.................................................................................................................................35
8.3.9. Ethernet cable..................................................................................................................................35
9. Package........................................................................................................................37
9.1. Packing list............................................................................................................................37
9.2. Packing & label.....................................................................................................................39

10. General care and maintenance ..................................................................................40
10.1. Cleaning ............................................................................................................................40
11. EC directives and standards......................................................................................40
11.1. EC directives......................................................................................................................40
11.2. Standards..........................................................................................................................40
12. Reference list...............................................................................................................41

DTP10-L hardware user’s manual
DAINCUBE Corp. 6 / 42
1. Introduction
Thank you very much for purchasing our product.
Improper usage or mishandling may result in a product not only being unable to deliver full functions but also
produce unexpected troubles or shorten the product’s life.
Please read this manual carefully, and operate the product properly by paying attention to its handling. When
operating the product, always keep this manual at hand and read the relevant items as required.
1.1.General precautions
Be sure to read this Instruction Manual for proper use of this product.
Part or all of this Instruction Manual may not be used or reproduced without permission.
Please take note that we shall not be liable for any effects resulting from using this Instruction manual.
This manual may be modified when necessary because of improvement of the product, modification or
changes in specifications.
Some drawings in this manual are shown as a typical example and may differ from the shipped product.
2. Safety information
Before unpacking and installing the product or adding devices on it, carefully read all the manuals that
came with the package.
Avoid using product in extreme dust, humidity and temperature conditions. Do not place the product in
wet area.
Before carrying out assembly and adjustment work or maintenance and inspection work of the machine,
be sure to disconnect the power cord. Otherwise, electric shock may result.
After turning OFF power, wait at least five minutes before servicing the product. Otherwise, residual
electric charges may result in electric shock.
⚠Warning
Be sure to check grounding before you use the unit. Danger of personal injury due to electric shock!
Be sure to use the unit within the voltage range indicated.
The operator must have a sufficient educational level and must know details of intended use described in
the user’s manual.
Be sure to check the wiring to the main unit.
When the user (customer) extends wiring, malfunction may occur due to faulty wiring. In this case,
inspect wiring thoroughly and check it for properness before turning on the power.
Before operating the unit, be sure to check that there is no danger in or around the operating range.
Do not allow water or oil to get on the unit and the power cord.
Install the unit in a place which can endure its weight and conditions while running.
Take care not to squeeze and thus damage the cable with any object.
Do not lay the cable over sharp edges to avoid damaging the cable sheath.
Check the mounting screws regularly so that they are always firmly tightened.
Never touch terminals directly or internal parts of controller.
Do not disassemble or modify the product.
Before carrying out assembly and adjustment work or maintenance and inspection work of the machine,
be sure to disconnect the power cord.
Connect the power supply after completing the adjustment of all the cables and switches.
⚠Caution
After the shutdown window, turn off the power supply. Otherwise the components could be destroyed or
undefined signals could occur.
To prevent the equipment from falling to the ground.
Never lay the device onto unstable surfaces. It could fall to ground and thus be damaged.
It is recommended to use the unit in an environment where no electrical noise is present.
In noisy environments, use a filter fitted.
Never lay the device close to heat sources or into direct sunlight.

DTP10-L hardware user’s manual
DAINCUBE Corp. 7 / 42
Avoid exposing the device to mechanical vibrations, excessive dust, and humidity or to strong magnetic
fields.
Make sure that no foreign objects or liquids can penetrate into the device.
Wipe the power plug with a clean, dry cloth periodically to eliminate dust.
Always pay special attention to the robot’s movement in the Teaching Mode.
3. Warranty and warranty coverage
The Teaching pendant you purchased has been delivered upon completion of our strict shipping test.
3.1.Warranty period
The warranty period is as follows:
12 months after our shipment.
3.2.Scope of the warranty
Where a defective condition occurs during proper use conditions and obviously under the responsibility of
the manufacturer, within the term above, we shall repair the product without charge.
However, any items that apply to the following are excluded from the warranty coverage.
The warranty is not valid if the defect is due to accidental damage, mishandling, misuse, voltage
fluctuation, high/low voltage or natural disaster.
If the product is repaired or tried to repair from unauthorized personal/Repair Shop.
If the product serial number is tempered.
The product is defective due to wear of parts, which can be considered as consumable parts by the
nature. (such as a cable)
Defects resulting from changes over time such as natural color fading of paint.
Defects resulting from mishandling or improper use.
Defects resulting from an inadequacy or error in maintenance and inspection.
Defects resulting from the use of any part other than our genuine parts.
Defects resulting from a modification not approved by us or our dealers.
Only a delivered product shall be singly warranted, and no damage induced by the defect of the delivery
product can be warranted. For repair, transport the product to our factory.
3.3. Service coverage
The cost of a delivered product does not include expenses for program creation and engineer dispatching.
Therefore, the following are charged separately even within the warranty term:
Maintenance and inspection.
Technical guidance and technical training in the operating instructions.
Technical guidance and technical training on program-related matters such as program creation.

DTP10-L hardware user’s manual
DAINCUBE Corp. 8 / 42
4. Description
The DTP10-L is an embedded-based teaching pendant with a high-performance Cortex-A9 (ARM Cortex-A9
1GHz) processor.
It accommodates various demands of the industrial field, supports various communication methods, and
uses royalty free Linux OS.
With most known Linux development tools and Open Sources, you can develop applications more easily.
Equipped with a user-friendly Linux users can develop applications more quickly and easily.
The DTP10-L device driver and sample program are all provided by customer support.
4.1.Processor Module Specifications
The processor module is "CG4300" developed by Daincube Co., Ltd.
32-bit RISC ARM Cortex-A9 Core was developed using a high-performance, low-power processor.
It is an ARM core that integrates ARM architecture V7-A and various peripherals.
Debug
LED
PCB Edge
Connector
(230 Pin)
ARM
Processor
10/100/1000
ENET
PCIe Bus
Sata Ⅱ
3.0Gbps
USB OTG
HS PHY
USB HOST
HS PHY
HDMI 1.4
LVDS0
LVDS1
12C2
AUDMUX4
eSDHC3
I2C1,12C3
12C2
eCSPI 1
WDOG1
GPIOs
EIM
(addr 26bit)
(data 16bit)
UART1
UART2
CAN1
PWM3
RGMII
Gigabit
Ethernet
PHY
G-LAN x 1
PCIe x 1
SATA x 1
DEBUG USB DEVICE x 1
USB 2.0
Hub
(4 Port)
USB host 1
HDMI x 1
LVDS x 2
WDOG x 1
AUDIO x 1
SD/MMC(8BIT) x 1
LVDS_DID x 1
I2C x 1,SMB_BUS x 1
SPI x 1
PWM4
SPEAKER(Buzzer) x 1
FAN_PWM x 1
PWM1
LCD Backright x 1
Debug Serial x 1
User Define Serial x 1
USB host 2
USB host 3
USB host 4
CAN x 1
eFuse
Protection
EN
+5V
5V_SB
PWR_GOOD
5V_SB
VDD5V
PMIC
Dc/dc x 4
LDO x 9
DDR3
256MB x 16
Memory
Management
unit
DDR3
256MB x 16
DDR3
256MB x 16
DDR3
256MB x 16
DDR3(64bit)
eSDHC4 eMMC 4~8G
(option)
MFC0,1
Mezzanine
Connector
(80 Pin)
Data 16bit
Addr /25
CS /2
Control /5
GPIO 10
Boot
Mode
CFG x 32bit
0100 11 10 :
SD3 Boot
BOOT MODES[1:0]
00 Boot from eMMC
01 Serial downloader
10 Boot from SDCARD
GPIO /2
State LED
Power
LED
VDD5V
VDD33V
RTC
Power Mag
Button x 4
PWR,SLP_BTN,LID_BTN, Reset Button
EN,Hold
12C2
RTC Batt Coin Battery
CPU MODULE BLOCK DIAGRAM(CG4300)
GPIOs
Power Status & Control Signals
[Figure 4-1] CG4300 Block Diagram

DTP10-L hardware user’s manual
DAINCUBE Corp. 9 / 42
DTP10 hardware specifications
Item
Contents
Remarks
Processor
ARM Cortex-A9 Quad core 1GHz (11500 DMIPS)
i.MX6 Quad
Memory
DDR3 800 MHz 1GByte
FLASH
MLC type eMMC 8GByte
SPI flash
4MByte(booting)
M-RAM
2MByte(nonvolatile memory)
LCD
TFT 10.1inch 1280x800, 16.7M Color, LED Backlight
Touch
4-wire Analog-resistive
O/S
Real-Time Linux
Buzzer
12Ø 85dB
RTC
Lithium 3 years (Min. Lifetime depend on Temperature)
LED
Dual Color LED X 3
Debug Port
Micro USB Serial Port (RS-232)
Storage
Micro SD-Card, USB Host, USB Device
Keypad
Jog(+, -) 16ea, Function 2ea
Safety Switch
Emergency stop/Select/3-step Enabling
Communication
EtherCAT or Ethernet 1port
Ethernet 1port
RS-485 1port
Hand Strap
20mm(Width) X 170mm(Length)
Power supply voltage
DC 24V ±5%
Power consumption
Max. DC24V / 500mA
Temperature
Operating - 0°C to +45°C
Storage - -20 °C to +70 °C
Humidity
Max 85% (Non-condensing)
Unit/Paint color
Housing for ABS, Black color
Size
237.5 x 324.7 x 42mm
(without cable)
Weight
Max. 1500g
Cooling Method
Ambient
[Table 4-1] H/W specifications

DTP10-L hardware user’s manual
DAINCUBE Corp. 10 / 42

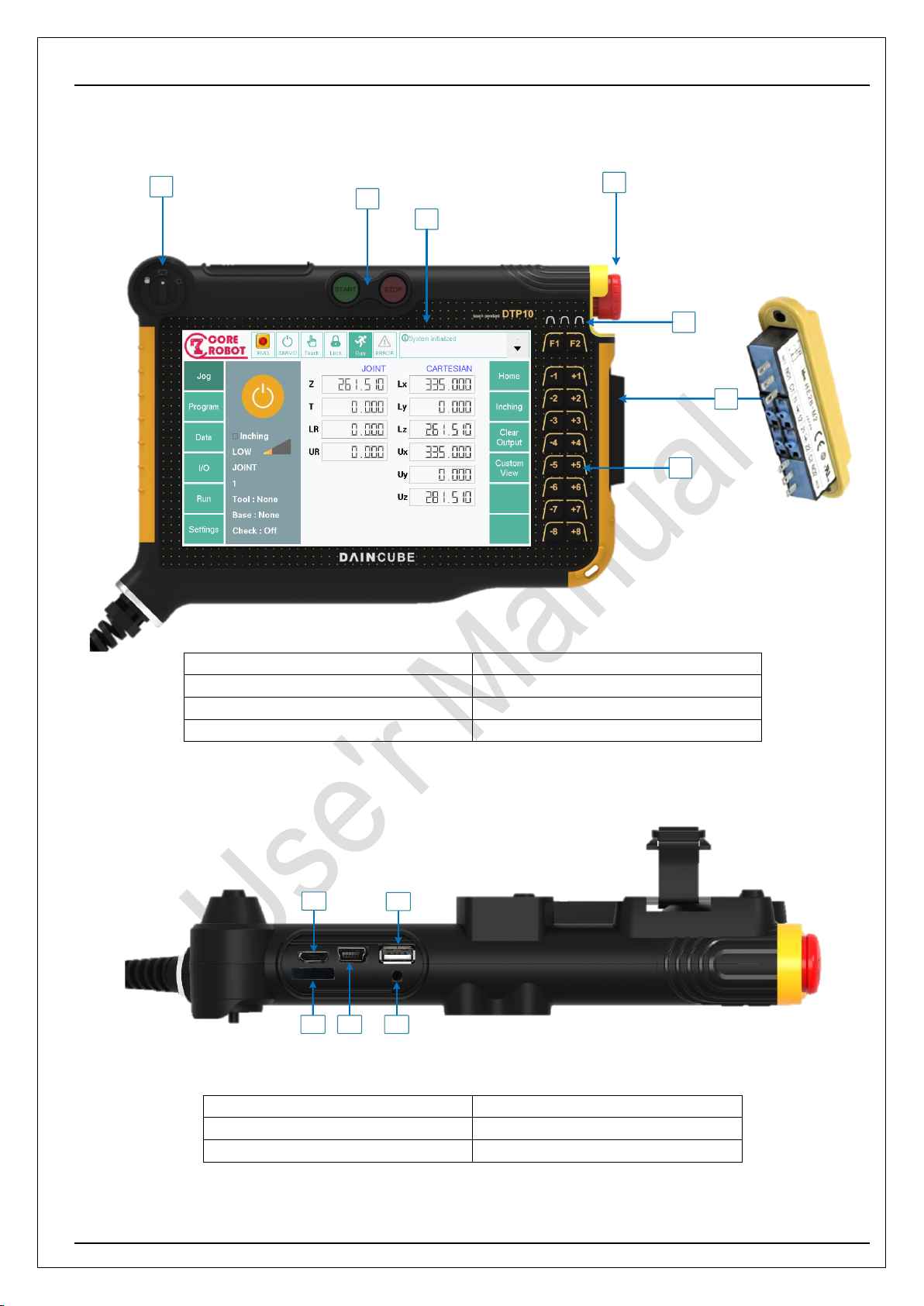

4.2.Front view
1
6
7
24
3
5
1 - TFT-LCD with touch screen
2 - Mode Switch
3 - Motor ON, Error clear Switch
4 - Emergency Switch
5 - Enabling SwitchHand Strap
6 - 3Coler LED * 3
7 - Right Keypad
[Figure 4-2] Front function
4.3.Top view and dimension
12
119
10
8
8 - Micro SD-Card
9 - USB device
10 - Debug serial
11 - Reset switch
12 - USB host
[Figure 4-3] Top function
✏Note: These ports are used for software development and testing.

DTP10-L hardware user’s manual
DAINCUBE Corp. 11 / 42
4.4.Rear view and dimension
Hand Strap
13
Touch Pen
14
13 –Hand Strap
14 : Touch PEN
[Figure 4-4] Rear function
4.5.System cable
1
6
2
3
4
5
1 - Circular plug 26pin connector
2 - Power and Switch connector
3 - Communication connector(Ethernet 2)
4 - Communication connector(Ethernet 1)
5 - Communication connector(RS-485)
6 - Anti-angle cable grand
[Figure 4-5] Main system cable

DTP10-L hardware user’s manual
DAINCUBE Corp. 12 / 42
5. Features
DTP10-L is an embedded type Teaching pendant for Linux OS users.
We have applied the latest high performance Arm Processor, and you can develop most of the applications
by using OS and development tool made of Free Software.
5.1.The key features of DTP10-L include
Teaching pendants optimized for industrial robots.
Round type ergonomic design products.
Gorgeous graphical user interface and fast and easy button operation configuration.
Support for various Linux application software.
Real Time Clock and Lithium Coin Battery
Buzzer for alarm
USB HOST, Micro SD-Card
Communication - Ethernet 2Port, RS-485
Safety(Emergency Stop, Enabling switch: Redundant switches
5.2.Operating and Display panel
Mobile 10.1inch 1280x800 16.7M Color TFT LCD with LED Backlight
4-wire resistive touch
Membrane keys with tactile
Dual-Color 3 status LEDs
Desk top operation
Accessories such as wall brackets and desktop holders for mounting
Wall bracket and desktop holder for installation
5.3.LCD & Touch screen
Items
Specification
Type
TFT LCD
Size
10.1”(216.96 X 135.60mm)
Resolution
1280 X 800 (Wide 8:5)
Representation
16.7M
Background lighting
42 LEDs (Light Emitting Diode)
Touch screen
4-Wire Analog-Resistive
✏Note: For smooth touch operation, we recommend removing a LCD protective film.
5.4.Safety switch
Emergency Stop Switch, Select Switch, Enabling Switch to Cable can be connected to the System IO of the
main controller.
Depending on the cable connection method Emergency Stop Switch Redundant configurations are possible.
Enabling Switch has used the 3 Level switch to operate all the emergency situation.
Select Switch has been implemented to allow you to select the three states.
5.5.User’s interface
DTP10-L user interface is a touch screen and can use the touch screen to easily control a GUI of the
platform.
Keypad interface
Right side: Function 2ea
Right side - jog (+.-) 16EA (8Axis motor JOG Switch)
Dual Color LED implemented 3ea on each available according to the application.

DTP10-L hardware user’s manual
DAINCUBE Corp. 13 / 42
5.6.Communication
DTP10-L provide different interfaces for communication with the main controller, and basically provides the
EtherCAT communication.
RS-485 can be used to select one ways.
6. Function
This chapter describes how to operate the teaching pendant.

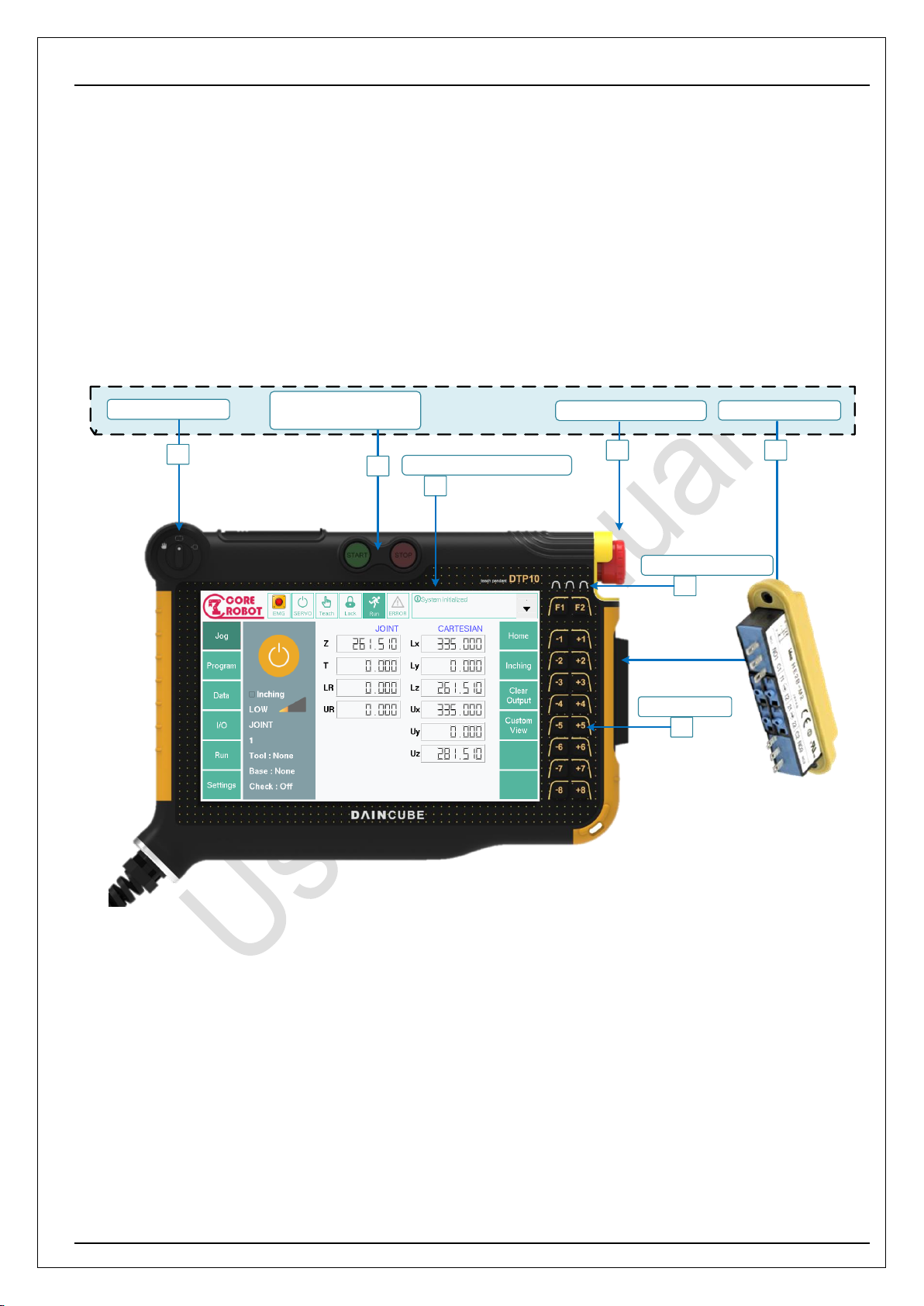

6.1.Operation keys and functions
1
6
7
21280 X 800 TFT LCD & Touch
Safety Switch
Dry Contect Switch Enable Switch
Select Switch Emergency Switch
4
Motor ON, Error
clear Switch
35
3-color LED X 3
Keypad
[Figure 6-1] Pendant Controls and Function
(1) LCD Display
The 10.1” TFT LCD display area contains 1280 x 800pixels and can display up to 16.7M colors.
Shows programs and motion status for the UI.
(2) Touch panel
The touch panel is a resistive touch.
The LCD screen of the teaching pendant is also a touch panel. By touching the buttons or data entry areas
displayed on the screen, it is possible to perform operations and make selections.

DTP10-L hardware user’s manual
DAINCUBE Corp. 14 / 42
(3) Right keypad (Axis Keys)
The functions for each key is set when the user development.
See the software API manual for more information.
Generally, Use the axis keys to move the robot. The axis key’s specific functions are available only from the
Manual Menu screen, as manual robot motion can be initiated from only the teaching pendant Manual
Motion screen.
The response to the axis keys depends on the robot motion settings.
'a'
'e'
'c'
'g'
'i'
'k'
'b'
'f'
'd'
'h'
'j'
'l'
3-Color
LED *3
'n'
'o' 'p'
Function *2
[Figure 6-2] Right keys and LEDs
F1, F2 Key: 2 function keys, the user defined the application.
The right side of the LED can be assigned user functions.
(4) Top side debugging port
12. USB host
11. Reset Switch8. Micro SD-Card
10. Debug Serial
9. USB device
[Figure 6-3] Interface for development

DTP10-L hardware user’s manual
DAINCUBE Corp. 15 / 42
Interface ports should be used to open the protection cover.
8: Micro SD-Card - Software Update, Micor SD-Card memory stick
9: USB Device - (Option) Unuse
10: Debug Serial –RS-232 Serial port(Micro USB Port)
11: Reset Switch - System Reset
12: USB Host - Mouse, key Board, USB memory stick
This port is used for development purposes.
In general, it closed with a protection cover.

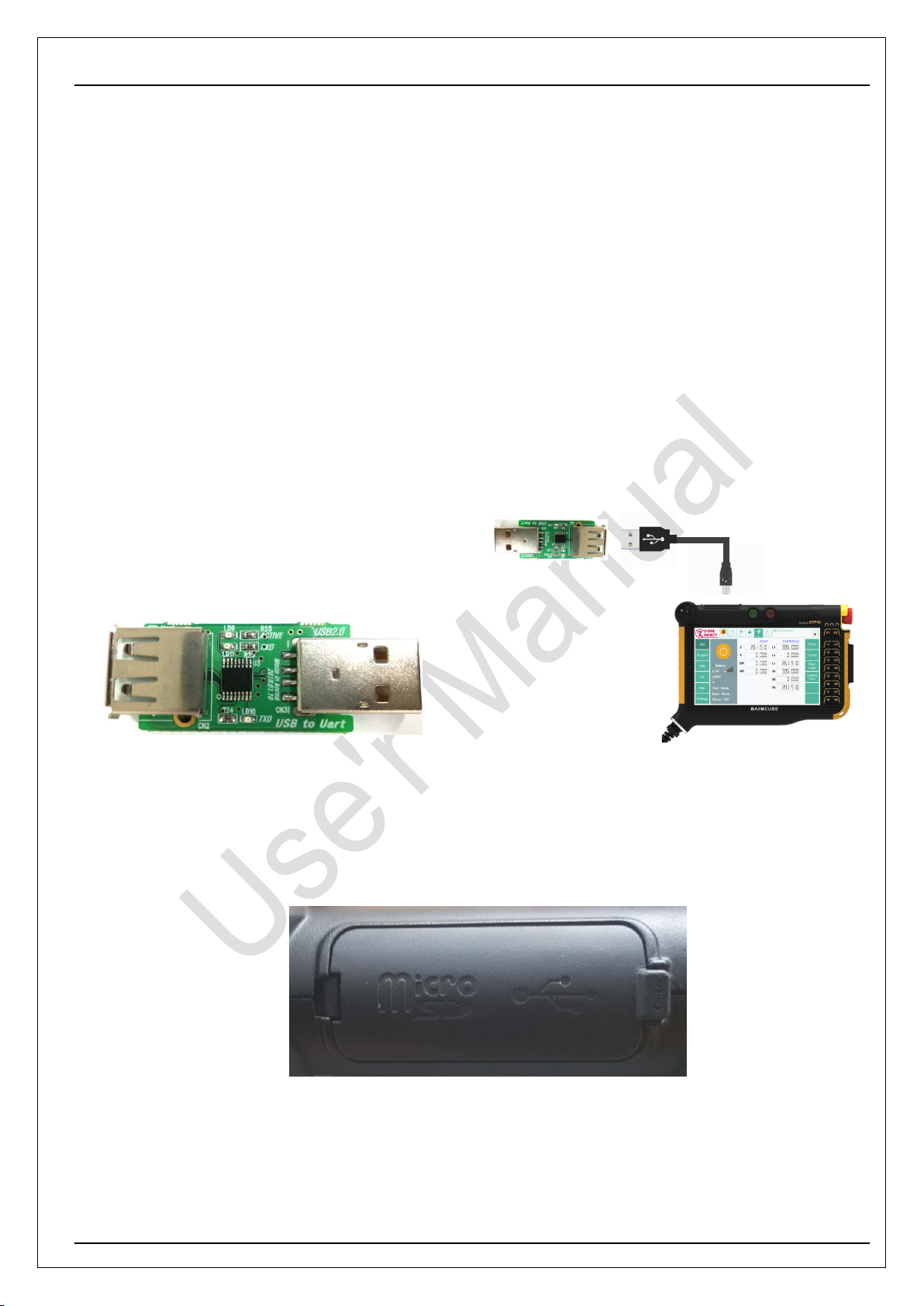

Micro USB
⚠Never connect to a regular USB
Debugging Serial Port for developers.
Debug Serial dongles are available for developers only.
Debug Serial developers
DTP10-L development debugging dongle.
USB Host
Debug Serial
To PC
USB A
Micro
USB
[그림 6.4] How to connect with debug serial dongle
Plug in the USB port of the PC and connect the USB socket (Debug Serial) to the Debug connector of the
DTP10-L using a micro USB cable.
This port is used for development purposes.
In general, it closed with a protection cover.
[Figure 6-4] Protection cover

DTP10-L hardware user’s manual
DAINCUBE Corp. 16 / 42
(5) Emergency Stop Switch
NC1NC2
NC1NC2
EMTP1+
EMTP2+
EMTP2-
EMTP1-
External
Emergency Stop Switch
[Figure 6.6] Emergency Stop Switch
The teaching pendant Emergency stop Switch (the large red knob at the top right of the pendant) is a safety
feature which disables the Robot power, immediately stopping the robot.
Position
Symbol
EMTP 1 (+,-)
EMTP 2(+,-)
Not
pressed
Short
Short
Pressed
Open
Open
[Table 6-1] Emergency Stop Switch function table
(6) Enabling Switch
The pendant is equipped with a 3-position enabling switch. The enabling switch is located on the rear side of
the pendant, as shown in the figure above.
The switch is also called dead-man switch.
0 1 0
C1 NO1NC1
NC2C2 NO2
SWEN1+
SWEN1-
SWEN2-
SWEN2+
External
Enabling Switch
[Figure 6-7] Enable switch

DTP10-L hardware user’s manual
DAINCUBE Corp. 17 / 42
Action
Position
Symbol
Not pressed
Null
SWEN2-
SWEN2+
SWEN1-
SWEN1+
Pressed
Enabling
SWEN2-
SWEN2+
SWEN1-
SWEN1+
Pressed strong
Panic
SWEN2-
SWEN2+
SWEN1-
SWEN1+
[Table 6-2] Enabling switch function table
(7) Mode Select Switch
This switches operation modes between Auto, Manual and Teaching check modes.
NC2NC1
NO1NO2
C1 C2
SELCOM2+
SELCOM1+
SELCOM2-
SELCOM1-
ExternalSelect Switch
[Figure 6-8] Select switch
Position
Symbol
SELCOM 1 (+,-)
SELCOM 2(+,-)
Left
Short
Open
Center
Short
Short
Right
Open
Short
[Table 6-3] Select switch function table

DTP10-L hardware user’s manual
DAINCUBE Corp. 18 / 42
6.2.System cable and connector
System cable is a customer order specifications.
Cable lengths and types, connector types and specifications can be selected by the customer.
24pin Urethane cable
S3Shield
24AWG
24AWG
1
2
3
4
5
6
7
8
9
10
11
16
17
20
21
22
A
B
EMTP1+
EMTP1-
EMTP2+
EMTP2-
SWEN1+
SWEN1-
SWEN2+
SWEN2-
SELCOM1+
SELCOM2+
SELCOM1-
SELCOM2-
F.G
GND
F.G
DC 24V
485_GND
F.
G
Red Strip
Red
Orange
Orange Strip
Yellow
Yellow Strip
Green
Green Strip
Brown
Brown Strip
Black
Black Strip
Blue Sky
Blue Sky Strip
pink
pink strip
TRX-
TRX-
S1Shield
14
15
23
24
TX1+
TX1-
RX1+
RX1-
White
White Strip
Gray
Gray Strip
S2Shield
12
13
18
19
TX2-
TX2+
RX2+
RX2-
Blue
Blue Strip
Purple
Purple strip Ethernet
Rs485
or
Ethernet
System cable
Cable configuration
26pin Circular plug
(DTP-CU-26P)
24AWG
Braided
shield
Urethane
jacket
PVC
jacket
PairPair
26AWG
10.5mm
S2 S1
S3
Aluminum
mylar
Aluminum
mylar
[Figure 6-9] System cable connection diagram

DTP10-L hardware user’s manual
DAINCUBE Corp. 19 / 42
(1) System Cable configuration
24AWG
Braided
shield
Urethane
jacket
PVC
jacket
PairPair
26AWG
10.5mm
S2 S1
S3
Aluminum
mylar
Aluminum
mylar
[Figure 6-10] System Cable configuration
(2) 26pin circular plug pin map
Plug Pin
Name
Description
Cable Color
System I/O
3
EMTP1+
Emergency Switch the First signal (+)
Red
4
EMTP1-
Emergency Switch the First signal (-)
Red Strip
5
EMTP2+
Emergency Switch the second signal (+)
Orange
6
EMTP2-
Emergency Switch the second signal (-)
Orange Strip
7
SWEN1+
Enabling Switch the first signal (+)
Yellow
8
SWEN1-
Enabling Switch the first signal (-)
Yellow Strip
1
SWEN2+
Enabling Switch second signal (+)
Green
2
SWEN2-
Enabling Switch second signal (-)
Green Strip
9
SELCOM1+
Select Switch first signal (+)
Brown
10
SELCOM1-
Select Switch first signal (-)
Brown Strip
11
SELCOM2+
Select Switch second signal (+)
Black
17
SELCOM2-
Select Switch second signal (-)
Black Strip
Network 1 - Ethernet 1
14
TX1+
Ethernet Transmit+
White
15
TX1-
Ethernet Transmit-
White Strip
23
RX1+
Ethernet Receive+
Gray
24
RX1-
Ethernet Receive–
Gray Strip
F.G
F.G
Frame ground
S1 Shield
Network 2 - Ethernet 2
12
TX2+
Ethernet Transmit+
Blue
13
TX2-
Ethernet Transmit-
Blue Strip
18
RX2+
Ethernet Receive+
Purple
19
RX2-
Ethernet Receive–
Purple strip
20
F.G
Frame ground
S2 Shield

DTP10-L hardware user’s manual
DAINCUBE Corp. 20 / 42
Serial –RS-485
16
TRX D+
Data+
Pink
22
TRX D-
Data-
Pink Strip
21
485_GND
Isolation RS-485 GND
S3 Shield
Power
A
VCC
DC 24V
Blue Sky
B
GND
Ground
Blue Sky Strip
Samwoo Connector Part number : SRC6A21-26P-G(26p)
[Table 6-4] Circular plug pin assignment
✏Note: Ethernet1 default support.
(3) cable specification
[Table 6-5] Cable specification
(4) Circular plug connector
Part Number
A
ØB
ØC
ØD
SRC6A21-26P
98.0
31.0
20.4
12.2
[Figure 6-11] Circular plug connector information
Item
Unit
Specification
AWG 26#×2 pair×2
Construction
NO. / mm
7 / 0.16TA
Wire thickness
A-472
0.79￠
Color
(Blue×Blue Strip＋Purple×Purple Strip)
(Gray×Gray Strip＋White×White Strip)
Braided shield
mm
7/0.10×16
AWG 26#×1 pair
Construction
NO. / mm
7 / 0.16TA
Wire thickness
A-472
0.79￠
Color
Pink x Pink Strip
Sheath
PVC
3.18￠
Braided shield
mm
5 / 0.10 × 16
AWG 26#×12C
Construction
NO. / mm
7 / 0.16TA
Wire thickness
A-472
0.79￠
Color
(Blue×Blue Strip＋Purple×Purple Strip)
(Gray×Gray Strip＋White×White Strip)
AWG 24#×2C
Construction
NO. / mm
11 / 0.16
Wire thickness
A-472
1.15￠
Color
Blue Sky, Blue Sky Strip
Tapping the whole
(26#×2Pr×2) ＋ (26#×1Pr) ＋ (26#×12C) ＋ (24#×2C)
Thickness
Nom. Thick
Mm
Jacket
Urethane
10~10.3￠⇓
