Daintree GE Current LineFit Light-LED Series User manual

LineFit Light-LED (LFL-LED)
LED Lighting System
Installation Guide
SIGN182 | GE2028-6426
RETROFIT SIGN CONVERSION LED KIT FOR USE ONLY IN
ACCORDANCE WITH KIT INSTRUCTIONS.
KIT IS COMPLETE ONLY WHEN ALL PARTS REQUIRED BY
THE INSTRUCTIONS ARE PRESENT.
TROUSSE DE CONVERSION À DEL POUR LA
MODERNISATION DES ENSEIGNES
À UTILISER CONFORMÉMENT AU GUIDE D’INSTALLATION.
Electrical Requirements
• Limited to use in dry and damp locations.
• The grounding and bonding of the LED Driver shall be done in
accordance with National Electric Code (NEC) Article 600.
• Follow all National Electric Codes (NEC) and local codes.
• These products are only suitable for connection to a circuit
from a Class 2 power source.
• These products have not been evaluated for use when
connected to a power source that does not comply with Class 2
voltage and energy limited supplies.
Save These Instructions
Use only in the manner intended by the manufacturer. If you
have any questions, contact the manufacturer.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This Class [A] RFLD complies with the Canadian standard ICES-005. Ce DEFR de la classe [A] est conforme à la NMB-005 du Canada.
WARNING / AVERTISSEMENT
RISK OF ELECTRIC SHOCK
∙Turn power o before inspection, installation or removal.
∙Properly ground power supply enclosure.
RISK OF FIRE
∙Use only UL approved wire for input/output connections.
Minimum size 18 AWG (0.82mm2)
∙Follow all NEC and local codes.
∙Not to be submerged or used in a marine environment.
RISK OF FIRE OR ELECTRIC SHOCK
∙LED Retrot Kit installation requires knowledge of sign
electrical systems. If not qualied, do not attempt installation.
Contact a qualied electrician.
∙Install this kit only in host signs that have been identied in the
installation instructions and where the input rating of the retrot
kit does not exceed the input rating of the sign.
∙Installation of this LED retrot kit may involve drilling or
punching of holes into the structure of the sign. Check for
enclosed wiring and components to avoid damage to wiring
and electrical parts.
∙Do not make or alter any open holes in an enclosure of wiring
or electrical components during kit installation.
RISQUES DE DÉCHARGES ÉLECTRIQUES
∙Coupez l’alimentation avant l’inspection, l’installation ou le déplacement.
∙Assurez-vous de correctement mettre à terre l’alimentation électrique.
RISQUES D’INCENDIE
∙N’utilisez que des ls approuvés par UL pour les entrées/sorties de connexion.
Taille minimum 18 AWG (0.82mm2)
∙Respectez tous les codes NEC et codes locaux.
∙Ne pas submerger ou installer dans un environnement marin.
RISQUE D’INCENDIE OU DE CHOC ÉLECTRIQUE
∙L’installation de l’équipement de remplacement DEL exige Ia connaissance
des systèmes électriques pour enseignes. Si non qualié, ne tentez pas
d’installation. Veuillez contacter un électricien qualié.
∙Risque d’incendie ou de choc Électrique. Installez cet ensemble seulement dans des
enseignes hôtes qui ont été identiés dans les instructions d’installation et dont la
capacité d’entrée de l’ensemble ne dépasse pas la capacité d’entrée de l’enseigne.
∙L’installation de cet équipement de remplacement DEL peut impliquer le
perçage ou le poinçonnage de trous dans la structure du panneau Vériez le
câblage et les composants inclus pour éviter d’endommager le câblage et les
composants électriques.
∙Ne pas faire ou modier les trous ouverts dans une enceinte de câblage ou de
composants électriques pendant l’installation de cet équipement de remplacement DEL.
Prepare Electrical Wiring
24
Volt
(GEF18xxxHOLED-1, GEF24xxxHOLED-1, GEF30xxxHOLED-1, GEF36xxxHOLED-1,
GEF42xxxHOLED-1, GEF48xxxHOLED-1, GEF60xxxHOLED-1, GEF64xxxHOLED-1,
GEF72xxxHOLED-1, GEF84xxxHOLED-1, GEF96xxxHOLED-1)*
* key for xxx: D = Daylight (6500K), SGN = Sign White (5400K), CW = Cool White (4100K)
BEFORE YOU BEGIN
Read these instructions completely and carefully.

LineFit Light-LED (LFL-LED) Installation Guide
2
Installation
Turn o power and remove panel
from uorescent box sign.
Push Line Fit Light into existing
uorescent lamp holders.
Read the product labels to
determine Line Fit Light length
required to span width of
sign based on table in the
Specications section (last page).
Old Fluorescent tube
F48T12HO
or F48T8HO
Remove old uorescent tubes,
ballast and wiring. DO NOT remove
existing uorescent lamp holders.
NOTE: Follow all federal and
local regulations when disposing
of neon tubing, uorescent tubes,
transformers and ballasts.
Remove old components
Continue installing Line Fit Light
xtures.
Orient Line Fit Light so LEDs are facing
front of sign, then pull and twist the
two endcap ttings so they align with
existing uorescent lamp holders.
LEDs face
front of sign
Pull and twist endcap tting
to align with lamp holder
Prior to installation, survey the site for information regarding power and accessibility inside and outside the building. Ensure that the branch
circuit supplying the existing transformer or ballast will be within the voltage ratings of the new LED power supply, and have a current rating not
exceeding 20A, or that permitted by applicable local, state, or country electrical codes (whichever is less).
If removal of the existing lighting equipment (see Step 2) eliminates the disconnect switch, as required by applicable local, state, or country
electrical codes; a new disconnect switch must be installed.
If required, the disconnect switch shall be installed by qualied personnel, in accordance with applicable local, state, and country electrical codes.
Repair and seal any unused openings in the electrical enclosure. Openings greater than 12.7-mm (1/2-in) diameter require a metal patch
secured by screws or rivets and caulked with non-hardening caulk. Smaller openings may be sealed with non-hardening caulk.
NOTE: If component 6 is necessary, refer to 32619 LFL-LED Coupler2 Line Fit Light Coupler-2nd Gen Installation Guide. If component 7 is necessary,
refer to 33125 LFL-LED Sockets LineFit Light Sockets Installation Guide.
GEF48xxxHOLED-1
New LED retrot
Components
UL certied 18 AWG (0.82 mm2) supply wire
UL certied 22-14 AWG (0.33-2.08 mm2) wire connectors
or 22-18 AWG (0.33-0.82 mm2) inline/IDC connectors
End caps
Tetra®24 Volt Power Supply
LineFit Light-LED (LFL-LED) modules
32619 LFL-LED Coupler 2 Line Fit Light Coupler-2nd Gen (optional)
93020091 LFL-LED Sockets LineFit Light Sockets (optional)
TCMeasure Point
The existing socket should be push-in
double contact lamp holder
Electrical grade RTV silicone.
Example electrical grade RTV silicones include:
• Momentive RTV 6700 Series Silicone Rubber Adhesive Sealant
• Momentive White Blanc RTV 162 Silicone Rubber Adhesive Sealant-
Electrical Grade
• Dow Corning 3140 - Non-Corrosive Flowable (clear)
• Dow Corning 3145 - Non-Corrosive Nonowable (clear or gray)
• Dow Corning RTV 748 Non-Corrosive Sealant-White
1
4
2
5
3
6
1
1
2
2
3
3
4
4
5
56
6
7
78
8

LineFit Light-LED (LFL-LED) Installation Guide
3

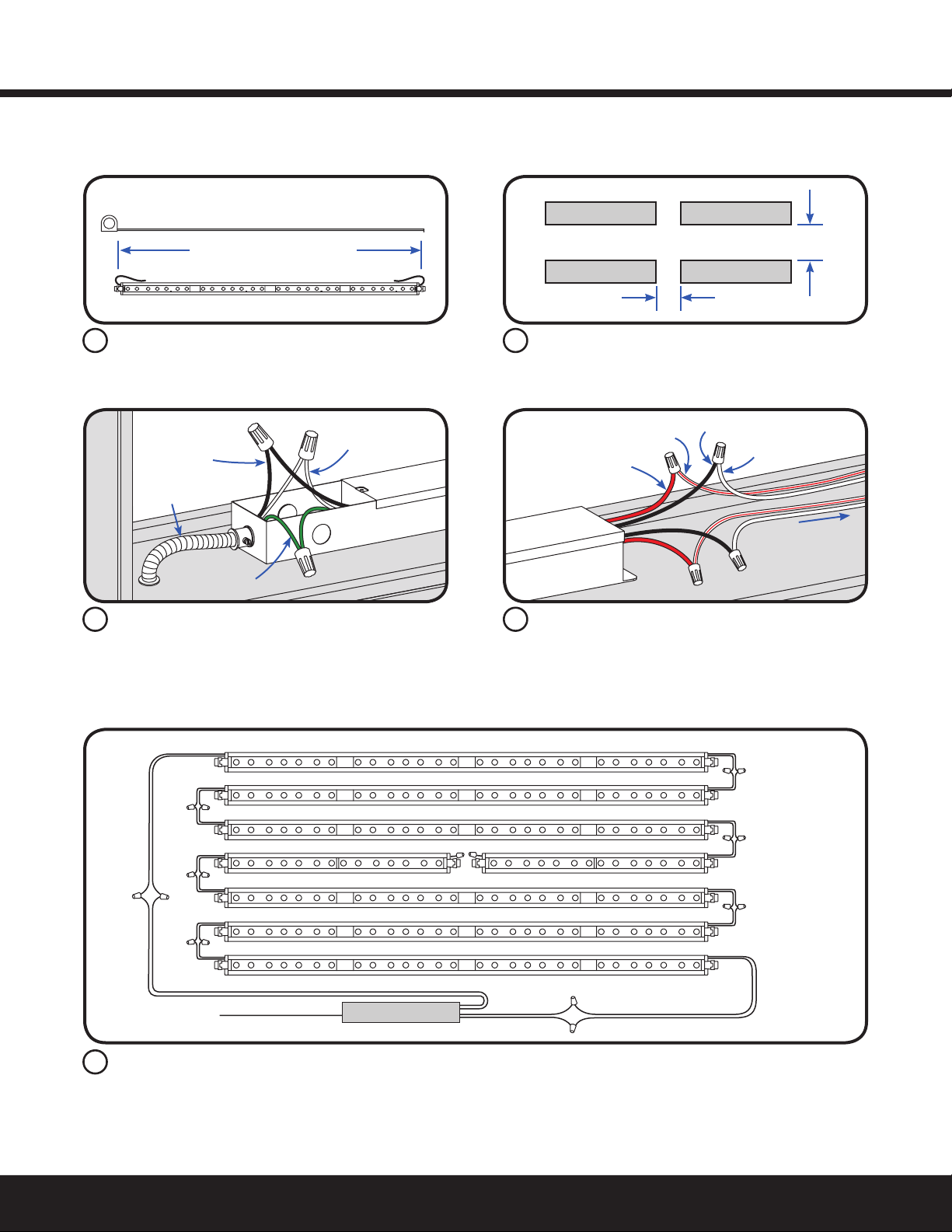

Wire AC line to LED driver(s) in accordance with the
applicable local, state, and country electrical codes.
Connect black to black or brown, white to white or
blue, and green to green using 18 AWG (0.82mm2)
wire connectors.
Add up total footage of the system to determine the
appropriate number of 24VDC Class 2 Tetra®LED
drivers to use based on the Power Supply Loading
chart on last page.
Connect the red stripe wire (+) of the LED system to
the red wire (+) of the power supply. Connect the white
wire (-) of the LED system to the black or blue wire (-) of
the power supply.
Connect Line Fit Lights using twist-on wire connectors or in-line (IDC) connectors. Join white wires together and red
striped wires together. Cap all exposed wires with appropriate end caps or apply electric grade (non-corrosive) silicone for
additional weather protection.
NOTE: Make sure not to exceed LED driver power limits (see Step 1). Drawing above is for reference only; your lighting layout may dier.
NOTE: All electrical connections should be suitably protected from mechanical damage and the environment. Seal all connections in
locations that may be exposed to water with electrical grade RTV silicone.
AC line GEPS24-180
NOTE: All drivers except GEPS24-180U must be installed in a raceway or be provided with a GEPSJB60 LED driver extended enclosure.
If installing multiple LED drivers, keep them at least
2” (50.8mm) apart end to end and 4” (101.6mm)
apart along the sides.
AC line
Black to black
or brown (-)
Green to green
White to white
or blue (+)
Power supply
Electrical Connections
4”
2”
LED driver LED driver
LED driver LED driver
To Line Fit Light
Red (+)
Red stripe (+)
White (-)
Black or blue (-)
23.0W
23.0W
23.0W
23.0W
23.0W
23.0W
Total: 161W
11.5W 11.5W
Add up total length of system
NOTE: Do not use connectors pre-lled with silicone grease/mineral base protective grease or use silicone grease to seal connections.
1
3
5
2
4

LineFit Light-LED (LFL-LED) Installation Guide
www.gecurrent.com
© 2021 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the
General Electric Company and are used under license. Information provided is subject to change without
notice. All values are design or typical values when measured under laboratory conditions.
SIGN182 (Rev 02/11/21) GE2028-6426
Troubleshooting
Specications
Product Code Description Long Description Ft Rating (Watts)
32500, 32520, 32553 GEF18xxxHOLED-1 18'' Sign White, Daylight, Cool White LED Lamp 1.5' 8.64
32501, 32527, 32554 GEF24xxxHOLED-1 24'' Sign White, Daylight, Cool White LED Lamp 2' 11.52
32502, 32528, 32557 GEF30xxxHOLED-1 30'' Sign White, Daylight, Cool White LED Lamp 2.5' 14.4
32504, 32529, 32560 GEF36xxxHOLED-1 36'' Sign White, Daylight, Cool White LED Lamp 3' 17.28
32505, 32531, 32572 GEF42xxxHOLED-1 42'' Sign White, Daylight, Cool White LED Lamp 3.5' 20.16
32511, 32532, 32573 GEF48xxxHOLED-1 48'' Sign White, Daylight, Cool White LED Lamp 4' 23.04
32513, 32533, 32574 GEF60xxxHOLED-1 60'' Sign White, Daylight, Cool White LED Lamp 5' 28.8
32515, 32535, 32579 GEF64xxxHOLED-1 64'' Sign White, Daylight, Cool White LED Lamp 5.33' 31.68
32516, 32538, 32587 GEF72xxxHOLED-1 72'' Sign White, Daylight, Cool White LED Lamp 6' 34.56
32517, 32547, 32588 GEF84xxxHOLED-1 84'' Sign White, Daylight, Cool White LED Lamp 7' 40.32
32518, 32548, 32607 GEF96xxxHOLED-1 96'' Sign White, Daylight, Cool White LED Lamp 8' 46.08
Description Long Description Ft per PS
GEPS24-100U-GL Power Supply (24VDC / 96W), Input Voltage: 108-305VAC; Damp Rated;
Self-Contained, Remote or Raceway; 1 Output Bank; Class 2 16’
GEPS24-100U-GLX Power Supply (24VDC/96W), Input Voltage: 108-305VAC; Damp Rated;
1 Output Bank; Class 2 16’
GEPS24-100U-NA Power Supply (24VDC / 96W), Input Voltage: 108-305VAC; Damp Rated;
Self-Contained, Remote or Raceway; 1 Output Bank; Class 2 16’
GEPS24-180U Power Supply (24VDC/180W), Input Voltage: 90-305VAC; Damp Rated;
Self-Contained, Remote or Raceway; 2 Output Banks of 90W each; Class 2 14’ per Bank
GEPS24D-80U 0-10V Dimming Power Supply (24VDC/80W), Input Voltage: 90-305VAC;
Damp Rated; Self-Contained, Remote or Raceway; 1 Output Bank; Class 2 12’
GEPS24W-80 Power Supply (24VDC/80W), Input Voltage: 90-264VAC; Wet Location Rated;
1 Output Bank; Class 2 12’
GEPS24-300U-GL Power Supply (24VDC/288W), Input Voltage:108-305VAC; Damp Rated;
Self-Contained, Remote or Raceway; 3 Output Bank; Class 2 16’ per Bank
Power Supply Loading
This product is intended solely for the use of non-residential signage lighting and is not intended for use in any other applications.
Conforms to the following standards:
III
If you have any questions about these instructions or your specic application, please contact support at [email protected].
For the latest install guides for your product go to: www.gecurrent.com
Symptom Solution
Row of xtures does not light • Check wire connections to power supply to ensure red stripe-to-red and white-to-black connections.
• Check row-to-row polarity connections.
Sign does not light • Check input and output voltage and check power supply input/output connections.
• Check polarity connections.
Individual xture does not light • Remove xture and replace with another working xture.
