Installation Guide
ARCH027
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING / AVERTISSEMENT
Risk of electrical shock. Disconnect power before servicing
or installing product.
Risque de choc électrique. Couper l’alimentation avant le dépannage
ou avant l’installation du produit.
Lumination®LED Luminaire
Product Code: 74917
Description Code: GE020/G/V24T1-B
(Tetra®Contour)
Prepare Electrical WiringLED Driver Features
• Class 2 wiring per NEC Article 725 (SELV)
• IP54: Dry or damp location rated
• Conforms to the following standards
Electrical Requirements
• The LED driver must be supplied with 120V, 60Hz
or 240V, 50Hz and connected to an individual
properly grounded branch circuit, protected by a
15 or 20 ampere circuit breaker.
Grounding Instructions
• The grounding and bonding of the overall system
shall be done in accordance with National Electric
Code (NEC) Article 600 and local codes.
This Class [A] RFLD complies with the Canadian standard ICES-005. Ce DEFR de la classe [A] est conforme à la NMB-005 du Canada.
Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

www.gecurrent.com
© 2021 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the
General Electric Company and are used under license. Information provided is subject to change without
notice. All values are design or typical values when measured under laboratory conditions.
ARCH027 (Rev 04/02/2021)
Lumination®(Tetra® Contour) Installation Guide
This product is intended to be used as a lamp control gear that is installed after the mains control switch.
Conforms to the following standards:

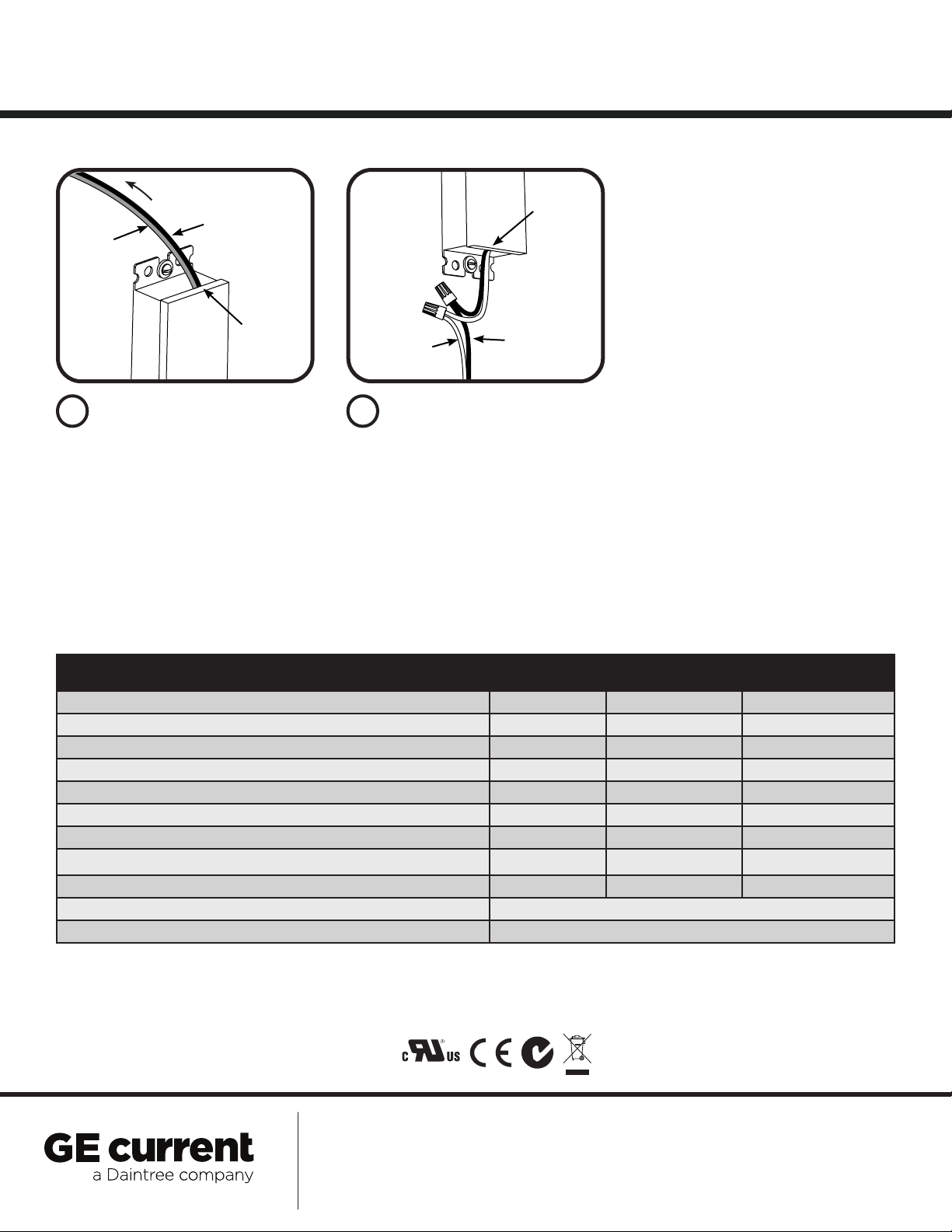

LED Driver Installation
Red (+)
LED system
Output
wires
Input
wires
White (neutral)
Black (line)
AC line
Black (-)
Red (+)
LED system
Output
wires
Input
wires
White (neutral)
Black (line)
AC line
Black (-)
Min Typical Max
Input Voltage (VAC) 90 100-240 264
Input Frequency (Hz) - 50/60 -
Input Current (A) - - 0.31
Output Voltage (VDC) 23.0 24.0 25.6
Output Current (ADC) - - 0.83
Output Power (W) - - 20
Environmental Operating Temperature Range -40°C +25°C +60°C
Environmental Humidity (non-condensing) 10% - 95%
Environmental Storage Temperature Range -40°C - +85°C
Enclosure Specication IP54: Dry or damp location rated
Dimensions 5.9 in. x 1.5 in. x 1.3 in. (150 mm x 37 mm x 32 mm)
Connect the AC line to the the
black (line) and white (neutral)
input wires of the power
supplu using 18-14 AWG
(0.82-2.08 mm2) twist-on wire
connectors.
1
Connect the supply wire that is
attached to the Tetra®LED System
to the red (+) and black (-)
output wires of the power supply
as outlined in the “Electrical
Connections” section of your LED
system’s Installation Instructions.
2
Technical Specications
Note: For remote mounting or loading information refer to the LED System Installation Instructions.
