Daisy Data 7191AB User manual

Daisy Data Displays, Inc.
2850 Lewisberry Road,
York Haven,
PA 17370
Phone: [phone]
7191AB User Manual
June 2017

ii
D004-000014
DISCLAIMER
Daisy Data Displays, Inc. makes no representations or warranties with respect to the contents or use of this
manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. Daisy Data Displays, Inc. reserves the right to revise this publication and to make changes to its content,
at any time, without obligation to notify any person or entity of such revisions or changes.
Furthermore, Daisy Data Displays, Inc. makes no representations or warranties with respect to any Daisy Data
Displays manufactured equipment, and specifically disclaims any express or implied warranties of merchantability
or fitness for any particular purpose. Daisy Data Displays, Inc. reserves the right to make changes to any and all
Daisy Data Displays manufactured equipment, at any time, without obligation to notify any person or entity of
such changes.
FCC WARNING
Computing devices and peripherals manufactured by Daisy Data Displays generate, use, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions in this manual may cause
interference to radio communications. Such equipment has been tested and found to comply with the limits for a
Class A computing device pursuant to Subpart J of Part 15 of the FCC Rules, which are designed to provide
reasonable protection against radio interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which case the user - at his own expense - will be
required to take whatever measures may be required to correct the interference.
Some components may not have been manufactured by Daisy Data Displays, Inc. If not, Daisy has been advised by
the manufacturer of the component that the component has been tested and complies with the Class A computing
device limits as described above.
Daisy Data Displays, Inc.
2850 Lewisberry Road
York Haven, PA 17370 USA
Phone: [phone]
Fax: [phone]
www.makeitdaisy.com
Manual: D004-000014
June 2017
Manual Revision 1
Copyright ©2017, Daisy Data Displays, Inc. All rights reserved.

D004-000014
iii
Limited Warranty and Liability Statement
To the original purchaser, Daisy Data Displays, Inc., hereinafter referred to collectively as SELLER, warrants each of
its manufactured products, and all components therein contained to be free from defects in materials and/or
workmanship for a period of 12 months from the date of purchase.
Should a malfunction or other indication of defect attributable directly to faulty materials and/or workmanship
occur, Seller will, at its option, and without charge to the customer for labor and parts, repair or replace the
defective product, F.O.B. Seller’s plant, but Seller will not be responsible for freight from Purchaser to Seller’s
plant. In no event shall Seller be liable for any loss, inconvenience or damage, whether direct, incidental,
consequential or otherwise resulting from abuse, misapplication or modification of the product, improper or faulty
power, damage resulting from repairs or alterations performed by unauthorized persons, or conditions resulting
from any other equipment attached to the product.
Seller assumes no liability for damage occurring in transit due to the product not being returned in its original
shipping material.
This warranty is exclusive and is in lieu of any warranty of merchantability or fitness for a particular purpose or
other warranty of quality whether expressed or implied, except of title and against patent infringement.
Correction of nonconformities, in the manner and for the period of time provided above, shall constitute
fulfillment of all liabilities of the Seller to the Purchaser with respect to, or arising out of the goods, whether based
on contract, negligence, strict tort or otherwise.
LIMITATION OF LIABILITY: The Seller shall not under any circumstances be liable for special or consequential
damages, such as, but not limited to, damage or loss of other property or equipment, loss of profits or revenues,
cost of capital, cost of purchased or replacement goods, or claims of customers of Purchaser for service
interruptions. The remedies of the Purchaser set forth herein are exclusive, and the liability of Seller respect to
any contract, or anything done in connection therewith such as the performance or breach thereof, of from the
manufacture, sale, delivery, resale, installation or use of any goods covered by or furnished under this contract
whether arising out of contract, negligence, strict tort or breach of warranty or otherwise, shall not, except as
expressly provided herein, exceed the price of the goods upon which such liability is based.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
Seller makes every effort to provide clear and accurate technical information on the application of its products in
the Operator's Manual, and assumes no liability for misuse of the information.

7191AB User Manual
iv
D004-000014
Table of Contents
1. Introduction .............................................................................................................................. 1
2. Applicable Ratings..................................................................................................................... 1
2.1. Applicable Ratings............................................................................................................ 1
3. Customer Service ...................................................................................................................... 2
4. Software/Hardware .................................................................................................................. 2
5. Specifications ............................................................................................................................ 3
6. Component Identification......................................................................................................... 5
Figure 1 – Front Panel Touchscreen Display............................................................................. 5
Figure 2 –Rear Panel (Connections & Power Cord) .................................................................. 6
Figure 3 – Display Enclosure Components................................................................................ 7
Figure 4 – Unit Enclosure Components .................................................................................... 8
7. Replacement Parts List.............................................................................................................. 9
7.1. Unit Enclosure (Rear) ....................................................................................................... 9
7.2. Display Enclosure (Front)................................................................................................. 9
7.3. Cable Assemblies ............................................................................................................. 9
8. Mounting Diagram.................................................................................................................. 10
9. Revision History ...................................................................................................................... 11

7191AB User Manual
D004-000014
1
1. Introduction
Thank you for selecting a Daisy solution for your hazardous area operator interface needs.
This manual contains drawings and component locations for installing and setting up Daisy Data flat panel
operator interface systems. In addition, Daisy Data provides warnings, precautions, and methods to ensure
that the electronic systems are safe for hazardous areas. This explains the theory behind the unique product
and services provided by Daisy Data.
Should you have any inquiries or concerns, please contact Daisy.
2. Applicable Ratings
National Electrical Manufacturers Association (NEMA) is the regulatory body that defines the criteria for
electrical enclosures.
2.1. Applicable Ratings
NEMA defines a 4X enclosure as:
*…“Type 4X Enclosures constructed for either indoor or outdoor use to provide a degree of
protection to personnel against access to hazardous parts; to provide a degree of protection
of the equipment inside the enclosure against ingress of solid foreign objects (windblown
dust); to provide a degree of protection with respect to harmful effects on the equipment
due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water);
that provides an additional level of protection against corrosion; and that will be
undamaged by the external formation of ice on the enclosure.”
Please note that DAISY’s systems have been fully tested under the supervision of Factory Mutual (FM) to
ensure compliance with the standards.
*Part of the NEMA definition of NEMA 4X Enclosures

7191AB User Manual
2
D004-000014
3. Customer Service
All Daisy systems pass detailed quality control configuration and inspection before being shipped. Daisy strives
to create the highest quality systems, and chooses top quality parts. However, like most electronic devices,
units may experience issues over time. Should you experience problems, or have any further inquiries or
comments, please contact Daisy’s customer service department:
Business Phone [phone] x222
Fax [phone]
Email [e-mail]
Equipment returned to Daisy for service must be accompanied by a valid return merchandise authorization
(RMA) number. Items or products shipped to Daisy without a valid RMA number will be refused. An RMA will
be generated upon receipt of Company Name, Address, Contact, Product Model and Serial Numbers.
Typical Model/Serial Number Tag
Daisy Data Displays Inc. prides itself on offering best in class support for your products. Our technical support
team can help you with installation, configuration, troubleshooting, and other support issues for all Daisy’s
products.
4. Software/Hardware
Daisy data should be contacted for any hardware or software questions/issues. Additional SSD’s or operating
systems can be supplied as needed. Be aware that any modifications or alterations without the assistance of
Daisy Data could affect unit certifications and implied warranty.
!! IMPORTANT NOTE ON ORDERING REPLACEMENT PARTS !!
All Daisy Data Display products undergo continual improvement to ensure they meet the
myriad of regulatory standards and codes for equipment operating in hazardous enviornments.
These improvements or modifications may effect Daisy Data products already in the field.
With that in mind, as a customer servicing your own product, it is highly reccomended that you
contact your Daisy Data Display customer service representative to confirm any part or part
number you may be looking to replace. Your Daisy representative will ensure you are getting
the correct part, or the possible availability of a suitable replacement part to ensure your
equipment continues to meet the standards and/or codes originally intended.

7191AB User Manual
D004-000014
3
5. Specifications

7191AB User Manual
4
D004-000014

7191AB User Manual
D004-000014
5
6. Component Identification
View the following photos to identify components of the 7191AB unit. For part numbers, go to the Component
Parts List .
Figure 1 – Front Panel Touchscreen Display

7191AB User Manual
6
D004-000014

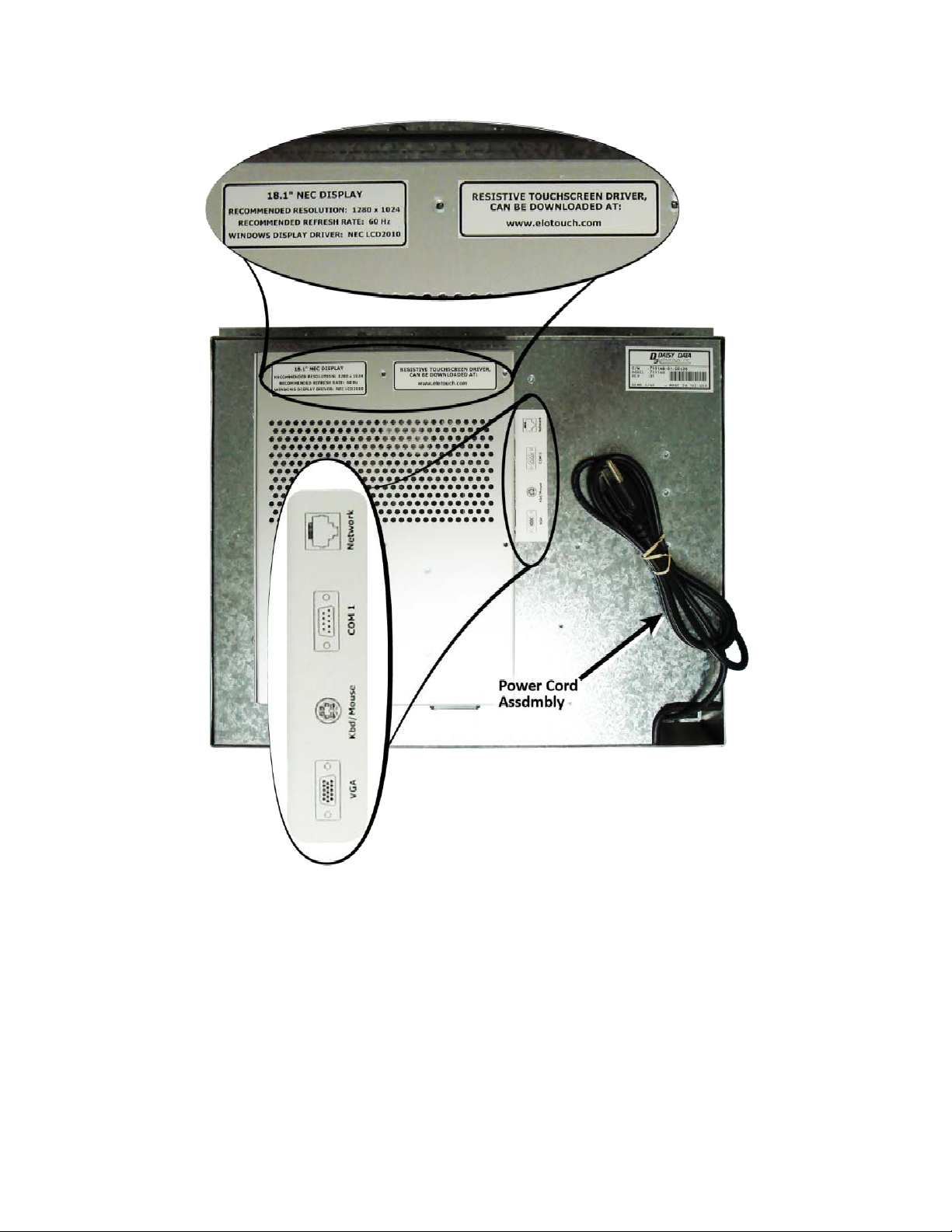

Figure 2 –Rear Panel (Connections & Power Cord)

7191AB User Manual
D004-000014
7

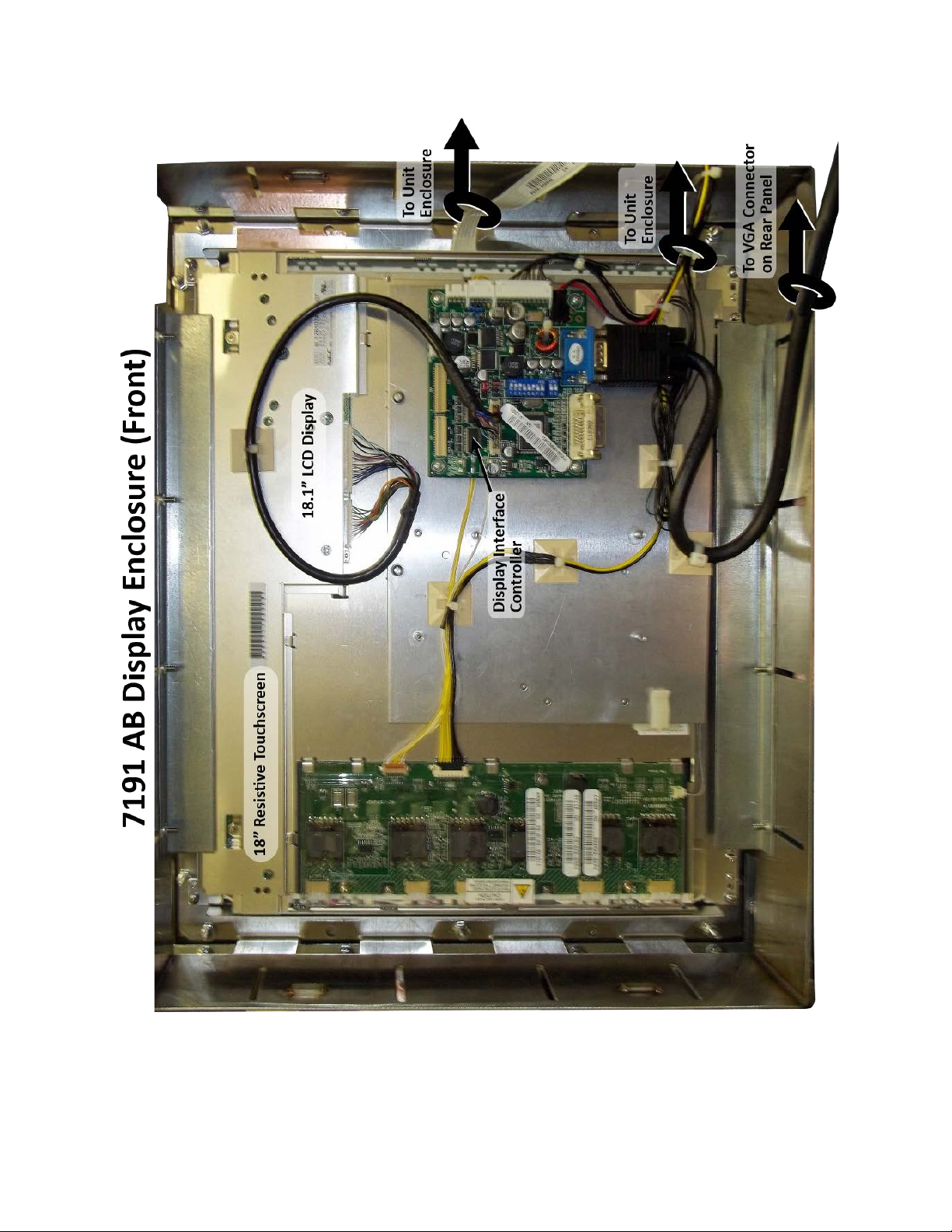

Figure 3 – Display Enclosure Components

7191AB User Manual
8
D004-000014
Figure 4 – Unit Enclosure Components

7191AB User Manual
D004-000014
9
7. Replacement Parts List
Should one or more of a unit’s major components fail, please refer to the corresponding manufacturer part
number when ordering replacements or contacting with D3 customer support.
7.1. Unit Enclosure (Rear)
Part Type
Part Number
Single Board Computer GENE-8310 1.3GHz
P050-000236
256M DDR RAM
A311-510256
Power Regulator, 12V, 5A, 65W
P010-000040
FAN,12V,BRUSHLESS
E906-000058
6P Power Barrier Strip
E203-900006
Power Distribution Board
I047-100050
Resistive Serial/USB Touchscreen Controller
P040-100023
Ext. 4SW OSD Keyboard (MENU,-,+, SEL)
I301-000029
7.2. Display Enclosure (Front)
Part Type
Part Number
18.1" LCD DIGITAL Display
P000-000102
18" Resistive Touchscreen
P040-000086
Display Interface Controller, ALR-1400v2
P050-000245-01
7.3. Cable Assemblies
Part Type
Part Number
AC Power Cord, 3C, 18AWG, BLACK
E000-030000
MTB6-MTB10, 9"L Cable Assembly
I100-001333-01
MTB3-3xRING, 18"L, w/BR Cable Assembly
I100-001429
12V Power DIGI-VIEW Cable Assembly
I100-001879
MTB6 MTB10 TO MOLEX4 Cable Assembly
I100-001998
SVGA, HD15M-HD15M, 3 FT Cable Assembly
P070-000182
AMP8-JST12, OSD DV, 30"L Cable Assembly
P070-000481
JAE9-JST5, Inverter Cable Assembly
P070-000482
HIROSE8-PIGTAIL, NEC Cable Assembly
P070-000483
LVDS, 18" NEC, ARL-1400 Cable Assembly
P070-000575
Flat DB9M To 2mm HRR Cable Assembly
P070-000614
MTB6-MTB10, 9"L Cable Assembly
I100-001333-01
MTB3-3xRING, 18"L, w/BR Cable Assembly
I100-001429
12V Power DIGI-VIEW Cable Assembly
I100-001879

7191AB User Manual
10
D004-000014
8. Mounting Diagram
Use supplied hardware to mount unit to surface. Refer to the cutout drawing for hole spacing.

7191AB User Manual
D004-000014
11
9. Revision History
REVISION
CHANGE DESCRIPTION
DATE
AUTHOR
- Initial Release 6/23/2017
BM
