Reel Specifications
Reel Specification list
Counter display
Parts List
Trouble shooting
34
35
36
37
Index
Caution
Precautions
Power source
How to connect the reel to the power source
About the power source
Battery indicator
Using the Reel
About the counter display
Maintenance
About maintenance
Maintenance procedure
Handling and maintenance of the power cord
maintenance of the cord
Other maintenance points
Names of the buttons and the display
Names and functions of each part
Line data input
When line length is known
With Backing line 1
With Backing line 2
Functional setting operation
1 Mode setting display
How to set the many functions available
2. How to use the SHIFT BUTTON
3. Before you begin fishing
Surface depth setting
When the main line is cut or broken off.....
4. Auto stop function
Auto stop setting
Auto stop
5.Line feeding function
Line feeding function
6. Pickup speed setting
Pickup speed preference
7. Inverse counter
Inverse counter
8. Jigging
Jigging
Jigging master
1
2
3
4,5
4
4
5
5
5
6,7
8,9
10-15
10,11
12,13
14,15
16-33
16,17
18
19
20-22
20
21
22
23
24
25-27
25
26,27
9. Winding speed indicator
Winding speed display
10. Remaining time to auto stop
Displaying of the remaining time to auto stop
11. Chumming timer winding
Chumming timer winding
Chumming timer
12. Display recalibration
Display revision
13. How to fix the Rod Clamp
28
29
30,31
30,31
31
32
33
See animation
Electric reelʼs basic
operations
The electric reel used in the anima-
tion is TANACOM BULL-1000.
pursuetheoutdoors.com/schematics

Caution
Precautions
1
line
snap
line clip
end of the line
DO NOT allow end of line to be wound onto the spool.This may cause synchronization with the levelwind to
be lost, a condition that can damage the levelwind due to the reelʼs high power output. Should this happen,
line should be removed from spool and rewound.
After each trip, attach line to line clip to prevent it accidentally being wound onto reel.
Warning
Attention
2. Be careful to keep fingers clear of the levelwind mechanism. It can pinch your fingers
and cause injuries.
1.This product generates weak electro-magnetic waves while its power is ON, which could
cause malfunction of medical equipment such as hearing aids, pacemakers and other
devices. Wearers of heart pacemakers could experience variations in heartbeat or
dizziness. So please, be sure to ask the manufacturer or dealer of your specific medical
equipment about any potential hazards posed by the effects of electro-magnetic waves.
1. If your sinker or lure is caught on the bottom, cut your line rather than jerk the rod to
free it.
2. After fishing, rinse and dry the reel thoroughly. Store in a dry place.
3. Handle the reel with care. Dropping it may cause damage.
4. Do not touch the line while reel is running. It could cut your skin.
5. Use this reel for fishing purposes only.
6. Be careful not to get reel grease on your clothing.
7. Do not use metal wire for the main line.
8. Sharp impacts due to inadvertent drop or other reasons may cause reel body
breakage, damage to the inner electronic components, and cracks or short circuit of the
board, resulting in functional disability.
1. Do not disassemble the reel. It could result in malfunction that could damage the reel
or cause personal injury.
1. Do not touch moving parts while the reel is operating or it may cause injury.
2. Drag adjustment should only be done with the auto winding functions off.
1. When you use a power source other than the battery or the power source provided by
the boat, be sure it is of the proper voltage. Excess voltage will harm the reel and may
generate enough heat to burn your hands.
2. Do not use badly rusted cord to prevent electrical heat.
Do not reel in the end of the line
pursuetheoutdoors.com/schematics

2
Power source
How to connect the reel to the power source
About the power source
Battery indicator
1. Attach the cord clips to the battery. Red covered clip is the plus
(+), and the black covered clip is the minus (-).
2. Insert the connector into the reel. After this, the display
appears as below.
By taking the appropriate steps, the indication will change as
shown below and the data will be set.
With power on, digits of the inverse counter (counter in the lower
area) will blink if voltage gets below DC 9 V.
If the display shows this when the motor is not running, then
battery voltage is likely to be low. In this case, replace the battery
with a recharged one.
Attention
1.When changing batteries, the display’s backup memory stays active for about 15 minutes
after the old battery is disconnected. Thus the above display startup sequence does not
need to replay when the new battery is connected within the 15 minute time frame.
Attention
Make sure of the following before departure.
1. Recharge the battery before your fishing trip. Over time, a battery can naturally discharge.
2. Confirm the boat can provide the proper power source (i.e. voltage, connector shape etc).
3. Corroded connections can prevent the flow of electric current. Remove any corrosion or
dirt from the connectors.
This figure shows the
voltage is 8.5 V
Black
Red
Match slot
with key
0.5 sec
All the articles light An indication change Set completion
This reel is made to accept DC 12 Volt power only. Power sources
providing other than this cannot be used.
The power provided by a boat can be unstable, causing the reel to
stop unintentionally. This can result in poor reel performance.
Please use a battery made specifically for fishing reels, such as
our lithium battery.
pursuetheoutdoors.com/schematics

3
Using the Reel
About the counter display
1. Do not jerk your rod to free a lure or sinker stuck on the
bottom. Pull the line taught with a gloved hand and cut it.
2. After maintenance, be sure to loosen the drag and store the
reel in a dry place.
3. Handle the reel with care to avoid dropping and possibly
damaging it.
4. Do not use metal wire as the reelʼs main line.
The following conditions may make the display difficult to read.
1. Wearing polarized glasses.
2. Excessively cold or hot weather, mid-winter (displayʼs surface
temperature is below –10 degrees centigrade) and mid-summer
(displayʼs surface temperature is above 60 degrees centigrade).
3. When light strikes the display from certain angles, the displayʼs
digits may have shadows. This does not affect its function.
1
2
Tournament
Drag
loosen
pursuetheoutdoors.com/schematics

4
Maintenance
About maintenance
Maintenance procedure
This is a washable reel. Wash away salt residue and grit after fishing
1. Wash the reel with a dish washing detergent and a soft
sponge. Do not use solvents.
Do not use soap or other detergents. Other soaps or solutions
may damage the reel both externally and internally. The
solution may damage the outside coating of the reel and may
breakdown the grease inside of the reel creating an overflow of
grease.
Attention
1. Do not submerse the reel when washing.
2. Do not use organic solvents such as benzene and thinner.
3. Do not use a steel brush or abrasive cleanser.
4. Do not attempt to look inside the oil hole. The oil may splash and spurt out of the oil
hole.
1
2
3
4
4. Dry the reel well.
2. Rinse detergent and dirt away with running water, rinsing the
spool very well to get rid of salt. Use warm water, under 30
degrees centigrade.
3. At the fishing site, spray accessory oil into the oil hole on the
right sideplate.
Spray for only one second. Excessive spraying may result in an
overflow of oil.
Use ONLY the oil that is included with the reel. Other types of oil
may affect the overall performance of the reel.
pursuetheoutdoors.com/schematics

5
Handling and maintenance of the power cord
Maintenance of the power cord
Follow the restrictions below to avoid cord problems. Do not cut or connect your cord by yourself as it can cause
unintended problems.
- Wipe the power cord with a wet cloth and dry it well.
- Pay special attention to drying the tips, with cover removed.
- Grease the connector after it is dried.
- Disconnect the power cord from the reel before storing.
Other maintenance points
- This reel is a precision instrument that employs electric circuity and motor. Do not disassemble the reel by
yourself.
- Cover the power connector on the reel with its protection cap.
- Old or worn cords can cause a bad connection and/or short circuit. Replace the cord every 2 years.
AB
Clean and grease area A (pins) and area
B (Circumferential area).
Hold the connector, not the power cord, to pull the power
cord from the reel.
Do not hang the reel
by the power cord.
Do not wind the power
cord around the reel
body with the connector
inserted into the reel.
Do not wash the power
cord.
Do not set heavy items
on the power cord, or tie
knots in the power cord.
Maintenance
pursuetheoutdoors.com/schematics

6

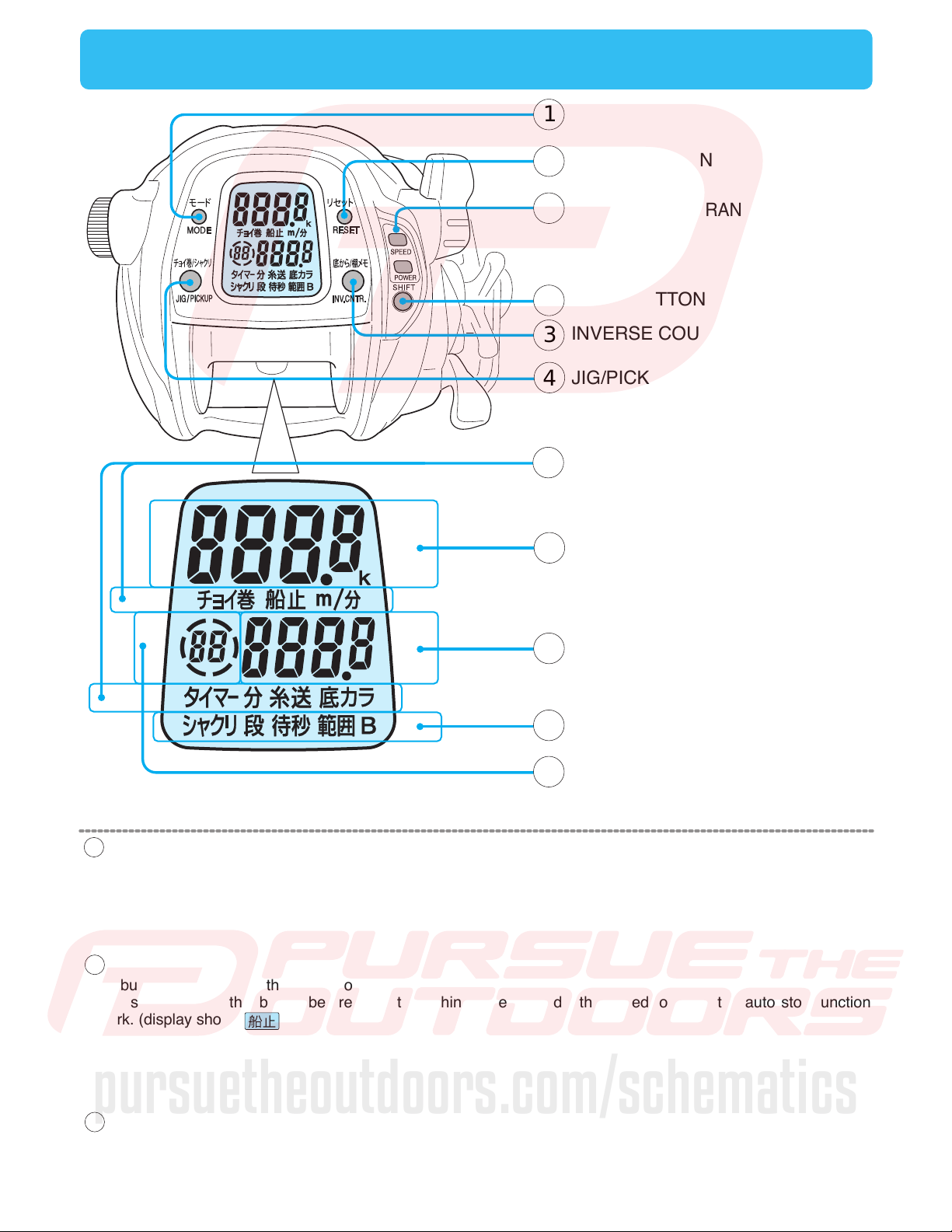

Names of the buttons and the display
MODE BUTTON
RESET BUTTON
SPEED/POWER RANGE INDICATOR
JIG/PICKUP BUTTON
MODE BUTTON
Press the MODE BUTTON to scroll through the adjustment displays for each reel function.
- Use the Power Lever to adjust numeric values.
- Pressing the MODE BUTTON sets the numeric values you have adjusted.
- Depress and hold the MODE BUTTON to return to the depth display.
- Mode change cannot be done while line is being fed.
RESET BUTTON
-This button resets the depth counter to zero.
-Make sure to press this button before you start fishing. The reset depth is used to make the auto stop function
work. (display shows ).
-For 10m or longer line, the RESET BUTTON must be pressed and held for 2 seconds, or must be quickly pressed
3 times within 2 seconds, to prevent accidental resetting.
-The RESET BUTTON must be quickly pressed 3 times within 2 seconds. This prevents accidental resetting. For a
total reset, when line has been broken off, press and hold the button for at least 2 seconds.
INVERSE COUNTER BUTTON
Pressing this button resets the counter in the lower area of the display.
- It memorizes distance from the bottom, handy for dropping a bait right back into the strike zone after youʼve been bit.
- The chumming timer resumes after pressing this button.
1
2
3
1
4
INVERSE COUNTER BUTTON
3
5
5
Mode display
Depth counter
Jigging display
Chumming timer
(Power indicator, time to wind up,
timer display)
6
8
10
9
7
Inverse counter
(winding speed display)
SHIFT BUTTON
2
pursuetheoutdoors.com/schematics

7
JIG/PICKUP BUTTON
Selection between pickup and jigging can be done in the mode setting display.(One of them should necessarily be chosen.)
Pickup
-You can wind only while pressing this button. This function is useful to wind up line slack and attract fish.
- Winding speed can be changed with the mode setting display. (Default setting is speed 15)
Jigging
- Jigging can be ON/OFF.
- Pressing this button starts jigging. (Display shows )
- Pressing the button again stops jigging.
Chumming timer (Power indicator, time to wind up, timer display)
- The chumming timer appears when motor rotation is stopped.The timer display cannot be set to OFF.
- While using the power lever, the power level is shown.
- While the electric winding up is in action displaying actual winding speed, the timer indicates the remaining
time to auto stop at the ship side(in minutes and seconds).
Names of the buttons and the display
9
4
Depth counter
- It shows the depth from the surface.
10
6
7
Inverse counter (winding speed display)
- This counter shows the depth from the bottom (or a certain depth).
- Once this counter is turned on, its display cannot be turned off.
- While winding up, winding speed appears in meters per minute.
(The display of winding speed can be set to OFF)
Jigging display
- This is appeared only when the jigging function is on.
- It blinks when jigging is in process.
(While the depth indicator is shown, the lamp will not light up even when it is set.)
8
Pressing the JIG/PICKUP BUTTON makes the function work. Pressing the button again stops
it.
Display Function
Mode display
- This display allows you to change setting of each function.
- The functions that are set to work are shown on the display.
(Default setting is speed 15, but the speed can actually be set between 0~Hi.)
5
Display Function Function Display
Chumming timer starts working.
The distance from the bottom is constantly
displayed.
Auto Line feeding is employed. Default
setting is off.
- If water depth is less than the auto stop depth, line is wound only in the Power Range mode for your safety.
- When the motor is used to feed line, pressing the SHIFT BUTTON will not shift out of the Power range mode.
SHIFT BUTTON, SPEED/POWER RANGE INDICATOR
- Pressing this button switches the modes between the Speed range mode and the Power range mode.
- A green lamp is lit while in the Speed range mode, a red lamp is lit while in the Power range mode.
Pressing the RESET BUTTON makes this
indicator appear. (If the RESET BUTTON
is not pressed, Auto Stop will work at 5.0m
from the broadside.)
While the JIG/PICKUP BUTTON is being
pressed, the line can be electrically
wound up.
If the supply voltage drops, the indicator
will blink. (Pressing the MODE BUTTON
does not change the indication.)
pursuetheoutdoors.com/schematics

8
Names and functions of each part
Enclosed items
Manual CD-R
Power cord Storage bag
Levelwind
threader
Free spool adjustment
ON
OFF
weak strong
Power lever
loosen tighten
Waterproof tournament
drag
Level wind
5
4Clutch
Rod Clamp
Reel guard oil
pursuetheoutdoors.com/schematics

9
- It adjusts brake tension on the spool to prevent backlash or line slack caused by dropping the line with hook and
sinker.
- You can freely adjust winding power, or winding speed, from zero(ON/OFF) to maximum, by 32 steps, by using
the lever.
- Tilting the lever forward adds power and speeds up the winding.
- Pulling the lever back slows down the winding.
- Without the lever positioned to OFF, it is impossible to start winding. You have to pull it back to the OFF position
before you start winding. An audible sound indicates the OFF position.
- The power lever is used to set numerical values on the various function displays.
- Around the auto stop depth, the power lever operation may be disabled for your safety.
Names and functions of each part
1
5
4
6
2
7Enclosed items
Levelwind
Power lever
Free spool adjustment
3Waterproof tournament drag
- Adjusting the star drag allows the spool to slip against a strong pull to avoid line breakage.
(1) Adjust the drag while reel is on the rod and the line is strung through all the line guides.
(2) Adjust drag with the clutch ON, while pulling the line with your hands. Normally, the drag is adjusted to prevent
the weakest line in the line system from breaking.
- The levelwind distributes line evenly on the spool as you wind it in.
(Under some special circumstances line may not wind evenly because of the clearance between the levelwind and
the line.)
- Power cord
- Manual CD-R
- Storage Bag
- Levelwind threader (This tool simplifies threading line through the levelwind.)
- Reel guard oil
- Rod Clamp
(For big game fishing and fishing under heavy loads, be sure to attach a rod clamp. A rod clamp of 23 to 34mm
in diameter can be attached.)
- The clutch can be set OFF just by pressing down the lever lightly with your thumb.
- When the clutch setting is ON: Turning the handle winds up the line.
- When the clutch setting is OFF: Spooling can be made freely. The clutch is set ON by
turning the handle in the normal direction.
One hand clutch lever
Push ON clutch button
- When the clutch is off simply push the button to engage the clutch to the on position.
- If the clutch setting is OFF, tilt the lever so that the clutch is set ON
pursuetheoutdoors.com/schematics

10
Line data input (When line length is known)
This method is used when the line length is known before winding. In the example below,
PE 6 – 1000m is wound.
1. Run line through the levelwind guide and tie it onto the spool.
The levelwind threader makes this process easier. Make sure to
tie the line onto the pin found on the spool to avoid the line
slipping.
2. Move the power lever to the OFF position.
6
3. Connect the clip to the power source (12V DC).
4. Attach the cord connector to the reel.
See in page 2 for the connection method.
5. Press the MODE SETTING BUTTON and hold for five seconds,
until the display shows 0.0.When the button is released, the
display will then change to the figure on the left, which shows
P1.
Tension indicatar
Attention
If the line is wound indoors at a low speed and with a high tension for a long period of time,
the motor will be overheated, which may cause motor failure.
This issue does not need to be considered during fishing because the motor will be cooled
by sea water.
If winding stops, wind up the line manually before entering any figure.
Make sure the drag is set firmly.
Levelwind Guide
Main line
Pin
Power lever
1
5
2
6. Push the power lever forward to maximum and wind the line to
its end.
For your safety, shift to the power range mode before beginning to
wind line. You can still adjust winding speed.
Before winding line, use the Power Lever to adjust the tension
setting displayed at the bottom left of the display panel.
Adjust to 4-5 for the Power range mode and 6-8 for the Speed
range mode.
As the power lever is moved forward, the P1 display
changes to a tension indicator.
pursuetheoutdoors.com/schematics

11
Attention
1.Do not wind the end of the line onto the spool because it causes incorrect length
calculation. Move the power lever to OFF position, and wind manually when nearing the
end of the line.
OFF
7
8. Press RESET BUTTON for 2 seconds, until the display shows
800. (500 is the default setting)
7. Pull the lever back to the OFF position, after winding.
9. Enter the line length with the power lever. (in the figure on the
right, line length is 1000 m).
10. Press RESET BUTTON for 2 seconds and a beep will be
heard. The display should return to 0.0, completing the setting
procedure.
If “Err” appears on the display, you must use the MODE SET
BUTTON to re-enter the data.
Line data input (When line length is known)
8
10
MAX
OFF
9
Do not reel in the end
of the line
pursuetheoutdoors.com/schematics

12
Line data input (With backing line 1)
This method requires use of Daiwa braided line that is color coded to show length and has a total
length greater than 100 m.
1. Run the backing line through the levelwind guide and tie it onto
the spool. The levelwind threader makes this process easier.
Make sure to tie the line onto the pin found on the spool to
avoid the line slipping.
7. Press the MODE SETTING BUTTON for 5 seconds, when the
display will show 0.0.
P1 will be blinking.
5. Wind the backing line.
6. Tie the backing line securely to the main line.
6
2. Move the power lever to the OFF position.
3. Connect the clip to the power source (12V DC).
4. Attach the cord connector to the reel.
See in page 2 for the connection method.
Backing line
1Levelwind Guide
Pin
Power lever
8
8. Press the MODE BUTTON twice and change the display to
backing line input.
P2 will then be blinking.
2
Main line
Backing line
Tie
7
pursuetheoutdoors.com/schematics

13
Should “Err” appear on the display, then use the MODE SET
BUTTON to re-enter the data.
Line data input (With backing line 1)
9. As indicated by the lineʼs color coding, wind the line up until the
remaining line is 100m.
With the power lever moved forward, P2 changes into a tension
indicator. Keep line tension between 4 and 5 while winding.
9
Tension indicatar
10
12
14
Attention
1.Do not wind the end of the line onto the spool because it causes incorrect length
calculation. Move the power lever to OFF position, and wind manually when nearing the
end of the line.
10. Press RESET BUTTON for 2 seconds.
P2 blinks and the counter in the lower area shows 50. The
upper counter digits increase as line is wound.
11. Wind on another 50 m of line, keeping line tension at the
suggested level.
12. Press RESET BUTTON for 2 seconds.
The lower counter shows 100.
13. Wind the remaining 50m, keeping line tension at the
suggested level. Do not wind line all the way onto the spool.
14. Press RESET BUTTON for 2 seconds and 0.0 will appear.
This is the end of the procedure.
Attention
If the line is wound indoors at a low speed and with a high tension for a long period of time,
the motor will be overheated, which may cause motor failure.
This issue does not need to be considered during fishing because the motor will be cooled
by sea water.
For your safety, shift to the power range mode before beginning to
wind line. You can still adjust winding speed.
Before winding line, use the Power Lever to adjust the tension
setting displayed at the bottom left of the display panel.
Adjust to 4-5 for the Power range mode and 6-8 for the Speed
range mode.
pursuetheoutdoors.com/schematics

14
Line data input (With backing line 2)
This method is applied to data re-input which is to be made after the main line is wound up. This
method requires a main line of 100m or longer specific length.
2
3
5
4. Paying attention to the lineʼs color coding, pull 50m of line off of
the spool.
1. Connect the battery to the reel.
2. Press the MODE SET BUTTON for 5 seconds, changing the
mode to P1.
3. Press the MODE SET BUTTON 2 more times and set the
mode to backing line 2.
This mode shows P3 blinking on the low left of the display.
5. Press the RESET BUTTON for 2 seconds.
This will show the digits 100 in the lower area of the counter.
pursuetheoutdoors.com/schematics

15
Line data input (With backing line 2)
7. Press the RESET BUTTON for 2 seconds to show 100.0 on
the upper counter.
8. Wind up the 100m of line you pulled from the reel. This
completes the procedure.
7
Should “Err” appear on the display, then use the MODE SET
BUTTON to re-enter the data.
Attention
1.Do not wind the end of the line onto the spool because it causes incorrect length
calculation. Move the power lever to OFF, and wind manually when nearing the end of
the line.
pursuetheoutdoors.com/schematics

16
Functional setting operation (1. Mode setting display)
How to set the many functions available
1. Press the MODE BUTTON to choose a display.
Power lever
jig/pickup pattern Jigging pattern
Pickup speed
Many useful functions can be accessed with the mode button.
While letting out or winding line, the MODE
BUTTON cannot be used to change
settings.
MODE
BUTTON
MODE
BUTTON
MODE
BUTTON
MODE
BUTTON
MODE
BUTTON
Jigging length
Jigging rangeJig waiting time
Each press of the MODE BUTTON changes the display to the
next function.
Holding the MODE BUTTON down, rapidly scrolls through the
displays, quickly getting you back to the depth display.
At each mode setting display, the default setting can be retained
by pressing the RESET BUTTON.
Winding speed display
(Each display example is the default setting)
1depth indication display
pursuetheoutdoors.com/schematics

17
3
2
2. Use the power lever to set numerical values.
At its MAX position, numbers count upward rapidly. At the OFF
position, numbers count downward rapidly.
Around mid position, numbers change at a slower pace.
Line feeding Chumming timer Fishing record Depth counter
Depth counter
Revision
Total hours of fishing (H)
Total winding distance (km)
Press RESET BUTTON and
MODE BUTTON
simultaneously for 5 seconds.
Functional setting operation (1. Mode setting display)
MODE
BUTTON
MODE
BUTTON
MODE
BUTTON
MODE
BUTTON
MODE
BUTTON
Display revision indicator
3. Press MODE BUTTON to complete the setting.
Pressing the mode button locks in the values you have set and
moves on to the next display.
Depress and hold the MODE BUTTON to rapidly scroll back to
the depth counter screen.
Pressing the RESET BUTTON at a setting display returns
numbers to their default values (This resetting does not apply to
the fishing record display.)
OFF
MAX
OFF
MAX
Power lever
pursuetheoutdoors.com/schematics

18
- If you press the shift button to change the range mode, the lamp
of the mode you are shifting to will light up.
The picture shows a case where the Speed range mode is
switching over to the Power range mode.
The SHIFT BUTTON does not work while the lamp is blinking.
- To reduce shock caused by the switchover, the power output
gradually changes until it reaches the level set by the power
lever.
- Use this mode when you value speed more than power, for
collecting your rig, etc.
- The green lamp is lit.
- The breaker will never trip during operation in the Speed range
mode. However, if an overloaded state continues, the Speed
range mode will automatically switch over to the Power range
mode to lower the speed.
In this case, pressing the SHIFT BUTTON does not switch over
the Power range mode to the Speed range mode.
- If water depth is less than the auto stop depth, line is wound in the
Power Range mode for your safety.
- When the motor is used to feed line, pressing the SHIFT BUTTON
will not shift out of the Power range mode.
Functional setting operation (2. How to use the SHIFT BUTTON )
Pressing the SHIFT BUTTON enables you to change the electric reel winding mode between the Speed range
mode and the Power range mode.
SHIFT BUTTON
Attention
1.The motor stops temporarily at the moment of switchover
between the Speed range mode and the Power range
mode.
2.If a switchover is made between the Speed range mode and
the Power range mode under no-load conditions, the
handle will rotate.
Speed range mode
Power range mode
- Use this mode from the beginning when you value power more
than speed, for big-game fishing, midwater fishing, etc.
- The red lamp is lit.
Operation during mode change
The green lamp is lit
The red lamp is lit
The red lamp blinks
pursuetheoutdoors.com/schematics
