Daktronics BA-515 User manual

Single-Section Outdoor
LED Scoreboards
Display Manual
ED-18754 Rev 4 – 18 November 2008
Models
BA-515 BA-2017 FB-824 MS-2012 TI-2003
BA-518 BA-2019 *FB-2005 TI-2010
BA-618 BA-2022 FB-2410 RO-2010 TI-2012
BA-624 BA-2023 RO-2011 TI-2015
BA-718 MS-915 TI-2019
BA-1018 CR-2002 MS-918 SO-918 TI-2024
BA-2003 *CR-2003 *MS-2002 *SO-2008
BA-2004 *MS-2003 SO-2013
BA-2005 MS-2004
BA-2010 MS-2006 TI-215
BA-2014 *MS-2011 TI-218
Note: The information listed for the displays with the asterisk (*) in front of
the model number is not complete in this manual. It will be added as the
displays are created.

ED-18754
Product 1192
Rev 3 - 20 May 2008
DAKTRONICS, INC.
Copyright ©2007-08
All rights reserved. While every precaution has been taken in the preparation of this manual, the publisher
assumes no responsibility for errors or omissions. No part of this book covered by the copyrights hereon may be
reproduced or copied in any form or by any means – graphic, electronic, or mechanical, including photocopying,
taping, or information storage and retrieval systems – without written permission of the publisher.
All Sport®and PanaView®are trademarks of Daktronics, Inc. Other trademarks used in this manual are the property of their
respective owners.
Please fill in the information below for your display; use it for reference when
calling Daktronics for assistance.
Display Serial No. _____________________________________________
Display Model No. _____________________________________________
Date Installed _________________________________________________

Table of Contents
i
Table of Contents
Section 1:Introduction.................................................................................................................1
1.1 How To Use This Manual......................................................................................................1
1.2 Daktronics Nomenclature......................................................................................................2
1.3 Manual Overview ...................................................................................................................3
1.4 Product Overview...................................................................................................................3
1.5 Model Names ..........................................................................................................................4
1.6 Product Safety Approval .......................................................................................................5
Section 2:Model Identification....................................................................................................7
Section 3:Specifications .............................................................................................................9
3.1 Single-Section Scoreboards....................................................................................................9
Section 4:Component Locations..............................................................................................23
Section 5:Schematics................................................................................................................27
Section 6:Mechanical Installation............................................................................................31
6.1 Scoreboard Protective Devices............................................................................................31
6.2 Footings and Beams..............................................................................................................31
6.3 Scoreboard Mounting...........................................................................................................36
Mounting Method 1.......................................................................................................36
Mounting Method 2.......................................................................................................38
Scoreboard Mounting Using Spacers..........................................................................39
Ad Panel Mounting .......................................................................................................39
Models BA-515-11 and BA-518-11 ...............................................................................40
Section 7:Electrical Installation................................................................................................41
7.1 Power......................................................................................................................................41
Grounding.......................................................................................................................42
Power Installation..........................................................................................................43
7.2 Power and Signal Connection.............................................................................................43
Fiber Optic ......................................................................................................................44
Multiple Driver Connections........................................................................................45
Section 8:Scoreboard Maintenance and Troubleshooting....................................................47
8.1 Cabinet Specifications ..........................................................................................................47
8.2 Component Location and Access........................................................................................47
Replacing a Digit............................................................................................................48
Replacing a Digit Segment............................................................................................49
Replacing a Driver.........................................................................................................49
8.3 Schematic ...............................................................................................................................50
8.4 LED Drivers ...........................................................................................................................51

ii Table of Contents
8.5 Segmentation and Digit Designation .................................................................................52
8.6 Lightning Protection .............................................................................................................52
8.7 Replacement Parts.................................................................................................................53
8.8 Troubleshooting ....................................................................................................................55
8.9 Daktronics Exchange and Repair & Return Programs.....................................................56
Exchange Program.........................................................................................................56
Before Contacting Daktronics ......................................................................................56
Repair & Return Program.............................................................................................57
Shipping Address ..........................................................................................................57
Section 9:Team Name Message Center Maintenance ............................................................59
9.1 Team Name Message Center System Overview...............................................................59
9.2 Maintenance and Troubleshooting Overview...................................................................59
9.3 Signal Summary ....................................................................................................................60
9.4 Power Summary....................................................................................................................61
9.5 Service and Diagnostics........................................................................................................61
TNMC Controller...........................................................................................................62
Modules and Drivers.....................................................................................................65
Power Supplies...............................................................................................................67
Weatherstripping ...........................................................................................................67
9.6 TNMC Display Maintenance...............................................................................................67
9.7 Troubleshooting ....................................................................................................................68
9.8 Initialization Information at Startup...................................................................................69
9.9 Replacement Parts List .........................................................................................................69
Section 10:Scoreboard Options..................................................................................................71
10.1 Changeable Team Name Captions .....................................................................................71
10.2 Trumpet Horn........................................................................................................................72
Trumpet Horn Part Numbers.......................................................................................72
10.3 Radio Control.........................................................................................................................72
10.4 Portable Power Pack.............................................................................................................73
Appendix A:Reference Drawings..................................................................................................75
Appendix B:Eyebolts .....................................................................................................................79

Introduction 1
Section 1: Introduction
This manual explains the installation of Daktronics Single-Section Outdoor LED Scoreboards and
provides details for display maintenance. With questions regarding the safety, installation, operation,
or service of these systems, contact Daktronics. For more information on Daktronics Customer
Service see Section 8.9: Daktronics Exchange and Repair and Return Programs section of this
manual.
1.1 How To Use This Manual
Important Safeguards:
1. Read and understand these instructions before installing the display.
2. Do not drop the control console or allow it to get wet.
3. Properly ground the scoreboard with a grounding electrode at the
scoreboard location.
4. Disconnect power when the scoreboard is not in use.
5. Disconnect power when servicing the scoreboard.
6. Do not modify the scoreboard structure or attach any panels or coverings to the
scoreboard without the express written consent of Daktronics, Inc.
Figure 1 illustrates the Daktronics drawing numbering system. Daktronics identifies
individual engineering drawings by their drawing number (7087-P08A-69945 in the
example), which is located in the lower right corner of the drawing. This manual refers to
drawings by their last set of numbers and the letter preceding them. The example would be
Drawing A-69945.
Reference drawings
are grouped and
inserted in
alphanumeric order
in the Appendix A:
Reference Drawings.
Listed below are
drawing types
commonly used by
Daktronics, along with the information that each provides.
Figure 1: Daktronics Drawing Label
System riser diagrams: overall system layout from control room to display, power
and phase requirements
Shop drawings: fan locations, transformer locations, mounting information, power
and signal entrance points and access method (front or rear)
Schematics: power wiring, signal wiring, panelboard or power termination panel
assignments, signal termination panel assignments and transformer assignments

Final assembly: component locations, part numbers, display dimensions and
assembly/disassembly instructions
All references to drawing numbers, appendices, figures, or other manuals are presented in
bold typeface, as in this example: “Refer to Drawing A-69945 for the location of the driver
enclosure.” Additionally, any drawings referenced within a particular subsection are listed at
the beginning of that subsection in the following manner:
Reference Drawing:
Segmentation, 7 Seg Bar Digit.......................................................................Drawing A-69945
Daktronics identifies manuals by their engineering document (ED) number, which is located
on the cover page of the manual. For example, this manual would be referred to as ED-18754.
The serial and model numbers of a Daktronics scoreboard can be found on the ID label on the
display. The label will be similar to the one shown in Figure 2. When calling Daktronics
Customer Service, please have this information available to ensure quick service. For future
reference, note the scoreboard model number, serial number and installation date on the
second page of this manual.

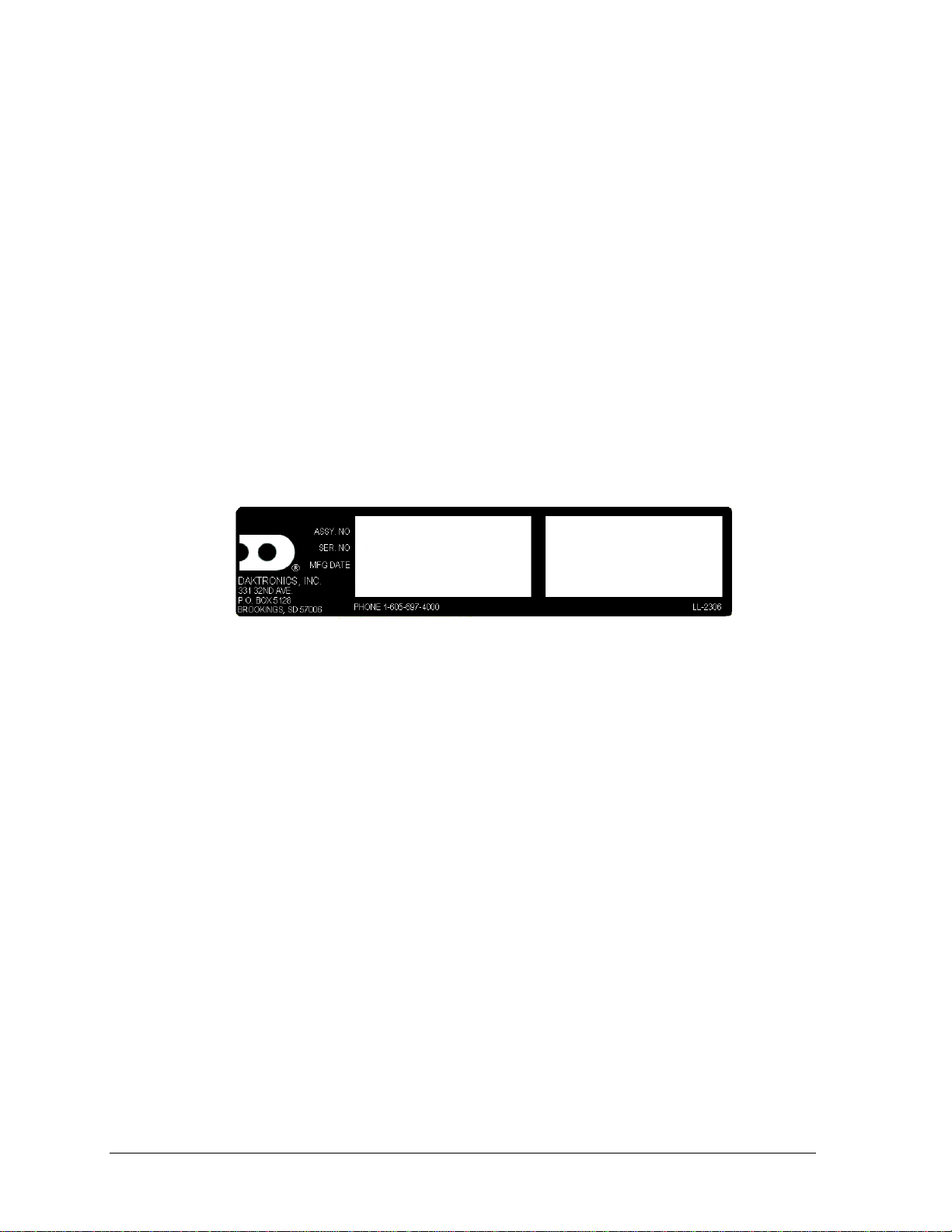

Figure 2: Scoreboard ID Label
Daktronics displays are built for long life and require little maintenance. However, from time
to time, certain display components will have to be replaced. The Replacement Parts List in
Section 8.7 provides the names and part numbers of components that may require
replacement during the life of this display.
Following the Replacement Parts List is an explanation of Daktronics exchange and repair
and return programs. Refer to these instructions if replacing or repairing any display
component.
1.2 Daktronics Nomenclature
To fully understand Daktronics drawings, it is necessary to know how various components
are labeled in drawings. This information is useful when trying to communicate maintenance
or troubleshooting efforts. The label “A” on a drawing item typically denotes an assembly.
An assembly can be a single circuit board or a collection of components that function
together, usually mounted on a single plate or in a single enclosure.
In addition, the following labeling formats might be found on various Daktronics drawings:
“TB _ _” denotes a termination block for power or signal cable.
“F _ _” denotes a fuse.
“E _ _” denotes a grounding point.
“J _ _” denotes a power or signal jack.
2 Introduction

Introduction 3
“P _ _” denotes a power or signal plug for the opposite jack.
Finally, Daktronics part numbers are commonly found on drawings. Those part numbers can
be used when requesting replacement parts from Daktronics Customer Service. Take note of
the following part number formats. (Not all possible formats are listed here.)
“0P- _ _ _ _- _ _ _ _” denotes an individual circuit board, such as a driver board.
“0A-_ _ _ _ - _ _ _ _” denotes an assembly, such as a circuit board and the plate or
bracket to which it is mounted. A collection of circuit boards working as a single unit
may also carry an assembly label.
“W- _ _ _ _ ” denotes a wire or cable. Cables may also carry the assembly numbering
format in certain circumstances. This is especially true for ribbon cables.
“F- _ _ _ _ ” denotes a fuse.
“T- _ _ _ _ ” denotes a transformer.
“PR- _ _ _ _ _ - _” denotes a specially ordered part.
“M- _ _ _ ” denotes a metal part, and “0S-_ _ _ _ _ _” typically denotes a fabricated
metal assembly.
1.3 Manual Overview
This manual details outdoor, single-section scoreboards with LED digits and characters. It is
divided into the following sections:
Section 1: Provides an overview of the product, product safety information and labeling
and numbering descriptions.
Section 2: Lists the drawing or drawings needed to determine scoreboard model numbers.
Section 3: Contains tables that show all of the mechanical specifications, circuit
specifications and power requirements for each model.
Section 4: Lists drawings needed to determine the location of scoreboard components.
Section 5: Lists the electrical schematic drawing and drivers for each model.
Section 6: Contains mechanical installation information for each model.
Section 7: Contains electrical installation information for each model.
Section 8: Contains scoreboard service information and explains the Daktronics Exchange
and Repair and Return Programs.
Section 9: Contains information for installation and maintenance of team name message
centers (TNMCs).
Section 10: Contains descriptions and installation instructions for scoreboard options.
Appendix A: Contains all drawings referenced in this manual.
Appendix B: Contains ED-7244, a detailed instruction on scoreboard lifting and eyebolts.
1.4 Product Overview
The Daktronics outdoor LED scoreboards are part of a family of scoring and timing displays
designed to offer easy installation, readability and reliability. Microprocessor control assures
consistent operation and accuracy.
Featuring large, highly visible PanaView®digits 10" to 60" tall, the boards use light emitting
diodes, or LEDs, to illuminate the display. LEDs are tiny, solid-state components that use a
semiconductor chip to transform electrical current into light; they are high-intensity, low-

4 Introduction
energy lighting units. Scoreboards in this series typically use red or amber LEDs for optimum
outdoor readability.
Because of their LED technology, the scoreboards consume little power – barely more than a
single household lamp. Power usage for displays in this series ranges from 150 W to a
maximum of 1500 W.
Each of the sections in this manual contains model-specific information, including physical
dimensions, digit configuration and power requirements. The scoreboard engineering
drawings, located in Appendix A, also list dimensions, weight and mounting instructions for
each display. Additionally, the scoreboard model number and electrical requirements can be
found on a label on the scoreboard entrance panel.
Cabinets for the displays are constructed of heavy-gauge aluminum. Digit and indicator
faceplates are black and are set directly into the scoreboard surface. Permanent captions and
optional striping are white vinyl.
Note: Some drawings and text in this manual refer to team name message centers or TNMCs.
Team name message centers are scoreboard-mounted, matrix LED units which electronically
display home and guest team names.
TNMCs are available as a standard scoreboard option with several of the models in this
series, and the message centers are also available for retrofit on existing scoreboards.
Section 9: Team Name Message Center Maintenance of this manual offers step-by-step
information on TNMC maintenance and troubleshooting.
The outdoor LED scoreboards are designed for use with the All Sport®5000 series control
console. Both consoles use All Sport keyboard overlays (sport inserts) for game control, and
the boards operate without modification on All Sport®5000 signal protocol. Refer to the
following controller manuals for operating instructions:
ED-11976: All Sport 5000 Series Control Console Operation Manual
1.5 Model Names
Reference Drawings:
Single-Section LED Scoreboard Models.................................................Drawing A-142912
Single-Section LED Scoreboard Models.................................................Drawing A-152950
Daktronics scoreboards are differentiated by their model numbers: BA-1018, for example,
designates a specific baseball scoreboard. The two-letter prefixes for scoreboards in this
manual include the following: BA – baseball; CR – cricket; FB – football; MS – multisport;
RO – rodeo; SO – soccer; and TI – timer.
Most Daktronics scoreboards carry a two-number suffix that refers to indoor/outdoor status
and digit color: -11 are outdoor scoreboards, 120V and they feature red digits; -12 are outdoor
scoreboards, 240 V and feature red digits; -21 are outdoor scoreboards, 120 V and feature
amber digits; and -22 are outdoor scoreboards; 240 V and feature amber digits.

Introduction 5
1.6 Product Safety Approval
Daktronics outdoor scoreboards are ETL listed and tested to CSA standard for outdoor use.
Contact Daktronics with any questions regarding testing procedures.

Model Identification
7
Section 2: Model Identification
Use the following drawings to determine the model number of your scoreboard. The drawings listed
here are located in Appendix A: Reference Drawings; where they are inserted in alphanumeric order
by drawing number.
Reference Drawings:
Single-Section LED Scoreboard Models............................................................. Drawing A-142912
Single-Section LED Scoreboard Models............................................................. Drawing A-152950
Note: Not all models are listed in these two drawings.

Section 3: Specifications
The table on the following pages shows all of the mechanical specifications, circuit specifications and maximum power requirements for each model in
this manual. Models are listed in alphanumeric order.
3.1 Single-Section Scoreboards
Notes: Driver address setting can be configured using the J19 address plug. Also, the S1 dip switch is found in all GEN IV drivers. For more details see Section
8.4: LED Drivers.
Signal wires must be a minimum of 22 AWG with shield. Daktronics recommends using W-1234 or W-1614. Models with an –11 or –12 suffix feature red
digits and indicators; suffixes –21 and –22 indicate amber digits.
Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
BA-515-11/21 H3'-0", W6'-0", D6"
(914 mm, 1829 mm, 152 mm) 92 lb (42 kg)
175 lb
(79 kg)
15” (381 mm)
-11: red
150 W 120 V AC 1.3 A A1 61
-21: amber
BA-518-11/21 H4'-0", W9'-0", D6"
(1219 mm, 2743 mm, 152 mm) 96 lb (44 kg)
18” (457 mm) 150 W 120 V AC 1.3 A A1 61
-11: red
182 lb -21: amber
(83 kg)
BA-518-12/22 H4'-0", W9'-0", D6"
(1219 mm, 2743 mm, 152 mm) 96 lb (44 kg)
182 lb
(83 kg)
18” (457 mm)
-11: red
-21: amber
150 W
240 V AC 0.65 A A1 61
Specifications
9

Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
BA-618-11/21 H5'-0", W14'-0", D6"
(1524 mm, 4267 mm, 152 mm) 200 lb (91 kg)
380 lb
(172 kg)
18” (457 mm)
-11: red
-21: amber
150 W
120 V AC 1.3 A A1 61
BA-624-11/21 H6'-0", W16'-0", D6"
(1829 mm, 4877 mm, 152 mm) 300 lb (136 kg)
570 lb
(259 kg)
24” (610 mm)
-11: red
-21: amber
150 W
120 V AC 1.3 A A1 61
BA-718-11/21 H4'-0", W12'-0", D6"
(1219 mm, 3658 mm, 152 mm) 128 lb (58 kg)
243 lb
(110 kg)
18” (457 mm)
-11: red
-21: amber
150 W
120 V AC 1.3 A A1 62
BA-1018-11/21 H6'-0", W14'-0", D6"
(1829 mm, 4267 mm, 152 mm) 216 lb (98 kg)
410 lb
(186 kg)
18” (457 mm)
-11: red
-21: amber
300 W 120 V AC 2.5 A A1 12
BA-2003-11/21 H4'-6", W10'-0", D8"
(1372 mm, 3048 mm, 203 mm) 200 lb (91 kg)
380 lb
(172 kg)
36” (914 mm)
-11: red
-21: amber
150 W
120 V AC 1.3 A A1 11
Specifications
10

Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
BA-2004-11/21 H6'-6", W20'-0", D6"
(1981 mm, 6096 mm, 152 mm) 600 lb (272 kg)
1,140 lb
(517 kg)
Time, ball,
strike, out:
18” (457 mm)
Inning, runs:
15” (381 mm)
-11: red
-21: amber
900 W 120 V AC 7.5 A A1 67
A2 68
A3 69
BA-2004-11/21
w/TNMC H6'-6", W20'-0", D6" (1981 mm, 6096 mm, 152 mm) 720 lb (327 kg)
1,368 lb
(621 kg)
Time, ball,
strike, out:
18” (457 mm)
Inning, runs:
15” (381 mm)
-11: red
-21: amber
1100 W
(w/red
TNMC)
1200 W
(w/amber
TNMC)
120 V AC 9.2 A
10.0 A
A1 67
A2 68
A3 69
BA-2004-12/22 H6'-6", W20'-0", D6"
(1981 mm, 6096 mm, 152 mm) 600 lb (272 kg)
1,140 lb
(517 kg)
Time, ball,
strike, out:
18” (457 mm)
Inning, runs:
15” (381 mm)
-11: red
-21: amber
900 W 240 V AC 3.8 A A1 67
A2 68
A3 69
Specifications
11

Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
BA-2004-12/22
W/TNMC H6'-6", W20'-0", D6" (1981 mm, 6096 mm, 152 mm) 720 lb (327 kg)
1,368 lb
(621 kg)
Time, ball,
strike, out:
18” (457 mm)
Inning, runs:
15” (381 mm)
-11: red
-21: amber
1100 W
(w/red
TNMC)
1200 W
(w/amber
TNMC)
240 V AC 4.6 A
5.0 A
A1 67
A2 68
A3 69
BA-2005-11/21 H6'-6", W20'-0", D6"
(1981 mm, 6096 mm, 152 mm) 600 lb (272 kg)
1,140 lb
(517 kg)
Time, ball,
strike out:
18” (457 mm)
Inning, runs:
15” (381 mm)
-11: red
-21: amber
900 W 120 V AC 7.5 A A1 67
A2 68
A3 69
BA-2005-11/21
w/TNMC H6'-6", W20'-0", D6" (1981 mm, 6096 mm, 152 mm) 680 lb (308 kg)
1292 lb
(586 kg)
Time, ball,
strike, out:
18” (457 mm)
Inning, runs:
15” (381 mm)
-11: red
-21: amber
1100 W
(w/red
TNMC)
1200 W
(w/amber
TNMC)
120 V AC 9.2 A
10.0 A
A1 67
A2 68
A3 69
Specifications
12

Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
BA-2010-11/21 H6'-0", W8'-0", D6"
(1829 mm, 2438 mm, 152 mm)
180 lb
(82 kg)
342 lb
(155 kg)
Digits: 18” (457
mm)
H/E indicators:
circular

-11: red
-21: amber
300 W 120 V AC 2.5 A A1 61
BA-2014-11/21 H6'-6", W20'-0", D6"
(1981 mm, 6096 mm, 152 mm) 600 lb (272 kg)
1,140 lb
(517 kg)
Ball, strike, out,
H/E: 18”
(457 mm)
Inning, runs,
hits, errors:
15” (381 mm)
-11: red
-21: amber
900 W 120 V AC 7.5 A A1 67
A2 68
A3 69
BA-2017-11/21 H6'-0", W14'-0", D6"
(1829 mm, 4267 mm, 152 mm) 216 lb (98 kg)
410 lb
(186 kg)
Time, ball,
strike, out
Inning, runs: 18”
(457 mm)
-11: red
-21: amber
300 W 120 V AC 2.5 A A1 61
Specifications
13

Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
BA-2019-11/21 H6'-0”, W20'-0”, D6”
(1829 mm, 6096 mm, 152 mm) 500 lb (227 kg)
950 lb
(431 kg)
Time, ball,
strike out:
15” (457 mm)
Inning, runs:
10” (381 mm)
-11: red
-21: amber
900 W 120 V AC 7.5 A A1 67
A2 68
A3 69
BA-2019-11/21
w/TNMC H6'-0”, W20'-0”, D6” (1829 mm, 6096 mm, 152 mm) 580 lb (263 kg)
1102 lb
(2094 kg)
Time, ball,
strike out:
15” (457 mm)
Inning, runs:
10” (381 mm)
-11: red
-21: amber
1100 W
(w/red
TNMC)
1200 W
(w/amber
TNMC)
120 V AC 9.2 A
10.0 A
A1 67
A2 68
A3 69
BA-2022-11/21 H7'-0”, W16'-0”, D6”
(2134 mm, 4877 mm, 152 mm) 275 lb (125 kg)
500 lb
(2274 kg)
15” (381 mm)
-11: red
-21: amber
600 W 120 V AC 5.0 A A1 64
A2 70
BA-2023-11/21 H2'-0", W9'-0", D6"
(609 mm, 2743 mm, 152 mm) 50 lb (23 kg)
85 lb
(39 kg)
15” (381 mm)
-11: red
-21: amber
150 W 120 V AC 1.3 A A1 3
Specifications
14

Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
CR-2002-11/21 H5'-7", W5'-7", D6"
(1702 mm, 1702 mm, 152 mm) 200 lb (91 kg)
380 lb
(172 kg)
15” (381 mm)
-11: red
-21: amber
300 W 120 V AC 2.5 A A1 12
CR-2002-12/22 H5'-7", W5'-7", D6"
(1702 mm, 1702 mm, 152 mm) 200 lb (91 kg)
380 lb
(172 kg)
15” (381 mm)
-11: red
-21: amber
300 W 240 V AC 1.25 A A1 12
CR-2003-11/21 H6'-9", W10'-0", D6"
(2058 mm, 3048 mm, 152 mm) 250 lb (113 kg)
475 lb
(216 kg)
15” (381 mm)
-11: red
-21: amber
600 W 120 V AC 5.0 A A1 12
A2 13
CR-2003-12/22 H6'-9", W10'-0", D6"
(2058 mm, 3048 mm, 152 mm) 250 lb (113 kg)
475 lb
(216 kg)
15” (381 mm)
-11: red
-21: amber
600 W 240 V AC 2.5 A A1 12
A2 13
FB-824-11/21 H4’-0”, W14’-0”, D6”
(1219 mm, 4267 mm, 152 mm) 200 lb (91 kg)
380 lb
(172 kg)
24” (610 mm)
-11: red
-21: amber
300 W 120 V AC 2.5 A A1 11
FB-2005-11/21 H5’-0”, W10’-0”, D6”
(1524 mm, 3048 mm, 152 mm)
180 lb
(82 kg)
342 lb
(155 kg)
18” (457 mm)
-11: red
-21: amber
300 W 120 V AC 2.5 A A1 11
Specifications
15

Model Dimensions Weight
Height, Width, Depth Uncrated
Crated
Digit Size
Digit Color
Maximum
Wattage Power Amps per
Line
(Single
Phase)
Driver
Number
and
Address
FB-2410-11/21 H8’-0”, W20’-0”, D8”
(2438 mm, 6096 mm, 203 mm) 600 lb (272 kg)
1200 lb
(544 kg)
60” (1524 mm)
-11: red
-21: amber
1000 W 120 V AC 8.5 A A1 1
MS-915-11/21 H4’-0”, W8’-0”, D6”
(1219 mm, 2438 mm, 279 mm) 88 lb (40 kg)
167 lb (76 kg)
15” (381 mm)
-11: red
-21: amber
300 W 120 V AC
2.5 A A1 11
MS-915-12/22 H4’-0”, W8’-0”, D6”
(1219 mm, 2438 mm, 279 mm) 88 lb (40 kg)
167 lb (76 kg)
15” (381 mm)
-11: red
-21: amber
300 W 240 V AC
1.25 A A1 11
MS-918-11/21 H5’-0”, W14’-0”, D6”
(1524 mm, 4267 mm, 152 mm)
220 lb
(100 kg)
418 lb
(190kg)
Clock, scores:
18” (457 mm)
Inning:
15” (381 mm)
-11: red
-21: amber
300 W 120 V AC 2.5 A
A1 11
MS-918-12/22 H5’-0”, W14’-0”, D6”
(1524 mm, 4267 mm, 152 mm)
220 lb
(100 kg)
418 lb
(190kg)
Clock, scores:
18” (457 mm)
Inning:
15” (381 mm)
-11: red
-21: amber
300 W 240 V AC 1.25 A
A1 11
Specifications
16
