ALL SPORT®5000 PITCH TIMER
OPERATION MANUAL
P1196
DD3011520
Rev 04
11 May 2020

Copyright © 2015-2020
All rights reserved. While every precaution has been taken in the preparation of this manual, the publisher assumes no
responsibility for errors or omissions. No part of this book covered by the copyrights hereon may be reproduced or copied
in any form or by any means—graphic, electronic, or mechanical, including photocopying, taping, or information
storage and retrieval systems—without written permission of the publisher.
Daktronics trademarks are property of Daktronics, Inc. All other trademarks are property of their respective companies.

– i –
Table of Contents
1 Basic Operation ��������������������������������������������������������������������������������������������������������������������1
Console Operation...............................................................................................................................1
Sport Inserts............................................................................................................................................2
Start Up ..................................................................................................................................................2
Standard Keys .......................................................................................................................................2
Start ����������������������������������������������������������������������������������������������������������������������������������������������������2
Stop����������������������������������������������������������������������������������������������������������������������������������������������������2
Enter/Yes �������������������������������������������������������������������������������������������������������������������������������������������3
Clear/No��������������������������������������������������������������������������������������������������������������������������������������������3
Edit �����������������������������������������������������������������������������������������������������������������������������������������������������3
Menu��������������������������������������������������������������������������������������������������������������������������������������������������3
Set Main Clock ���������������������������������������������������������������������������������������������������������������������������������3
Count Up/Down ��������������������������������������������������������������������������������������������������������������������������������3
2 Pitch Timing Operation���������������������������������������������������������������������������������������������������������4
Preset Keys (1-10)..................................................................................................................................4
Conguration ������������������������������������������������������������������������������������������������������������������������������������4
Operation ������������������������������������������������������������������������������������������������������������������������������������������4
Default Settings ���������������������������������������������������������������������������������������������������������������������������������5
Program Keys (1-10) .............................................................................................................................5
Conguration ������������������������������������������������������������������������������������������������������������������������������������5
Operation ������������������������������������������������������������������������������������������������������������������������������������������6
Default Settings ���������������������������������������������������������������������������������������������������������������������������������6
Dimming Keys........................................................................................................................................7
Conguration ������������������������������������������������������������������������������������������������������������������������������������7
Operation ������������������������������������������������������������������������������������������������������������������������������������������7
Default Settings ���������������������������������������������������������������������������������������������������������������������������������7
Timer Adjust Keys (Code 5002 Only)...................................................................................................7
Handheld Switch ..................................................................................................................................8
Menu......................................................................................................................................................8
New Game����������������������������������������������������������������������������������������������������������������������������������������8
New Code �����������������������������������������������������������������������������������������������������������������������������������������8
Dimming Menu ���������������������������������������������������������������������������������������������������������������������������������9
Display Menu ������������������������������������������������������������������������������������������������������������������������������������9
Timer Mode ���������������������������������������������������������������������������������������������������������������������������������������9
A Quick Reference�����������������������������������������������������������������������������������������������������������������11
All Sport 5000 Standard Keys.............................................................................................................11
Pitch Timer ...........................................................................................................................................12
B Sport Inserts �������������������������������������������������������������������������������������������������������������������������13

This page intentionally left blank.

Basic Operation
1
1 Basic Operation
This manual explains the operation of All Sport®5000 series control consoles for pitch
timing. For additional information, refer to the All Sport 5000 Series Control Console
Operation Manual (ED-11976) located online at www.daktronics.com/manuals.
Console Operation
The console face consists of a 2-line by 16-character liquid crystal display (LCD), number/
menu keypads, horn/clock controls with LED status indicators, and an area for a sport-
specic insert. Refer to Figure 1 to locate these components on the control console face.
In most cases, the top line of the LCD shows the main clock time, direction the clock is
counting, and when the main horn is sounding, while the bottom line typically shows the
HOME and GUEST team scores.
The standard xed keys and functions on the right side of the console are explained in
Standard Keys (p�2). All of the keys that pertain to a specic sport code insert are
explained in detail in their respective sport section.
In addition, Quick References and Menu Flowcharts for the Standard Keys and many of
the more common individual sports are provided in Appendix B.
Throughout this manual, the names or letters of keys on the keypad are enclosed in
angle brackets (such as <ENTER>).
Horn
Control
Menu
Navigation
Clock
Control
Number
Sport-Specific Insert
Keypad
LCD
LCD
Horn
Control
Menu
Navigation
Clock
Control
Number
Keypad
LCD
Sport-Specific Insert
Sport-Specific Insert
Sport-
Specific
Insert
LCD
Figure 1: All Sport 5000 Layout

Basic Operation
2
Sport Inserts
A sport insert identies the keys required for normal operation of a specic sport. In most
cases, pressing a key immediately changes the scoreboard. Keys that require entry
of additional information are marked by a dot. This additional information is usually a
number followed by the <ENTER> key.
To use an insert, slide it into the opening on the left side of the console until it stops.
To remove a sport insert, pull on the tab that extends from the left side of the console.
If an insert is lost or damaged, a printed copy of the insert drawing from Appendix A may
be used until a replacement can be ordered.
Start Up
Use the switch on the back of the console to turn it on, then follow the LCD screens:
Display Action
AS-5000 VX.X.X
ED-11544
The console performs a self-test when it is powered on. During
the self-test, a message displays the version of the standard
software loaded in the console.
V = version number and revision number
ED = standard software number
PREV CODE NNNN
RESUME GAME?
NNNN = last code selected
When the self-test completes, a prompt displays the code
number for the last game played. This is useful when power to
the console is lost during a game.
Press <YES> to resume the last game stored in memory.
The console is now ready for game operation.
Press <NO> to start a new game or change to a different sport.
The console will prompt for a new code number.
SELECT CODE
CODE NNNN
NNNN = current code
The SELECT CODE prompt lets the operator accept the last code
selected (shown on the second line) or enter a new code.
To accept the code shown, press <ENTER>.
To select a new sport code:
1� Get the code number from the sport insert or the section of
the manual for that sport.
2� Use the number keys to enter the new four-digit code.
3� Press <ENTER>.
Standard Keys
Start
<START> is used to start the main clock. The green LED on the <START> key is on while the
main clock is running.
Stop
<STOP> is used to stop the main clock. The green LED on the <START> key is off while the
main clock is stopped.

Basic Operation
3
Enter/Yes
The <ENTER/YES*> key has two functions:
• Completes an action. As a reminder to press this key, an asterisk appears on the LCD.
• Serves as <YES> for input prompts (Y).
Clear/No
The <CLEAR/NO> key has two functions:
• Clears the LCD of numerical information.
• Serves as <NO> for input prompts (N).
The <CLEAR/NO> key also acts as an escape during data entry. The number of key
presses to escape depends on the step in the entry process (ashing asterisk or not).
Example 1: The operator presses the <SET MAIN CLOCK> key to adjust the game time.
• If no number key has been pressed yet, press the <CLEAR/NO> key once to escape.
• If any number key has been pressed, the <CLEAR/NO> key must be pressed twice to
escape; the rst press blanks the data on the LCD, and the second press escapes.
Example 2: The operator presses <EDIT> followed by a <SCORE> key to change the score.
• The <CLEAR/NO> key must always be pressed twice to escape.
Edit
Press the <EDIT> key followed by one of the increment or decrement keys for the desired
eld on the scoreboard to modify. Then simply enter the new value to display and press
<ENTER> to accept.
Menu
Press <MENU> to access general and sport-specic options. Use the up and down arrow
keys to scroll through the menu list. Press <MENU> again at any time to return to the
game in progress.
Set Main Clock
Display Action
MAIN CLOCK -SET
CURR MM:SS *
MM:SS = minutes, seconds
After the main clock has been stopped, press <SET MAIN
CLOCK> to display the current time of the main clock.
To change the time, enter the desired value using the number
pad, and then press <ENTER>.
Press <CLEAR> twice to clear changes and return to the game.
Count Up/Down
Display Action
MAIN CLOCK- DOWN
1-UP 2-DOWN
After the main clock has been stopped, the direction of the
clock can be set.
Press <1> or <2> to select UP or DOWN (default).
Note: The current direction of the main clock is shown on the
top line of the LCD.

Pitch Timing Operation
4
2 Pitch Timing Operation
Sport Insert: 0G-3000619 Pitch Timing Code: 5001 (or 5002)
Refer to Section 1: Basic Operation (p�1) for information on how to start up the
console and use the sport insert. The Quick Reference is located in Appendix A. The Sport
Insert drawing is located in Appendix B. If an insert is lost/damaged, use a copy of the
insert drawing until a replacement arrives.
Reference Drawings:

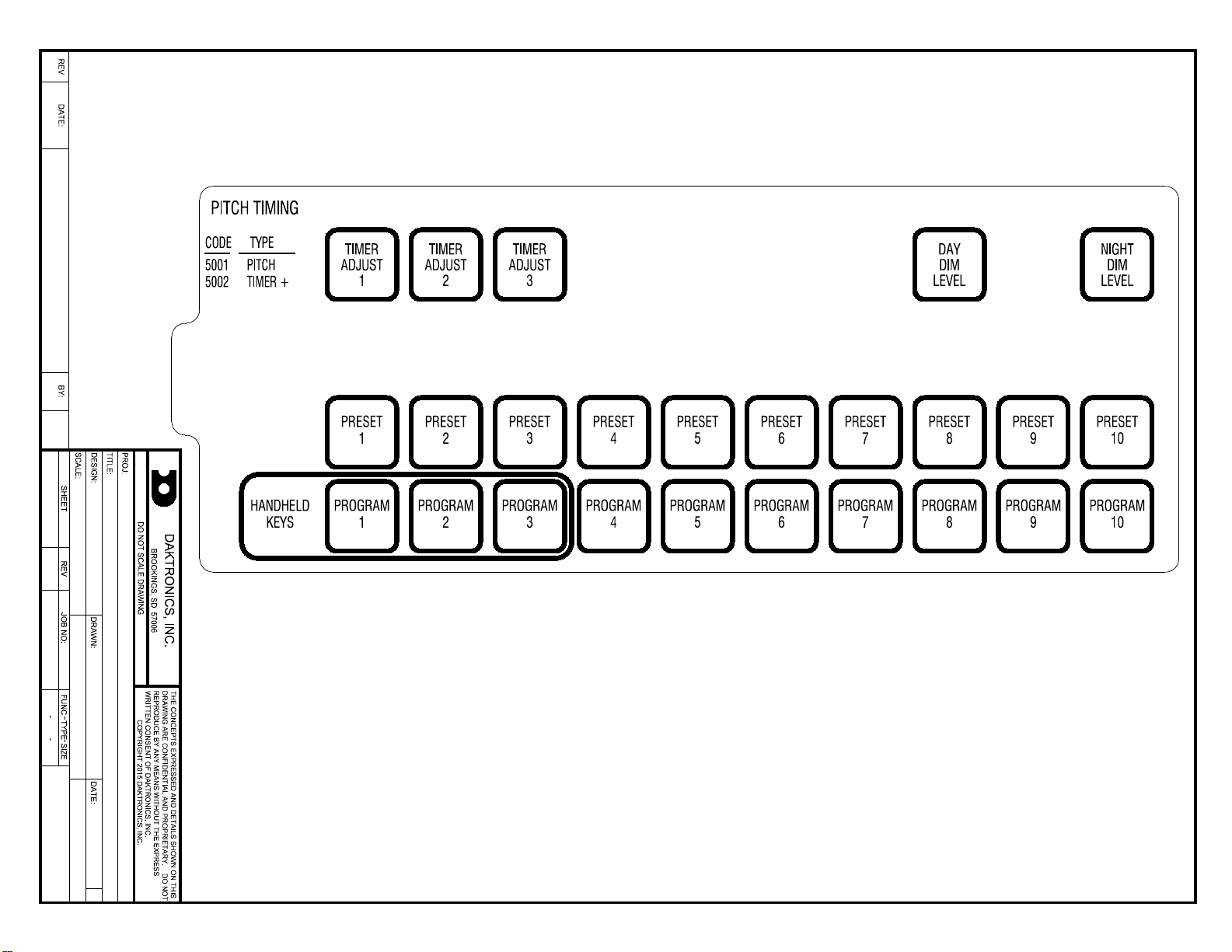

Insert; LL-2438 A/S 5000, Baseball...................................................................... DWG-125061
Preset Keys (1-10)
Conguration
Display Action
PRESET NN MM:SS*
WARNING MM:SS*
NN = preset number
MM:SS = minutes, seconds
Press <EDIT> followed by one of the <PRESET> keys to set the
value of the PRESET and WARNING times.
• To keep the current time, press <ENTER>.
• To change the PRESET time, enter the new value using the
number keypad, and then press <ENTER>.
To disable a PRESET, enter a time of 0:00.
PRESET NN MM:SS*
WARNING MM:SS*
MM:SS = current time
The WARNING time is a specic value at which the digits will start
ashing when counting down.
• To keep the current time, press <ENTER>.
• To change the WARNING time, enter the new value using
the number keypad, and then press <ENTER>.
To disable ashing, enter a time of 0:00.
Operation
Display Action
TIME MM:SS }
PRESET NN
MM:SS = current time
NN = preset number
To view the details of a preset, press the appropriate <PRESET>
key.
Note: The Main Clock must be stopped before selecting a
<PRESET> key.
TIME 0:00 }
PRESET NONE
If no preset is congured for a chosen key, “PRESET NONE” will
display on the LCD when pressed.
TIME 2:43 }
PRESET 1
To begin a countdown, press <START>.
TIME 0:00 }
PRESET END
When the clock reaches 0:00, “PRESET END” displays on the LCD,
and the time is cleared from the scoreboard.

Pitch Timing Operation
5
Default Settings
MLB MiLB
Preset # Time Warning Time Warning
1 2:45 0:00 2:45 0:00
2 2:25 0:00 2:25 0:00
3 0:20 0:00 0:20 0:00
4 0:00 0:00 0:00 0:00
5 0:00 0:00 0:00 0:00
6 0:00 0:00 0:00 0:00
7 0:00 0:00 0:00 0:00
8 0:00 0:00 0:00 0:00
9 0:00 0:00 0:00 0:00
10 0:00 0:00 0:00 0:00
Note: The MLB settings are the factory default for new consoles. The console will save
any changes made to these settings.
Program Keys (1-10)
Each program key allows up to three separate presets to run sequentially.
Conguration
Display Action
PROGRAM 1-STEP 1
PRESET NN*
NN = preset number
Press <EDIT> followed by one of the <PROGRAM> keys to enter
the PRESET number of each step.
• To keep the current PRESET, press <ENTER>.
• To change the PRESET for the rst step, enter the new value
using the number keypad, and then press <ENTER>.
PROGRAM 1-STEP 2
PRESET NN*
NN = preset number
• To keep the current PRESET, press <ENTER>.
• To change the PRESET for the second step, enter the new
value using the number keypad, and then press <ENTER>.
PROGRAM 1-STEP 3
PRESET NN*
NN = preset number
• To keep the current PRESET, press <ENTER>.
• To change the PRESET for the third step, enter the new value
using the number keypad, and then press <ENTER>.
Notes:
• To disable a PROGRAM, enter a value of 0 for the rst step.
• To set the end of a PROGRAM, enter a value of 0 for the
second or third step.

Pitch Timing Operation
6
Operation
Display Action
TIME MM:SS }
PRGMXX PNN
MM:SS = current time
XX = program number
NN = preset number
To view the details of a program, press the appropriate
<PROGRAM> key. Up to three steps may be displayed in the
bottom row of the LCD.
Note: The Main Clock must be stopped before selecting a
<PROGRAM> key.
TIME 0:00 }
PROGRAM NONE
If no program is congured for a chosen key, “PROGRAM
NONE” will display on the LCD when pressed.
TIME 0:17 }
PRGM3 P1 >3
To begin a countdown, press <START>. While the clock is
counting down, the preset (P) will alternately change to an
arrow (>) to indicate the current program step. In the example
at left, the second step (Preset 3) of the third program is running.
The countdown will continue automatically through each valid
step of the selected program.
TIME 0:00 }
PROGRAM END
When the clock reaches 0:00 of the last step in a program,
“PROGRAM END” displays on the LCD, and the time is cleared
from the scoreboard.
Default Settings
MLB MiLB
Program # 1st Step 2nd Step 3rd Step 1st Step 2nd Step 3rd Step
1 Preset 1 0 Preset 1 0
2 Preset 2 0 Preset 2 0
3 Preset 1 Preset 3 0 Preset 3 0
4 0 Preset 1 Preset 3 0
5 0 0
6 0 0
7 0 0
8 0 0
9 0 0
10 0 0
Note: The MLB settings are the factory default for new consoles. The console will save
any changes made to these settings.

Pitch Timing Operation
7
Dimming Keys
Conguration
Display Action
DAY DIMMING
LEVEL(0-9): NN%
NN = current setting
NONE = <0> 50% = <5>
90% = <1> 40% = <6>
80% = <2> 30% = <7>
70% = <3> 20% = <8>
60% = <4> 10% = <9>
Press <EDIT> followed by the <DAY DIM LEVEL> key to set the
dimming level for daytime operation.
Press <0> (brightest) through <9> (dimmest) or use the left/right
arrow keys to set the scoreboard digit dimming level.
Press <ENTER> to accept the new value and update the intensity
of the scoreboard digits.
Press <CLEAR> to restore the previous value and abort entry.
Display Action
NIGHT DIMMING
LEVEL(0-9): NN%
NN = current setting
NONE = <0> 50% = <5>
90% = <1> 40% = <6>
80% = <2> 30% = <7>
70% = <3> 20% = <8>
60% = <4> 10% = <9>
Press <EDIT> followed by the <NIGHT DIM LEVEL> key to set the
dimming level for nighttime operation.
Press <0> (brightest) through <9> (dimmest) or use the left/right
arrow keys to set the scoreboard digit dimming level.
Press <ENTER> to accept the new value and update the intensity
of the scoreboard digits.
Press <CLEAR> to restore the previous value and abort entry.
Operation
To change the intensity of the scoreboard digits to match the ambient lighting
conditions, press the <DAY DIM LEVEL> key or the <NIGHT DIM LEVEL> key. The bottom line
of the LCD will briey display the selected dimming level.
Default Settings
• Day Dimming Level = NONE (0%)
• Night Dimming Level = 50%
Timer Adjust Keys (Code 5002 Only)
These keys are used to add time to the current program time that is counting. The default
values for each key are shown below:
Key Default Value
TIMER ADJUST 1 0:30
TIMER ADJUST 2 1:00
TIMER ADJUST 3 1:30
When a key is pressed, the amount of time assigned to the key is added to the current
time, and it will be added whether the timer is counting or stopped. If the timer has
counted down and reached the end of the program, pressing the Timer Adjust keys will
not add any more time.

Pitch Timing Operation
8
Display Action
TIMER ADJUST #N
VALUE = MM:SS*
N = Timer Adjust key number
MM:SS = current time
To edit the default time values, press <EDIT> followed by the
appropriate <TIMER ADJUST #> key, and then enter the desired
value using the number keypad.
Handheld Switch
The 3-button pitch timer handheld switch (Figure 2) will be connected
directly to the back of the All Sport 5100 console or to a 9-pin junction
box on the eld or in the control room.
To select a program from the handheld remote, press <P1>, <P2>, or
<P3>. The console will be set to the rst step of the selected program,
and this time will display on the scoreboard.
Note: The Main Clock must be stopped before pressing the <P1>,
<P2>, or <P3> buttons on the handheld.
To begin the countdown, toggle the <START/STOP> switch.
The countdown will continue automatically through each valid step
of the selected program. Upon reaching 0:00 of the last step, the
scoreboard will blank by default to help ensure that the players are
not distracted. Refer to Timer Mode (p�9) to change this setting.
Note: The three (3) program buttons on the handheld remote
correspond to the rst three (3) programs on the console
keypad insert.
Menu
Press <MENU> to access general and sport-specic options. Use the up and down arrow
keys to scroll through the menu list. Press <MENU> again at any time to return to the
game in progress.
New Game
Display Action
MENU- MAIN
NEW GAME?
Press <ENTER> to clear all data for the current game in progress
and begin a new game.
New Code
Display Action
MENU- MAIN
NEW CODE?
Press <ENTER> to switch to a different sport code through
the SELECT CODE prompt. Refer to Start Up (p�2) for more
information on sport codes.
Daktronics
Figure 2: 3-Button
Handheld Switch

Pitch Timing Operation
9
Dimming Menu
The Dimming Menu changes the brightness of the scoreboard.
Note: If this value is set differently from the values assigned to either <DIM LEVEL> key,
the dimming menu setting will be overwritten when those keys are pressed.
Display Action
MENU- DIMMING
LEVEL(0-9): NN%
NN = current setting
NONE = <0> 50% = <5>
90% = <1> 40% = <6>
80% = <2> 30% = <7>
70% = <3> 20% = <8>
60% = <4> 10% = <9>
Press <0> (brightest) through <9> (dimmest) or use the left/right
arrow keys to set the scoreboard digit dimming level.
Display Menu
The items in this menu will not typically be needed for pitch timing functions.
Timer Mode
Display Action
MENU-DISPLAY
BLANK AT ZERO? Y
Press <YES> to make the display go blank when a countdown is
complete. This is the default setting.
Press <NO> to leave “0:00” on the display when a countdown is
complete.
MENU-DISPLAY
BLANK TIME S
S = seconds
If YES is selected, enter the amount of time (in seconds) before
the display goes blank. Use the arrow keys to select a value from
1 second (default) to 5 seconds.
Display Action
MENU-DISPLAY
BLANK ON STOP? N
Press <YES> to make the display go blank when the countdown
of the selected PRESET or PROGRAM is stopped by the operator.
This is the default setting.
Press <NO> to leave information on the display when a
countdown is stopped.
Display Action
TIMER
RESET ON STOP? N
Press <YES> to make the timer reset to the Reset 1 value when
the clock is stopped. This allows a third reset value for two-
button handheld pendants and a second reset value for the
RC-100/RC-200 Start/Stop Remote function.
Press <NO> to not reset the time when a countdown is stopped.
This is the default setting.

Pitch Timing Operation
10
Timer Reset on Stop DISABLED Timer Reset on Stop ENABLED
RC-100/
RC-200
Operation
Timer Reset on Stop
ENABLED
RC-200
Operation
2-Button
Handheld
Pendant
Operation
3-Button
Handheld
Pendant
Operation
(All Sport
5100 Only)
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
3) Press RESET
to select Reset 2
value.
3) Press RESET 1
to select Reset 2
value.
4) Press RESET 2
to select Reset 3
value.
3) Press P1 to select
Reset 2 value.
4) Press P2 to select
Reset 3 value.
5) Press P3 to select
Reset 4 value.
1) START timer.
2) STOP timer.
3) Press RESET
to reset the clock
to Reset 1 value.
Timer Reset on Stop
DISABLED
1) START timer.
2) STOP timer.
3) Press RESET 1
to select Reset 1
value.
4) Press RESET 2
to select Reset 2
value.
1) START timer.
2) STOP timer.
3) Press P1 to select
Reset 1 value.
4) Press P2 to select
Reset 2 value.
5) Press P3 to select
Reset 3 value.
DaktronicsDaktronics
Timer Reset on Stop
ENABLED
RC-200
Operation
2-Button
Handheld
Pendant
Operation
3-Button
Handheld
Pendant
Operation
(All Sport
5100 Only)
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
3) Press RESET
to select Reset 2
value.
3) Press RESET 1
to select Reset 2
value.
4) Press RESET 2
to select Reset 3
value.
3) Press P1 to select
Reset 2 value.
4) Press P2 to select
Reset 3 value.
5) Press P3 to select
Reset 4 value.
1) START timer.
2) STOP timer.
3) Press RESET
to reset the clock
to Reset 1 value.
Timer Reset on Stop
DISABLED
1) START timer.
2) STOP timer.
3) Press RESET 1
to select Reset 1
value.
4) Press RESET 2
to select Reset 2
value.
1) START timer.
2) STOP timer.
3) Press P1 to select
Reset 1 value.
4) Press P2 to select
Reset 2 value.
5) Press P3 to select
Reset 3 value.
DaktronicsDaktronics
2-Button
Handheld
Pendant
Operation
Timer Reset on Stop
ENABLED
RC-200
Operation
2-Button
Handheld
Pendant
Operation
3-Button
Handheld
Pendant
Operation
(All Sport
5100 Only)
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
3) Press RESET
to select Reset 2
value.
3) Press RESET 1
to select Reset 2
value.
4) Press RESET 2
to select Reset 3
value.
3) Press P1 to select
Reset 2 value.
4) Press P2 to select
Reset 3 value.
5) Press P3 to select
Reset 4 value.
1) START timer.
2) STOP timer.
3) Press RESET
to reset the clock
to Reset 1 value.
Timer Reset on Stop
DISABLED
1) START timer.
2) STOP timer.
3) Press RESET 1
to select Reset 1
value.
4) Press RESET 2
to select Reset 2
value.
1) START timer.
2) STOP timer.
3) Press P1 to select
Reset 1 value.
4) Press P2 to select
Reset 2 value.
5) Press P3 to select
Reset 3 value.
DaktronicsDaktronics
Timer Reset on Stop
ENABLED
RC-200
Operation
2-Button
Handheld
Pendant
Operation
3-Button
Handheld
Pendant
Operation
(All Sport
5100 Only)
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
3) Press RESET
to select Reset 2
value.
3) Press RESET 1
to select Reset 2
value.
4) Press RESET 2
to select Reset 3
value.
3) Press P1 to select
Reset 2 value.
4) Press P2 to select
Reset 3 value.
5) Press P3 to select
Reset 4 value.
1) START timer.
2) STOP timer.
3) Press RESET
to reset the clock
to Reset 1 value.
Timer Reset on Stop
DISABLED
1) START timer.
2) STOP timer.
3) Press RESET 1
to select Reset 1
value.
4) Press RESET 2
to select Reset 2
value.
1) START timer.
2) STOP timer.
3) Press P1 to select
Reset 1 value.
4) Press P2 to select
Reset 2 value.
5) Press P3 to select
Reset 3 value.
DaktronicsDaktronics
3-Button
Handheld
Pendant
Operation
(All Sport
5100 Only)
Timer Reset on Stop
ENABLED
RC-200
Operation
2-Button
Handheld
Pendant
Operation
3-Button
Handheld
Pendant
Operation
(All Sport
5100 Only)
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
3) Press RESET
to select Reset 2
value.
3) Press RESET 1
to select Reset 2
value.
4) Press RESET 2
to select Reset 3
value.
3) Press P1 to select
Reset 2 value.
4) Press P2 to select
Reset 3 value.
5) Press P3 to select
Reset 4 value.
1) START timer.
2) STOP timer.
3) Press RESET
to reset the clock
to Reset 1 value.
Timer Reset on Stop
DISABLED
1) START timer.
2) STOP timer.
3) Press RESET 1
to select Reset 1
value.
4) Press RESET 2
to select Reset 2
value.
1) START timer.
2) STOP timer.
3) Press P1 to select
Reset 1 value.
4) Press P2 to select
Reset 2 value.
5) Press P3 to select
Reset 3 value.
Daktronics
Daktronics
Timer Reset on Stop
ENABLED
RC-200
Operation
2-Button
Handheld
Pendant
Operation
3-Button
Handheld
Pendant
Operation
(All Sport
5100 Only)
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
1) START timer.
2) STOP timer to
reset the clock to
Reset 1 value.
3) Press RESET
to select Reset 2
value.
3) Press RESET 1
to select Reset 2
value.
4) Press RESET 2
to select Reset 3
value.
3) Press P1 to select
Reset 2 value.
4) Press P2 to select
Reset 3 value.
5) Press P3 to select
Reset 4 value.
1) START timer.
2) STOP timer.
3) Press RESET
to reset the clock
to Reset 1 value.
Timer Reset on Stop
DISABLED
1) START timer.
2) STOP timer.
3) Press RESET 1
to select Reset 1
value.
4) Press RESET 2
to select Reset 2
value.
1) START timer.
2) STOP timer.
3) Press P1 to select
Reset 1 value.
4) Press P2 to select
Reset 2 value.
5) Press P3 to select
Reset 3 value.
Daktronics
Daktronics

Pitch Timing Operation
11
A Quick Reference
All Sport 5000 Standard Keys
Refer to Standard Keys (p�2) for detailed operating instructions.
Start/Stop Clock
• <START> and <STOP> control the function of the main clock.
• The green LED on the <START> button is illuminated when the clock is running.
Clock Direction
• <COUNT UP/DOWN> sets the direction of the main clock. The clock direction is
shown in the upper-right corner of the LCD.
• This key is disabled while the clock is running.
Set Main Clock
• Press <SET MAIN CLOCK> to edit the current main clock value.
• Enter the desired clock value on the number pad and then press <ENTER>.
• This key is disabled while the clock is running.
Edit Key
• <EDIT> is used to edit score or statistic values. Press <EDIT> followed by the desired
button to be edited. Refer to the specic sport section for all edit key functions.

Quick Reference
12
Pitch Timer
Refer to Section 2: Pitch Timing Operation (p�4) for detailed operating instructions.
Start-Up
• Turn the Power Switch ON.
• At the Resume Game? Y/N prompt, press <ENTER/YES> to resume the game
where last shut off, or press <CLEAR/NO> to enter a new sport code number.
Day Dim Level
• <DAY DIM LEVEL> sets the intensity of the scoreboard for daytime operation.
Night Dim Level
• <NIGHT DIM LEVEL> sets the intensity of the scoreboard for nighttime operation.
Preset 1-10
• <PRESET 1> to <PRESET 10> sets the timer to the selected PRESET.
Program 1-10
• <PROGRAM 1> to <PROGRAM 10> sets the timer to the rst step of the selected
PROGRAM.
Timer Adjust 1-3 (Code 5002 Only)
• <TIMER ADJUST 1> to <TIMER ADJUST 3> adds extra time to the current timer.
Start
• <START> begins the countdown of the selected PRESET or PROGRAM.
Stop
• <STOP> will suspend the countdown.
Edit Key Function
• Press <EDIT> followed by any of the following keys to edit their respective values:
<DAY DIM LEVEL>, <NIGHT DIM LEVEL>, <PRESET>, <PROGRAM>

Sport Inserts
13
B Sport Inserts
Reference Drawings:
Insert; A/S 5000, Pitch Timing ........................................................................... DWG-3000619

This page intentionally left blank.

AH
ALL SPORT 5000 SERIES CONSOLE
INSERT; A/S 5000, PITCH TIMING
KDRAGT 05 FEB 15
P1196 E 07 A
1=1
KDRAGT
3000619
01
0G-3000619 R01
01 15 JUN 15 KDD
ADDED CODE 5002 AND TIMER ADJUSTS
Other manuals for All Sport 5000
8
Table of contents
Other Daktronics Timer manuals
