dallmeier MDF5450HD-DN Quick start guide
007810 | Rev. 1.0.0 | 2019-10-30
English
MDF5450HD-DN
Commissioning
Copyright © 2019 Dallmeier electronic GmbH & Co.KG
The reproducon, distribuon and ulizaon of this document as well as the communicaon of its contents to others without express authorizaon is prohibited.
Oenders will be held liable for the payment of damages.
All rights reserved in the event of the grant of a patent, ulity model or design.
The manufacturer accepts no liability for damage to property or pecuniary damages arising due to minor defects of the product or documentaon, e.g. print or spelling errors,
and for those not caused by intenon or gross negligence of the manufacturer.
Figures in this document may dier from the actual product.
We reserve the right to make technical modicaons.
All trademarks idened by ® are registered trademarks of Dallmeier.
All trademarks idened by *) are trademarks or registered trademarks of the following owners:
Google and Google Chrome of Google Inc. headquartered in Mountain View, California, USA;
HDMI of HDMI Licensing, LLC headquartered in Sunnyvale, California, USA;
JavaScript of Oracle Corporaon (and/or its aliates) headquartered in Redwood Shores, California, USA;
microSDXC of SD-3C, LLC headquartered in North Hollywood, California, USA;
Microso, Internet Explorer, Microso Edge and Windows of Microso Corporaon headquartered in Redmond, Washington, USA;
Mozilla and Firefox of Mozilla Foundaon headquartered in Mountain View, California, USA;
Phillips of Phillips Screw Company headquartered in Burlington, Massachuses, USA.
Third-party trademarks are named for informaon purposes only.
Dallmeier respects the intellectual property of third pares and always aempts to ensure the complete idencaon of third-party trademarks and indicaon of the respecve holder of rights.
In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respecve trademark is unprotected.
This product includes soware developed by the OpenSSL Project for use in the OpenSSL Toolkit (hp://www.openssl.org) and cryptographic soware wrien by Eric Young (eay@cryptso.com).
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 3
Commissioning MDF5450HD-DN
Contents
1 Validity 4
2 Documents 4
This Document 4
Other Applicable Documents 5
3 TypographicalConvenons 6
4 SafetyInstrucons 8
5 General Notes 11
Scope of Delivery 11
Transportaon and Packaging 11
Warranty 11
Appropriate Use 12
Operaon 13
Approvals/Cercaons 13
6 Requirements 14
Ambient Condions 14
Power Supply 15
7 Maintenance,InspeconandCleaning 17
8 InstallaonandCommissioning 18
9 Interfaces 38
10 InserngaMemoryCard 40
11 Pin Assignment 42
12 Connecon,First-TimeAccessandLogin 44
13 TechnicalProductSpecicaon(BasicData) 48
14 Dimensions 52
4Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
1 Validity
This document applies to the following device:
• MDF5450HD-DN
For reasons of simplicaon, the term “device” or “camera” is used in the following.
Figures in this document may dier from the actual product.
2 Documents
The product documentaon for the device consists of various documents which are provided in printed and/or digital form, as for example via the
website www.dallmeier.com.
Read the complete product documentaon for the device carefully and thoroughly before using the device.
Always observe and follow the contained instrucons, notes and warnings as well as the technical data in the currently valid product specicaon.
Keep all documents in legible condion and in a suitable locaon for future reference.
Regularly check the website www.dallmeier.com for the latest product documentaon updates.
This Document
Commissioning
The document entled “Commissioning” (this document) contains detailed informaon concerning the installaon, connecon and commissioning of
the device as well as safety instrucons and general notes.
The target audience of this document is trained system integrators (installaon contractors of video security/surveillance systems).
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 5
Commissioning MDF5450HD-DN
Other Applicable Documents
ProductSpecicaon
The product specicaon contains detailed technical data, features and characteriscs of the device.
The target audience of the document is trained system integrators (installaon contractors of video security/surveillance systems).
Conguraon
The document entled “Conguraon” contains detailed informaon concerning the conguraon of the device.
The target audience of the document is trained system integrators (installaon contractors of video security/surveillance systems).
6Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
3 TypographicalConvenons
This document may contain various warning words and symbols that indicate potenal sources of danger:
DANGER
DANGER indicates a hazardous situaon which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situaon which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situaon which, if not avoided, could result in minor or moderate injury.
NOTICE
NOTICE addresses pracces not related to physical injury and indicates measures to prevent device and/or property damage due to
improper installaon, assembly, wiring, operaon, conguraon or maintenance of the device.
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 7
Commissioning MDF5450HD-DN
For reasons of clarity and readability, various text formang elements and types of emphasis are used in this documentaon:
Instrucons are indicated by arrows (➡).
➡Always carry out instrucons one aer the other in the sequence described.
“Expressions” in quotaon marks usually refer to individual components of the device (housing parts, mounng elements, connecons/interfaces, etc.)
or to control elements of the device’s web-based graphical user interface (menu items, buons, etc.).
Paragraphs in italics provide informaon on basic principles, special features and ecient procedure as well as general recommendaons.
8Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
4 SafetyInstrucons
Only use the device if it is in technically perfect condion, according to the intended purpose, in a safety and hazard conscious manner and in compliance
with the following safety instrucons:
• QualiedPersonnel
The assembly, installaon, connecon, commissioning and conguraon of the device may only be carried out by qualied personnel.
This also applies to the maintenance, inspecon and repair of the device in complying with the regulaons of the DIN VDE 0701-0702 series
of standards (VDE 0701-0702: “Inspecon aer repair, modicaon of electrical appliances – Periodic inspecon on electrical appliances –
General requirements for electrical safety”).
• Regulaons
The use of video and audio security/surveillance systems is, in general, strictly regulated.
Before using the device, inform yourself about the currently valid laws and regulaons regarding data, worker and environmental protecon and
ensure compliance with them.
• System Components
Only use internal components that have been tested and approved by Dallmeier.
Inappropriate internal components may cause malfuncons, damage and data loss and may result in the loss of warranty.
• ModicaonstotheDevice
Do not make any modicaons to the hardware or soware of the device that have not been tested and approved by Dallmeier.
Inappropriate modicaons may cause malfuncons, damage and data loss and may result in the loss of warranty.
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 9
Commissioning MDF5450HD-DN
• ProductDocumentaon
The product documentaon for the device consists of various documents which are provided in printed and/or digital form, as for example via the
website www.dallmeier.com.
Read the complete product documentaon for the device carefully and thoroughly before using the device. Always observe and follow the contained
instrucons, notes and warnings as well as the technical data in the currently valid product specicaon.
Keep all documents in legible condion and in a suitable locaon for future reference.
Regularly check the website www.dallmeier.com for the latest product documentaon updates.
• Condensaon
If the device is brought from a cold to a warm environment, resulng condensaon may cause malfuncons and damage. In this case, wait unl the
device has reached room temperature (up to 8 hours) before commissioning.
• Earthing&EquipotenalBonding
For the safety of persons (protecon against dangerous contact voltages) and devices (protecon against over-voltages) as well as for the immunity
of informaon and communicaon technology equipment to electromagnec interferences (EMI), all protecve measures, which are specied by the
currently applicable DIN, VDE and ISO standards and which provide for a standard-compliant grounding/earthing and a correct equipotenal bonding
of electrical and electronic devices, are mandatory and must be fullled by all means.
• LightningStorms
To avoid damage to the device by electrical surge during lightning storms, all protecve measures, which are specied by the currently applicable DIN,
VDE and ISO standards and which provide for a standard-compliant lightning protecon equipotenal bonding, are mandatory and must be fullled
by all means.
10 Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
• OperangCondions
Unfavorable operang condions may shorten the lifeme of the device, may cause malfuncons, damage and data loss and may result in the loss of
warranty.
Observe the specicaons given in the technical data, the operang condion requirements and the maintenance instrucons.
• ForeignBodiesintheDevice
If objects or liquids get into the device, immediately disconnect it from the power supply (pull out the power plug or disconnect the device from the
PoE enabled PSE port).
Contact the sales partner responsible for your area.
• BurntSmellfromtheDevice
If you noce burnt smell or a formaon of smoke coming from the device, immediately disconnect it from the power supply (pull out the power plug
or disconnect the device from the PoE enabled PSE port).
Contact the sales partner responsible for your area.
• Opening the Device
The device may only be opened by qualied personnel for commissioning, inspecon, maintenance and repair.
• Disposal of the Device
Do not dispose waste electrical and electronic equipment into the household trash.
Disconnect the device from the power supply.
Remove all connected peripherals.
Return the device to the sales partner responsible for your area.
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 11
Commissioning MDF5450HD-DN
5 General Notes
Scope of Delivery
The standard scope of delivery includes:
• 1× Hand tool for loosening and ghtening the housing ring
• 3× Mounng screw for xing the dome housing in suspended ceilings with a panel thickness of less than 9 mm or greater than 18 mm
• 1× Weidmüller plug-in connector BL 3.50/02/180 SN (female plug) for Power IN interface
• 1× Drilling template
• Product documentaon
The scope of delivery may dier depending on the ordered equipment, device variant or country of desnaon.
TransportaonandPackaging
Store the original packaging for later transportaon.
Dallmeier is not responsible for any damage resulng from unprofessional or improper transportaon.
The device should only be shipped in the original packaging.
If the original packaging is no longer available, ensure that the used packaging suciently protects the device against damage, moisture, heat and cold.
Warranty
The terms and condions valid at the me the contract was signed shall apply.
12 Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
AppropriateUse
The MDF5450HD-DN is a high-resoluon single-sensor network camera with sheye lens for detailed capturing of a 360° panoramic eld of view within
a complete half-space (hemisphere – half of a sphere).
The lens-sensor unit of the device is built into an ultra-compact dome housing, the connected encoder unit into a separate box housing.
The device is designed for indoor installaons in suspended ceilings and can be operated with Power over Ethernet (PoE, Class 0, IEEE 802.3af) or
powered by an external 24 V DC power supply unit.
NOTICE
Damagetothedeviceduetounsuitablemounnglocaon
The device is exclusively designed for indoor use.
An outdoor installaon is prohibited and may result in malfuncon, damage, data loss and loss of warranty.
➡Do not install/operate the device in outdoor environments.
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 13
Commissioning MDF5450HD-DN
Operaon
➡Observe the following notes for operang the device:
• If the device or the cables connected to the device are located near sources with strong radiaon (e.g. radio transmiers, magnec elds), the video
image may be distorted.
• The device is equipped with Automac Gain Control (AGC). In low-light condions the image may be altered (e.g. noise). This is not a malfuncon.
• The video image quality depends on the lighng condions and the used monitor.
• The accuracy of the Automac White Balance (AWB) algorithm depends on the used lighng.
Mixed light (consisng of arcial light and daylight) may cause color distorons (inaccurate color reproducon).
• Poor lighng can lead to an incorrect white balance.
Approvals/Cercaons
The following approvals/cercaons were valid for the device at the me of this document’s compilaon:
• CE, FCC, RCM, UL, DIN 50130-4 compliant
Visit www.dallmeier.com for possible updates.
Note(USA)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may
cause harmful interference to radio communicaons.
Operaon of this equipment in a residenal area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
14 Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
6 Requirements
AmbientCondions
The device is designed for indoor use.
However, the device may not be installed and operated in environments with
• a large amount of dust and dirt,
• steam or oil vapors (e.g. kitchen),
• direct sunlight,
• high heat radiaon (e.g. radiator),
• improper ambient temperatures,
• nearby strong radiaon sources (e.g. radio transmiers, magnec elds),
• corrosive gases and liquids (e.g. salt water),
• insucient air venlaon (e.g. closed cabinet).
NOTICE
Damagetothedeviceduetounfavorableambientcondions
Use of the device under unfavorable ambient condions may shorten its lifeme and may cause malfuncon or damage to the device.
➡Only install/operate the device under favorable ambient condions.
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 15
Commissioning MDF5450HD-DN
Power Supply
The device can be operated with Power over Ethernet (PoE) and is compable with all Power Sourcing Equipment (PSE) that is compliant with the
IEEE 802.3af PoE standard. Alternavely, the device can also be powered by an external 24 V DC power supply unit.
WARNING
Electricalshockcausedbyexposedelectricalpartsandduetothelackoforimpropergrounding/earthing
Risk of death or serious injury
➡The installaon of the device and the connecon of peripheral equipment may only be carried out by qualied personnel and in a
voltage-free state.
➡Before connecng or disconnecng an external DC power supply unit, make sure that the power supply unit is disconnected from the
mains socket (pull the power plug out of the socket).
➡Carry out all protecve measures for a standard-compliant grounding/earthing of the device in accordance with the currently
applicable DIN, VDE and ISO standards in order to ensure the safety of persons (protecon against dangerous contact voltages).
NOTICE
Damage to the device due to improper power supply
Damage to electronic components or serious malfuncons
➡Always ensure the correct polarity when connecng an external DC power supply unit.
➡Do not operate the device with Power over Ethernet (PoE) if the device is powered by an external DC power supply unit.
Damagetothedeviceormalfunconsduetothelackoforimpropergrounding/earthing
Damage to electronic components caused by lightning strikes and over-voltages (electrical surges) or malfuncons due to
electromagnec interferences
➡Carry out all protecve measures for a standard-compliant grounding/earthing and a correct equipotenal bonding of the device in
accordance with the currently applicable DIN, VDE and ISO standards in order to ensure the safety of the device (protecon against
over-voltages) and its immunity to electromagnec interferences (EMI).
16 Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
If you operate the device with Power over Ethernet (PoE), observe the following notes:
NOTICE
DamagetothecontactsoftheRJ45connectorsbycontacterosionwhenun-mangthejack-plugconneconunderPoEload
Un-mang the jack-plug connecon while transming PoE power causes erosion and ping by electrical arcs on both the jack and plug
contacts (especially when repeatedly un-mang the jack-plug connecon under PoE load).
Electrical arcs are generated, since the electric potenal dierence (voltage) and therefore the intensity of the electric eld between the
contacts rises sharply when un-mang the jack-plug connecon.
The more un-mang cycles are carried out under PoE load, the higher the loss of contact material due to metal evaporaon by electrical
arcs, which in turn accelerates the material erosion process on the contact surfaces.
Damaged contacts with an increased contact resistance may lead to a reduced data transfer rate, unreliable network connecvity or even
total device failure.
➡Always disable PoE on the relevant port of your PoE switch (or PoE midspan device) or disconnect the used single-port PoE injector
from the power supply before un-mang the jack-plug connecon in order to prevent damage to the contacts of the RJ45 connectors
by contact erosion.
Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com 17
Commissioning MDF5450HD-DN
7 Maintenance,InspeconandCleaning
MaintenanceandInspeconoftheDevice
Maintenance and inspecon of the device may only be carried out by qualied personnel on compliance with the regulaons of the DIN VDE 0701-0702
series of standards (VDE 0701-0702: “Inspecon aer repair, modicaon of electrical appliances – Periodic inspecon on electrical appliances –
General requirements for electrical safety”).
Cleaning the Device
If it is necessary to clean the device, observe the following notes:
NOTICE
Damagetotheoutersurfacesofthedeviceduetoimpropercleaningpracces
➡Clean the housing (outside) with a clean, so, dry and anstac cloth.
• Do not use detergents.
Damagetothelenselementduetoimpropercleaningpracces
➡Remove dust and other small parcles from the lens element with a suitable bulb blower and/or a special lens dust brush to avoid
scratching the lens.
• Do not use canned air or coon buds for cleaning the lens element.
➡To remove greasy dirt such as ngerprints, only use cleaning products (lens cleaning soluons, cleaning wipes, etc.) that are specially
designed for cleaning opcal surfaces.
• Do not use organic solvents (alcohol, benzine) for cleaning the lens element.
• Generally, be aware not to touch the lens element to avoid ngerprints.
18 Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
8 InstallaonandCommissioning
The installaon and commissioning of the device may only be carried out by qualied personnel.
To install the device, you will need dierent tools/accessories depending on the panel thickness of the suspended ceiling (see below).
Requiredtools/accessoriesforsuspendedceilingswithapanelthicknessof9 – 18 mm:
• Drilling template with marking for the intended installaon hole (Ø 70 mm)
• Electrically powered jigsaw or hand saw (e.g. drywall ulity saw) for circular cut-outs or drilling machine with hole saw (Ø 70 mm);
the used tool type must be suitable for the respecve construcon material such as plasterboard, wood, plasc, metal, etc.
• Phillips*)-head screwdriver PH1 for xing the dome housing in the ceiling panel by means of swiveling retaining wings
• 4 screws (Ø 3.5 mm; length depending on panel thickness) for xing the encoder unit on the hidden side of the ceiling panel
Requiredtools/accessoriesforsuspendedceilingswithapanelthicknessoflessthan9 mmormorethan18 mm:
• Drilling template with markings for the intended installaon hole (Ø 70 mm) and the required drill holes (Ø 5 mm) when using anchors/dowels
• Tool (e.g. center punch or awl) for marking drill hole locaons through the drilling template
• Electrically powered jigsaw or hand saw (e.g. drywall ulity saw) for circular cut-outs or drilling machine with hole saw (Ø 70 mm);
the used tool type must be suitable for the parcular construcon material such as plasterboard, wood, plasc, metal, etc.
• Three screws (Ø 3 – 4 mm) for xing the dome housing and, depending on the construcon material of the ceiling panel, suitable anchors/dowels
• Drilling machine with drill bit (Ø 5 mm) when using anchors/dowels (type of drill bit suitable for the respecve construcon material)
• 4 screws (Ø 3.5 mm; length depending on panel thickness) for xing the encoder unit on the hidden side of the ceiling panel
WARNING
Personalinjurycausedbycollapsingofthesuspendedceilingorbyfallingdevice
Risk of death or serious injury to the head
➡Before installing the device, follow the manufacturer’s instrucons regarding the maximum permissible carrying capacity of the
suspended ceiling or ceiling panel.
➡Only use screws and, if necessary, anchors/dowels that are suitable for the construcon material and thickness of the ceiling panel.
20 Rev. 1.0.0 | © 2019 Dallmeier | www.dallmeier.com
MDF5450HD-DN Commissioning
➡At the intended camera posion, cut a circular hole with a diameterofexactly70 mm into the ceiling panel using a suitable tool (e.g. a drilling
machine with hole saw or a drywall ulity saw).
When using an electrically powered jigsaw or a hand saw, you should rst draw a circle line with a radiusof35 mm around the center point to
ensure the specied diameter and roundness of the installaon hole.
If necessary, use the drilling template provided.
A-❶
Ø70 mm
The drilling/cung entry point should
always be on the later visible side of the
ceiling panel.
Panelthicknesst=9 – 18 mm
Table of contents
Other dallmeier Digital Camera manuals
dallmeier
dallmeier MDF3000A-CS Operating and maintenance instructions
dallmeier

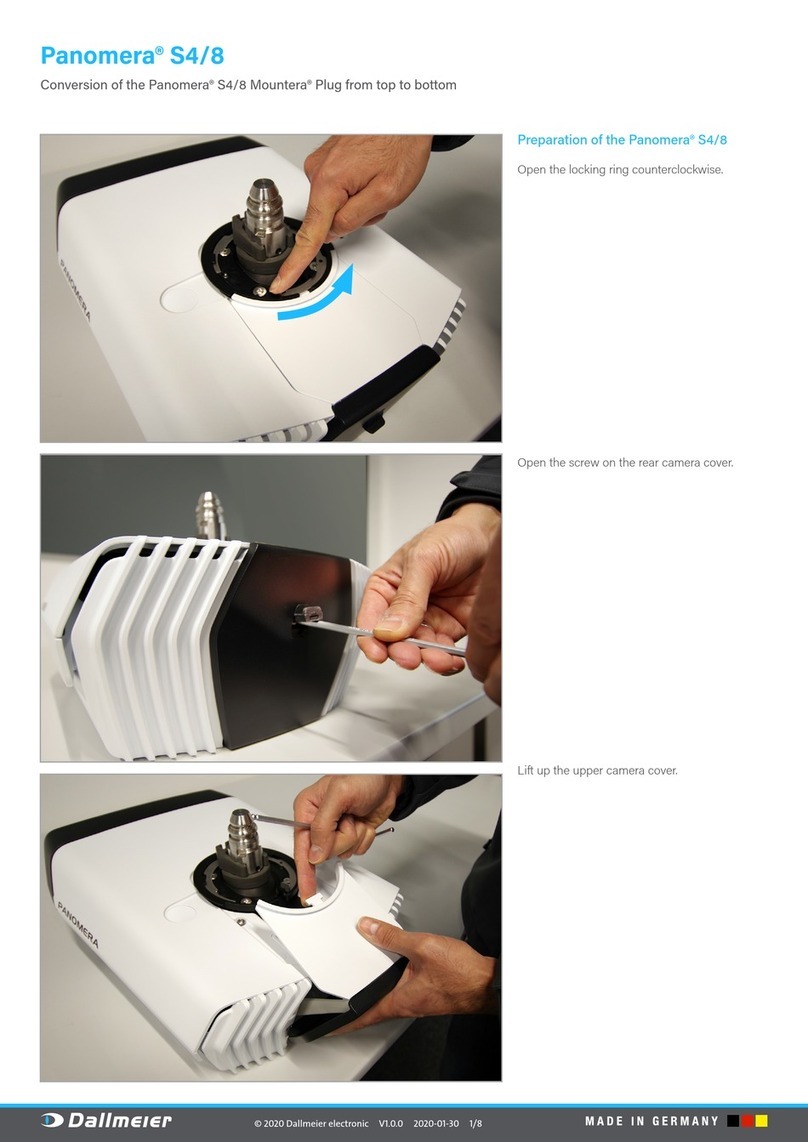

dallmeier Panomera S4/8 User manual
dallmeier
dallmeier Panomera W Series Guide
dallmeier
dallmeier Domera DDZ3018-IM/HS Operating and maintenance instructions
dallmeier
dallmeier DDF3000A Operating and maintenance instructions
dallmeier
dallmeier SDF6000DN Series User manual
dallmeier

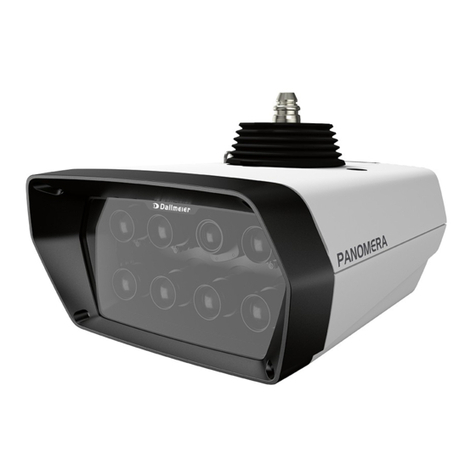

dallmeier Panomera S Series User manual
dallmeier

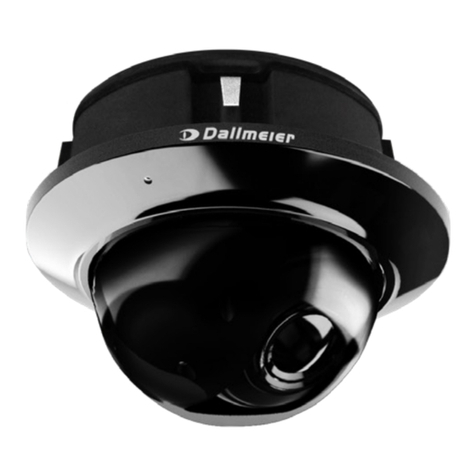

dallmeier RDF5000 Series User manual
